ASTRAPROF1200IP

Astra Profile1200IP

NEW

Order Code: ASTRAPROF1200IP

Source
1'400W White LED (driven @1'200W)
Zoom range
5,4° - 51° motorised linear zoom
IP rating
 IP65 for temporary outdoor use (*)
Weight
55kg / 121.25lbs

Key Features

  • 1200W White LED source 7000K, 54.000 lumen output
  • 185 mm front lens with a 5°-50° zoom
  • CMY+CTO Color mixing, one color wheel, 2 rotating gobo wheels, 4 framing shutters, 1 animation wheel, 2 frost, 2 prisms, iris
  • IP65 ratio

The Astra Profile1200IP is an advanced, large format IP65 LED moving profile, engineered to be bright and offer robust performance under any indoor and outdoor conditions.

This unit boasts a stunning 54.000 lumen (fixture output with goniometer), ensuring exceptional brightness.

The large 185mm front lens projects a full and consistent beam of light, adjustable from 5° to 50° via its motorized zoom system and precision internal optics being an ideal for use as key light.

The Astra Profile1200IP's comprehensive features include linear CMY+CTO color mixing and a dedicated color wheel, dual rotating gobo wheels and a 4-layer framing shutter system on individual planes and capable of producing a curtain effect. Additionally the effect section includes an animation wheel, dual frost filters, dual prism, and a motorized iris, enhancing its flexibility and creative potential.

For seamless integration and user convenience, the Astra Profile1200IP is equipped with CRMX wireless connectivity and supports multiple ethernet protocols, making it a versatile and user-friendly choice for various settings.

Read less
The Astra Profile1200IP is an advanced, large format IP65 LED moving profile, engineered to be bright and offer robust performance under any indoor and outdoor conditions. This unit boasts a stunning ...

Product Video

Discover the Astra Profile1200IP in action

Photo Gallery

ASTRAPROF1200IP
ASTRAPROF1200IP
ASTRAPROF1200IP
ASTRAPROF1200IP

Specifications

LIGHT SOURCE
  • Source: 1'400W White LED (driven @1'200W)
  • CCT: 7.000K
  • Luminous flux: (5,4°) 21'906 lm - (50,9°) 54'599 lm @Full
  • Lux: (5,4°) 125'003 lx (50,9°) 4'008lx @5 m full
  • CRI: > 70 (CRI > 90 with High CRI filter on color wheel)
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom range: 5,4° - 51° motorised linear zoom
  • Lens diameter: 185mm / 7.28''
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: motorised
COLOUR SYSTEM
  • Colour mixing: linear CMY
  • CCT: linear CTO correction 2.700 K ~ 7.000 K
  • Colour wheel: open + High CRI filter + 5 colour filters
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
  • Animation wheel: animation wheel with CW and CCW rotation
  • Rotating gobos: 6 rotating gobos + open, interchangeable, indexing
  • Gobo size: preliminary data: outer: 30 mm - image: 25 mm - thickness: 1,1 mm
  • Rotating gobos: 6 rotating gobos + open, interchangeable, indexing
  • Gobo size: preliminary data: outer: 30 mm - image: 25 mm - thickness: 1,1 mm
  • FX generator: prisms overlap for spectacular aerial effects
  • Circular prism: 4f with bi-directional rotation, indexing
  • Linear prism: 6f with bi-directional rotation, indexing
  • Frost: dual frost filter, soft-edge and heavy (one interchangeable)
  • Iris: 5 - 100% motorised iris
BODY
  • Hardware on-board: ancor points on the front for accessory mounting
  • Pan range: 540°
  • Tilt range: 270°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: weatherproof IP65 construction
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, ArtNet, sACN, CRMX
  • DMX channels: 45channel
  • Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included) or via USB pen drive
  • EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered.
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 50.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 1843W
  • Standby power: 170 W
  • Output (at 230V): 1 units on a single power line
  • Power factor: > 0,96
PHYSICAL
  • IP rating: IP65 for temporary outdoor use (*)
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Pan / tilt lock: for transportation and maintenance
  • Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
  • Data connection: IP65 Art-Net RJ45 IN/OUT
  • Power connection: Seetronic powerCON TRUE IP65 IN
  • Dimensions (WxHxD): 490x877x310mm / 19.29''x34.53''x12.2''
  • Weight: 55kg / 121.25lbs
(*)
  • NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM
BOX CONTENT
  • 1 x ASTRAPROF1200IP
  • 2 x OSIP30PLUS
  • 1 x Antenna
  • 1 x 1,5 meters 3G2,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
  • User Manual

Accessories & Related Products

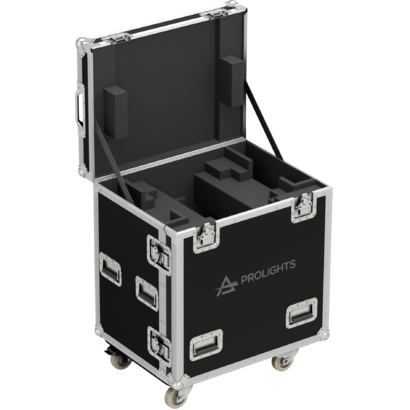

Optional FCLASTRAP1200IP

Flight case for 1 pc of ASTRAPROF1200IP

Order Code: FCLASTRAP1200IP

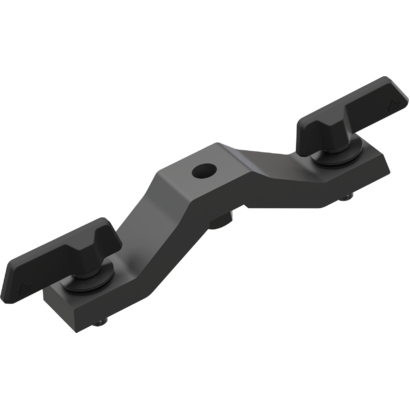

Included OSIP30PLUS
