APIX6T
PROLIGHTS


AlphaPix 6T

ORDER CODE: APIX6T

6.6 mm pixel pitch outdoor rental LED screen

In this fast-paced market, the AlphaPix 6T Touring family consistently keep ahead of the game by delivering top quality images with the latest high-resolution temporary outdoor LED display. The AlphaPix 6T uses high-brightness, black-faced, square LEDs with UV coatings in a robust and lightweight die-cast aluminium housing. The frame and fast interlocking system creates a seamless image with minimal setup time. To deliver the perfect image, the AlphaPix 6T series features a high refresh-rate, advancedĀ greyscale properties and automatic image correction along with a 140Ā° viewing angle.

Main features:

  • Outdoor (IP65/IP54) die-cast aluminium housing for temporary outdoor installation.
  • Gapless panel joins for seamless image
  • High-brightness square LEDs with UV coating
  • Flicker-free on camera
  • High-performance video reproduction at every level of brightness
  • 140Ā° viewing angle
  • CE and EMC certified by TUV
See variants CONFIGURATOR

PHOTO GALLERY

AlphaPix 6T
AlphaPix 6T
AlphaPix 6T
AlphaPix 6T

Technical specifications

VIDEO
  • LED source: SMD 3535 high-power FC black face
  • Pixel pitch: 6.6mm / 0.26''
  • Panel resolution: 96x108pixels
  • Module resolution: 48x36pixels
  • Luminous flux: 5.500nit
  • Grayscale: 16 bit
  • Refresh rate ā‰„: 1.920Hz
  • Drive Mode: 1/6 scan, constant current
  • Vertical viewing angle: 70Ā°
  • Horizontal viewing angle: 140Ā°
  • LED density: 22.500LED/sqm
  • Dead Pixel Ratio: <0,002
  • LED avg life span: 100.000
ELECTRICAL
  • Power input/output: Seetronic powerCON
  • Power supply: AC 110/230 V 50/60 Hz
  • Max power consumption (panel): 415W
  • Avg power consumption (panel): 139W
  • Max power consumption (sqm): 900W
  • Avg power consumption (sqm): 300W
  • Standby power consumption (pannello): 22,5W
  • Max rated current/panel:: AC 220 V / 1,88 A
  • Max power output: 3modules
  • Working temperature: -10 ~ +40Ā°C
  • Working humidity: 10-90%
CONTROL
  • Control protocol: Novastar
  • Signal input: waterproof Seetronic RJ45
  • Signal output: waterproof Seetronic RJ45
MECHANICS
  • Module size (WxH): 320x240mm / 12.6''x9.45''
  • Panel size(WxHxD): 640x720x100mm / 25.2''x28.35''x3.94''
  • Vertical hanging system: built-in aliscaf clamp support
  • Cooling: forced air with low noise fan, user-definable levels
  • Connection: seamless locking system
  • Body: die-cast aluminium housing
  • Color: black
  • IP rating: IP65 / IP54
  • Panel weight: 13,5kg / 29.76lbs
  • Weight per square meter: 30kg / 66.14lbs
  • Hanging Panel Quantity ā‰¤: 15
  • CompliantĀ Standard: CE

Versions

Accessories & Related Products

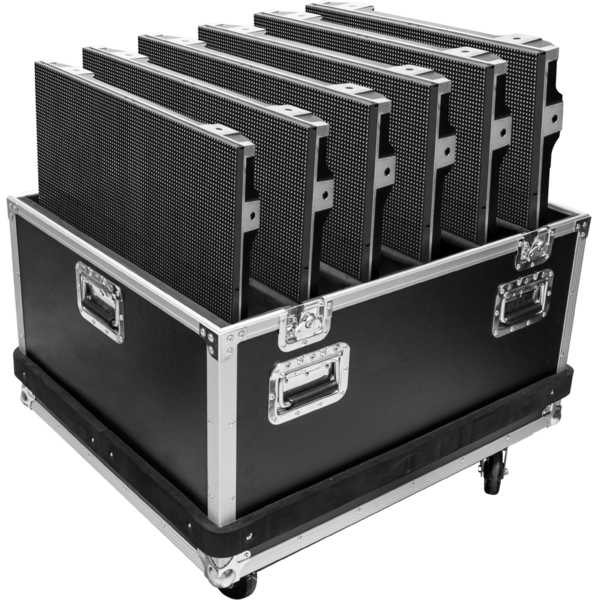

AP6T6CASE
AP6T6CASE
(optional)
Flightcase for 6 pcs ALPHAPIX6T LED display, 745x982x895 mm

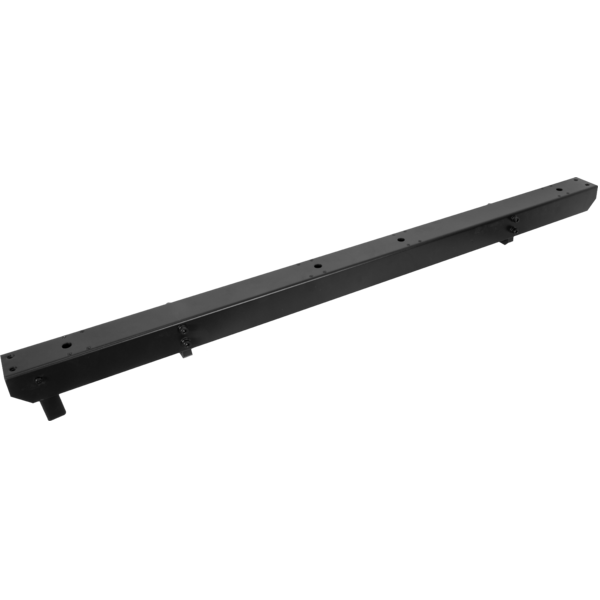

AP6TH2B1
AP6TH2B1
(optional)
FlyBar for ALPHAPIX6T hanging systems, 1 column
AP6TH2B2
AP6TH2B2
(optional)
FlyBar for ALPHAPIX6T hanging systems, 2 columns

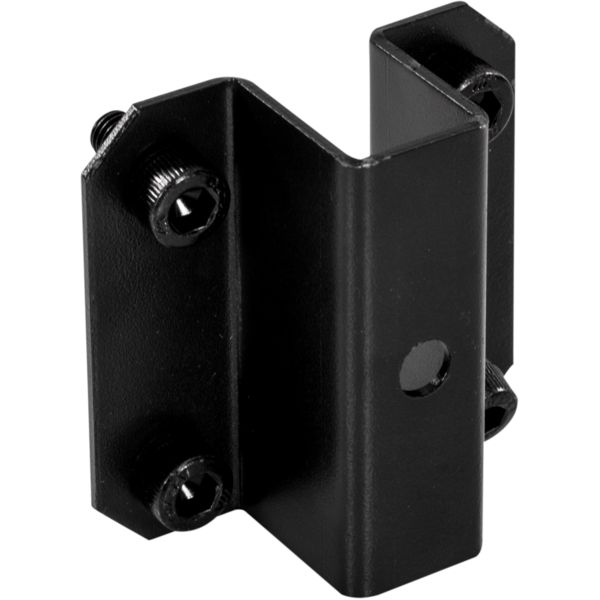

AP6TXJ
AP6TXJ
(optional)
Metal junction bracket used to connect 4 APIX6T modules, hole for clamp

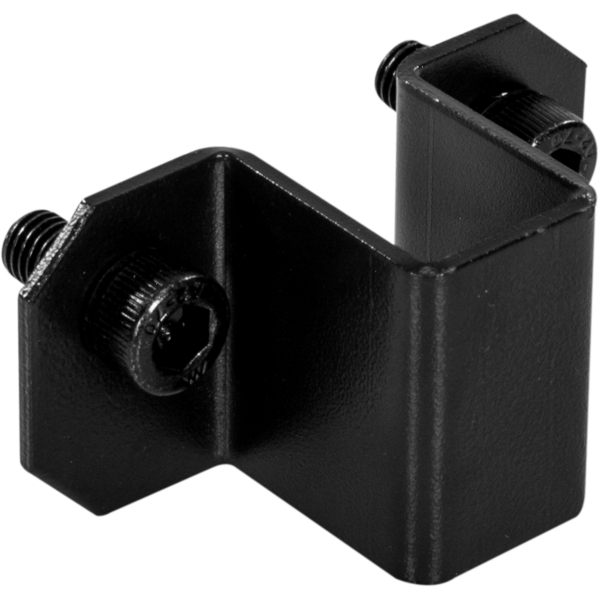

AP6TIJ
AP6TIJ
(optional)
Metal junction bracket used to connect 2 APIX6T modules
APRD
APRD
(optional)
Steel security cable for APIX hanging systems, L. 200 cm

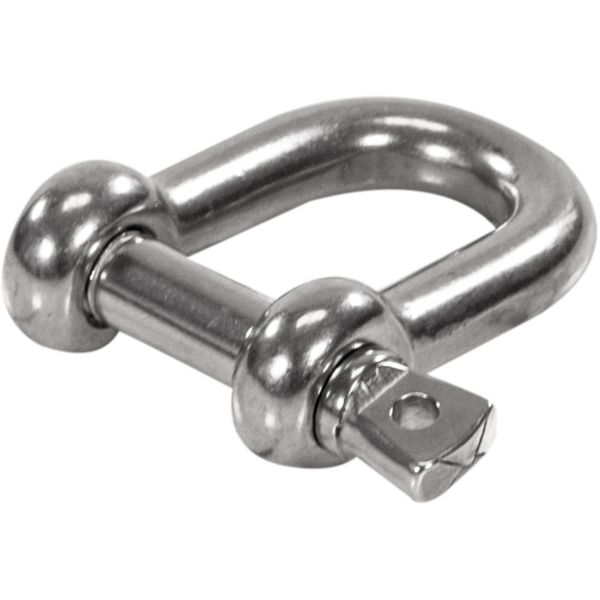

APOS
APOS
(optional)
Shackle for APIX hanging systems, max load 200 kg

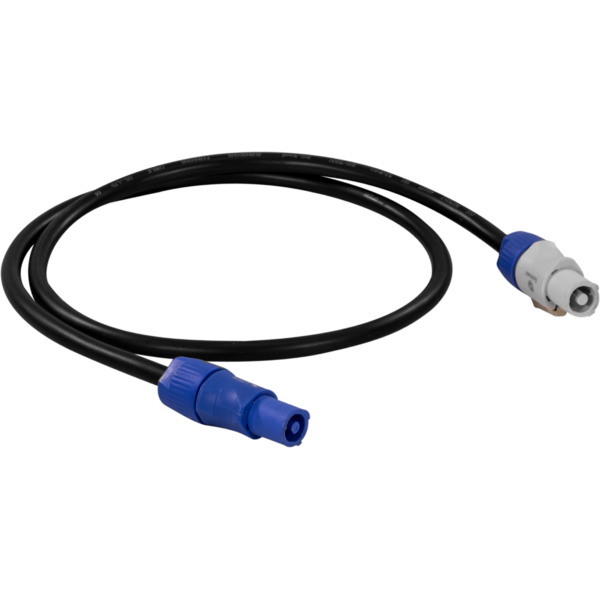

AP6TACL01
AP6TACL01
(optional)
Power cable for APIX6T, APIX4T, L.125 cm

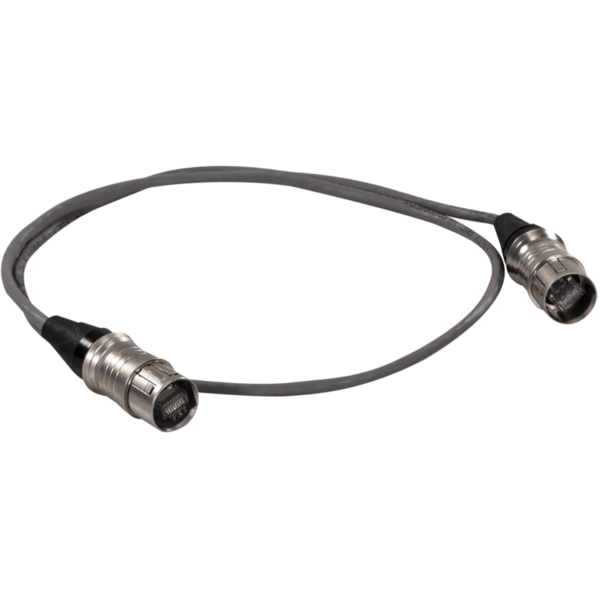

AP6TDCL01
AP6TDCL01
(optional)
Data cable for APIX6T, APIX4T, assembled with RJ45, L.100 cm

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Apix6t_A4_DATASHEET_(EN).pdf 1MB
Letter datasheet Apix6t_A4_DATASHEET_(IT).pdf 1MB

User manual

DMX chart & personalities

File name File size Download
VectorWorks PROLIGHTS_VIDEO_VECTORWORKS_23_LIBRARY.vwx 7MB
VectorWorks PROLIGHTS_VIDEO_VECTORWORKS_18_LIBRARY.vwx 11MB

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2D Apix6t_2D.dwg 2MB
Technical drawing Apix6t_TECHNICAL_DRAWING.pdf 432KB

Tech docs

File name File size Download

Software

Firmware

Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0 STABLE 18/06/2018
