EclFresnel

LED Fresnel with HB white source, to replace 1.000W lamp

EclFresnel is the LED replacement for a standard tungsten 1.000W Fresnel. Featuring the output characteristics of a traditional Fresnel but with beam control, functional barn doors and a powerful source that focuses on outstanding colour rendition. The EclFresnel adds all the advantages of LED to the Fresnel.

Main features:

  • TU (3.200 K) and DY (5.600 K) versions available both with HD dimming
  • Fresnel lens with 17° to 66° zoom range
  • Silent operation for studio and stage use
See variants

PHOTO GALLERY

EclFresnel
EclFresnel
EclFresnel
EclFresnel
EclFresnel
EclFresnel
EclFresnel
EclFresnel
EclFresnel
EclFresnel
EclFresnel
EclFresnel
EclFresnel
EclFresnel

Technical specifications

LIGHT SOURCE
  • Source: 230W high-power white LED
  • CCT: (TU) 3.200 K - (DY) 5.600
  • Luminous flux: (TU) (17°) 10'842 lm (66°) 13'320 @full
  • Luminous flux: (DY) (17°) 12'546 lm (66°) 15'623 lm @full
  • Lux: (TU) (17°) 3'728 lx - (66°) 1'019lx @5 m full
  • Lux: (DY) (17°) 4'260 lx - (66°) 1'182lx @5 m full
  • CRI: (TU) >98 - (DY) >95
  • R9: (TU) >90 - (DY) >90
  • TLCI: (TU) >98; (DY) >95
  • TM30 Rf: (TU) >92; (DY) >89
  • TM30 Rg: (TU) >99; (DY) >98
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom: 17° - 66° manual
  • Lens diameter: 8'' - 200mm / 0.31''
  • Lens type: fresnel zoom lens
  • Other: barndoor and gel frame included
COLOUR SYSTEM
  • Colour mixing: white
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer
  • Manual mode: manual adjust of dimmer throught menu and knob
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: included filter frame, 8 doors barndoor, spigot
  • Pan angle: (for pole operated version) 360° with manual regulation
  • Tilt angle: (for pole operated version) 340° with manual regulation
  • Body: sturdy die-cast aluminium body
  • Body colour: black, white finishing available
  • Other: Spigot 28 mm
CONTROL
  • Protocols: DMX512, RDM, rotatory knob
  • DMX channels: ch1: 1 / 2 - ch2: 2 / 3 / 5channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
  • Other: 16bit control of dimmer
ELECTRONICS
  • Dimmer: linear 0 ~ 100%, manual knob dimmer
  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 220W
  • Output (at 230V): 10 units on a single power line
  • Power factor: 0,95
  • Inrush current: 110VAC/19.0A, 230VAC/32.4A
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 283x440x343mm / 11.14''x17.32''x13.5''
  • Dimensions with PO system (WxHxD): 341x545x343mm / 13.43''x21.46''x13.5''
  • Weight: 7,5kg / 16.53lbs
  • Weight with PO system: 9,7kg / 21.38lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
CCT
CRI
R9
Lumen
Finishing
ECLFRESNELTU
ECLFRESNELTU
3.200 K
98
90
13'320 lm
Black
ECLFRESNELDY
ECLFRESNELDY
5.600 K
95
90
15'623 lm
Black
ECLFRESNELPTU
ECLFRESNELPTU
3.200 K
98
90
13'320 lm
Black
ECLFRESNELPDY
ECLFRESNELPDY
5.600 K
95
90
15'623 lm
Black
ECLFRESNELTUWH
ECLFRESNELTUWH
3.200 K
98
90
13'320 lm
White
ECLFRESNELDYWH
ECLFRESNELDYWH
5.600 K
95
90
15'623 lm
White

Accessories & Related Products

9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
C6040B
C6040B
(optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
ECLFRSPG
ECLFRSPG
(included)
Spigot for PROLIGHTS fixtures

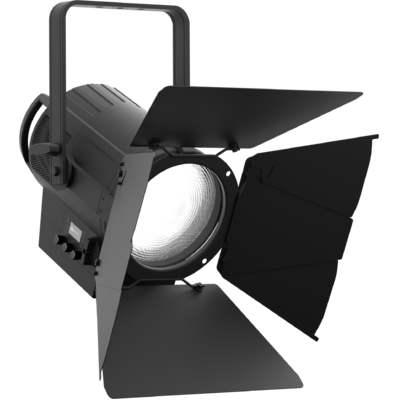

ECLFRSBD
ECLFRSBD
(included)
Barn door with directional flaps to adjust the light beam

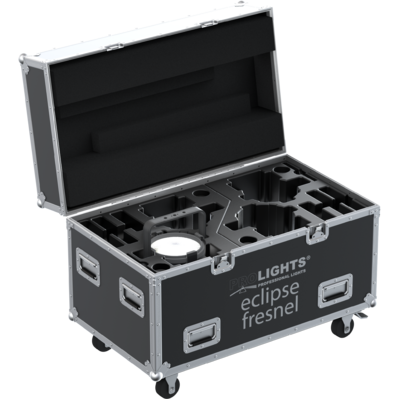

FCLECLFRS
FCLECLFRS
(optional)
Flight case for 4x ECLFRESNEL

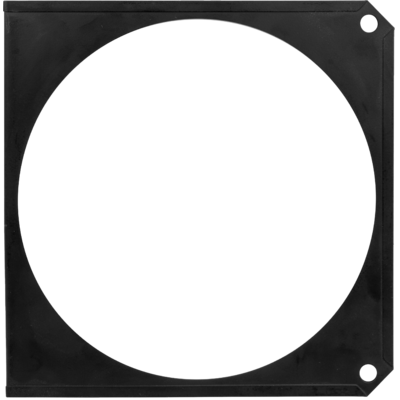

ECLFRSTPG
ECLFRSTPG
(included)
Filter frame for ECLFRESNEL series

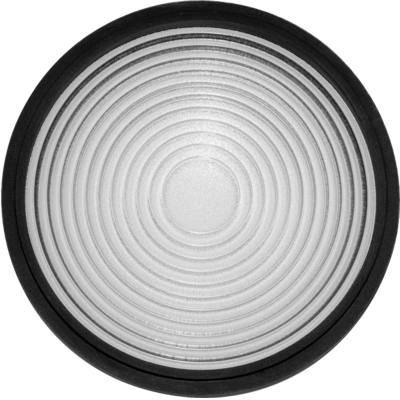

ECLFRSNL
ECLFRSNL
(optional)
Narrow angle lens for ECLFRESNEL TU and DY fresnel projectors
EFSBUFDS
EFSBUFDS
(optional)
SNAPBAG - Universal SMALL DEEPER for BARNDOORS
SPGM10
SPGM10
(optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(optional)
28mm spigot for fixtures, M12 bolt
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Eclfresnel_A4_DATASHEET_(EN).pdf 512KB
Letter datasheet Eclfresnel_A4_DATASHEET_(IT).pdf 466KB
Tender Specification Eclfresneltu_TENDER_SPECIFICATION.pdf 3MB
Tender Specification Eclfresneldy_TENDER_SPECIFICATION.pdf 3MB

User manual

File name File size Download
User manual GENERAL_SAFETY_INFORMATION.pdf 12MB
User manual Eclfresnel_USER_MANUAL_EN.pdf 5MB

DMX chart & personalities

File name File size Download
DMX chart Eclfresnel_DMX_CHARTS.pdf 76KB
VectorWorks PROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx 310MB
VectorWorks PROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx 310MB
VectorWorks VECTORWORKS_SYMBOLS.vwx 666KB
VectorWorks VECTORWORKS_SYMBOLS.vwx 681KB
VectorWorks VECTORWORKS_SYMBOLS.vwx 684KB
VectorWorks VECTORWORKS_SYMBOLS.vwx 688KB
VectorWorks VECTORWORKS_SYMBOLS.vwx 1MB
VectorWorks VECTORWORKS_SYMBOLS.vwx 1MB
VectorWorks PROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx 478MB
VectorWorks PROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx 478MB
ECLFRESNELTU Firmware rev. 1.5
manufacturer fixture library (Link) Link
prolights_eclipsefresneltu.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@eclipsefresneltu@1ch.xmlDownload
prolights@eclipsefresneltu@3ch.xmlDownload
ECLFRESNELDY Firmware rev. 1.5
manufacturer fixture library (Link) Link
prolights_eclipsefresneldy.d4Download
manufacturer fixture library (Link) Link
prolights_eclipsefresdy_1ch.hedDownload
prolights_eclipsefresdy_2ch1.hedDownload
prolights_eclipsefresdy_2ch2.hedDownload
prolights_eclipsefresdy_3ch.hedDownload
prolights_eclipsefresdy_5ch.hedDownload
manufacturer fixture library (Link) Link
ECLFRESNELPTU Firmware rev. 1.4
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@eclipsefresneltu@1ch.xmlDownload
prolights@eclipsefresneltu@3ch.xmlDownload
ECLFRESNELPDY Firmware rev. 1.5
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
ECLFRESNELPDY Firmware rev. 1.4
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
ECLFRESNELTUWH Firmware rev. 1.4
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@eclipsefresneltu@1ch.xmlDownload
prolights@eclipsefresneltu@3ch.xmlDownload

Photometrics

CAD symbols & drawings

File name File size Download
3D revit ECLFRESNEL_3D_REVIT.zip 1MB
3D sketchup ECLFRESNEL_3D_SKETCHUP.zip 3MB
2D cad symbols ECLFRESNEL_2DSYMBOLS.zip 207KB
3D ECLFRESNEL_3D.zip 2MB
2D ECLFRESNEL_2D.zip 10MB
Technical drawing ECLFRESNEL_TECHNICAL DRAWINGS.zip 869KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.5 STABLE 03/07/2021 Added OFF and SILENT fan modes.
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.5 STABLE 03/07/2021 Added OFF and SILENT fan modes.
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 04/12/2018 10 second default display backlight Rev. 1
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.5 STABLE 03/07/2021 Added OFF and SILENT fan modes.
1.4 STABLE 04/12/2018 10 second default display backlight Rev. 1.0
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.5 STABLE 03/07/2021 Added OFF and SILENT fan modes.
1.4 STABLE 04/12/2018 10 second default display backlight Rev. 1.0
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 04/12/2018 10 second default display backlight Rev. 1.0

Info Request

News

24 April 2024
PROLIGHTS introduces AetherBox LITE
PROLIGHTS introduces AetherBox LITE
PROLIGHTS introduces the AetherBox LITE , a single-universe Wireless CRMX Transceiver designed to enhance lighting control in professional...
22 April 2024
PROLIGHTS products lights up the Nacht der Werbung event in Salzburg
PROLIGHTS products lights up the Nacht der Werbung event in Salzburg
PROLIGHTS' lighting solutions lit up the "Nacht der Werbung" event in Salzburg, hosted at the Mozarteum, where the Salzburg State Prize...
19 April 2024
PROLIGHTS Shines at the Mercedes-Benz AMG GT Launch in Poland
PROLIGHTS Shines at the Mercedes-Benz AMG GT Launch in Poland
Duda-Cars, in collaboration with event specialists Kukoni, unveiled the new Mercedes-Benz AMG GT in Poland, a dazzling event illuminated...
16 April 2024
The Astra Profile600IP Lights Illuminate St. Anton's Slopes
The Astra Profile600IP Lights Illuminate St. Anton's Slopes
In St.Anton, Austria, the ski season is transformed into a vivid spectacle of lights, thanks to the Astra Profile600IP . The event,...
09 April 2024
The Astra Wash19Pix Lights Up the Australian Chinese New Year Gala
The Astra Wash19Pix Lights Up the Australian Chinese New Year Gala
The  Astra Wash19Pix by PROLIGHTS illuminated the annual Chinese New Year Gala in Australia for 2024, held at the Adelaide Entertainment...
05 April 2024
PROLIGHTS fixtures light up Madame Tussauds museum in Budapest
PROLIGHTS fixtures light up Madame Tussauds museum in Budapest
PROLIGHTS products have lit up the new Madame Tussauds museum in Budapest. The project was followed by the system integrator company...
03 April 2024
PROLIGHTS Introduces High-Definition Optics for Enhanced Projection Quality
PROLIGHTS Introduces High-Definition Optics for Enhanced Projection Quality
PROLIGHTS announces the launch of the High Definition Optics for the Ecl Display series. Engineered to redefine projection quality,...
29 March 2024
PROLIGHTS Smart BatPlus at Buckingham Palace
PROLIGHTS Smart BatPlus at Buckingham Palace
PROLIGHTS Smart BatPlus , provided by Luminosity Lighting Services Ltd, illuminated the Blue Room and Music Room of Buckingham Palace...
26 March 2024
PROLIGHTS expands the EclDisplay range with the new EclDisplay CAS featuring integrated Casambi control
PROLIGHTS expands the EclDisplay range with the new EclDisplay CAS featuring integrated Casambi control
PROLIGHTS is thrilled to announce the introduction of the EclDisplay CAS , the latest addition to the EclDisplay projector range for...
22 March 2024
PROLIGHTS EclPar IPMFC impress at RESOLUTION X
PROLIGHTS EclPar IPMFC impress at RESOLUTION X
When Resolution X saw the PROLIGHTS EclPar IPMFC multipurpose LED fixture, they knew it was the perfect fit for a special long-term...
19 March 2024
PROLIGHTS illuminates ERT 3 studios
PROLIGHTS illuminates ERT 3 studios
The ERT 3 studios have upgraded their lighting system by introducing the EclPanel TWC and EclFresnel CT+M by PROLIGHTS into their inventory....
12 March 2024
PROLIGHTS products Illuminate Swan Park Theatre
PROLIGHTS products Illuminate Swan Park Theatre
Swan Park Theatre, a cornerstone of the arts within the City of Swan, has experienced a transformative upgrade in its lighting setup,...
Subscribe to our Newsletter
Follow us, stay connected facebook instagram youtube twitter tiktok linkedin
Loading...
