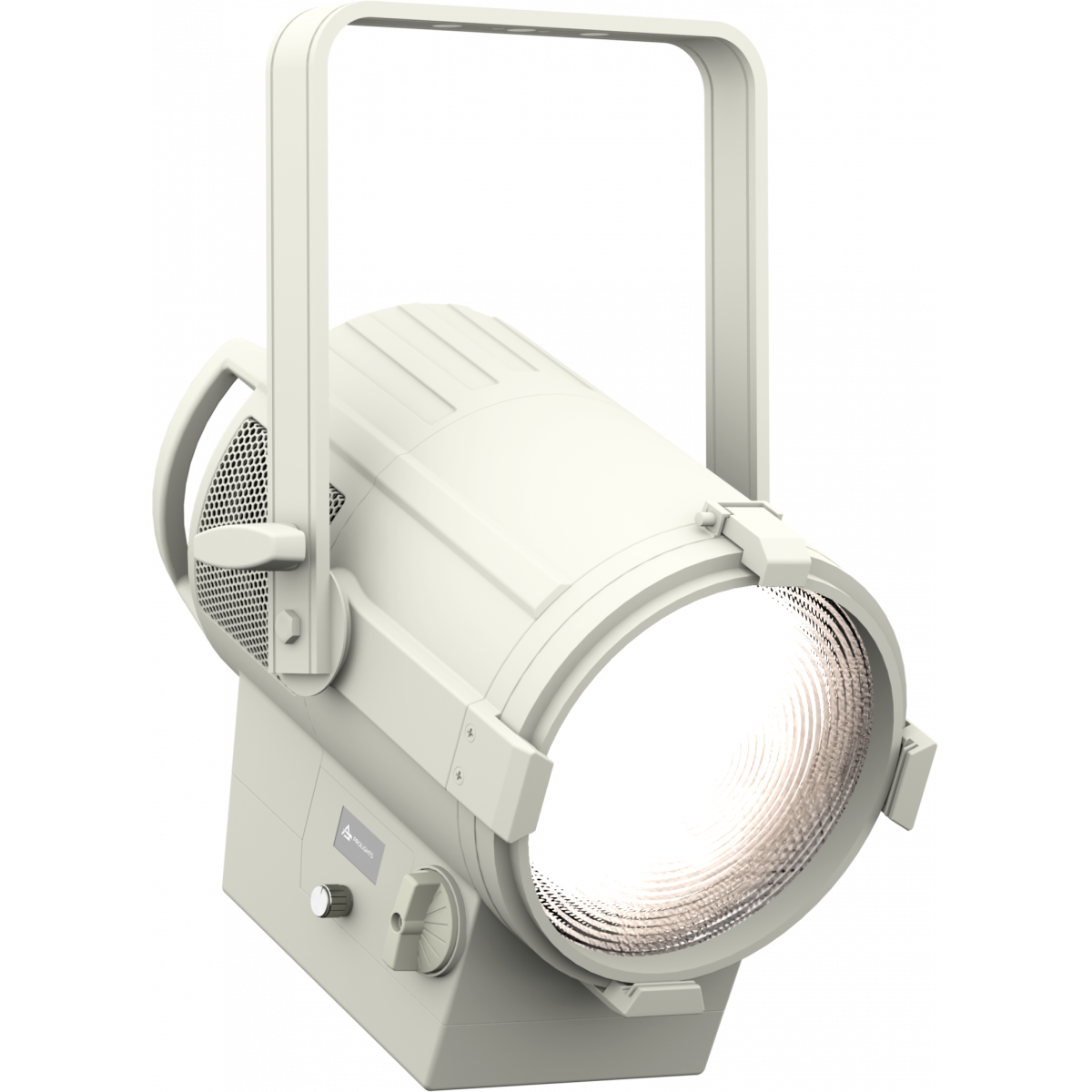

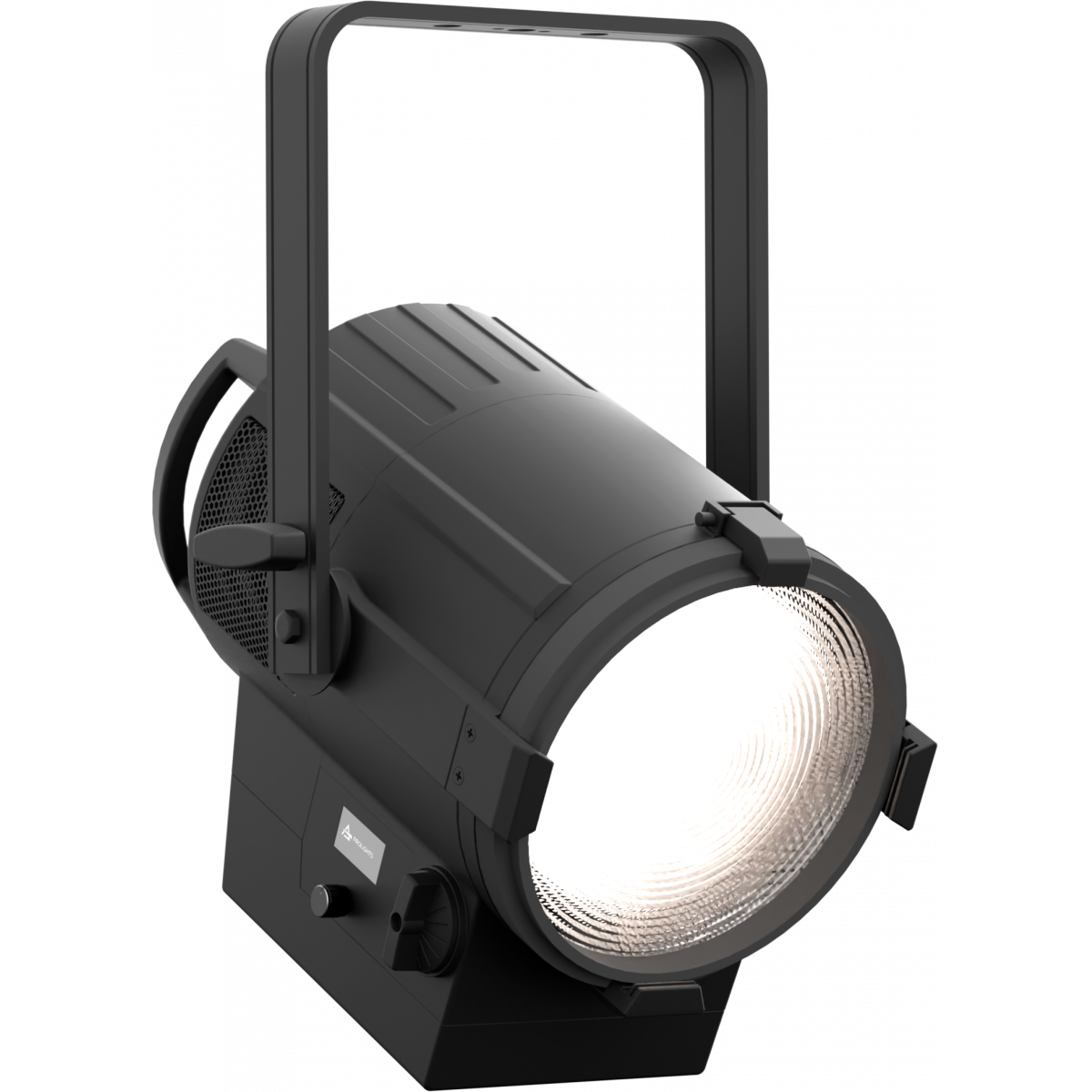

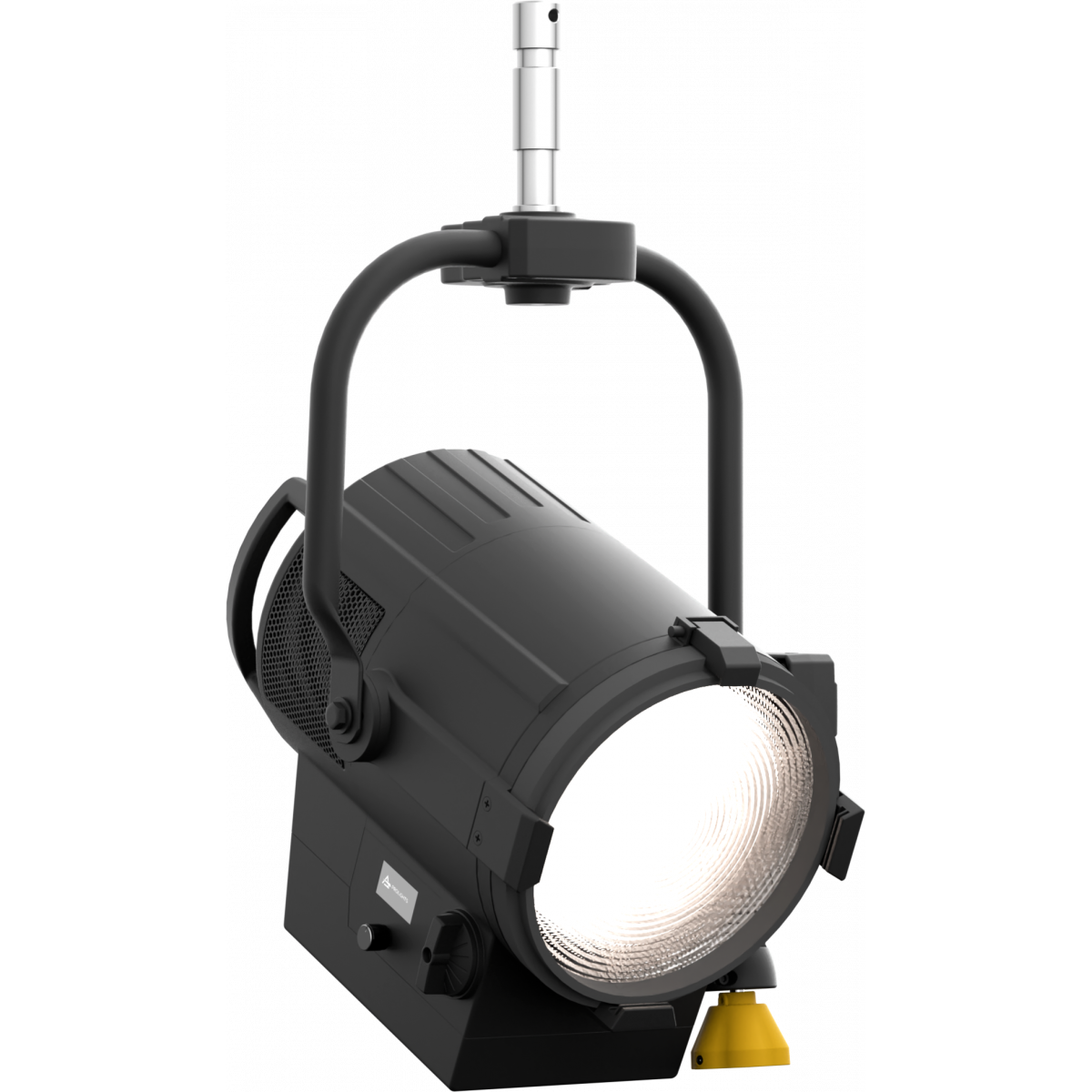

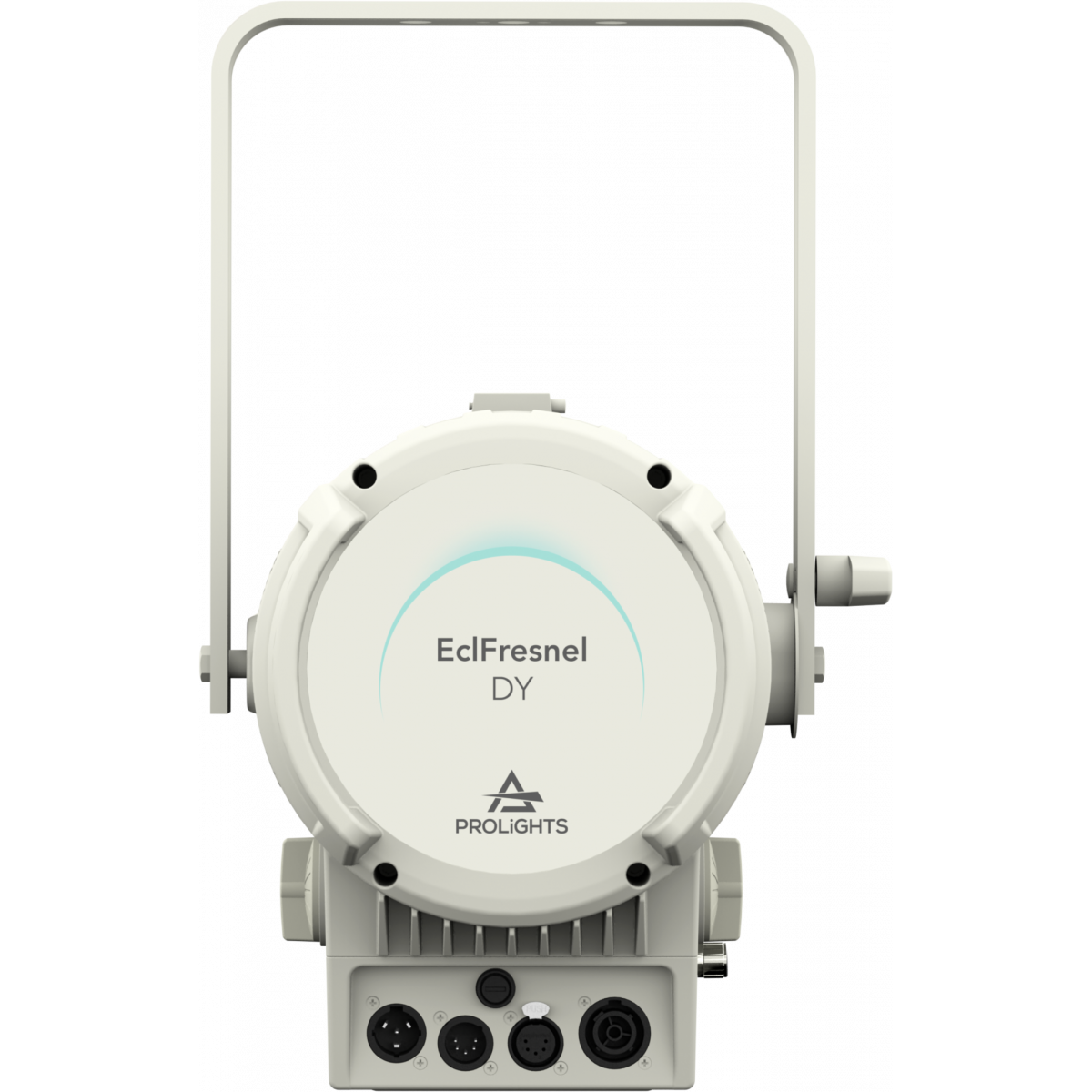

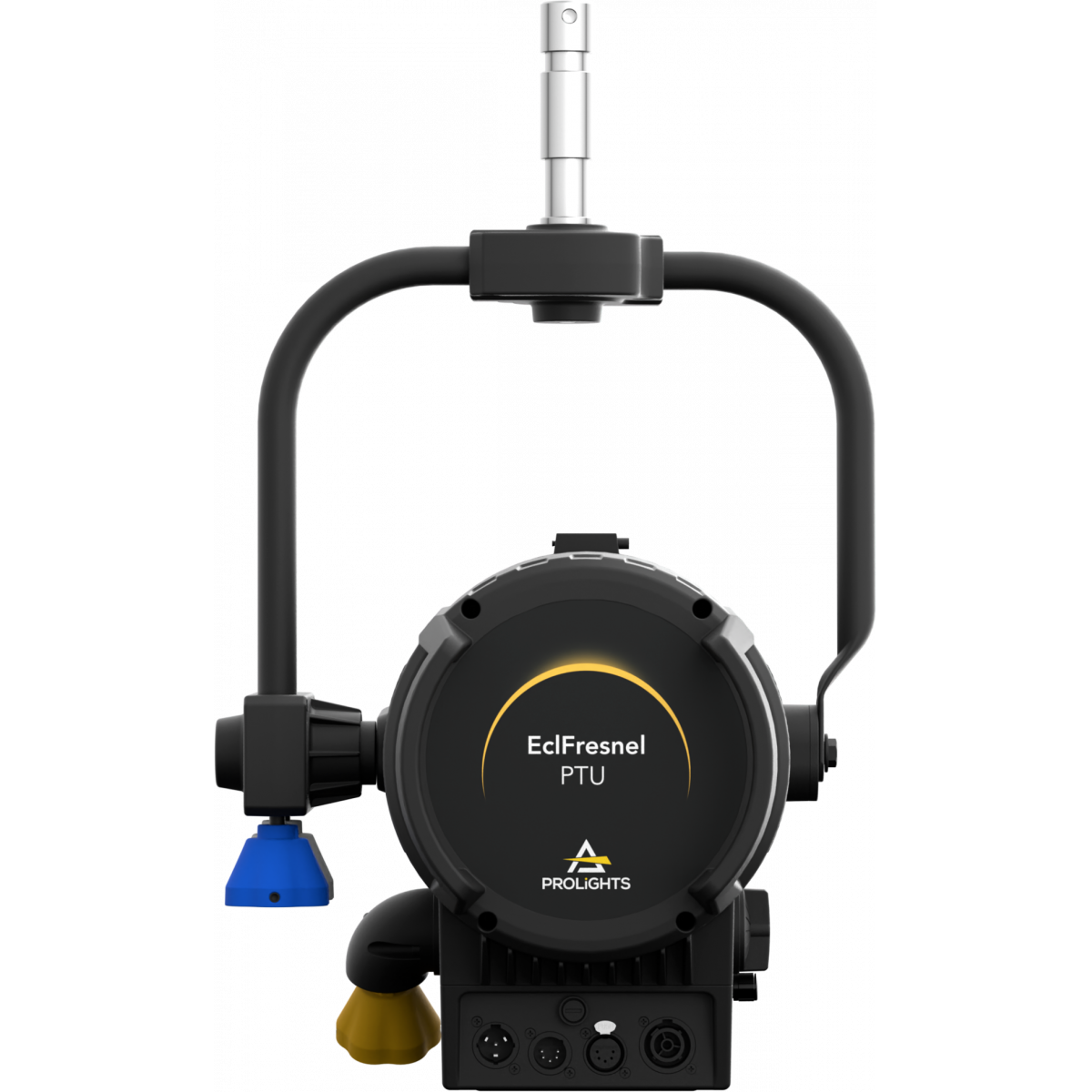

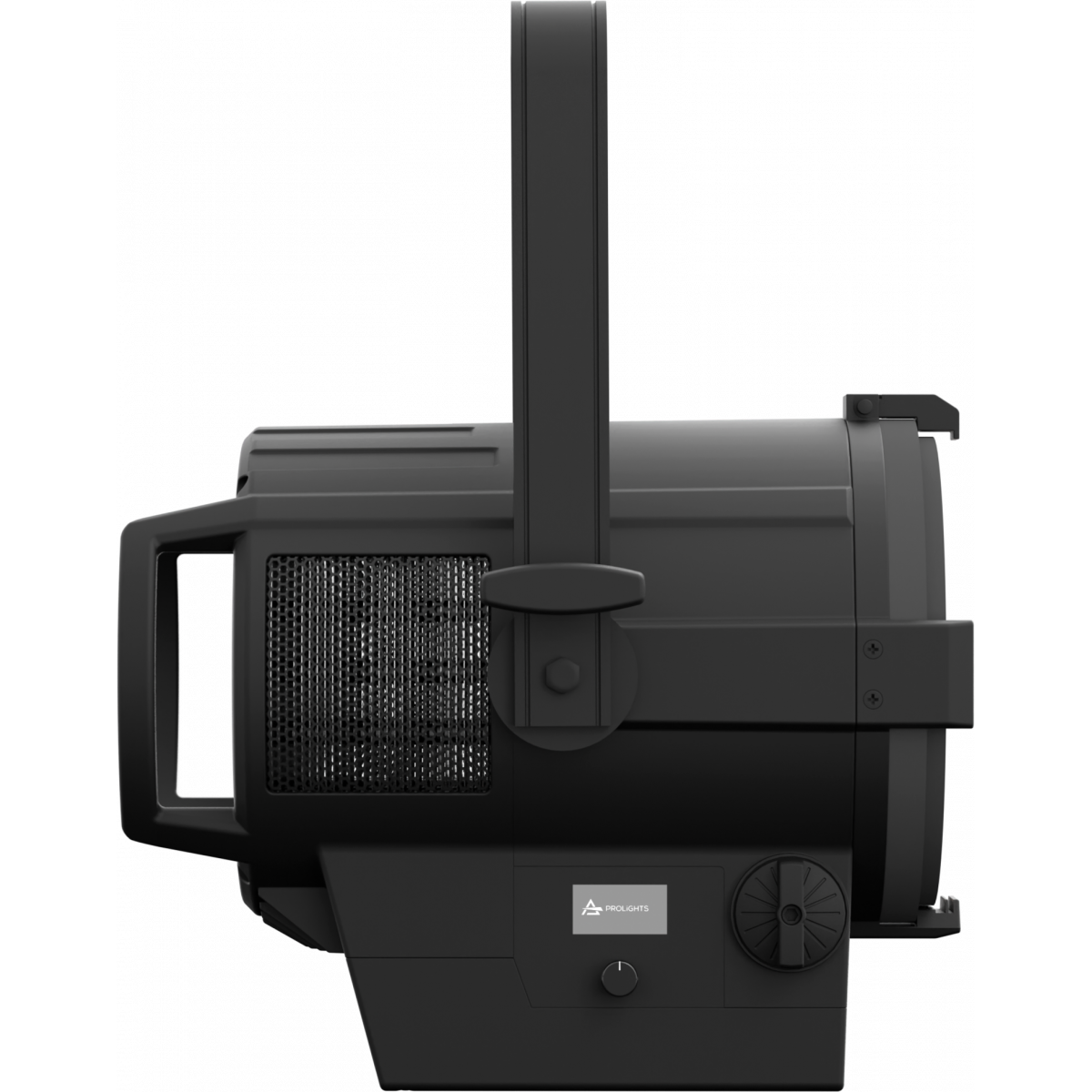

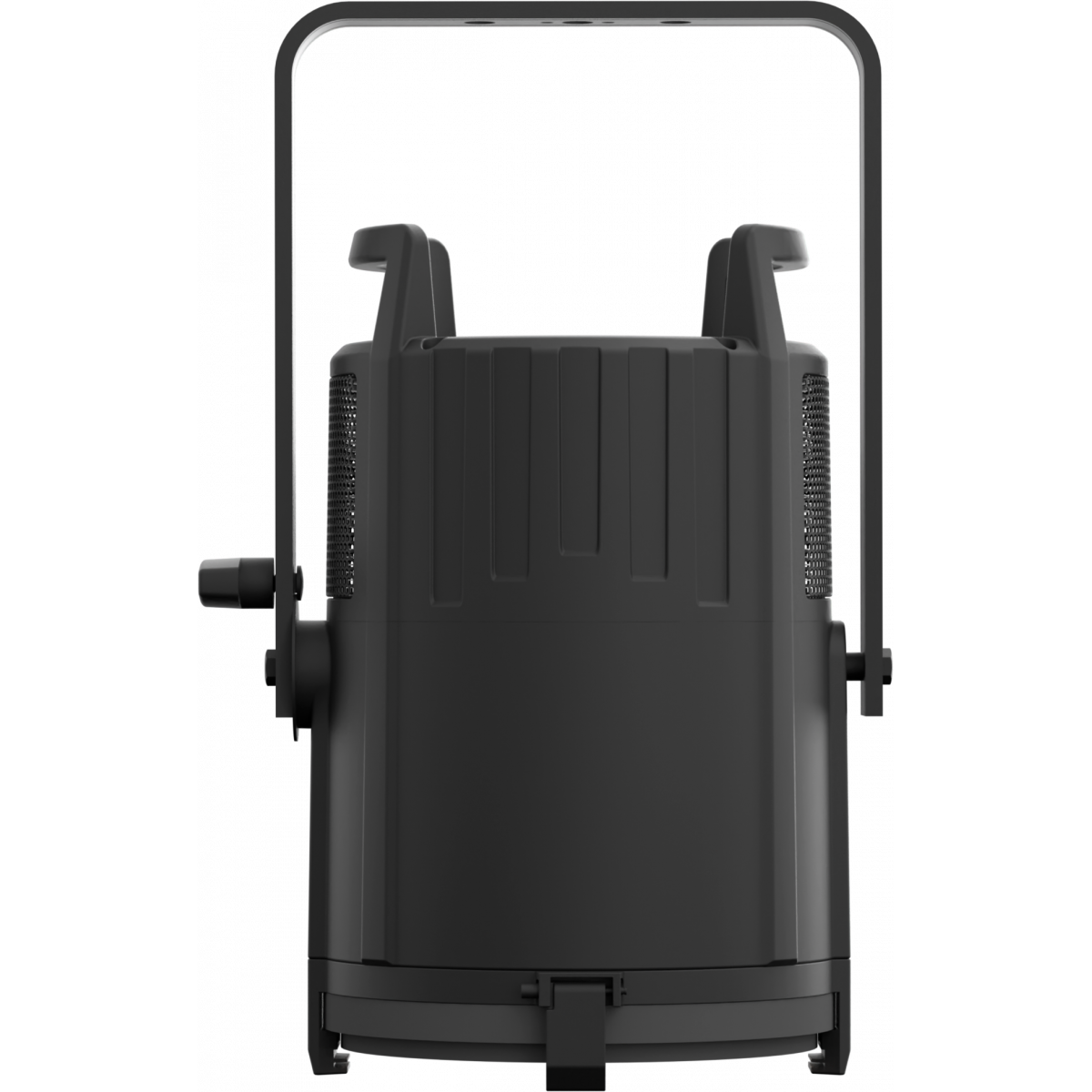

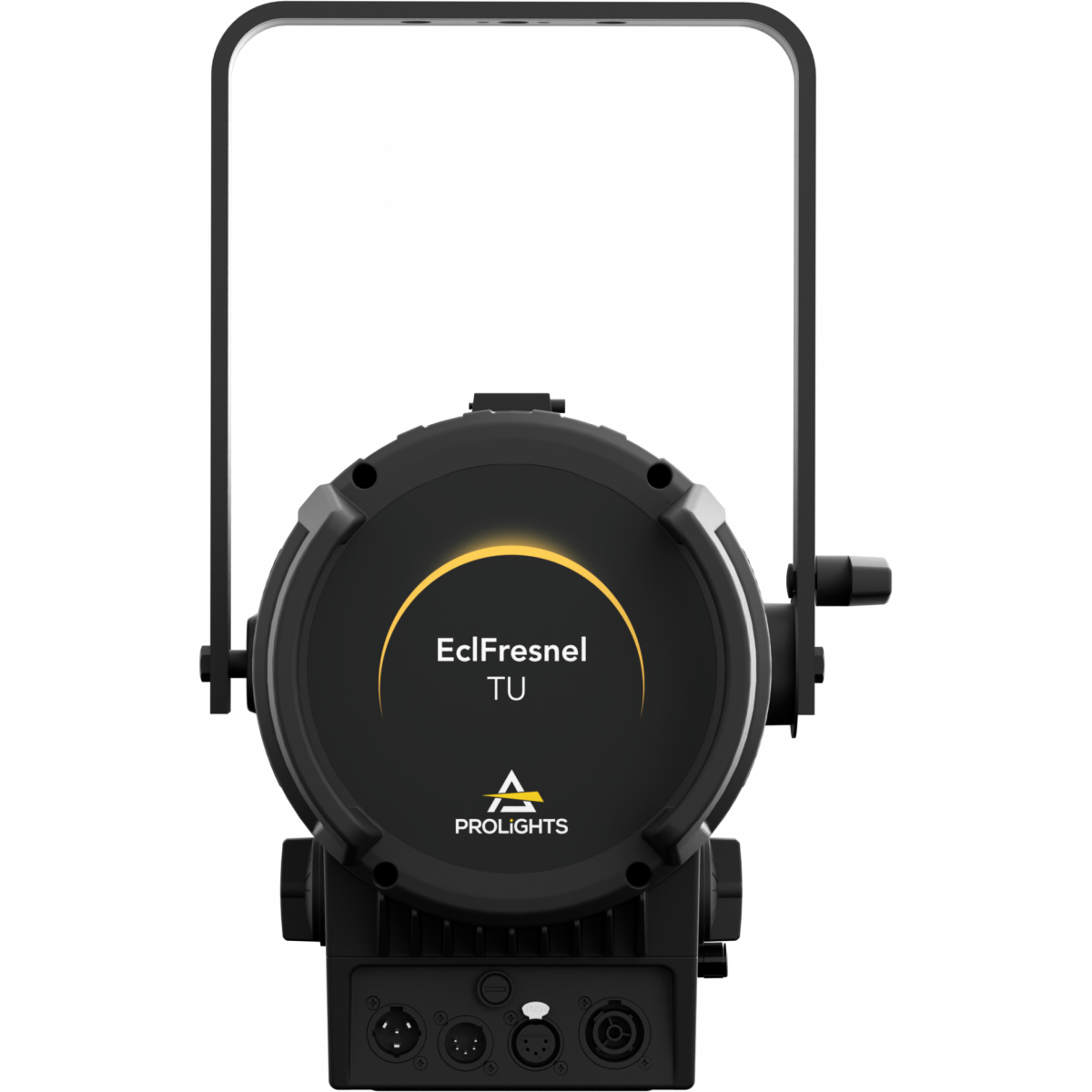

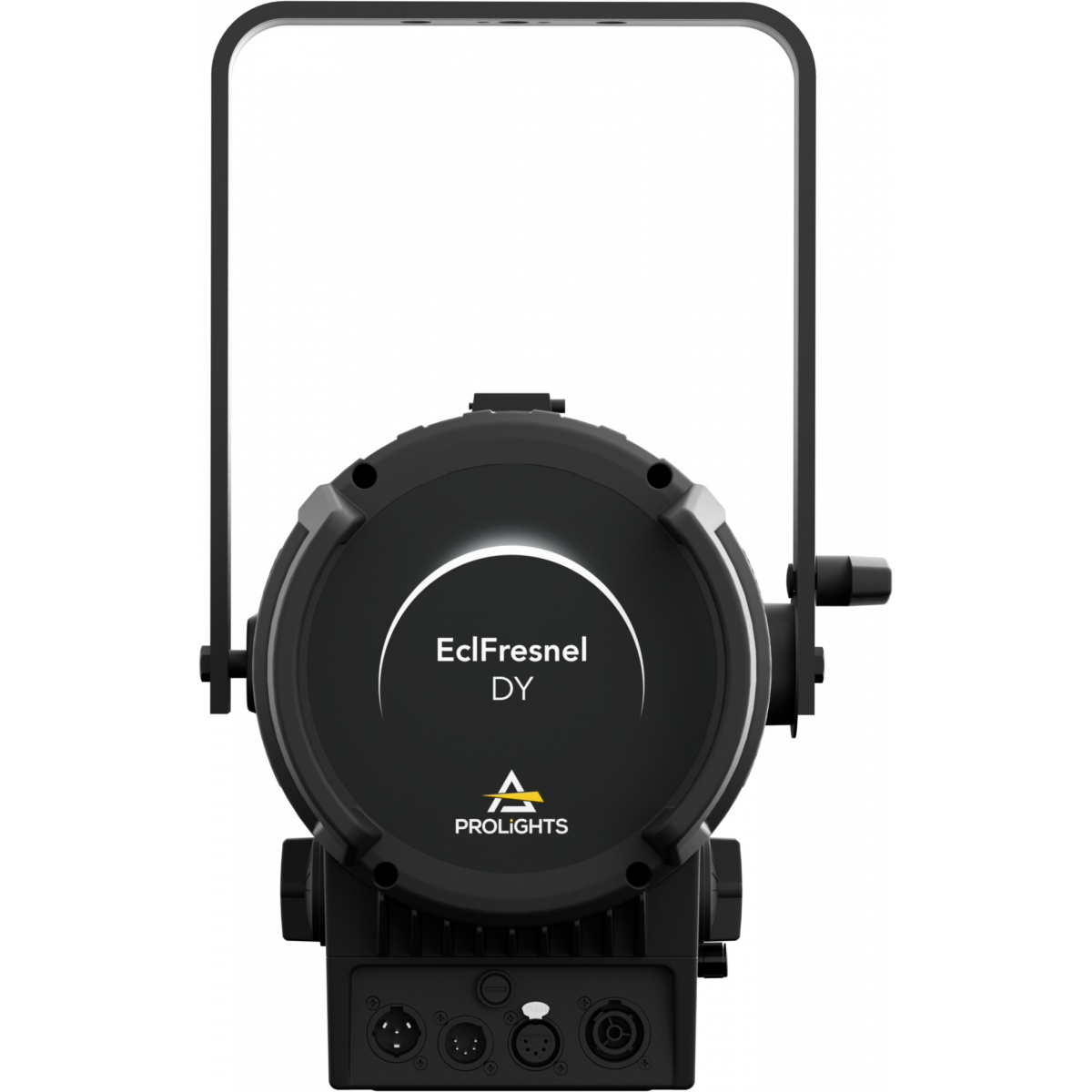

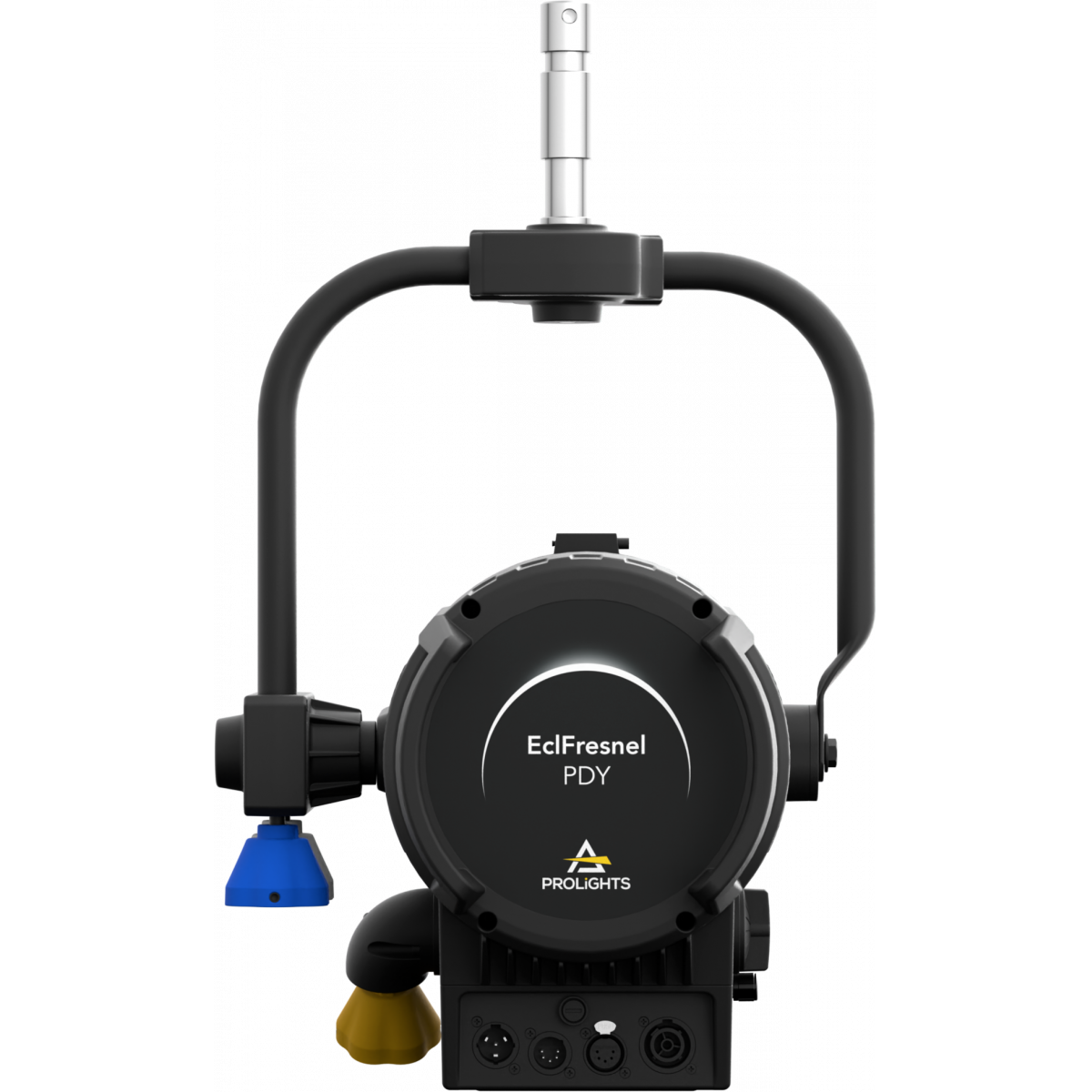

EclFresnel

LED Fresnel with HB white source, to replace 1.000W lamp

EclFresnel is the LED replacement for a standard tungsten 1.000W Fresnel. Featuring the output characteristics of a traditional Fresnel but with beam control, functional barn doors and a powerful source that focuses on outstanding colour rendition. The EclFresnel adds all the advantages of LED to the Fresnel.

Main features:

  • TU (3.200 K) and DY (5.600 K) versions available both with HD dimming

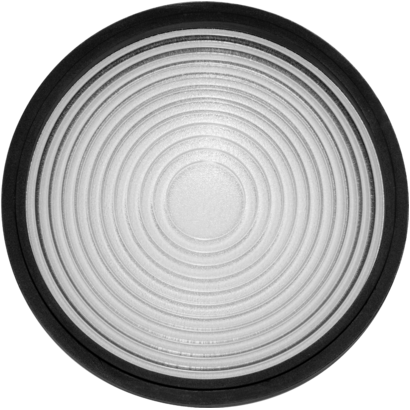

  • Fresnel lens with 17° to 66° zoom range
  • Silent operation for studio and stage use
See variants

PHOTO GALLERY

EclFresnel
EclFresnel
EclFresnel
EclFresnel
EclFresnel
EclFresnel
EclFresnel
EclFresnel
EclFresnel
EclFresnel
EclFresnel
EclFresnel
EclFresnel
EclFresnel

Technical specifications

LIGHT SOURCE
  • Source: 230W high-power white LED
  • CCT: (TU) 3.200 K - (DY) 5.600
  • Luminous flux: (TU) (17°) 10'842 lm (66°) 13'320 @Full
  • Luminous flux: (DY) (17°) 12'546 lm (66°) 15'623 lm @full
  • Lux: (TU) (17°) 3'728 lx - (66°) 1'019lx @5 m full
  • Lux: (DY) (17°) 4'260 lx - (66°) 1'182lx @5 m full
  • CRI: (TU) >98 - (DY) >95
  • R9: (TU) >90 - (DY) >90
  • TLCI: (TU) >98; (DY) >95
  • TM30 Rf: (TU) >92; (DY) >89
  • TM30 Rg: (TU) >99; (DY) >98
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom range: 17° - 66° manual
  • Lens diameter: 8'' - 200mm / 0.31''
  • Lens type: fresnel zoom lens
  • Other: barndoor and gel frame included
COLOUR SYSTEM
  • Colour mixing: white
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer
  • Manual mode: manual adjust of dimmer throught menu and knob
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: included filter frame, 8 doors barndoor, spigot
  • Pan range: (for pole operated version) 360° with manual regulation
  • Tilt range: (for pole operated version) 340° with manual regulation
  • Body: sturdy die-cast aluminium body
  • Body colour: black, white finishing available
  • Other: Spigot 28 mm
CONTROL
  • Protocols: DMX512, RDM, rotatory knob
  • DMX channels: ch1: 1 / 2 - ch2: 2 / 3 / 5channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
  • Other: 16bit control of dimmer
ELECTRONICS
  • Dimmer: linear 0 ~ 100%, manual knob dimmer
  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 220W
  • Output (at 230V): 17 units on a single power line
  • Power factor: 0,95
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 283x440x343mm / 11.14''x17.32''x13.5''
  • Dimensions with PO system (WxHxD): 341x545x343mm / 13.43''x21.46''x13.5''
  • Weight: 7,5kg / 16.53lbs
  • Weight with PO system: 9,7kg / 21.38lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
CCT
CRI
R9
Lumen
Finishing
ECLFRESNELTU
ECLFRESNELTU
3.200 K
98
90
13'320 lm
Black
ECLFRESNELDY
ECLFRESNELDY
5.600 K
95
90
15'623 lm
Black
ECLFRESNELPTU
ECLFRESNELPTU
3.200 K
98
90
13'320 lm
Black
ECLFRESNELPDY
ECLFRESNELPDY
5.600 K
95
90
15'623 lm
Black
ECLFRESNELTUWH
ECLFRESNELTUWH
3.200 K
98
90
13'320 lm
White
ECLFRESNELDYWH
ECLFRESNELDYWH
5.600 K
95
90
15'623 lm
White

Accessories & Related Products

9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
C6040B
C6040B
(Optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
ECLFRSPG
ECLFRSPG
(Included)
Spigot for PROLIGHTS fixtures
ECLFRSBD
ECLFRSBD
(Included)

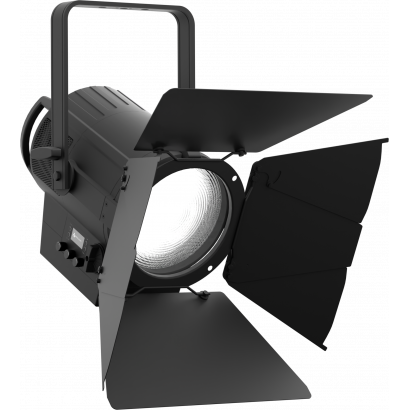

Barn door with directional flaps to adjust the light beam
FCLECLFRS
FCLECLFRS
(Optional)

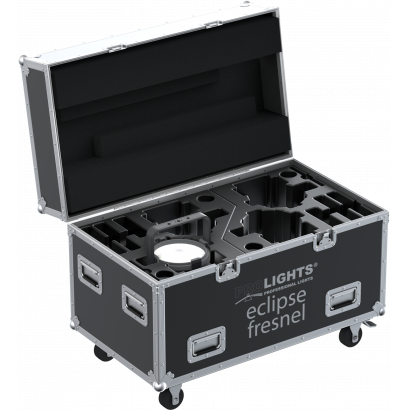

Flight case for 4x ECLFRESNEL
ECLFRSTPG
ECLFRSTPG
(Included)

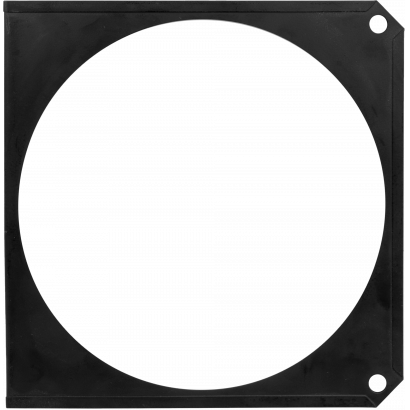

Filter frame for ECLFRESNEL series
ECLFRSNL
ECLFRSNL
(Optional)

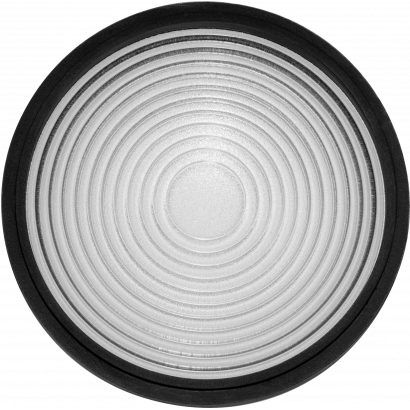

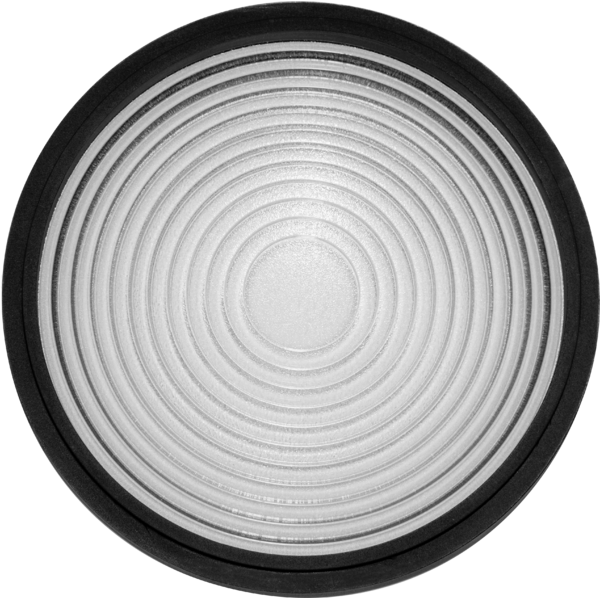

Narrow angle lens for ECLFRESNEL TU and DY fresnel projectors
EFSBUFDS
EFSBUFDS
(Optional)
SNAPBAG - Universal SMALL DEEPER for BARNDOORS
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclfresnel_A4_DATASHEET_(IT).pdf466KB
Letter datasheetEclfresnel_A4_DATASHEET_(EN).pdf512KB
Tender SpecificationEclfresneltu_TENDER_SPECIFICATION.pdf3MB
Tender SpecificationEclfresneldy_TENDER_SPECIFICATION.pdf3MB

User manual

DMX chart & personalities

File name File size Download
DMX chartEclfresnel_DMX_CHARTS.pdf76KB
ECLFRESNELTU Firmware rev. 1.5
manufacturer fixture library (Link) Link
prolights_eclipsefresneltu.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@eclipsefresneltu@1ch.xmlDownload
prolights@eclipsefresneltu@3ch.xmlDownload
ECLFRESNELDY Firmware rev. 1.5
manufacturer fixture library (Link) Link
prolights_eclipsefresneldy.d4Download
manufacturer fixture library (Link) Link
prolights_eclipsefresdy_1ch.hedDownload
prolights_eclipsefresdy_2ch1.hedDownload
prolights_eclipsefresdy_2ch2.hedDownload
prolights_eclipsefresdy_3ch.hedDownload
prolights_eclipsefresdy_5ch.hedDownload
manufacturer fixture library (Link) Link
ECLFRESNELPTU Firmware rev. 1.4
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@eclipsefresneltu@1ch.xmlDownload
prolights@eclipsefresneltu@3ch.xmlDownload
ECLFRESNELPDY Firmware rev. 1.5
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
ECLFRESNELPDY Firmware rev. 1.4
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
ECLFRESNELTUWH Firmware rev. 1.4
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@eclipsefresneltu@1ch.xmlDownload
prolights@eclipsefresneltu@3ch.xmlDownload

Photometrics

CAD symbols & drawings

File name File size Download
3D revitECLFRESNEL_3D_REVIT.zip1MB
3D sketchupECLFRESNEL_3D_SKETCHUP.zip3MB
2D cad symbolsECLFRESNEL_2DSYMBOLS.zip207KB
3DECLFRESNEL_3D.zip2MB
2DECLFRESNEL_2D.zip10MB
Technical drawingECLFRESNEL_TECHNICAL DRAWINGS.zip869KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksECLFRESNEL_SYMBOLS.zip5MB

Tech docs

File name File size Download
Noise ReportEclfresneltu_NOISE_REPORT.pdf610KB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.5 STABLE 03/07/2021 Added OFF and SILENT fan modes.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.5 STABLE 03/07/2021 Added OFF and SILENT fan modes.
1.4 STABLE 04/12/2018 10 second default display backlight Rev. 1.0
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 04/12/2018 10 second default display backlight Rev. 1
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.5 STABLE 03/07/2021 Added OFF and SILENT fan modes.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 04/12/2018 10 second default display backlight Rev. 1.0

Info Request

News

PROLIGHTS beams into the sky from the rooftop of Atlantis The Palm
April 18, 2025
PROLIGHTS beams into the sky from the rooftop of Atlantis The Palm
One of the world's most iconic architectural landmarks, Atlantis The Palm , recently underwent a breathtaking lighting transformation that has redefined its nighttime presence on the Dubai skyline. The spectacular illumination project was carried out
Introducing PROLIGHTS Jet Spot120: Compact, Powerful, and Versatile
April 09, 2025
Introducing PROLIGHTS Jet Spot120: Compact, Powerful, and Versatile
PROLIGHTS is proud to announce the launch of Jet Spot120 , the most compact moving head spotlight in its lineup. Designed for versatile applications from intimate venues to large corporate events, Jet Spot120 offers a unique blend of efficiency, powerful
PROLIGHTS unveils the EclProfile CT+HP: Enhanced Performance with the Iconic CT+ DNA
April 08, 2025
PROLIGHTS unveils the EclProfile CT+HP: Enhanced Performance with the Iconic CT+ DNA
PROLIGHTS is proud to announce the release of the EclProfile CT+HP , the higher class in LED ellipsoidal that raises the standard for power, control, and versatility. Designed for large venues, this fixture delivers an exceptional 450W of LED power, doubling
PROLIGHTS introduces Astra Blade100IP: IP65 motorized batten with max pixels and max power
April 07, 2025
PROLIGHTS introduces Astra Blade100IP: IP65 motorized batten with max pixels and max power
PROLIGHTS is proud to announce the launch of the Astra Blade100IP , a high-performance, IP65-rated motorized linear batten designed to transform stages with stunning visual dynamics, superior color accuracy, and unmatched strobe versatility. At the heart
PROLIGHTS is Rocking PL+S with 3 Bold Launches & More
April 07, 2025
PROLIGHTS is Rocking PL+S with 3 Bold Launches & More
PROLIGHTS is gearing up for a dynamic presence at Prolight + Sound 2025 , taking place from April 8-11 in Frankfurt. The booth—located in Hall 12.0, D61—will feature a dedicated exhibition space showcasing flagship products from its portfolio for
Light Craft & Sound chooses PROLIGHTS for Let's Vibe cinematic commercial
March 28, 2025
Light Craft & Sound chooses PROLIGHTS for Let's Vibe cinematic commercial
Light Craft & Sound Pvt. Ltd. , a leading film equipment rental company in India, recently selected PROLIGHTS Astra Wash37Pix fixtures for the commercial directed by Paper Planes Pictures . The Director of Photography, Jay Charola , envisioned an arena-style
SoMMedia Studio Enhances Production Quality with PROLIGHTS studio fixtures
March 20, 2025
SoMMedia Studio Enhances Production Quality with PROLIGHTS studio fixtures
SoMMedia Studio elevates its production capabilities with an updated PROLIGHTS lighting rig, ensuring an enhanced  visual quality for project. The SoMMedia video production studio offers a perfect balance between functionality and aesthetics, tailored
CPC Production Services relies on PROLIGHTS for professional lighting
March 14, 2025
CPC Production Services relies on PROLIGHTS for professional lighting
Ipswich, Queensland - With a legacy of excellence dating back to 1984, CPC Production Services is a leading live event and broadcast production company in Australia. It has recently chosen to invest in PROLIGHTS solutions, supplied by Show Technology
PROLIGHTS Lights Up the Stage at Vibe Budapest
March 12, 2025
PROLIGHTS Lights Up the Stage at Vibe Budapest
The newly opened Vibe Budapest , the latest gem of the Costes Group , has chosen PROLIGHTS solutions to create spectacular lighting effects and an engaging atmosphere. The lighting system design and installation were managed by LISYS-Project Kft ., which
PROLIGHTS presents ÆtherBox: the single-universe CRMX transceiver with IP65 rating and multi-protocol support
March 11, 2025
PROLIGHTS presents ÆtherBox: the single-universe CRMX transceiver with IP65 rating and multi-protocol support
PROLIGHTS is proud to announce the launch of ÆtherBox , a single-universe CRMX transceiver with an IP65 protection rating, designed to offer versatility and robustness in any environment, from indoor venues to outdoor stages. With a wide range of connectivity
PROLIGHTS Illuminates the 4th Global Ministerial Conference on Road Safety in Morocco
March 07, 2025
PROLIGHTS Illuminates the 4th Global Ministerial Conference on Road Safety in Morocco
The 4th Global Ministerial Conference on Road Safety , held in Morocco, was a landmark event in the global effort to improve road safety. The conference brought together ministers, experts, and stakeholders globally to discuss innovative strategies and
Baycourt Community & Arts Centre Upgrades Stage Lighting with PROLIGHTS Solutions
March 04, 2025
Baycourt Community & Arts Centre Upgrades Stage Lighting with PROLIGHTS Solutions
Baycourt Community & Arts Centre , situated in the heart of downtown Tauranga, is the Bay of Plenty's premier performing arts facility. Designed to serve both the local community and international touring productions, the venue provides cutting-edge spaces
Subscribe to our Newsletter
Loading...
