ECLFRFWXSVW

EclFresnel FWXSVW

NEW

Order Code: ECLFRFWXSVWBK

Source
120W Variable White LED
Zoom range
10°-56° manual
IP rating
 IP20
Weight
3,8kg / 8.38lbs

Key Features

  • 120W Variable White LED Fresnel, provides 5.900 lm
  • 10-56° Internal zoom system, 130mm/5'' Fresnel lens
  • High value in CRI up to 96, and consistent CCT reproduction across the range
  • CRI: 95,2 @3.200K; 93,8 @5.600K - R9: 95,1 @3.200K; 98,7 @5.600K

EclFresnel FWXSVW is a compact 120W LED Fresnel, outputting 5.900 lm and engineered with Variable White light source and a 130mm / 5'' Fresnel lens designed to replace the classic 300W Tungsten Fresnels.

The newly designed optical system provides internal zoom from 10° to 56°, maintaining high efficiency at any beam angle, without any change to the luminaire's physical size throughout the zoom range.

The LED source  has been selected to achieve the finest quality of whites, having high scores of CRI, R9 and TM30.

The EclFresnel FWXSVW also performs silently, allowing it to be an indispensable workhorse for Broadcast, Theatre and coorporate applications.

Read less
EclFresnel FWXSVW is a compact 120W LED Fresnel, outputting 5.900 lm and engineered with Variable White light source and a 130mm / 5'' Fresnel lens designed to replace the classic 300W Tungsten Fresne...

Photo Gallery

ECLFRFWXSVWBK
ECLFRFWXSVWBK
ECLFRFWXSVWBK
ECLFRFWXSVWBK
ECLFRFWXSVWBK

Specifications

LIGHT SOURCE
  • Source: 120W Variable White LED
  • Luminous flux: (9,8°) 3.175 lm - (55,8°) 5'897 lm @Full
  • Lux: (9,8°) 4'233 lx - (55,8°) 440lx @5 m full
  • CRI: 95,2 @3.200K; 93,8 @5.600K
  • R9: 95,1 @3.200K; 98,7 @5.600K
  • TLCI: 92 @3.200K; 97 @5.600K
  • TM30 Rf: 91,8 @3.200K; 92,3 @5.600K
  • TM30 Rg: 107 @3.200K; 104,8 @5.600K
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom range: 10°-56° manual
  • Lens diameter: 5'' / 130mm / 0.2''
  • Lens type: PMMA lens
  • Other: barndoor and gel frame included
COLOUR SYSTEM
  • Colour mixing: tunable white
  • CCT: CCT control range from 2.800K to 6.500K
CONTROL
  • Supported Protocols: DMX512, RDM, CRMX (optional)
  • DMX channels: From 1 to 14ch
  • Wireless Control: optional, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (as RX mode only) and W-DMX, Bluetooth capable
  • RDM: for remote addressing and parameter configuration
  • Display: 2.4'' Color display
  • Firmware upgrade: via DMX with UPBOXPRO (USB-DMX interface not included)
  • Stand Alone: 1 push encoder
  • Master/Slave: for synchronised operation of more units linked in a chain
BODY
  • Hardware on-board: included filter frame and 8 doors barndoor
  • Housing: Die-cast magnesium alloy
  • Finish: black (RAL 9004)
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: Ta -10 to +45 °C (+14 to +113 °F)
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 1282 to 40000 Hz (selectable steps)
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Low Voltage DC mains: 48V
  • Max power consumption: 130W
  • Standby power: 6,3 W
  • Output (at 230V): 20 units on a single power line
  • Power factor: > 0,94
PHYSICAL
  • IP rating: IP20
  • Cooling: forced-air with low-noise fan
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 227x289x294mm / 8.94''x11.38''x11.57''
  • Weight: 3,8kg / 8.38lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE
BOX CONTENT
  • 1 x ECLFRFWXSVWBK
  • 1 x ECLFRCTPXSFFBK
  • 1 x ECLFRCTPXSBDBK
  • 1 x 1,5 meters 3G1,5mmq power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65 power connector)
  • User Manual

Accessories & Related Products

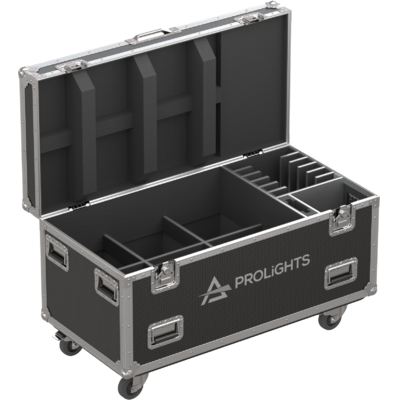

Optional FCLECLFRCTPXS

Flight case for 6 pcs of ECLFRCTPXS series

Order Code: FCLECLFRCTPXS

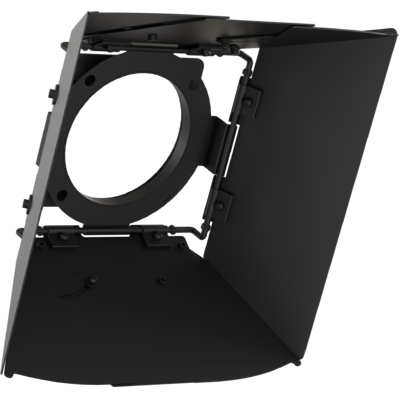

Included ECLFRCTPXSBDBK

Barn door 8 directional flaps to adjust the light beam for ECLFRCTPXS, black

Order Code: ECLFRCTPXSBDBK

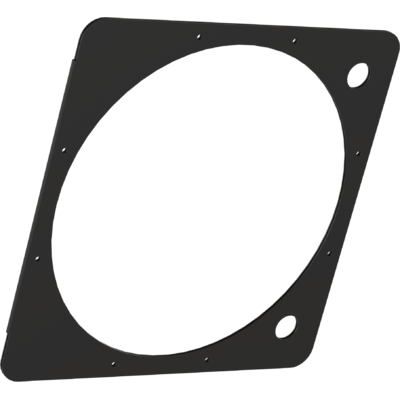

Included ECLFRCTPXSFFBK

Filter frame for ECLFRCTPXS series, black

Order Code: ECLFRCTPXSFFBK

Optional EFSBUFDS

SNAPBAG - Universal SMALL DEEPER for BARNDOORS

Order Code: EFSBUFDS

Optional ECLFRSPG

Spigot for PROLIGHTS fixtures

Order Code: ECLFRSPG

Optional LRT2WK1

Wireless kit 1 with TimoTwo

Order Code: LRT2WK1

Optional SPGM12

28mm spigot for fixtures, M12 bolt

Order Code: SPGM12

Optional SPGM10

28mm spigot for fixtures, M10 bolt

Order Code: SPGM10

Optional C6040B

Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black

Order Code: C6040B

Optional C6002B

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

Order Code: C6002B

Optional RSR0630B

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

Order Code: RSR0630B

Optional 9533FXWL03

Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m

Order Code: 9533FXWL03

Optional 9513FXWL03

Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m

Order Code: 9513FXWL03

Optional 958225L03

3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m

Order Code: 958225L03

Optional TOUR53415L03

Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m

Order Code: TOUR53415L03

Optional UPBOXPRO

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

Order Code: UPBOXPRO
