Smart Book

96x3W high power and portable outdoor wireless battery wash light

Smart Book is a wireless battery wash light, performing high output in a super-slim foldable housing. Smart Book, being IP rated, is an ideal tool for outdoor events to light up landscapes and buildings, all with a magnetic optical system (+50° included) to focus the light. Smart Book comes with a quick magnetic recharge flight case and control through wireless DMX.

Main features:

  • 96x3W RGBW / FC LED and with included +50° magnetic filter
  • IP rated for outdoor events and with tiltable head
  • Wireless DMX built-in receiver
See variants

PHOTO GALLERY

Smart Book
Smart Book
Smart Book
Smart Book
Smart Book
Smart Book
Smart Book

Technical specifications

LIGHT SOURCE
  • Source: 96x3W RGBW LEDs
  • Luminous flux: without filter: 3'019,9 lm - with 50° filter: 2'117 lm - with 60x10° filter: 2'261
  • Lux: without filter: 1'593 lx - with 50° filter: 404 lx - with 60x10° filter: 608lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: without filter: 24° - with 50° filter: 35° - with 60x10° filter: 40x24°
  • Field angle: without filter: 40° - with 50° filter: 70° - with 60x10° filter: 81x45°
  • Additional optics: magnetic 60x10° asymmetric filter (optional)
  • Other: magnetic +50° filter (included)
COLOUR SYSTEM
  • Colour mixing: RGBW
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: foldable head to focus the beam
  • Tilt angle: 0 - 90°
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: W-DMX
  • DMX channels: 4 / 6 / 10channel
  • Wireless Control: included, wireless solution receiver
  • Display: Graphic User Interface
  • IR: infrared sensor controlled by remote
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: 0° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Max power consumption: 424W
  • Max power consumption (at 120V): 426W
BATTERY
  • Battery: 26 A h - 18,5V
  • Estimated battery life in colour change mode up to: 12h
  • Estimated battery life in single colour mode up to: 12h
  • Estimated battery life in full-mode up to: 9h
  • Re-charge connection: magnetic fast-charge in case
  • Re-charge time: 7h/max
  • Battery status: shown on display
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: passive cooling and fan-free
  • Data connection: W-DMX receiver
  • Power connection: quick lock magnetic fast charge connector
  • Dimensions (WxHxD): 395x213x101mm / 15.55''x8.39''x3.98''
  • Weight: 8,4kg / 18.52lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM

Versions

Code
Smartbook
Recharging flight case
IRC
AC cable
SMARTBOOK1
SMARTBOOK1 (DISCONTINUED)
1
No
No
No
SMARTBOOKPACK
SMARTBOOKPACK (DISCONTINUED)
4
1
1
1

Accessories & Related Products

<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
FCLSMARTBOOKE
FCLSMARTBOOKE
(optional)
Flight case for 4 SMARTBOOK1, battery charger included
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

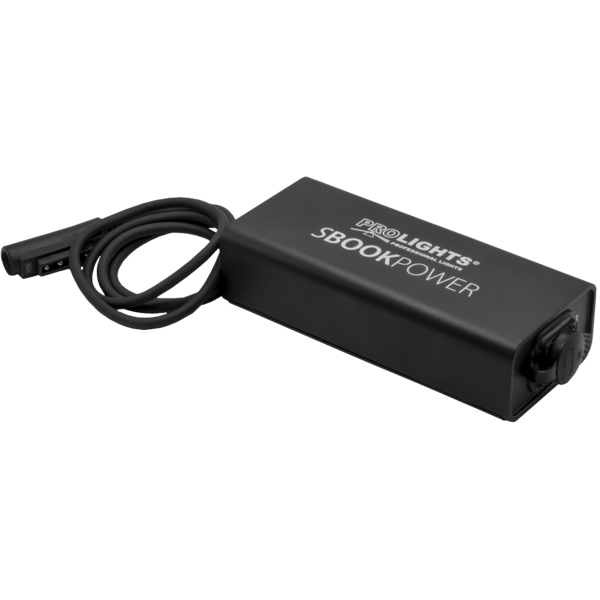

SBOOKPOWER
SBOOKPOWER
(optional)
IP65 battery charger for SMARTBOOK
SBOOKBD
SBOOKBD
(optional)
Black barn door 4 directional flaps to adjust the light beam

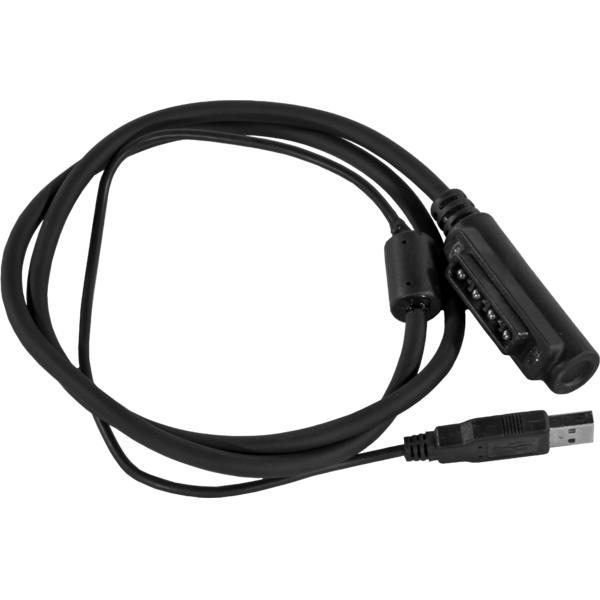

SBUPBOXI
SBUPBOXI
(optional)
Interface between UPBOX1 and SMARTBOOK for make firmware upgrade
PRL-IRC
PRL-IRC
(optional)
RGBWA IR controller, 29 buttons, manual/static colours, auto programs, fade

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Smartbook_A4_DATASHEET_(EN).pdf 281KB
Letter datasheet Smartbook_A4_DATASHEET_(IT).pdf 278KB
Letter datasheet Smartbookpack_A4_DATASHEET_(IT).pdf 278KB
Letter datasheet Smartbookpack_A4_DATASHEET_(EN).pdf 281KB

User manual

DMX chart & personalities

File name File size Download
DMX chart Smartbook_DMX_CHARTS.pdf 47KB
VectorWorks PROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx 310MB
VectorWorks VECTORWORKS_SYMBOLS.vwx 255KB
VectorWorks PROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx 478MB
SMARTBOOK Firmware rev. 1.7
manufacturer fixture library (Link) Link
prolights_smartbook.d4Download
manufacturer fixture library (Link) Link
prolights_smartbook_4ch.hedDownload
prolights_smartbook_6ch.hedDownload
prolights_smartbook_10ch.hedDownload
prolights@smartbook_6ch@.xmlDownload
prolights@smartbook_10ch@.xmlDownload
prolights@smartbook_4ch@.xmlDownload
manufacturer fixture library (Link) Link

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
3D RFA Smartbook_3D_REVIT.rvt 450KB
3D SKP Smartbook_3D_SKETCHUP.skp 504KB
2D Smartbook_2D.dwg 3MB
3D Smartbook_3D.dwg 734KB
2D cad symbols Smartbook_2DSYMBOLS.dwg 149KB
Technical drawing Smartbook_TECHNICAL_DRAWING.pdf 417KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.7 STABLE 13/12/2018 10 second default display backlight. Rev. 1
Rev. 2
