SUNBARFLX

SunBar FLX

NEW
SPEKTRA

Order Code: SUNBARFLX

Source
(Beam 24 px) 120 x 12 White LEDs + (Plate 32 px) 768 x 1,2WW RGB + Warm White LEDs
IP rating
 IP65 for temporary outdoor use
Weight
9,8kg / 21.61lbs

Key Features

  • Linear IP65 hybrid LED strobe/wash with white LED beam (24 pixels) and RGB + Warm White plate (32 pixels)
  • 1200W peak power in strobe mode and 400W continuous output in wash mode
  • Optional quick-lock electronic frost filter for diffused wash and eye-candy looks
  • Tool-free modular rigging for horizontal/vertical arrays, compatible with SunBlast FLX and SunRise FLX

SunBar FLX is a linear IP65 hybrid LED strobe and wash fixture, expanding the family of bright, modular Sun fixtures for strobes and blinders. It retains the core strengths of the range: versatility, free-form modularity, and extremely high output.

SunBar FLX features a central white LED beam with 24 controllable sections, paired with an RGB + Warm White plate with 32 pixels. This dual-source design delivers an impressive output of >90,000 lumens, with 1200W peak power in strobe mode and 400W continuous power in wash mode. Built for creative applications, SunBar FLX supports high-impact modular configurations, advanced pixel effects, and multi-unit clusters for any indoor or outdoor stage.

The colour engine is powered by the SpektraOS ecosystem, delivering rich colours, high-quality whites, and smooth, precise dimming.

Wide native beam angles on both sources make SunBar FLX equally effective as an audience blinder, colour strobe, or wide-area wash. An optional quick-lock electronic frost filter is available to soften and diffuse the output when required.

Designed for fast, tool-free assembly, SunBar FLX includes a modular rigging system for vertical or horizontal arrays and cluster setups with other Sun-series fixtures such as SunRise FLX and SunBlast FLX. With an IP65 rating, it delivers reliable outdoor performance, ideal for festivals, events, and temporary architectural lighting. Control options include wired sACN/Art-Net and optional wireless CRMX, ensuring seamless integration into any lighting system.



Read less
SunBar FLX is a linear IP65 hybrid LED strobe and wash fixture, expanding the family of bright, modular Sun fixtures for strobes and blinders. It retains the core strengths of the range: versatility, ...

Product Video

Discover the SunBar FLX in action

Photo Gallery

SUNBARFLX
SUNBARFLX
SUNBARFLX
SUNBARFLX
SUNBARFLX

Specifications

LIGHT SOURCE
  • Source: (Beam 24 px) 120 x 12 White LEDs + (Plate 32 px) 768 x 1,2WW RGB + Warm White LEDs
  • Luminous flux: Full Power Strobe - Combined: 92'000 lm @Full
  • Luminous flux: Full Power Wash - Plate: 26'787 lm @Full
  • Luminous flux: Full Power Wash - Beam: 44'786 lm @full
  • Luminous flux: Full Power Wash - Combined: 36'557 lm @full
  • Lux: Full Power Strobe - Combined: 1'540lx @5 m full
  • Lux: Full Power Wash - Plate: 397lx @5 m full
  • Lux: Full Power Wash - Beam: 611lx @5 m full
  • Lux: Full Power Wash - Combined: 514lx @5 m full
  • Source life expectancy: > 20.000 h
OPTICS
  • Beam angle: (Plate) RGB+WW: 111° - (Beam) White LEDs: 118°
  • Field angle: (Plate) RGB+WW: 152° - (Beam) White LEDs: 152°
COLOUR SYSTEM
  • Spektra OS: unmatched color precision and consistency
  • Colour control: CCT, RGBW, Colour Macros
  • CCT: CCT channel from 2.800K to 10.000K
  • White presets: 2.800-10.000K
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer and color control
  • Pixel patterns: pre-programmed static and dynamic pixel patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Frost: optional electronic frost filter, continuously variable - see available accessories
  • Static mode: selection of static dimmer, colors and color temperature
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
CONTROL
  • Supported Protocols: DMX512, RDM, ArtNet, sACN (IGMP v2), CRMX (optional)
  • DMX channels: 8 / 13 / 21 / 36 / 32 / 42 / 47 / 60ch modular and user-customizable DMX architecture (MCA)
  • Pixel control: 32 px RGB+WW LEDs + 24 px White LEDs individually select and control sections
  • RDM: for remote addressing and parameter configuration
  • Display: Graphic User Interface
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 5 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: optional, self-charging battery backup
  • Selectable PWM: 1000 to 25000 Hz (selectable steps)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
  • Wireless Connection: optional LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
  • Data connection: Seetronic Ethernet IP in/out connectors
  • EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): strobe: 1.200 W (peak) - wash: 400W
  • Output (at 230V): 2 units on a single power line
  • Standby power: 5,6 W
  • Power factor: > 0,94
PHYSICAL
  • IP rating: IP65 for temporary outdoor use
  • Cooling: forced-air with low-noise fan
  • Housing: Weatherproof IP65 construction with die-cast magnesium alloy
  • Finish: black
  • Operating temperature: Ta -20 to +45 °C (-4 to +113 °F)
  • Dimensions (WxHxD): 911 x 86 x 182mm / 35.87''x3.39''x7.17''
  • Weight: 9,8kg / 21.61lbs
INSTALLATION
  • Suspension and fixing: on board mechanics for modular assembly of multiple fixtures
  • Bracket system: Several brackets available for simply array mounting - see available accessories
  • Mounting points: quick-lock Omega sockets
  • Hardware on-board: fast ancor points on the front for accessory mounting and on board mechanics for modular assembly of multiple fixtures
  • Other: frontal pins for optional electronic frost filter
CERTIFICATIONS / REPORTS
  • Compliance: CE, cTUVus
BOX CONTENT
  • 1 x SUNBARFLX
  • 1 x SBARFLXFLB
  • 1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
  • 1 x User Manual

Accessories & Related Products

(Optional) FCLSUNBARFLX

Flight case for 4 pcs of SUNBARFLX

Order Code: FCLSUNBARFLX

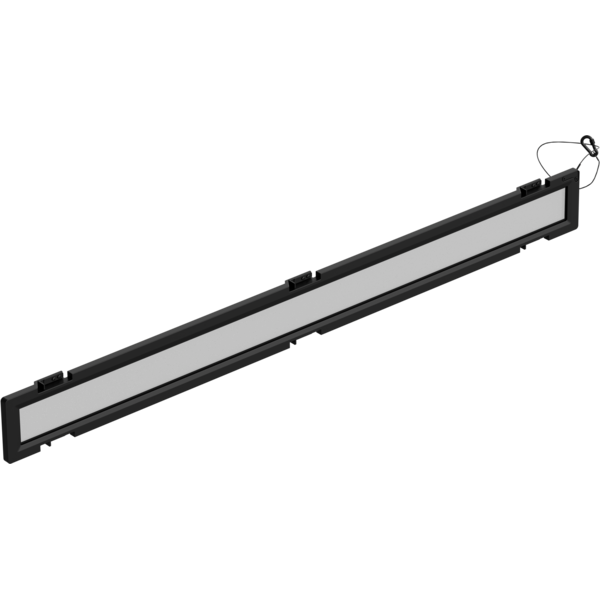

(Optional) SBARFLXDYNFILT

Electronic frost filter for SUNBARFLX

Order Code: SBARFLXDYNFILT

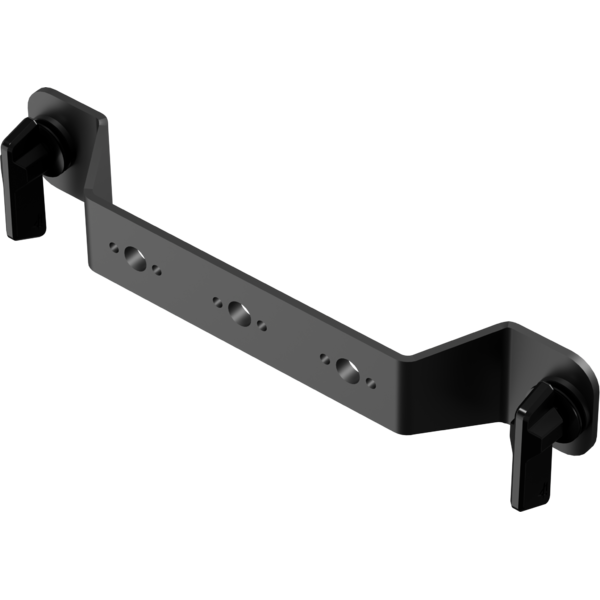

(Included) SBARFLXFLB

Quick-lock rear central mounting bracket designed for SUNBARFLX

Order Code: SBARFLXFLB

(Optional) SBLFLXB01V

Vertical mounting bracket for 1 SUNBLASTFLX

Order Code: SBLFLXB01V

(Optional) SBLFLXB02V

Vertical mounting bracket for 2 SUNBLASTFLX

Order Code: SBLFLXB02V

(Included) OS25PLUS

Quick-lock omega bracket, M12 hole

Order Code: OS25PLUS

(Optional) OS25H3PLUS

Quick-lock omega bracket, 6 cm height, M12 hole

Order Code: OS25H3PLUS

(Optional) ECLFRSPG

Spigot for PROLIGHTS fixtures

Order Code: ECLFRSPG

(Optional) SBARFLXHB025V

Vertical suspension accessory for SUNBARFLX

Order Code: SBARFLXHB025V

(Optional) SBLFLXHB01H

Horizontal suspension bracket for SUNBLASTFLX

Order Code: SBLFLXHB01H

(Optional) SBLFLXFLR

Floor bracket for SUNBLASTFLX

Order Code: SBLFLXFLR

(Optional) SBLFLXHHFLRB

Adjustable bracket for hanging or floor mounting of SUNBLASTFLX

Order Code: SBLFLXHHFLRB

(Optional) HDWK

Wireless kit, compatible with multiple Prolights products

Order Code: HDWK

(Optional) RSR0630B

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

Order Code: RSR0630B

(Optional) AETHERBOX

IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready

Order Code: AETHERBOX

(Optional) AETHERBOXONE

IP65 1x universe CRMX transceiver, DMX, Ethernet protocols, Wi-Fi, Bluetooth, battery-ready, POE

Order Code: AETHERBOXONE

(Optional) C6002B

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

Order Code: C6002B

(Optional) UPBOXPRO

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

Order Code: UPBOXPRO

Downloads

Technical documentation and support files

Data sheet & specs Data sheet & specs

File name File size Download
Letter datasheetSunbarflx_A4_DATASHEET_(EN).pdf(15/04/2026)435KB
Tender SpecificationSunbarflx_TENDER_SPECIFICATION.pdf(16/03/2026)232KB

User manual User manual

File name File size Download
User manualSunbarflx_USER_MANUAL_EN.pdf(05/05/2026)4MB
User manualSunbarflx_General_Safety_Information.pdf(05/01/2026)3MB
User manualFLX Series installation guidelines.pdf(21/04/2026)2MB

DMX chart & personalities DMX chart & personalities

File name File size Download
DMX chartSunbarflx_DMX_CHARTS.pdf(06/05/2026)190KB

SUNBARFLX Firmware rev. 0.0.00.0014

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics Photometrics

File name File size Download
IESprolights_sunbarflx_ies_files.zip(09/03/2026)24KB
LDTprolights_sunbarflx_ldt_files.zip(09/03/2026)22KB
PhotometricsSunbarflx_PHOTOMETRICS_REPORT.pdf(09/03/2026)2MB
DialuxDownload DIALux product catalogue-

CAD symbols & drawings CAD symbols & drawings

File name File size Download
3D SKPSunbarflx_3D.skp(02/03/2026)323KB
2DSunbarflx_CAD_2D.dwg(14/01/2026)5MB
3DSunbarflx_CAD_3D.dwg(02/03/2026)136KB
2D cad symbolsSunbarflx_CAD_2DSYMBOLS.dwg(15/04/2026)24KB
Technical drawingSunbarflx_TECHNICAL_DRAWING.pdf(14/01/2026)427KB
VectorWorksVECTORWORKS_SYMBOLS.vwx(15/04/2026)674KB

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check here  the products list.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
0.0.00.0014 ALPHA 08/05/2026

New Functions:

  • Added the Smart Frost control channel as a fixed channel in all DMX modes.
  • Added Smart Frost support in the Control Channel.
  • Added the Smart Frost menu option to enable or disable the frost filter connection pins.
  • Added Tungsten Emulation limit handling up to the expected CCT range of 3300K-3400K.

Improvements:

  • Firmware version numbering has been aligned between DISP and DRV.
  • The SOFTWARE VERSION label has been corrected.
  • The Linking Key code page layout has been improved and the 8-digit code is now centered.
  • CRMX Mode menu behavior has been improved to show the correct title and only one selected option at a time.
  • Universe Metadata handling has been improved.
  • Absolute Universe can now be configured in the Art-Net settings.
  • sACN Merge Mode has been improved and now supports the expected HTP and LTP behavior without the OFF option.
  • IGMP behavior has been improved for sACN operation, universe changes, power-on handling, and Fixture + Pixel Engine operation.
  • RDM visibility through DMXWorkshop has been improved.
  • Error PID handling has been updated to include the correct NO ERROR value.

Fixed Bugs:

  • Fixed the issue where Universe Color could not be changed and remained fixed to Red.
  • Fixed the Art-Net Absolute Universe parameter being read-only.
  • Fixed sACN Merge Mode conflicts when using multiple sources.
  • Fixed LTP mode behavior in sACN Merge Mode.
  • Fixed the Stand Alone Manual Color power-on issue that caused incorrect output and flicker.
  • Fixed the TEST function priority behavior so the test mode can operate as expected.
  • Fixed the Error Message PID range and value mapping.
  • Fixed IGMP join behavior and response timing.
  • Fixed IGMP leave/join behavior when changing universe.
  • Fixed IGMP universe declaration issues after power cycles.
  • Fixed the Pixel Engine IGMP declaration behavior.
  • Fixed missing Manufacturer PID visibility in DMXWorkshop.
  • Fixed the default value of the STANDALONE MODE PID.
  • Fixed the Strobe mode Color Macro issue that required a device reboot.
  • Fixed Pattern Selector alignment with SUNBLAST behavior.
  • Fixed Smart Frost DMX footprint implementation.
  • Fixed Pixel Plate power-off behavior so plate pixels turn off together.
  • Fixed Tungsten Emulation behavior outside the expected CCT range.
  • Fixed Stand Alone Fixed Color Dimmer UP/DOWN direction.
 Rev. 1.0
