AETHERBOX
PROLIGHTS

ÆtherBox new

ORDER CODE: AETHERBOX

IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready

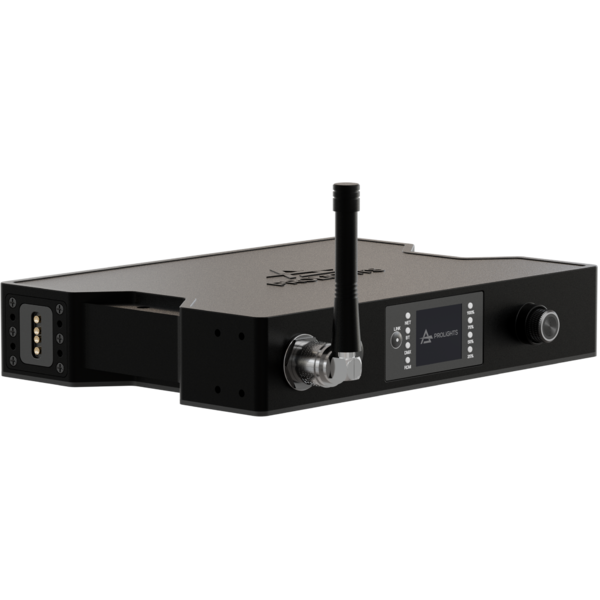

The AetherBox is a robust IP65-rated single universe CRMX transceiver, designed for professional use in any venue, whether it be indoor or outdoor, on stages or sets. It boasts an extensive range of connectivity options including XLR 5p in/out, Ethernet for sACN and ArtNet, as well as Wi-Fi and Bluetooth, while supporting both CRMX and CRMX2 transmission protocols.

Constructed from die-cast aluminum, the chassis offers water and dust proof protection. It also provides versatile mounting solutions, such as rack mounting, truss mounting with velcro strings, camlock for easy hanging via omega brackets, and M10 and ⅜ threads for additional anchoring options.

The unit is adaptable in terms of power sources, accommodating mains power through a True1 connector, DC12V input, and battery operation via an adapter plate. For user interaction, it features a color display and pushable encoders, allowing for easy access to advanced configuration settings.


Main features:

  • IP65 single universe CRMX transceiver, compatible also for battery operation
  • XLR 5p in/out, Ethernet for sACN and ArtNet, as well as Wi-Fi and Bluetooth
  • Rack mounting, truss mounting, camlocks, M10 and ⅜ threads anchoring options
  • Either LumenRadio CRMX, CRMX2 and Wireless DMX G3 and G4S transmission option

PHOTO GALLERY

Technical specifications

BODY
  • Hardware on-board: rack-mount hardware
  • Body: weatherproof IP65 construction
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, ArtNet, sACN, CRMX, CRMX2, Bluetooth
  • DMX channels: 512channel
  • Wireless Control: included, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (Lumen Radio) and W-DMX (Wireless DMX), Bluetooth capable
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Other: 1 push encoder, 1 LINK/UNLINK button and status LEDs on-board
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 3W
  • Standby power: 2,5 W
  • Power factor: > 0,95
BATTERY
  • Battery: V NP-F550/F570/F750/F770/F960/F970 type battery
PHYSICAL
  • Operating Temperature: -20° ~ +45°
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Suspension and fixing: M10 and 3/8'' threaded insert for easy installation, wall mount, velcro strips, Omega clamp
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Data connection: Seetronic Ethernet IP IN connector
  • Power connection: Seetronic powerCON TRUE IP65 IN
  • Low Voltage DC connector: Weipu SA6(12-48V), Battery slots
  • Dimensions (WxHxD): 245x45x241mm / 9.65''x1.77''x9.49''
  • Weight: 1,8kg / 3.97lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM
BOX CONTENT

Versions

Accessories & Related Products

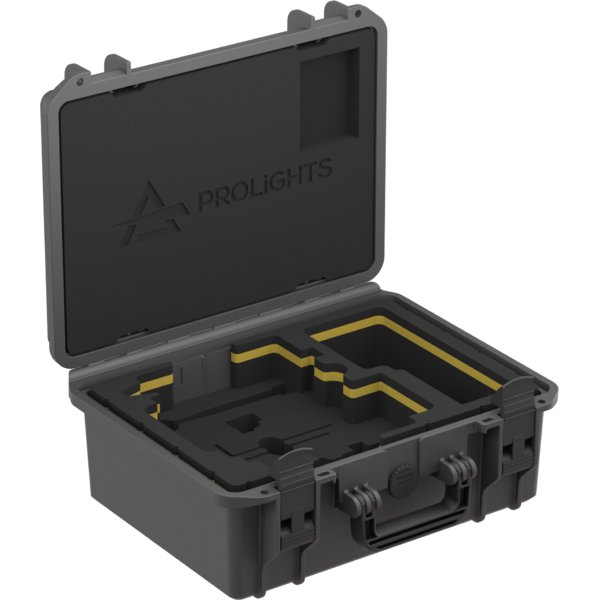

AEBBAG1U
AEBBAG1U
(Optional)

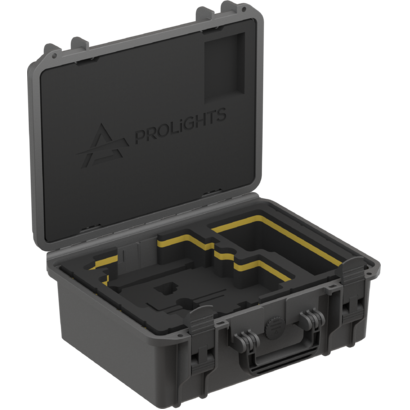

Empty ABS case for 1 pc of AETHERBOX

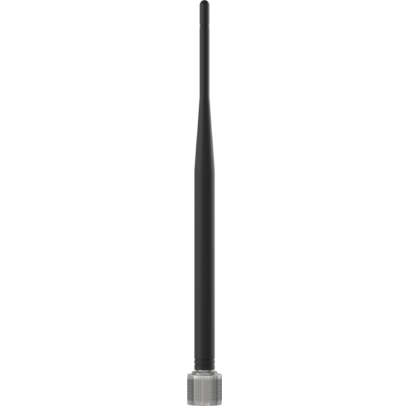

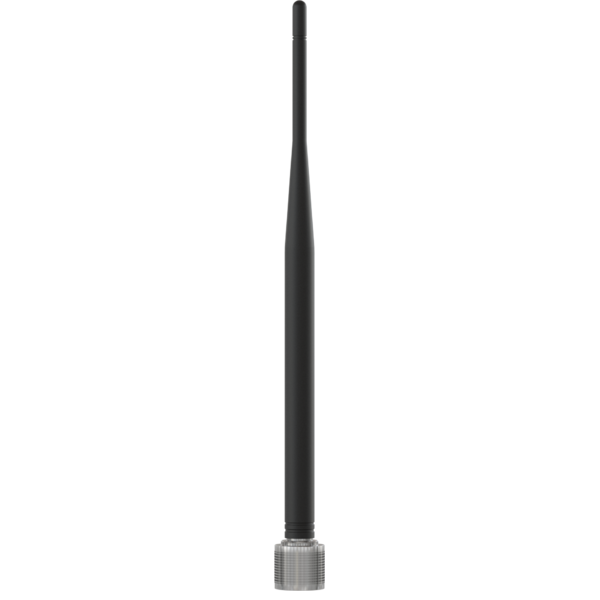

AEB5DBA
AEB5DBA
(Optional)
5dB antenna for AETHERBOX and CRMXBOXIP67

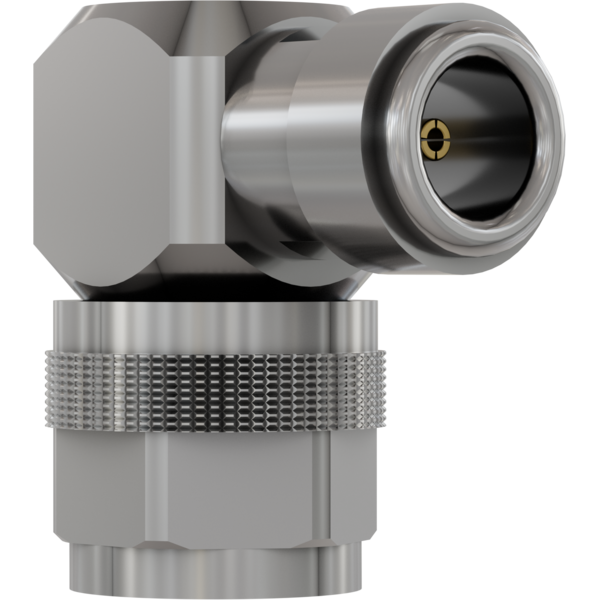

CRMXBOXIP6790ADP
CRMXBOXIP6790ADP
(Optional)
IP67 90 degree adapter for CRMXBOXIP67 antenna

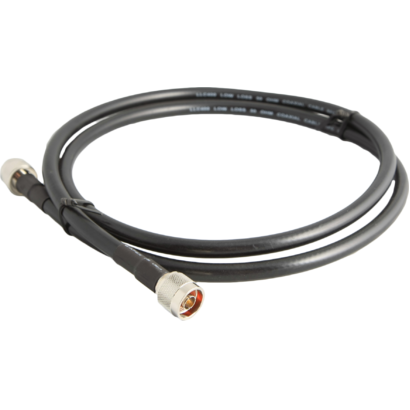

CABEXTN2N01M
CABEXTN2N01M
(Optional)
Antenna extension cable for AETHERBOX and CRMXBOXIP67, 1 m
CABEXTN2N03M
CABEXTN2N03M
(Optional)
Antenna extension cable for AETHERBOX and CRMXBOXIP67, 3 m
CABEXTN2N05M
CABEXTN2N05M
(Optional)
Antenna extension cable for AETHERBOX and CRMXBOXIP67, 5 m

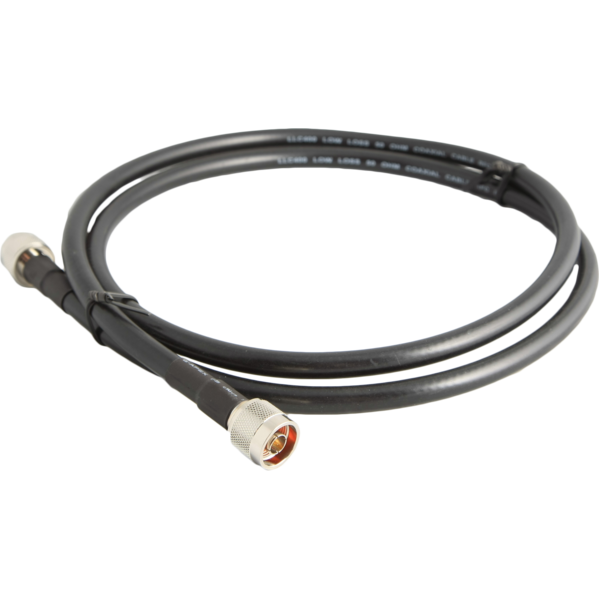

CABEXTN2N10M
CABEXTN2N10M
(Optional)
Antenna extension cable for AETHERBOX and CRMXBOXIP67, 10 m
CABEXTN2N15M
CABEXTN2N15M
(Optional)
Antenna extension cable for AETHERBOX and CRMXBOXIP67, 15 m

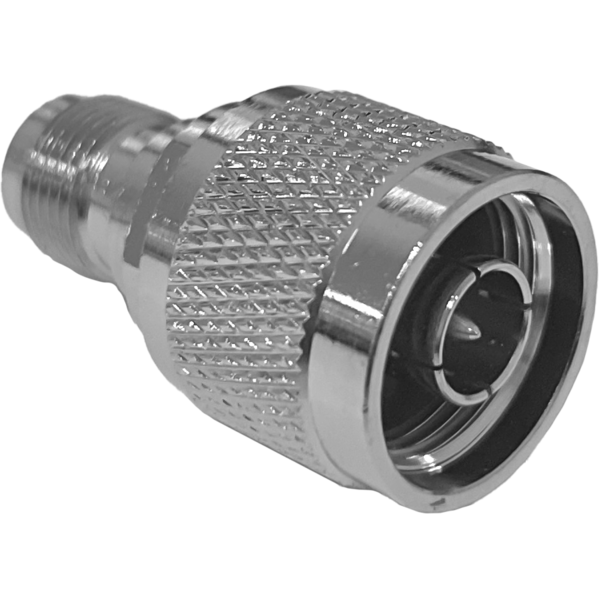

AEBRP2TNC
AEBRP2TNC
(Optional)
RP-TNC Female to N Male Adapter for AETHERBOX and CRMXBOXIP67

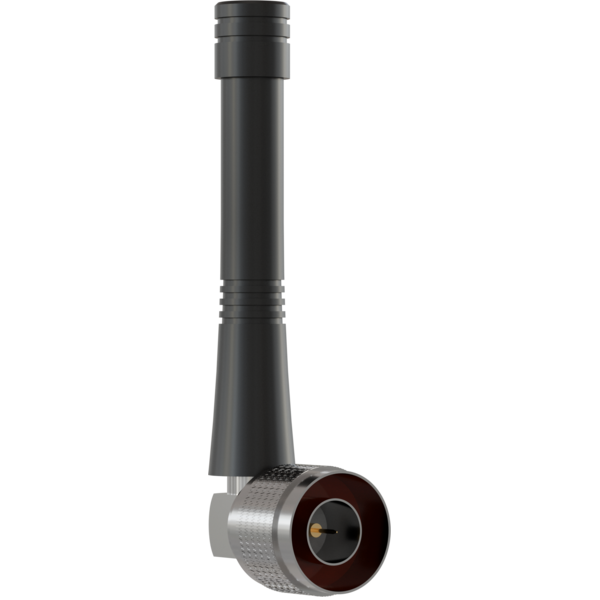

AEB2DBA90D
AEB2DBA90D
(Included)
2 dBi 90° angled antenna (N-male connector) for AETHERBOX and CRMXBOXIP67

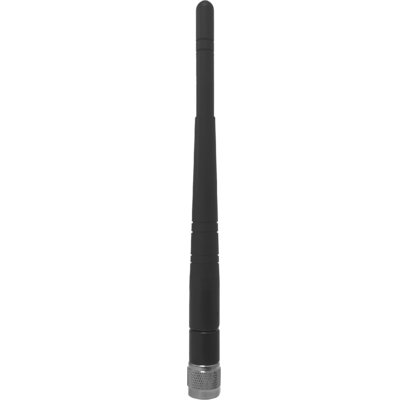

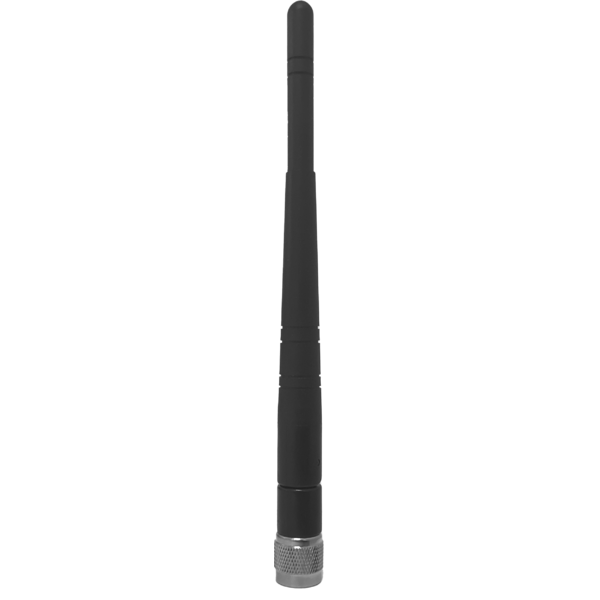

AEB2DBA
AEB2DBA
(Optional)
2 dBi Omni antenna (RP-TNC male connector) for AETHERBOX and CRMXBOXIP67

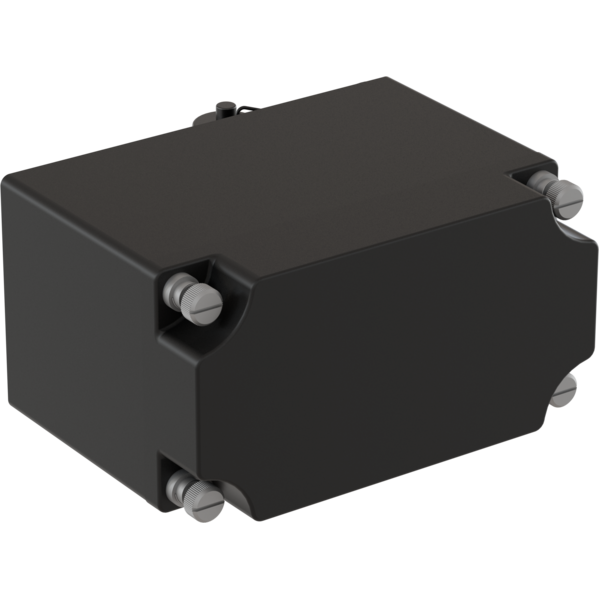

AEBBATADP
AEBBATADP
(Optional)

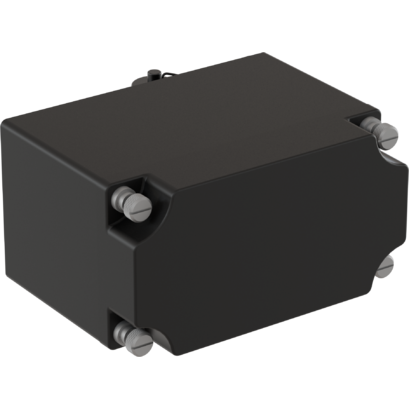

Battery holder for AETHERBOX

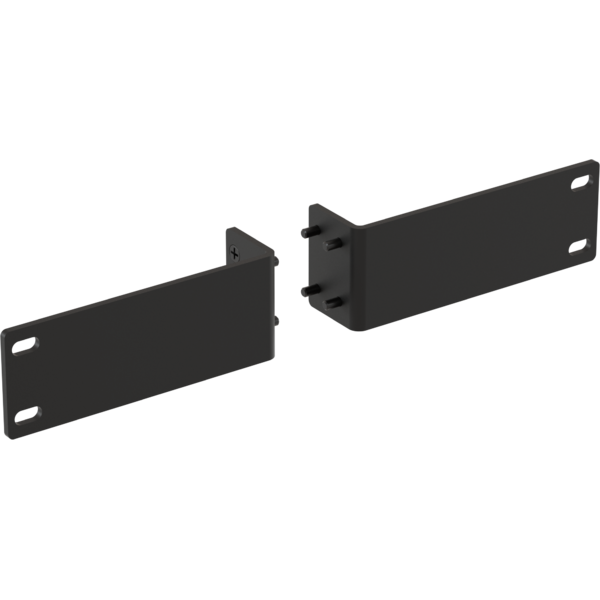

AEBRACKADP
AEBRACKADP
(Optional)

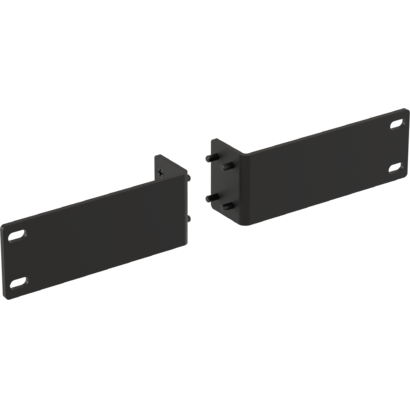

Rack adapter for AETHERBOX

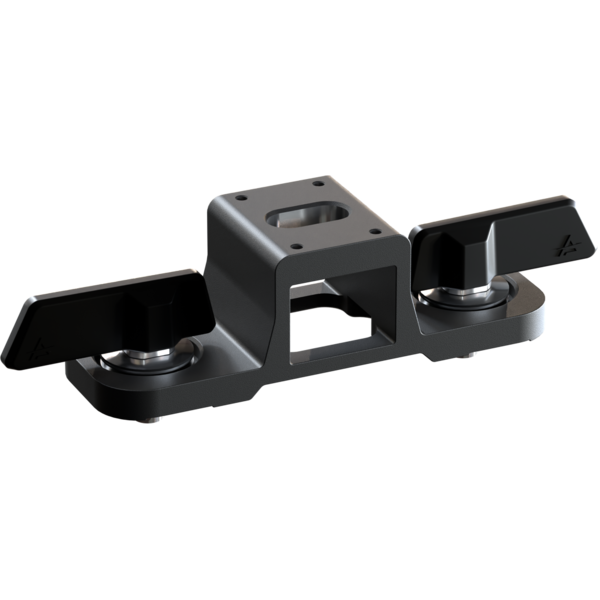

OS27PLUS
OS27PLUS
(Optional)
Quick-Lock omega bracket, M12 hole
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

User manual

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

Tech docs

File name File size Download

Software

File name File size Download

Firmware
