AETHERLINK

Æther Link

NEW

Order Code: AETHERLINK

IP rating
 IP66 for outdoor installations
Weight
0,4kg / 0.88lbs

Key Features

  • Single universe wireless CRMX transceiver unit
  • Easy setup via one-button interface
  • IP66 rated for exterior installation
  • Power IN/Out and DMX In/Out through moulded IP67 cables

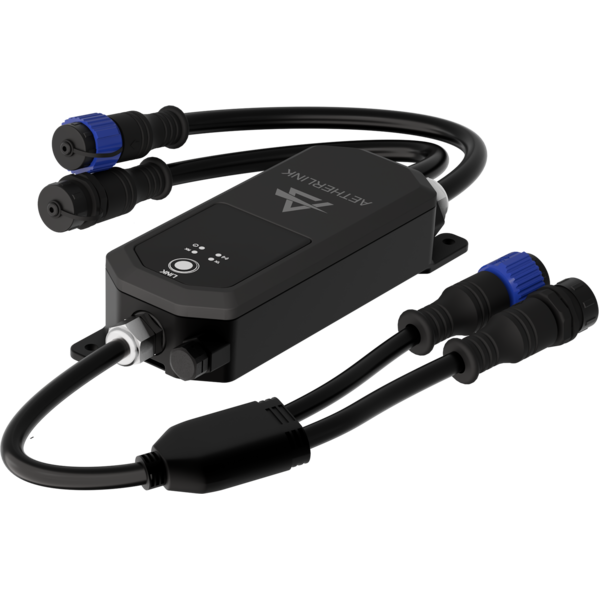

The Aether Link is a versatile, IP66 rated single universe wireless CRMX transceiver, fully compatible with Lumen Radio CRMX as well as Wireless DMX G3 and G4S protocols.

Designed in a compact form factor, it features moulded IP67 cables that provide flexible power and signal management, making it ideal for permanent architectural and outdoor installations.

The Aether Link also offers a simple, intuitive user interface with status LEDs and a push button, allowing quick and easy configuration of wireless settings.

Read less
The Aether Link is a versatile, IP66 rated single universe wireless CRMX transceiver, fully compatible with Lumen Radio CRMX as well as Wireless DMX G3 and G4S protocols.Designed in a compact form fac...

Product Video

Discover the Æther Link in action

Photo Gallery

AETHERLINK
AETHERLINK
AETHERLINK
AETHERLINK

Specifications

BODY
  • Body: weatherproof IP66 construction with die-cast aluminium alloy, scratch resistant paint C5M (as standard)
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, CRMX
  • DMX channels: 512channel
  • Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Firmware upgrade: via DMX with UPBOXPRO (USB-DMX interface not included)
  • Other: Transmission range up to 80 meters in open field
ELECTRONICS
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 2W
  • Standby power: 0,7 W
PHYSICAL
  • IP rating: IP66 for outdoor installations
  • Suspension and fixing: holes for fixing to surfaces
  • Signal connection: 20 cm, IP67 moulded IP signal IN/OUT connectors
  • Power connection: 15 cm, IP67 moulded IP power IN/OUT connectors
  • Dimensions (WxHxD): 154x33x54mm / 6.06''x1.3''x2.13''
  • Weight: 0,4kg / 0.88lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM
BOX CONTENT
  • 1 x AETHERLINK
  • 1 x 0,3 meters 3G1mmq power cable (BARE END - IP connection adapter)
  • 1 x 5p XLR - IP connection female adapter
  • 1 x 5p XLR - IP connection male adapter
  • User Manual

Accessories & Related Products

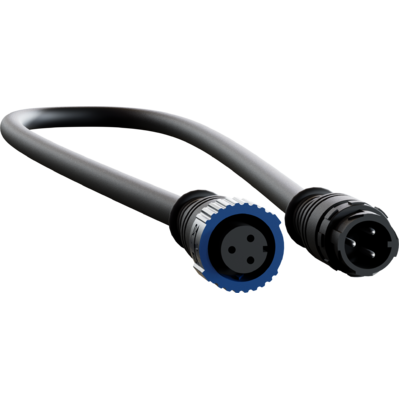

Optional AWEXAC2L03

Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 3m

Order Code: AWEXAC2L03

Optional AWEXAC2L05

Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 5m

Order Code: AWEXAC2L05

Optional AWEXAC2L10

Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 10m

Order Code: AWEXAC2L10

Optional AWEXAC2L20

Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 20m

Order Code: AWEXAC2L20

Optional AWEXDC2L03

Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 3m

Order Code: AWEXDC2L03

Optional AWEXDC2L05

Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 5m

Order Code: AWEXDC2L05

Optional AWEXDC2L10

Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 10m

Order Code: AWEXDC2L10

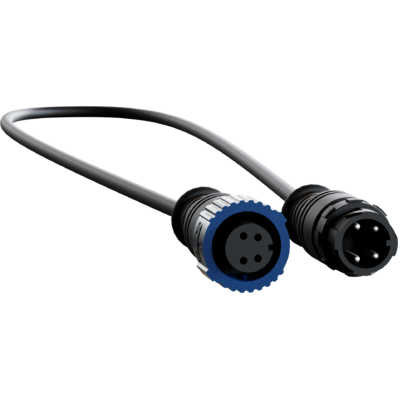

Optional AWEXDC2L20

Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 20m

Order Code: AWEXDC2L20

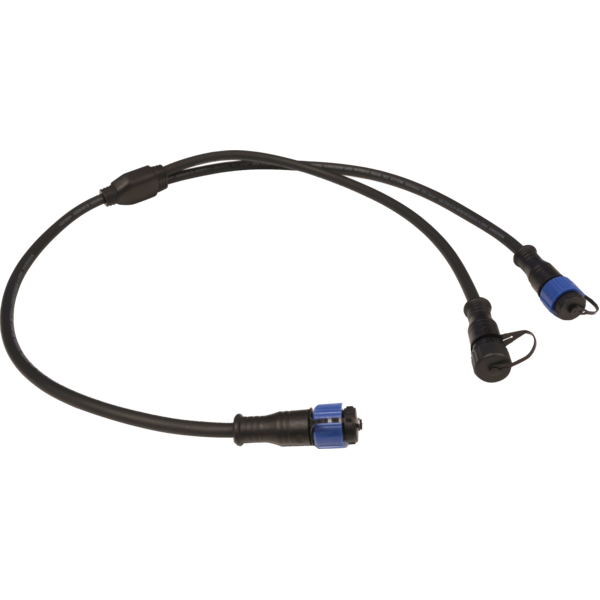

Optional PLYPC3010E73D

Y splitter power cable 3x1.0 mm2, IP67 connectors (1 IN + 2 OUT), 80 cm lenght

Order Code: PLYPC3010E73D

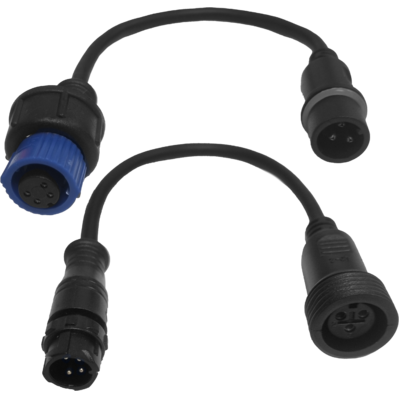

Optional AWEXDC1221ADP

Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa

Order Code: AWEXDC1221ADP

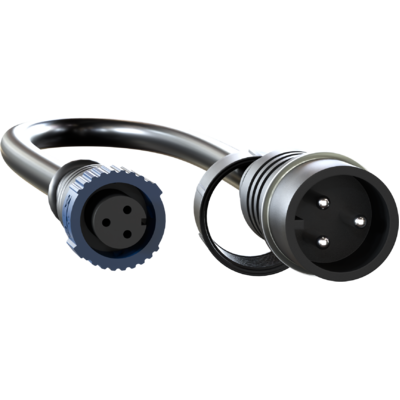

Optional AWEXAC12ADP

Power adapter from AWEXAC1 cable series to AWEXAC2 cable series

Order Code: AWEXAC12ADP

Optional AWEXAC1L03

IP67 power extension cable for outdoor architectural projectors, L.03 m

Order Code: AWEXAC1L03

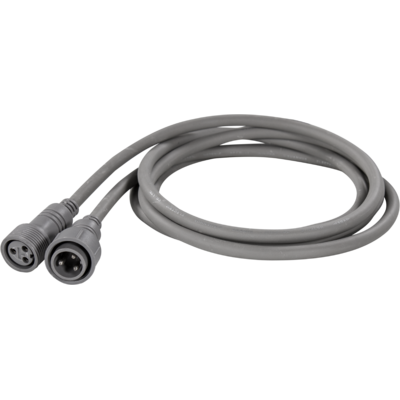

Optional AWEXAC1L05

IP67 power extension cable for outdoor architectural projectors, L.05 m

Order Code: AWEXAC1L05

Optional AWEXAC1L10

IP67 power extension cable for outdoor architectural projectors, L.10 m

Order Code: AWEXAC1L10

Optional AWEXAC1L20

IP67 power extension cable for outdoor architectural projectors, L.2 0m

Order Code: AWEXAC1L20

Optional AWEXDC1L03

IP67 DMX extension cable for outdoor architectural projectors, L.03 m

Order Code: AWEXDC1L03

Optional AWEXDC1L05

IP67 DMX extension cable for outdoor architectural projectors, L.05 m

Order Code: AWEXDC1L05

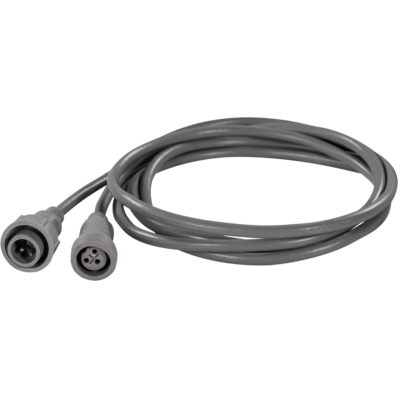

Optional AWEXDC1L10

IP67 DMX extension cable for outdoor architectural projectors, L.10 m

Order Code: AWEXDC1L10

Optional AWEXDC1L20

IP67 DMX extension cable for outdoor architectural projectors, L.20 m

Order Code: AWEXDC1L20

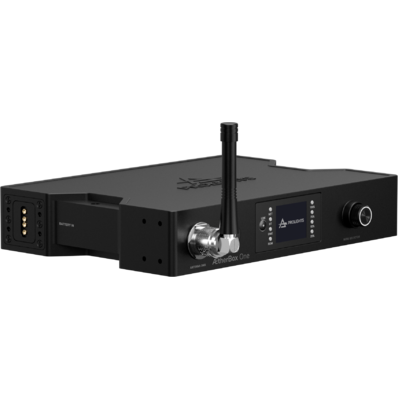

Optional <b>ÆtherBox</b>

IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready

Order Code: AETHERBOX

Downloads

Technical documentation and support files

Data sheet & specs Data sheet & specs

File name File size Download
Letter datasheetAetherlink_A4_DATASHEET_(EN).pdf(05/11/2025)224KB

User manual User manual

File name File size Download
User manualAetherlink_USER_MANUAL_EN.pdf(30/10/2025)1MB
User manualAetherlink_General_Safety_Information.pdf(30/10/2025)3MB

CAD symbols & drawings CAD symbols & drawings

File name File size Download
3D SKPAetherlink_3D.skp(02/10/2025)952KB
2DAetherlink_CAD_2D.dwg(02/10/2025)579KB
3DAetherlink_CAD_3D.dwg(02/10/2025)415KB
Technical drawingAetherlink_TECHNICAL_DRAWING.pdf(02/10/2025)89KB

Firmware

Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.00.0 STABLE 11/09/2025 First stable release Rev. 1.0
