ARCPOD15QC5M
PROLIGHTS

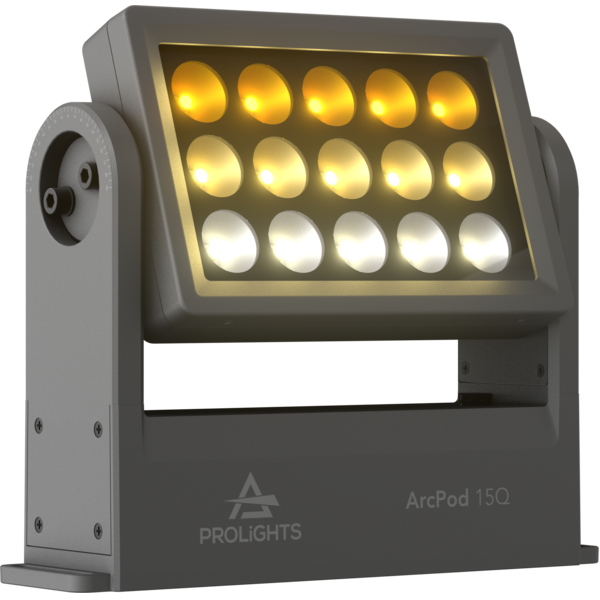

ArcPod 15QC5M new

ORDER CODE: ARCPOD15QC5M

15x10W RGBW/FC outdoor IP66 LED wash light with C5-M treatment for exterior installation also in marine environment

ArcPod 15Q is a compact exterior wash fixture, featuring high-intensity light despite its small size. Enhanced with a C5-M marine-grade treatment, they are ideal for outdoor use, even in challenging salty environments or near the sea.

The unit is equipped with 15x10W RGBW / FC LEDs, delivering an exceptional output over than 5'900 lumens and a wide gamut of colours and whites. The slim sizing, as well as the wide range of available optics, makes the ArcPod 15Q an incredibly flexible architectural fixture to complement the bigger versions in large outdoor installs as accent light or for smaller-sized projects.

5 YEARS WARRANTY

Main features:

  • Tilt adjustment and multiple lens options for fine focusing
  • 15x10W RGBW / FC LEDs
  • Compact form factor and fan-free design
  • IP66 with C5-M treatment for permanent exterior installation also in marine environment
See variants

PHOTO GALLERY

ArcPod 15QC5M
ArcPod 15QC5M
ArcPod 15QC5M
ArcPod 15QC5M

Technical specifications

LIGHT SOURCE
  • Source: 15x10W RGBW / FC LEDs
  • Luminous flux: (10°) 4'552 lm; (15°) 5'678 lm; (25°) 5'732 lm; (45°) 5'390 @Full
  • Lux: (10°) 3'116 lx; (15°) 2'790 lx; (25°) 1'203 lx; (45°) 287lx @5 m full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 25°
  • Field angle: 38°
  • Lens diameter: 36mm / 1.42''
  • Additional optics: 10° - 15° - 45° (optional) - see available accessories
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.800 K ~ 10.000K
  • Colour wheel: virtual colour wheel with presets
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static colour
BODY
  • Tilt range: 0 - 130° with manual regulation
  • Body: sturdy die-cast aluminium body, scratch resistant paint C5M (as standard)
  • Body colour: RAL 7012
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 5 / 7 / 10channel
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 ~ 30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 155W
  • Output (at 230V): 11 units on a single power line
  • Power factor: >0,97
PHYSICAL
  • IP rating: 66 for outdoor installations
  • IK rating: 08
  • Cooling: fan-free projector with a chassis designed for natural convection cooling
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: 1,8 m moulded IP signal IN/OUT connectors
  • Power connection: 1,8 m moulded IP power IN/OUT connectors
  • Dimensions (WxHxD): 307x259x83mm / 12.09''x10.2''x3.27''
  • Weight: 6,3kg / 13.89lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

<b>CRMXBox</b> IP67
CRMXBox IP67
(Optional)
IP67 1 Universe CRMX Wireless Transceiver for exterior installation
AWEXDC1221ADP
AWEXDC1221ADP
(Optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
AWEXAC12ADP
AWEXAC12ADP
(Optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
A15QFILTER20
A15QFILTER20
(Optional)
20° symmetric light diffusion filter for ARCPOD15Q, 11,4x18,6 cm
A15QFILTER30
A15QFILTER30
(Optional)
30° symmetric light diffusion filter for ARCPOD15Q, 11,4x18,6 cm
A15QFILTER40
A15QFILTER40
(Optional)
40° symmetric light diffusion filter for ARCPOD15Q, 11,4x18,6 cm
A15QFILTER60
A15QFILTER60
(Optional)
60° symmetric light diffusion filter for ARCPOD15Q, 11,4x18,6 cm
A15QFILTER80
A15QFILTER80
(Optional)
80° symmetric light diffusion filter for ARCPOD15Q, 11,4x18,6 cm
A15QFILTER1090
A15QFILTER1090
(Optional)
10°x90° asymmetric light diffusion filter for ARCPOD15Q, 11,4x18,6 cm
A15QFILTER1060
A15QFILTER1060
(Optional)
10°x60° asymmetric light diffusion filter for ARCPOD15Q, 11,4x18,6 cm
A15QFILTER3060
A15QFILTER3060
(Optional)
30°x60° asymmetric light diffusion filter for ARCPOD15Q, 11,4x18,6 cm
S27QLENS10
S27QLENS10
(Optional)
10° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QLENS15
S27QLENS15
(Optional)
15° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QLENS25
S27QLENS25
(Included)
25° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QLENS45
S27QLENS45
(Optional)
45° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
A15QSNOOT
A15QSNOOT
(Optional)
Snoot for ARCPOD15Q
A15QBD
A15QBD
(Optional)
Black barn door with 4 directional flaps to adjust the light beam, ARCPOD15Q
<b>DataMaster</b>
DataMaster
(Optional)
RDM/DMX tool,cable tester, 5p XLR connectors,pouch, charging cable, XLR adapters
AWEXAC1L03
AWEXAC1L03
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.03 m
AWEXAC1L05
AWEXAC1L05
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.05 m
AWEXAC1L20
AWEXAC1L20
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.2 0m
AWEXAC1L10
AWEXAC1L10
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.10 m
AWEXDC1L03
AWEXDC1L03
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.03 m
AWEXDC1L05
AWEXDC1L05
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.05 m
AWEXDC1L10
AWEXDC1L10
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.10 m
AWEXDC1L20
AWEXDC1L20
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.20 m
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetArcpod15qc5m_A4_DATASHEET_(EN).pdf341KB
Tender SpecificationArcpod15qc5m_TENDER_SPECIFICATION.pdf3MB

User manual

DMX chart & personalities

File name File size Download
DMX chartArcpod15qc5m_DMX_CHARTS.pdf78KB

Photometrics

CAD symbols & drawings

File name File size Download
3D RFAArcpod15qc5m_3D.rfa460KB
3D SKPArcpod15qc5m_3D.skp567KB
2DARCPOD15QC5M_2D.zip2MB
2D cad symbolsArcpod15qc5m_CAD_2DSYMBOLS.dwg178KB
3DArcpod15qc5m_CAD_3D.dwg527KB
Technical drawingARCPOD15QC5M_TECHNICAL DRAWINGS.zip350KB
VectorWorksVECTORWORKS_SYMBOLS.vwx262KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx321MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware
