ARCPOD15QC5M

ArcPod 15QC5M

NEW
5 YEARS WARRANTY

Order Code: ARCPOD15QC5M

Source
15x10W RGBW / FC LEDs
IP rating
 IP66 for outdoor installations
Weight
6,3kg / 13.89lbs

Key Features

  • Tilt adjustment and multiple lens options for fine focusing
  • 15x10W RGBW / FC LEDs
  • Compact form factor and fan-free design
  • IP66 with C5-M treatment for permanent exterior installation also in marine environment

ArcPod 15Q is a compact exterior wash fixture, featuring high-intensity light despite its small size. Enhanced with a C5-M marine-grade treatment, they are ideal for outdoor use, even in challenging salty environments or near the sea.

The unit is equipped with 15x10W RGBW / FC LEDs, delivering an exceptional output over than 5'900 lumens and a wide gamut of colours and whites. The slim sizing, as well as the wide range of available optics, makes the ArcPod 15Q an incredibly flexible architectural fixture to complement the bigger versions in large outdoor installs as accent light or for smaller-sized projects.

Read less
ArcPod 15Q is a compact exterior wash fixture, featuring high-intensity light despite its small size. Enhanced with a C5-M marine-grade treatment, they are ideal for outdoor use, even in challenging s...

Product Video

Discover the ArcPod 15QC5M in action

Photo Gallery

ARCPOD15QC5M
ARCPOD15QC5M
ARCPOD15QC5M
ARCPOD15QC5M

Specifications

LIGHT SOURCE
  • Source: 15x10W RGBW / FC LEDs
  • Luminous flux: (10°) 4'552 lm; (15°) 5'678 lm; (25°) 5'732 lm; (45°) 5'390 @Full
  • Lux: (10°) 3'116 lx; (15°) 2'790 lx; (25°) 1'203 lx; (45°) 287lx @5 m full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 25°
  • Field angle: 38°
  • Lens diameter: 36mm / 1.42''
  • Additional optics: 10° - 15° - 45° (optional) - see available accessories
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.800 K ~ 10.000K
  • Colour wheel: virtual colour wheel with presets
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static colour
BODY
  • Tilt range: 0 - 130° with manual regulation
  • Body: sturdy die-cast aluminium body, scratch resistant paint C5M (as standard)
  • Body colour: RAL 7012
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 5 / 7 / 10channel
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 ~ 30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 155W
  • Output (at 230V): 11 units on a single power line
  • Power factor: >0,97
PHYSICAL
  • IP rating: IP66 for outdoor installations
  • IK rating: 08
  • Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: 1,8 m moulded IP signal IN/OUT connectors
  • Power connection: 1,8 m moulded IP power IN/OUT connectors
  • Dimensions (WxHxD): 307x259x83mm / 12.09''x10.2''x3.27''
  • Weight: 6,3kg / 13.89lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT
  • 1 x ARCPOD15Q
  • 1 x 0,28 meters 3G1,5mmq power cable (BARE END - IP connection adapter)
  • 1 x 5p XLR - IP connection male adapter
  • 1 x 5p XLR - IP connection female adapter
  • User Manual

Accessories & Related Products

Optional <b>Æther</b> Link

IP66 rated 1 Universe CRMX wireless transceiver for permanent outdoor installation

Order Code: AETHERLINK

Optional AWEXDC1221ADP

Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa

Order Code: AWEXDC1221ADP

Optional AWEXAC12ADP

Power adapter from AWEXAC1 cable series to AWEXAC2 cable series

Order Code: AWEXAC12ADP

Optional RSR0630B

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

Order Code: RSR0630B

Optional C6002B

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

Order Code: C6002B

Optional A15QFILTER20

20° symmetric light diffusion filter for ARCPOD15Q, 11,4x18,6 cm

Order Code: A15QFILTER20

Optional A15QFILTER30

30° symmetric light diffusion filter for ARCPOD15Q, 11,4x18,6 cm

Order Code: A15QFILTER30

Optional A15QFILTER40

40° symmetric light diffusion filter for ARCPOD15Q, 11,4x18,6 cm

Order Code: A15QFILTER40

Optional A15QFILTER60

60° symmetric light diffusion filter for ARCPOD15Q, 11,4x18,6 cm

Order Code: A15QFILTER60

Optional A15QFILTER80

80° symmetric light diffusion filter for ARCPOD15Q, 11,4x18,6 cm

Order Code: A15QFILTER80

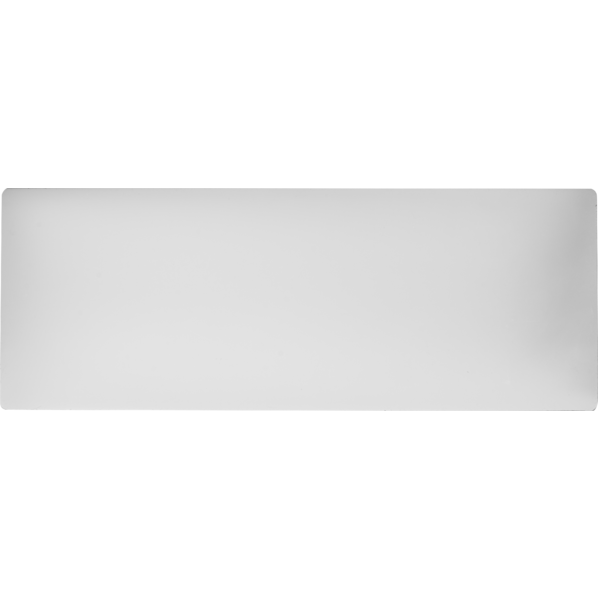

Optional A15QFILTER1090

10°x90° asymmetric light diffusion filter for ARCPOD15Q, 11,4x18,6 cm

Order Code: A15QFILTER1090

Optional A15QFILTER1060

10°x60° asymmetric light diffusion filter for ARCPOD15Q, 11,4x18,6 cm

Order Code: A15QFILTER1060

Optional A15QFILTER3060

30°x60° asymmetric light diffusion filter for ARCPOD15Q, 11,4x18,6 cm

Order Code: A15QFILTER3060

Optional S27QLENS10

10° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series

Order Code: S27QLENS10

Optional S27QLENS15

15° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series

Order Code: S27QLENS15

Included S27QLENS25

25° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series

Order Code: S27QLENS25

Optional S27QLENS45

45° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series

Order Code: S27QLENS45

Optional A15QSNOOT

Snoot for ARCPOD15Q

Order Code: A15QSNOOT

Optional A15QBD

Black barn door with 4 directional flaps to adjust the light beam, ARCPOD15Q

Order Code: A15QBD

Optional <b>DataMaster</b>

RDM/DMX tool,cable tester, 5p XLR connectors,pouch, charging cable, XLR adapters

Order Code: DATAMASTER

Optional AWEXAC1L03

IP67 power extension cable for outdoor architectural projectors, L.03 m

Order Code: AWEXAC1L03

Optional AWEXAC1L05

IP67 power extension cable for outdoor architectural projectors, L.05 m

Order Code: AWEXAC1L05

Optional AWEXAC1L20

IP67 power extension cable for outdoor architectural projectors, L.2 0m

Order Code: AWEXAC1L20

Optional AWEXAC1L10

IP67 power extension cable for outdoor architectural projectors, L.10 m

Order Code: AWEXAC1L10

Optional AWEXDC1L03

IP67 DMX extension cable for outdoor architectural projectors, L.03 m

Order Code: AWEXDC1L03

Optional AWEXDC1L05

IP67 DMX extension cable for outdoor architectural projectors, L.05 m

Order Code: AWEXDC1L05

Optional AWEXDC1L10

IP67 DMX extension cable for outdoor architectural projectors, L.10 m

Order Code: AWEXDC1L10

Optional AWEXDC1L20

IP67 DMX extension cable for outdoor architectural projectors, L.20 m

Order Code: AWEXDC1L20

Optional UPBOXPRO

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

Order Code: UPBOXPRO

Downloads

Technical documentation and support files

Data sheet & specs Data sheet & specs

File name File size Download
Letter datasheetArcpod15qc5m_LETTER_DATASHEET_(EN).pdf(27/08/2025)342KB
Letter datasheetArcpod15qc5m_A4_DATASHEET_(ITA).pdf(27/08/2025)339KB
Letter datasheetArcpod15qc5m_A4_DATASHEET_(EN).pdf(27/08/2025)341KB
Tender SpecificationArcpod15qc5m_TENDER_SPECIFICATION.pdf(22/08/2022)3MB

User manual User manual

File name File size Download
User manualArcpod15qc5m_USER_MANUAL_EN.pdf(31/01/2023)5MB
User manualGENERAL_SAFETY_INFORMATION.pdf(02/12/2022)12MB
User manualGENERAL_SAFETY_INFORMATION.pdf(02/12/2022)12MB

DMX chart & personalities DMX chart & personalities

File name File size Download
DMX chartArcpod15qc5m_DMX_CHARTS.pdf(23/02/2021)78KB

Photometrics Photometrics

File name File size Download
LDTarchwork_arcpod15q_ldt files.zip(31/07/2020)36KB
IESarcwork_arcpod15q_ies files.zip(31/07/2020)43KB
PhotometricsArcpod15qc5m_PHOTOMETRICS_REPORT.pdf(31/07/2020)3MB
DialuxDownload DIALux product catalogue-

CAD symbols & drawings CAD symbols & drawings

File name File size Download
3D RFAArcpod15qc5m_3D.rfa(23/04/2021)460KB
3D SKPArcpod15qc5m_3D.skp(09/08/2022)567KB
2DARCPOD15QC5M_2D.zip2MB
2D cad symbolsArcpod15qc5m_CAD_2DSYMBOLS.dwg(05/11/2020)178KB
3DArcpod15qc5m_CAD_3D.dwg(09/08/2022)527KB
Technical drawingARCPOD15QC5M_TECHNICAL DRAWINGS.zip350KB
VectorWorksVECTORWORKS_SYMBOLS.vwx(05/11/2020)262KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
