ArcShine M9FC

9x4W IP66 RGB + Warm White architectural linear bar, 50 cm

The ArcShine M18FC and ArcShine M9FC are a series of linear LED fixtures, designed for interior and exterior applications (IP66) such as flood lighting, wall washing and accent lighting.
There are two sizes available, one with 18 LEDs (100 cm) and the other with 9 (50 cm) LED emitters, 4W each, with RGB + Warm White colour mixing. Its die-cast aluminium body with tempered glass make them perfect additions to urban structures or historical buildings.
Optic: 8° lenses capable of delivering multiple angles with optional holographic filters.
Optional holographic symmetric and elliptical filters available: 20°, 40°, 60°, 10°x60°, 30°x60°.
The ArcShine range has an on-board power supply and DMX/RDM control. The 100 cm version is controllable in two sections.

5 YEARS WARRANTY

Main features:

  • IP66 design, AC 100-240V and driver on-board, DMX/RDM controllable
  • RGB + Warm White colour mixing, with 4W LED emitters
  • Optic: 8° lenses capable of delivering multiple angles with optional holographic filters
  • Optional holographic symmetric and elliptical filters available: 20°, 40°, 60°, 10°x60°. 30°x60°

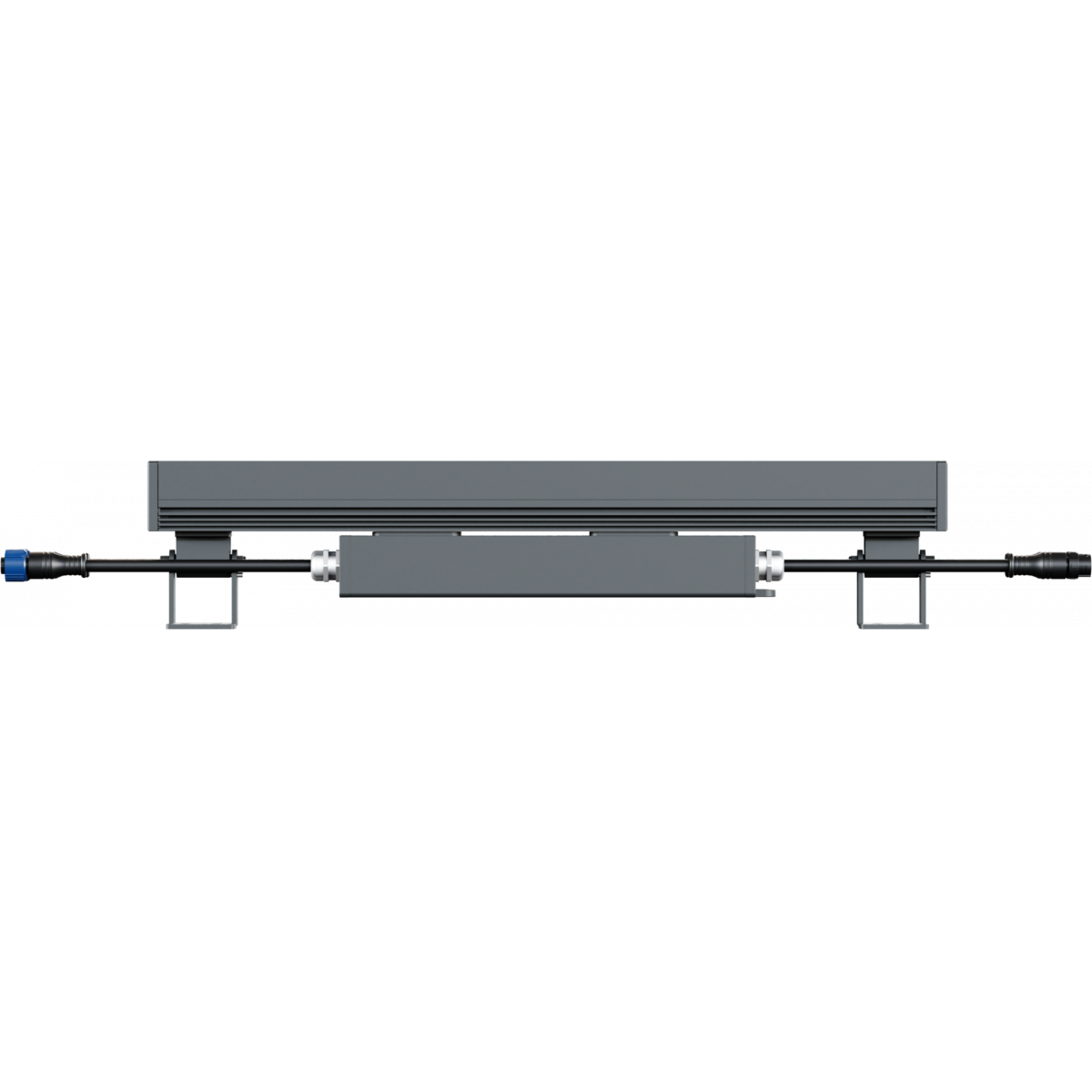

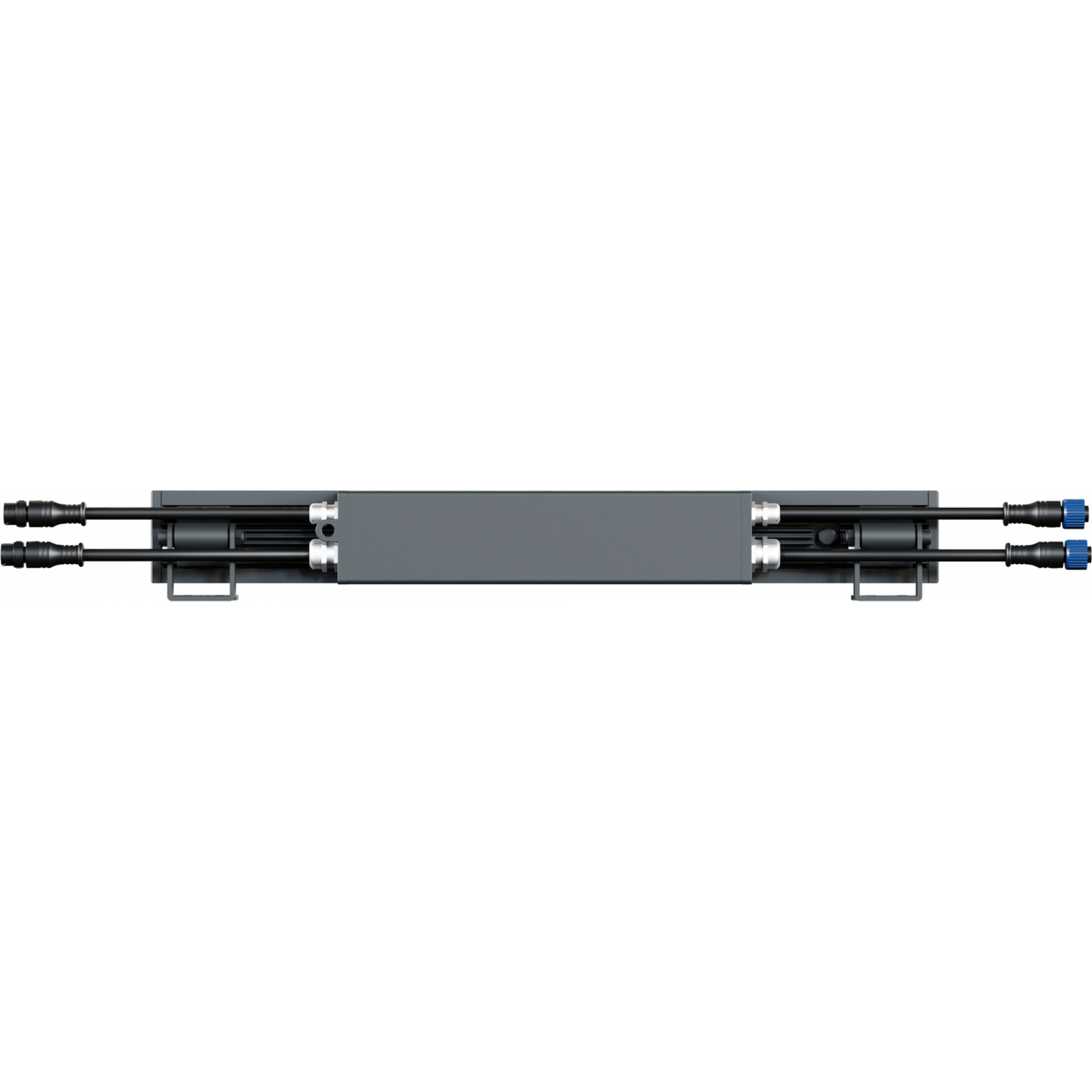

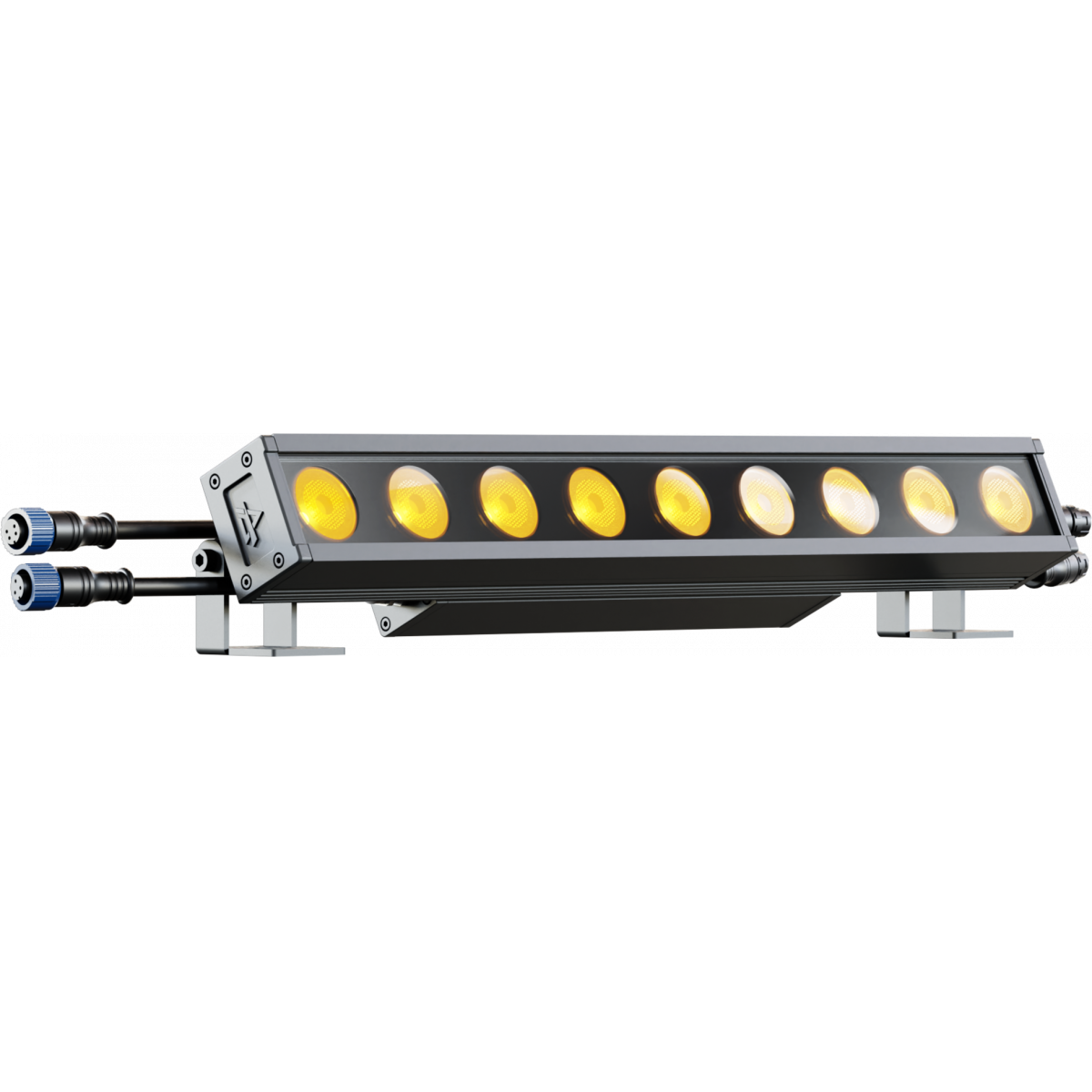

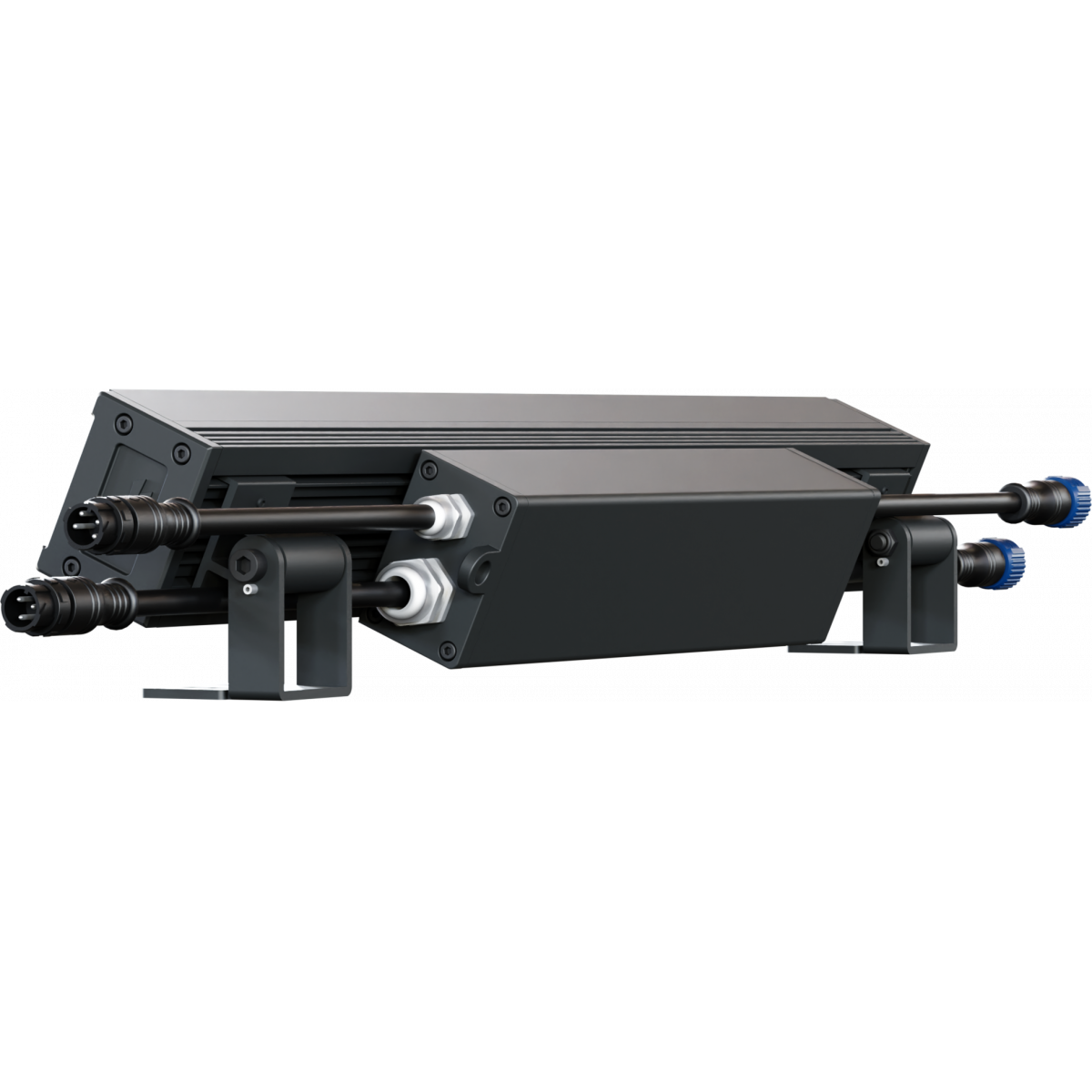

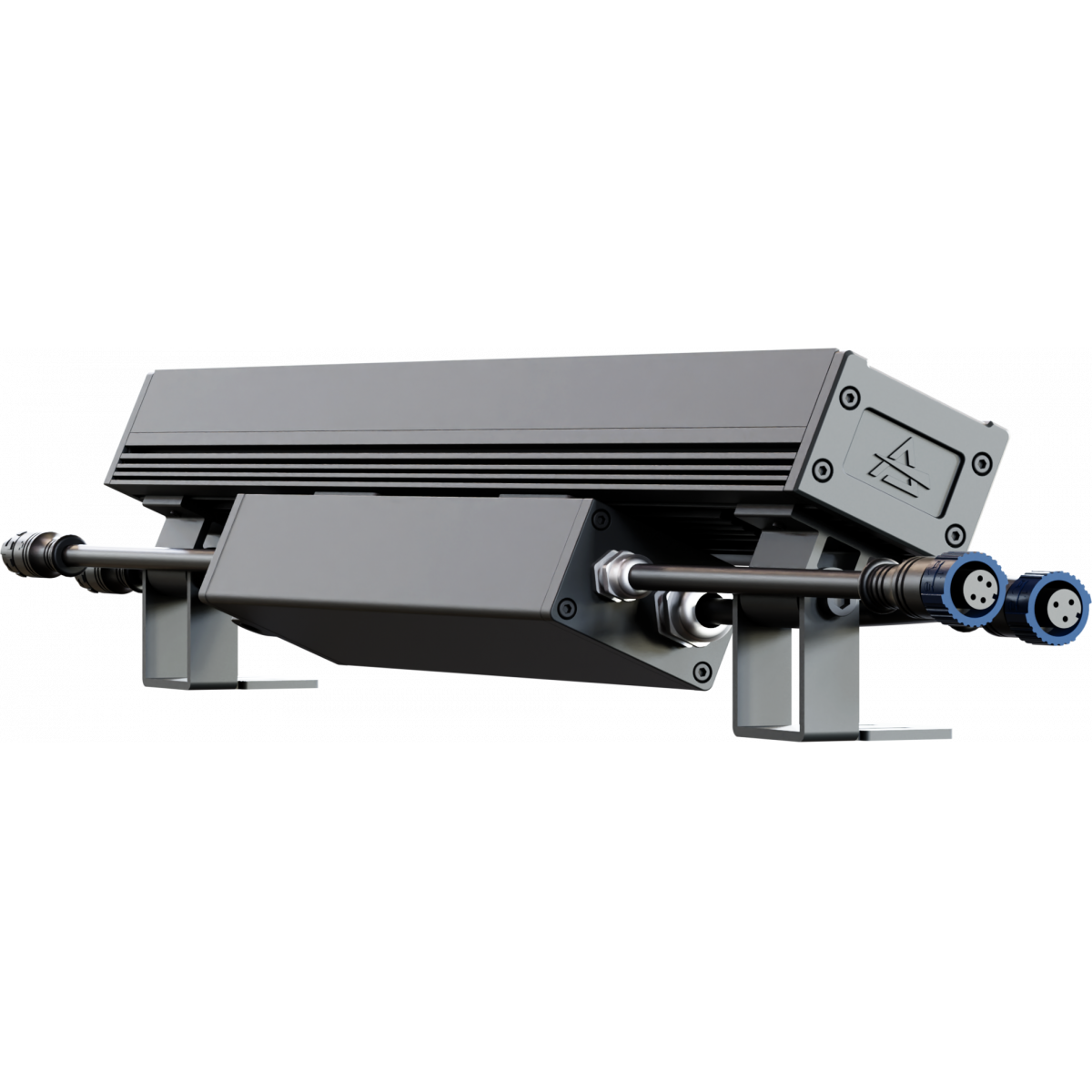

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 9x4W RGBWW LEDs
  • CCT: 2.700 K - 5.600
  • Luminous flux: (8°) 1'288 lm; (8°+20°) 1'275 lm; (8°+40°) 1'259 lm; (8°+60°) 1'265 lm; (8°+10°x60°) 1'772 lm; (8°+30°x60°) 1'394 @full
  • Lux: (8°) 924 lx; (8°+20°) 153 lx; (8°+40°) 60 lx; (8°+60°) 45 lx; (8°+10°x60°) 108 lx; (8°+30°x60°) 60lx @5 m full
  • CRI: >80
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 8°
  • Additional optics: see available accessories
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • CCT: CCT control through dedicated DMX channel
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
BODY
  • Tilt angle: manual 180°
  • Body: sturdy aluminum profile
  • Body colour: RAL 7012
CONTROL
  • Protocols: DMX512, RDM
  • Stand Alone: available through DATAMASTER external coder (not included)
  • DMX channels: 1 / 2 / 5 / 9 / 12 / 14channel
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
  • Other: 16bit control of dimmer and colour
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1-30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F)
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 40W
  • Output (at 230V): 40 units on a single power line
  • Power factor: >0,94
  • Inrush current: 110VAC/10.35A, 230VAC/19.3A
PHYSICAL
  • IP rating: 66 for outdoor installations
  • IK rating: 09
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: moulded IP signal IN/OUT connectors
  • Power connection: moulded IP power IN/OUT connectors
  • Dimensions (WxHxD): 500x106x71mm / 19.69''x4.17''x2.8''
  • Weight: 3kg / 6.61lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
LED source
Beam angle (° - VxH)
Lenght (cm)
ARCSHINEM908FC
ARCSHINEM908FC
RGBW/Full color
8
50

Accessories & Related Products

<b>CRMXBox</b> IP
CRMXBox IP
(optional)
IP67 1 Universe CRMX Wireless Transceiver for exterior installation
<b>DataMaster</b>
DataMaster
(optional)
RDM/DMX tool,cable tester, 5p XLR connectors,pouch, charging cable, XLR adapters
AWEXAC2L03
AWEXAC2L03
(optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 3m
AWEXAC2L05
AWEXAC2L05
(optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 5m
AWEXAC2L10
AWEXAC2L10
(optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 10m
AWEXAC2L20
AWEXAC2L20
(optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 20m
AWEXDC2L03
AWEXDC2L03
(optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 3m
AWEXDC2L05
AWEXDC2L05
(optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 5m
AWEXDC2L10
AWEXDC2L10
(optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 10m
AWEXDC2L20
AWEXDC2L20
(optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 20m

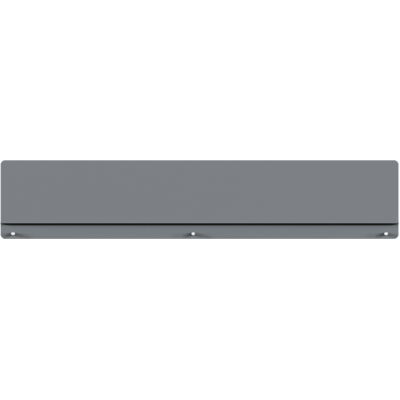

ARCS9FIXBD
ARCS9FIXBD
(optional)
Barndoor to adjust the light beam for ARCSHINES9 and ARCSHINEM9
ARCSM9FILTER20
ARCSM9FILTER20
(optional)
Light diffusion filter for ARCSHINEM9, 20°
ARCSM9FILTER40
ARCSM9FILTER40
(optional)
Light diffusion filter for ARCSHINEM9, 40°
ARCSM9FILTER60
ARCSM9FILTER60
(optional)
Light diffusion filter for ARCSHINEM9, 60°

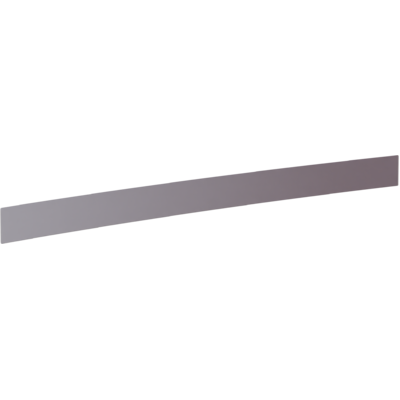

ARCSM9FILTER1060
ARCSM9FILTER1060
(optional)
Light diffusion filter for ARCSHINEM9, 10°x60°
ARCSM9FILTER3060
ARCSM9FILTER3060
(optional)
Light diffusion filter for ARCSHINEM9, 30°x60°

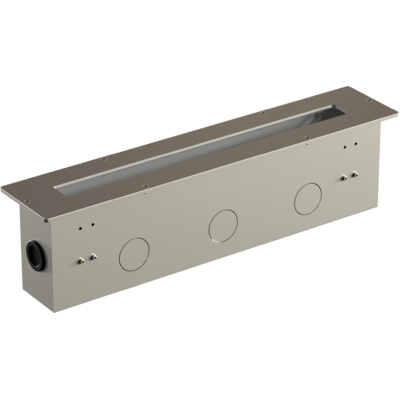

ARCSSM9OUTERCASE
ARCSSM9OUTERCASE
(optional)
Outercase box for ground installation for ARCSHINES9 and ARCSHINEM9 series
AWEXDC1221ADP
AWEXDC1221ADP
(optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
AWEXAC12ADP
AWEXAC12ADP
(optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
IPTESTBOX
IPTESTBOX
(optional)
Portable vacuum and pressure tester for ProLights IP fixtures
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

DOWNLOAD

Data sheet & specs

DMX chart & personalities

File name File size Download
DMX chart Arcshinem9fc_DMX_CHARTS.pdf 173KB
ARCSHINEM9FC Firmware rev. 1.0
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO UPBOX1UP5 UPBOX1UP5
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0 STABLE 04/08/2022 First stable release.
