ARCSHINES9VW
PROLIGHTS

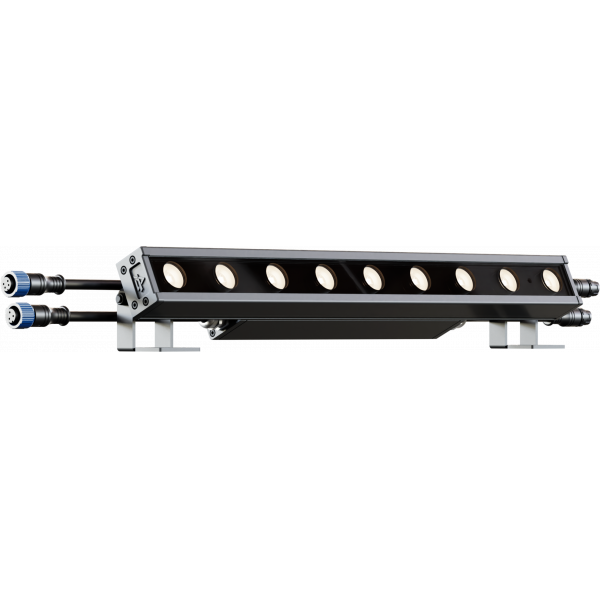

ArcShine S9VW

9x2W IP66 Variable White architectural linear fixture, 50 cm

The ArcShine S18VW and ArcShine S9VW are a series of slim linear LED fixtures, designed for interior and exterior applications (IP66) such as flood lighting, wall washing and accent lighting.
There are two sizes available, one with 18 LEDs (100 cm) and the other with 9 (50 cm) LED emitters, 2W each, with Variable White colour mixing. Its die-cast aluminium body with tempered glass make them perfect additions to urban structures or historical buildings.
Optic: 15° lenses capable of delivering multiple angles with optional holographic filters.
Optional holographic symmetric and elliptical filters available: 20°, 60°, 10°x60°, 30°x60°.
The ArcShine range has an on-board power supply and DMX/RDM control. The 100 cm version is controllable in two sections.

5 YEARS WARRANTY

Main features:

  • IP66 design, AC 100-240V and driver on-board, DMX/RDM controllable
  • Variable White colour mixing, with 2W LED emitters
  • Optic: 15° lenses capable of delivering multiple angles with optional holographic filters
  • Optional holographic symmetric and elliptical filters available: 20°, 40°, 60°, 10°x60°. 30°x60°
See variants

PHOTO GALLERY

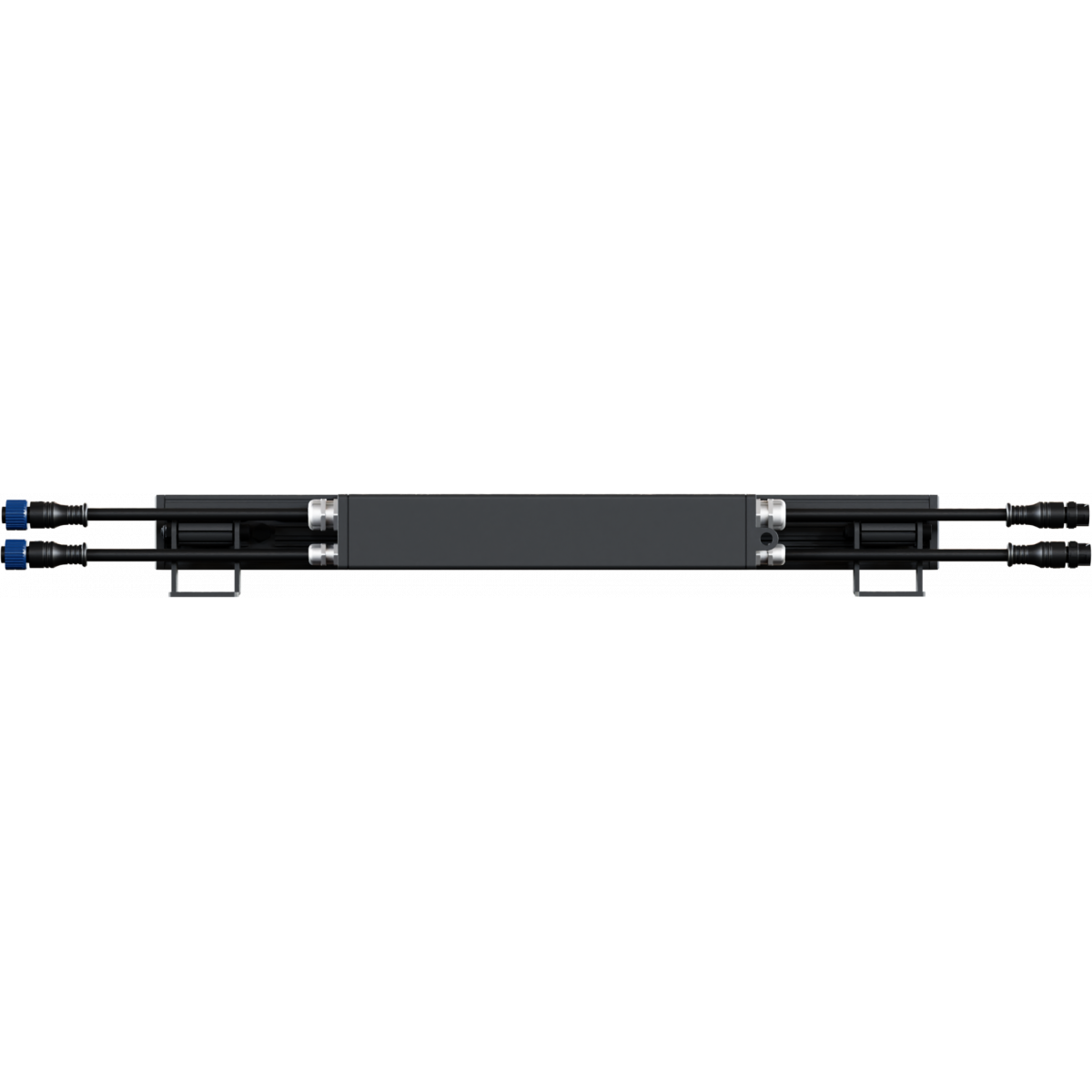

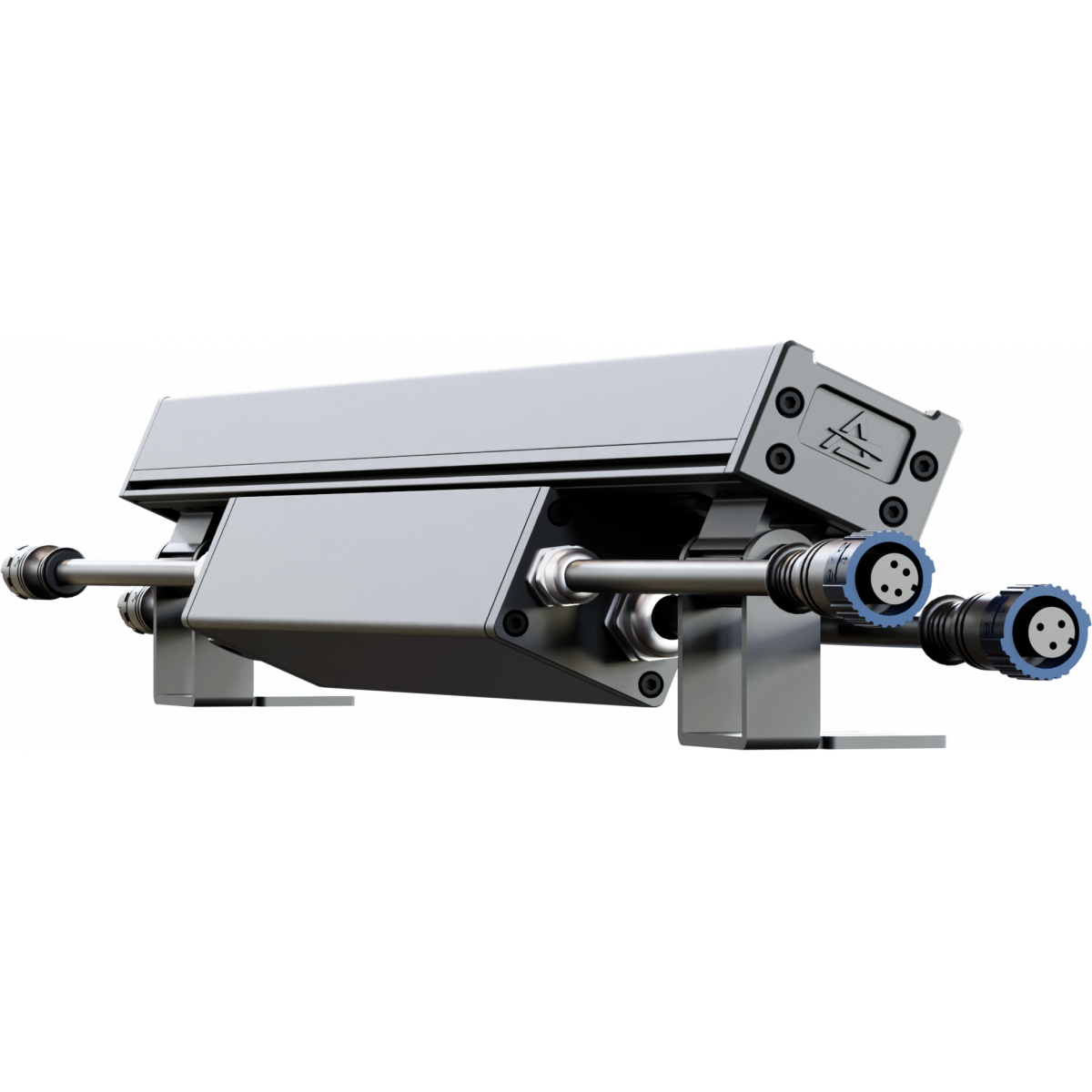

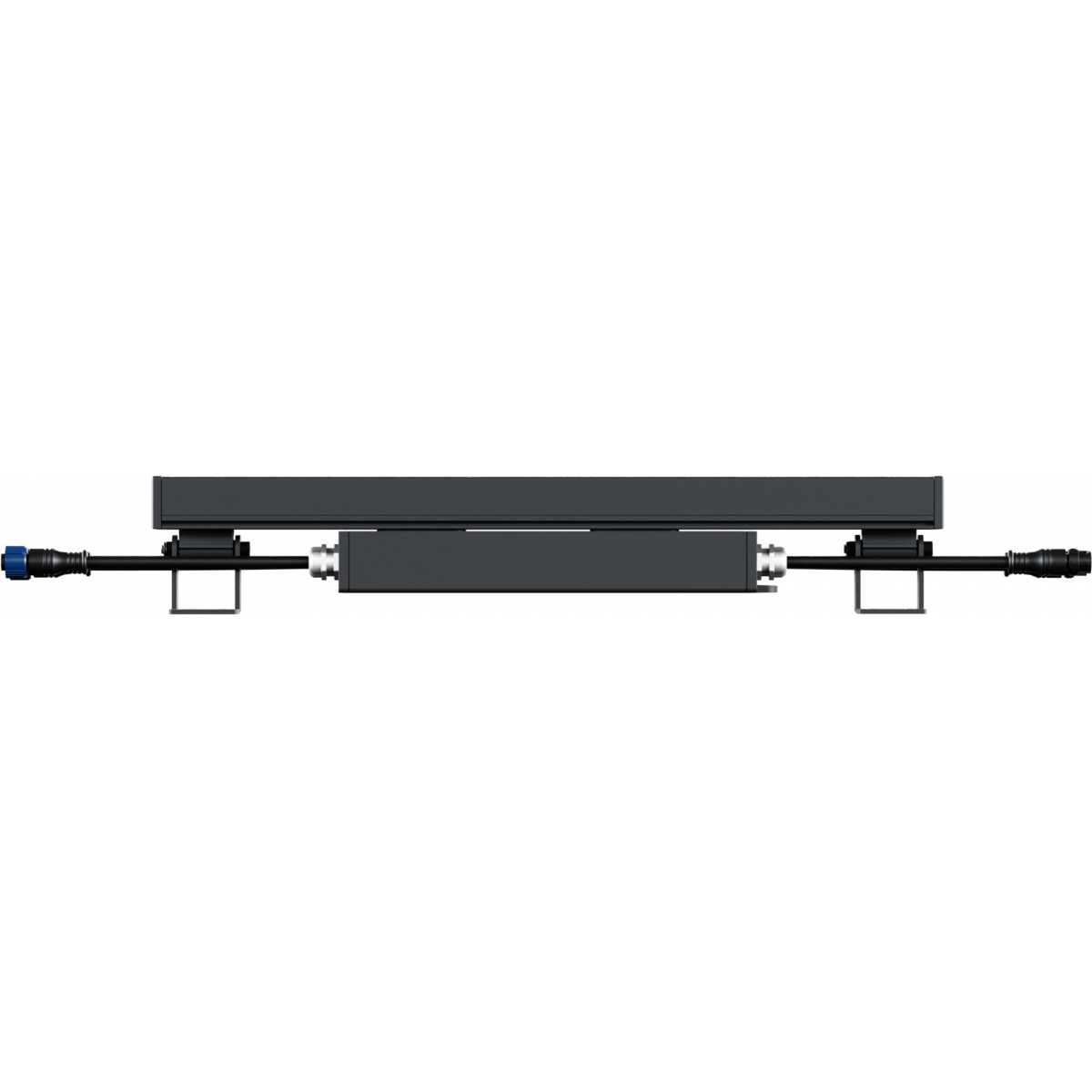

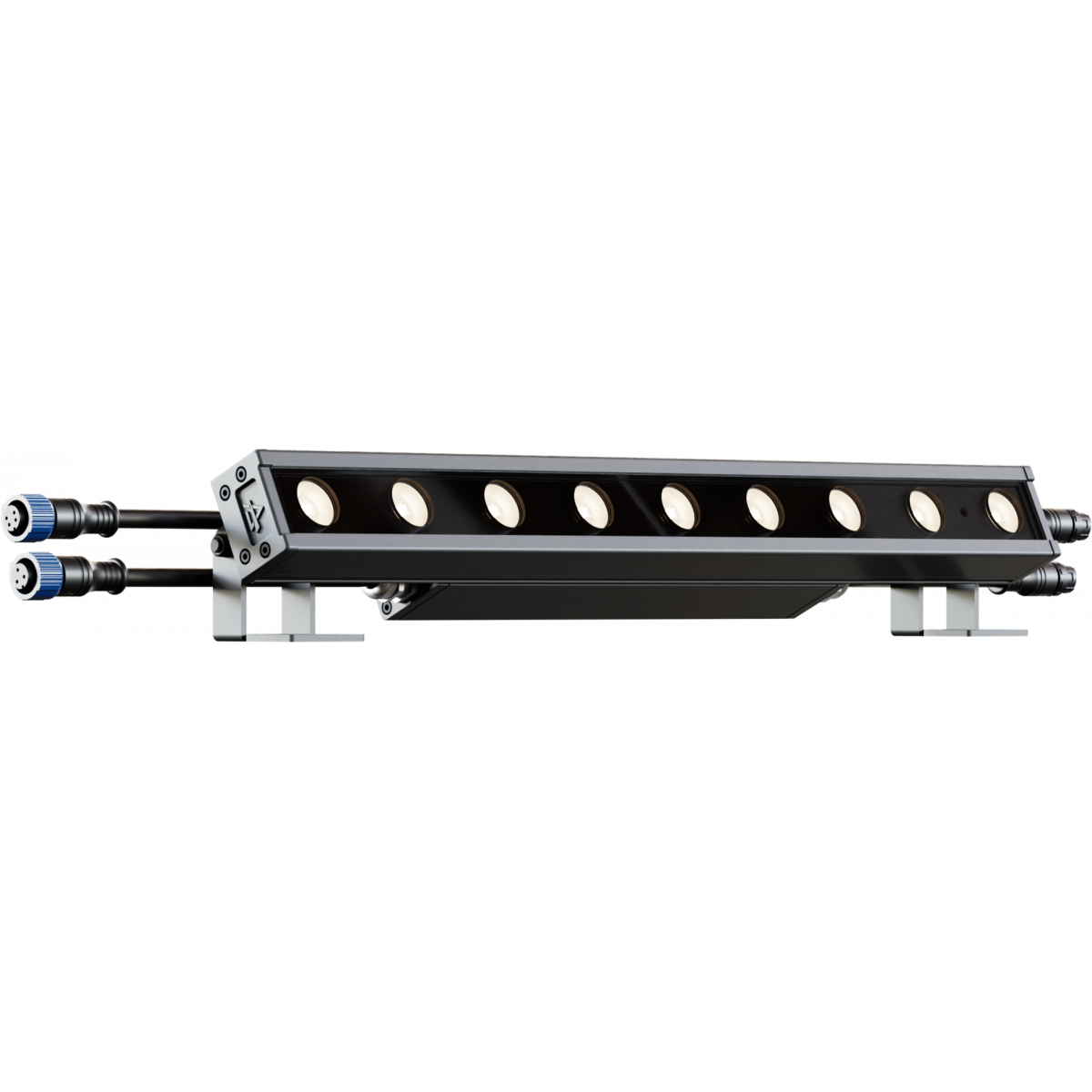

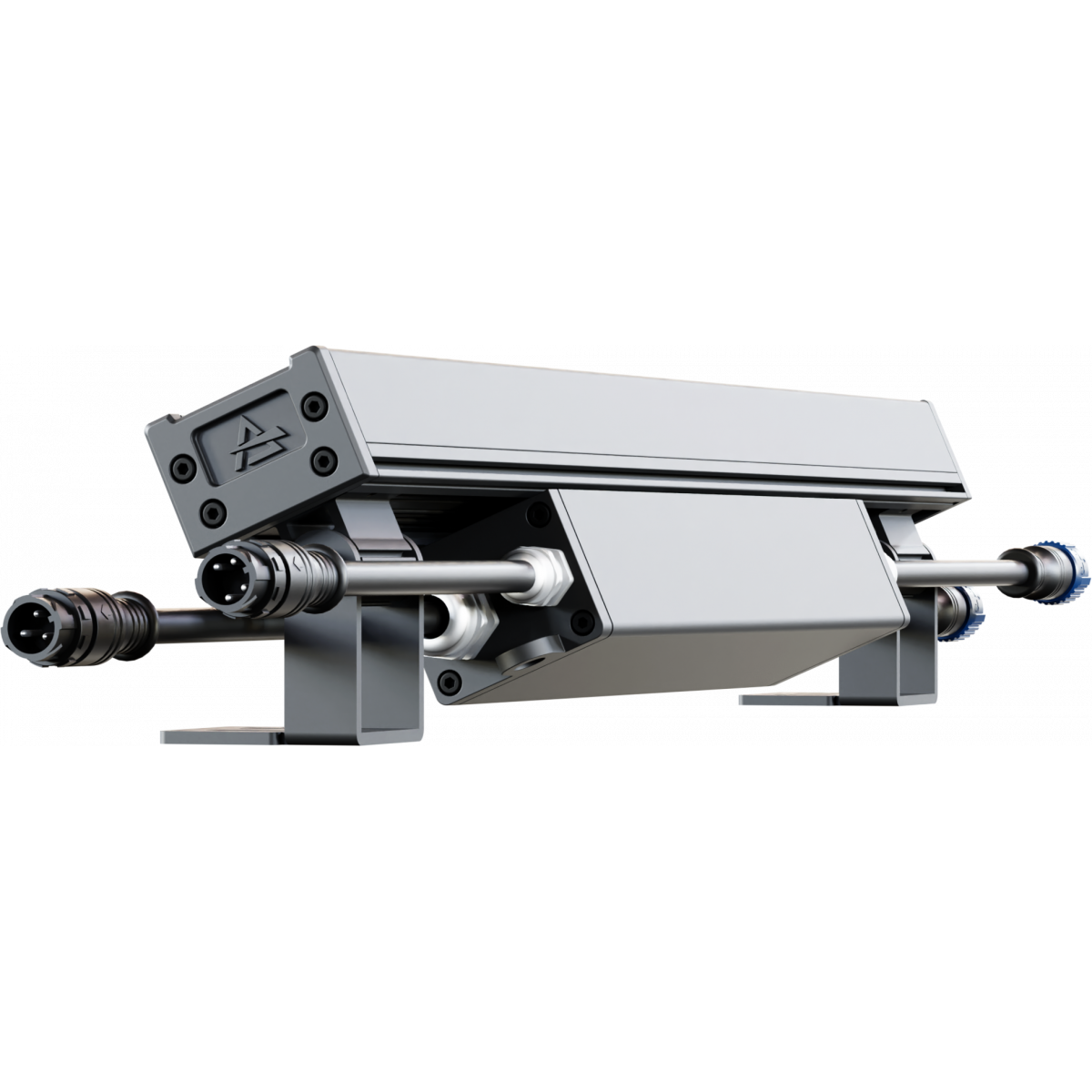

ArcShine S9VW
ArcShine S9VW
ArcShine S9VW
ArcShine S9VW
ArcShine S9VW

Technical specifications

LIGHT SOURCE
  • Source: 9x2W Variable White LED
  • CCT: 2.800 K - 6.500
  • Luminous flux: (15°) 1'195 lm; (15°+20°) 1'063 lm; (15°+60°) 1'056 lm; (15°+1060°) 1'332 lm; (15°+3060°) 1'124 @Full
  • Lux: (15°) 252 lx; (15°+20°) 88 lx; (15°+60°) 30 lx; (15°+1060°) 60 lx; (15°+3060°) 39lx @5 m full
  • CRI: >85
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 15°
  • Additional optics: see available accessories
COLOUR SYSTEM
  • Colour mixing: Variable White
  • CCT: CCT control through dedicated DMX channel
  • Macros: built-in white presets
BODY
  • Tilt range: manual 180°
  • Body: sturdy aluminum profile
  • Body colour: RAL 7012
CONTROL
  • Protocols: DMX512, RDM
  • Stand Alone: available through DATAMASTER external coder (not included)
  • DMX channels: 1 / 2 / 5 / 9channel
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
  • Other: 16bit control of dimmer and colour
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1-30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 17.5W
  • Output (at 230V): 58 units on a single power line
  • Power factor: >0,94
PHYSICAL
  • IP rating: 66 for outdoor installations
  • IK rating: 09
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: moulded IP signal IN/OUT connectors
  • Power connection: moulded IP power IN/OUT connectors
  • Dimensions (WxHxD): 500x150x64.7mm / 19.69''x5.91''x2.55''
  • Weight: 1,95kg / 4.3lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
LED source
Beam angle (° - HxV)
Lenght (cm)
ARCSHINES915VW
ARCSHINES915VW
Variable White
15
50

Accessories & Related Products

<b>CrmxBox</b> IP
CrmxBox IP
(Optional)
IP67 1 Universe CRMX Wireless Transceiver for exterior installation
AWEXAC2L03
AWEXAC2L03
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 3m
AWEXAC2L05
AWEXAC2L05
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 5m

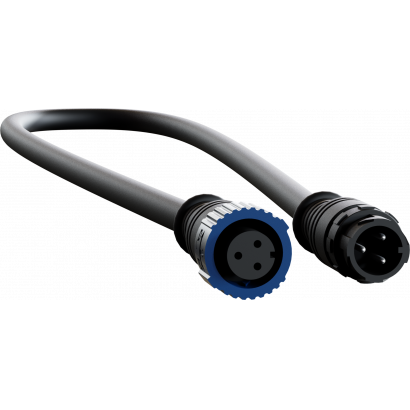

AWEXAC2L10
AWEXAC2L10
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 10m
AWEXAC2L20
AWEXAC2L20
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 20m
AWEXDC2L03
AWEXDC2L03
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 3m
AWEXDC2L05
AWEXDC2L05
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 5m
AWEXDC2L10
AWEXDC2L10
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 10m

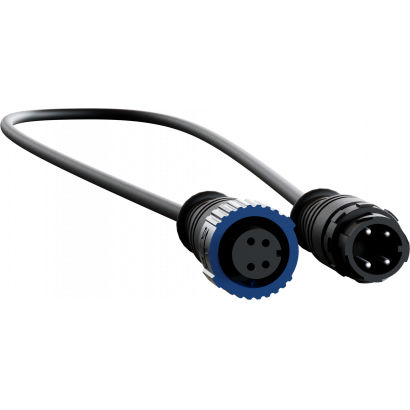

AWEXDC2L20
AWEXDC2L20
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 20m

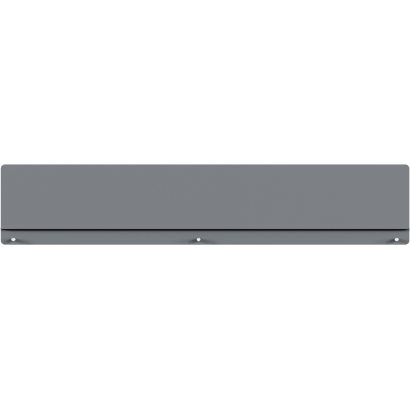

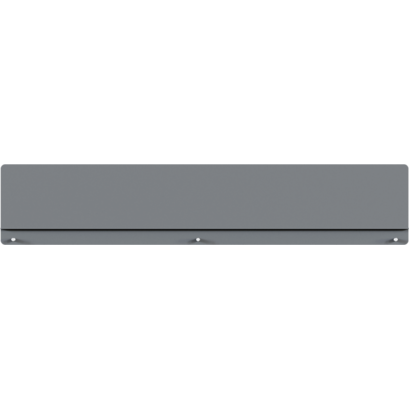

ARCS9FIXBD
ARCS9FIXBD
(Optional)
Barndoor to adjust the light beam for ARCSHINES9 and ARCSHINEM9

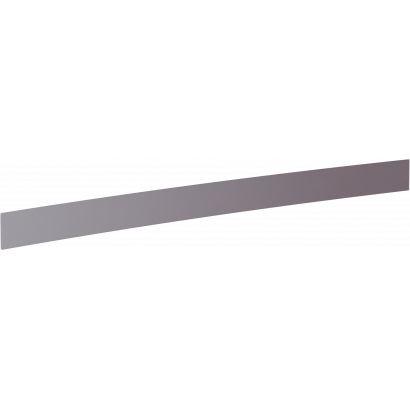

ARCSS9FILTER20
ARCSS9FILTER20
(Optional)
Light diffusion filter for ARCSHINES9, 20°
ARCSS9FILTER40
ARCSS9FILTER40
(Optional)
Light diffusion filter for ARCSHINES9, 40°
ARCSS9FILTER60
ARCSS9FILTER60
(Optional)
Light diffusion filter for ARCSHINES9, 60°
ARCSS9FILTER1060
ARCSS9FILTER1060
(Optional)
Light diffusion filter for ARCSHINES9, 10°x60°
ARCSS9FILTER3060
ARCSS9FILTER3060
(Optional)
Light diffusion filter for ARCSHINES9, 30°x60°

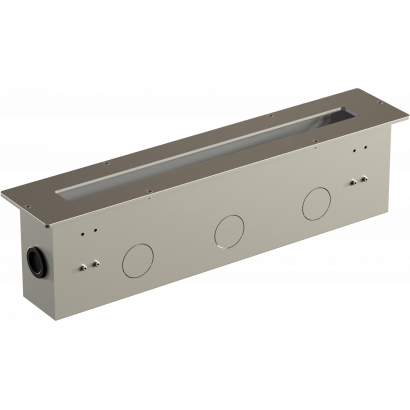

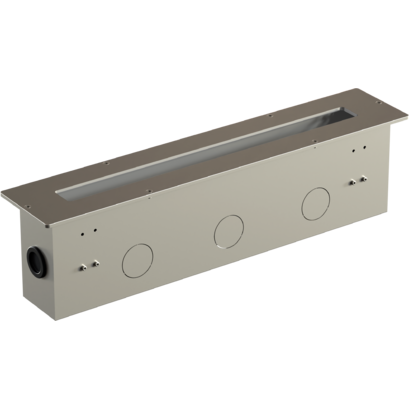

ARCSSM9OUTERCASE
ARCSSM9OUTERCASE
(Optional)
Outercase box for ground installation for ARCSHINES9 and ARCSHINEM9 series, manual tilt
AWEXDC1221ADP
AWEXDC1221ADP
(Optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
AWEXAC12ADP
AWEXAC12ADP
(Optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetArcshines9vw_A4_DATASHEET_(EN).pdf361KB
Tender SpecificationArcshines915vw_TENDER_SPECIFICATION.pdf3MB

User manual

DMX chart & personalities

File name File size Download
DMX chartArcshines9vw_DMX_CHARTS.pdf116KB
ARCSHINES9VW Firmware rev. 1.0
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPArcshines915vw_3D.skp372KB
2DArcshines9vw_CAD_2D.dwg2MB
2D cad symbolsArcshines915vw_CAD_2DSYMBOLS.dwg74KB
3DArcshines915vw_CAD_3D.dwg519KB
Technical drawingArcshines9vw_TECHNICAL_DRAWING.pdf257KB
VectorWorksVECTORWORKS_SYMBOLS.vwx390KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0 STABLE 06/10/2022 First stable release.
