ECLEXPOFL300VW
PROLIGHTS

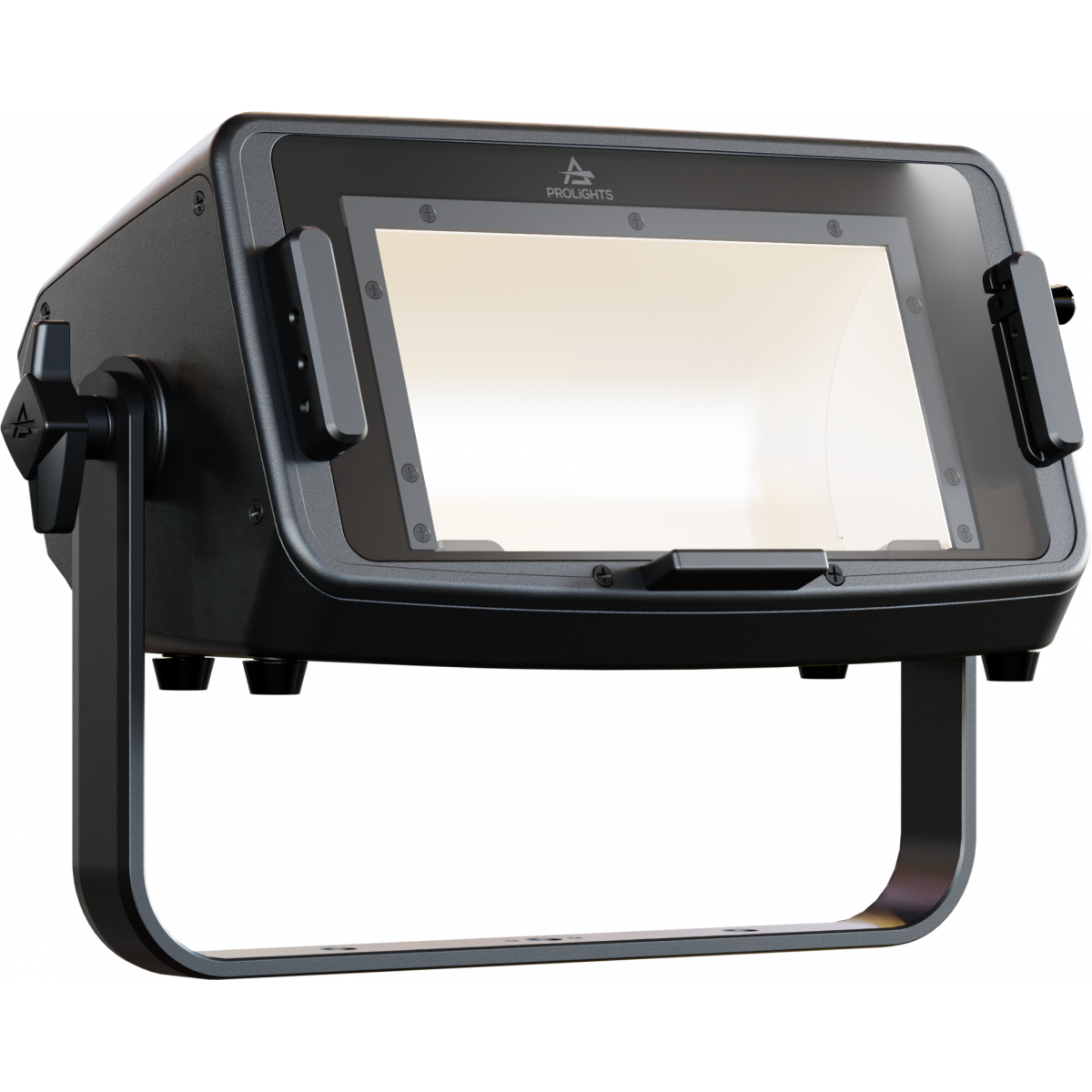

EclExpo Flood300VW

300W asymmetric LED floodlight, with Variable White CCT 2,700K - 6,500K

The EclExpo Flood300VW is a variable white LED Floodlight, designed for exhibitions and showrooms, as a high-quality LED replacement of traditional tungsten, CDM or HMI asymmetric luminaires.
The EclExpo Flood300VW has a 300W LED source, with variable white ranging from 2,700K to 6,500K, and an outstanding lumen output with high-scoring CRI levels (>95), TM-30, R9. Combined with a reflector, it has a wide asymmetric beam angle of 100° (Horizontal) x 60° (Vertical) of indirect light emission.
This unit is incredibly user-friendly, using remote control via DMX and RDM (optional W-DMX + CRMX), or intuitive stand-alone operation through an on-board display and two rotatory knobs CCT and dimmer settings.
Its unique design and performance set a new standard for exhibition floodlights.

Main features:

  • 300W Variable White LED source, from 2,700K to 6,500K
  • Asymmetric beam angle of 100° (horizontal) x 60° (vertical)
  • Xlr5p in/through for DMX/RDM control and communication, optional W-DMX + CRMX, Stand-Alone mode through two rotatory knobs
See variants

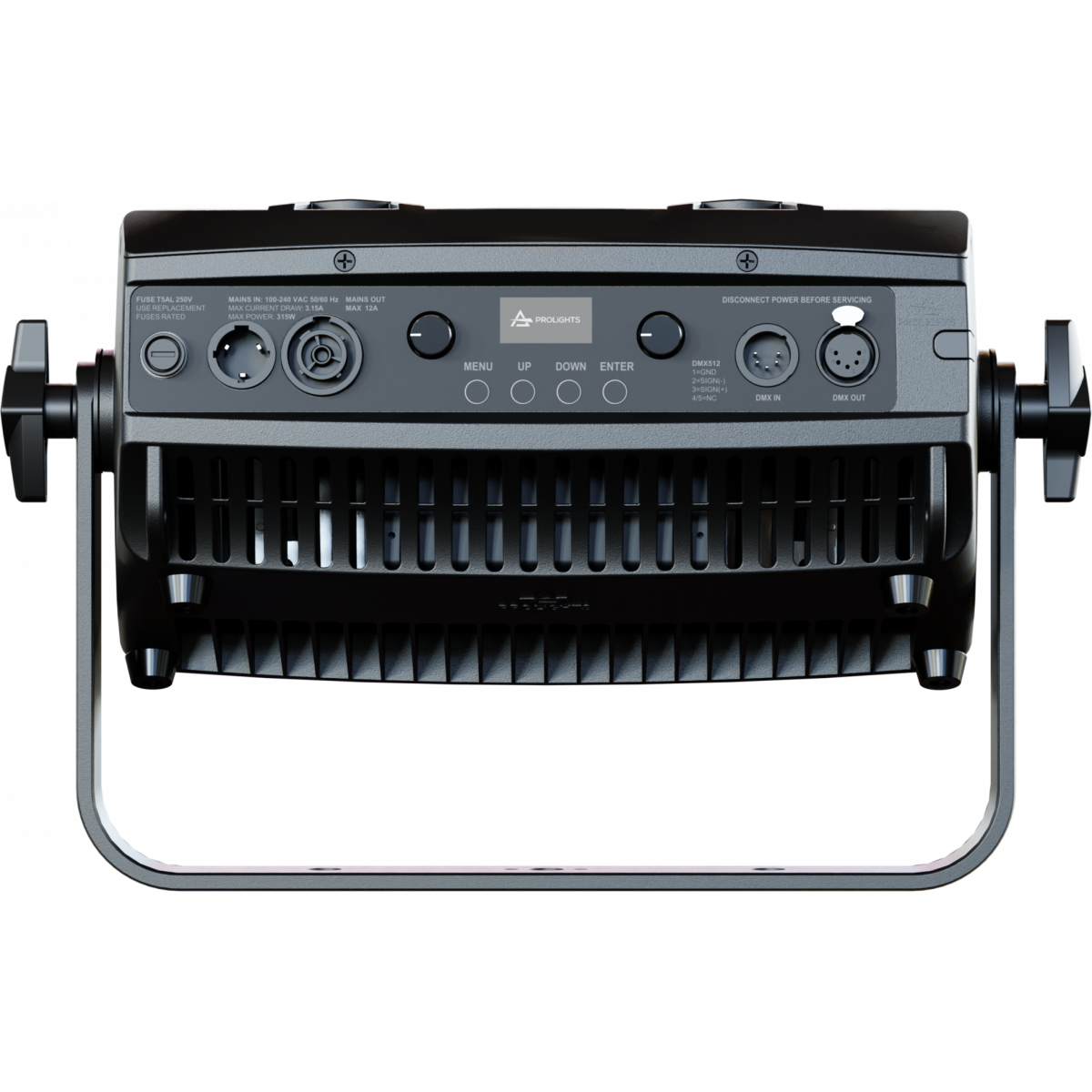

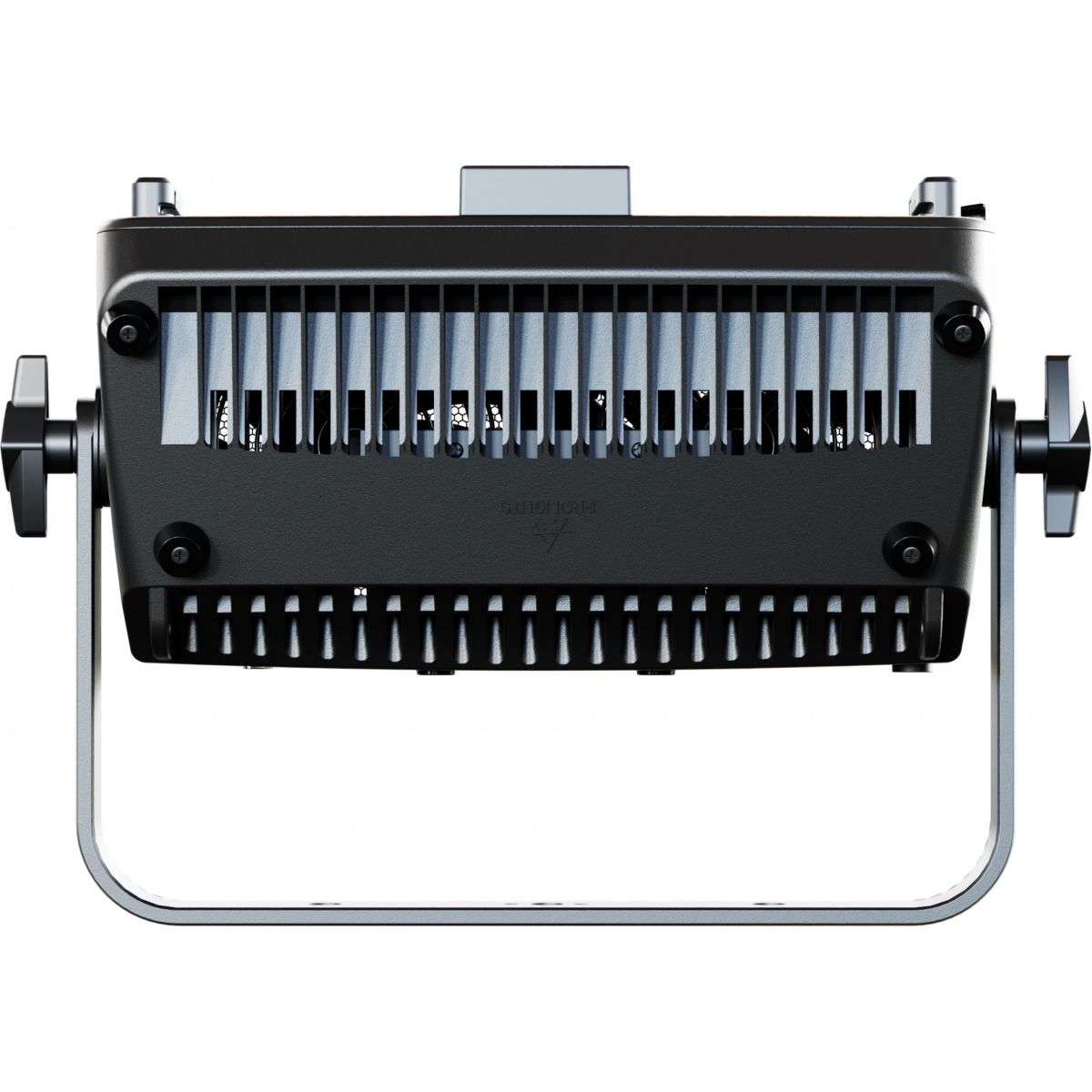

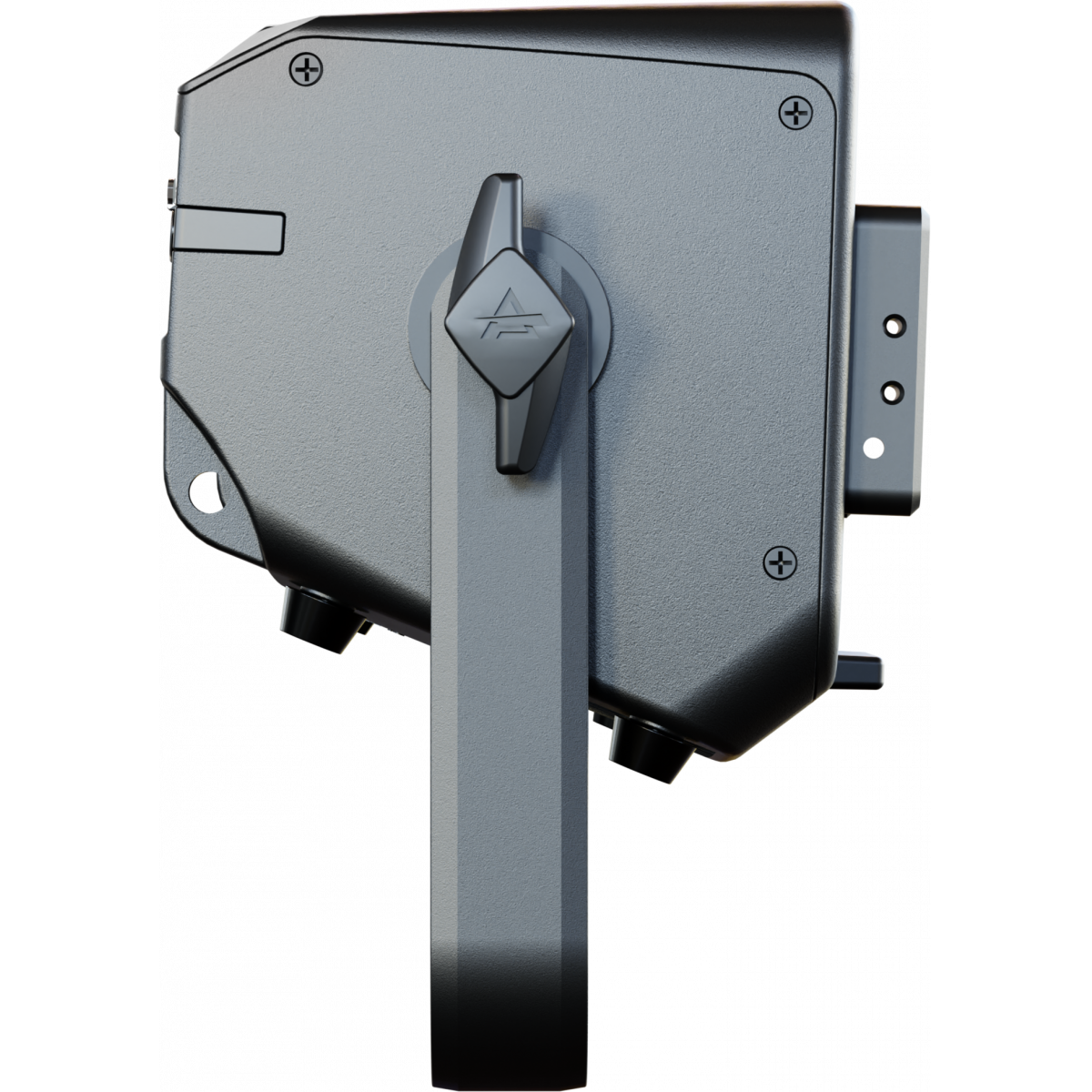

PHOTO GALLERY

EclExpo Flood300VW
EclExpo Flood300VW
EclExpo Flood300VW
EclExpo Flood300VW
EclExpo Flood300VW

Technical specifications

LIGHT SOURCE
  • Source: 300W Variable White LED
  • CCT: 2.700 K - 6.500
  • Luminous flux: @2.700K 7'690 lm; @6.500K 10'877 lm; @full 13'044
  • Lux: @2.700K 72 lx; @6.500K 101 lx; @full 121lx @5 m
  • CRI: 97,7 @2.700 K; 95,6 @6.500 K; 94,9 @full
  • R9: 84,9 @2.700 K; 86,7 @6.500 K; 82,8 @full
  • TLCI: 97 @2.700 K; 97 @6.500 K; 97 @full
  • TM30 Rf: > 95 @2.700 K; > 91 @6.500 K; > 92 @full
  • TM30 Rg: < 102 @2.700 K; < 102 @6.500 K; < 104 @full
  • Source life expectancy: > 20.000 h
OPTICS
  • Optics: asymmetrical beam reflector in pure aluminium 99,6%
  • Beam angle: (H) 100° x (V) 60°
COLOUR SYSTEM
  • Colour mixing: tunable white
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.700 K - 6.500K
  • Colour wheel: built-in white presets
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Static mode: selection of static dimmer and color temperature
  • Manual mode: manual adjustment of intensity and CT from knob
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast magnesium body
  • Body colour: RAL 9004
  • Other: see available accessories
CONTROL
  • Protocols: DMX512, RDM, CRMX
  • Stand Alone: 2 rotatory knobs
  • DMX channels: 1 / 2 / 3 / 5 / 11channel
  • Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 340W
  • Standby power: 110V (60Hz): 2W; 230V (50Hz): 3,2W
  • Output (at 230V): 8 units on a single power line
  • Power factor: > 0,97
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Dimensions (WxHxD): 391x247x210mm / 15.39''x9.72''x8.27''
  • Weight: 5,1kg / 11.24lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Finishing
ECLEXPOFL300VWBK
ECLEXPOFL300VWBK
Black

Accessories & Related Products

<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
<b>ÆtherBox</b> LITE
ÆtherBox LITE
(Optional)
1 Universe CRMX Wireless Transceiver
LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

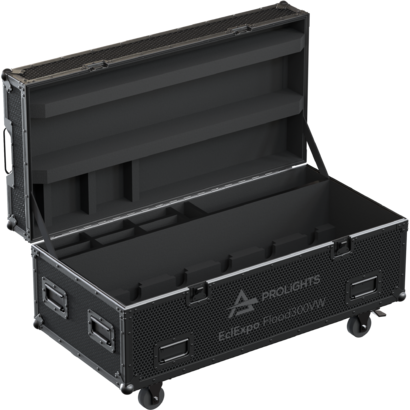

FCLEXPOFL300VW
FCLEXPOFL300VW
(Optional)
Flight case for 6 pcs of ECLEXPOFL300 series

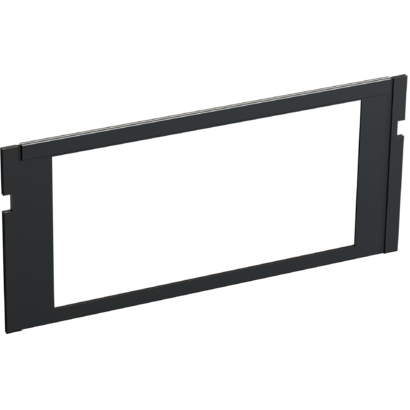

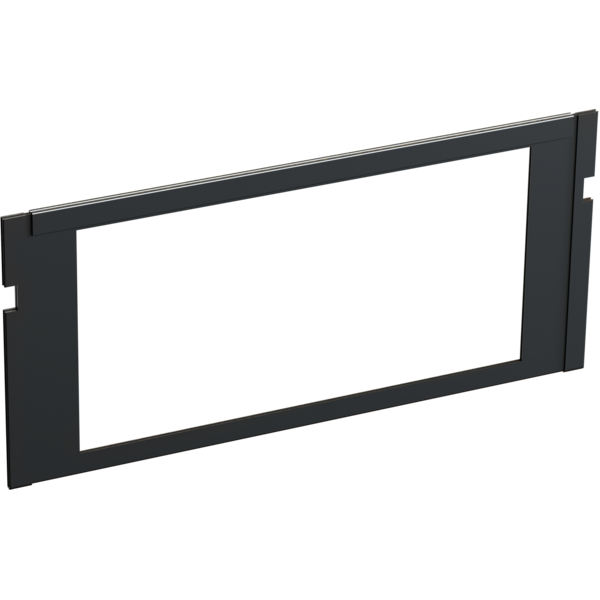

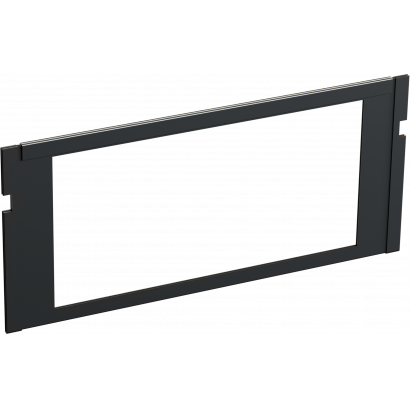

ECLEXPOFL300VWFFB
ECLEXPOFL300VWFFB
(Optional)
Filter frame for ECLEXPOFL300VW, black finishing

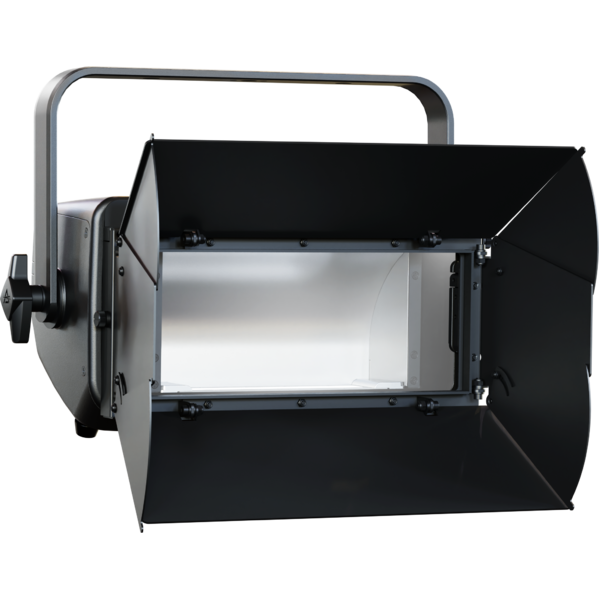

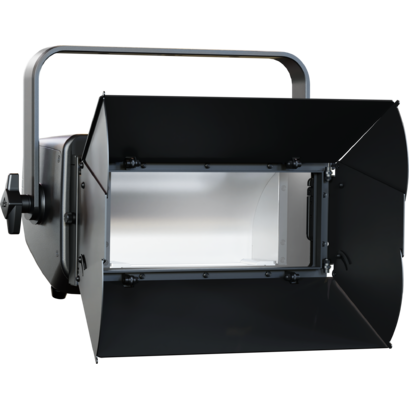

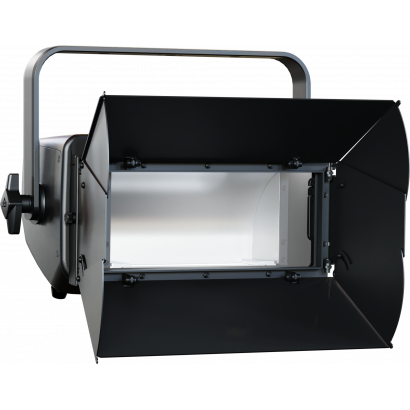

<b>ECLEXPOFL300VW</b> Barndoor
ECLEXPOFL300VW Barndoor
(Optional)
Barndoor for ECLEXPOFL300 series, black finishing

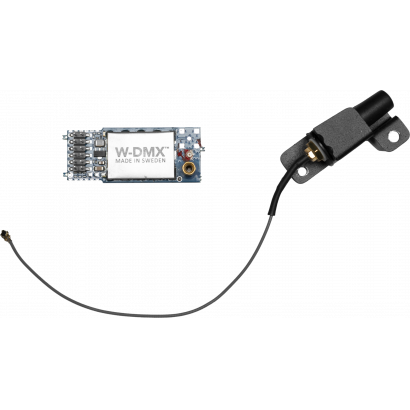

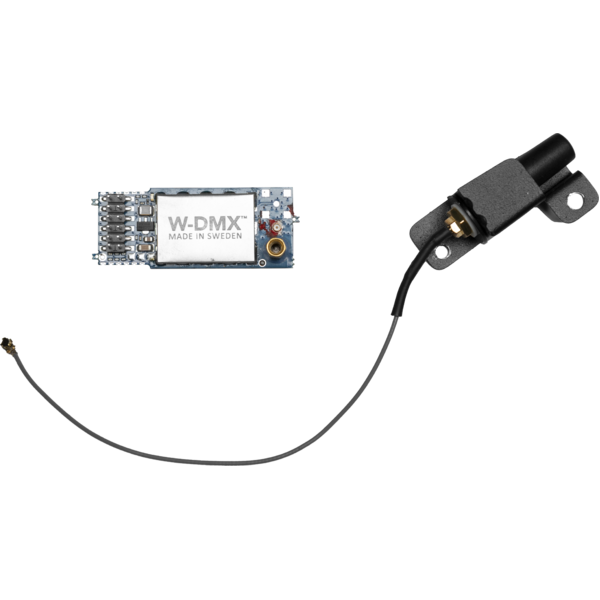

ECLEXPOFL300VWWKB
ECLEXPOFL300VWWKB
(Optional)
CRMX Timo Fx kit for ECLEXPOFL300VW, black finishing
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclexpofl300vw_LETTER_DATASHEET_(EN).pdf349KB
Letter datasheetEclexpofl300vw_A4_DATASHEET_(EN).pdf407KB
Tender SpecificationEclexpofl300vwbk_TENDER_SPECIFICATION.pdf3MB
Tender SpecificationEclexpofl300vwwh_TENDER_SPECIFICATION.pdf3MB

User manual

DMX chart & personalities

File name File size Download
DMX chartEclexpofl300vw_DMX_CHARTS.pdf73KB
ECLEXPOFL300VW Firmware rev. 1.8
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPEclexpofl300vw_3D.skp343KB
2DEclexpofl300vw_CAD_2D.dwg5MB
3DEclexpofl300vw_CAD_3D.dwg539KB
2D cad symbolsEclexpofl300vw_CAD_2DSYMBOLS.dwg141KB
Technical drawingEclexpofl300vw_TECHNICAL_DRAWING.pdf520KB
VectorWorksVECTORWORKS_SYMBOLS.vwx550KB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB

Tech docs

File name File size Download
Noise ReportEclexpofl300vw_NOISE_REPORT.pdf687KB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.8 STABLE 17/12/2024 New Function:
  • Added Dimmer Curve "High Res@Low"
 Rev. 1.0
