ECLFRCTPLIP
PROLIGHTS

EclFresnel CT+LIP new

600 W IP65 Led Fresnel with 6 color source, 250mm-10'' lens

EclFresnel CT+LIP  is an IP65 600W LED Fresnel, engineered with a new 6 colours light source and  a 250mm / 10'' glass Fresnel lens. Being IP65 rated, the unit is both water and dust resistant ensuring safe application in any set or extreme locations, keeping lightweight and not scaling up in sizes.
The newly designed optical system allows a greater zoom range from 10° to 77°, keeping and high efficiency also at a narrow beam angle.
The Spektra calibrated light source delivers consistency in operations, higher luminous flux in both colours and whites CCT keeping a broader color space and richer light spectrum to achieve unprecedented values of CRI, TLCI and TM30.
Fixtures of the EclFresnel CT+ range brings more power in their processing unit, offering an ultimate user experience in terms of  control of the light and colours and as well more intuitive stand alone operations through a larger display, backlight encoders,  and advanced connectivity both wired and wireless.
Completed by a wide range of accessories including 8 leaf barndoors and P.O. bracket, the EclFresnel CT+ also performs silent, allowing to be the indispensable workhorse for Broadcast, Film and Theatre applications.

SPEKTRA

Main features:

  • 600 W IP65 6 colour LED Fresnel with 250mm/10'' glass lens
  • 10-77° Manual zoom system
  • High quality CCT reproduction and advanced color control
  • New UI with 2.8'' display and 4 backlit pushable encoder

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Light source: Proprietary source manufactured in Europe by PROLIGHTS
  • Source: 600W 6 colour LEDs source
  • Luminous flux: (10°) 5'859 lm - (77°) 13'814 @4.000 K
  • Lux: (10°) 6'085 lx - (77°) 732lx @5m @4.000 K
  • CRI: 97,6 @3.200K; 97,5 @5.600 K
  • R9: 84,9 @3200K; 97,8 @5.600 K
  • TLCI: 88 @3200K; 94 @5.600 K
  • TM30 Rf: > 94 @3.200K; > 94 @5.600 K
  • TM30 Rg: < 101 @3.200K; < 103 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom: 10° - 77° manual
  • Lens diameter: 10'' / 250mm / 0.39''
  • Lens type: Fresnel glass lens with AR coating
  • Lens effect: Glass Fresnel lens providing a classic light fall-off
  • Additional optics: PC lens available as accessory
  • Other: spigot, barndoor and gel frame included
COLOUR SYSTEM
  • Colour control: XY, CCT, RGBW, Gel with Source Emulation, Tungsten emulation, HSI, User preset
  • Colour mixing: 6 colour LEDs source
  • CCT: Linear CCT adjustment from 1.800 K-20.000K
BODY
  • Bracket system: Sliding bracket for adjustable weight balance
  • Hardware on-board: filter frame, 8 doors barndoor, spigot
  • Body: weatherproof IP65 construction with die-cast magnesium alloy
  • Body colour: RAL 9004
  • Other: Strengthened zoom movement system for enhanced durability and stability
CONTROL
  • Protocols: DMX512, RDM, CRMX
  • Stand Alone: 4 pushable RGB backlit encoder
  • Wireless Control: included, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (Lumen Radio) and W-DMX (Wireless DMX), Bluetooth capable
  • RDM: RDM for remote monitoring and settings
  • Display: 2.8'' Color display
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -20° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Low Voltage DC mains: 48V
  • Max power consumption: 600W
  • Output (at 230V): 4 units on a single power line
  • Power factor: > 0,94
  • Inrush current: 110VAC/23.0A, 230VAC/45.0A
PHYSICAL
  • IP rating: 65 for temporary outdoor use (*)
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
  • Data connection: IP65 WEIPU SF12 4P-F
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Low Voltage DC connector: XLR 3p for 48V
  • Dimensions (WxHxD): 420x663x495mm / 16.54''x26.1''x19.49''
  • Weight: 19,1kg / 42.11lbs
(*)
  • NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, cTUVus
BOX CONTENT

Versions

Code
Finishing
ECLFRCTPLIPBK
ECLFRCTPLIPBK (NEW)
Black

Accessories & Related Products

ECLFRCTPLBAG1U
ECLFRCTPLBAG1U
(optional)

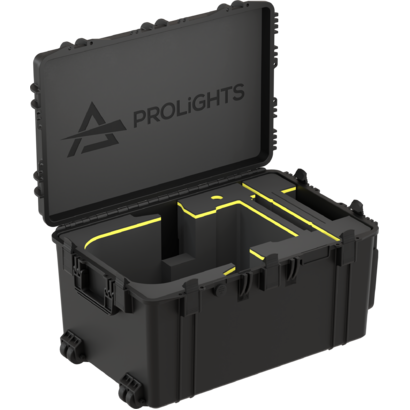

Empty ABS case for 1 pc of ECLFRCTPL / LIP series
FCLECLFRCTPL
FCLECLFRCTPL
(optional)

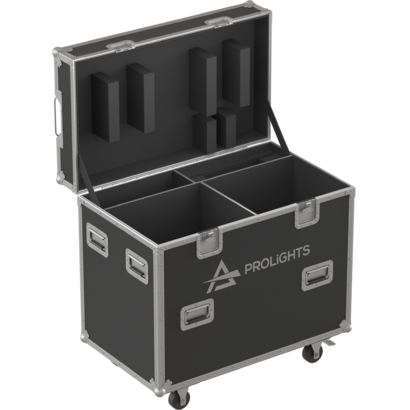

Flight case for 2 pcs of ECLFRCTPL / LIP series
ECLFRCTPLKPOYO
ECLFRCTPLKPOYO
(optional)

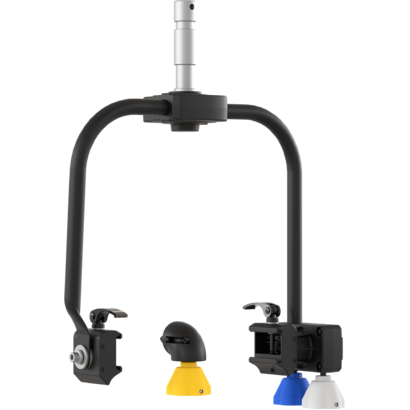

Pole operated aluminium yoke bracket and zoom kit for ECLFRCTPL series
ECLFRSPG
ECLFRSPG
(included)
Spigot for PROLIGHTS fixtures
ECLFRCTPLFFBK
ECLFRCTPLFFBK
(included)

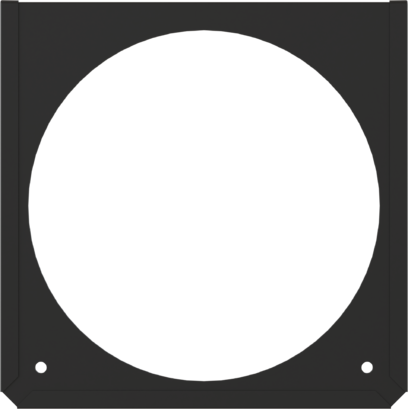

Filter frame for ECLFRCTPSL series, black
(included)
Filter frame for ECLFRCTPSL series, white
ECLFRCTPLBDBK
ECLFRCTPLBDBK
(included)

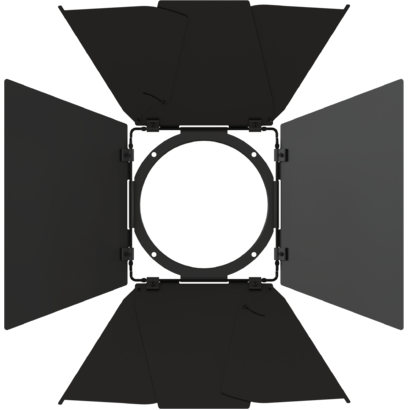

Barn door 8 directional flaps to adjust the light beam for ECLFRCTPL
(included)
Barn door 8 directional flaps to adjust the light beam for ECLFRCTPL
EFSBUFDS
EFSBUFDS
(optional)
SNAPBAG - Universal SMALL DEEPER for BARNDOORS
SPGM10
SPGM10
(optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(optional)
28mm spigot for fixtures, M12 bolt
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
UPBOX2P5
UPBOX2P5
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT
C6040B
C6040B
(optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
RSR0670B
RSR0670B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m

DOWNLOAD

Data sheet & specs

User manual

DMX chart & personalities

ECLFRCTPLIP Firmware rev. 1.1.02.0
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Tech docs

File name File size Download
Noise Report Eclfrctplip_NOISE_REPORT.pdf 699KB

Software

File name File size Download

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO UPBOX2P5 UPBOX2P5
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.02.0 STABLE 22/04/2024 Fixed Bug:
  • If the device is used wirelessly as a TX, it does not receive the DMX signal via cable.
  • If the device is connected wirelessly and used as a TX or RX, it loses the link with each reboot.
Rev. 1.0
