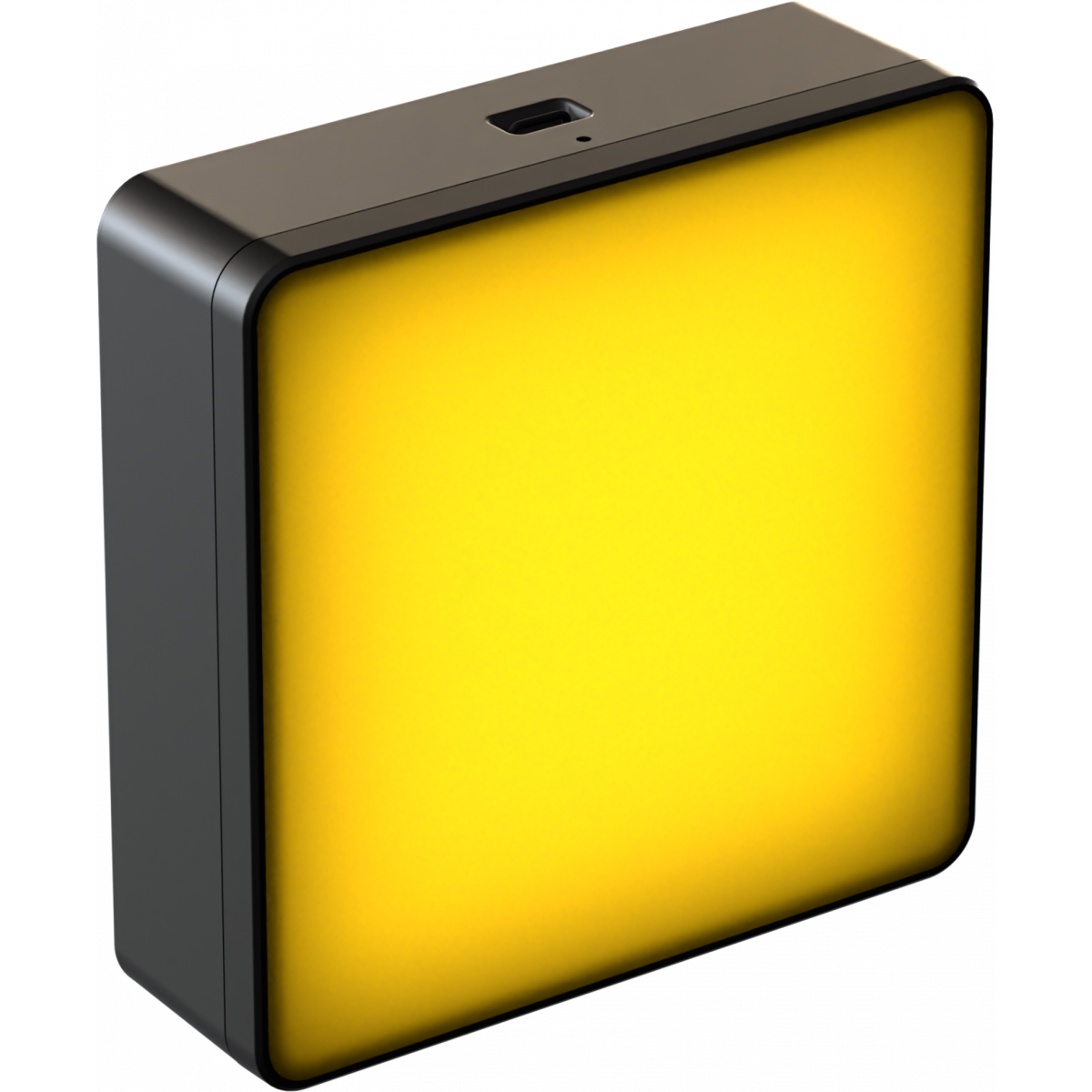

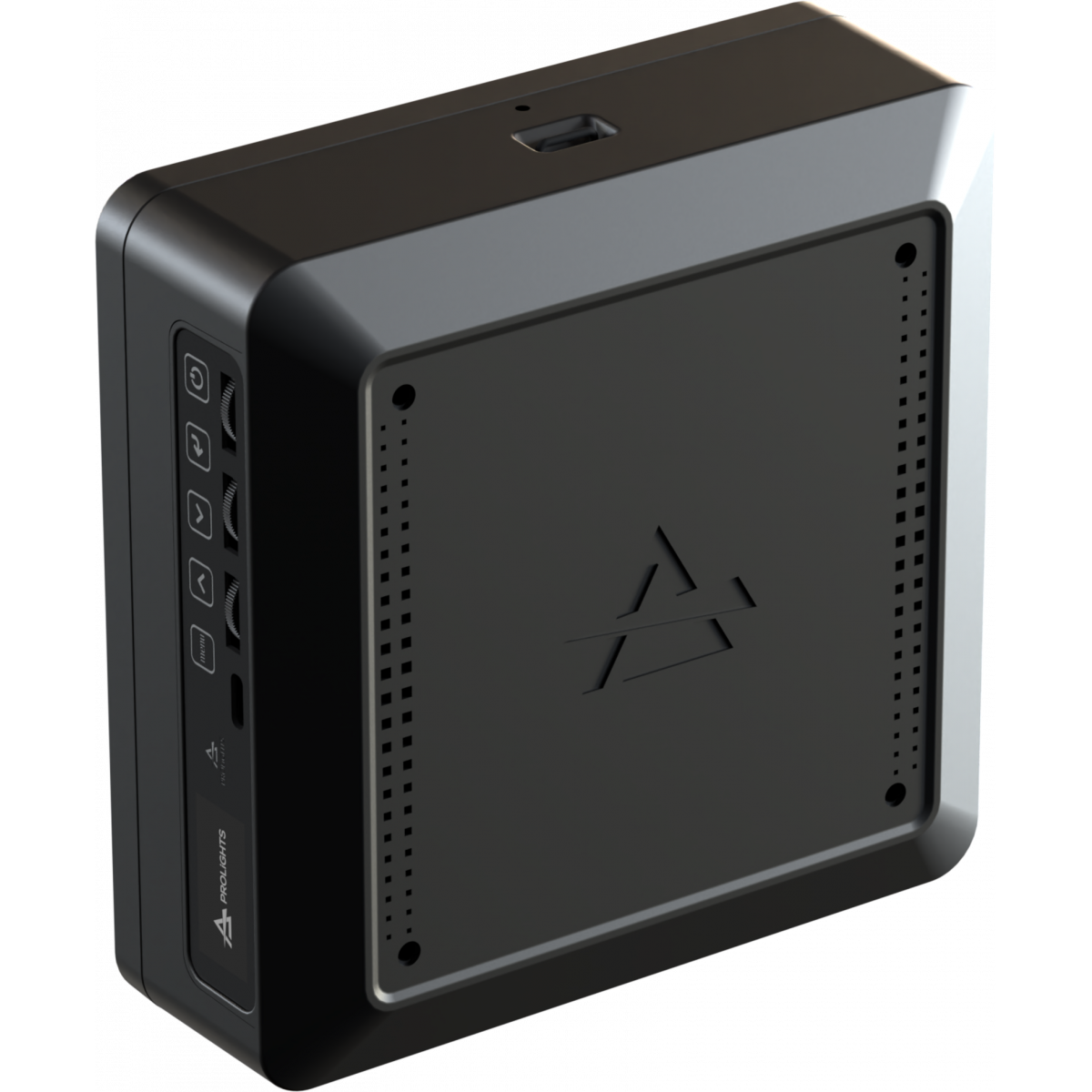

EclNanoPanel TWC new

ORDER CODE: ECLNANOPANELTWC

Compact-sized soft light, with wireless control (CRMX and W-DMX) and battery-powered

The EclNanoPanel TWC is the smallest member of the successful EclPanel range, containing all the outstanding features of the larger format soft lights in a compact-sized, battery-operated luminaire with a surprisingly powerful 1,800-lumen output.

This compact fixture has the same colour technology as the other soft lights, producing rich colours, high-quality white tones, colour gel matching, and onboard pixel cinema effects.

The EclNanoPanel TWC has three precision encoders with multiple stand-alone control modes: CCT with +/- green shift, CCT presets, HSI for total control of hue, saturation and intensity, RAW RGBW mode, XY and FX mode, allowing to scroll through the built-in cinema effects engine.

Each of the four sections has individual or simultaneous control, allowing to play customizable, cinematic effects through its FX engine or from a console.

Magnetized beam-shaping optical accessories are available, including eggcrates, barndoors, diffusers, and threads for easy mounting on stands or camera rigs.

The fixture is controlled from its user interface or via the built-in Wireless DMX/RDM transceiver (CRMX and W-DMX).

SPEKTRAMain features:

  • Compact-sized soft light with wireless control (CRMX and W-DMX) and battery-powered
  • 30W RGB + Warm White LED source, surprisingly powerful 1,800 lumen output
  • Magnetized beam-shaping optical accessories are available
See variants

PHOTO GALLERY

EclNanoPanel TWC
EclNanoPanel TWC

Technical specifications

LIGHT SOURCE
  • Source: 30W RGB + Warm White
  • Luminous flux: 1'829lm @3.200 K with LD filter
  • Lux: 690lx @1 m
  • CRI: 94,6 @3.200 K; 94,9 @5.600 K
  • R9: 97,1 @3.200 K; 96 @5.600 K
  • TLCI: 92 @5.600 K
  • TM30 Rf: 97,7 @3.200 K; 89,3 @5.600 K
  • TM30 Rg: 102,5 @3.200 K; 102,3 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 105°
  • Field angle: 159°
  • Lens type: magnetic light density diffusion panel (interchangeable)
  • Additional optics: see available accessories
COLOUR SYSTEM
  • Colour control: XY, CCT, RGBW, Gel, HSI, Source Emulation, colour macros, CTO on colours
  • Colour mixing: RGB + Warm White
  • CCT: CCT control range from 2.200K to 15.000K, + / - green correction, tungsten emulation
  • White presets: 2,800 K - 10,000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
  • FX generator: 4 controllable sections
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of intensity, CT, colour correction from knob
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Body: aluminium die-casting
  • Body colour: black
CONTROL
  • Protocols: CRMX+W-DMX, DMX512, RDM
  • Stand Alone: selectable mode through 3 rotatory knobs
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1+ENPTWCYCABLE) not included
  • IR: infrared sensor controlled by remote (included in the pack, not included in single unit)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: 0° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 36.000 Hz
ELECTRICAL
  • Max power consumption: 32 W
  • Mains power supply: DC 12V
  • Power factor: >0,97
BATTERY
  • Battery: 11.1V lithium
  • Estimated battery life: (selectable) 2 h - 6 h - 8 h - 12 h - 18h
  • Re-charge connection: USB type C
  • Re-charge time: 2,5h/max
  • Battery status: shown on display
PHYSICAL
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: M5 and 1/4'' threaded insert for easy installation
  • Adaptors: USB type C to XLR connectors
  • Low Voltage DC connector: USB type C
  • Dimensions (WxHxD): 150x150x69.5mm / 5.91''x5.91''x2.74''
  • Weight: 1,2kg / 2.65lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

ENPTWCBD
ENPTWCBD
(optional)

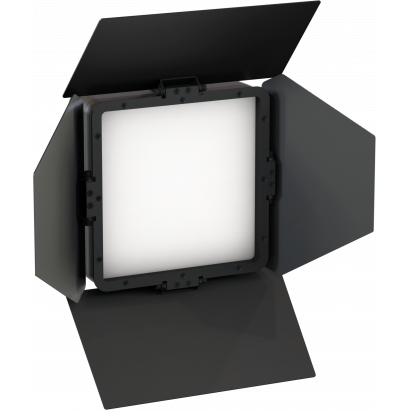

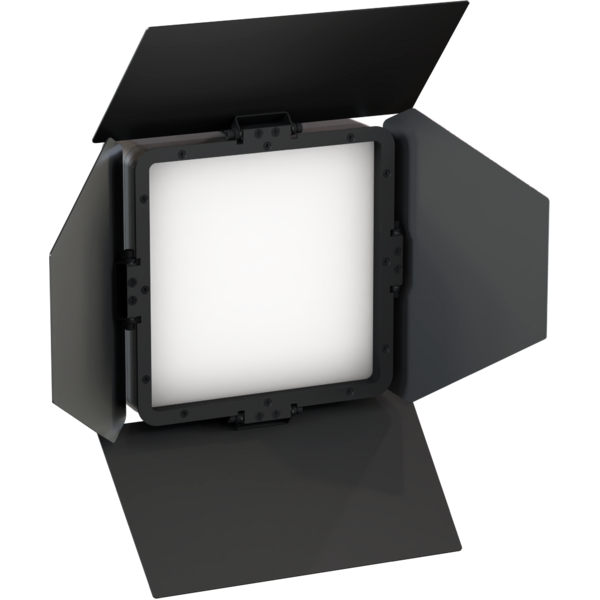

Barn door with 4 directional flaps to adjust the light beam
ENPTWCAS
ENPTWCAS
(optional)

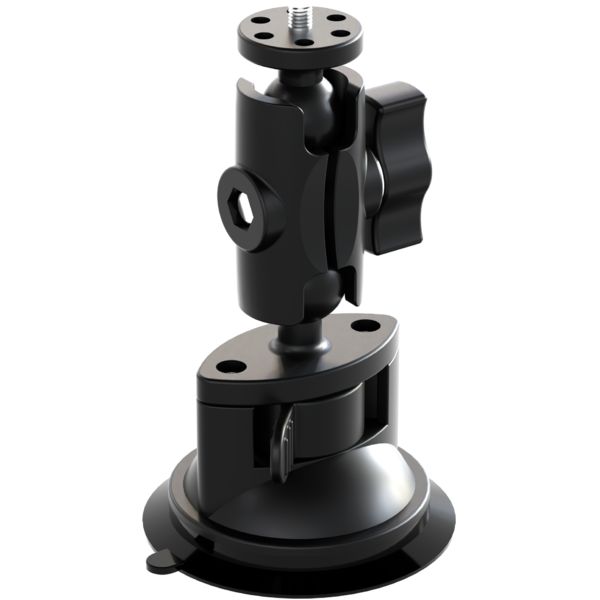

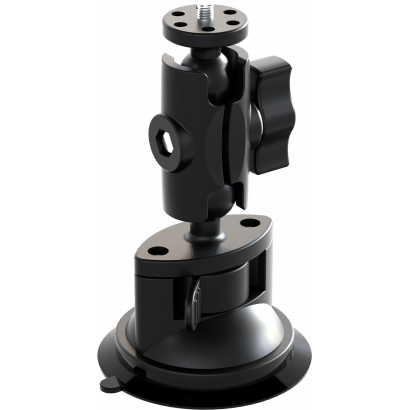

Fixing system with suction cup for ECLNANOPANELTWC
ENPTWCFILTERINT
ENPTWCFILTERINT
(optional)

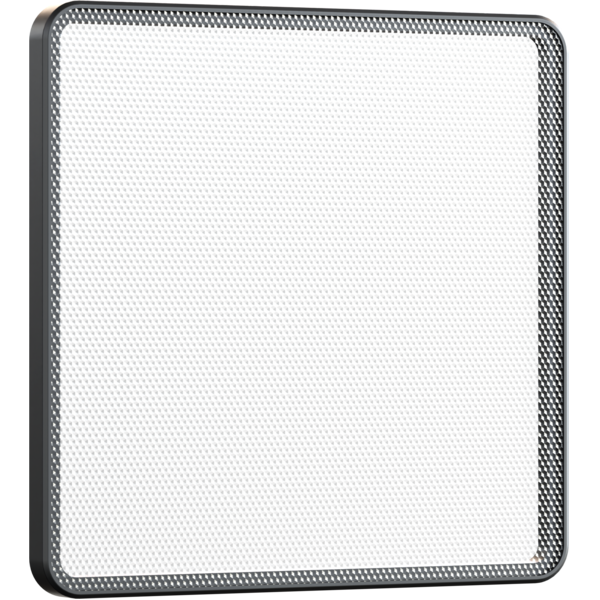

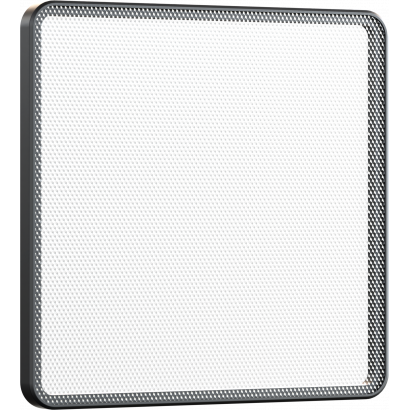

Front intensified diffusion filter for ECLNANOPANELTWC
ENPTWCFILTERHD
ENPTWCFILTERHD
(optional)
Front high diffusion filter (less output) for ECLNANOPANELTWC
ENPTWCFILTERMD
ENPTWCFILTERMD
(optional)
Front medium diffusion filter for ECLNANOPANELTWC
ENPTWCFILTERLD
ENPTWCFILTERLD
(included)

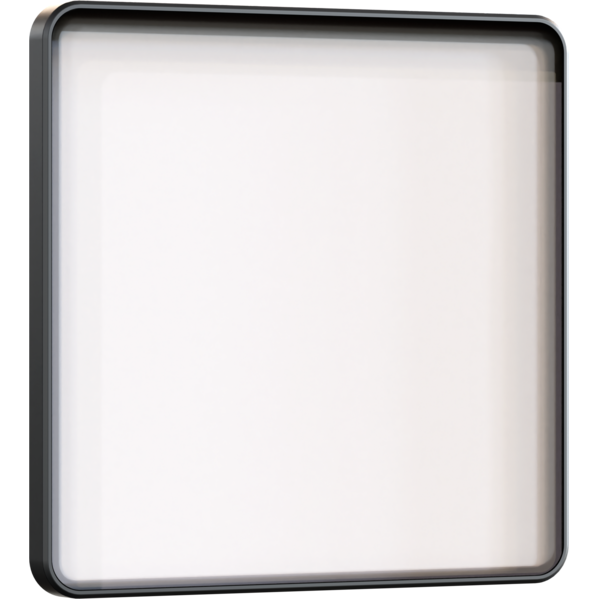

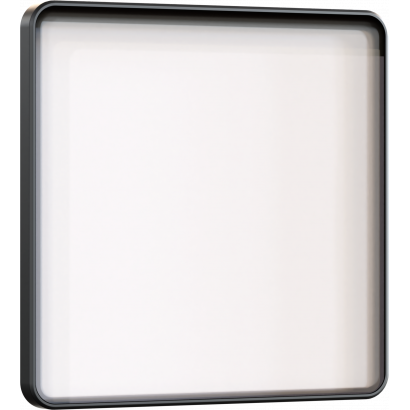

Front low diffusion filter (more output) for ECLNANOPANELTWC
ENPTWCEC30
ENPTWCEC30
(optional)
30 degree egg crate for ECLNANOPANELTWC
ENPTWCEC60
ENPTWCEC60
(optional)

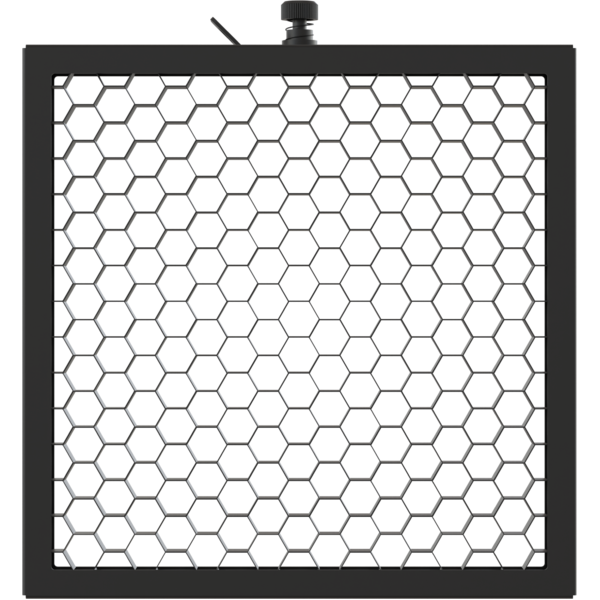

60 degree egg crate for ECLNANOPANELTWC
ENPTWCRMP
ENPTWCRMP
(optional)

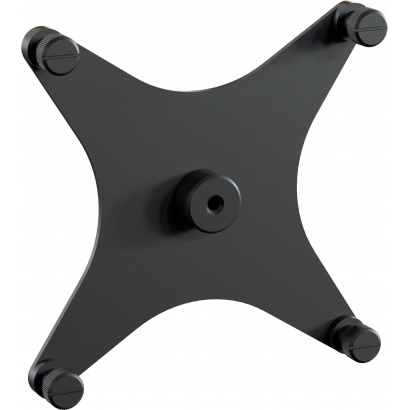

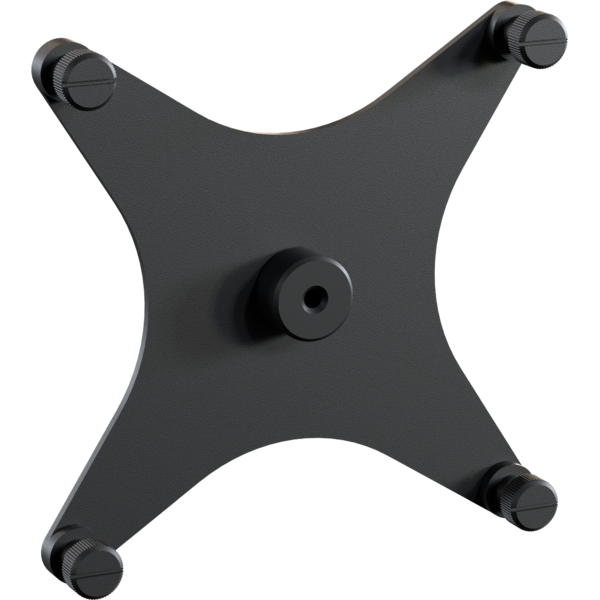

Rear metal plate for ECLNANOPANELTWC
ENPTWCEC4C
ENPTWCEC4C
(optional)

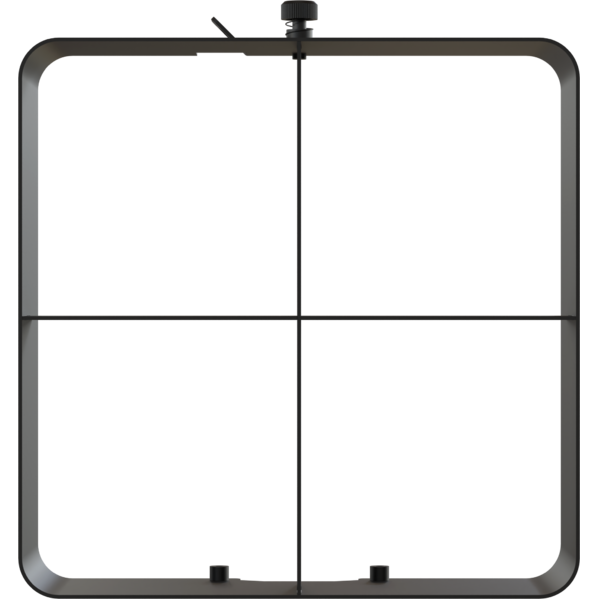

4 chamber egg crate for ECLNANOPANELTWC
ENPTWCSA
ENPTWCSA
(optional)

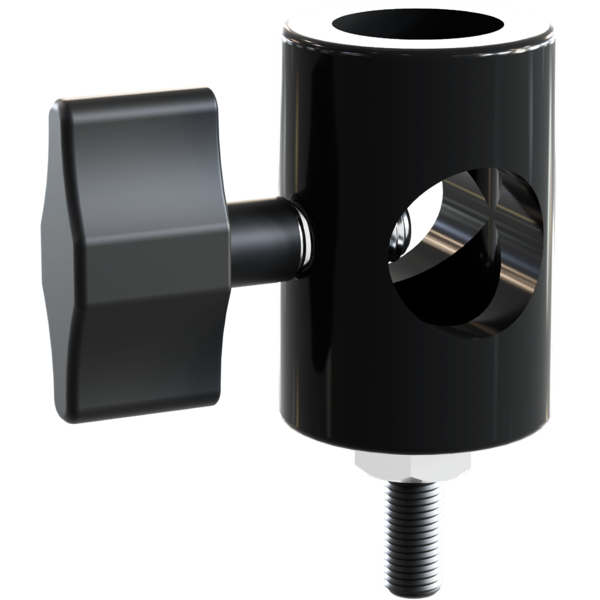

Spigot adapter for ECLNANOPANELTWC
ENPTWCMP4X1
ENPTWCMP4X1
(optional)

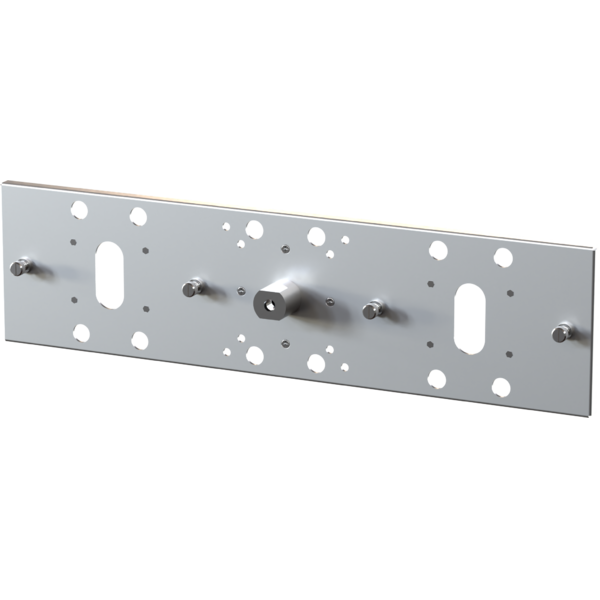

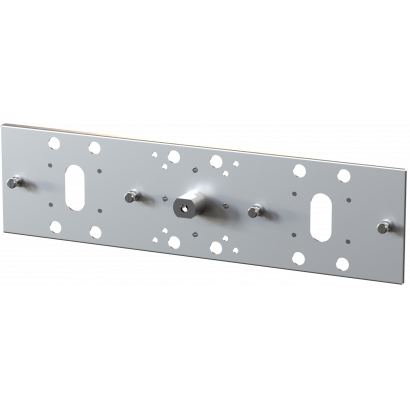

Metal plate to hold multiple ECLNANOPANELTWC together in a 4X1 linear format
ENPTWCMP2X1
ENPTWCMP2X1
(optional)

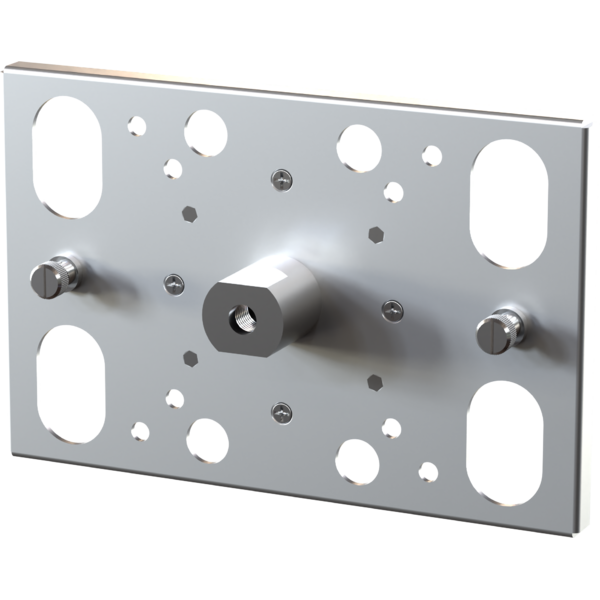

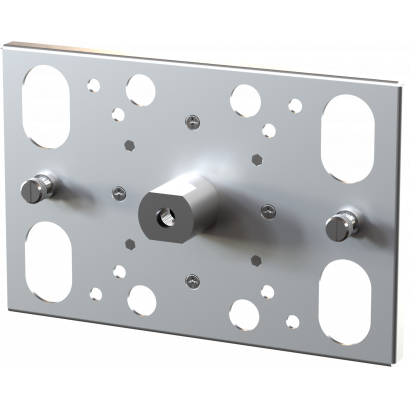

Metal plate to hold multiple ECLNANOPANELTWC together in a 2X1 linear format
ENPTWCMP2X2
ENPTWCMP2X2
(optional)

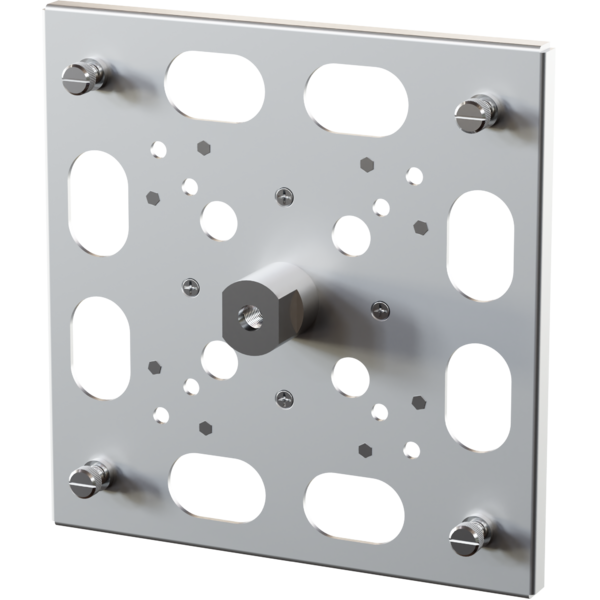

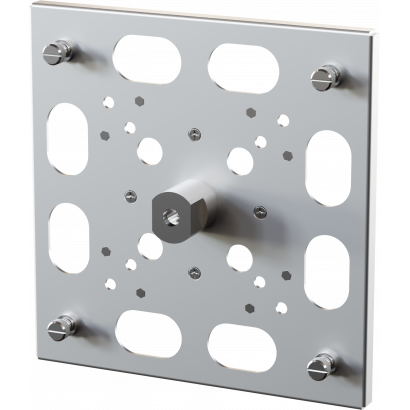

Metal plate to hold multiple ECLNANOPANELTWC together as a 2X2 matrix
ENPTWCPAJSPG
ENPTWCPAJSPG
(optional)

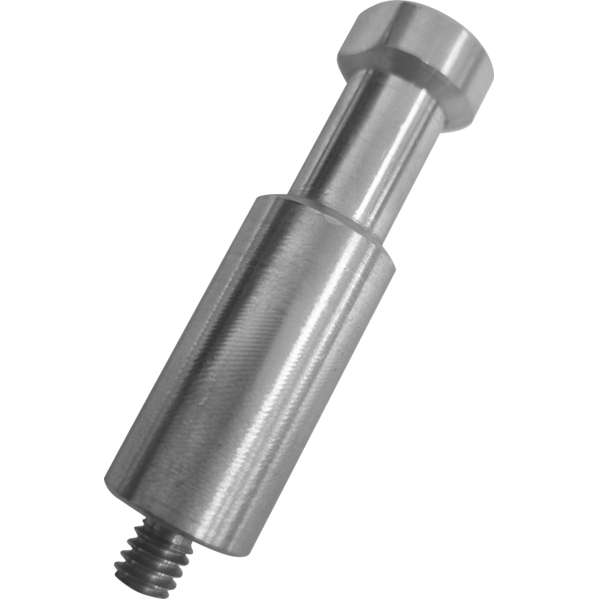

16 mm spigot for ENPTWCPAJ (ECLNANOPANELTWC)
ENPTWCPAJ
ENPTWCPAJ
(optional)

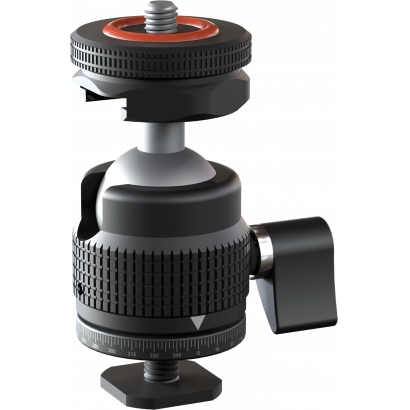

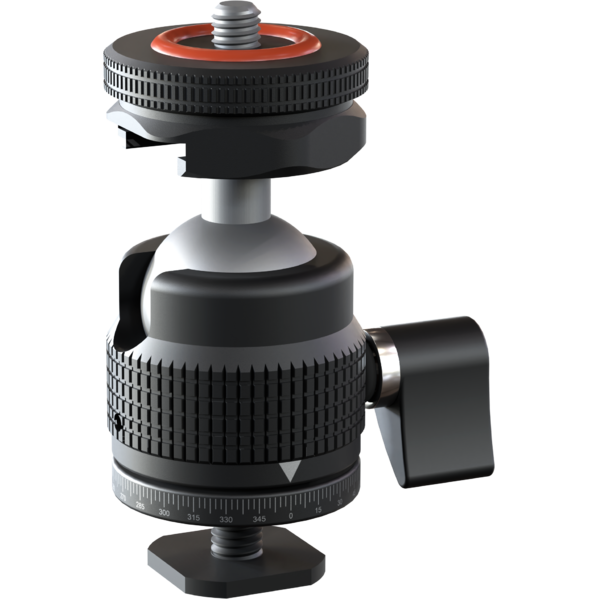

Position articulated joint for ECLNANOPANELTWC
ENPTWCMAG
ENPTWCMAG
(optional)
Fixing system with magnet for ECLNANOPANELTWC and ECLSOFTTUBE100
EST100MAGADP
EST100MAGADP
(optional)
M10 to M5 adapter to use ENPTWCMAG with ECLNANOPANELTWC and ECLSOFTTUBE100
ENPTWCMAGADP
ENPTWCMAGADP
(optional)

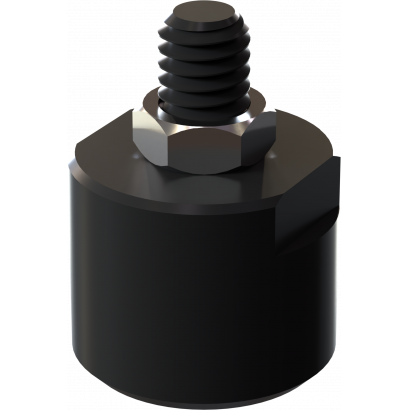

M10 to 1/4'' adapter to use ENPTWCMAG with ECLNANOPANELTW
EST100FY
EST100FY
(optional)
Tripod for ECLNANOPANELTWC and ECLSOFTTUBE100
ENPTWCCHARGER
ENPTWCCHARGER
(included)

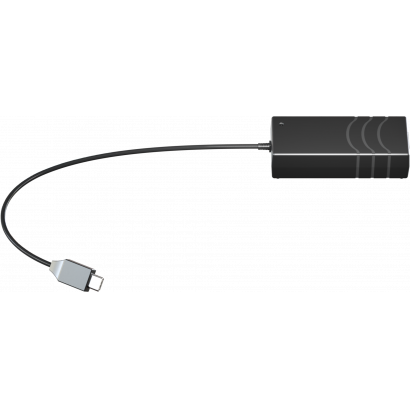

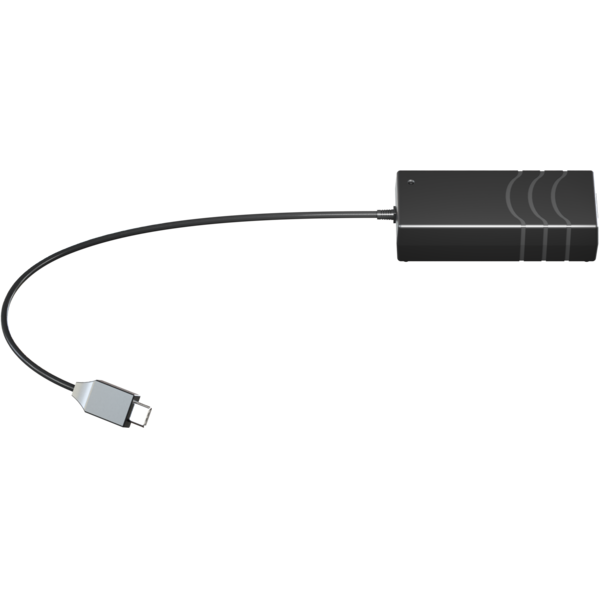

Single charger for ECLNANOPANELTWC
ENPTWCYCABLE
ENPTWCYCABLE
(optional)

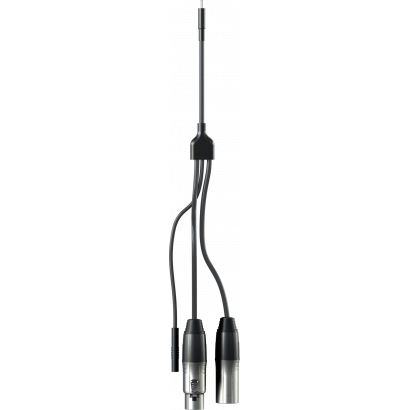

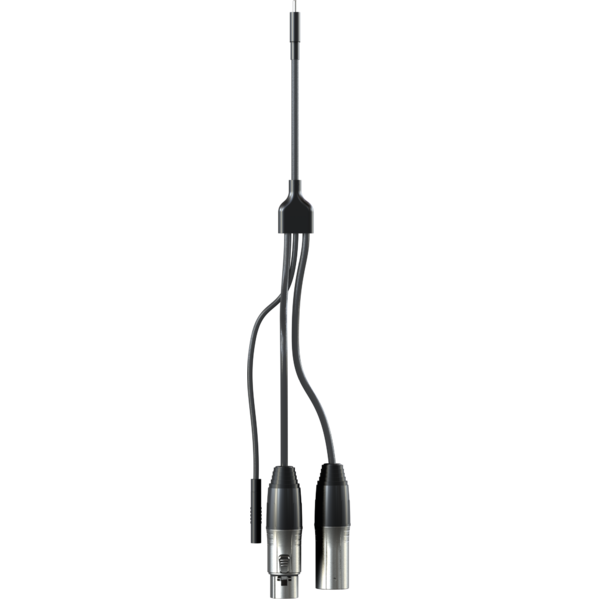

Y Cable from USB-C male to XLR 5P male, XLR 5P female and USB-C female
ENPTWCSB
ENPTWCSB
(optional)

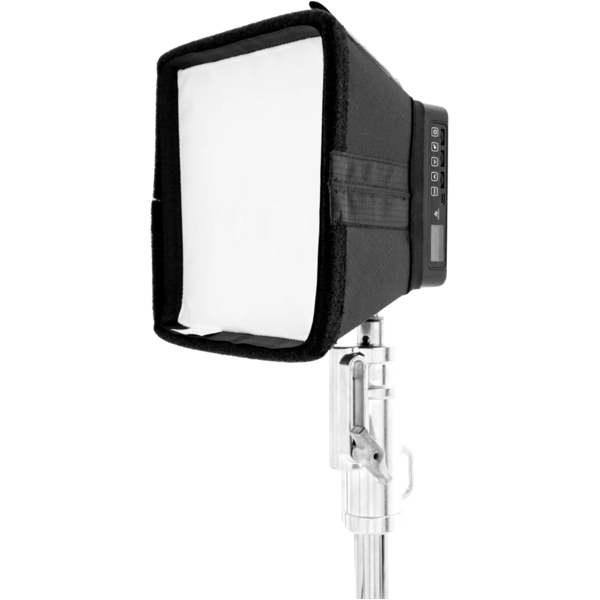

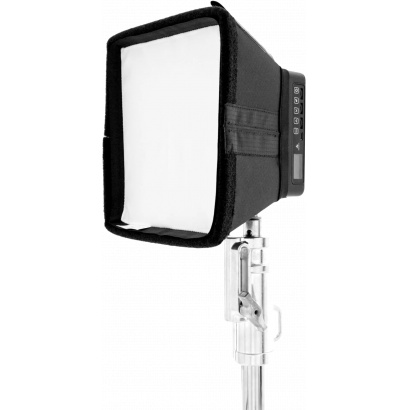

SnapBag for ECLNANOPANELTWC by DoP choice
ENPTWCSG4SB40
ENPTWCSG4SB40
(optional)

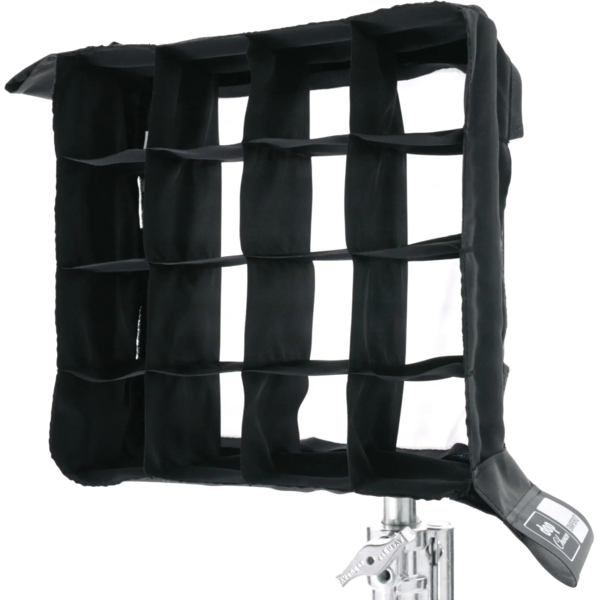

40° SnapGrid for SnapBag for ECLNANOPANELTWC by DoP choice
PRL-IRC
PRL-IRC
(optional)
RGBWA IR controller, 29 buttons, manual/static colours, auto programs, fade
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Eclnanopaneltwc_A4_DATASHEET_(EN).pdf 507KB
Letter datasheet Eclnanopaneltwc_LETTER_DATASHEET_(EN).pdf 513KB
Tender Specification Eclnanopaneltwc_TENDER_SPECIFICATION.pdf 4MB

User manual

File name File size Download
User manual Eclnanopaneltwc_USER_MANUAL_EN.pdf 3MB
General safety info GENERAL_SAFETY_INFORMATION.pdf 12MB
User manual Eclnanopaneltwc_USER_MANUAL_FR.pdf 3MB
User manual GENERAL_BATTERY_SAFETY_INFO.pdf 3MB
User manual Eclnanopaneltwc_Wireless_Protocol_Compatibilit_EN.pdf 4MB

DMX chart & personalities

File name File size Download
DMX chart Eclnanopaneltwc_DMX_CHARTS.pdf 423KB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 444MB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
VectorWorks VECTORWORKS_SYMBOLS.vwx 137KB
ECLNANOPANELTWC Firmware rev. 1.4
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
ECLNANOPANELTWC Firmware rev. 1.3
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
IES prolights_eclnanopaneltwc_ies files.zip 22KB
LDT prolights_eclnanopaneltwc_ldt files.zip 18KB
PDF Photometrics Eclnanopaneltwc_PHOTOMETRICS_REPORT.pdf 5MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D SKP Eclnanopaneltwc_3D_SKETCHUP.skp 121KB
2D Eclnanopaneltwc_2D.dwg 476KB
3D Eclnanopaneltwc_3D.dwg 515KB
2D cad symbols Eclnanopaneltwc_2DSYMBOLS.dwg 48KB
Technical drawing Eclnanopaneltwc_TECHNICAL_DRAWING.pdf 67KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX1UP5 {CodiceUpBox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 04/05/2023 Improvements:
  • Improved wireless indicator symbology.
Fixed bugs:
  • Switching from Stand Alone CCT to Stand Alone HSI or from Fixed Colors to HSI, the fixture produces a green flash.
  • Switching from White Preset to Manual Colour and switching from Spektra Calibration=OFF to Spektra Calibration=ON, sometimes fixture produces a white flash.
  • Switching from Manual colour to Source emulation, fixture flashes the colour previously selected in Manual Colour.
  • Switching from Fixed Colors to HSI, light source decreases its output intensity.
  • Switching from Stand Alone XY to Stand Alone Effect, the fixture momentarily switches off the light source.
  • Spektra Calibration not correctly working on Standalone.
 Rev. 1.0
1.3 STABLE 15/03/2023 New functions:
  • Spektra Calibration: new modes available
    • ON: CCT and colors are fully calibrated, working in the common color space definition set by Spektra. This means that output of multiple fixtures will match with no visible differences. Color Saturation is slightly reduced.
    • PURE COLORS:  CCT is calibrated, giving perfect white matching across multiple fixtures, but primary and secondary colors are calibrated to their native color space which allows maximum color saturation. The closer you move towards white, the more closely multiple fixtures will match each other's output. The further you move away from white and the closer you move towards saturated color, the less closely multiple fixtures will match each other's output.
    • OFF: CCT doesn't guarantee High CRI Values and color output of one fixture may or may not closely match that of other fixtures.
Improvements:
  • Switched from FIXTURE TYPE logic to POWER MODE logic.
  • Power Mode selector allows you to select between 3 options:
    • BATTERY:
      - If fixture is being used (Standalone or DMX/WDMX Active) and AC is plugged in, fixture will draw power from the mains and status of light output won't be affected (only max power will be higher than what available on battery).
      - If fixture is being used (Standalone or DMX/WDMX Active) and AC is plugged out, fixture will draw power from the battery and status of light output won't be affected (only max power will be reduced) .
      - Pressing Power button for 3 seconds without mains present --> fixture will turn on and follow its settings (Standalone or DMX/WDMX)
      - Pressing Power button for 3 seconds while using without mains present --> fixture will turn off.
      - Pressing Power button for 3 seconds while charging --> fixture will turn on and follow its settings (Standalone or DMX/WDMX), or would keep charging if nothing is setted/no signal received
      - Pressing Power button for 3 seconds while using with mains present--> fixture will turn off and start charging.
      - Plugging Mains power for 3 seconds while fixture is off --> fixture will start charghing.
      - Plugging Mains power OFF for 3 seconds while fixture is charghing --> fixture will stop charging and turn off.
    • DC:  Fixture operates as a standard AC fixture. When AC is plugged in, fixture will turn on and operate normally. If Battery recharge is enabled, battery will be recharged as soon as dimmer is = 0 or by pressing the power button for 3 seconds. If Battery recharge is disabled, battery won't be recharged. Fixture will turn off as soon as AC is plugged out.
    • DC EMERGENCY:  Fixture operates as a standard AC fixture. When AC is plugged in, fixture will turn on and operate normally. If Battery recharge is enabled, battery will be recharged as soon as dimmer is = 0 or by pressing the power button. If Battery recharge is disabled, battery won't be recharged. Fixture will turn on at full power with 6000K White as soon as AC is missing. To turn off the fixture user can use control channel dedicated parameter or power button on the fixture.
  • Jump prediction added to crossfade channel.
Fixed bugs:
  • RDM compliance missing of new pids.
  • The switching on and off of the fixture is characterised by a fade.
  • "PARTY" effect of Stand Alone does not work.
  • User Preset pressing the Power botton does not work.
 Rev. 1.0

Info Request

News

22 September 2023
PROLIGHTS fixtures on stage for Noizy's Alpha Show 2
PROLIGHTS fixtures on stage for Noizy's Alpha Show 2
Alpha Show 2, the concert of the hip-hop singer Noizy, was illuminated by PROLIGHTS fixtures. The event, hosted in the Mother Teresa...
19 September 2023
PROLIGHTS fixtures light up the second edition of
PROLIGHTS fixtures light up the second edition of "I Venerdì di Ercolano"
PROLIGHTS products illuminated the second edition of "I Venerdì di Ercolano," a culturally enriching initiative proudly promoted and...
14 September 2023
PROLIGHTS fixtures illuminated the 63rd Edition of TV Week Logie Annual Awards
PROLIGHTS fixtures illuminated the 63rd Edition of TV Week Logie Annual Awards
The exceptional sparkle and enchanting ambiance that characterised the 63rd annual TV Week Logie Awards has been further enhanced by...
12 September 2023
PROLIGHTS Illuminates the Ricky Martin Symphonic concert
PROLIGHTS Illuminates the Ricky Martin Symphonic concert
PROLIGHTS fixtures lit up Skënderbej Square in Tirana, setting the stage for the Ricky Martin Symphonic concert. This performance...
05 September 2023
Prolights EclExpo Flood150: Compact, bright and versatile floodlight
Prolights EclExpo Flood150: Compact, bright and versatile floodlight
PROLIGHTS introduces the EclExpo Flood150, a compact and bright floodlight designed to substitute traditional CDM, HMI, and tungsten...
04 September 2023
Ultimo chooses Prolights for his summer stadium tour
Ultimo chooses Prolights for his summer stadium tour
Prolights solutions lit up the stadium tour of Ultimo, a young Roman singer-songwriter and leading artist on the Italian music scene....
30 August 2023
PROLIGHTS light up the British Drivers Club at Silverstone Circuit
PROLIGHTS light up the British Drivers Club at Silverstone Circuit
The British Drivers Club has chosen PROLIGHTS solutions to illuminate the VIP locations during the prestigious British Grand Prix at...
25 August 2023
PROLIGHTS on stage with Blanco's Innamorato Tour
PROLIGHTS on stage with Blanco's Innamorato Tour
PROLIGHTS products illuminated the Innamorato Tour of Blanco, the young artist reigning over the Italian music scene. Following the...
21 August 2023
Prolights illuminated Elvana Gjata's Dekada concert in Tirana
Prolights illuminated Elvana Gjata's Dekada concert in Tirana
Prolights fixtures played a pivotal role in the concert titled "Dekada" by the Albanian singer Elvana Gjata. This event marked a significant...
11 August 2023
DRTCC choose Prolights fixtures for a major upgrade
DRTCC choose Prolights fixtures for a major upgrade
Dubbo Regional Theatre and Convention Centre features the Joyce Schneider Auditorium, a 500-seat theatre with state-of-the-art facilities...
08 August 2023
PROLIGHTS Expands LED Screen Lineup with Three New Series and 13 Models, Catering to Touring to Film Sets
PROLIGHTS Expands LED Screen Lineup with Three New Series and 13 Models, Catering to Touring to Film Sets
PROLIGHTS unveils its new series of LED screens - KappaPix, SigmaPix, and GammaPix. These meticulously engineered products are designed...
04 August 2023
PROLIGHTS illuminates the arcades of the Sanctuary of San Luca in Bologna
PROLIGHTS illuminates the arcades of the Sanctuary of San Luca in Bologna
Prolights Sunblast 3000FC transformed the arcades of Bologna, a worldwide symbol of the city and UNESCO heritage site, into a magnificent...
Subscribe to our Newsletter
Follow us, stay connected facebook instagram youtube twitter linkedin
Loading...
