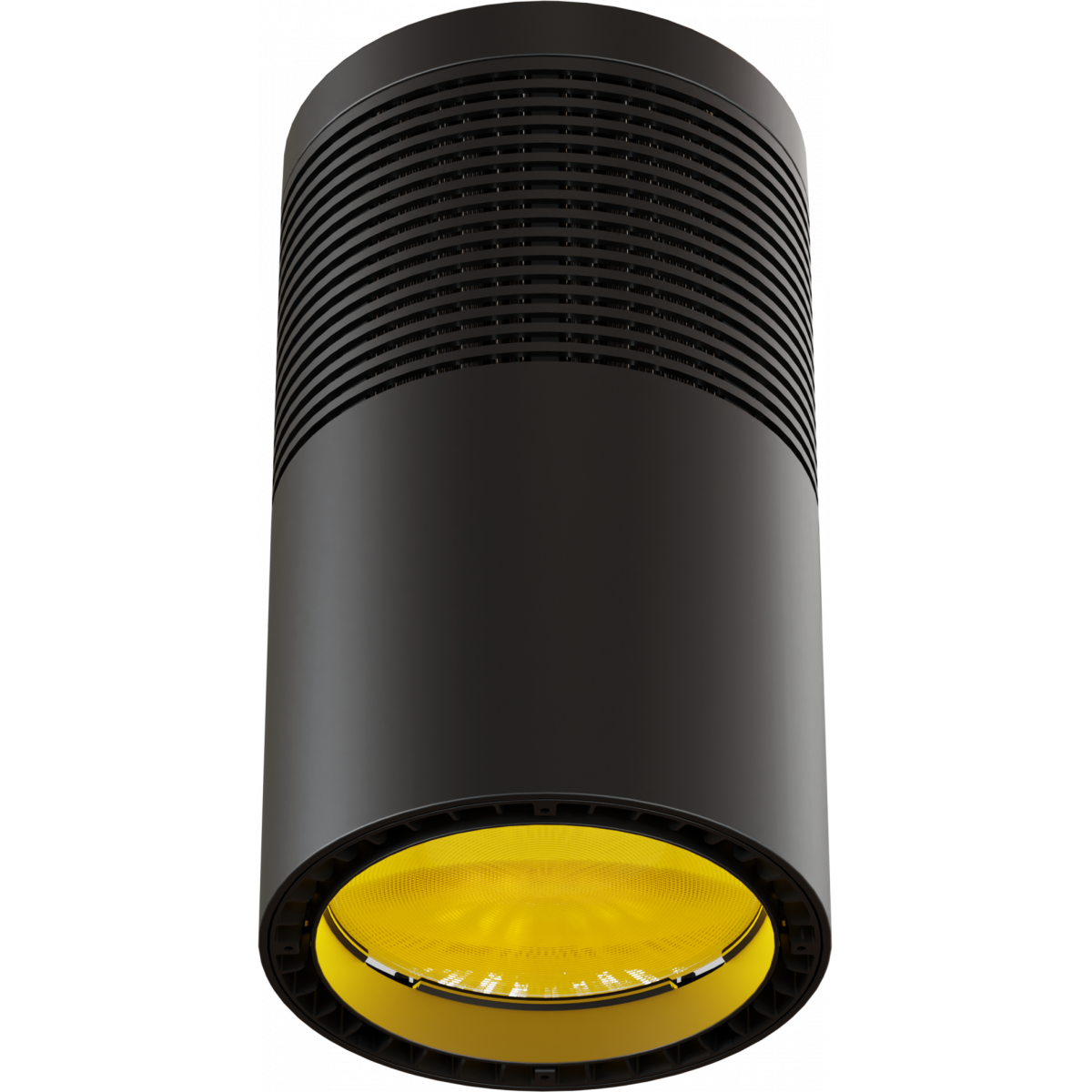

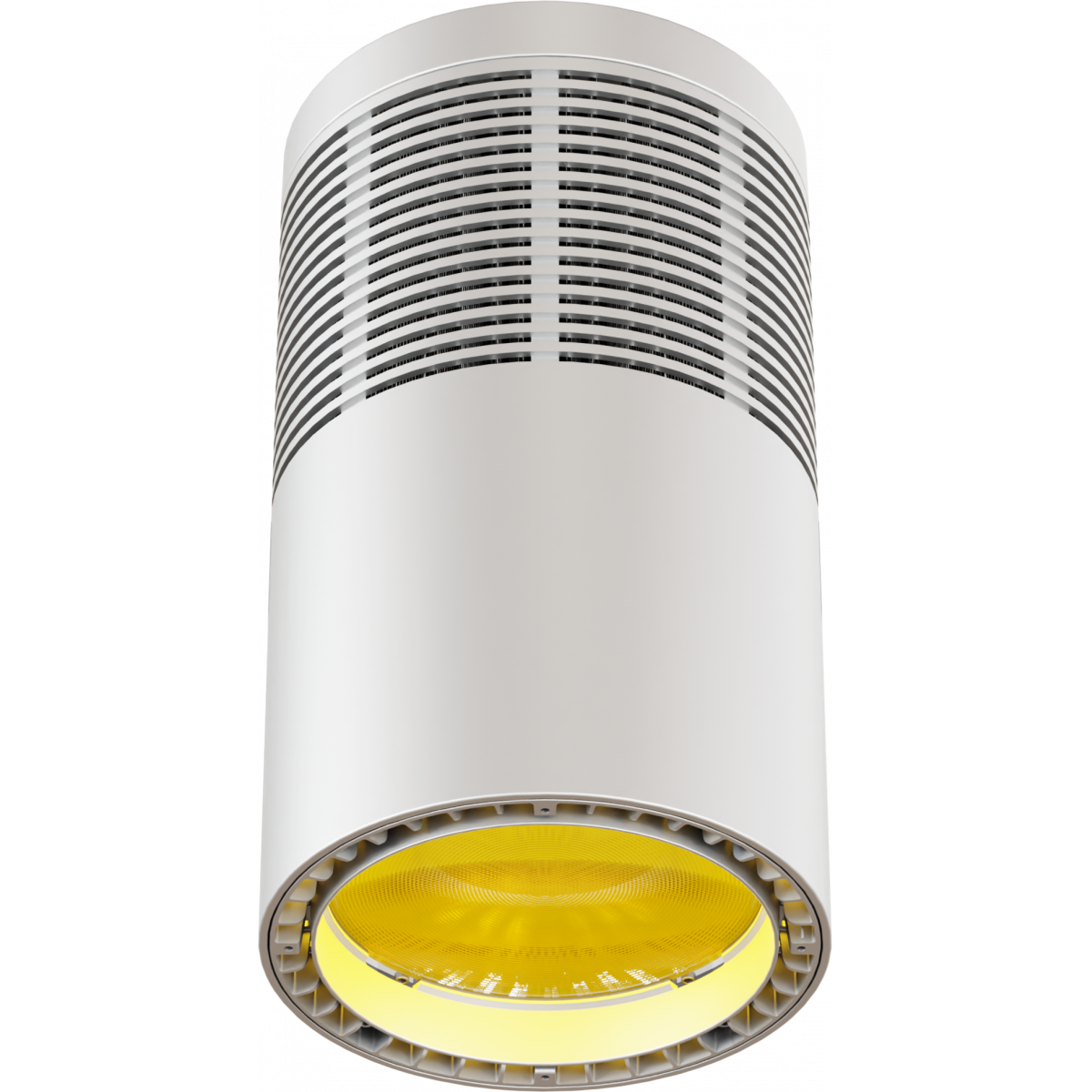

EclPendant FC

200W RGB+WarmWhite innovative pendant light

The EclPendant is a beautifully designed house light packed with high-performing technology that makes any venue well-lit whilst staying eco-friendly.
This innovative series of pendant lights come with a wide selection of LED sources, a full range of optics, accessories, mounting options and control.
The EclPendant has a 200-Watt LED source. Its source varies in RGB + Warm White, 3,000K, 4,000K or 5,600K. They all have high-quality light output, a consistent colour temperature and unmatched durability.
Several advanced user settings are available from the unit's on-board GUI and control protocols like DALI, DMX + RDM and Wireless DMX (CRMX + W-DMX).
The EclPendant was made for several uses - its mounting options include pendant, surface, stem, wall mount, adjustable bracket, and recessed. It's also possible to wire the EclPendant series directly to mains (100-240AC or 48V DC) and DMX or DALI through terminal blocks or feed power and DMX using the TrueOne and DMX connections.
The fixture has a wide range of optics and accessories available, with an uncompromising approach to flexibility and precision. All the optics are easily changeable on-site, providing a hassle-free user experience.
The EclPendant has a fan-free thermal design and delivers a powerful and consistent lumen output over a long lifespan.

NOTE: the hanging bracket does not come with the product

Main features:

  • 200W LED source power, RGB + Warm White, 3,000K, 4,000K or 5,600K with passive cooling
  • AC or DC power input. Control via DALI, DMX, RDM, Wireless DMX (CRMX+W-DMX)
  • Extensive mounting option possibilities, optics and accessories are all easily changeable

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 200W RGBWW LEDs
  • Luminous flux: 10'168 @full
  • Lux: 1.757lx @5 m full
  • CRI: 94,1 @3200K; 94,6 @5600K
  • R9: 91,4 @3200K; 96,6 @5600K
  • TLCI: 89 @3200K; 94 @5600K
  • TM30 Rf: 92,9 @3200K; 91,3 @5600K
  • TM30 Rg: 106,2 @3200K; 103,8 @5600K
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 20°
  • Field angle: 40°
  • Lens diameter: 157mm / 6.18''

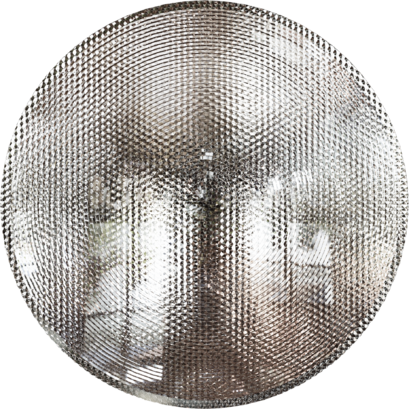

  • Lens type: fresnel lens
  • Other: see available accessories
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • CCT: CCT control, + / - green correction, tungsten emulation
  • Colour wheel: gel filters included
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer, colors and color temperature
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 9004 or RAL 9010
CONTROL
  • Protocols: DALI Type8, DMX512, RDM, CRMX
  • DMX channels: UNO / DUO / Basic / Standard / Extendedchannel
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Other: 16bit control of dimmer and colour
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1-30 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Low Voltage DC mains: DC 48V for emergency light use
  • Max power consumption: 220W
  • Output (at 230V): 10 units on a single power line
  • Power factor: > 0,97
  • Inrush current: 230VAC/67A
PHYSICAL
  • IP rating: 20
  • Cooling: Heatsink with heat pipes, passive cooling and fan-free
  • Suspension and fixing: bracket for hanging and positioning (bracket not included on the product)

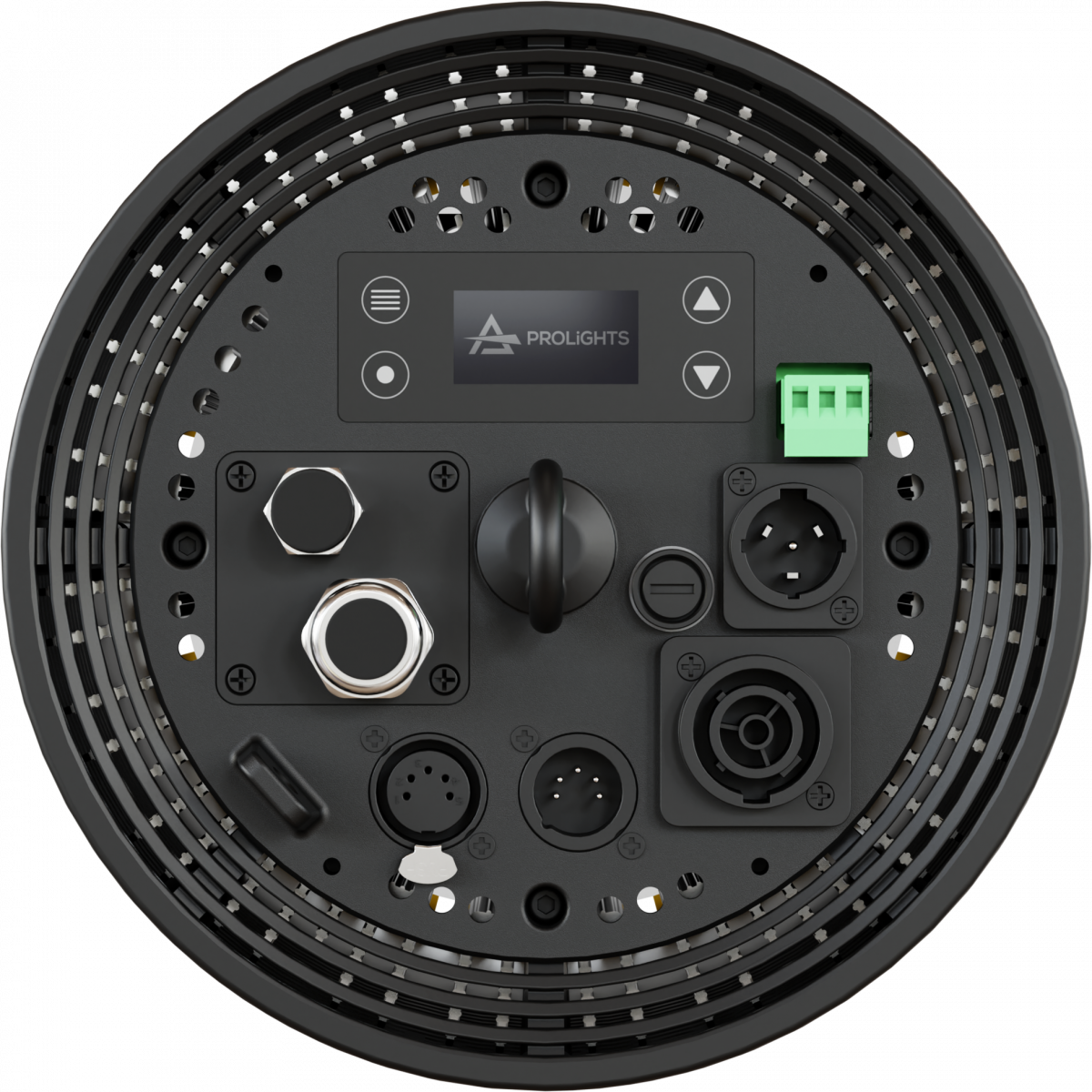

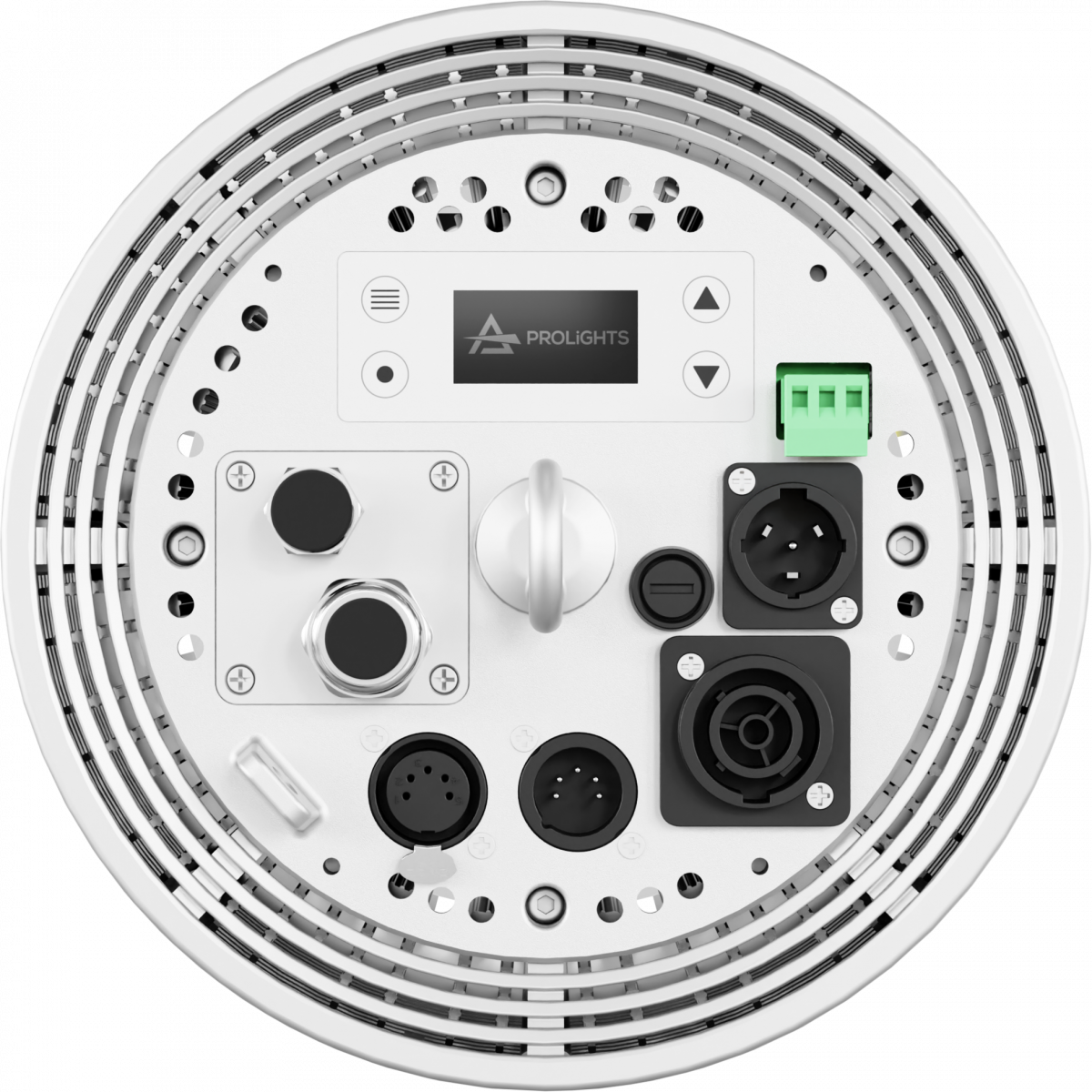

  • Signal connection: screw terminal block, Amphenol XLR 5p IN/OUT connectors
  • Power connection: screw terminal block, Neutrik powerCON TRUE1 IN/OUT connectors
  • Low Voltage DC connector: DC 48V through screw terminal block
  • Dimensions (WxHxD): 202x392x202mm / 7.95''x15.43''x7.95''
  • Weight: 7,5kg / 16.53lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Finishing
ECLPENDANTFCBK
ECLPENDANTFCBK
Black
ECLPENDANTFCWH
ECLPENDANTFCWH
White

Accessories & Related Products

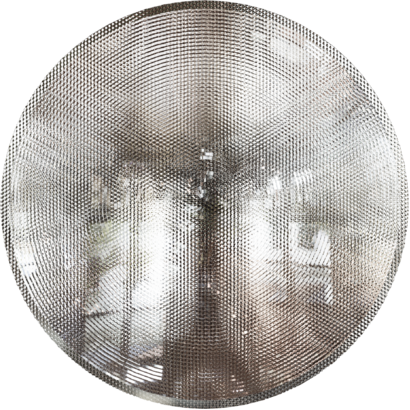

ECLPENDLENS20
ECLPENDLENS20
(included)
ECLPENDANT series 20° lens
ECLPENDLENS60
ECLPENDLENS60
(optional)
ECLPENDANT series 60° lens
ECLPENDLENS40
ECLPENDLENS40
(optional)
ECLPENDANT series 40° lens

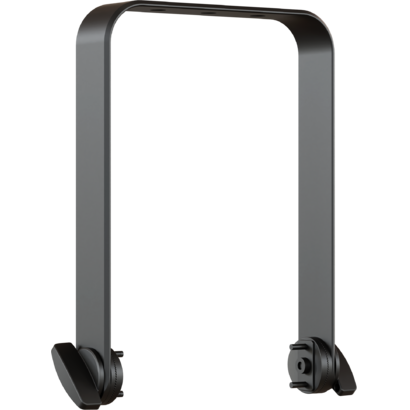

ECLPENDHGBRKBK
ECLPENDHGBRKBK
(optional)
Hanging bracket for ECLPENDANT series, black
ECLPENDHGBRKWH
ECLPENDHGBRKWH
(optional)

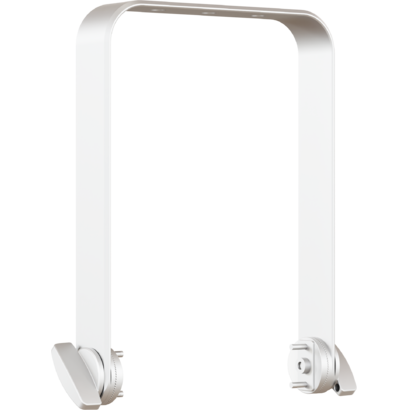

Hanging bracket for ECLPENDANT series, white
ECLPENDRECSKITBK
ECLPENDRECSKITBK
(optional)
Ceiling recessed kit for ECLPENDANT series, black
ECLPENDRECSKITWH
ECLPENDRECSKITWH
(optional)
Ceiling recessed kit for ECLPENDANT series, white

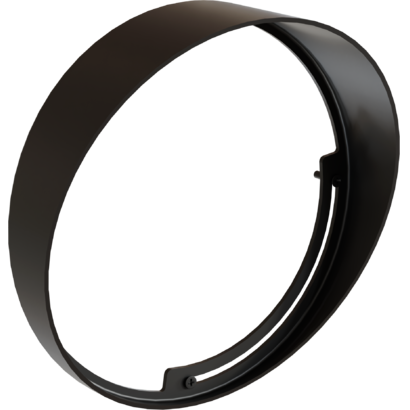

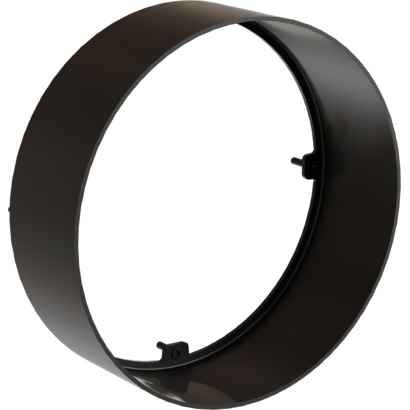

ECLPENDHSNOOTBK
ECLPENDHSNOOTBK
(optional)
Half snoot for ECLPENDANT series, black

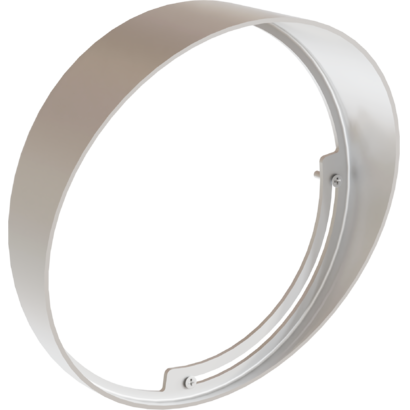

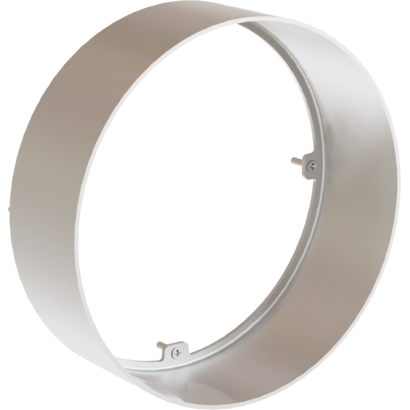

ECLPENDHSNOOTWH
ECLPENDHSNOOTWH
(optional)
Half snoot for ECLPENDANT series, white
ECLPENDFSNOOTBK
ECLPENDFSNOOTBK
(optional)
Full snoot for ECLPENDANT series, black
ECLPENDFSNOOTWH
ECLPENDFSNOOTWH
(optional)
Full snoot for ECLPENDANT series, white
ECLPENDHLOUVREBK
ECLPENDHLOUVREBK
(optional)

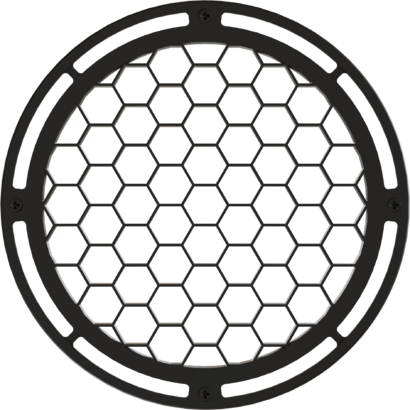

Honeycomb louvre for ECLPENDANT series, black
ECLPENDHLOUVREWH
ECLPENDHLOUVREWH
(optional)
Honeycomb louvre for ECLPENDANT series, white
ECLPENDCLOUVREBK
ECLPENDCLOUVREBK
(optional)

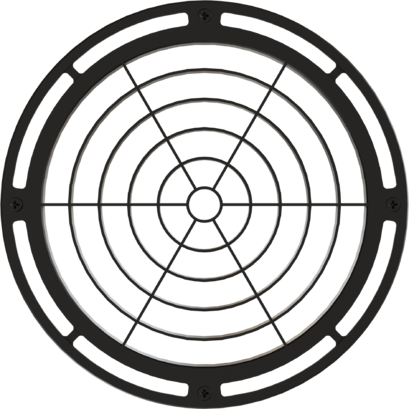

Concentric louvre for ECLPENDANT series, black

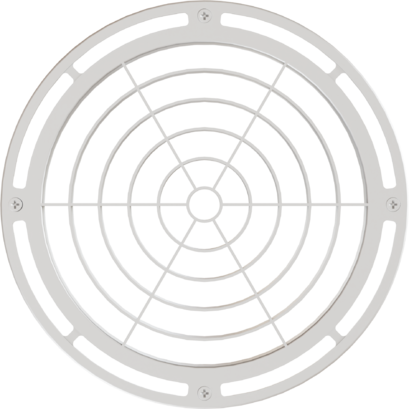

ECLPENDCLOUVREWH
ECLPENDCLOUVREWH
(optional)
Concentric louvre for ECLPENDANT series, white

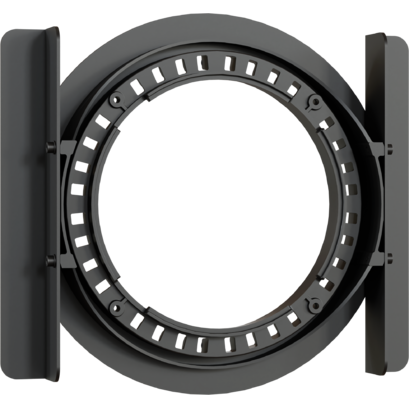

ECLPENDBDBK
ECLPENDBDBK
(optional)

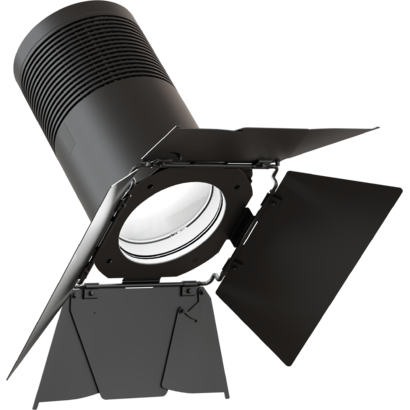

Barn door with 8 directional flaps to adjust the light beam for ECLPENDANT, blac

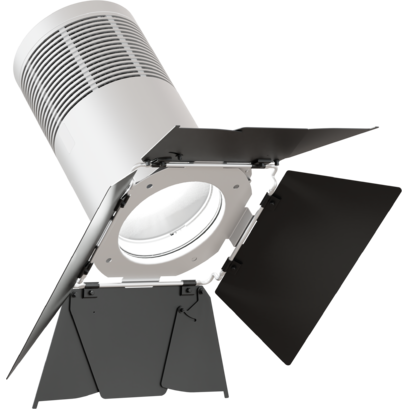

ECLPENDBDWH
ECLPENDBDWH
(optional)
Barn door with 8 directional flaps to adjust the light beam for ECLPENDANT, whit
ECLPENDCEILKITBK
ECLPENDCEILKITBK
(optional)
Ceiling-mounted kit (surface) for ECLPENDANT series, black
ECLPENDCEILKITWH
ECLPENDCEILKITWH
(optional)
Ceiling-mounted kit (surface) for ECLPENDANT series, white
ECLPENDWALLBRKBK
ECLPENDWALLBRKBK
(optional)
Wall mounting bracket for ECLPENDANT series, black
ECLPENDWALLBRKABK
ECLPENDWALLBRKABK
(optional)
Ring adapter for ECLPENDWALLBRK (not included), black
ECLPENDWALLBRKWH
ECLPENDWALLBRKWH
(optional)
Wall mounting bracket for ECLPENDANT series, white
ECLPENDWALLBRKAWH
ECLPENDWALLBRKAWH
(optional)
Ring adapter for ECLPENDWALLBRK (not included), white
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

User manual

File name File size Download
User manual GENERAL_SAFETY_INFORMATION.pdf 12MB
User manual Eclpendantfc_USER_MANUAL_EN.pdf 7MB

DMX chart & personalities

ECLPENDANTFC Firmware rev. 1.1.01.0
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
ECLPENDANTFC Firmware rev. 1.1.00.0
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.01.0 STABLE 03/05/2023 New functions:
  • Spektra Calibration: new modes available
    • ON: CCT and colors are fully calibrated, working in the common color space definition set by Spektra. This means that output of multiple fixtures will match with no visible differences. Color Saturation is slightly reduced.
    • PURE COLORS: CCT is calibrated, giving perfect white matching across multiple fixtures, but primary and secondary colors are calibrated to their native color space which allows maximum color saturation. The closer you move towards white, the more closely multiple fixtures will match each other's output. The further you move away from white and the closer you move towards saturated color, the less closely multiple fixtures will match each other's output.
    • OFF: CCT doesn't guarantee High CRI Values and color output of one fixture may or may not closely match that of other fixtures.
  • When the fixture is connected in DALI, the display shows the address used.
Improvements:
  • Improved Dimmer Fade In/Out performance when Led Frequency@1200Hz
  • Improved White Point accuracy.
  • Improved CCT alignement between ECLPENDANTFC and ECLPENDANTJRFC.
Fixed bugs:
  • After setting DMX BLACKOUT and removing the data signal, the fixture goes to BLACKOUT but slowly turn OFF the light source. Reconnecting the data signal, the fixture exit by Blackout mode with a fade.
  • After setting DMX EMERGENCY and removing the data signal, the fixture goes to EMERGENCY but slowly turn ON the light source at full. Reconnecting the data signal, the fixture exit by Emergency mode with a fade.
  • Strobe Channel @ 0 DMX Value not corresponding to Open function.
  • Using Dali protocol, the transition between Scenes is performed with a random Fade timing.
Rev. 1.0
Rev. 2.0
1.1.00.0 STABLE 16/01/2023 First stable release. Rev. 1.0
Rev. 2.0
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.01.0 STABLE 03/05/2023 New functions:
  • Spektra Calibration: new modes available
    • ON: CCT and colors are fully calibrated, working in the common color space definition set by Spektra. This means that output of multiple fixtures will match with no visible differences. Color Saturation is slightly reduced.
    • PURE COLORS: CCT is calibrated, giving perfect white matching across multiple fixtures, but primary and secondary colors are calibrated to their native color space which allows maximum color saturation. The closer you move towards white, the more closely multiple fixtures will match each other's output. The further you move away from white and the closer you move towards saturated color, the less closely multiple fixtures will match each other's output.
    • OFF: CCT doesn't guarantee High CRI Values and color output of one fixture may or may not closely match that of other fixtures.
  • When the fixture is connected in DALI, the display shows the address used.
Improvements:
  • Improved Dimmer Fade In/Out performance when Led Frequency@1200Hz
  • Improved White Point accuracy.
  • Improved CCT alignement between ECLPENDANTFC and ECLPENDANTJRFC.
Fixed bugs:
  • After setting DMX BLACKOUT and removing the data signal, the fixture goes to BLACKOUT but slowly turn OFF the light source. Reconnecting the data signal, the fixture exit by Blackout mode with a fade.
  • After setting DMX EMERGENCY and removing the data signal, the fixture goes to EMERGENCY but slowly turn ON the light source at full. Reconnecting the data signal, the fixture exit by Emergency mode with a fade.
  • Strobe Channel @ 0 DMX Value not corresponding to Open function.
  • Using Dali protocol, the transition between Scenes is performed with a random Fade timing.
Rev. 1.0
Rev. 2.0
1.1.00.0 STABLE 16/01/2023 First stable release. Rev. 1.0
Rev. 2.0

Info Request

News

09 April 2024
The Astra Wash19Pix Lights Up the Australian Chinese New Year Gala
The Astra Wash19Pix Lights Up the Australian Chinese New Year Gala
The  Astra Wash19Pix by PROLIGHTS illuminated the annual Chinese New Year Gala in Australia for 2024, held at the Adelaide Entertainment...
05 April 2024
PROLIGHTS fixtures light up Madame Tussauds museum in Budapest
PROLIGHTS fixtures light up Madame Tussauds museum in Budapest
PROLIGHTS products have lit up the new Madame Tussauds museum in Budapest. The project was followed by the system integrator company...
03 April 2024
PROLIGHTS Introduces High-Definition Optics for Enhanced Projection Quality
PROLIGHTS Introduces High-Definition Optics for Enhanced Projection Quality
PROLIGHTS announces the launch of the High Definition Optics for the Ecl Display series. Engineered to redefine projection quality,...
29 March 2024
PROLIGHTS Smart BatPlus at Buckingham Palace
PROLIGHTS Smart BatPlus at Buckingham Palace
PROLIGHTS Smart BatPlus , provided by Luminosity Lighting Services Ltd, illuminated the Blue Room and Music Room of Buckingham Palace...
26 March 2024
PROLIGHTS expands the EclDisplay range with the new EclDisplay CAS featuring integrated Casambi control
PROLIGHTS expands the EclDisplay range with the new EclDisplay CAS featuring integrated Casambi control
PROLIGHTS is thrilled to announce the introduction of the EclDisplay CAS , the latest addition to the EclDisplay projector range for...
22 March 2024
PROLIGHTS EclPar IPMFC impress at RESOLUTION X
PROLIGHTS EclPar IPMFC impress at RESOLUTION X
When Resolution X saw the PROLIGHTS EclPar IPMFC multipurpose LED fixture, they knew it was the perfect fit for a special long-term...
19 March 2024
PROLIGHTS illuminates ERT 3 studios
PROLIGHTS illuminates ERT 3 studios
The ERT 3 studios have upgraded their lighting system by introducing the EclPanel TWC and EclFresnel CT+M by PROLIGHTS into their inventory....
12 March 2024
PROLIGHTS products Illuminate Swan Park Theatre
PROLIGHTS products Illuminate Swan Park Theatre
Swan Park Theatre, a cornerstone of the arts within the City of Swan, has experienced a transformative upgrade in its lighting setup,...
04 March 2024
PROLIGHTS introduces the EclPendant S series: Compact, Versatile and Seamless house lights
PROLIGHTS introduces the EclPendant S series: Compact, Versatile and Seamless house lights
PROLIGHTS is proud to unveil its latest innovation in installation lighting - the EclPendant S series. This new addition to the PROLIGHTS...
04 March 2024
PROLIGHTS introduces the ArcSpot series: Setting New Standards in Outdoor Lighting Solutions
PROLIGHTS introduces the ArcSpot series: Setting New Standards in Outdoor Lighting Solutions
PROLIGHTS is thrilled to unveil its latest innovation in outdoor lighting: the ArcSpot Series. This collection of IP66-rated dynamic...
29 February 2024
PROLIGHTS' EclDisplay lights illuminate the Abrahamic Family House
PROLIGHTS' EclDisplay lights illuminate the Abrahamic Family House
The PROLIGHTS EclDisplay DAT fixtures have illuminated the Abrahamic Family House in Abu Dhabi, UAE, a project that represents a fusion...
23 February 2024
DisplayCob light up After Laughter Comes Tears exhibition
DisplayCob light up After Laughter Comes Tears exhibition
PROLIGHTS' DisplayCob FC  illuminated "After Laughter Comes Tears," a performative exhibition held at the MUDAM, Luxembourg's leading...

Subscribe to our Newsletter
Follow us, stay connected facebook instagram youtube twitter tiktok linkedin

Loading...
