EclSoft LinearIP

ORDER CODE: ECLSOFTLINEARIP

IP65, 230W Tunable White and colourful linear LED soft light with pixels and lighting effects

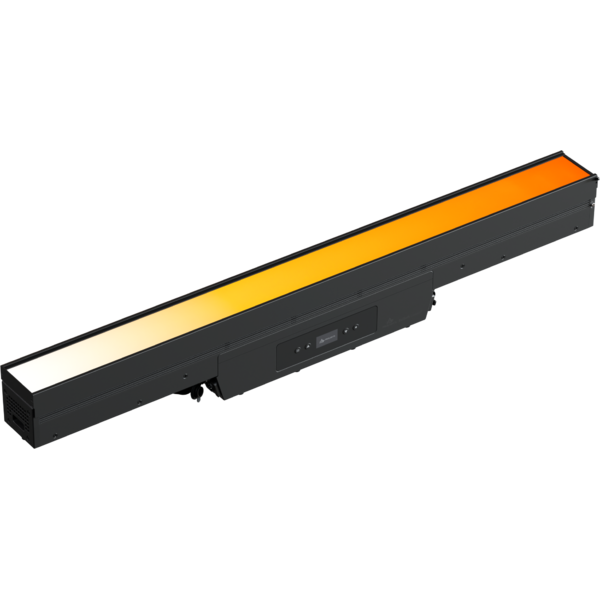

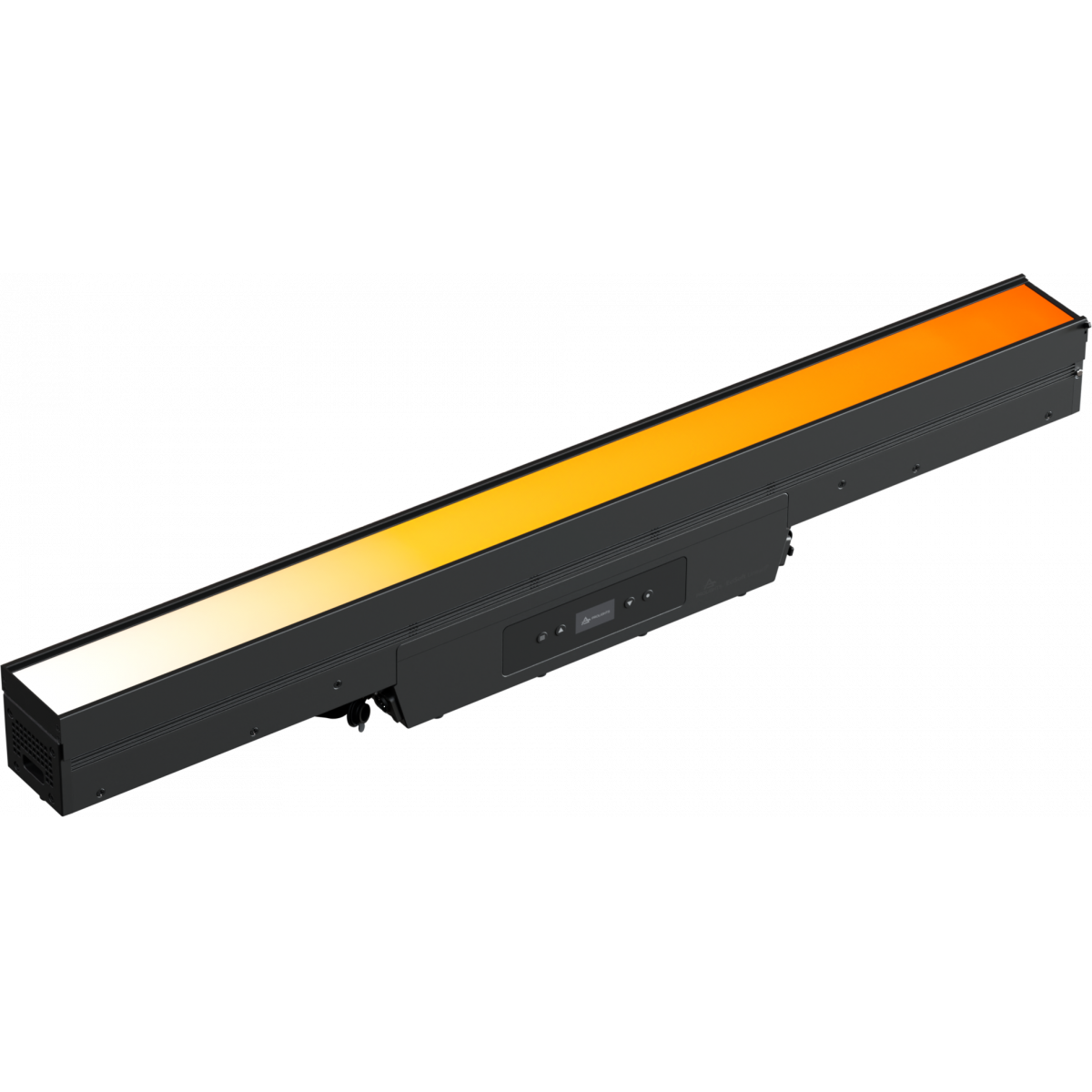

The EclSoft Linear is an IP65 rated linear soft light, with all the main features of the successful EclPanel range, in a new form factor and waterproof design.
Each of its 15 pixels can be controlled individually through DMX/RDM, Ethernet protocols, Wireless DMX (CRMX and W-DMX), or the built-in cinema effects engine.
The EclSoft Linear has several colour control modes: RGBW, RGB, CMY, HSI, XY, RAW Direct, CCT linear and CCT presets with +/- green shift, source emulation and industry-standard colour gels.
There are several accessories available for the EclSoft Linear, including optical filters and beam shaping accessories.
The 230W RGB + Warm White LED engine producing nearly a 13,000 lumen output, whilst keeping perfectly mixed colours and precise white tones, from tungsten to daylight, maintaining a high CRI, TLCI and TM-30 values.
The onboard driver, built-in power supply, easy rigging and cabling make this fixture the perfect tool for every film, TV or touring production.

SPEKTRA

Main features:

  • 230W RGB + Warm White engine, producing nearly a 13,000 lumen output
  • CRI > 92 R9 > 96; TLCI > 87
  • 15 individually controlled pixels with built-in cinema effects engine
  • DMX/RDM control, Ethernet, and Wireless DMX (CRMX + W-DMX)
See variants

PHOTO GALLERY

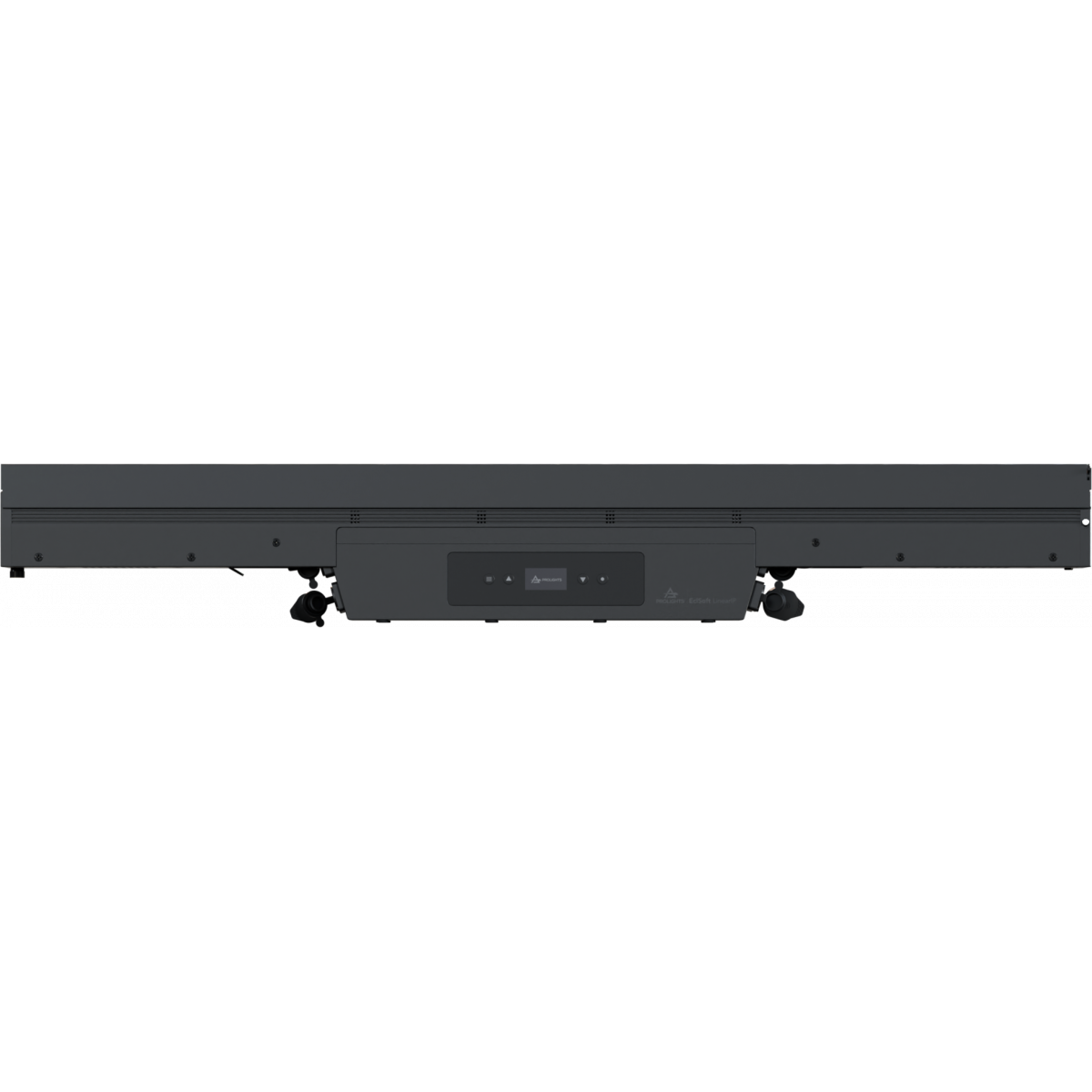

EclSoft LinearIP

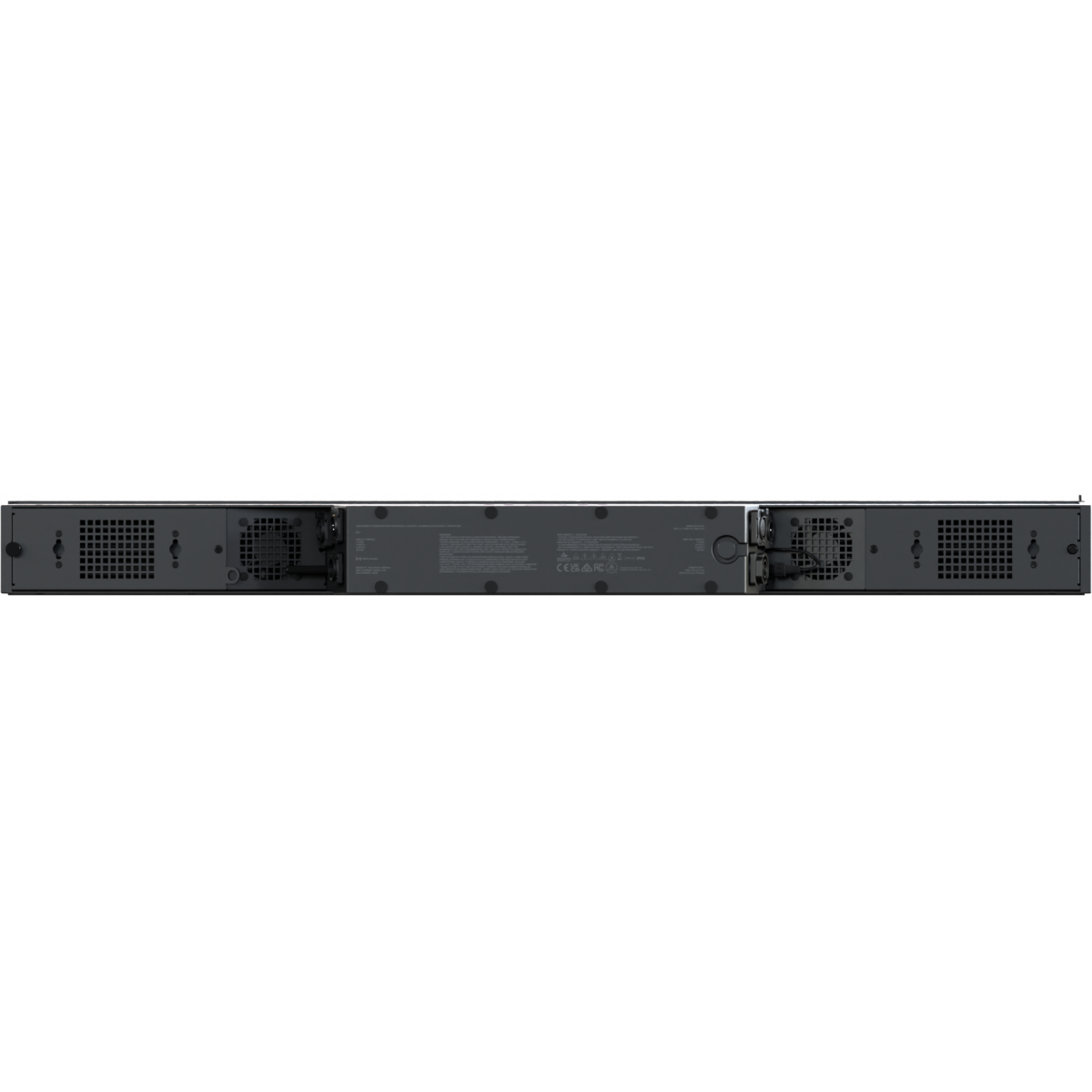

EclSoft LinearIP

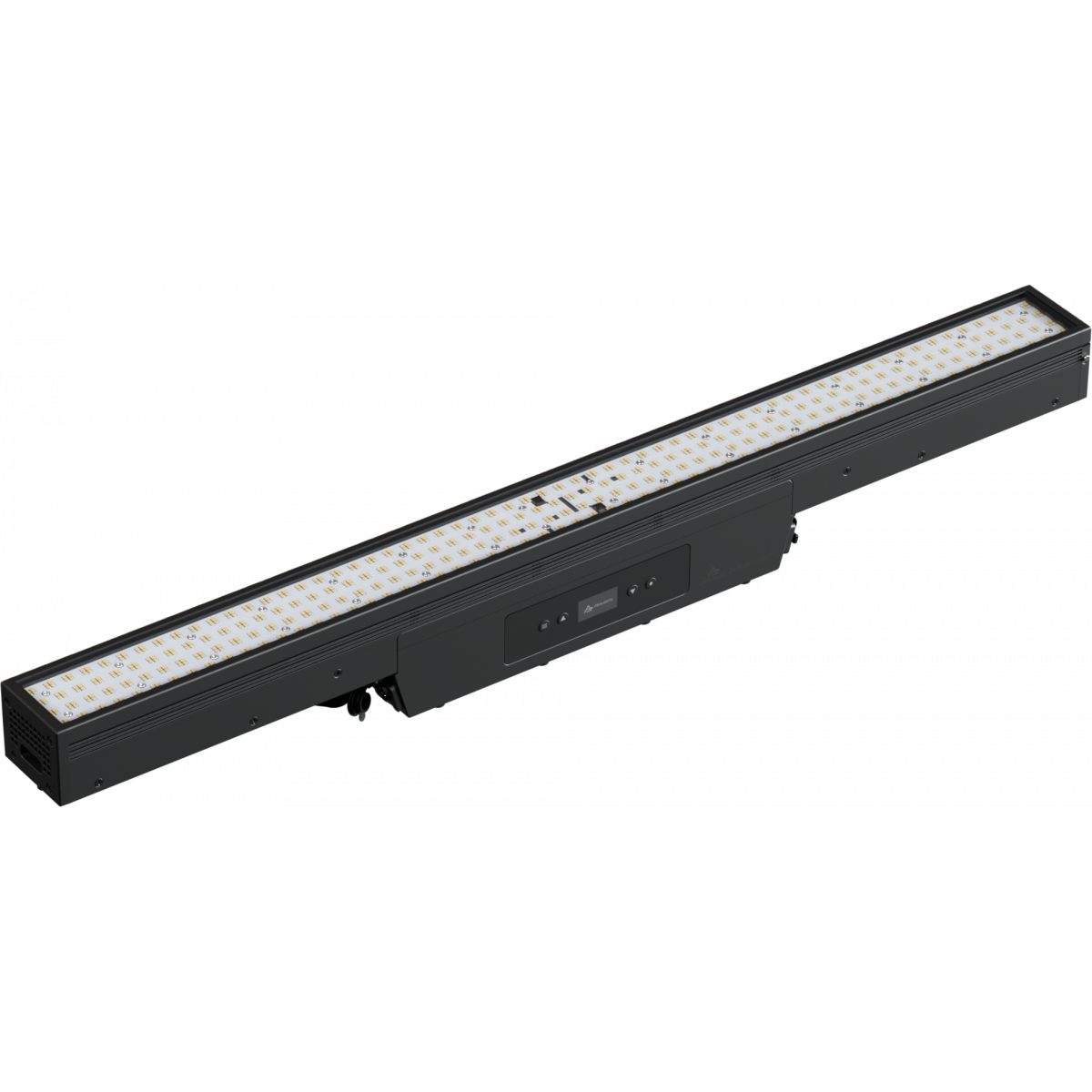

EclSoft LinearIP
EclSoft LinearIP
EclSoft LinearIP
EclSoft LinearIP
EclSoft LinearIP

Technical specifications

LIGHT SOURCE
  • Source: 230W RGB + Warm White LED
  • Luminous flux: 12'994 @4.000 K with LD filter
  • Lux: 220lx @5 m full
  • CRI: 92 @3.200 K; 93 @5.600 K
  • R9: 96 @3.200 K; 92 @5.600 K
  • TLCI: 89 @5.600 K
  • TM30 Rf: 91 @3.200 K; 90 @5.600 K
  • TM30 Rg: 107 @3.200 K; 106 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 103°
  • Field angle: 155°
  • Lens type: high-quality glass lens optics
  • Additional optics: Mountable Medium Density diffusion filter (included)
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2,800 K - 10,000K with 28 K resolution
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, ArtNet, sACN, CRMX
  • Pixel control: 15 section control
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -20° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 36.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Low Voltage DC mains: 48Vdc
  • Max power consumption: 250W
  • Output (at 230V): 9 units on a single power line
  • Power factor: >0,97
PHYSICAL
  • IP rating: 65 for temporary outdoor use (*)
  • Cooling: active, silent operation
  • Suspension and fixing: bracket for hanging and positioning

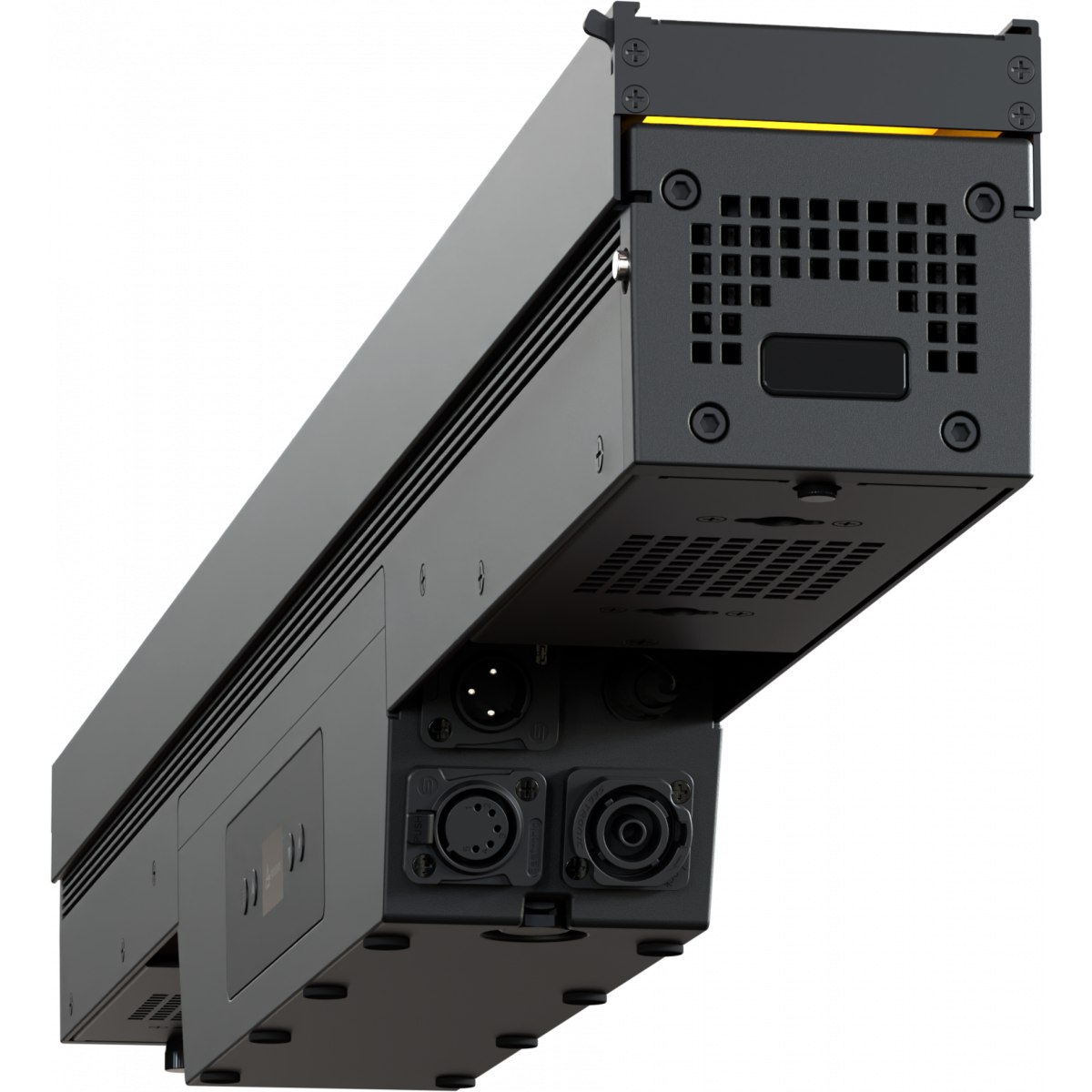

  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Data connection: Seetronic Ethernet IP IN connector

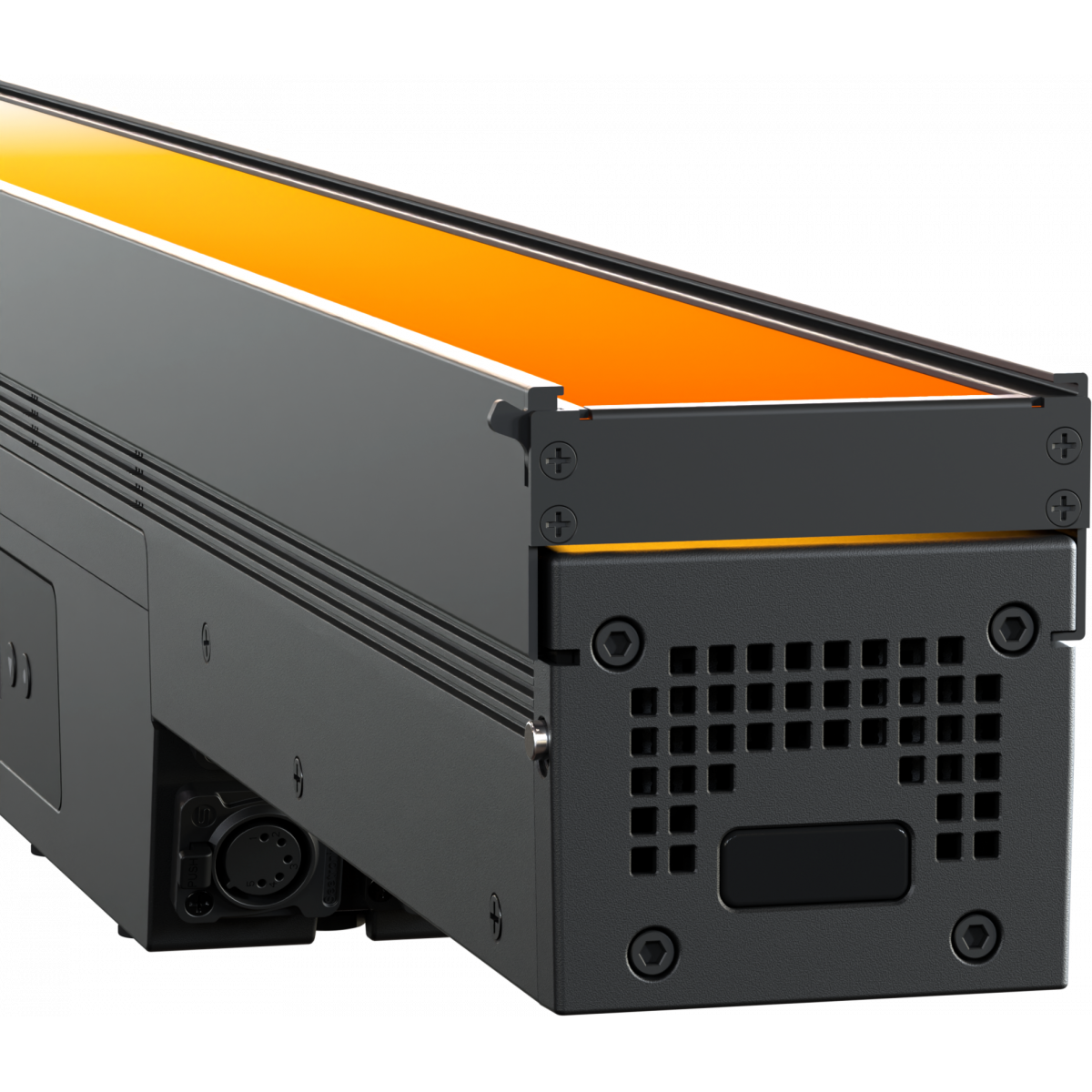

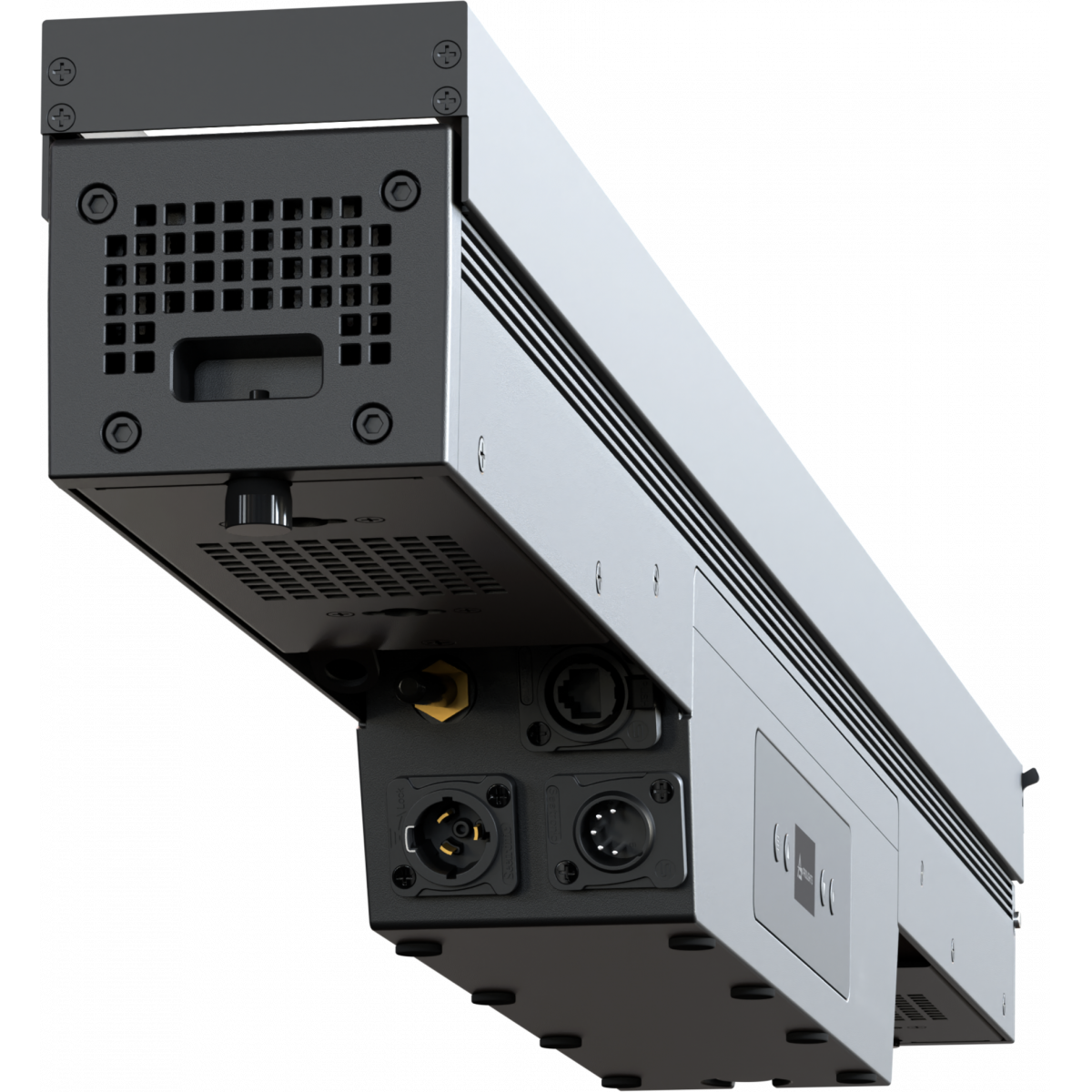

  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Low Voltage DC connector: XLR 3p for 48V
  • Dimensions (WxHxD): 1000x143x87mm / 39.37''x5.63''x3.43''
  • Weight: 7,1kg / 15.65lbs
(*)
  • NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
<b>ÆtherBox</b> LITE
ÆtherBox LITE
(Optional)
1 Universe CRMX Wireless Transceiver
FCLECLSOFTLIP
FCLECLSOFTLIP
(Optional)

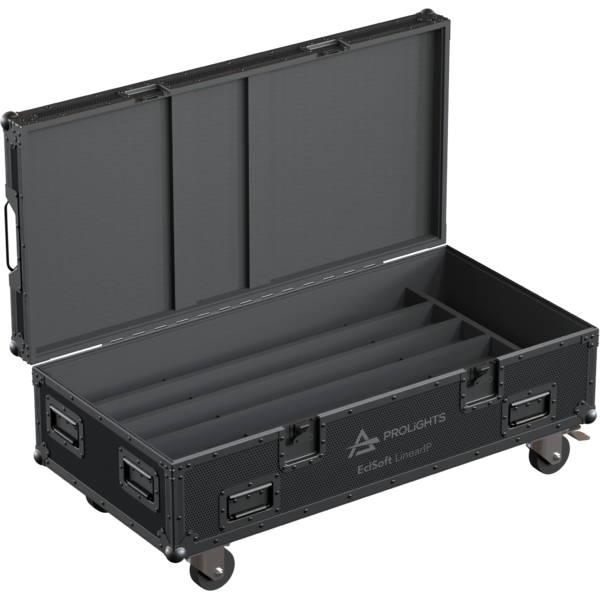

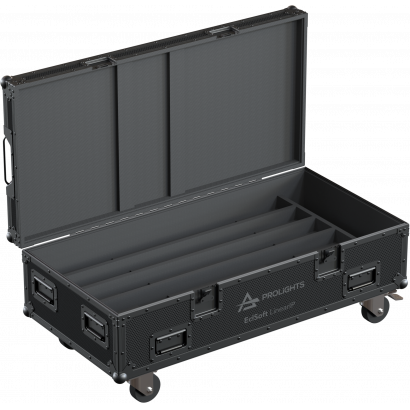

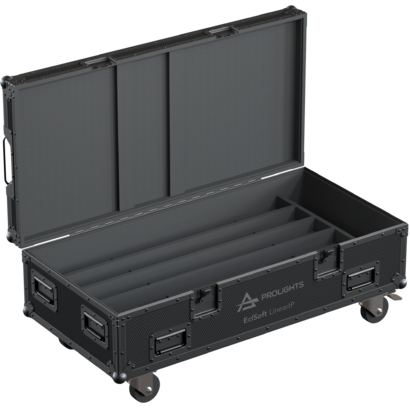

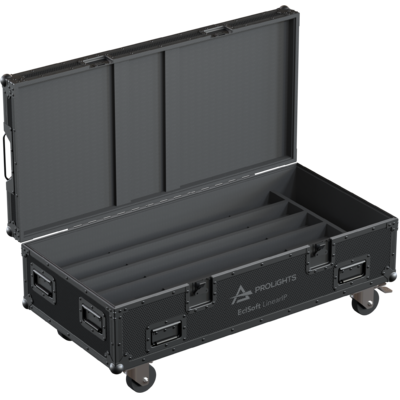

Flight case for 5 pcs of ECLSOFTLINEARIP

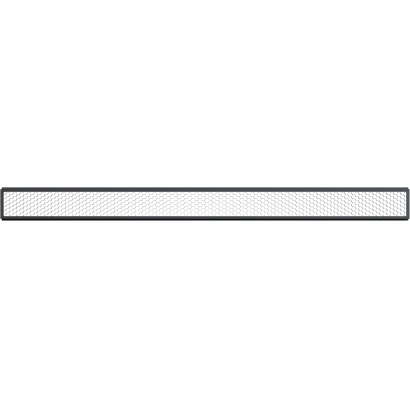

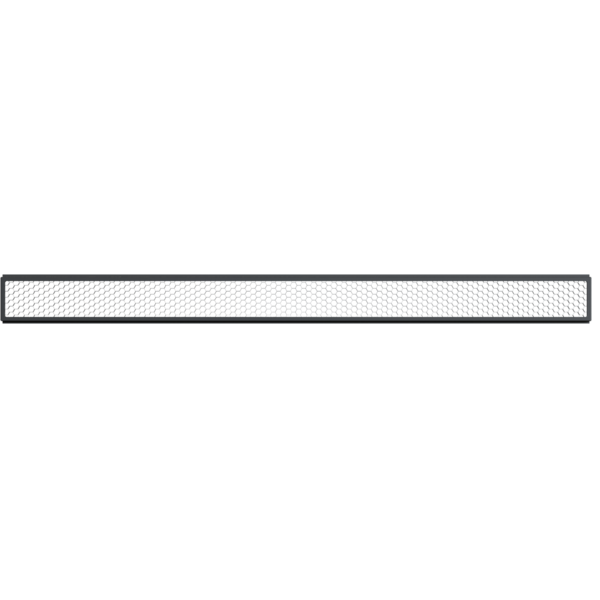

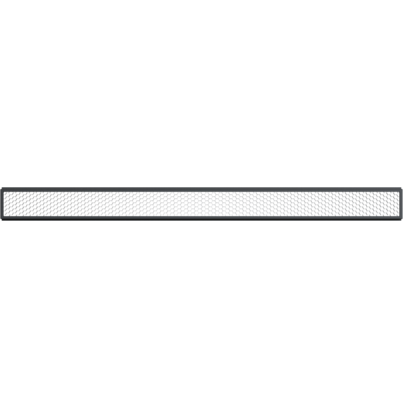

ESLIPEC60
ESLIPEC60
(Optional)

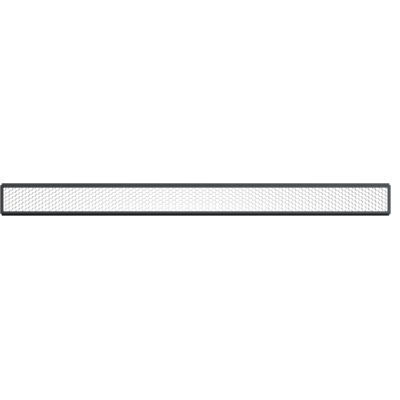

60 degree egg crate for ECLSOFTLINEARIP
ESLIPFILTERINT
ESLIPFILTERINT
(Optional)
Front intensified diffusion filter for ECLSOFTLINEARIP
ESLIPFILTERHD
ESLIPFILTERHD
(Optional)
Front high diffusion filter (less output) for ECLSOFTLINEARIP
ESLIPFILTERMD
ESLIPFILTERMD
(Included)
Front medium diffusion filter for ECLSOFTLINEARIP

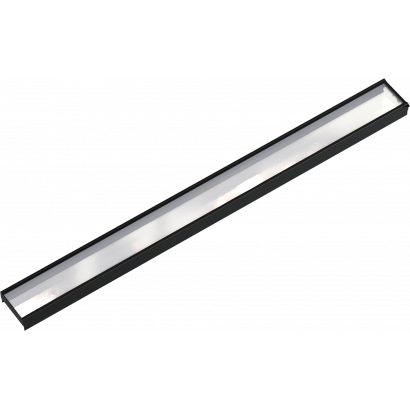

ESLIPFILTERLD
ESLIPFILTERLD
(Optional)

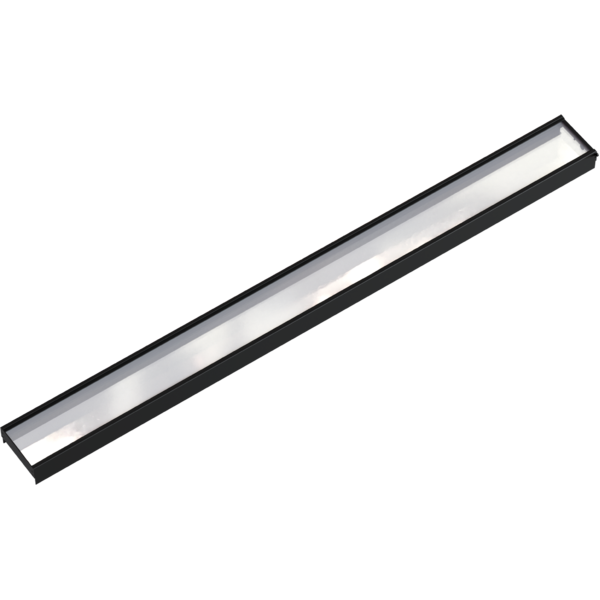

Front low diffusion filter (more output) for ECLSOFTLINEARIP

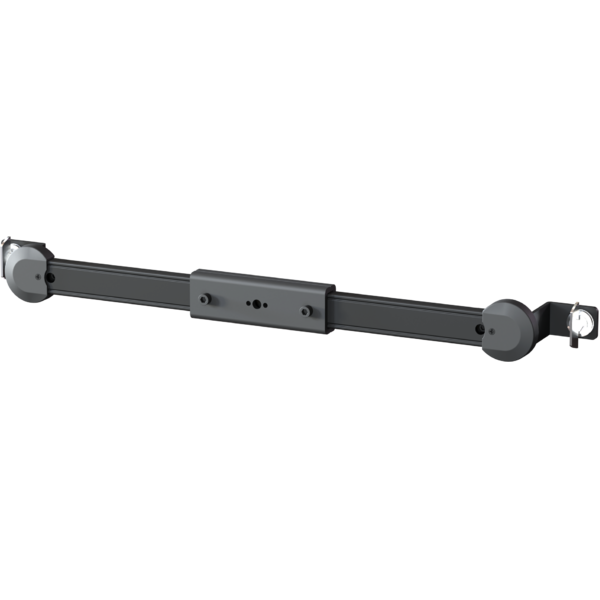

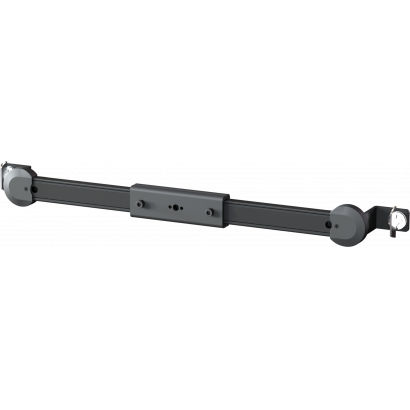

ESLIPBRK
ESLIPBRK
(Optional)
Center mount bracket for ECLSOFTLINEARIP
EPTWCBHEAD
EPTWCBHEAD
(Optional)

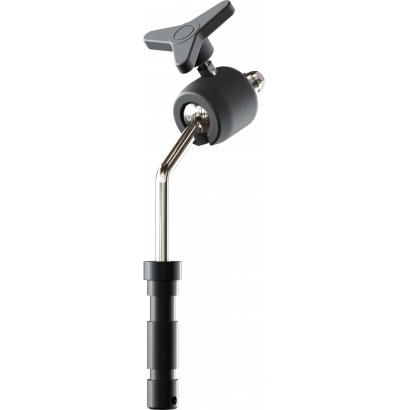

Ball head joint for center mount bracket EPTWCBRK series

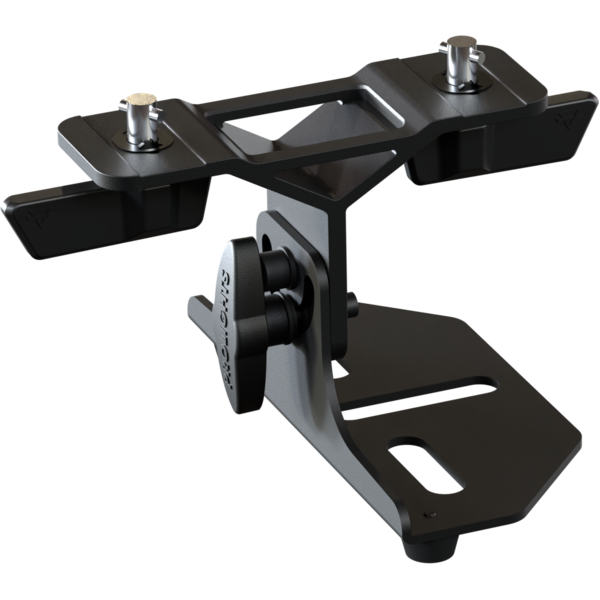

ESLIPFYPLUS
ESLIPFYPLUS
(Optional)

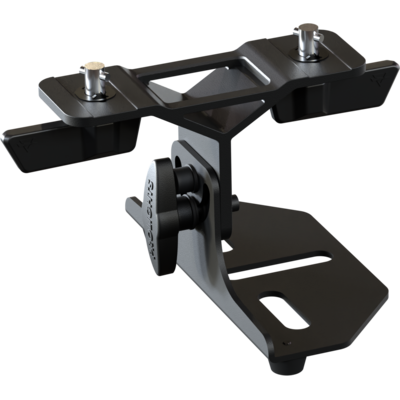

Foot plate with tilt for the ECLSOFTLINEARIP (1 pcs)

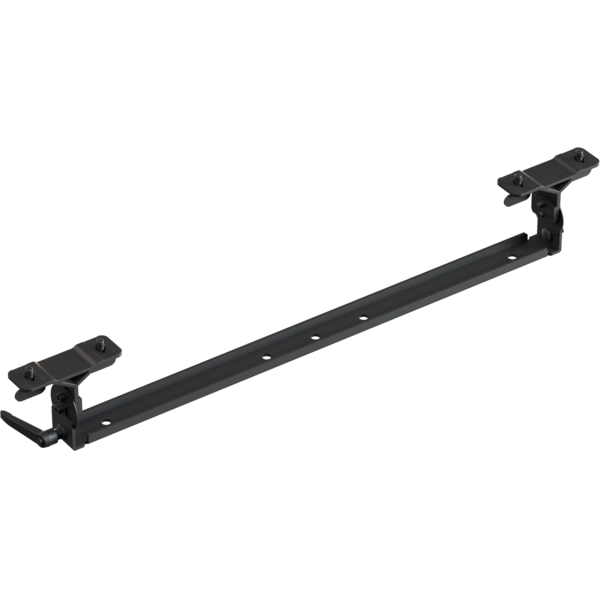

ESLIPHB
ESLIPHB
(Optional)

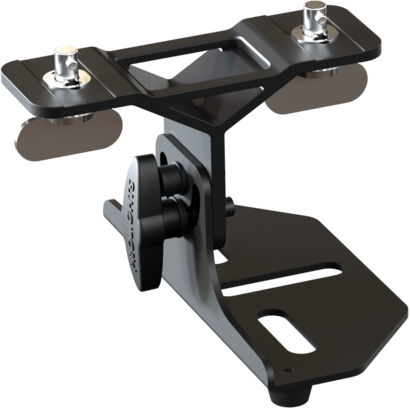

Orientable hanging bracket for ECLSOFTLINEARIP
ESLIPFY
ESLIPFY
(Optional)
Foot plate with tilt for the ECLSOFTLINEARIP (1 pcs)

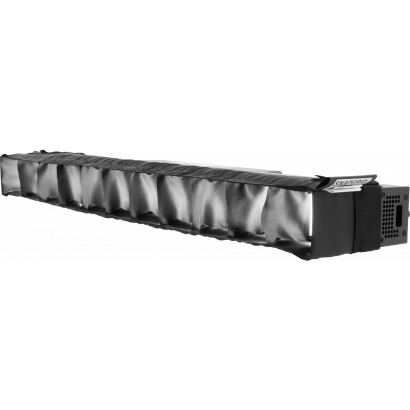

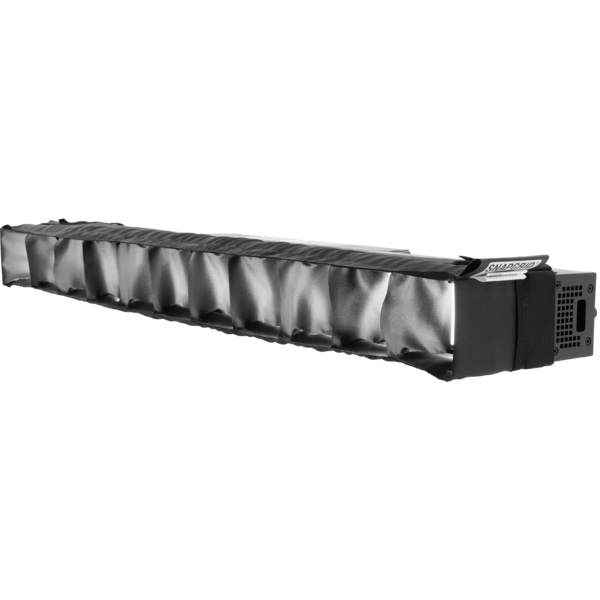

ESLIPSG50
ESLIPSG50
(Optional)
50° SnapGrid, for ECLSOFTLINEARIP by DoP choice

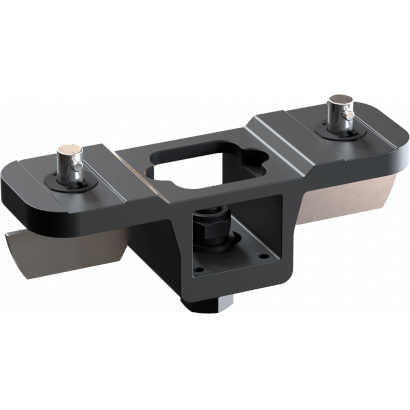

OS27
OS27
(Included)

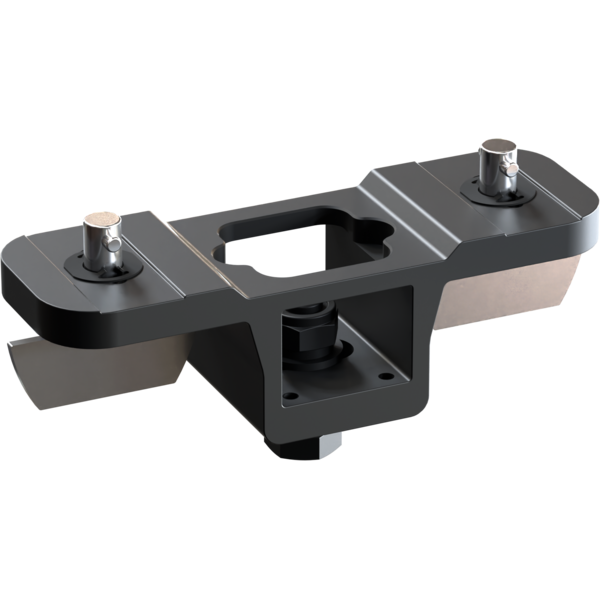

Quick-Lock omega bracket, M10 hole
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclsoftlinearip_A4_DATASHEET_(EN).pdf470KB
Tender SpecificationEclsoftlinearip_TENDER_SPECIFICATION.pdf4MB

User manual

DMX chart & personalities

File name File size Download
DMX chartEclsoftlinearip_DMX_CHARTS.pdf487KB
ECLSOFTLINEARIP Firmware rev. 1.1.03.0
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D sketchupECLSOFTLINEARIP_3D_SKETCHUP.zip5MB
2DECLSOFTLINEARIP_2D.zip17MB
3DECLSOFTLINEARIP_3D.zip6MB
Technical drawingECLSOFTLINEARIP_TECHNICAL DRAWINGS.zip3MB
VectorWorksECLSOFTLINEARIP_SYMBOLS.zip5MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx276MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.03.0 STABLE 21/02/2025 Improvements:
  • Optimized the speed of the menu buttons.
  • Improved color management.
 Rev. 1.0
