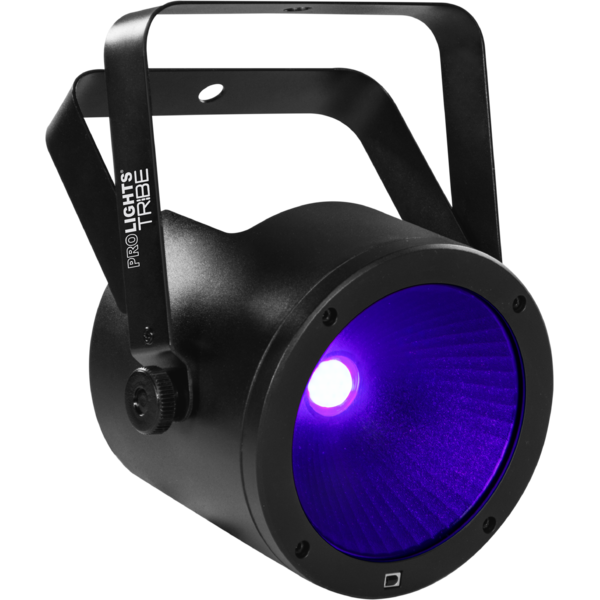

FlatCob 80UV

ORDER CODE: FLATCOB80UV

80W UV high-power COB LED source

FlatCob 80UV is a compact LED projector equipped with a COB source that allows for the placing of a bright UV 80W LED in a super-slim housing. The light source features 60° beam angle with a magnetic lens holder (included) to switch the projection at 30°. FlatCob 80UV can be controlled wirelessly through the optional USB WIFI transceiver in combination with WIFIBOX and the SmartColor app or through IR remote.

Main features:

  • 80W UV high-power LED
  • LED + parabolic reflector featuring classic PAR CAN concept applying new LED technology
  • Interchangeable optics: 60° without optics, 30° included
  • Silent operation and HD dimming system with adjustable PWM for studio application
  • USB port for USB WIFI transceiver (optional)
See variants

PHOTO GALLERY

FlatCob 80UV
FlatCob 80UV
FlatCob 80UV
FlatCob 80UV
FlatCob 80UV

Technical specifications

LIGHT SOURCE
  • Source: 80W UV LED
  • Luminous flux: 44,5
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 16° - 40°
  • Field angle: 31° - 92°
  • Lens type: reflector with collimator to achieve asymmetric beam diffusion
  • Additional optics: 30° (inc)
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of dimmer and strobe
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 1 / 5channel
  • Wireless Control: optional, proprietary protocol compatible with WIFIBOX, WDBOX
  • Display: LED display user interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included)
  • IR: infrared sensor controlled by remote
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 65W
  • Max power consumption (at 120V): 65,5W
  • Output (at 230V): 20 units on a single power line
  • Output (at 120V): 10 units on a single power line
PHYSICAL
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Data: USB port for USB WIFI transmitter (optional)
  • Signal connection: XLR 3p IN/OUT connectors
  • Power connection: IEC IN/OUT connectors
  • Dimensions (WxHxD): 200x162x230mm / 7.87''x6.38''x9.06''
  • Weight: 2kg / 4.41lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA
BOX CONTENT

Versions

Accessories & Related Products

C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
TOUR53413L03
TOUR53413L03
(Optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
<b>WIFI</b>-USB
WIFI-USB
(Optional)
USB Wi-Fi transreceiver, compatible with WIFIBOX and WDBOX
<b>WIFI</b>-Box
WIFI-Box
(Optional)
DMX controller interface, Wi-Fi/DMX IN, Wi-Fi / DMX OUT
<b>WD</b>-Box
WD-Box
(Optional)
Wireless DMX Transceiver, IN/OUT 3-pin XLR, distance 200m, 2.4 GHz, 0.6 kg
LUMIPARIRCH
LUMIPARIRCH
(Optional)
RGBWA IR remote controller, manual / auto modes, for LUMIPAR IR series
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetFlatcob80uv_A4_DATASHEET.pdf233KB

User manual

File name File size Download
User manualFlatcob80uv_USER_MANUAL_ITEN.pdf2MB

DMX chart & personalities

File name File size Download
FLATCOB80UV Firmware rev. 1.3
manufacturer fixture library (Link) Link
prolights_flatcob80uv_1ch.hedDownload
prolights_flatcob80uv_5ch.hedDownload

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
3DFlatcob80uv_CAD_3D.dwg7MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.3 STABLE 11/07/2016 Improved firmware functionality with 24 bytes consoles. Rev. 1
Rev. 1.0
