GAMMAX48T1X1WF
PROLIGHTS


GammaPix 48T1X1WF new

ORDER CODE: GAMMAX48T1X1WF

Outdoor rental 4,8 mm LED screen, 50x50cm tile, black frame & white face LEDs

GammaPix 48T is a rental LED screen for outdoor use with a 4,8 mm pixel pitch, designed to meet requirements for touring, events and install applications. This series is available in both 50x50cm and 50x100cm tiles, mechanically compatible in order to assemble a large surface of screen in a shorter time.

The mechanical design of the tiles has been conceived to allow fast single person installation with automatic lock design and extra safety & handling features such as scratch protection of the lamp face, flip corner shield and bottom protection.

GammaPix 48T tiles have on board curve mechanics allowing both concave and convex precise installation of  +10° / -10° each tile and the weight has been reduced down to 6,4 kg (50x50cm tiles) and 11,4 kg (50x100 tiles).

The on-board electronics include the latest generation of Novastar A5s receiver card and refresh rate up to 3.840 Hz.

Main features:

  • Single person installation, auto lock design, scratch protection and flip corner shield
  • Built in curve mechanics for +10° / -10° concave & convex
  • Refresh rate of 3.840 Hz

PHOTO GALLERY

Technical specifications

VIDEO
  • Driver chip type: ICN 2153
  • LED source: Nationstar SMD1921 black frame and white face
  • Pixel pitch: 4.8mm / 0.19''
  • Panel resolution: 104x104pixels
  • Module resolution: 52x52pixels
  • Luminous flux: 3.500nit
  • Contrast: 3.000:1
  • Grayscale: 14 bit
  • Refresh rate ≥: 3.840Hz
  • Drive Mode: 1/13 scan, constant current
  • Vertical viewing angle: 120°
  • Horizontal viewing angle: 140°
  • LED density: 43.264LED/sqm
  • Dead Pixel Ratio: <0,002
  • LED avg life span: 100.000
ELECTRICAL
  • Power input/output: IPKON Seetronic IN/OUT
  • Power supply: AC 110/230 V 50/60 Hz
  • Max power consumption (panel): 150W
  • Avg power consumption (panel): 50W
  • Max power consumption (sqm): 600W
  • Avg power consumption (sqm): 200W
  • Standby power consumption (pannello): 50W
  • Max rated current/panel:: AC 220 V / 0.68 A
  • Working temperature: -20°C / +50°C
  • Working humidity: 10~90 RH%
CONTROL
  • Receiving card type: A5S PLUS
  • Other controllers type: mapping, firmware copy, RCFGX restore, calibration chip on LDM (module flash)
  • Control protocol: Novastar
  • Signal input: RJ45
  • Signal output: RJ45
MECHANICS
  • Other specifics: curve configurations (mechanics on board), corner protection, bottom protection, auto-lock mechanics
  • Magnetic LED modules: not available
  • Module size (WxH): 250x250mm / 9.84''x9.84''
  • Panel size(WxHxD): 500×500×64mm / 19.69''
  • Vertical hanging system: built-in aliscaf clamp support
  • Cooling: natural cooling of the peculiar chassis and to absence of fans
  • Connection: seamless locking system
  • Curvability: convex and concave -10° / +10°
  • Body: die-cast aluminium housing
  • Color: black
  • IP rating: IP65/IP54 (front and rear)
  • Panel weight: 6,4kg / 14.11lbs
  • Weight per square meter: 25,6kg / 56.44lbs
  • Hanging Panel Quantity ≤: 20 for hanging and 12 for stacking
  • Compliant Standard: CE, UKCA

Versions

Accessories & Related Products

GXFCM100481X1
GXFCM100481X1
(optional)

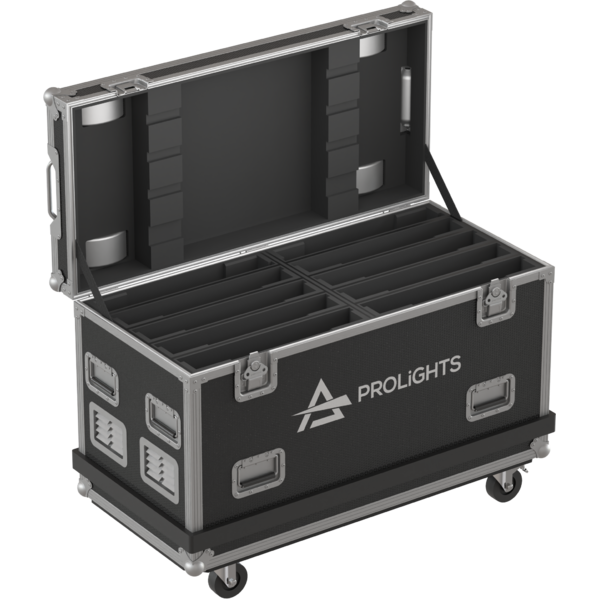

Flightcase 10 in1 for GAMMAX48T1X1WF
GXHGB01
GXHGB01
(optional)

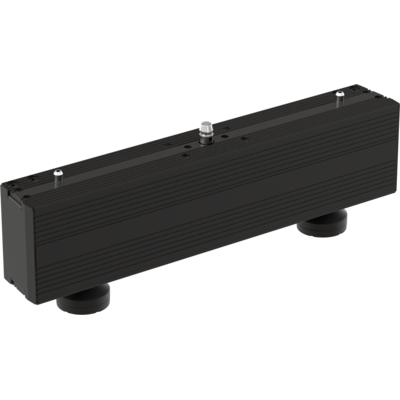

Fly bar / ground bar for GAMMAX29B and GAMMAX48T systems, 1 column
GXHGB02
GXHGB02
(optional)

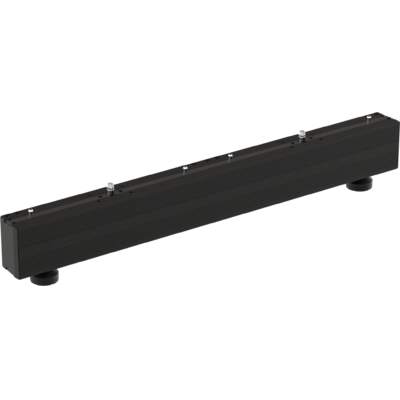

Fly bar / ground bar for GAMMAX29B and GAMMAX48T systems, 2 columns
DXBS21
DXBS21
(optional)

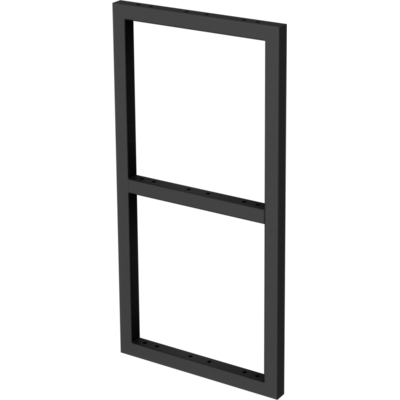

2in1 back support for DELTAX and GAMMAX series LED wall for ground system fixing
DXBS31
DXBS31
(optional)

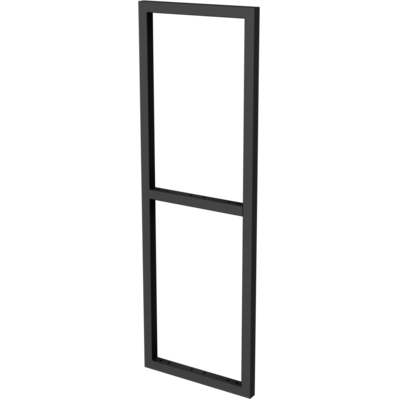

3in1 back support for DELTAX and GAMMAX series LED wall for ground system fixing
DXBS41
DXBS41
(optional)

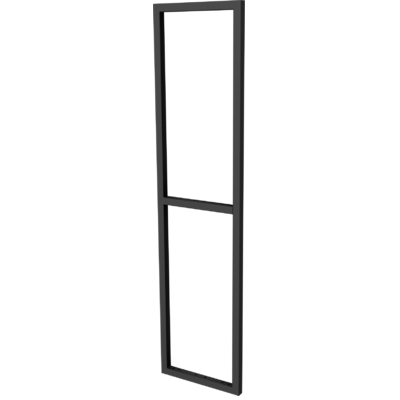

4in1 back support for DELTAX and GAMMAX series LED wall for ground system fixing
DXBSC
DXBSC
(optional)

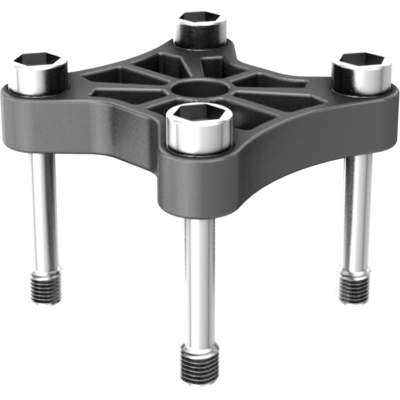

Back plate for DELTAX and GAMMAX series LED wall for ground system fixing
DXXJ
DXXJ
(optional)

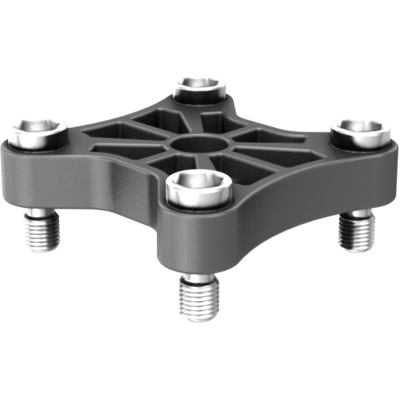

Metal joint to connect 4 x DELTAX/GAMMAX series cabinets, M10 hole for clamp
GXCJ
GXCJ
(optional)

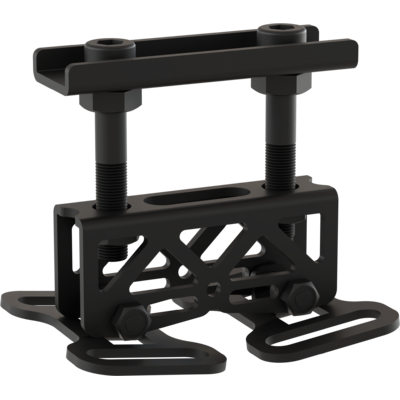

Cabinet curve metal plate for GAMMAX series LED wall
OXFCIS100
OXFCIS100
(optional)

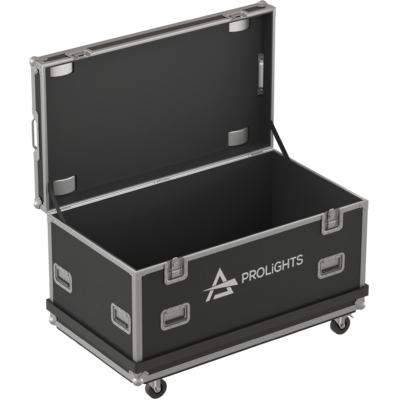

Rigging/ground-stack structure flightcase for all LEDScreen, 100cm
OXFCIS150
OXFCIS150
(optional)
Rigging/ground-stack structure flightcase for all LEDScreen series, 150cm
OXFCIS200
OXFCIS200
(optional)

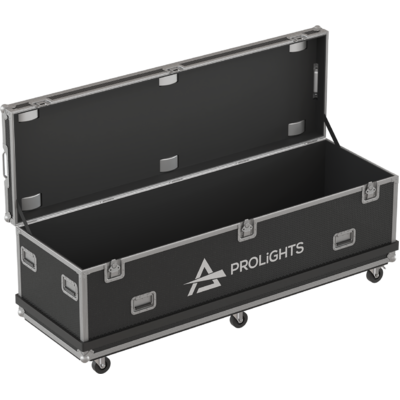

Rigging/ground-stack structure flightcase for all LEDScreen series, 200cm
OXFCSP
OXFCSP
(optional)
Spare part flightcase for OMEGAX-DELTAX series LED-display
OXACL01
OXACL01
(optional)

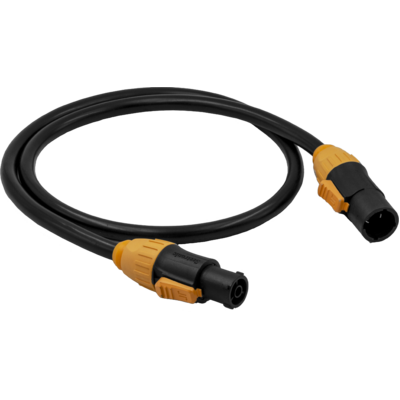

Power cable for LED display series, L.140 cm
OXACL10
OXACL10
(optional)

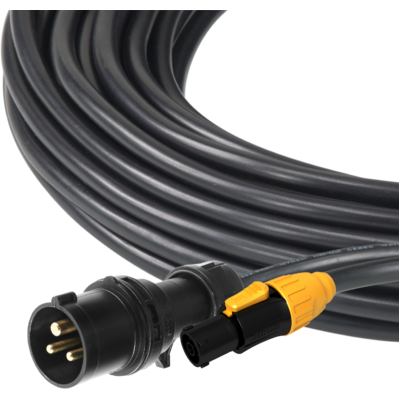

Power cable for LED display series L.10 m
SXDCL01
SXDCL01
(optional)
Data cable for SIGMAX LED display series assembled with RJ45, L 140 cm
SXDCL10
SXDCL10
(optional)

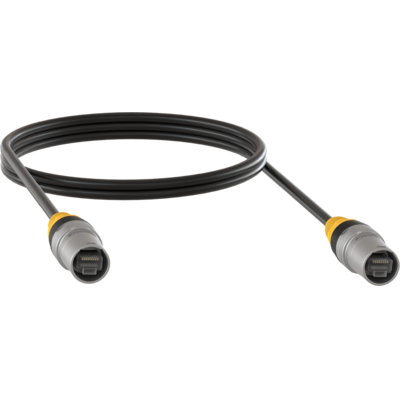

Data cable for SIGMAX LED display series assembled with RJ45, L 10 m

DOWNLOAD

Data sheet & specs

User manual

DMX chart & personalities

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2D Gammax48t1x1wf_2D.dwg 42MB
Technical drawing Gammax48t1x1wf_TECHNICAL_DRAWING.pdf 609KB

Tech docs

File name File size Download

Software

File name File size Download
Software AUR2D0512B - 3840 Hz 0KB

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
4.7.6.21 STABLE 07/07/2023

Info Request

News
