HaluPix Duo new

ORDER CODE: HALUPIXDUO

500W IP65 dual layer LED matrix panel with 7x7 2700K 4° Beams + 21x21 RGBWW pixels

The HaluPix DUO is a dual layer LED matrix that seamlessly integrates lighting and video capabilities into a modular design. This twin-source unit offers high-power, long-throw white beams alongside high-brightness video and strobe features, with full pixel-level control. This integration facilitates diverse and dynamic lighting setups, suitable for a variety of professional stages and TV applications.

Each unit of HaluPix DUO is a 50x50cm (20x20 inches) building block. It comprises two distinct layers of light sources: 441 (21x21) RGB+WW pixels with a 120° beam spread, and 49 (7x7) WarmWhite 4° beam sources. The total power draw is 500W, which can be distributed between either or both groups of light sources according to user preference. Additionally, each emitter is individually pixel controllable, enabling the display of video content on either one or both sources. This offers exceptional brightness and unmatched colors.

The modular frame of HaluPix DUO, akin to LED tile structures, allows seamless interlocking of multiple units. This maintains a consistent pixel pitch across both source groups when using several devices. The frame is designed for versatility, supporting various configurations such as flat or curved, hanging or ground stacking.

HaluPix DUO also excels as an all-weather lighting solution. Its IP65-rated design ensures reliability and durability in both indoor and outdoor applications, protecting against water and dust.

In terms of connectivity, HaluPix DUO comes with an integrated power supply and user interface. It supports a variety of lighting protocols including DMX, RDM, sACN, Art-Net and RDMnet, offering unparalleled flexibility for any setup.

Main features:

  • 500W IP65 dual layer LED matrix panel, 441x RGBWW pixels and 49x 2700K beams
  • Seamless modular frame for flat, curve, hanging / ground, on yoke configurations
  • DMX, RDM, sACN, Art-net and RDMnet protocols supported

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Light source: 7 x 7 4° 2700K LEDs + 21 x 21 120° RGB+WW LEDs
  • Luminous flux: 11'388 lm (total) @Full
  • Luminous flux: 7'391 lm (beam layer) | 12'555 lm (pixel layer) @Full
  • Lux: (total) 23'686lx @5 m full
  • Lux: (beam layer) 51'268 lx | (pixel layer) 173lx @5 m full
  • CRI: (beam layer) > 80 @2700K; (pixel layer) 94 @3200K; 91,5 @5600K
  • R9: (pixel layer) 94,8 @3200K; 95,8 @5600K
  • Source life expectancy: > 30.000 h
OPTICS
  • Beam angle: (beam layer) 3,6°; (pixel layer) 116°
  • Field angle: (beam layer) 6,8°; (pixel layer) 155°
  • Additional optics: available optional optics for beam LEDs 12°, 24°
  • Other: Pixel pitch (BEAMs) 72 mm | (PIXELs) 24 mm
COLOUR SYSTEM
  • Colour mixing: (beam layer) Warm White (2700K), (pixel layer) RGB + Warm White
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Static mode: selection of static dimmer, colors and color temperature
BODY
  • Bracket system: spigot for tripod use and bracket for truss rigging
  • Hardware on-board: on board mechanics for modular assembly of multiple fixtures
  • Body: weatherproof IP65 construction with magnesium alloy
  • Curve configurations: -10° to +15° with onboard mechanics - back accessories for ground applications compatible with KAPPAX Ledwall
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, ArtNet, RDMnet, sACN, CRMX
  • DMX channels: from 12 channels to 1855channel
  • Pixel control: pixel2pixel control
  • Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO (USB-DMX interface not included) or via Ethernet (Art-Net with DMX-Workshop)
  • Master/Slave: for synchronised operation of more units linked in a chain
  • EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered.
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: up to 6 independent selectable dimmer curves per source
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 500W
  • Standby power: 14,8 W
  • Output (at 230V): 4 units on a single power line
  • Output (at 120V): 2 units on a single power line
  • Power factor: > 0,94
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: spigot for tripod use, bracket for truss rigging and hardware for connection of more units
  • Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
  • Data connection: Seetronic Ethernet IP in/out connectors
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Dimensions (WxHxD): 500x500x133mm / 19.69''x19.69''x5.24''
  • Weight: 16,3kg / 35.94lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT

Versions

Accessories & Related Products

FCLHALUPIXDUO
FCLHALUPIXDUO
(Optional)

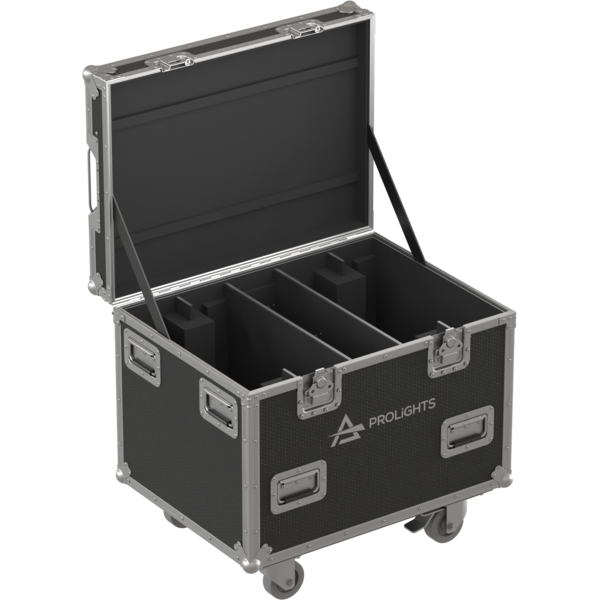

Flight case for 4 pcs HALUPIXDUO
OXFCIS150
OXFCIS150
(Optional)
Rigging/ground-stack structure flightcase for all LEDScreen series, 150cm
HDL12
HDL12
(Optional)
Optional Beam Lenses 12° for HALUPIXDUO
HDL24
HDL24
(Optional)
Optional Beam Lenses 24° for HALUPIXDUO
ECLFRSPG
ECLFRSPG
(Optional)
Spigot for PROLIGHTS fixtures
VBSPG
VBSPG
(Optional)

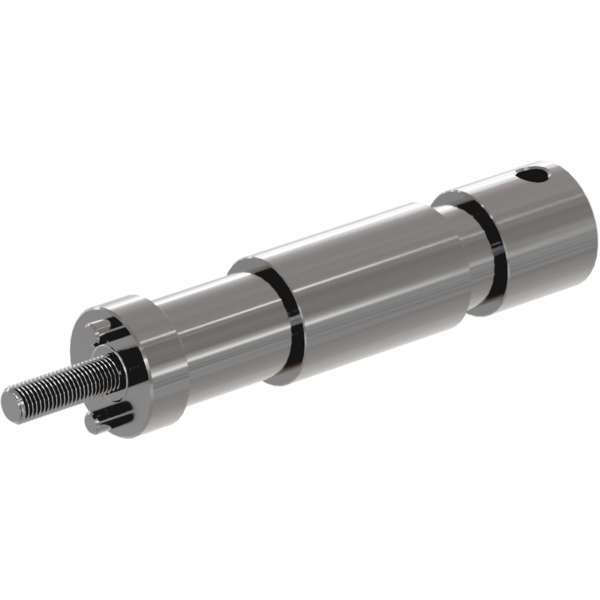

Spigot for HALUPIXDUO
OS25PLUS
OS25PLUS
(Optional)
Quick-lock omega bracket, M12 hole
OS25H3PLUS
OS25H3PLUS
(Optional)
Quick-lock omega bracket, 6 cm height, M12 hole
VBHGB01
VBHGB01
(Optional)
Fly bar / ground bar for HALUPIXDUO, 1 column
VBHGB02
VBHGB02
(Optional)
Fly bar / ground bar for HALUPIXDUO, 2 column

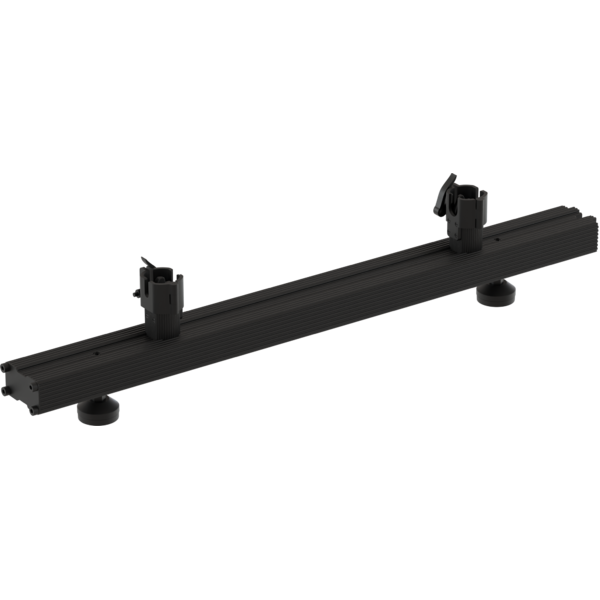

KSXCJB
KSXCJB
(Optional)
Ground system back horizontal support for SIGMAX and KAPPAX series LED wall
KSXSPC
KSXSPC
(Optional)

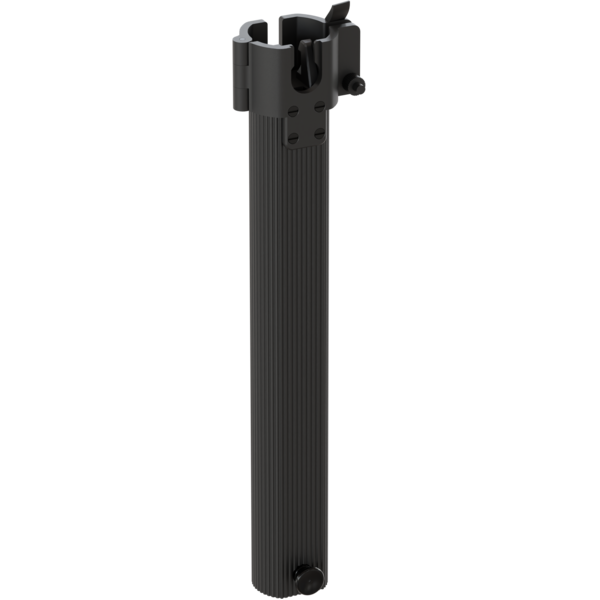

Ground structure spacer for HALUPIXDUO
KSXBS21
KSXBS21
(Optional)

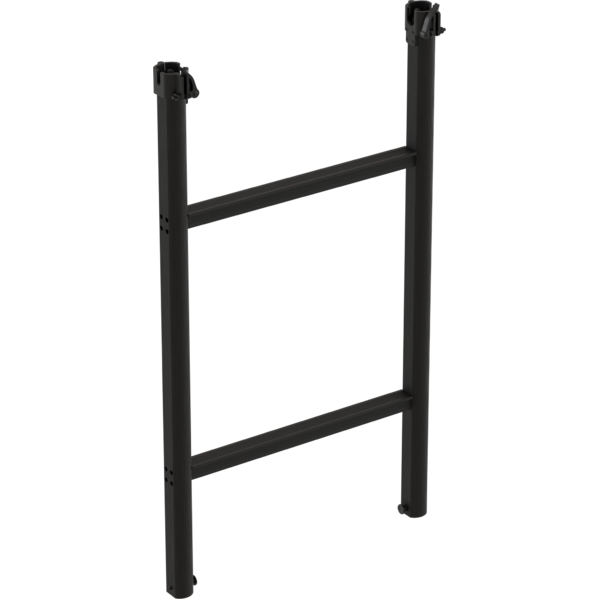

2in1 back support for SIGMAX and KAPPAX series LED wall for ground system fixing
KSXBS31
KSXBS31
(Optional)

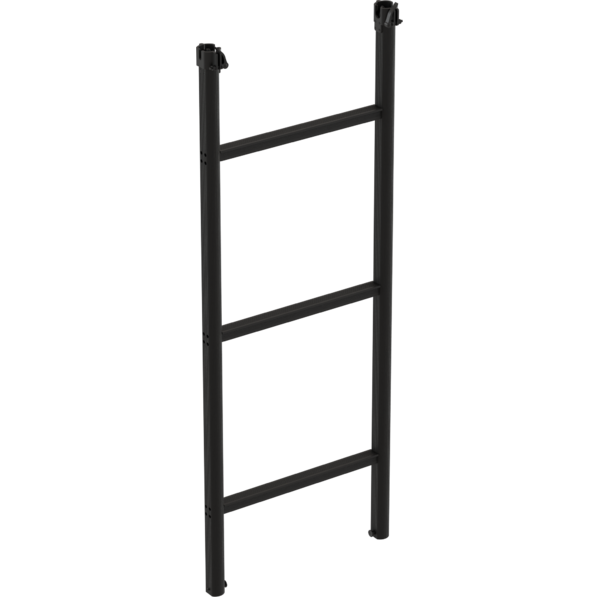

3in1 back support for SIGMAX and KAPPAX series LED wall for ground system fixing

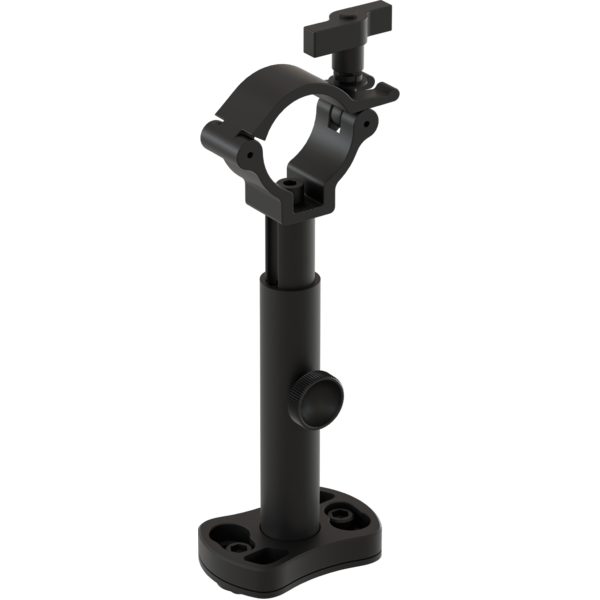

KSXBSC
KSXBSC
(Optional)
Back plate for SIGMAX and KAPPAX series LED wall for ground system fixing

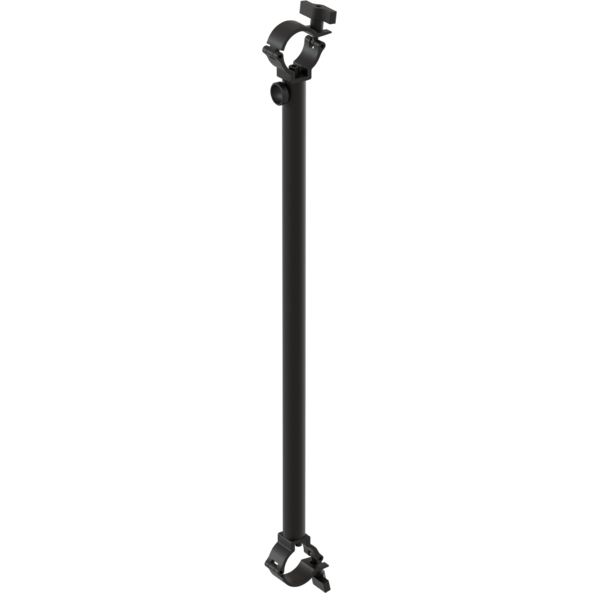

KSXGHR
KSXGHR
(Optional)
Ground system back horizontal reinforcement for SIGMAX & KAPPAX series LED wall

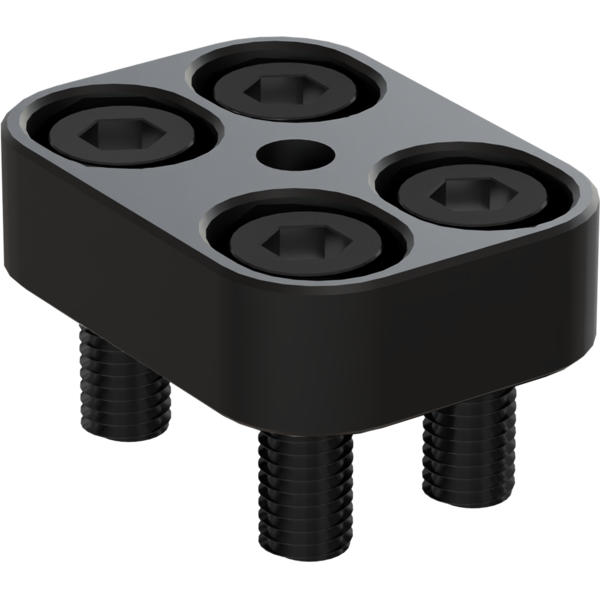

VBJMPF
VBJMPF
(Optional)
Metal joint used to connect 4 pcs HALUPIXDUO cabinets in flat configuration, M10 hole
VBJMPC
VBJMPC
(Optional)

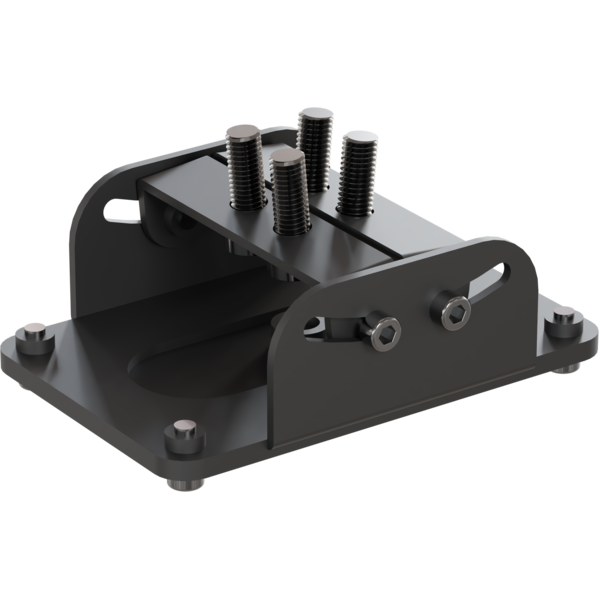

Metal joint used to connect 4 pcs HALUPIXDUO cabinets in curve configuration, M10 hole
HDWK
HDWK
(Optional)
Wireless Kit for HALUPIXDUO
IPTESTBOX
IPTESTBOX
(Optional)
Portable vacuum and pressure tester for ProLights IP fixtures
RSR1235B
RSR1235B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=120 cm, black
C6016B
C6016B
(Optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black&White& White
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth
LRAURORA
LRAURORA
(Optional)
Single Universe DMX/RDM transceiver with WiFi and Bluetooth
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

User manual

File name File size Download
User manualHalupixduo_General_Safety_Information.pdf3MB

DMX chart & personalities

File name File size Download
DMX chartHalupixduo_DMX_CHARTS.pdf637KB

CAD symbols & drawings

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
0.0.00.0012 ALPHA 27/12/2024 New Function:
  • Added "BASIC SECTORS" DMX Mode.
  • Improved Stand Alone Menu. Added Pixel Layer and Beam Layer section.
  • Changed names of:
    • SOFT LED => PIXELS
    • HALO LED => BEAM
Improvements:
  • Control Ch: Range 120-121 dmx value has become "Reserved" (GELS have been removed).
  • Dimmer Speed ​​"Halo" has been renamed to Dimmer Speed ​​"Beam".
  • Dimmer Curve "Halo" has been renamed to Dimmer Speed "Beam".
  • Improved Pixels and Beam management as follows:
    • Dimmer Speed ​​PIXELS = It is possible to set via RDM using the Standard PID "Output Response Time".
    • Dimmer Speed ​​BEAM = It is possible to set via RDM using the Manufacturer PID "BEAM_LED_DIMMER_SPEED" [0x8379]
    • Dimmer Curve PIXEL = It is possible to set via RDM using the Standard PID "Curves".
    • Dimmer Curve BEAM = It is possible to set via RDM using the Manufacturer PID "HALO_LED_DIMMER_CURVE" [0x8378]
    • DMX Mode "Main" = You can set the DMX modes "Basic"/"Standard"/"FX1"/"FX 2"/"FX 3"/"Extended"/"Pixels+Beam"/"Basic Sectors" via RDM using the Standard PID "Personality Count".
    • DMX Beam Mode = You can set the modes "Single"/"49PIX" via the Manufacturer PID "BEAM LAYER" [0x8381].
    • DMX Pixels Mode = You can set the modes "OFF"/"49S"/"PIXELS" via the Manufacturer PID "PIXELS LAYER" [0x82E7].
  • In STANDALONE / BEAM / TOUR FX, set by default B.G Intensity@10% default and Pattern Speed@58% default.
  • Set Manufacturer PID "DMX_FAULT" [0x82DD] to default value 0 (Hold).
  • Changed the "Stand Alone" section on the control channel of all DMX modes (dmx range 104-131). According to the new Control channel:
    • MASTER DMX = 104-105 dmx values
    • MASTER NO DMX = 106-107 dmx values
    • SLAVE = 108-109 dmx values
    • PIXELS LAYER TOUR FX= 110-111 dmx values
    • PIXELS LAYER CCT = 112-113 dmx values
    • PIXELS LAYER HSI = 114-115 dmx values
    • PIXELS LAYER FIXED COLORS = 116-117 dmx values
    • PIXELS LAYER WHITE PRESETS = 118-119 dmx values
    • PIXELS LAYER OFF = 120-121 dmx values
    • PIXELS LAYER COLOR MACRO = 122-123 dmx values
    • PIXELS LAYER MANUAL COLORS = 124-125 dmx values
    • BEAM LAYER OFF = 126-127 dmx values
    • BEAM LAYER TOUR FX = 128-129 dmx values
    • BEAM LAYER STATIC = 130-131 dmx values
Fixed Bugs:
  • Stand Alone Dimmer: the 0%-100% switch occurs in fade.
  • FX Opacity not working properly.
  • HARD PATTERN XFADE not working properly.
  • PIXEL FX PATTERN XFADE not working properly.
  • Manufacturer Specific PID "Error" is not compliant. The errors currently implemented via RDM are:
    • 0: No Error
    • 1: LED1 ERROR : LED STRIP 1 Error => fail communication with led strip 1
    • 2. LED2 ERROR : LED STRIP 2 Error => fail communication with led strip 2
    • 3. LED3 ERROR : LED STRIP 3 Error => fail communication with led strip 3
    • 4. LED4 ERROR : LED STRIP 4 Error => fail communication with led strip 4
    • 5. LED5 ERROR : LED STRIP 5 Error => fail communication with led strip 5
    • 6. LED6 ERROR : LED STRIP 6 Error => fail communication with led strip 6
    • 7. LED7 ERROR : LED STRIP 7 Error => fail communication with led strip 7
    • 8. BEAM TEMP. ERROR => BEAM source temperature issue
    • 9. PIXELS TEMP. ERROR => PIXELS source temperature issue
    • 10.NEED_MAINTENANCE => Maintenance time exceeds the set maintenance time
  • USER SETTINGS Manufacturer Specific PID is not compliant. This PID only works as a recall of a previously saved "Preset" => It is not possible to save device settings to a Preset via RDM.
  • Manufacturer Specific PID "Invert Mapping" is not compliant
  • Device turns on both Pixels and Beam when you enter the Stand Alone Menu "Pixels" or "Beam".
  • Scrolling through the different FX Patterns occurs in fade.
  • Manufacturer PIDs regarding Stand Alone behavior do not work correctly.
  • Light source turns on by itself when changing the RDM PID values.

Info Request

News

February 07, 2025
PROLIGHTS Launches Astra Profile900: The New Flagship Moving Profile in the High-Power Class
PROLIGHTS Launches Astra Profile900: The New Flagship Moving Profile in the High-Power Class
February 05, 2025
PROLIGHTS Launches Astra Hybrid260IP: All-Weather Phosphor Laser Hybrid Luminaire
PROLIGHTS Launches Astra Hybrid260IP: All-Weather Phosphor Laser Hybrid Luminaire
February 03, 2025
PROLIGHTS Introduces HaluPix DUO: Blending Pixel Surfaces with Dynamic Beams
PROLIGHTS Introduces HaluPix DUO: Blending Pixel Surfaces with Dynamic Beams
February 03, 2025
PROLIGHTS to Debut Five New Products at ISE 2025
PROLIGHTS to Debut Five New Products at ISE 2025
January 07, 2025
PROLIGHTS Enhances SÖZCÜ TV's Istanbul Studios with Modern LED Technology
PROLIGHTS Enhances SÖZCÜ TV's Istanbul Studios with Modern LED Technology
December 30, 2024
Budapest American International School Upgrades Auditorium with PROLIGHTS LED Houselights
Budapest American International School Upgrades Auditorium with PROLIGHTS LED Houselights
December 20, 2024
St Paul's Cathedral shines with PROLIGHTS
St Paul's Cathedral shines with PROLIGHTS
December 18, 2024
PROLIGHTS fixtures illuminate Swan Lake on Ice in Abu Dhabi
PROLIGHTS fixtures illuminate Swan Lake on Ice in Abu Dhabi
December 16, 2024
PROLIGHTS Fixtures Illuminate Newsmax Balkans' Belgrade TV Studio
PROLIGHTS Fixtures Illuminate Newsmax Balkans' Belgrade TV Studio
December 12, 2024
PROLIGHTS Fixtures Illuminate Dinosaurs at Naturalis Biodiversity Cente
PROLIGHTS Fixtures Illuminate Dinosaurs at Naturalis Biodiversity Cente
December 09, 2024
Astra Wash19Pix Enhance the Anniversary Concert of ONUKA with NAONI Orchestra
Astra Wash19Pix Enhance the Anniversary Concert of ONUKA with NAONI Orchestra
December 05, 2024
PROLIGHTS Illuminates the Renovation of Club SNC in Constanța, Romania
PROLIGHTS Illuminates the Renovation of Club SNC in Constanța, Romania

Subscribe to our Newsletter

Loading...
