KappaPix 26B1X1BF

ORDER CODE: KAPPAX26B1X1BF

XR/VP 2,6 mm LED screen, 50x50cm tile with Brompton R2 control system

KappaPix 26B is an high standard LED screen for XR & Virtual Production with a 2,6 mm pixel pitch, designed to meet requirements for motion picture and XR studios.
KappaPix 26B uses premium components and it is equipped with Brompton R2 receiver cards on board, achieving >7680Hz Refresh rate, >251Hz image frame rate and up to 16bit grey scale, optimize behavior also in low light application.
The mechanical design of the tiles has been conceived to allow fast single person installation with extra safety & handling features such automatic edge and corner protection, LED module protection.
Panel maintenance has been furtherly enhanced allowing modular and tool free maintenance for LED modules and the PSU unit.
KappaPix 26B can be also curved concave and convex +10° / -5° through high precision curving plates. The cabinet, built into magnesium alloy are exceptionally lightweight with 6.3 kg per panel and 25,2 kg per sqm.

Main features:

  • XR/VP Led screen with R2 Control system and >7680Hz Refresh rate
  • Single person installation, automatic edge & corner protection
  • Fast LED Module and PSU replacement
  • Curving plates concave and convex +10° / -5°
  • Up to 16bit grayscale and 251Hz Image frame rate
See variants CONFIGURATOR

PHOTO GALLERY

KappaPix 26B1X1BF
KappaPix 26B1X1BF
KappaPix 26B1X1BF
KappaPix 26B1X1BF
KappaPix 26B1X1BF
KappaPix 26B1X1BF
KappaPix 26B1X1BF

Technical specifications

VIDEO
  • Driver chip type: MBI 5264
  • LED source: SMD 1515 full black with anti-reflection coating trattament
  • Pixel pitch: 2.6mm / 0.1''
  • Panel resolution: 192x192pixels
  • Module resolution: 96x96pixels
  • Luminous flux: 1.200nit
  • Contrast: 6.000:1
  • Grayscale: 16 bit
  • Refresh rate ≥: 7.680Hz
  • Frame rate: 251 Hz
  • Drive Mode: 1/16 scan, constan current
  • Vertical viewing angle: 160°
  • Horizontal viewing angle: 160°
  • LED density: 147.456LED/sqm
  • Dead Pixel Ratio: <0,002
  • LED avg life span: 100.000
ELECTRICAL
  • Power input/output: IP65 Neutrik powerCON
  • Power supply: AC 110/230 V 50/60 Hz
  • Max power consumption (panel): 160W
  • Avg power consumption (panel): 55W
  • Max power consumption (sqm): 640W
  • Avg power consumption (sqm): 220W
  • Standby power consumption (pannello): 55W
  • Max rated current/panel:: AC 220 V / 0.73 A
  • Working temperature: -10°C / +45°C
  • Working humidity: 10~80 RH%
CONTROL
  • Receiving card type: R2
  • Control protocol: Brompton
  • Signal input: waterproof Neutrik RJ45
  • Signal output: waterproof Neutrik RJ45
MECHANICS
  • Other specifics: curve configurations with blocks, corner protection, auto-lock mechanics, calibration chip on LDM
  • Magnetic LED modules: available
  • Module size (WxH): 250x250mm / 9.84''x9.84''
  • Panel size(WxHxD): 500×500×70.1mm / 19.69''
  • Vertical hanging system: built-in aliscaf clamp support
  • Cooling: natural cooling of the peculiar chassis and to absence of fans
  • Connection: seamless locking system
  • Curvability: -5 ° convex accessories, see available ° - +10° concave accessories, see available°
  • Body: die-cast magnesium housing
  • Color: black
  • IP rating: IP30 (front and rear)
  • Panel weight: 6,3kg / 13.89lbs
  • Weight per square meter: 25,2kg / 55.56lbs
  • Hanging Panel Quantity ≤: 20 for hanging and 12 for stacking
  • Compliant Standard: CE, UKCA, cURus

Versions

Accessories & Related Products

KXFCM80261X1
KXFCM80261X1
(Optional)

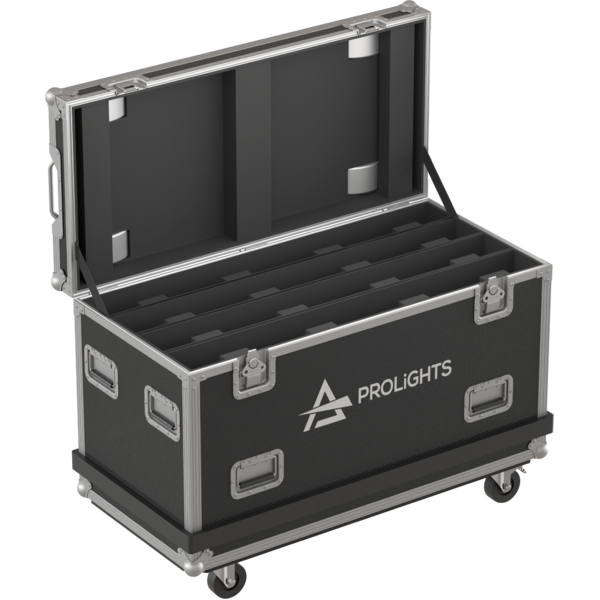

Flightcase 8 in1 for KAPPAX26B1X1BF
KSXHGB01
KSXHGB01
(Optional)

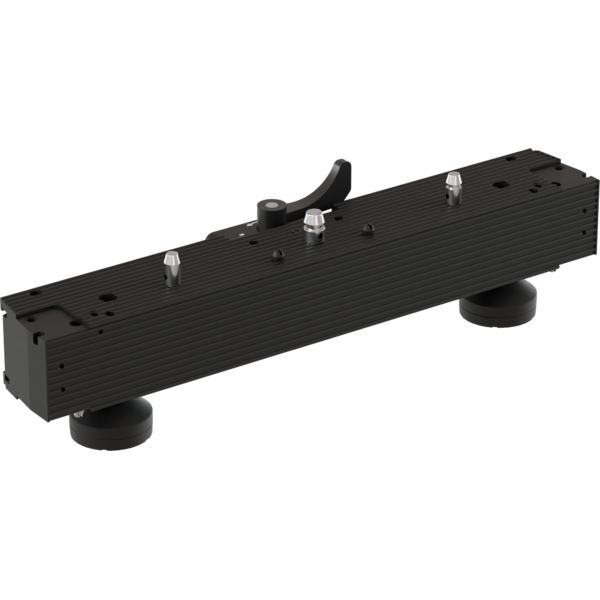

Fly bar / ground bar for SIGMAX and KAPPAX systems, 1 column
KSXHGB02
KSXHGB02
(Optional)
Fly bar / ground bar for SIGMAX and KAPPAX systems, 2 columns
KSXCJB
KSXCJB
(Optional)
Ground system back horizontal support for SIGMAX and KAPPAX series LED wall
KSXBS21
KSXBS21
(Optional)
2in1 back support for SIGMAX and KAPPAX series LED wall for ground system fixing
KSXBS31
KSXBS31
(Optional)
3in1 back support for SIGMAX and KAPPAX series LED wall for ground system fixing
KSXBSC
KSXBSC
(Optional)
Back plate for SIGMAX and KAPPAX series LED wall for ground system fixing
KSXGHR
KSXGHR
(Optional)
Ground system back horizontal reinforcement for SIGMAX & KAPPAX series LED wall
KXXJ
KXXJ
(Optional)

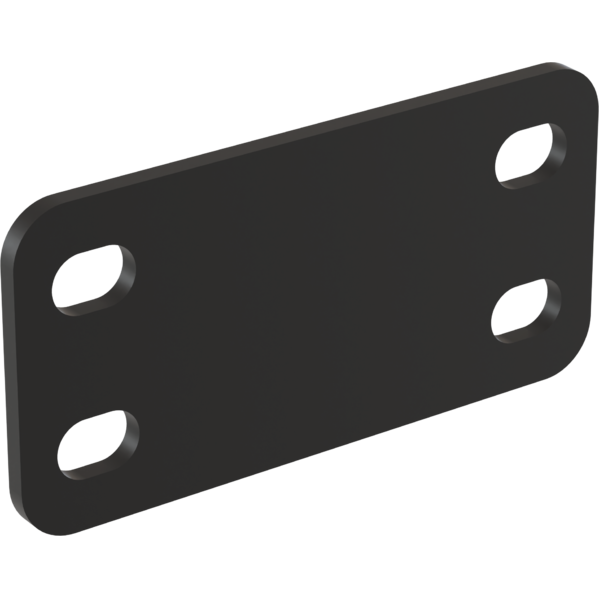

Metal joint used to connect 4 pcs KAPPAX series cabinets

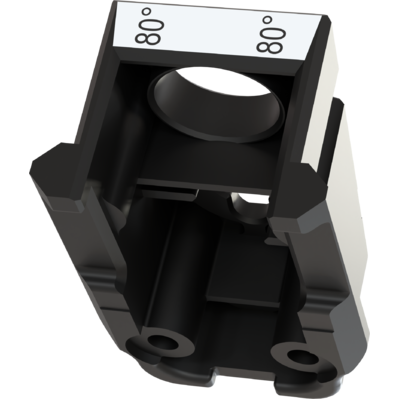

KXCJ80
KXCJ80
(Optional)

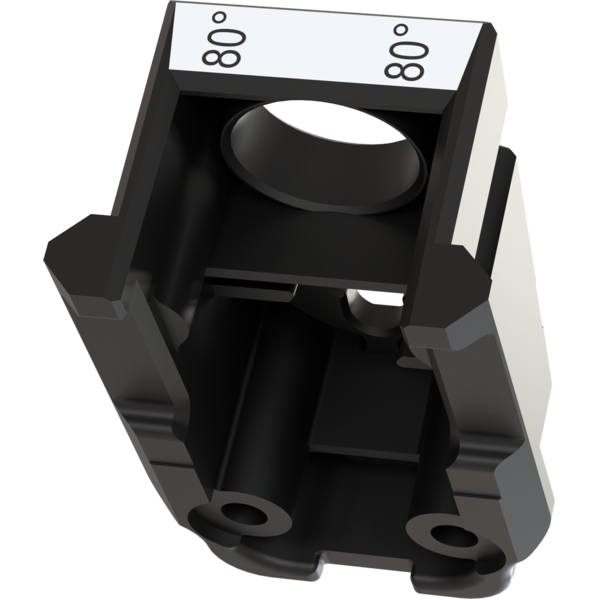

Cabinet curve plate concave for KAPPAX series cabinets, 10°

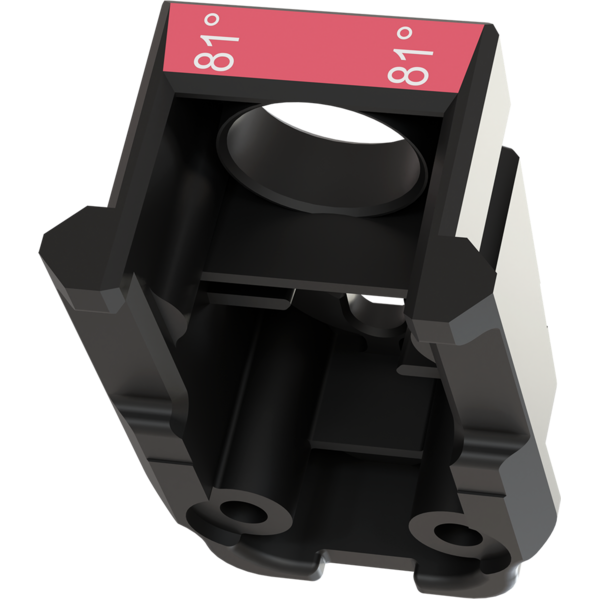

KXCJ81
KXCJ81
(Optional)
Cabinet curve plate concave for KAPPAX series cabinets, 9°

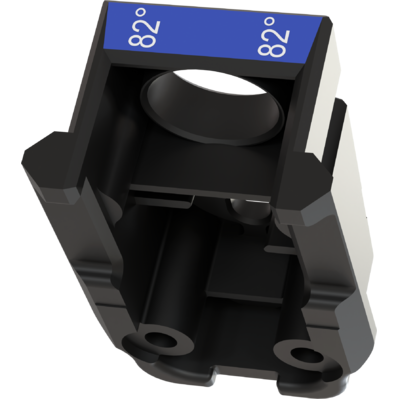

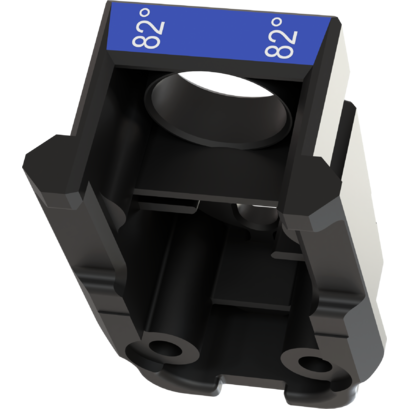

KXCJ82
KXCJ82
(Optional)

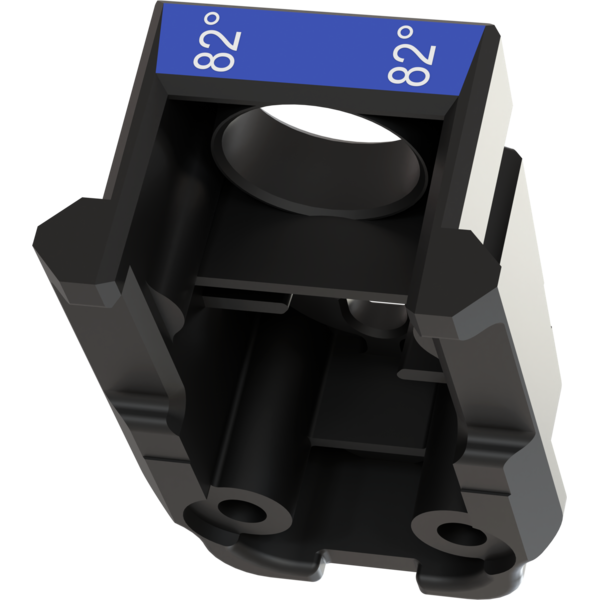

Cabinet curve plate concave for KAPPAX series cabinets, 8°

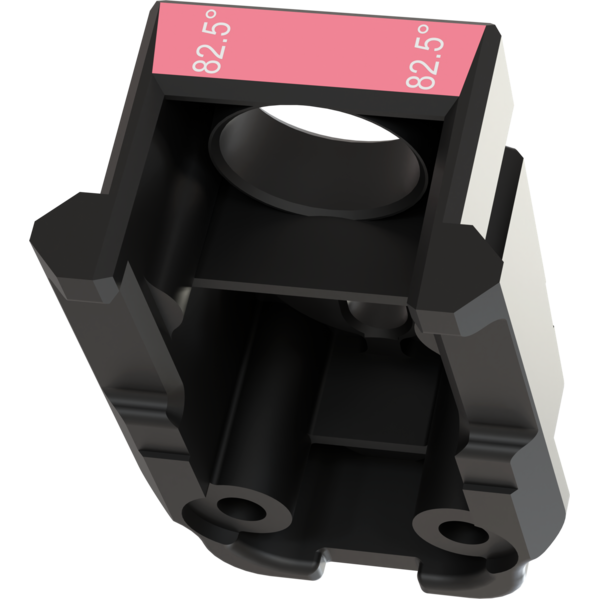

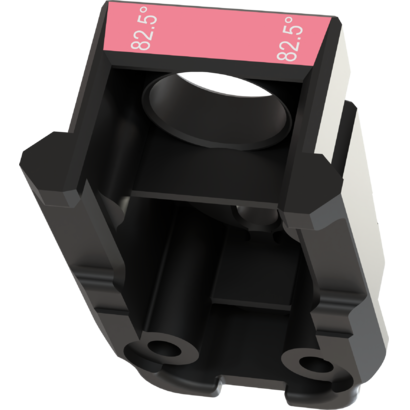

KXCJ825
KXCJ825
(Optional)
Cabinet curve plate concave for KAPPAX series cabinets, 7,5°

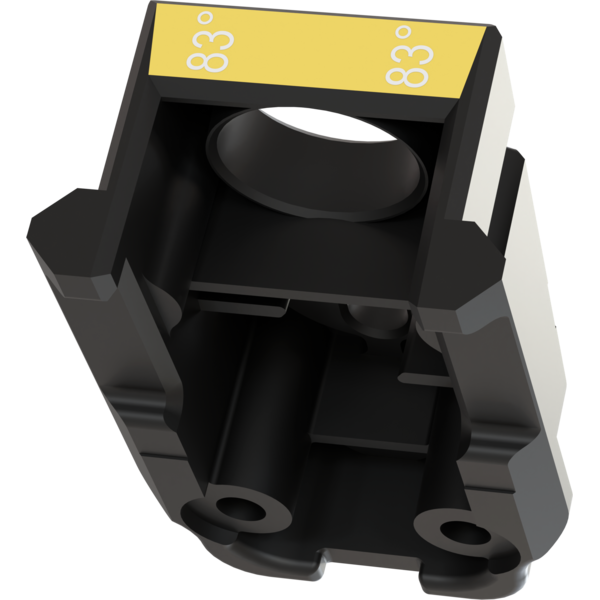

KXCJ83
KXCJ83
(Optional)
Cabinet curve plate concave for KAPPAX series cabinets, 7°

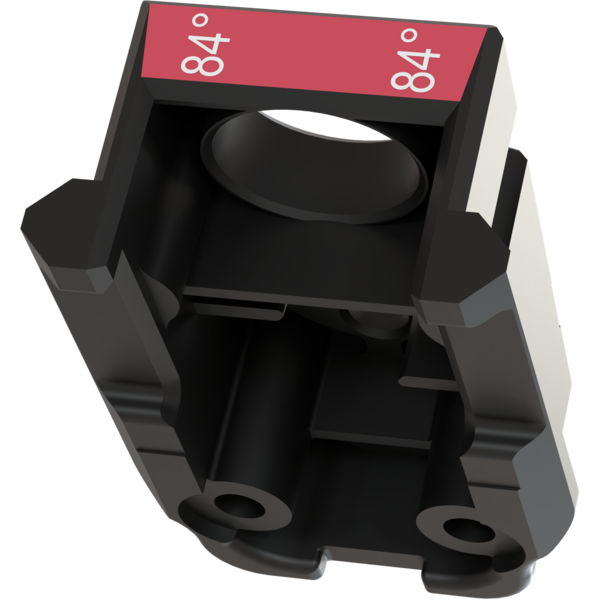

KXCJ84
KXCJ84
(Optional)
Cabinet curve plate concave for KAPPAX series cabinets, 6°
KXCJ85
KXCJ85
(Optional)

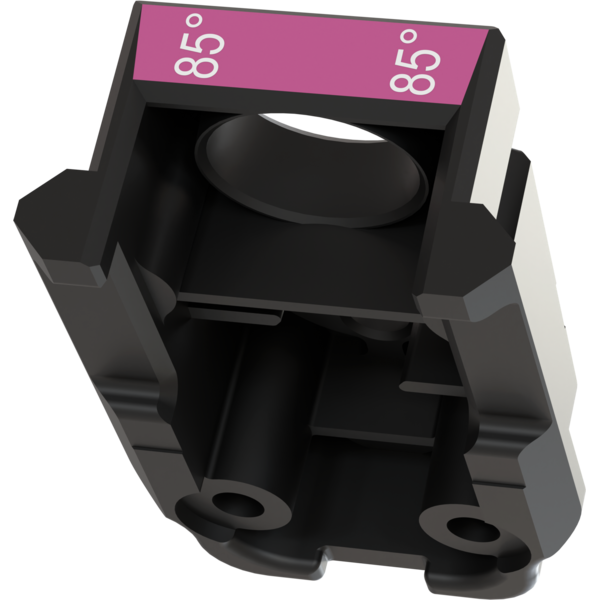

Cabinet curve plate concave for KAPPAX series cabinets, 5°
KXCJ86
KXCJ86
(Optional)

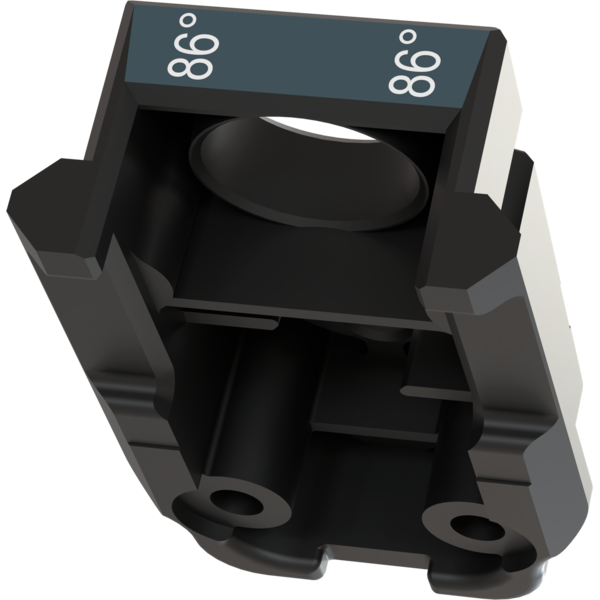

Cabinet curve plate concave for KAPPAX series cabinets, 4°

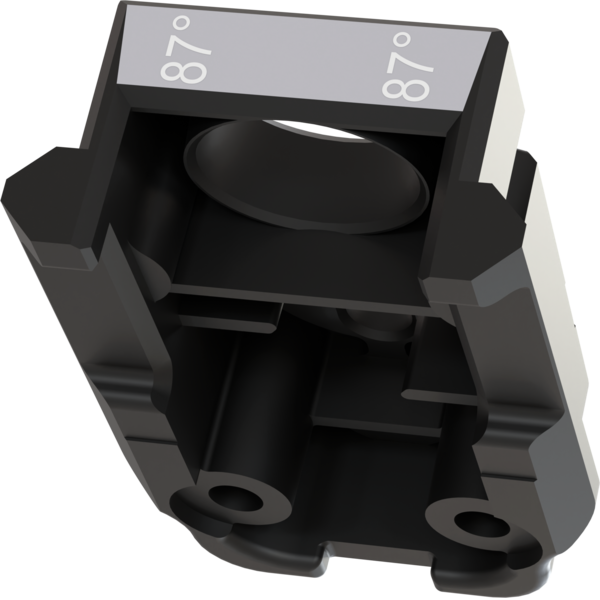

KXCJ87
KXCJ87
(Optional)
Cabinet curve plate concave for KAPPAX series cabinets, 3°
KXCJ875
KXCJ875
(Optional)

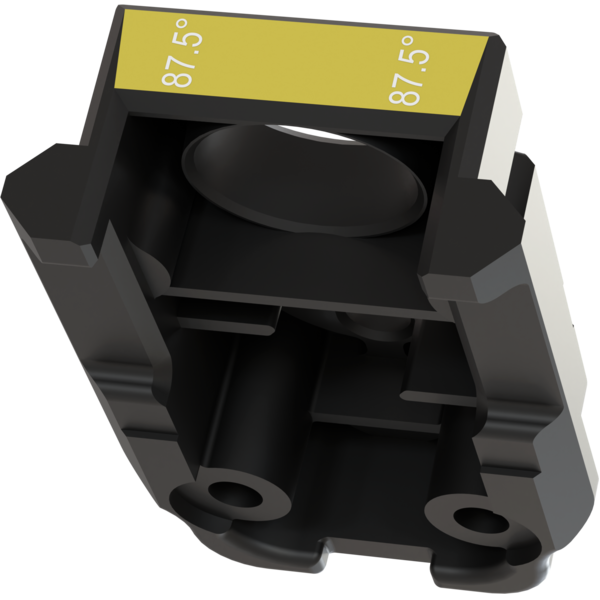

Cabinet curve plate concave for KAPPAX series cabinets, 2,5°

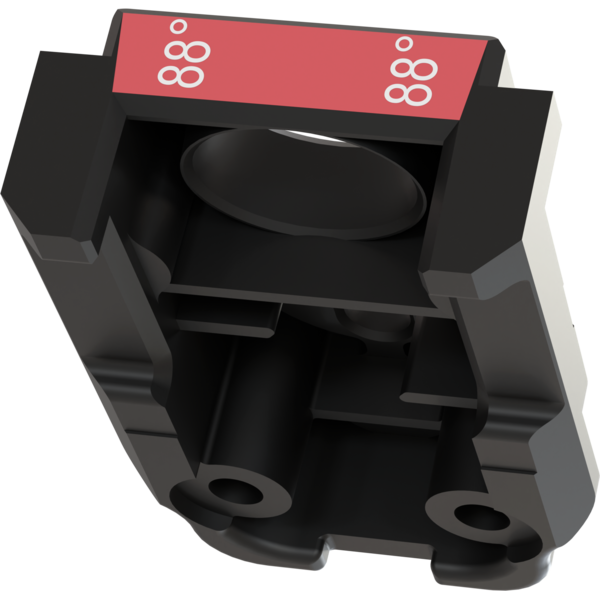

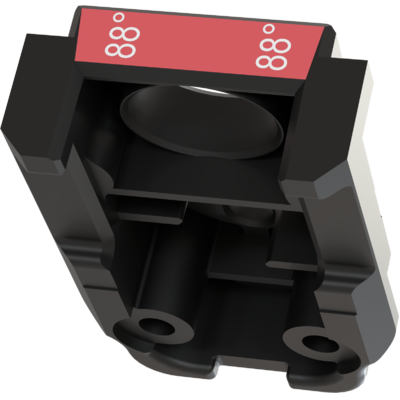

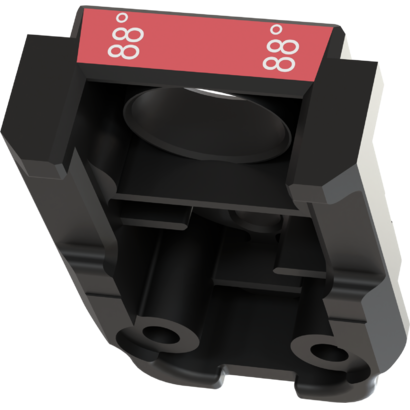

KXCJ88
KXCJ88
(Optional)
Cabinet curve plate concave for KAPPAX series cabinets, 2°

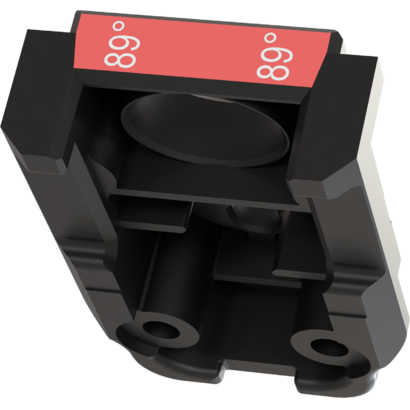

KXCJ89
KXCJ89
(Optional)

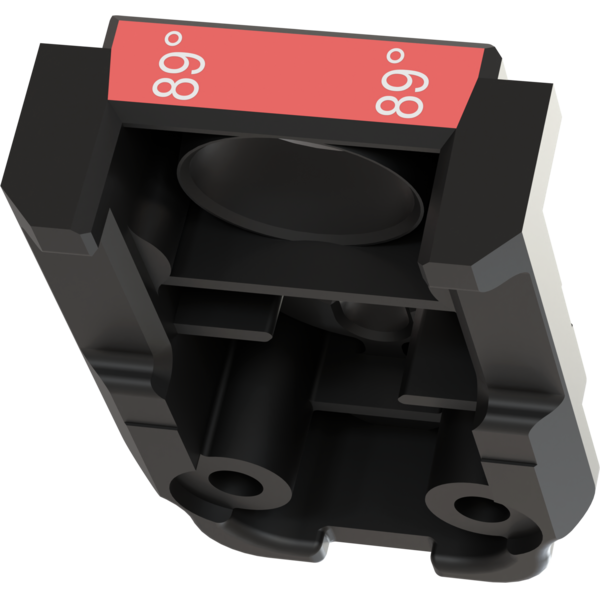

Cabinet curve plate concave for KAPPAX series cabinets, 1°

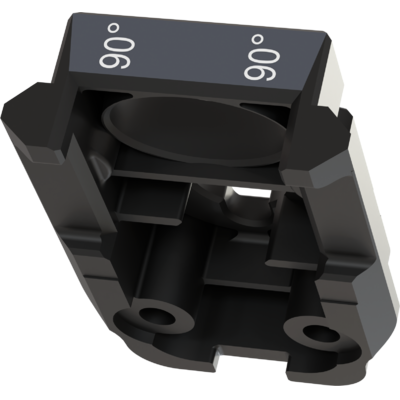

KXCJ90
KXCJ90
(Included)

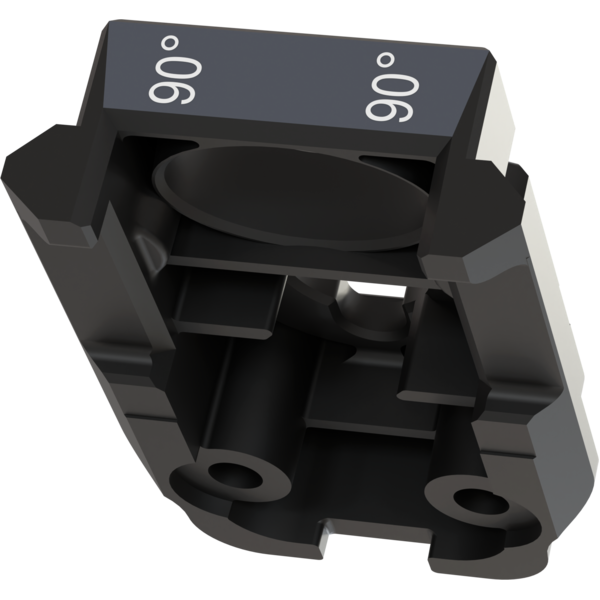

Cabinet curve plate standard for KAPPAX series cabinets, flat 0°

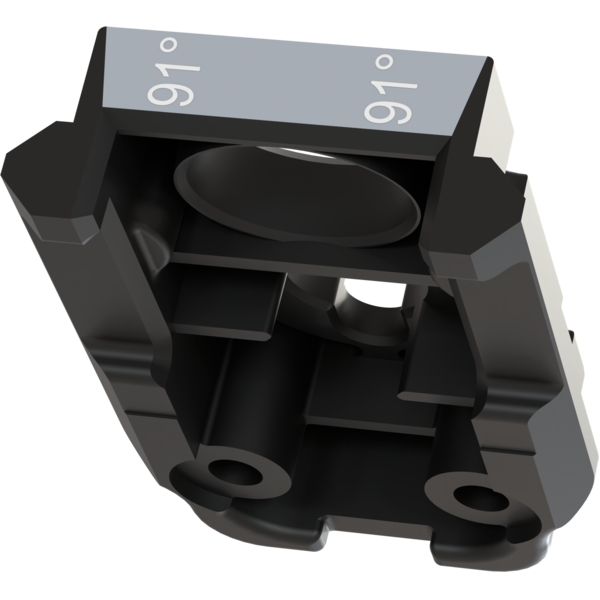

KXCJ91
KXCJ91
(Optional)
Cabinet curve plate convex for KAPPAX series cabinets, 1°

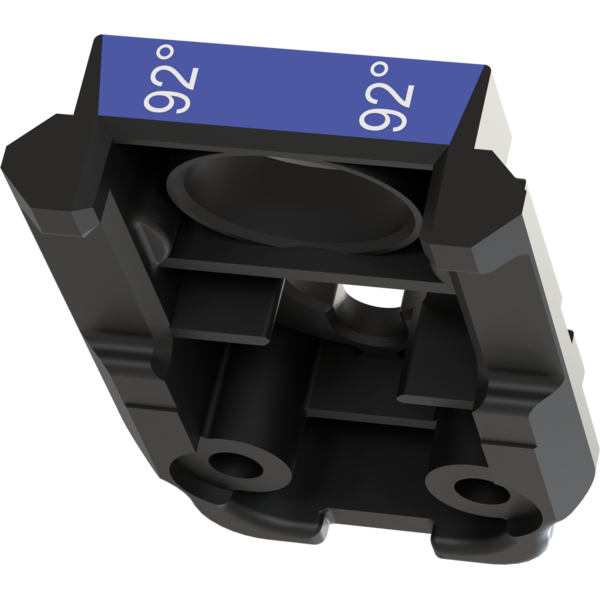

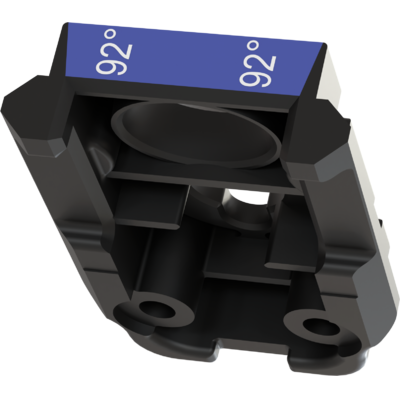

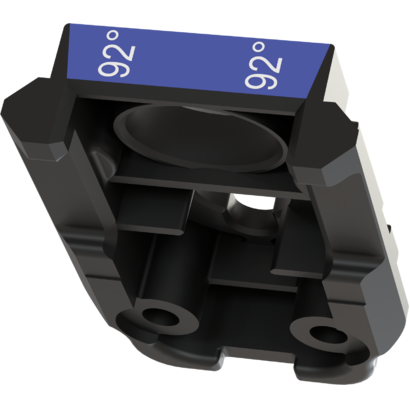

KXCJ92
KXCJ92
(Optional)
Cabinet curve plate convex for KAPPAX series cabinets, 2°
KXCJ925
KXCJ925
(Optional)

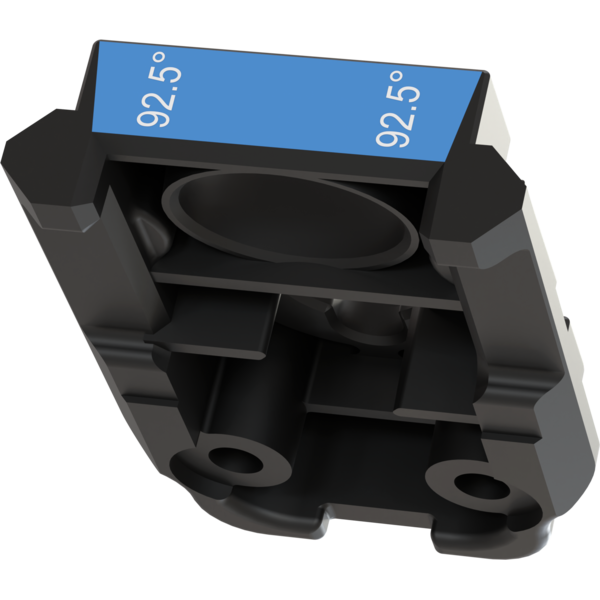

Cabinet curve plate convex for KAPPAX series cabinets, 2,5°

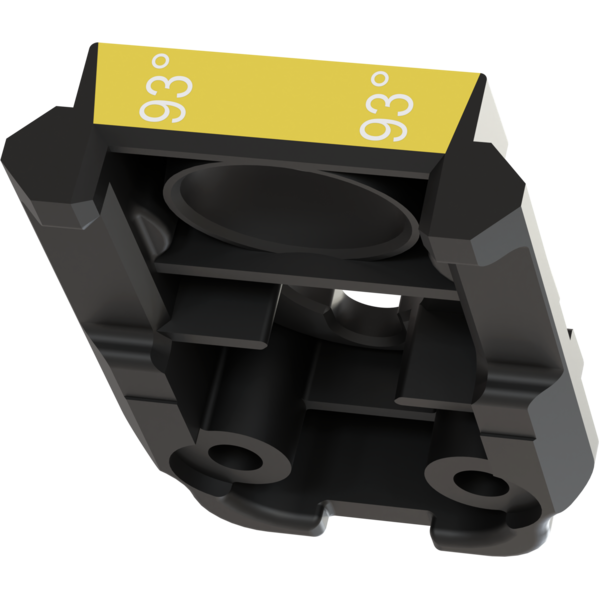

KXCJ93
KXCJ93
(Optional)
Cabinet curve plate convex for KAPPAX series cabinets, 3°
KXCJ94
KXCJ94
(Optional)

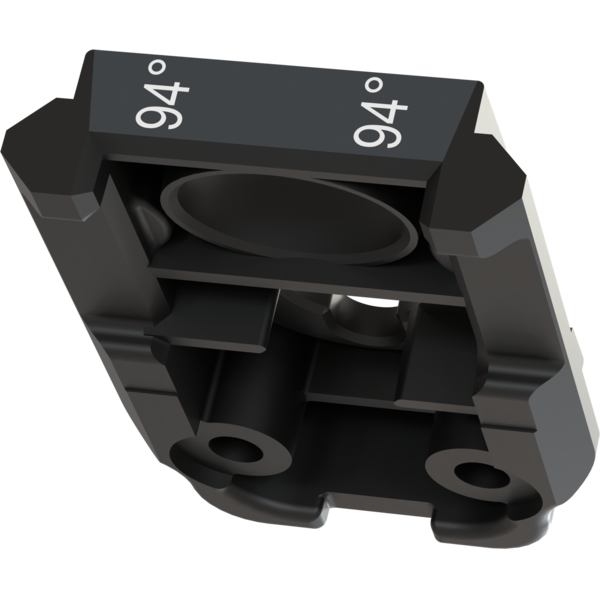

Cabinet curve plate convex for KAPPAX series cabinets, 4°

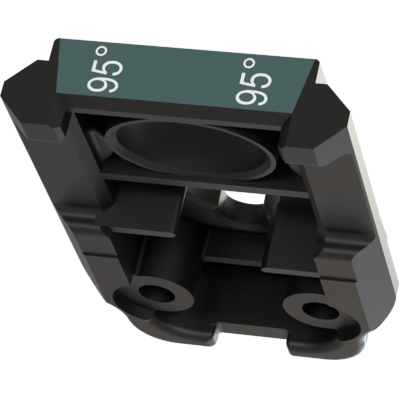

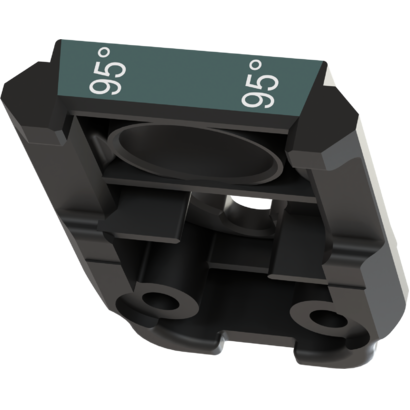

KXCJ95
KXCJ95
(Optional)
Cabinet curve plate convex for KAPPAX series cabinets, 5°
OXFCIS100
OXFCIS100
(Optional)
Rigging/ground-stack structure flightcase for all LEDScreen, 100cm
OXFCIS150
OXFCIS150
(Optional)
Rigging/ground-stack structure flightcase for all LEDScreen series, 150cm
OXFCIS200
OXFCIS200
(Optional)
Rigging/ground-stack structure flightcase for all LEDScreen series, 200cm
OXFCSP
OXFCSP
(Optional)
Spare part flightcase for OMEGAX-DELTAX series LED-display
KXACL01
KXACL01
(Optional)
Power cable for KAPPAX LED display series, Neutrik, L 140 cm

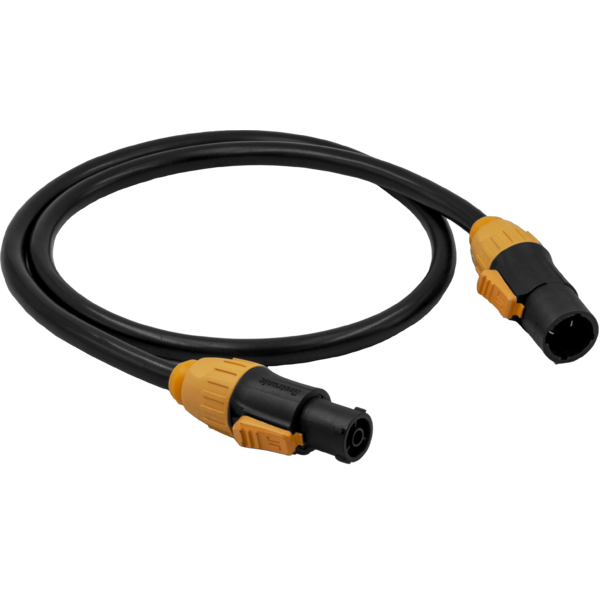

KXACL10
KXACL10
(Optional)
Power cable for KAPPAX LED display series, Neutrik, L 10 m
KXDCL01
KXDCL01
(Optional)

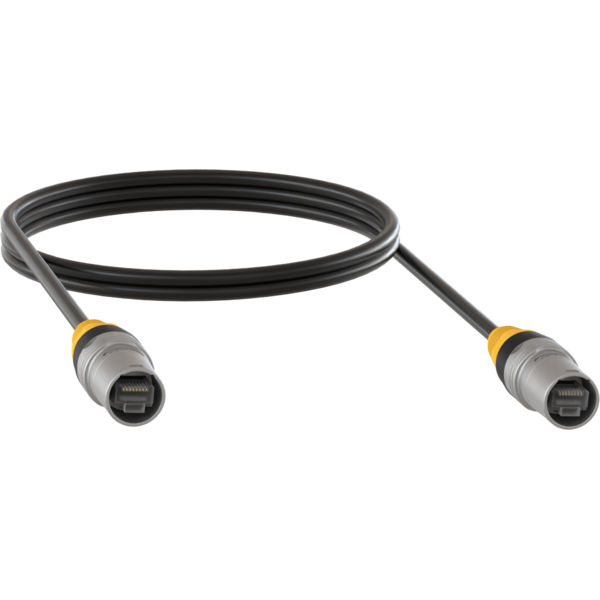

Data cable for KAPPAX LED display series assembled with RJ45, Neutrik, L 140 cm
KXDCL10
KXDCL10
(Optional)
Data cable for KAPPAX LED display series assembled with RJ45, Neutrik, L 10 m
BROSX40
BROSX40
(Optional)

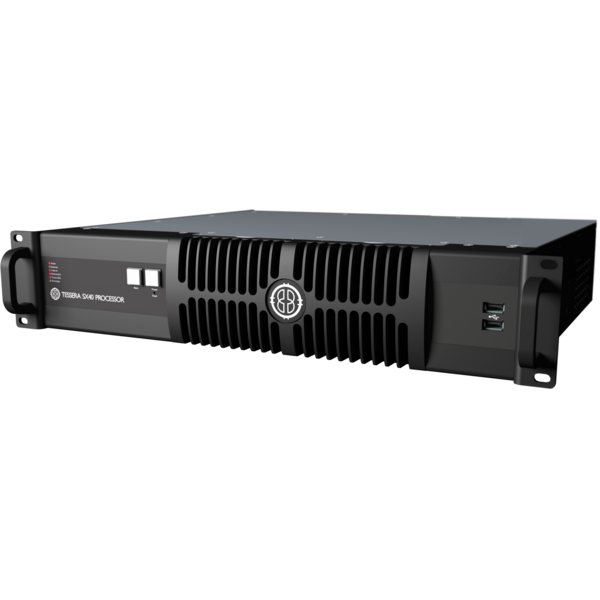

BROMPTON 4K LED video processor
BROXD10G
BROXD10G
(Optional)

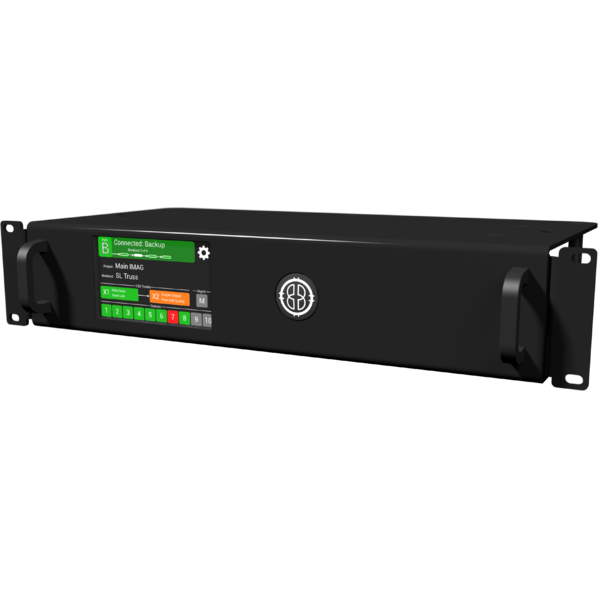

BROMPTON data distribution unit
FMTOOL
FMTOOL
(Optional)
Front maintenance tool for OMEGAX-DELTAX series LED screens (INDOOR)
MRTOOL
MRTOOL
(Optional)
Mask Replacement TOOL for OMEGAX26B and OMEGAX26BE
