LUMIPAR12UQPRO
PROLIGHTS

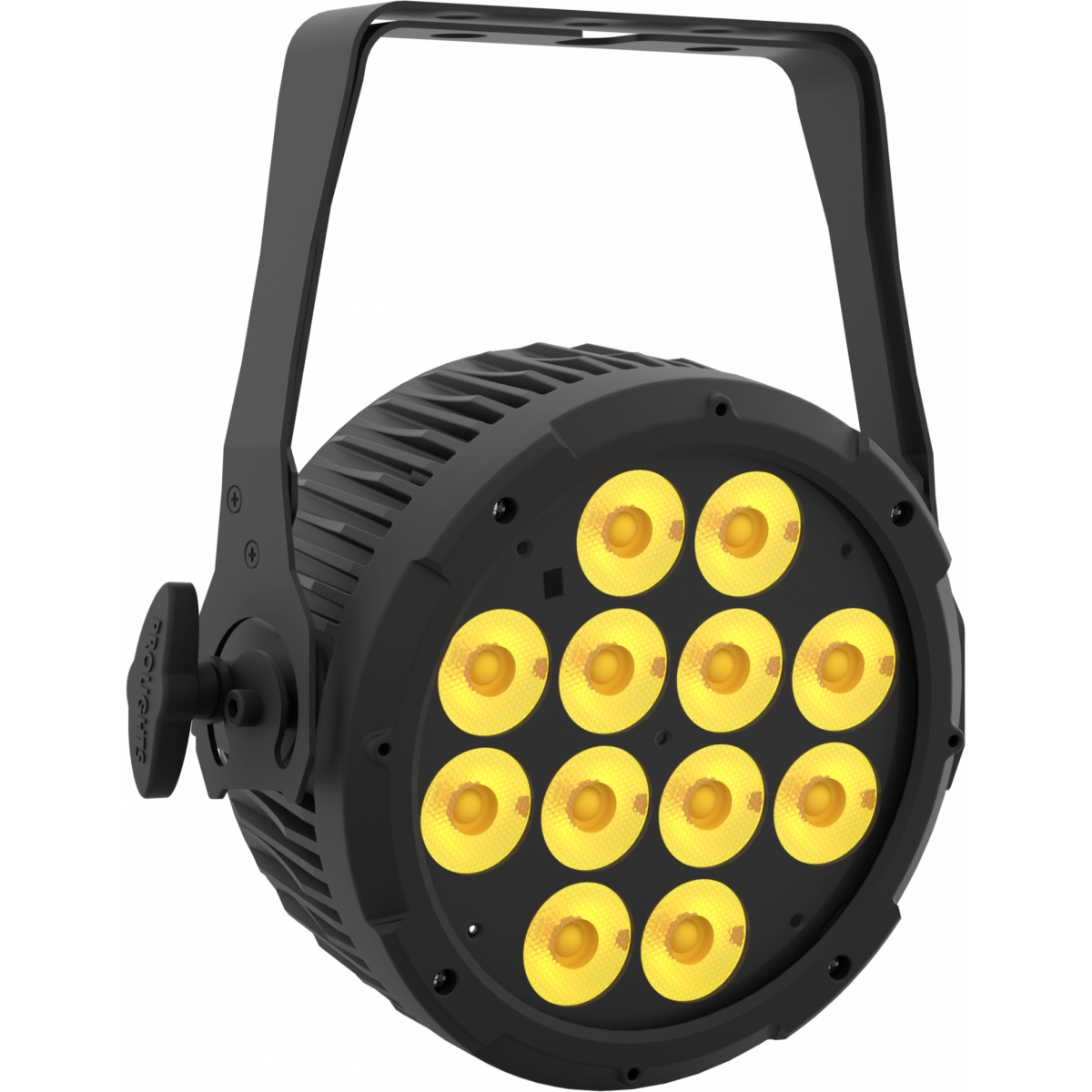

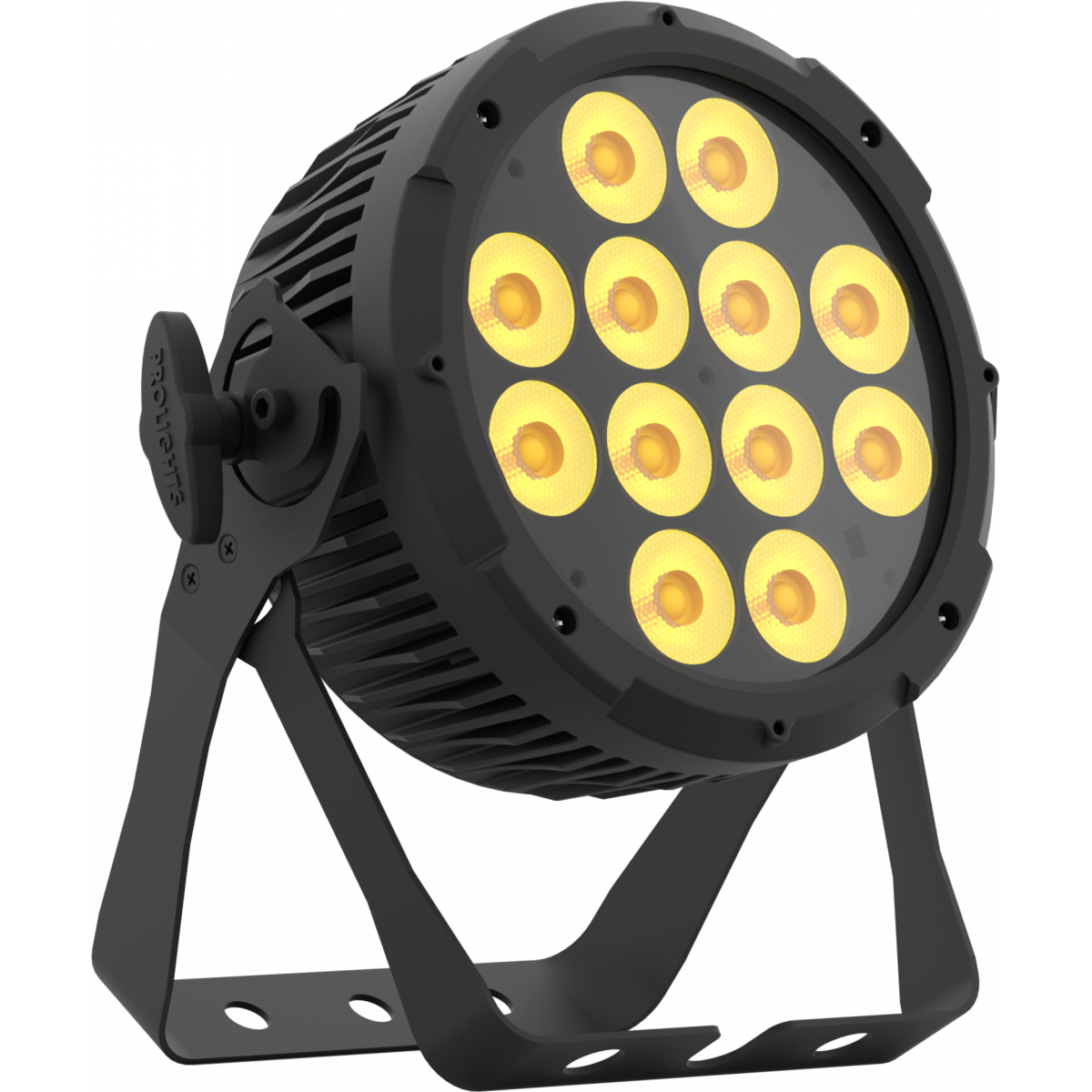

LumiPar 12UQPro

12x8W RGBW/FC wash light super-slim PAR LED

Lumipar 12UQPro is a super-slim par LED designed for professional use to be a powerful wash light and perform an outstanding chromatic capacity through the new optical design and light source based on 4 colours mixing. Lumipar 12UQPro is compatible with the infrared remote controller for intuitive and interactive use without need any external DMX units and can be also controlled wireless through the optional USB WIFI transceiver in combination with WIFIBOX and the SmartColor app.

Main features:

  • 12x8W RGBW/FC high-power LED
  • Superior optical design to ensure advanced chromatic synthesis
  • Flicker-free operations
  • USB port for USB WIFI transceiver (optional)
  • Silent operation and HD dimming system
See variants

PHOTO GALLERY

LumiPar 12UQPro
LumiPar 12UQPro
LumiPar 12UQPro
LumiPar 12UQPro
LumiPar 12UQPro

Technical specifications

LIGHT SOURCE
  • Source: 12x8W RGBW LEDs
  • CCT: W: 6.600
  • Luminous flux: 2'689
  • Lux: 2'871lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 15°
  • Lens diameter: 31mm / 1.22''
  • Additional optics: 15° (on-board) - 45° (opional)
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 4 / 9channel
  • Wireless Control: optional, proprietary protocol compatible with WIFIBOX, WDBOX
  • Display: LED display user interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • IR: infrared sensor controlled by remote
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 77W
  • Max power consumption (at 120V): 78W
  • Output (at 230V): 11 units on a single power line
  • Output (at 120V): 9 units on a single power line
  • Inrush current: 110VAC/3.4A, 230VAC/5.5A
PHYSICAL
  • IP rating: 44
  • IK rating: 07

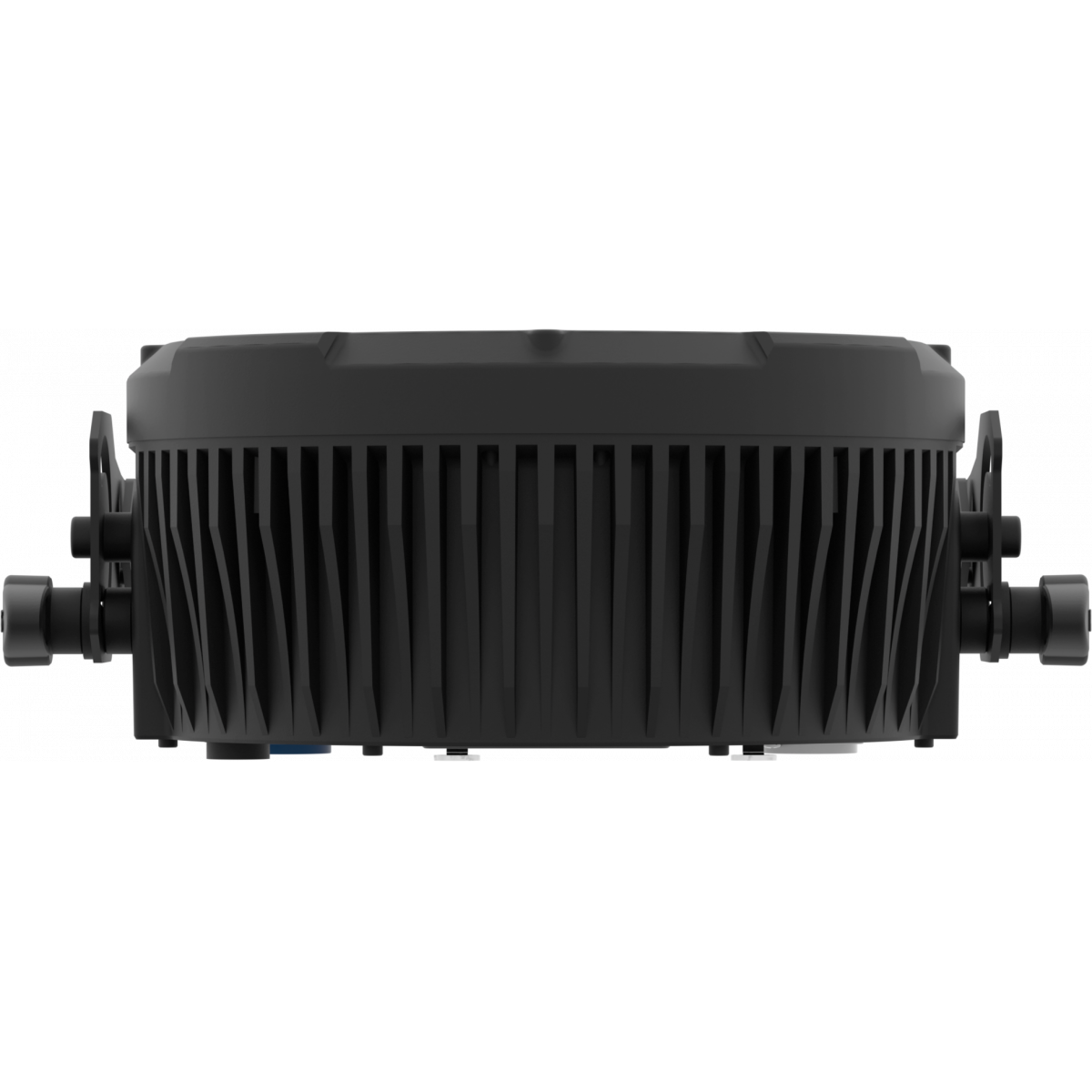

  • Cooling: passive cooling and fan-free

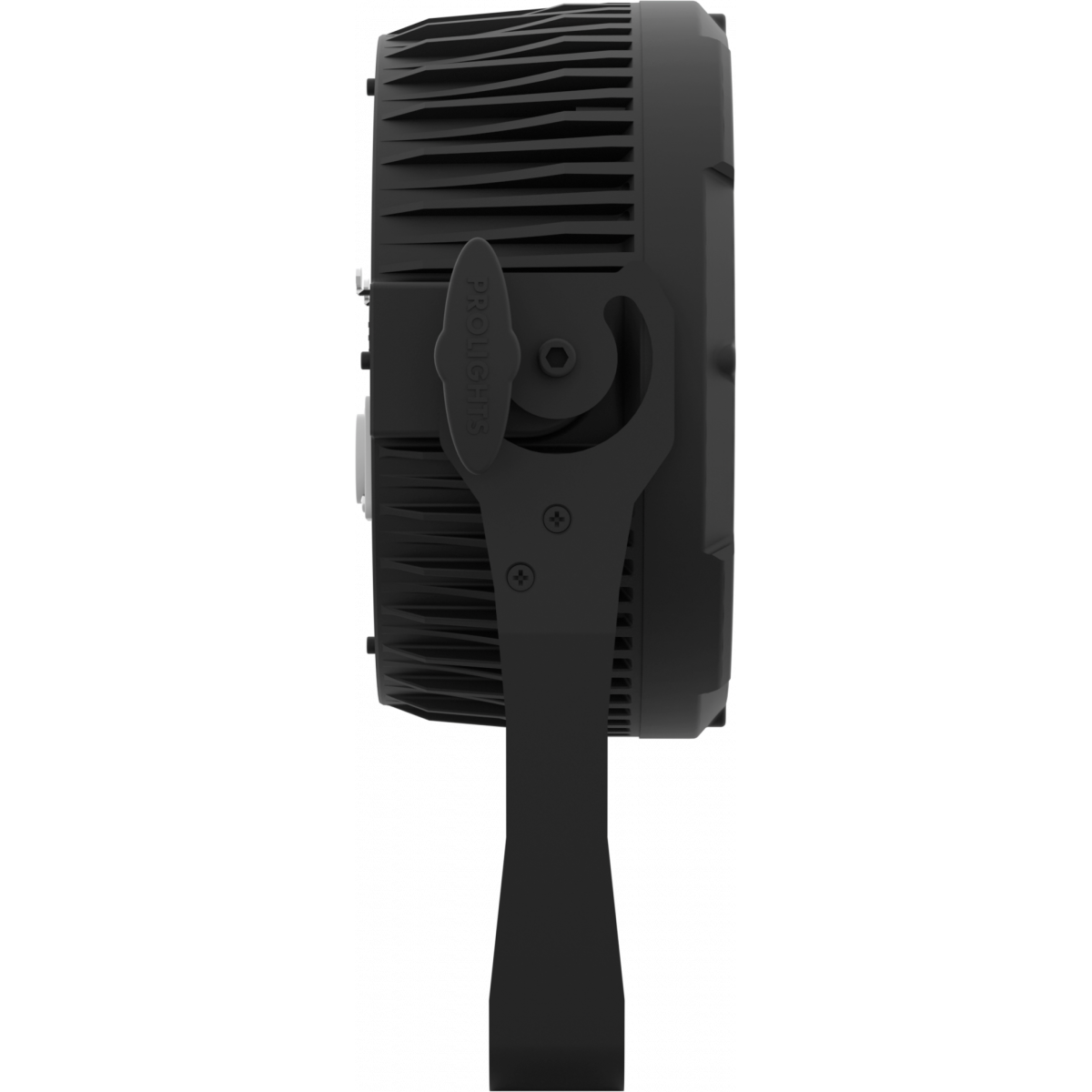

  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning

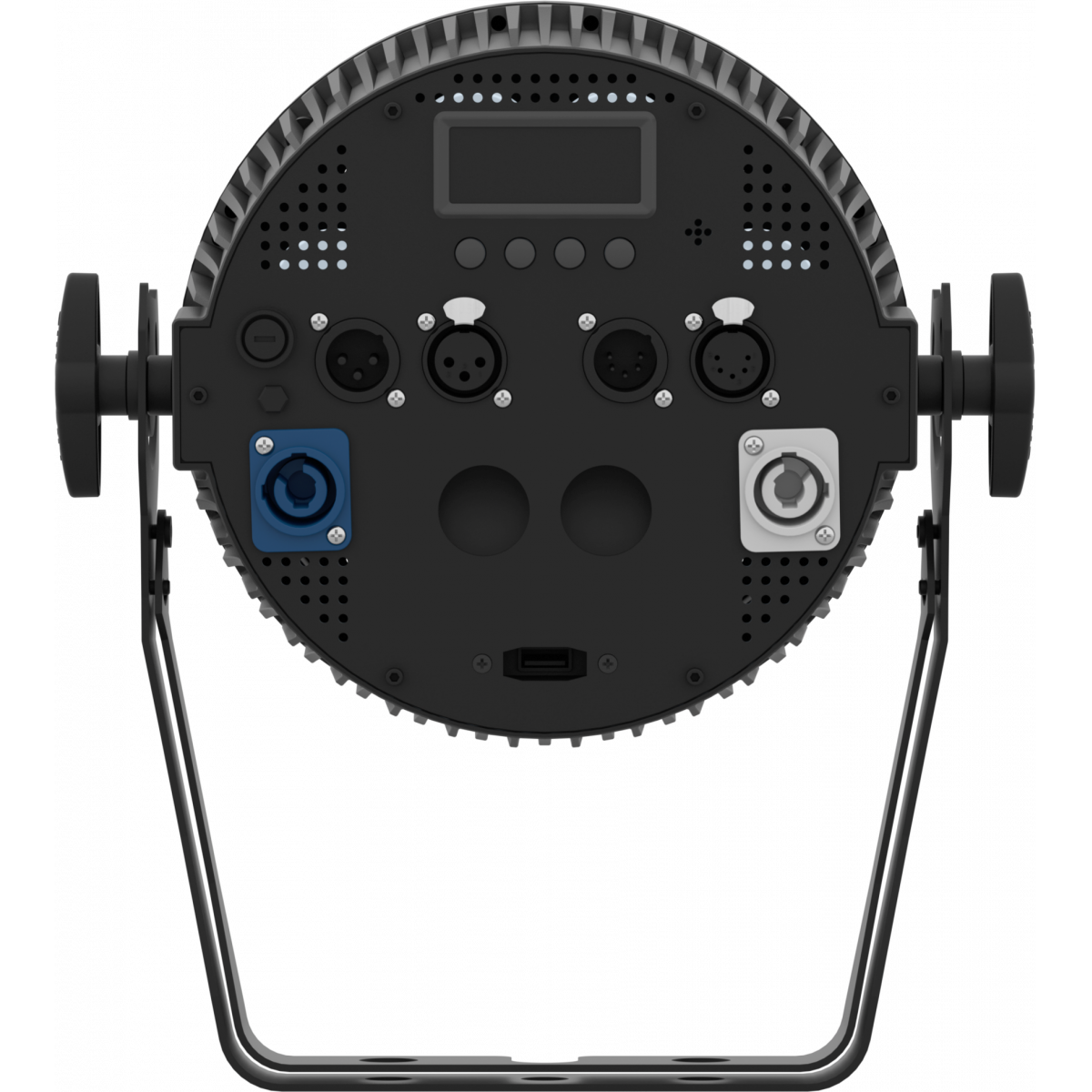

  • Data: USB port for USB WIFI transmitter (optional)
  • Signal connection: variants available
  • Power connection: variants available
  • Dimensions (WxHxD): 253x200x237mm / 9.96''x7.87''x9.33''
  • Weight: 3,3kg / 7.28lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM

Versions

Code
Power
DMX
LUMIPAR12UQPRO3
LUMIPAR12UQPRO3 (DISCONTINUED)
VDE
3p in/out
LUMIPAR12UQPRO5
LUMIPAR12UQPRO5
Powercon in/out
3p+5p in/out

Accessories & Related Products

C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
TOUR53413L03
TOUR53413L03
(optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
ARCLUMIL45D38
ARCLUMIL45D38
(optional)

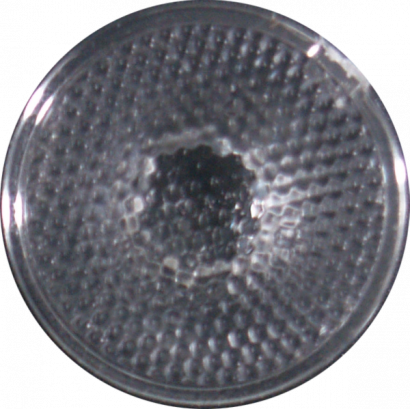

Optic lens 45°, D.38mm
<b>WIFI</b>-USB
WIFI-USB
(optional)
USB Wi-Fi transreceiver, compatible with WIFIBOX and WDBOX
<b>WIFI</b>-Box
WIFI-Box
(optional)
DMX controller interface, Wi-Fi/DMX IN, Wi-Fi / DMX OUT
<b>WD</b>-Box
WD-Box
(optional)
Wireless DMX Transceiver, IN/OUT 3-pin XLR, distance 200m, 2.4 GHz, 0.6 kg
LUMIPARIRCH
LUMIPARIRCH
(optional)

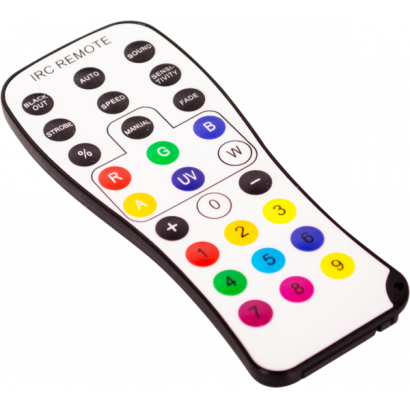

RGBWA IR remote controller, manual / auto modes, for LUMIPAR IR series
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Lumipar12uqpro_A4_DATASHEET_(EN).pdf 410KB
Letter datasheet Lumipar12uqpro_A4_DATASHEET_(IT).pdf 196KB

User manual

File name File size Download
User manual Lumipar12uqpro_USER_MANUAL_ITEN.pdf 2MB

DMX chart & personalities

File name File size Download
DMX chart Lumipar12uqpro_DMX_CHARTS.pdf 44KB
LUMIPAR12UQPRO Firmware rev. 1.5
prolights_lumipar12uq.d4Download
manufacturer fixture library (Link) Link
prolight_lumipar12uq_4ch.hedDownload
prolight_lumipar12uq_9ch.hedDownload
prolights_lumipar12uqpro_4ch.hedDownload
prolights_lumipar12uqpro_9ch.hedDownload
lumipar 12uq 4 channel.fix2Download
lumipar 12uq 9 channel.fix2Download
LUMIPAR12UQPRO Firmware rev. 1.4
prolights_lumipar12uq.d4Download
manufacturer fixture library (Link) Link
prolight_lumipar12uq_4ch.hed Download
prolight_lumipar12uq_9ch.hed Download
prolights_lumipar12uqpro_4ch.hed Download
prolights_lumipar12uqpro_9ch.hed Download
lumipar 12uq 4 channel.fix2 Download
lumipar 12uq 9 channel.fix2 Download

Photometrics

CAD symbols & drawings

File name File size Download
3D RFA Lumipar12uqpro5_3D.rfa 7MB
2D LUMIPAR12UQPRO_2D.zip 9MB
Technical drawing LUMIPAR12UQPRO_TECHNICAL DRAWINGS.zip 564KB
VectorWorks LUMIPAR12UQPRO_SYMBOLS.zip 2MB
VectorWorks PROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx 317MB
VectorWorks PROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx 317MB
VectorWorks PROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx 488MB
VectorWorks PROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx 488MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.5 STABLE 31/03/2021 Added Led Frequency selector.
1.4 STABLE 05/08/2016 Improved power management. Improved temperature management. Rev. 1
Rev. 1.0
