LUMIPIXXB100
PROLIGHTS

LumiPix XB100

ORDER CODE: LUMIPIXXB100

IP65 RGB+WW pixel-controlled linear LED fixture

The LumiPix XB is a family of IP65 high power and high quality linear luminaire, designed to meet advanced requirements from Film, Tv and Staging professionals.
The units are available in 100 cm (18 pixels) and 50 cm (9 pixels) and designed around a 20W RGB + Warm White LED source, delivering a bright 10° narrow beam angle beam angle, but still keeping smooth colour mixing, high CRI and TM30, and calibration down to pixel.
LumiPix XB can be completed by a wide range of optical modifiers such as optional lenses, holographic filters, eggcrates and barndoors, performing with extreme precision for the desired application. The design of the housing has been conceived to allow fast mounting and deploying of optical accessory through a quick-lock system.
These units has been designed to offer multiple choice of control like DMX/RDM, Ethernet and Wireless DMX (CRMX and W-DMX), sharing the same user settings and advanced software features of all Spektra calibrated fixtures.


SPEKTRA

Main features:

  • IP65, pixel-controlled LED linear fixture, available in 18 pixels and 9 pixels
  • 20W RGB+WW led source, delivering high CRI (>90), advanced colour control and effects generator
  • DMX/RDM control, Ethernet, and Wireless DMX (CRMX + W-DMX)
See variants

PHOTO GALLERY

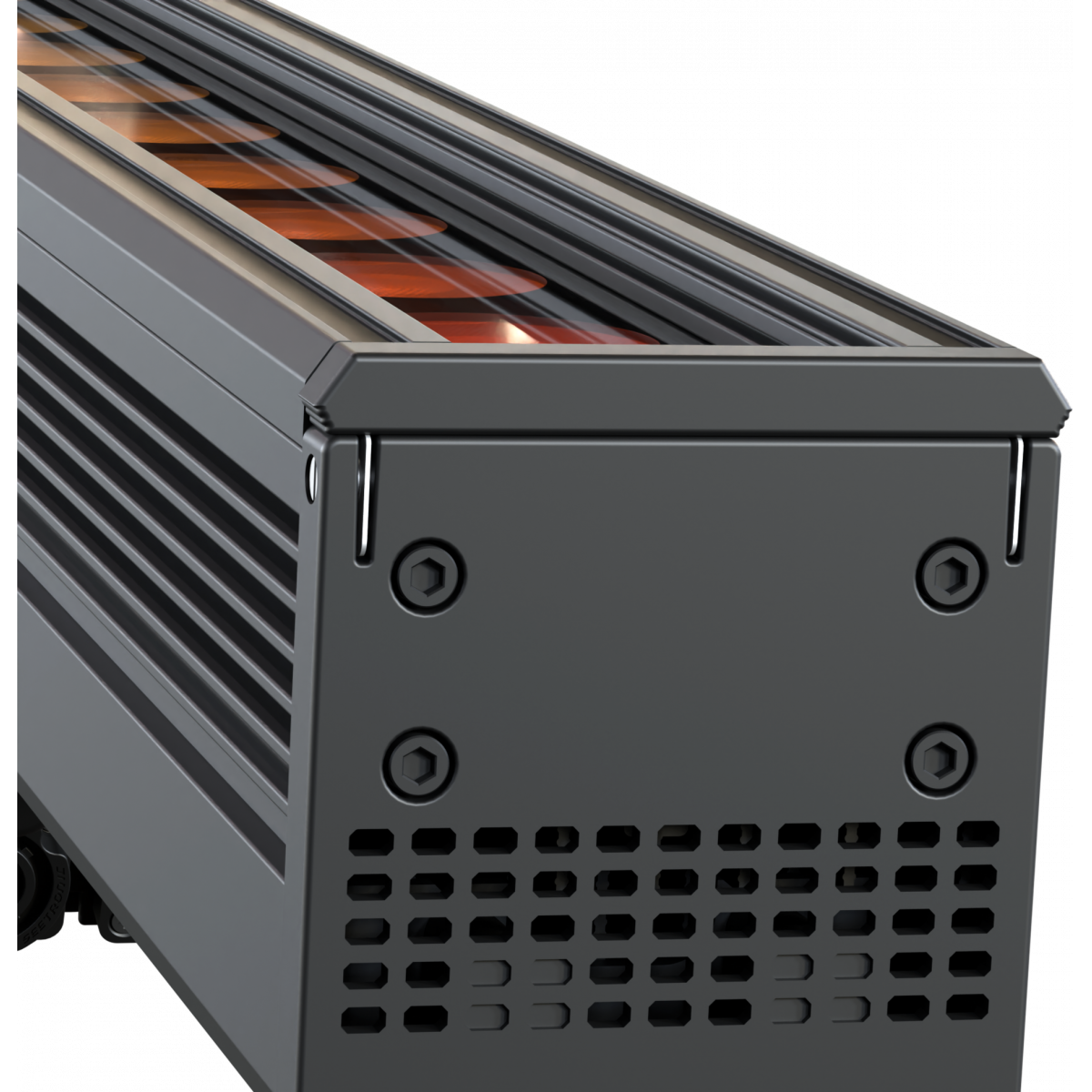

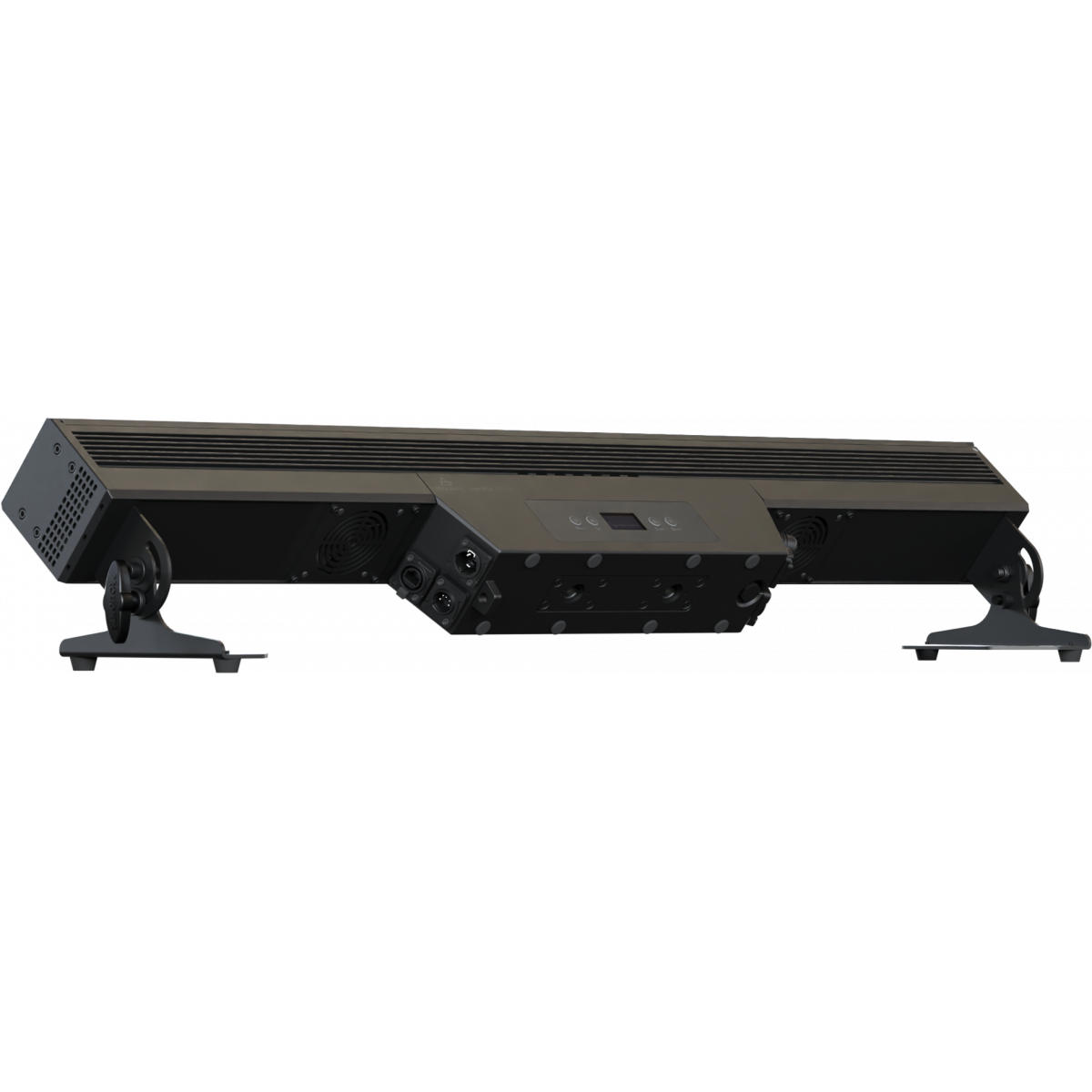

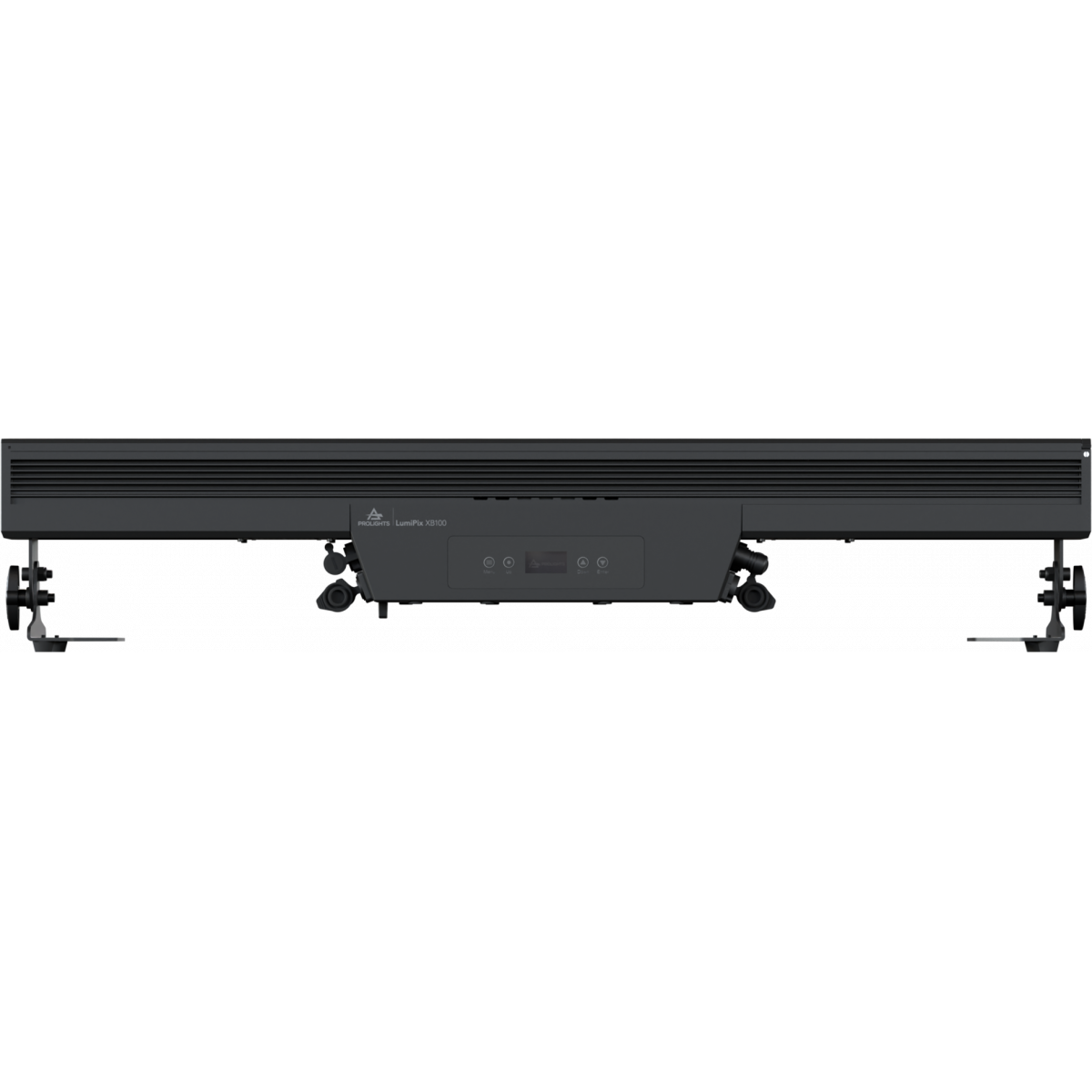

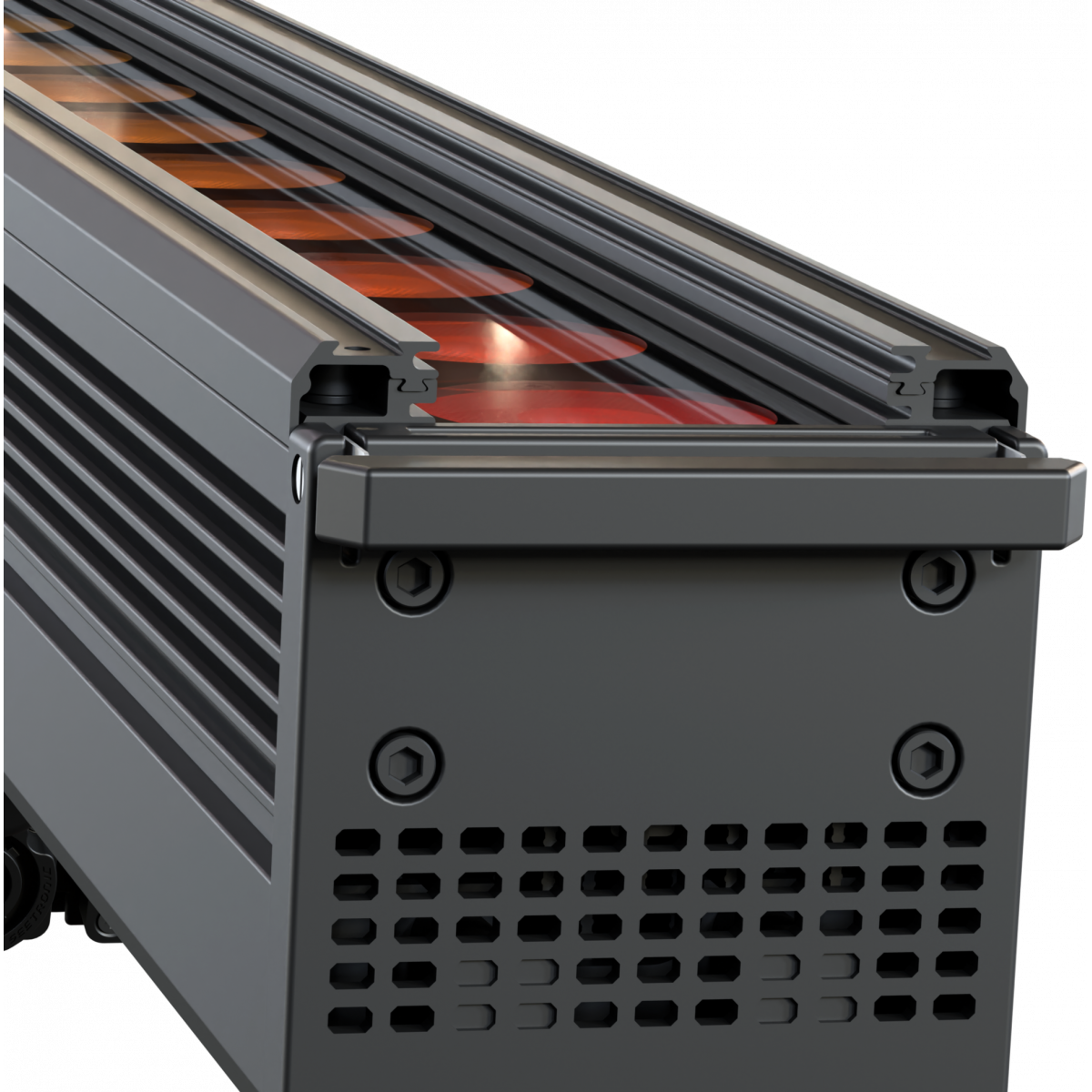

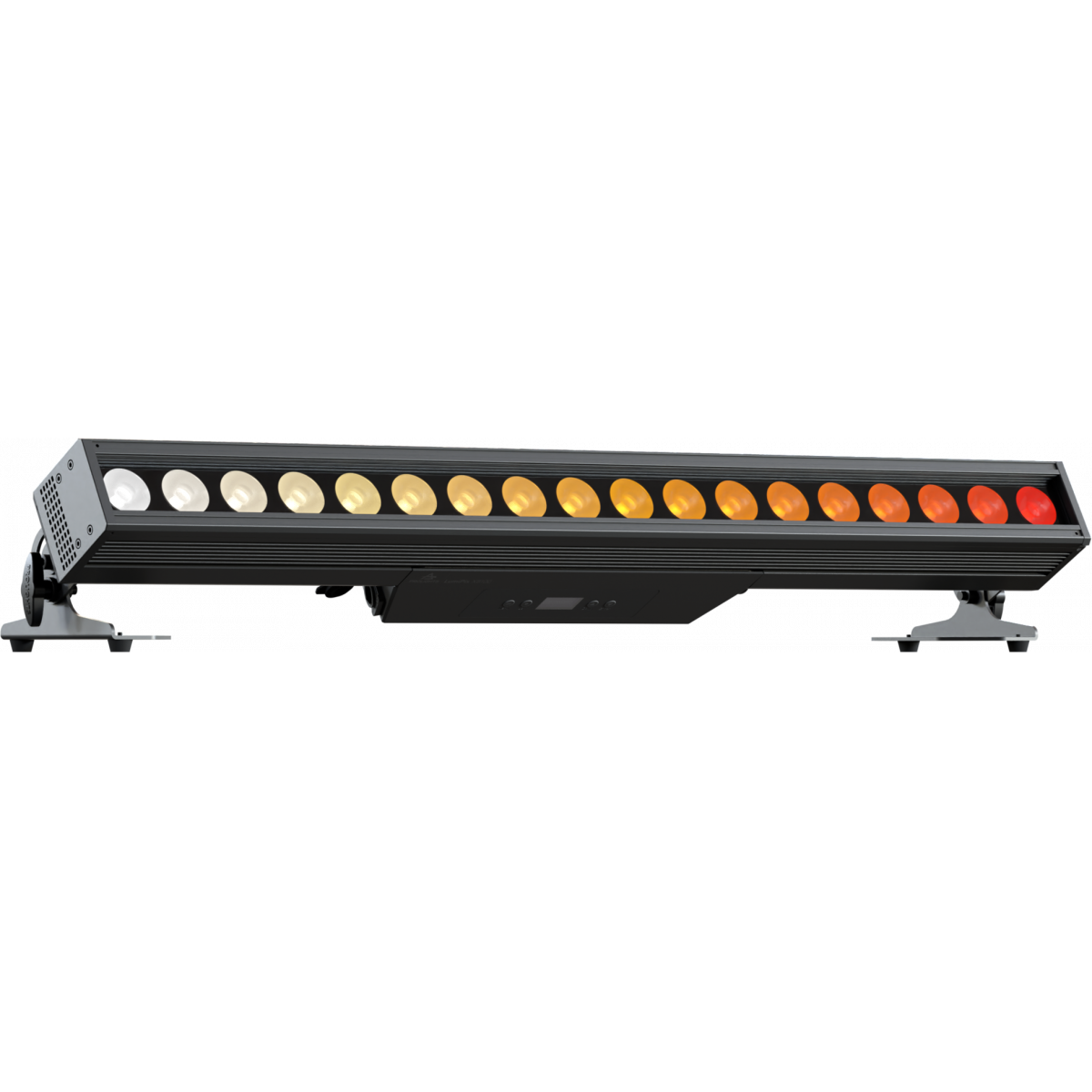

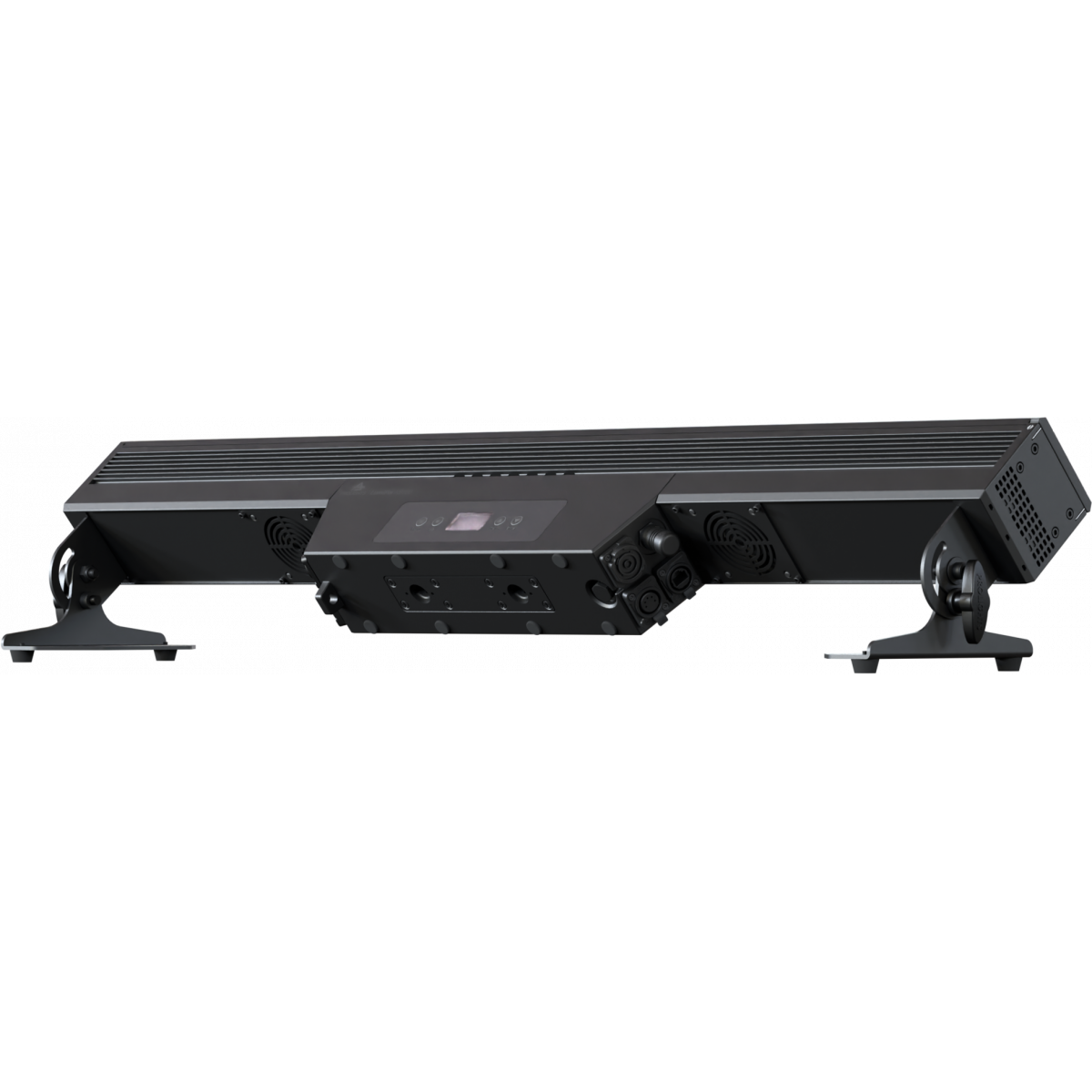

LumiPix XB100
LumiPix XB100
LumiPix XB100
LumiPix XB100
LumiPix XB100
LumiPix XB100

Technical specifications

LIGHT SOURCE
  • Source: 18x20W RGB + Warm White LED
  • Luminous flux: 7'996 @Full
  • Lux: 16'724lx @3 m
  • Lux: 6'021lx @5 m
  • CRI: >94 @3'200 K : >96 @5'600 K
  • R9: >91 @3'200 K ; > 90 @5'600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 10°
  • Field angle: 20°
  • Lens type: different optics available
  • Additional optics: several filters available
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K - 10.000K with 28 K resolution
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Body: aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, ArtNet, sACN, CRMX
  • Pixel control: 18 pixel2pixel control
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -20° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 260W
  • Output (at 230V): 8
  • Power factor: >0,99
PHYSICAL
  • IP rating: 65 for temporary outdoor use (*)
  • Cooling: active, silent operation
  • Suspension and fixing: hanging bracket for floor stand. Also can fit the fast quick lock OMEGA bracket
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Data connection: Seetronic Ethernet IP in/out connectors
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Dimensions (WxHxD): 1006x185x150mm / 39.61''x7.28''x5.91''
  • Weight: 7,5kg / 16.53lbs
(*)
  • NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
<b>ÆtherBox</b> LITE
ÆtherBox LITE
(Optional)
1 Universe CRMX Wireless Transceiver

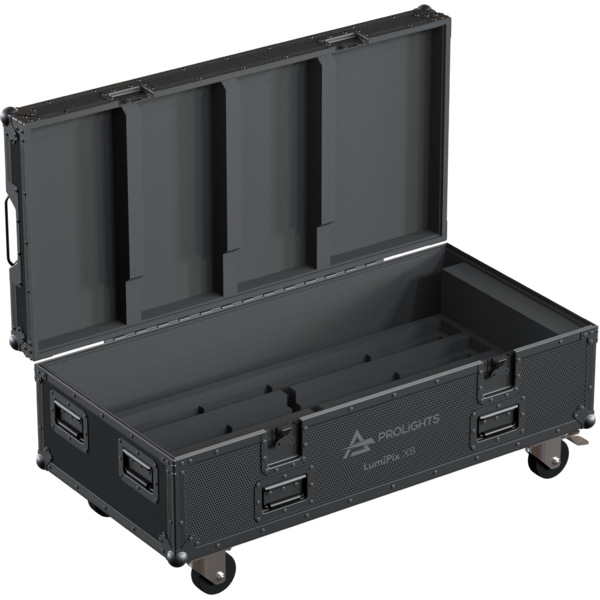

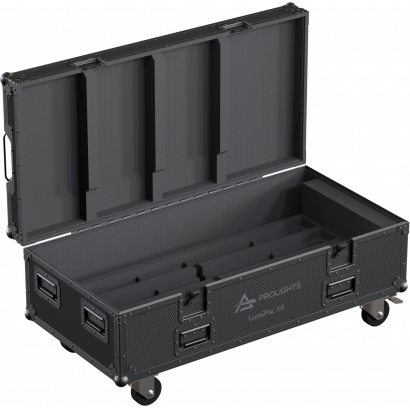

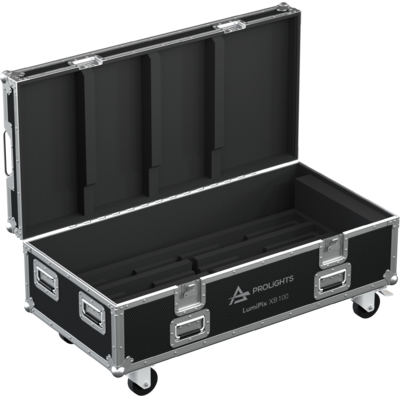

FCLLUMIPIXXB
FCLLUMIPIXXB
(Optional)
Flight case for 4 pcs LUMIPIXXB100 or 8 pcs LUMIPIXXB050

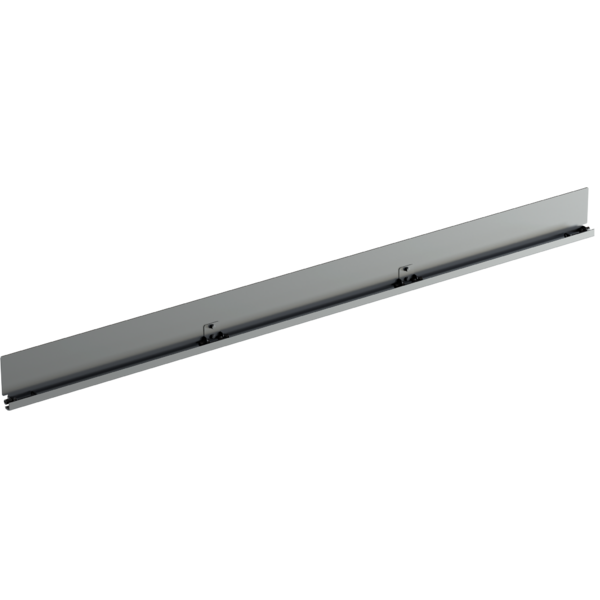

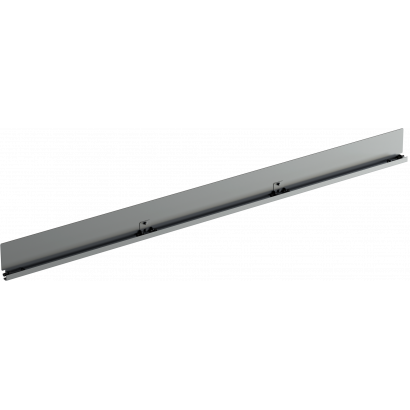

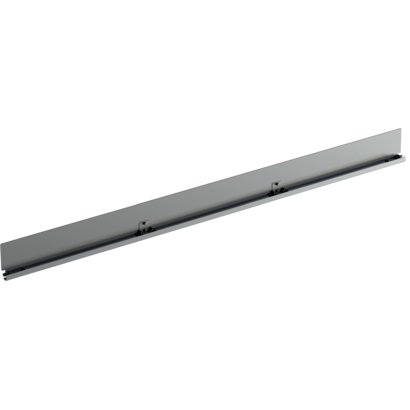

LPXB100BD
LPXB100BD
(Optional)
Barndoor to adjust the light beam for LUMIPIXXB100

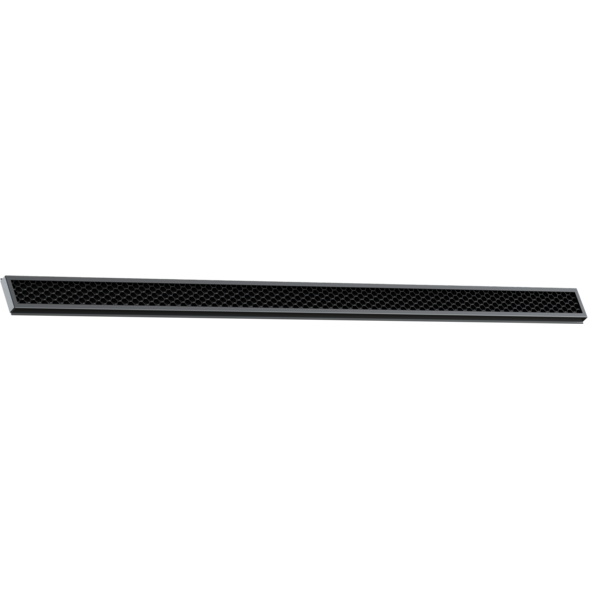

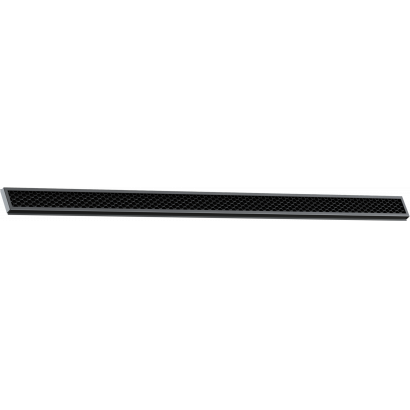

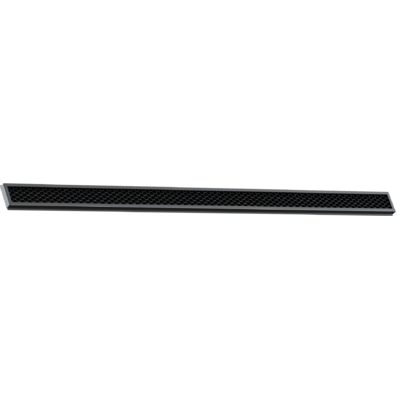

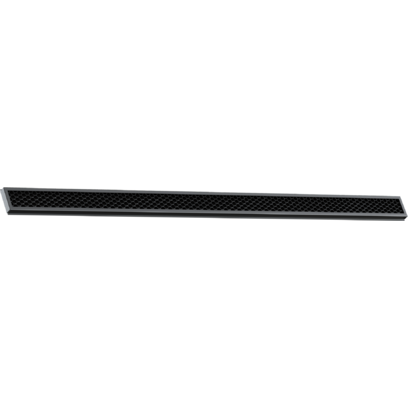

LPXB100EC60
LPXB100EC60
(Optional)
60° egg crate for LUMIPIXXB100
LPXB100FILT20
LPXB100FILT20
(Optional)
Light diffusion filter for LUMIPIXXB100, 20°

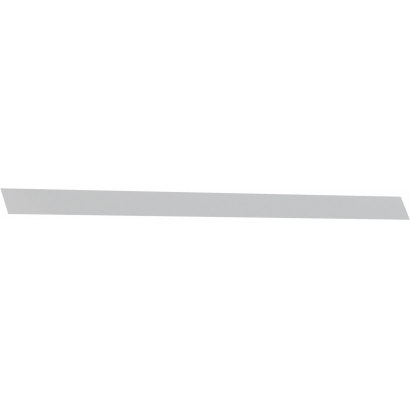

LPXB100FILT40
LPXB100FILT40
(Optional)
Light diffusion filter for LUMIPIXXB100, 40°

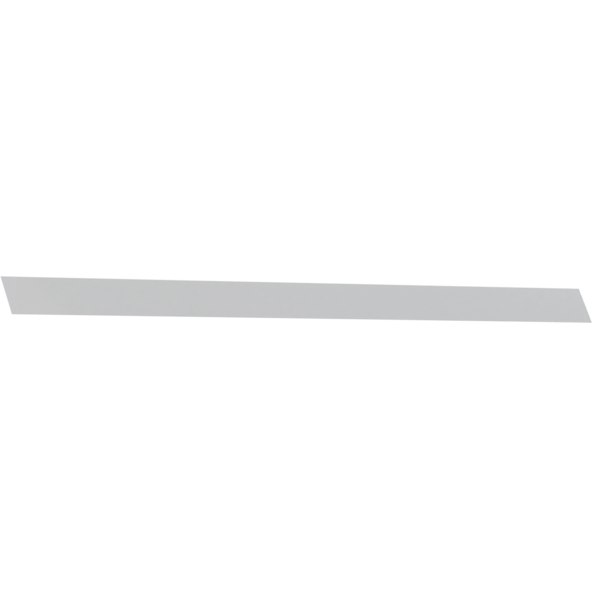

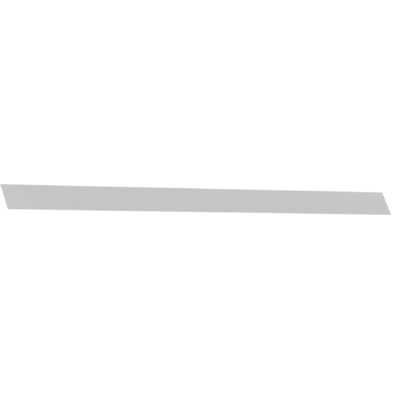

LPXB100FILT60
LPXB100FILT60
(Optional)
Light diffusion filter for LUMIPIXXB100, 60°
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

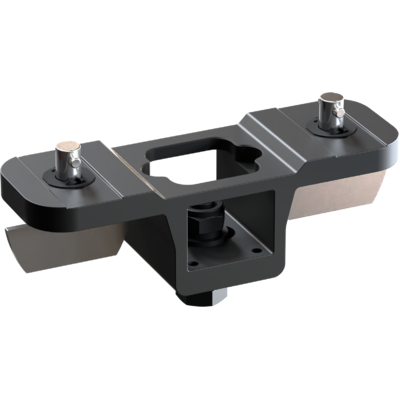

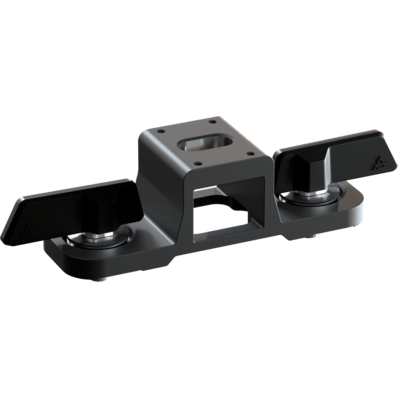

OS27
OS27
(Included)
Quick-Lock omega bracket, M10 hole
LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetLumipixxb100_LETTER_DATASHEET_(EN).pdf548KB
Letter datasheetLumipixxb100_A4_DATASHEET_(EN).pdf549KB
Tender SpecificationLumipixxb100_TENDER_SPECIFICATION.pdf4MB

User manual

DMX chart & personalities

File name File size Download
DMX chartLumipixxb100_DMX_CHARTS.pdf634KB
LUMIPIXXB100 Firmware rev. 1.1.00.0
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
lumipix xb100.dfixDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D sketchupLUMIPIXXB100_3D_SKETCHUP.zip5MB
2DLumipixxb100_CAD_2D.dwg6MB
2D cad symbolsLumipixxb100_CAD_2DSYMBOLS.dwg53KB
3DLUMIPIXXB100_3D.zip4MB
Technical drawingLumipixxb100_TECHNICAL_DRAWING.pdf444KB
VectorWorksVECTORWORKS_SYMBOLS.vwx991KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.00.0 STABLE 23/05/2023 First stable release.

New functions:
  • Spektra Calibration: new modes available
    • ON: CCT and colors are fully calibrated, working in the common color space definition set by Spektra. This means that output of multiple fixtures will match with no visible differences. Color Saturation is slightly reduced.
    • PURE COLORS: CCT is calibrated, giving perfect white matching across multiple fixtures, but primary and secondary colors are calibrated to their native color space which allows maximum color saturation. The closer you move towards white, the more closely multiple fixtures will match each other's output. The further you move away from white and the closer you move towards saturated color, the less closely multiple fixtures will match each other's output.
    • OFF: CCT doesn't guarantee High CRI Values and color output of one fixture may or may not closely match that of other fixtures.

  • Added Dimmer Speed Off
Improvements:
  • Improved Tungsten Emulation.
  • Improved accuracy of CCT parameters.
  • Added High Res@low Dimmer Curve in RDM
  • Adjusted RDM parameters to fit new functions and new naming.
  • Adjusted Control Channel to fit new functions as follows.
    • Dimmer Speed Off (Control channel values 176 - 177 )
    • Spektra Calibration On (Control channel values 26 - 27 )
    • Spektra Calibration Pure Colors  (Control channel values 28 - 29)
    • Spektra Calibration Off (Control channel values 174 - 175)
Fixed bugs:
  • Interruption of the light while entering in Emergency mode.
  • Jump prediction does not work when Tungsten Emulation is active.
  • The fixture does not keep the last Gel of the category in the output on Reserved Range.
  • Random flash when changing Spektra Calibration mode.
  • If DMX-WDMX is switched without the fixture being connected to the wireless station, device does not enter DMX Fault mode but always switches off the light source.
  • The Stand Alone-Data Signal transition is not instantaneous.
  • If the fixture is connected via DMX and the menu/Connect/address 'WDMX' is set, the display does not blink, alerting the user to the loss of the data signal.
  • Update screen not shown when performing a firmware update.
  • Presence of flickering when changing CCT via Control Mode Selector.
  • Presence of flickering when changing HSI via Control Mode Selector.
  • In Extended RGB, there are not jump prediction on Red/Green/Blue Channels.
  • In Tour FX Effect 17 one pixel does not work correctly.
  • Process effect in Cine FX is slower than expected.
  • In Extended HSI, when you switch Saturation from 0 to 255 dmx value, the fixture sometimes fades and sometimes jumps.
  • If you set HSI in Control Mode Selector, when you switch Saturation from 0 to 255 dmx value, the fixture sometimes fades and sometimes jumps.
  • Whichever effect is set to Tour FX Sel, if the dimmer encoder (master) is moved, Tour Fade will engage itself.
  • Whichever effect is set to Cine FX, if you move the Dimmer encoder to increase/decrease the dmx values, the effect doesn't work properly.
  • Sometimes when switching from Extended RGBW to EXT RGB or EXT CMY or EXT HSI via Control Channel, the fixture produces long fades from one mode to another.
  • If the fixture is in Extended HSI and Dmx Fault Emergency and Dimmer@0 dmx value is set, when the data signal is removed it will produce a red flash during the Data Signal-DMX Fault Emergency transition.
  • Crossfade from Color to Pixel Engine not working correctly while using ArtNet in Unicast mode.
 Rev. 1.0

Info Request

News

PROLIGHTS beams into the sky from the rooftop of Atlantis The Palm
April 18, 2025
PROLIGHTS beams into the sky from the rooftop of Atlantis The Palm
One of the world's most iconic architectural landmarks, Atlantis The Palm , recently underwent a breathtaking lighting transformation that has redefined its nighttime presence on the Dubai skyline. The spectacular illumination project was carried out
Introducing PROLIGHTS Jet Spot120: Compact, Powerful, and Versatile
April 09, 2025
Introducing PROLIGHTS Jet Spot120: Compact, Powerful, and Versatile
PROLIGHTS is proud to announce the launch of Jet Spot120 , the most compact moving head spotlight in its lineup. Designed for versatile applications from intimate venues to large corporate events, Jet Spot120 offers a unique blend of efficiency, powerful
PROLIGHTS unveils the EclProfile CT+HP: Enhanced Performance with the Iconic CT+ DNA
April 08, 2025
PROLIGHTS unveils the EclProfile CT+HP: Enhanced Performance with the Iconic CT+ DNA
PROLIGHTS is proud to announce the release of the EclProfile CT+HP , the higher class in LED ellipsoidal that raises the standard for power, control, and versatility. Designed for large venues, this fixture delivers an exceptional 450W of LED power, doubling
PROLIGHTS introduces Astra Blade100IP: IP65 motorized batten with max pixels and max power
April 07, 2025
PROLIGHTS introduces Astra Blade100IP: IP65 motorized batten with max pixels and max power
PROLIGHTS is proud to announce the launch of the Astra Blade100IP , a high-performance, IP65-rated motorized linear batten designed to transform stages with stunning visual dynamics, superior color accuracy, and unmatched strobe versatility. At the heart
PROLIGHTS is Rocking PL+S with 3 Bold Launches & More
April 07, 2025
PROLIGHTS is Rocking PL+S with 3 Bold Launches & More
PROLIGHTS is gearing up for a dynamic presence at Prolight + Sound 2025 , taking place from April 8-11 in Frankfurt. The booth—located in Hall 12.0, D61—will feature a dedicated exhibition space showcasing flagship products from its portfolio for
Light Craft & Sound chooses PROLIGHTS for Let's Vibe cinematic commercial
March 28, 2025
Light Craft & Sound chooses PROLIGHTS for Let's Vibe cinematic commercial
Light Craft & Sound Pvt. Ltd. , a leading film equipment rental company in India, recently selected PROLIGHTS Astra Wash37Pix fixtures for the commercial directed by Paper Planes Pictures . The Director of Photography, Jay Charola , envisioned an arena-style
SoMMedia Studio Enhances Production Quality with PROLIGHTS studio fixtures
March 20, 2025
SoMMedia Studio Enhances Production Quality with PROLIGHTS studio fixtures
SoMMedia Studio elevates its production capabilities with an updated PROLIGHTS lighting rig, ensuring an enhanced  visual quality for project. The SoMMedia video production studio offers a perfect balance between functionality and aesthetics, tailored
CPC Production Services relies on PROLIGHTS for professional lighting
March 14, 2025
CPC Production Services relies on PROLIGHTS for professional lighting
Ipswich, Queensland - With a legacy of excellence dating back to 1984, CPC Production Services is a leading live event and broadcast production company in Australia. It has recently chosen to invest in PROLIGHTS solutions, supplied by Show Technology
PROLIGHTS Lights Up the Stage at Vibe Budapest
March 12, 2025
PROLIGHTS Lights Up the Stage at Vibe Budapest
The newly opened Vibe Budapest , the latest gem of the Costes Group , has chosen PROLIGHTS solutions to create spectacular lighting effects and an engaging atmosphere. The lighting system design and installation were managed by LISYS-Project Kft ., which
PROLIGHTS presents ÆtherBox: the single-universe CRMX transceiver with IP65 rating and multi-protocol support
March 11, 2025
PROLIGHTS presents ÆtherBox: the single-universe CRMX transceiver with IP65 rating and multi-protocol support
PROLIGHTS is proud to announce the launch of ÆtherBox , a single-universe CRMX transceiver with an IP65 protection rating, designed to offer versatility and robustness in any environment, from indoor venues to outdoor stages. With a wide range of connectivity
PROLIGHTS Illuminates the 4th Global Ministerial Conference on Road Safety in Morocco
March 07, 2025
PROLIGHTS Illuminates the 4th Global Ministerial Conference on Road Safety in Morocco
The 4th Global Ministerial Conference on Road Safety , held in Morocco, was a landmark event in the global effort to improve road safety. The conference brought together ministers, experts, and stakeholders globally to discuss innovative strategies and
Baycourt Community & Arts Centre Upgrades Stage Lighting with PROLIGHTS Solutions
March 04, 2025
Baycourt Community & Arts Centre Upgrades Stage Lighting with PROLIGHTS Solutions
Baycourt Community & Arts Centre , situated in the heart of downtown Tauranga, is the Bay of Plenty's premier performing arts facility. Designed to serve both the local community and international touring productions, the venue provides cutting-edge spaces
Subscribe to our Newsletter
Loading...
