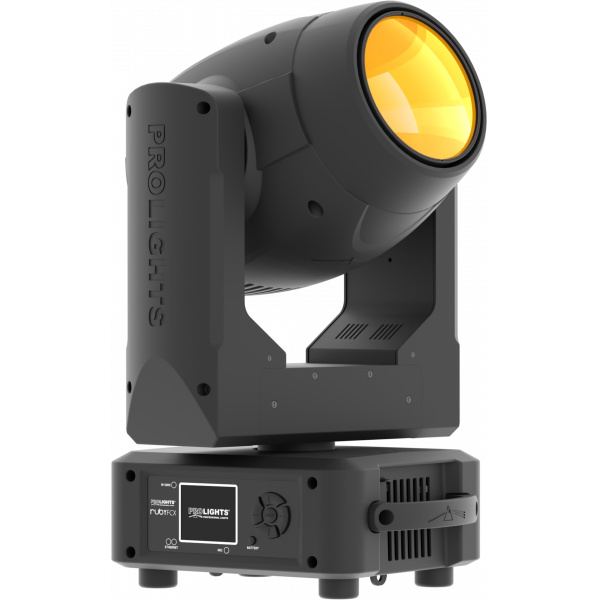

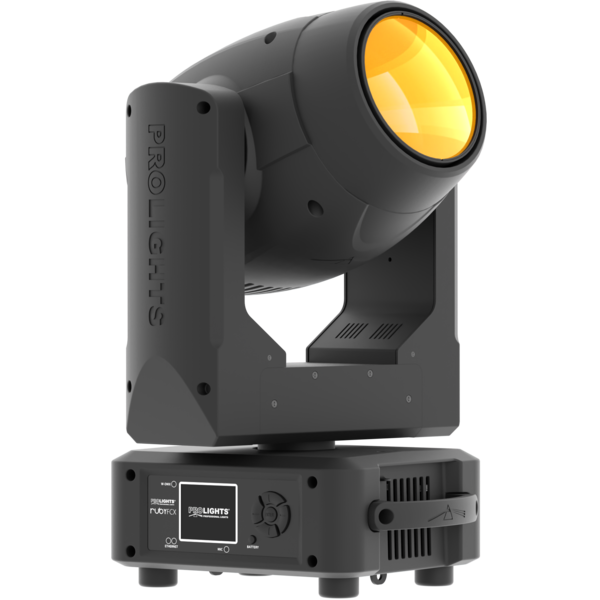

Ruby FCX

ORDER CODE: RUBYFCX

50W RGB FC LED beam light with infinite rotation

The Ruby FCX is a LED replacement for a discharge beam light. Maintaining the bright, tight,  2° beam and adding full colour mixing through the high-efficiency RGB source.
Ruby FCX is packed with all the features you would expect from a beam effect moving the light - such as gobos, 8f circular and 6f linear prism, frost and infinite pan and tilt rotation.

Main features:

  • 50W RGB LED source incredibly bright and colourful
  • Infinite pan & tilt rotation delivers new aerial effects
  • Control through DMX, Art-Net and Wireless DMX
See variants

PHOTO GALLERY

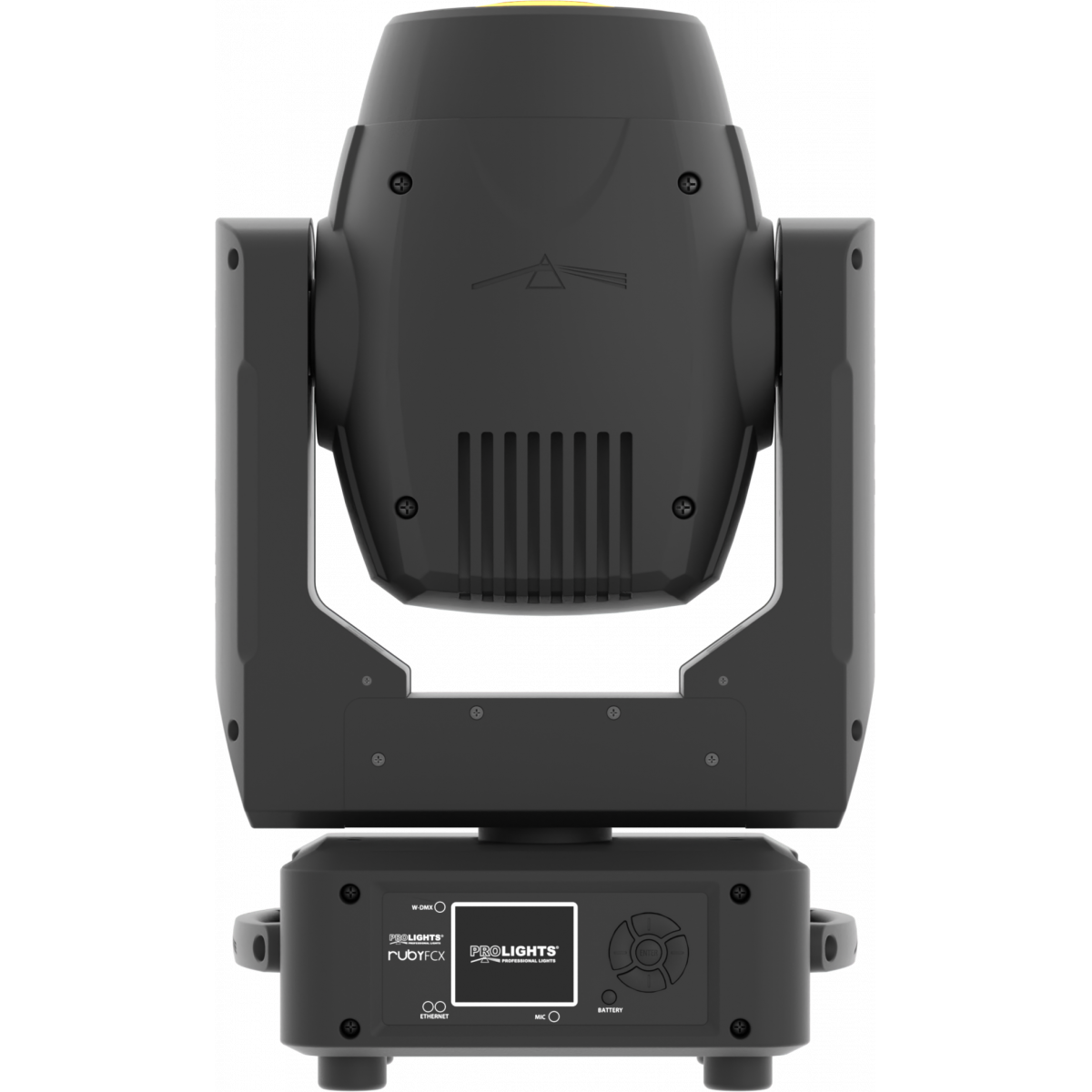

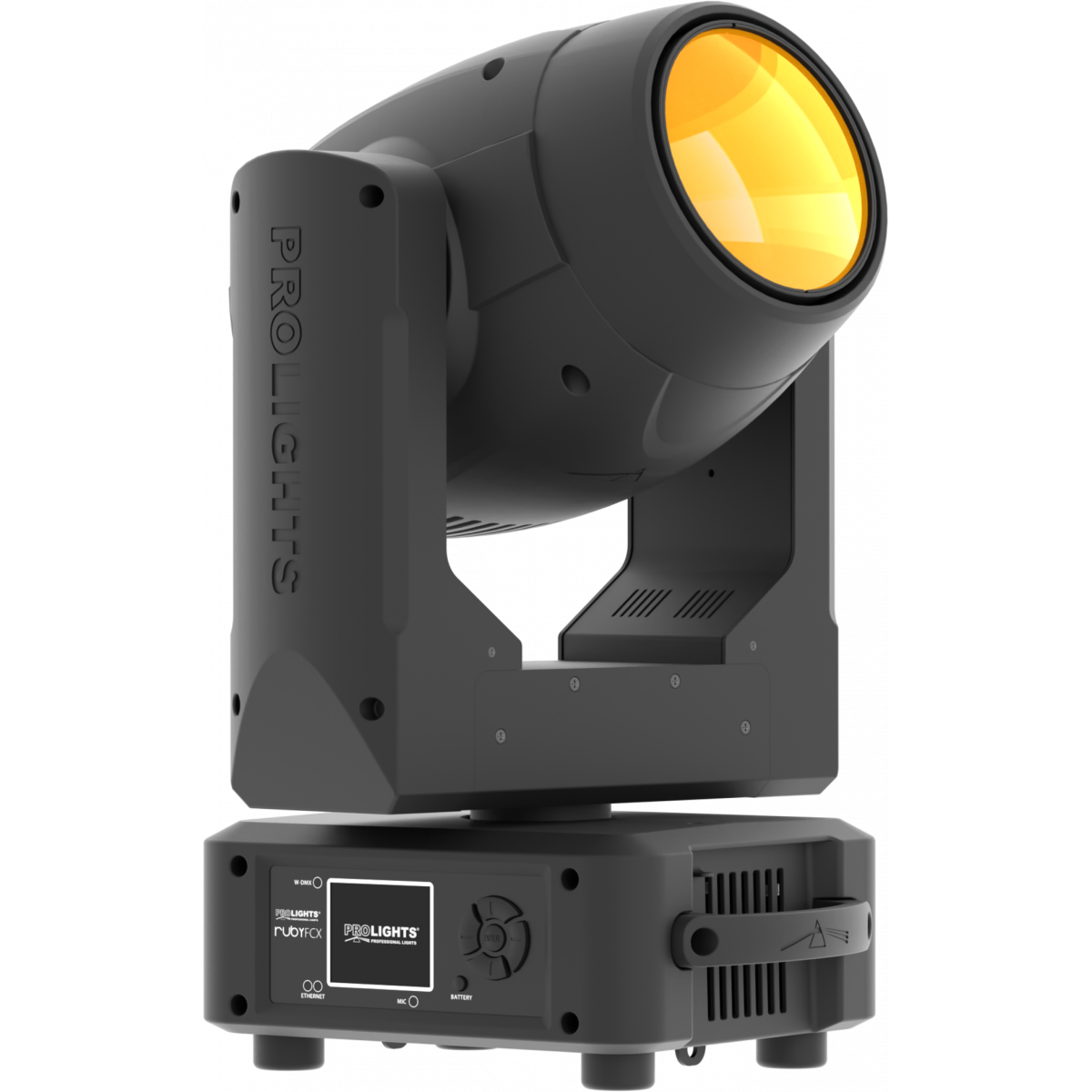

Ruby FCX
Ruby FCX
Ruby FCX
Ruby FCX

Technical specifications

LIGHT SOURCE
  • Source: 50W RGB LED
  • Lux: 141'929lx @3 m full
  • Lux: 51'094lx @5 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 2°
  • Lens diameter: 116mm / 4.57''
  • Lens type: high-quality glass lens optics
  • Focus: motorised
COLOUR SYSTEM
  • Colour mixing: RGB / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.000 K - 8.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Fixed gobos: 17 fixed gobos + open
  • Circular prism: 8f with bi-directional rotation, indexing
  • Linear prism: 6f with bi-directional rotation, indexing
  • Frost: frost unit to soften the beam edge
BODY
  • Pan range: 540° / 630° with 360° continuous rotation
  • Tilt range: 265° with 360° continuous rotation
  • Pan/Tilt resolution: bit 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, Art-Net, W-DMX
  • DMX channels: 18 / 20 / 22 / 23channel
  • Wireless Control: included, wireless solution receiver
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included)
  • Hibernation: power safe mode when lost DMX
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: 0° ~ +45° Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 122W
  • Max power consumption (at 120V): 124W
  • Standby power: 56.5W
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: Art-Net RJ45 IN/OUT
  • Power connection: Seetronic powerCON IN/OUT connectors
  • Dimensions (WxHxD): 194x311x133mm / 7.64''x12.24''x5.24''
  • Weight: 12kg / 26.46lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6016B
C6016B
(Optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black&White& White
OS24D13
OS24D13
(Included)
Quick-lock omega bracket, M12 hole
FCLRUBYFCX
FCLRUBYFCX
(Optional)

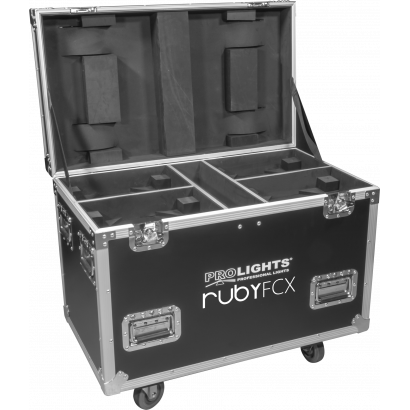

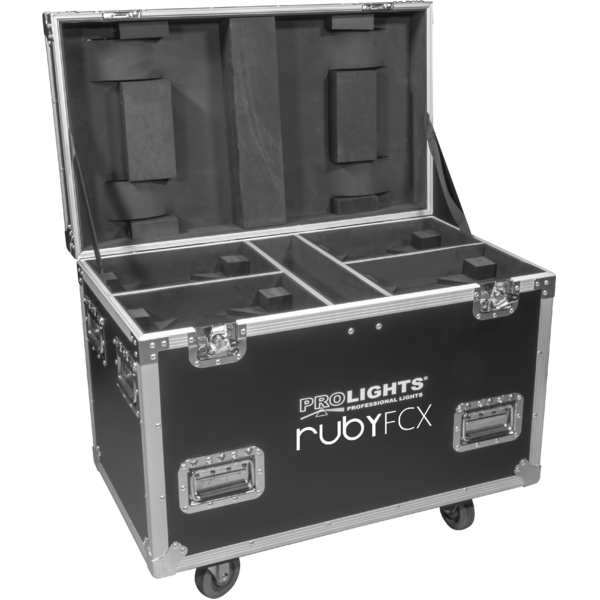

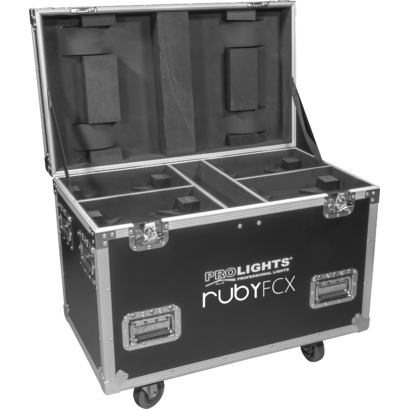

Flight case for 4pcs of RUBYFCX
FCLSHINE332
FCLSHINE332
(Optional)

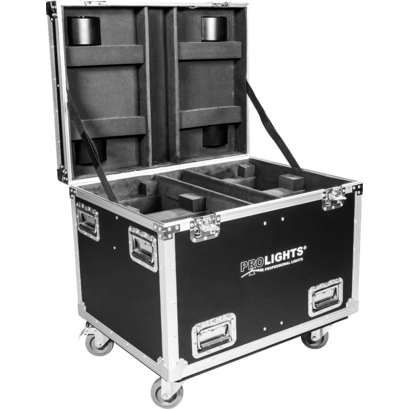

Flight case for 4pcs of RUBY / ONYX / CRYSTAL / RUBYFCX
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
