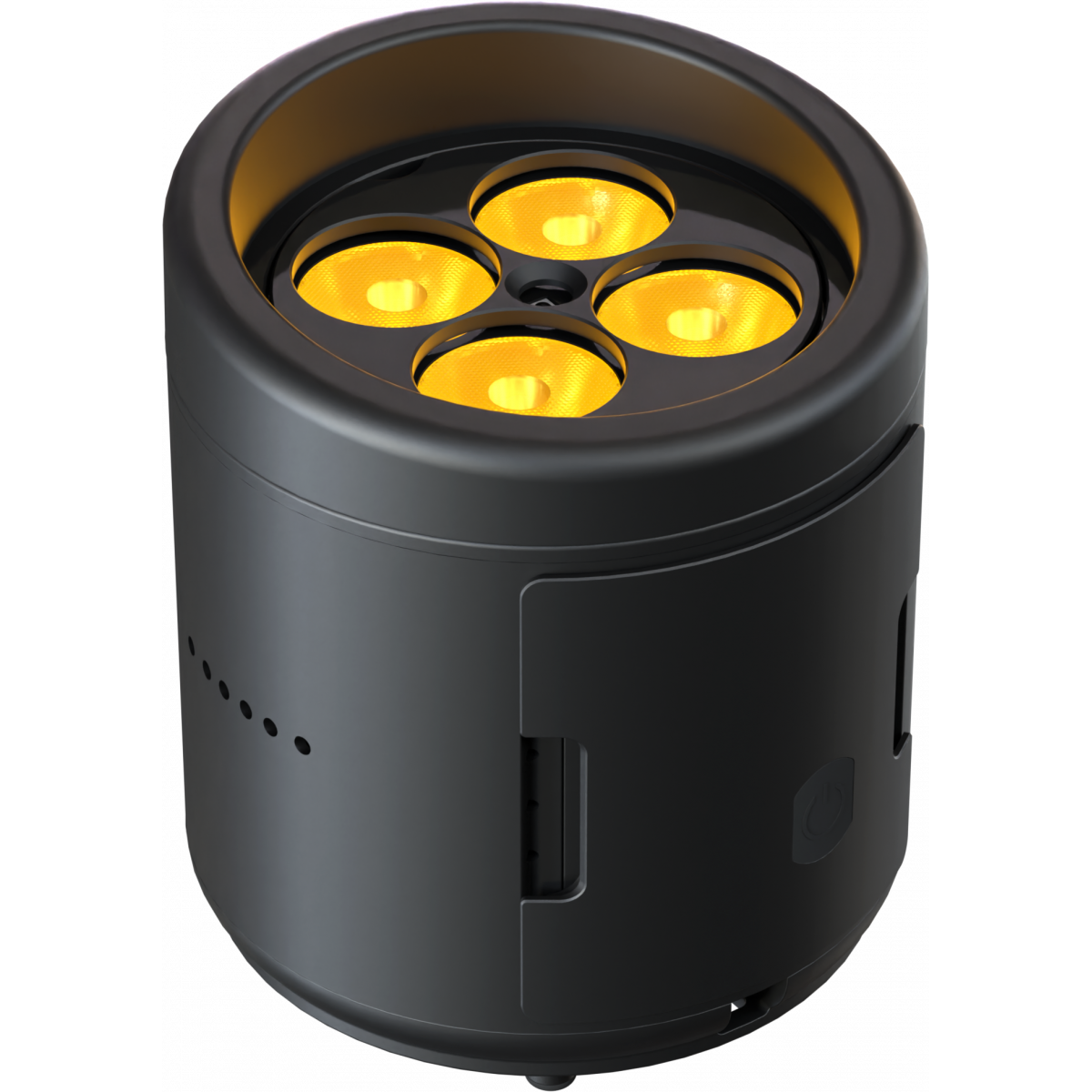

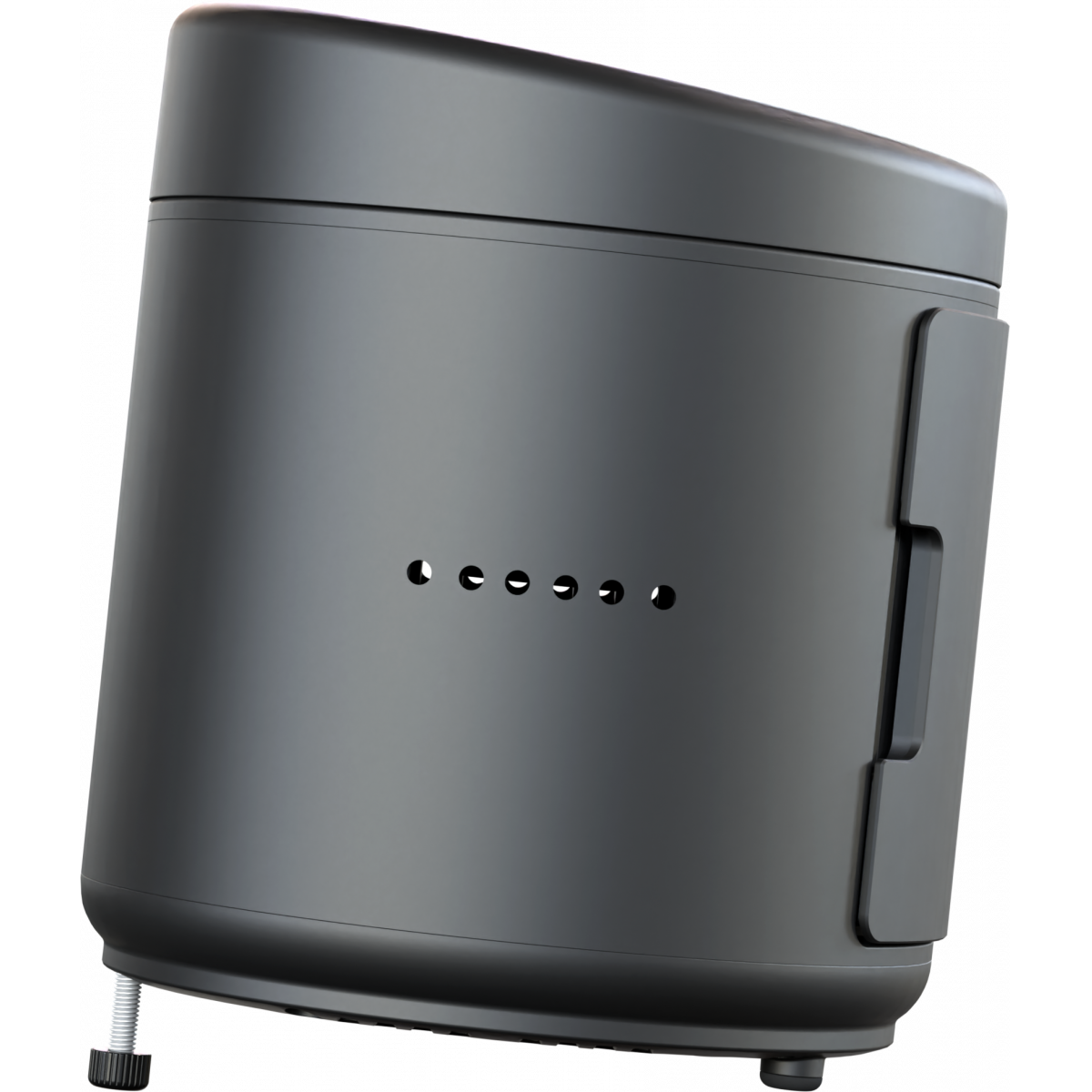

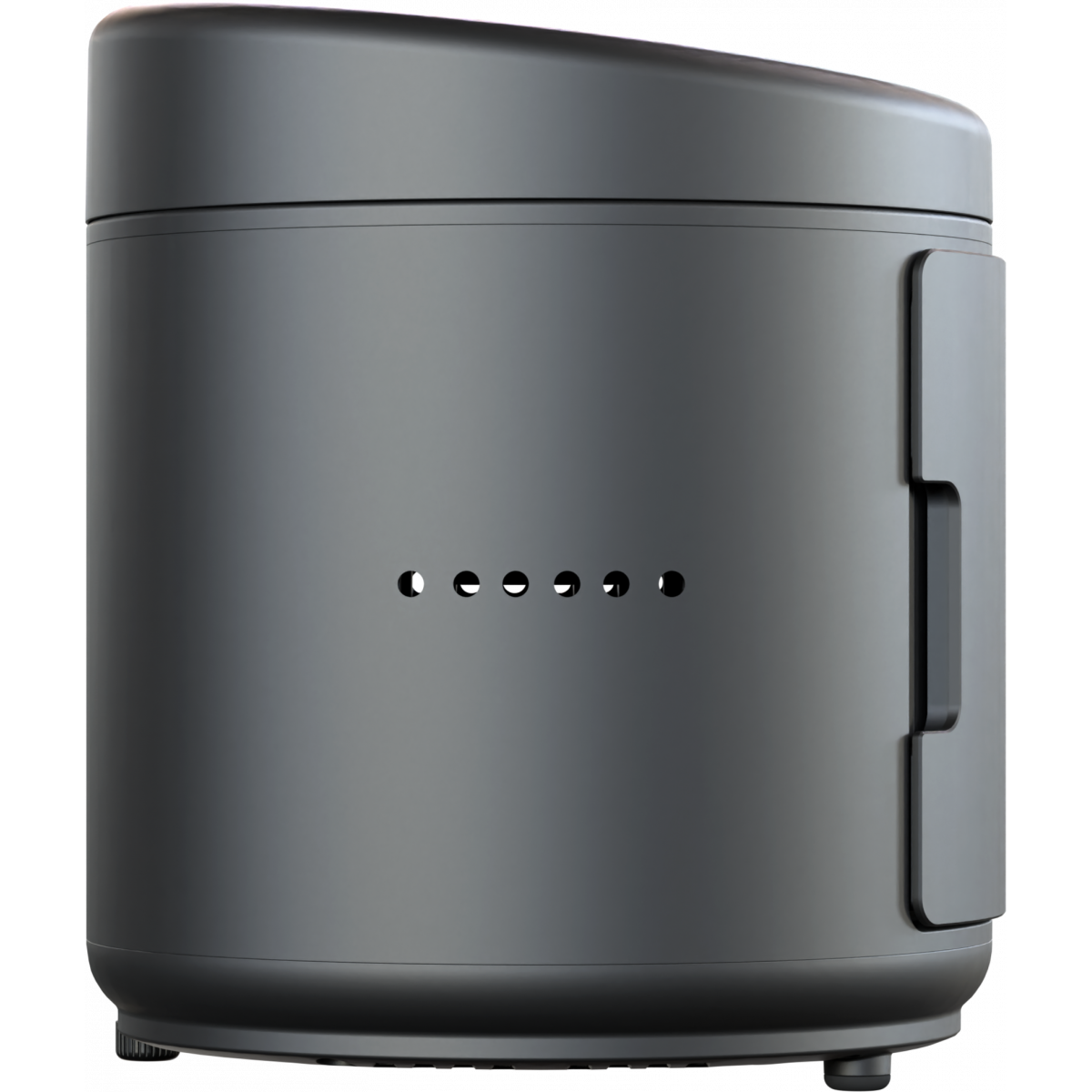

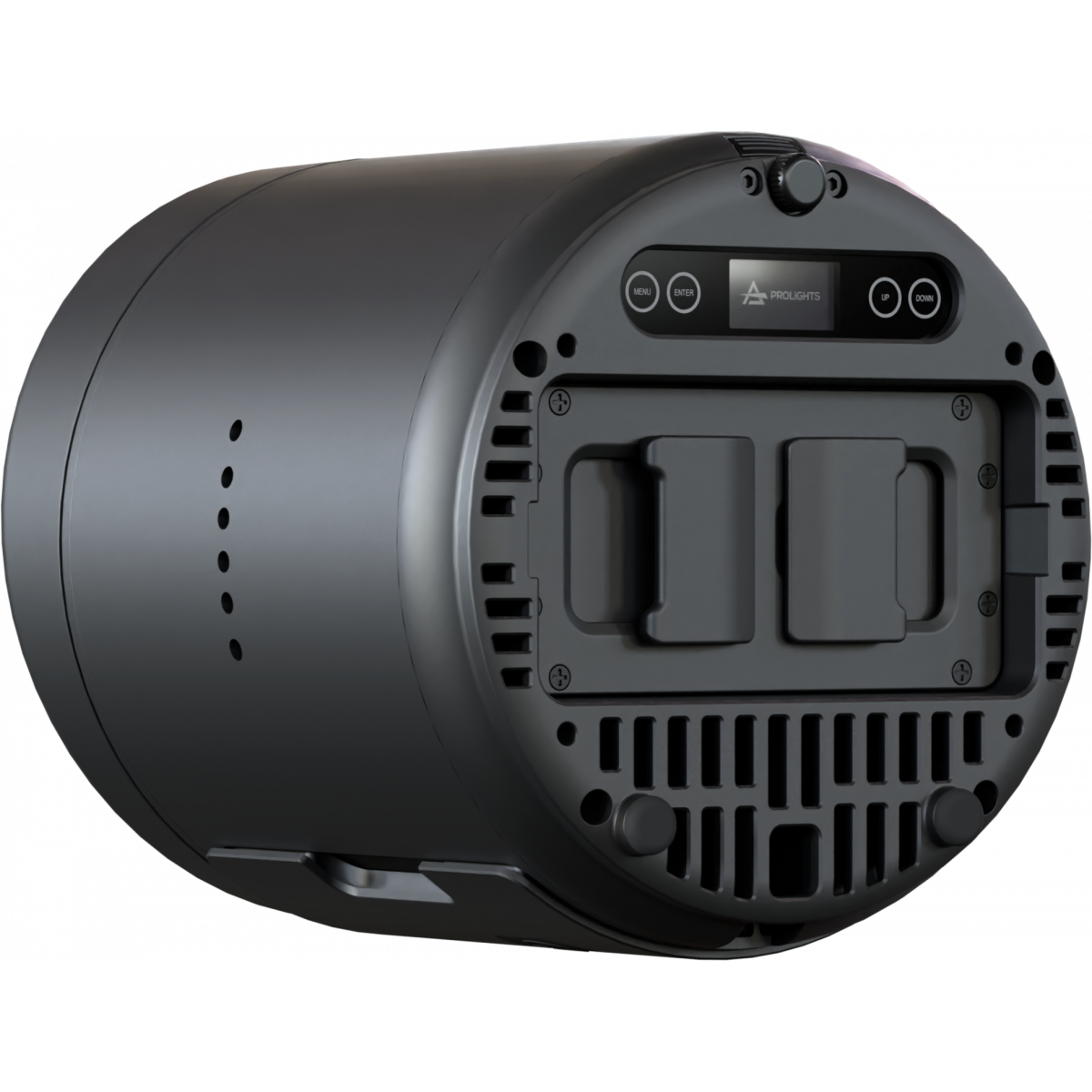

Smart BatPlusG2

ORDER CODE: SMARTBATPLUSG2

4x20W hybrid battery uplighter/spot, IP65, with RGB + Warm White LED source, wireless or wired

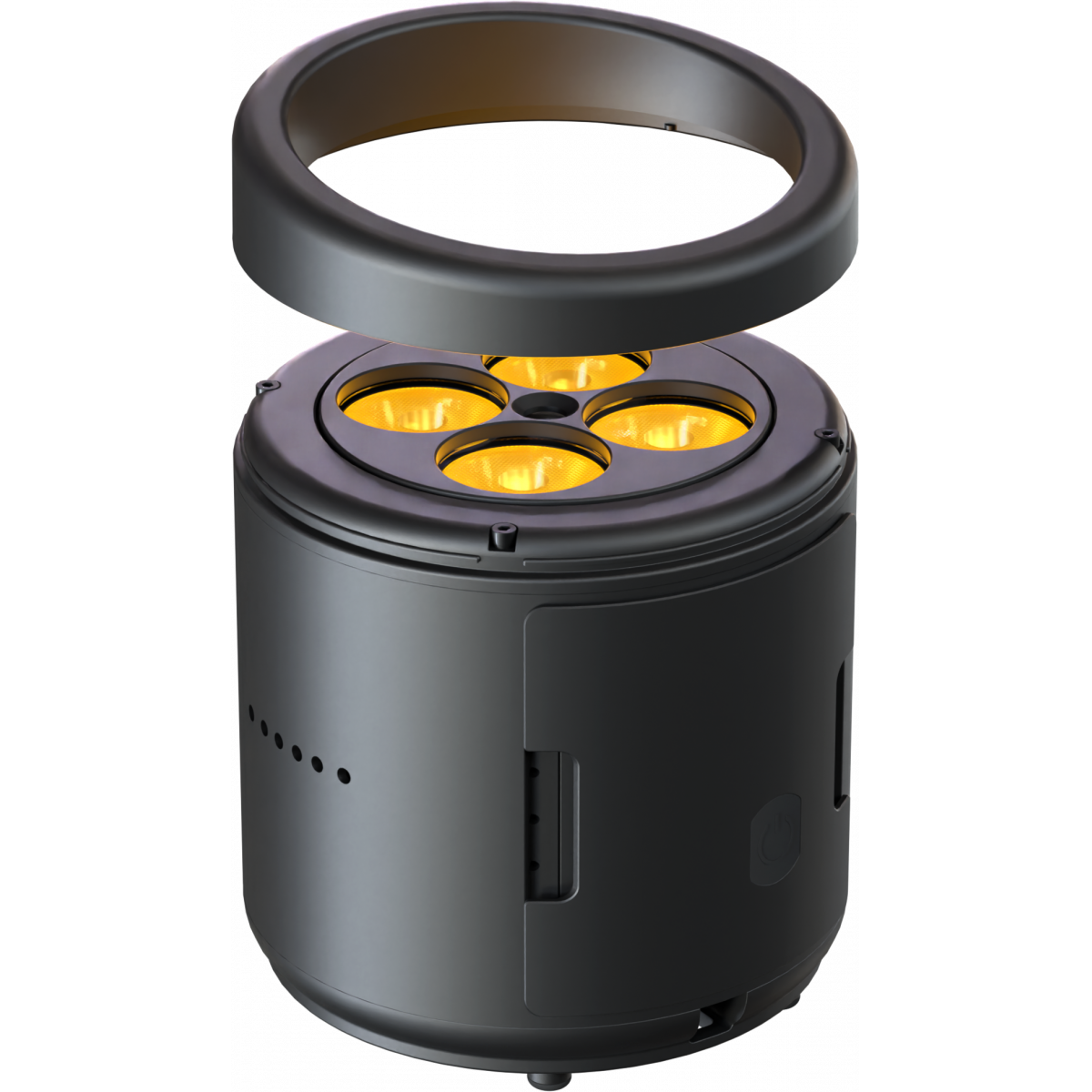

The Smart BatPlusG2 is a high-end version of the iconic Smart Bat uplighters designed with enhanced output and battery performance, IP65 with a stunning new look.
The clever mechanical design of the Smart BatPlusG2 allows turning the unit from an uplighter into a spot/flood light by combining filters, using the suspension yoke or floor bracket without compromising the aesthetics of the fixture.
The Smart BatPlus G2 introduces new features such as interchangeable batteries and easy covers with multiple colours, making it possible to change its look as desired.
The 4x20W RGB + Warm White LED emitters are Spektra™ calibrated and guarantee incredibly high-quality white CCT reproduction (CRI>93) and boosted output when operated directly through mains.
The Smart BatPlusG2 is very user-friendly - it can be used wirelessly with a built-in battery, CRMX/W-DMX and RDM control, or wired through the PSU and XLR connectors (bypassing the battery).

SPEKTRAMain features:

  • Multipurpose design: uplighter/spotlight, customisable coloured covers
  • Wireless DMX (CRMX+W-DMX) / wired control, battery/PSU power
  • 4x20W RGB + Warm White calibrated LED source with high CRI (>93)
  • Interchangeable battery and magnetic holographic filters for multiple beam angles

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 4x20W RGB + Warm White LED
  • Luminous flux: 2'051lm @full
  • Lux: 1'723lx @5 m without filter
  • CRI: 94 @3.200 K; 92 @5.600 K
  • R9: 96 @3.200 K; 96 @5.600 K
  • TLCI: 92 @5.600 K
  • TM30 Rf: 93 @3.200 K; 91 @5.600 K
  • TM30 Rg: 105 @3.200 K; 106 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 10°
  • Additional optics: filters to achieve 20°, 40°, 60°, 10°x60°
COLOUR SYSTEM
  • Colour mixing: RGBWW
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2'800K - 10'000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 9004
  • Other: Quick release foot to achieve 20° adjustable tilt
CONTROL
  • Protocols: CRMX+W-DMX, DMX512, RDM
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • IR: infrared sensor controlled by remote
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: 0° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: (with mains) 80W
  • Power factor: >0,98

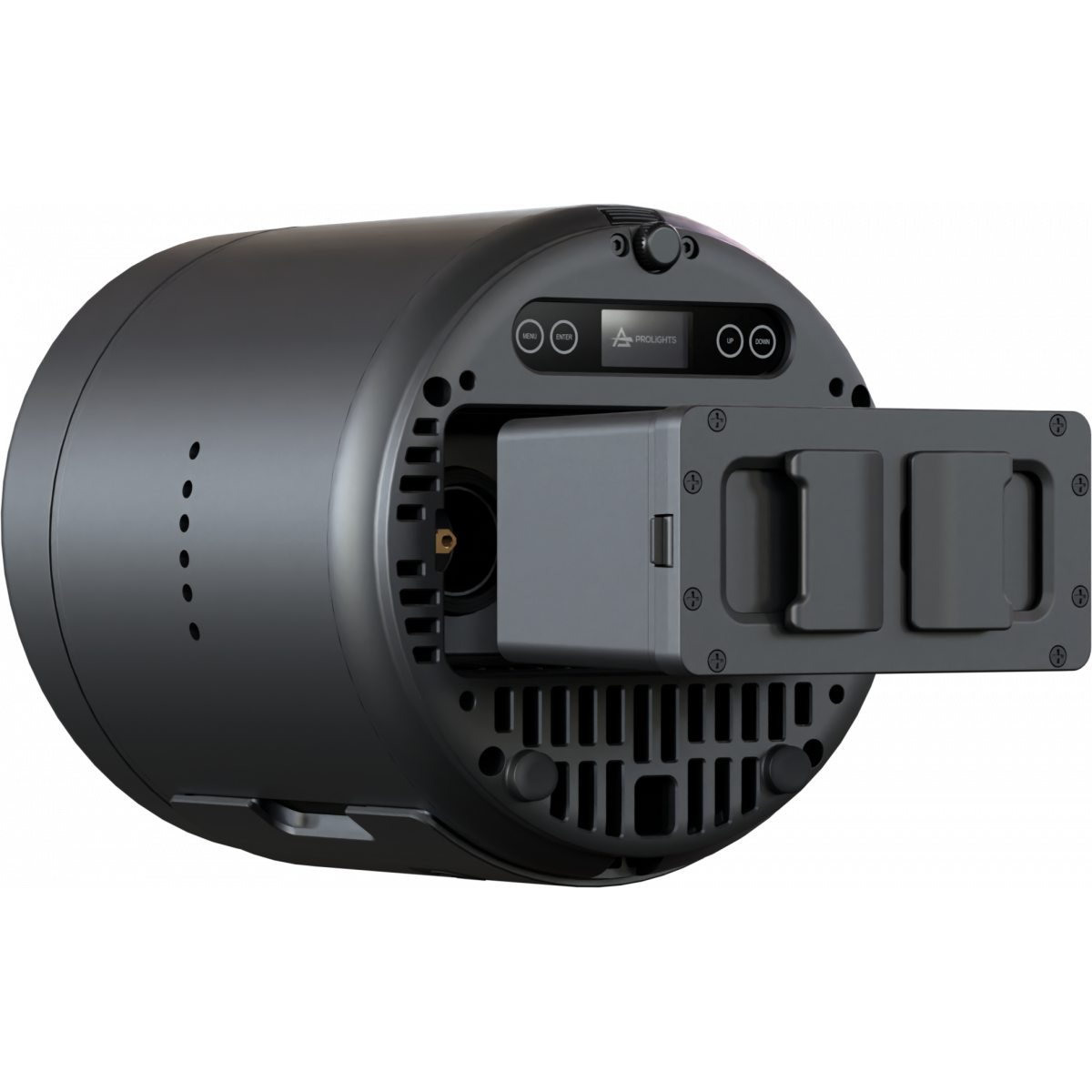

BATTERY
  • Battery: removible 16,8V lithium
  • Estimated battery life: Selectable 3h / 6h / 8h / 12h / 16h / 18h
  • Re-charge connection: Battery Pack fast-charge in Case
  • Re-charge time: 4h/max
  • Battery status: shown on display
  • Other: Battery recharge in AC and DC, operation in main power with possibility to disable battery recharge throught software and charging operation in flightcase through the quick charger connector
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: bracket for hanging and positioning

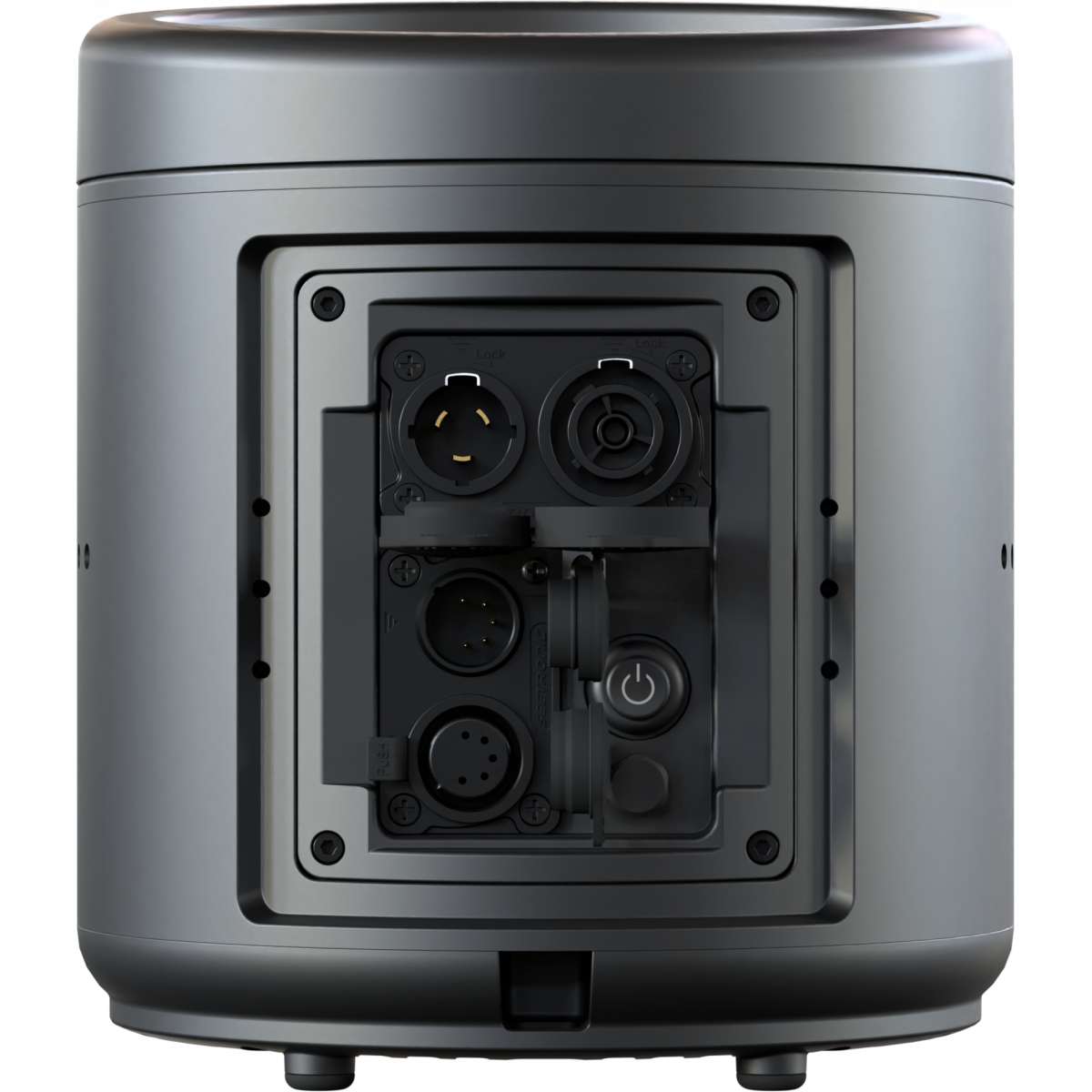

  • Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
  • Power connection: IP65 Seetronic powerCON IN/OUT connectors
  • Dimensions (WxHxD): 192x188x192mm / 7.56''x7.4''x7.56''
  • Weight: 5,7kg / 12.57lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

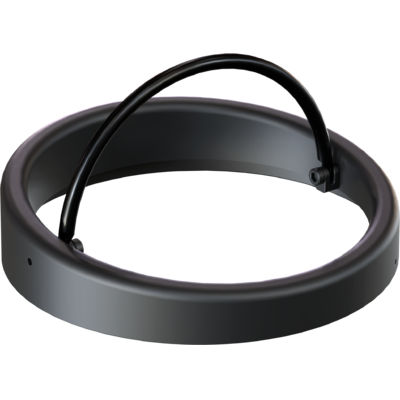

SBPG2HSHANDLE
SBPG2HSHANDLE
(optional)

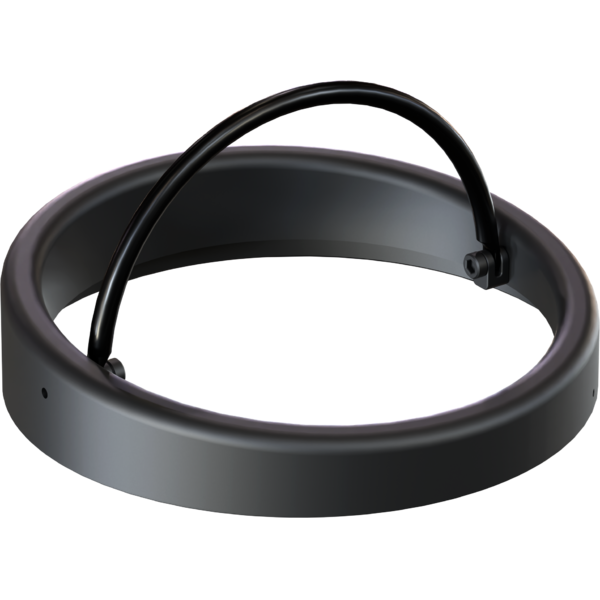

Half snoot with handle for SMARTBATPLUSG2

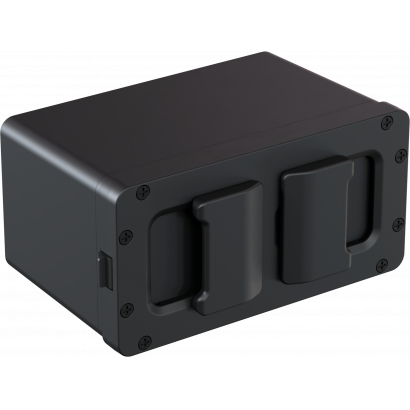

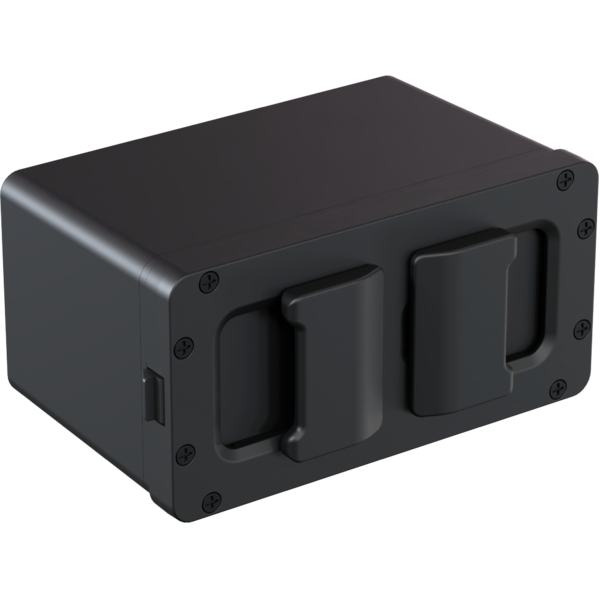

SBPG2BAT
SBPG2BAT
(included)
Single battery for SMARTBATPLUSG2

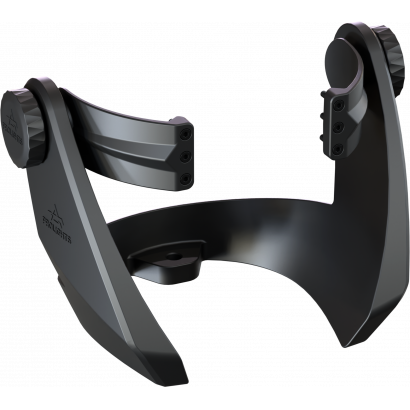

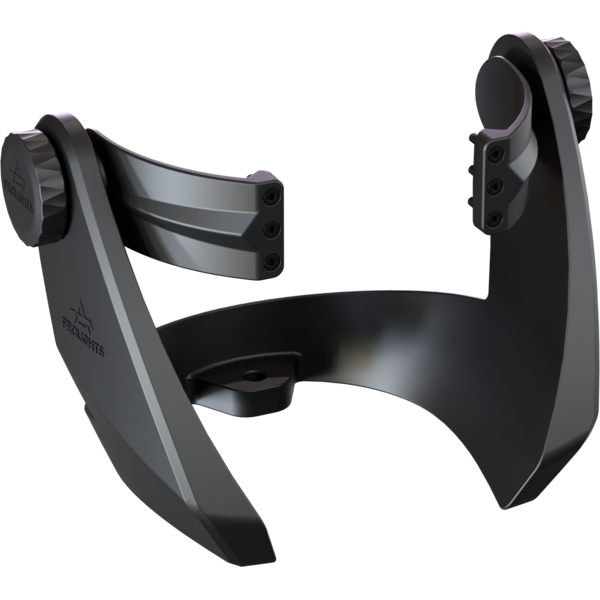

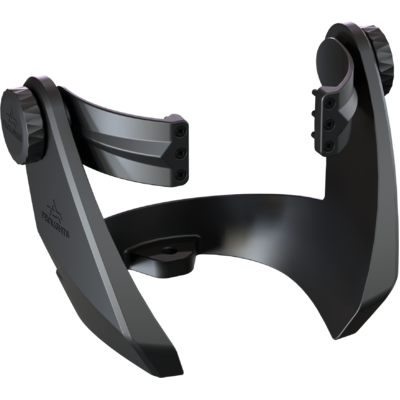

SBPG2FYBK
SBPG2FYBK
(optional)
Floor bracket for SMARTBATPLUSG2, black

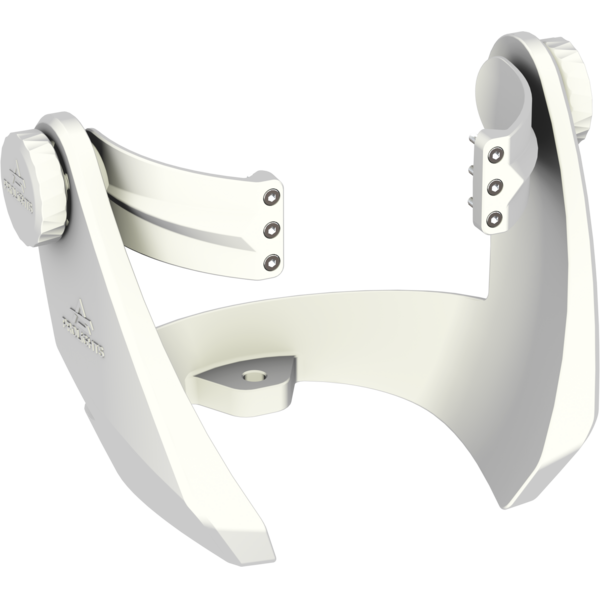

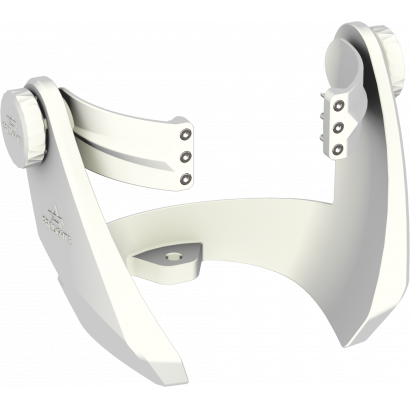

SBPG2FYWH
SBPG2FYWH
(optional)
Floor bracket for SMARTBATPLUSG2, white

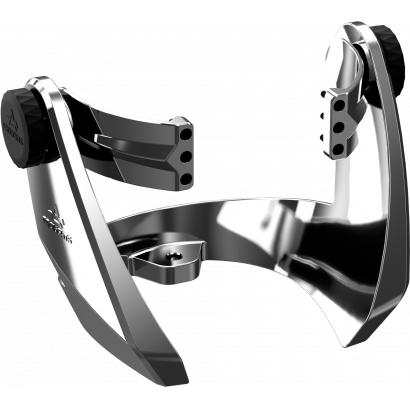

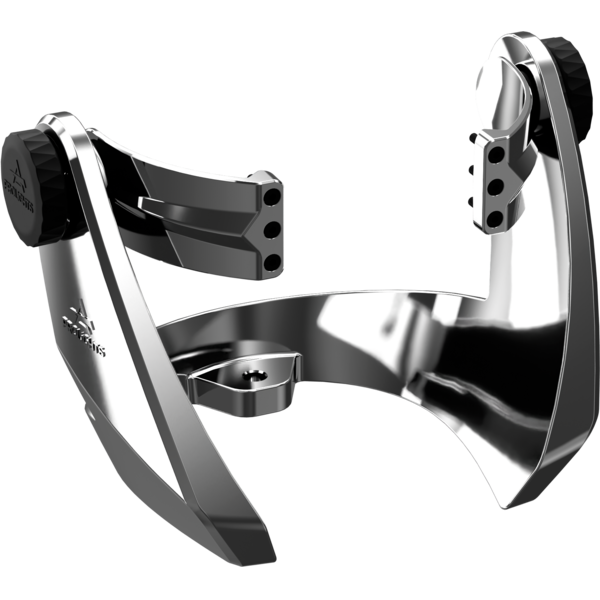

SBPG2FYCR
SBPG2FYCR
(optional)
Floor bracket for SMARTBATPLUSG2, chrome

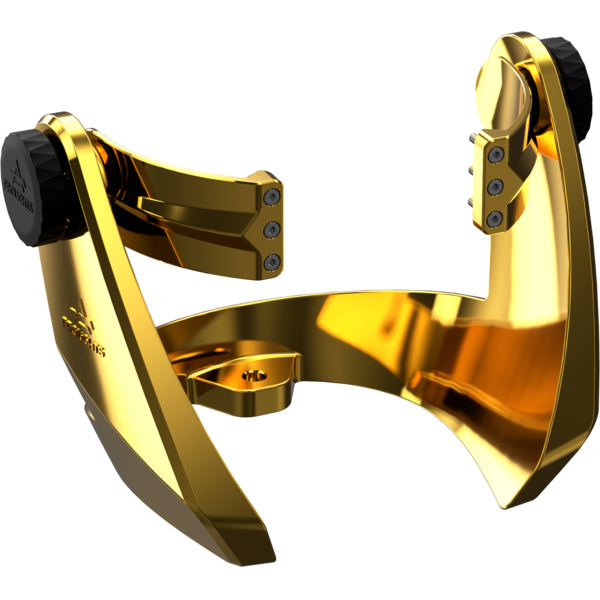

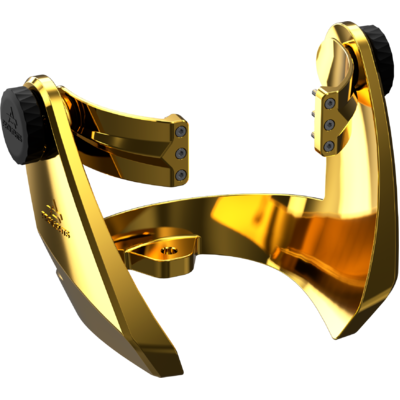

SBPG2FYGL
SBPG2FYGL
(optional)
Floor bracket for SMARTBATPLUSG2, gold

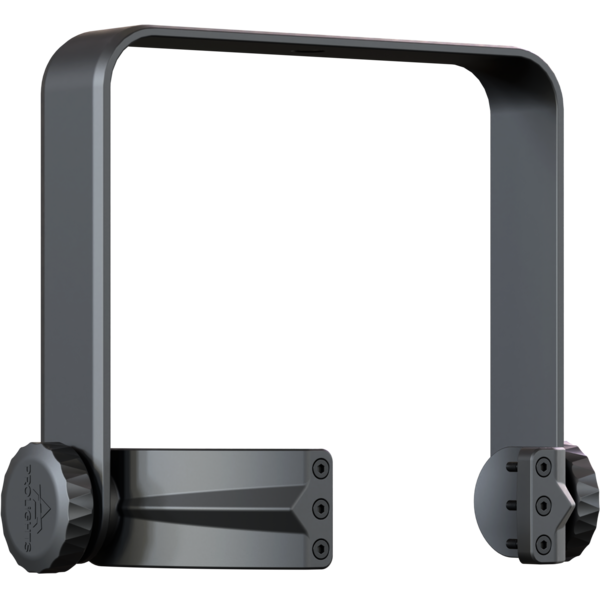

SBPG2HYBK
SBPG2HYBK
(optional)
Hanging bracket for SMARTBATPLUSG2, black

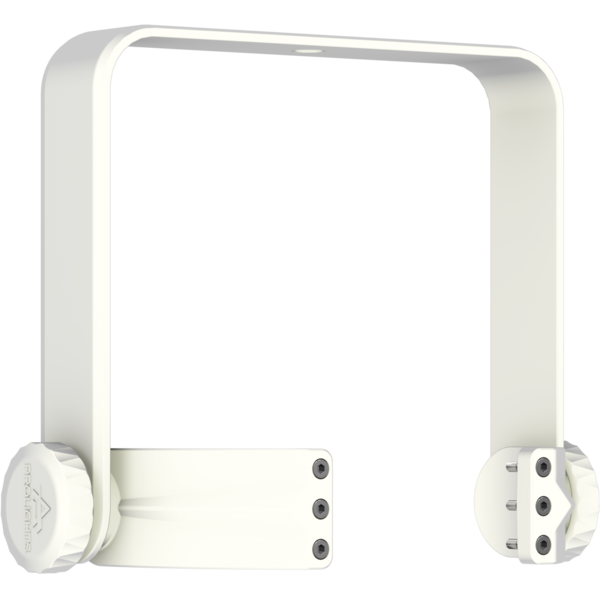

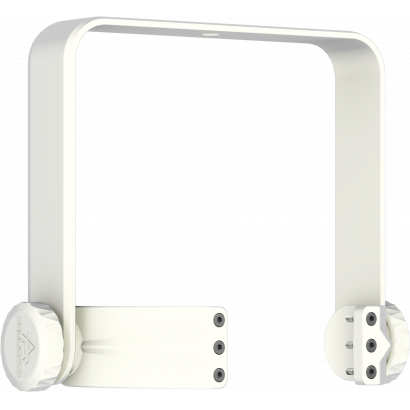

SBPG2HYWH
SBPG2HYWH
(optional)
Hanging bracket for SMARTBATPLUSG2, white

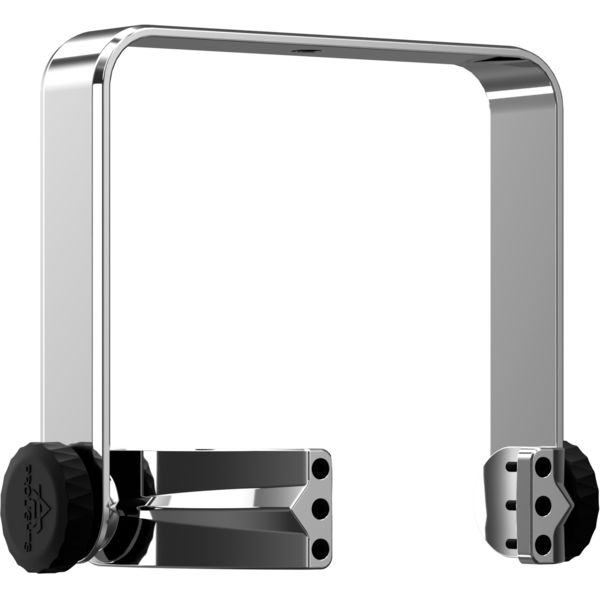

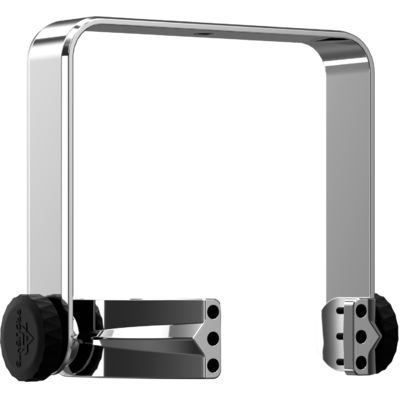

SBPG2HYCR
SBPG2HYCR
(optional)
Hanging bracket for SMARTBATPLUSG2, chrome
SBPG2HYGL
SBPG2HYGL
(optional)

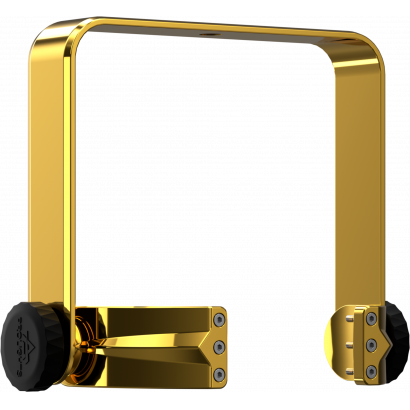

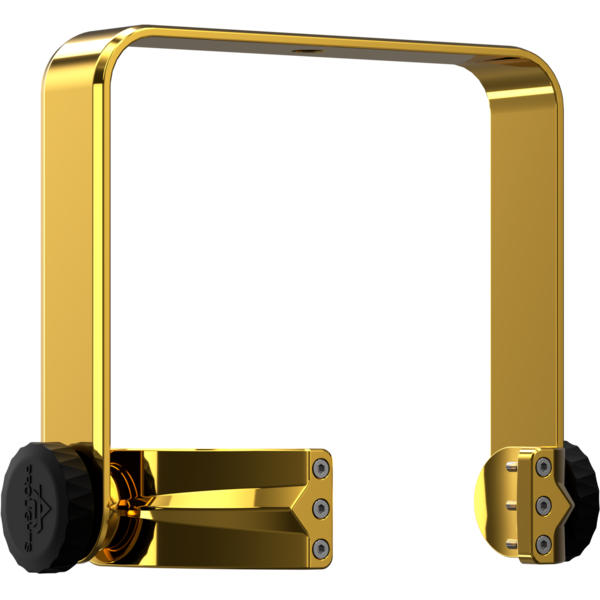

Hanging bracket for SMARTBATPLUSG2, gold

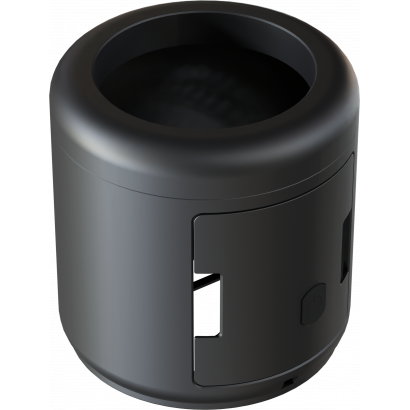

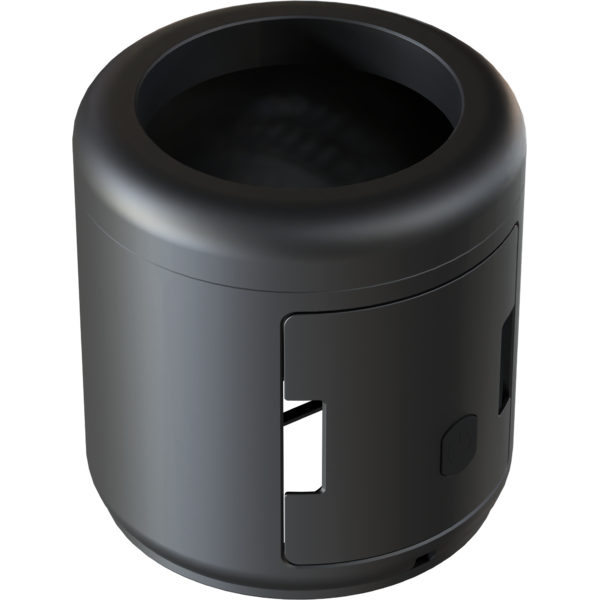

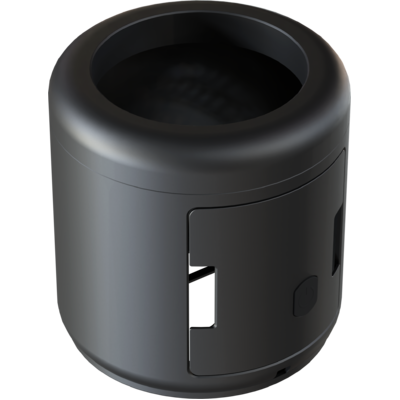

SBPG2CKBK
SBPG2CKBK
(optional)
Cover kit for SMRATBATPLUSG2, black

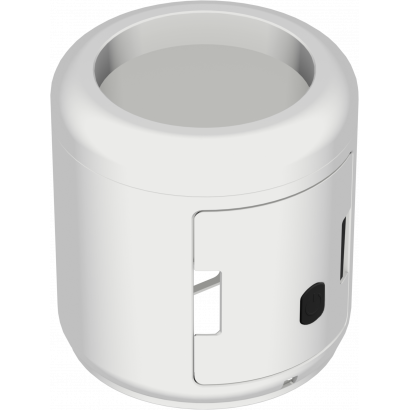

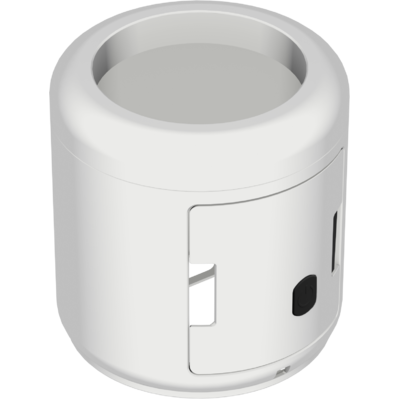

SBPG2CKWH
SBPG2CKWH
(optional)

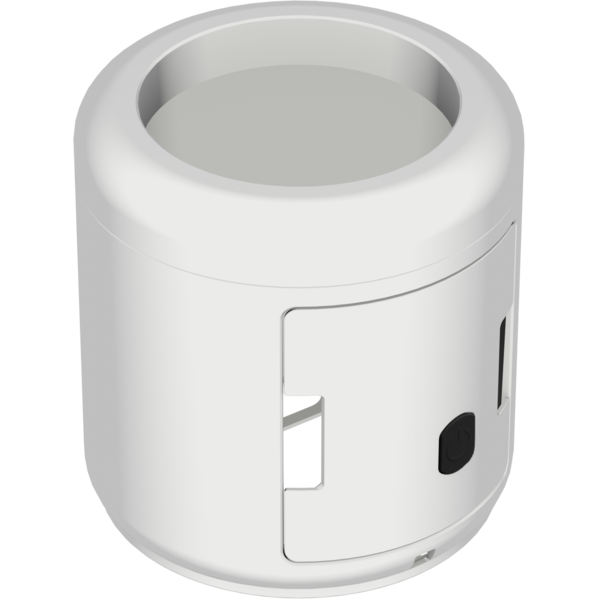

Cover kit for SMRATBATPLUSG2, white

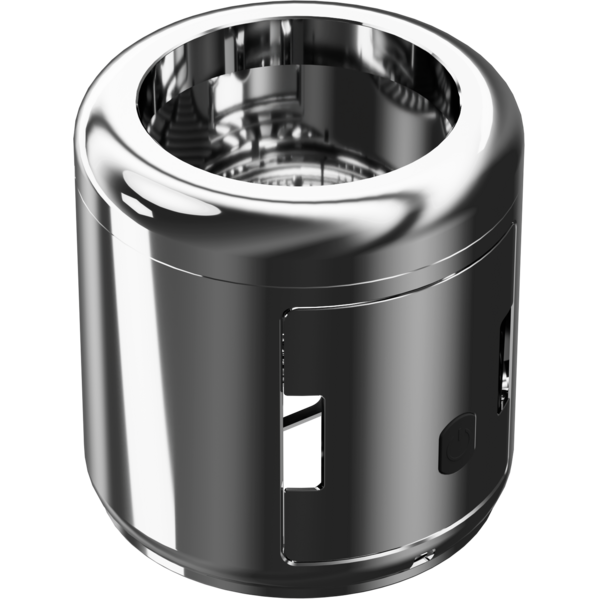

SBPG2CKCR
SBPG2CKCR
(optional)

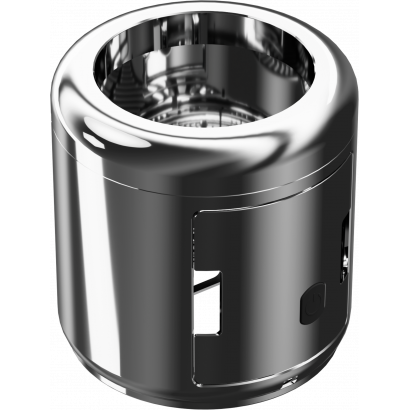

Cover kit for SMRATBATPLUSG2, chrome

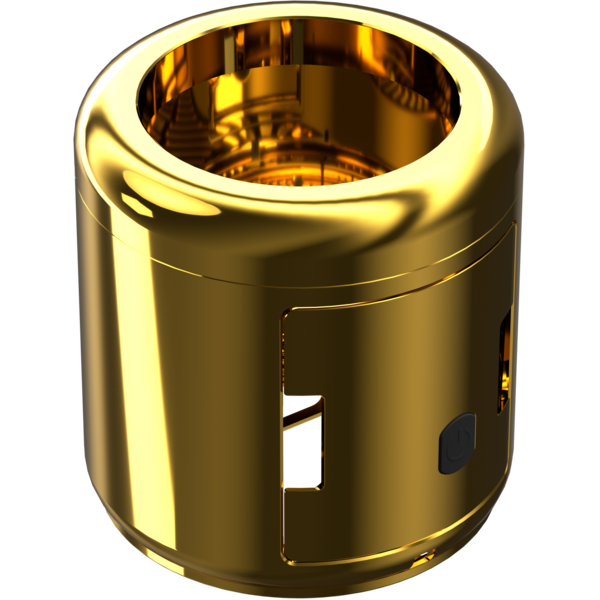

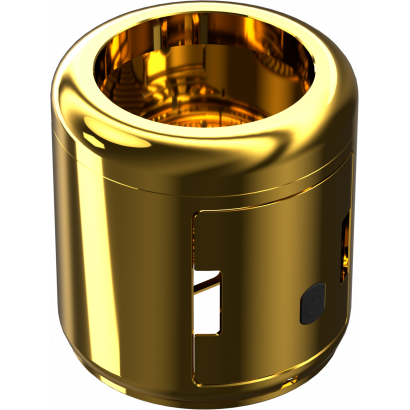

SBPG2CKGL
SBPG2CKGL
(optional)
Cover kit for SMRATBATPLUSG2, gold
SBPG2FILTER20
SBPG2FILTER20
(optional)
Simmetric 20° light diffusion filter for SMARTBATPLUSG2 projector
SBPG2FILTER40
SBPG2FILTER40
(optional)
Simmetric 40° light diffusion filter for SMARTBATPLUSG2 projector

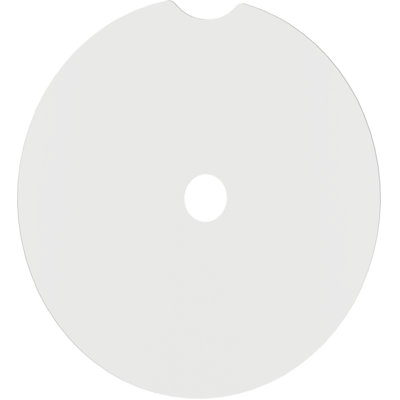

SBPG2FILTER60
SBPG2FILTER60
(optional)

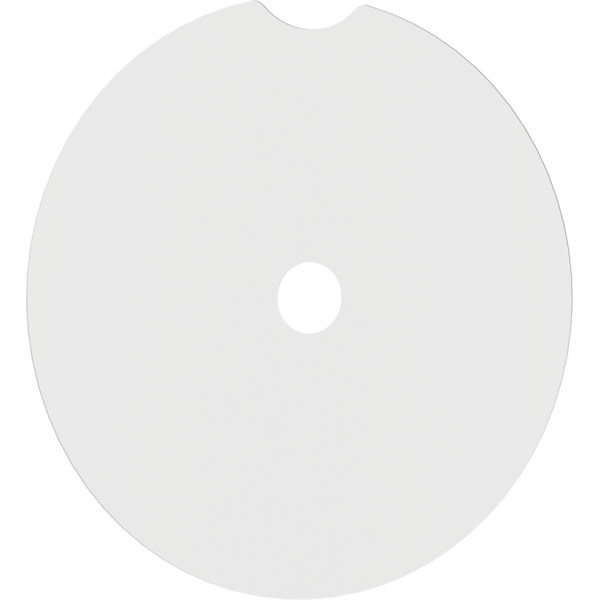

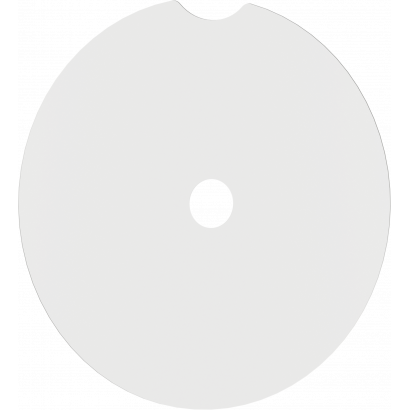

Simmetric 60° light diffusion filter for SMARTBATPLUSG2 projector
SBPG2FILTER1060
SBPG2FILTER1060
(optional)
Asymmetric 10°x60° Light diffusion filter for SMARTBATPLUSG2 projector

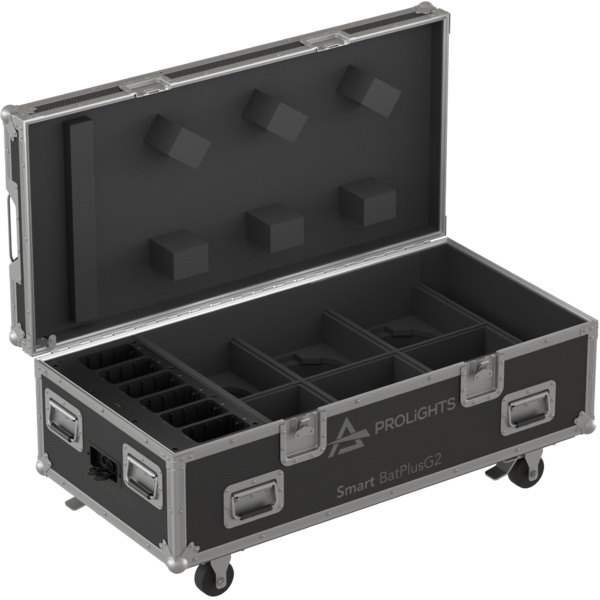

FCLPLUSSBPG2
FCLPLUSSBPG2
(optional)
Flight case for 6 SMARTBATPLUSG2 with brackets on-board,battery charger included

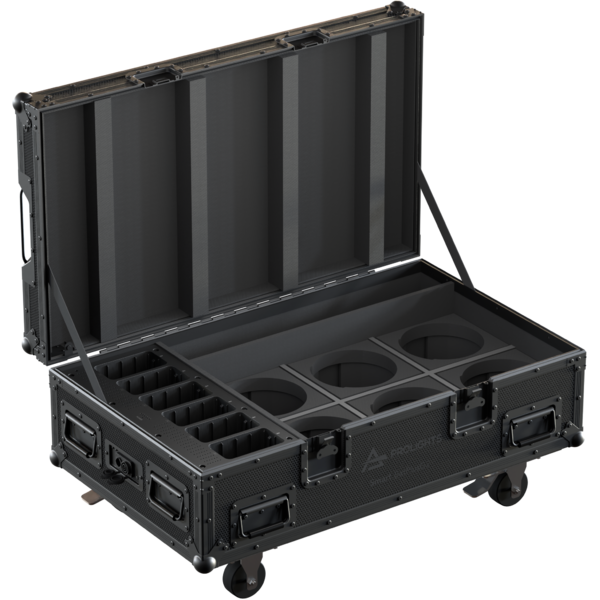

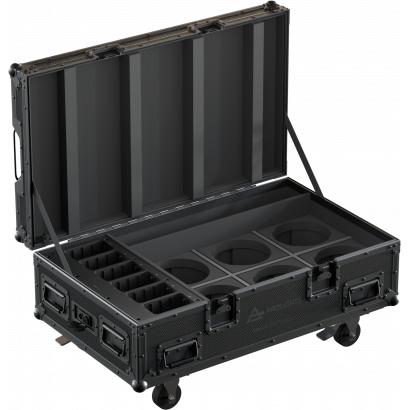

FCLSMARTBATPG2
FCLSMARTBATPG2
(optional)
Flight case for 6 SMARTBATPLUSG2, battery charger included
SBPG2POWER
SBPG2POWER
(optional)
Charger for 2 x SBPG2BAT battery for SMARTBATPLUSG2
SBPG2BCC
SBPG2BCC
(optional)
Battery compartment closing cap for SMARTBATPLUSG2
PRL-IRC
PRL-IRC
(optional)
RGBWA IR controller, 29 buttons, manual/static colours, auto programs, fade
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
IPTESTBOX
IPTESTBOX
(optional)
Portable vacuum and pressure tester for ProLights IP fixtures
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Smartbatplusg2_A4_DATASHEET_(EN).pdf 547KB
Letter datasheet Smartbatplusg2_LETTER_DATASHEET_(EN).pdf 556KB
Tender Specification Smartbatplusg2_TENDER_SPECIFICATION.pdf 3MB

User manual

File name File size Download
User manual GENERAL_BATTERY_SAFETY_INFO.pdf 3MB
User manual Smartbatplusg2_USER_MANUAL_EN.pdf 4MB
General safety info GENERAL_SAFETY_INFORMATION.pdf 10MB
User manual Smartbatplusg2_Wireless_Protocol_Compatibilit_EN.pdf 4MB

DMX chart & personalities

File name File size Download
DMX chart Smartbatplusg2_DMX_CHARTS.pdf 118KB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 306MB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 448MB
VectorWorks VECTORWORKS_SYMBOLS.vwx 385KB
VectorWorks +SBPG2CKBK_VECTORWORKS_SYMBOLS.vwx 434KB
VectorWorks +SBPG2HYBK_VECTORWORKS_SYMBOLS.vwx 844KB
VectorWorks +SBPG2FYBK_VECTORWORKS_SYMBOLS.vwx 1MB
VectorWorks +SBPG2HYWH_VECTORWORKS_SYMBOLS.vwx 848KB
VectorWorks +SBPG2CKWH_VECTORWORKS_SYMBOLS.vwx 469KB
VectorWorks +SBPG2FYWH_VECTORWORKS_SYMBOLS.vwx 1MB
VectorWorks +SBPG2CKCR_VECTORWORKS_SYMBOLS.vwx 485KB
VectorWorks +SBPG2HYCR_VECTORWORKS_SYMBOLS.vwx 680KB
VectorWorks +SBPG2FYCR_VECTORWORKS_SYMBOLS.vwx 1MB
VectorWorks +SBPG2CKGL_VECTORWORKS_SYMBOLS.vwx 478KB
VectorWorks +SBPG2HYGL_VECTORWORKS_SYMBOLS.vwx 624KB
VectorWorks +SBPG2FYGL_VECTORWORKS_SYMBOLS.vwx 1MB
SMARTBATPLUSG2 Firmware rev. 1.1.01.0
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
IES prolights_smartbatplusg2_ldt_ies files.zip 140KB
PDF Photometrics Smartbatplusg2_PHOTOMETRICS_REPORT.pdf 6MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D sketchup SMARTBATPLUSG2_3D_SKETCHUP.zip 10MB
2D SMARTBATPLUSG2_2D.zip 16MB
3D SMARTBATPLUSG2_3D.zip 7MB
2D cad symbols SMARTBATPLUSG2_2DSYMBOLS.zip 1MB
Technical drawing SMARTBATPLUSG2_TECHNICAL DRAWINGS.zip 2MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.01.0 STABLE 08/03/2023 New functions:
  • Power Mode selector replaces FIXTURE TYPE.
    Power Mode selector allows you to select between 3 options:
    • BATTERY
      • If fixture is being used (Standalone or DMX/WDMX Active) and AC is plugged in, fixture will draw power from the mains and status of light output won't be affected (only max power will be higher than what available on battery).
      • If fixture is being used (Standalone or DMX/WDMX Active) and AC is plugged out, fixture will draw power from the battery and status of light output won't be affected (only max power will be reduced) .
      • Pressing Power button for 3 seconds without mains present --> fixture will turn on and follow its settings (Standalone or DMX/WDMX)
      • Pressing Power button for 3 seconds while using without mains present --> fixture will turn off.
      • Pressing Power button for 3 seconds while charging --> fixture will turn on and follow its settings (Standalone or DMX/WDMX), or would keep charging if nothing is setted/no signal received
      • Pressing Power button for 3 seconds while using with mains present--> fixture will turn off and start charging.
      • Plugging Mains power for 3 seconds while fixture is off --> fixture will start charghing.
      • Plugging Mains power OFF for 3 seconds while fixture is charghing --> fixture will stop charging and turn off.
    • AC
      • Fixture operates as a standard AC fixture. When AC is plugged in, fixture will turn on and operate normally.
      • If Battery recharge is enabled, battery will be recharged as soon as dimmer is = 0 or by pressing the power button for 3 seconds.
      • If Battery recharge is disabled, battery won't be recharged.
      • Fixture will turn off as soon as AC is plugged out.
    • AC EMERGENCY:
      • Fixture operates as a standard AC fixture. When AC is plugged in, fixture will turn on and operate normally.
      • If Battery recharge is enabled, battery will be recharged as soon as dimmer is = 0 or by pressing the power button.
      • If Battery recharge is disabled, battery won't be recharged.
      • Fixture will turn on at full power with 6000K White as soon as AC is missing. To turn off the fixture user can use control channel dedicated parameter or power button on the fixture.
  • Spektra Calibration: new modes available
    • ON: CCT and colors are fully calibrated, working in the common color space definition set by Spektra. This means that output of multiple fixtures will match with no visible differences. Color Saturation is slightly reduced.
    • PURE COLORS: CCT is calibrated, giving perfect white matching across multiple fixtures, but primary and secondary colors are calibrated to their native color space which allows maximum color saturation. The closer you move towards white, the more closely multiple fixtures will match each other's output. The further you move away from white and the closer you move towards saturated color, the less closely multiple fixtures will match each other's output.
    • OFF:  CCT doesn't guarantee High CRI Values and color output of one fixture may or may not closely match that of other fixtures.
Improvements:
  • Power On/Off button requires 3 seconds to take effect.
  • Improved dimming performances.
  • Jump prediction added to crossfade channel.
Rev. 1.0

Info Request

News

30 November 2023
Rock me Amadeus: PROLIGHTS Astra Wash illuminate the Falco Musical in Vienna
Rock me Amadeus: PROLIGHTS Astra Wash illuminate the Falco Musical in Vienna
For its global premiere on the stage of Vienna's Ronacher Theater, the musical " Rock me Amadeus - The Falco Musical " was brilliantly...
24 November 2023
NicLen expands its inventory with Astra Hybrid330
NicLen expands its inventory with Astra Hybrid330
NicLen has expanded its rental park by acquiring the Astra Hybrid330 . Provided by Lightpower, PROLIGHTS distributor in Germany, this...
21 November 2023
Prolights products on the top of Europe
Prolights products on the top of Europe
PROLIGHTS products took part in the new interactive installation “Top of Europe” at the Jungfraujoch railway station, the highest...
16 November 2023
The FIBA 3x3 World Tour 2023 Illuminated by Prolights fixtures
The FIBA 3x3 World Tour 2023 Illuminated by Prolights fixtures
The FIBA 3x3 World Tour 2023, hosted at the Constanța Masters in the City Park Mall, was illuminated by a lighting setup composed...
14 November 2023
Jet Wash7 illuminates the Vibes' Urban Garden room
Jet Wash7 illuminates the Vibes' Urban Garden room
PROLIGHTS' Jet Wash7 illuminated the Urban Garden room of the Vibes complex in Eindhoven. From a sports center to a location for corporate...
10 November 2023
PROLIGHTS products Illuminates Marragheddon Festival
PROLIGHTS products Illuminates Marragheddon Festival
PROLIGHTS products illuminated the Marrageddon festival, an unprecedented celebration of Italian hip-hop, conceived and hosted by hip-hop...
07 November 2023
EclFresnel CT+ Series - Revolutionizing LED Fresnels
EclFresnel CT+ Series - Revolutionizing LED Fresnels
PROLIGHTS proudly introduces the EclFresnel CT+ series , an innovative range of LED Fresnel fixtures designed to redefine the standard...
03 November 2023
Prolights' EclPanel Shines in TV Commercial with MS Dhoni
Prolights' EclPanel Shines in TV Commercial with MS Dhoni
The PROLIGHTS EclPanel TWC series shone in a recent television commercial featuring the iconic Indian cricket player, Mr. MS Dhoni,...
30 October 2023
Cannon Hill Anglican College Auditorium shines with Prolights Fresnels
Cannon Hill Anglican College Auditorium shines with Prolights Fresnels
Cannon Hill Anglican College in Brisbane, Australia, has upgraded its auditorium with an all-LED lighting rig  including the Prolights...
26 October 2023
Prolights illuminates the new location of Science Park Towers
Prolights illuminates the new location of Science Park Towers
The grand unveiling of the new Science Park Towers headquarters within the Jonkoping Science Park showcased a state-of-the-art, innovative...
24 October 2023
Prolights EclDisplay range transforms Belconnen Arts Centre Gallery
Prolights EclDisplay range transforms Belconnen Arts Centre Gallery
Belconnen Art Center has chosen Prolights' EclDisplay range as the main lighting system for its innovative and modern Window Gallery,...
19 October 2023
PROLIGHTS Astra Family shines bright at Hamburger Börs
PROLIGHTS Astra Family shines bright at Hamburger Börs
PROLIGHTS Astra Family brilliantly illuminated the unforgettable "A Show Larger than Life" performance at the iconic Hamburger Börs...

Subscribe to our Newsletter
Follow us, stay connected facebook instagram youtube twitter tiktok linkedin

Loading...
