Smart Torch

Fireless, battery operated candle light

Smart Torch is an IP54 wireless, battery powered LED candle designed specifically for the event industry. Maintaining the aesthetic look of a candle with a simple normal flame effect, the Smart Torch can become part of a show with its RGBW LED and wireless DMX control.

Main features:

  • Battery powered and wireless DMX control for fast deployment and accurate control
  • Standard flame effect plus full RGBW control for dynamic effects

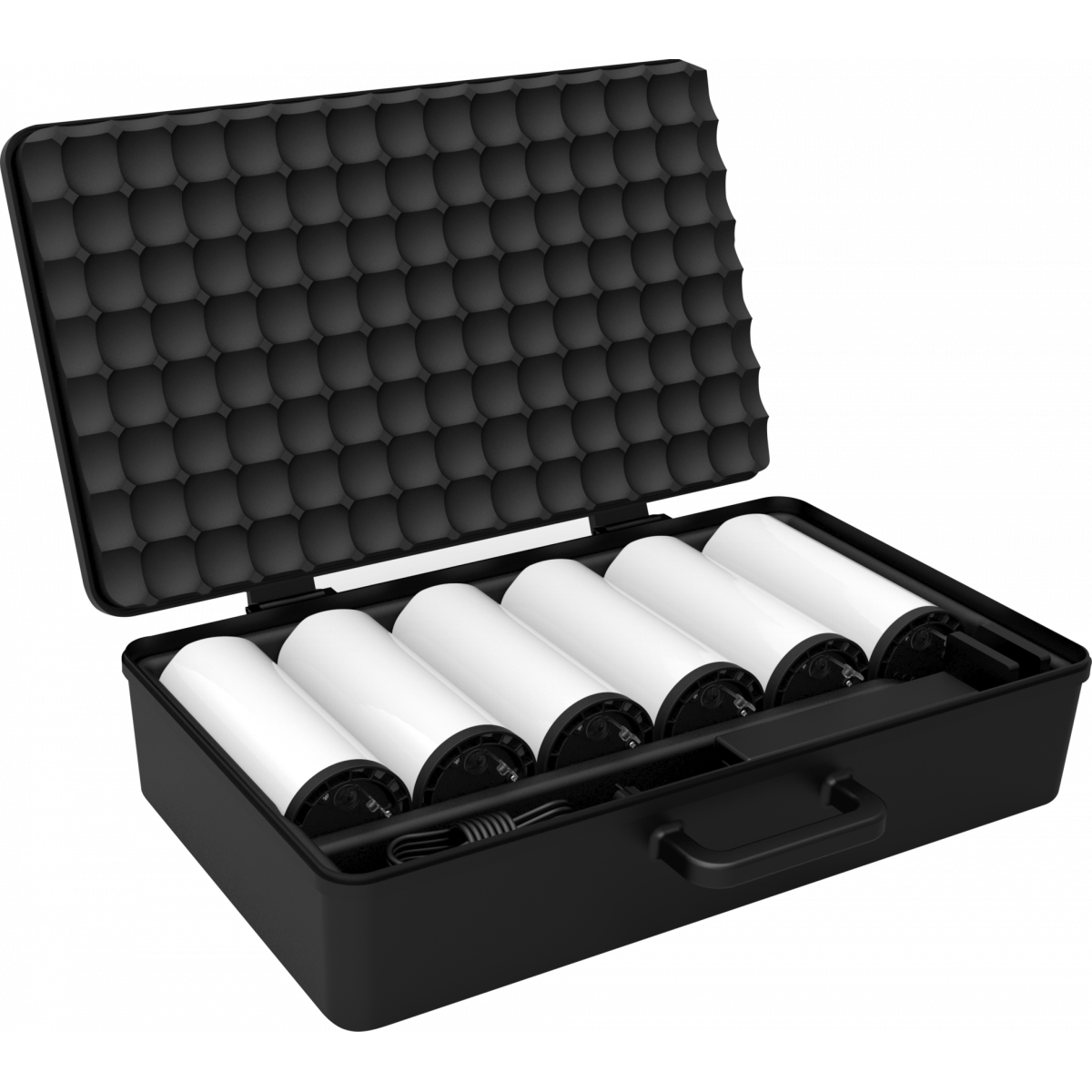

  • Available in a SMARTTORCHPACK featuring 6 lights with accessories in an ABS case
See variants

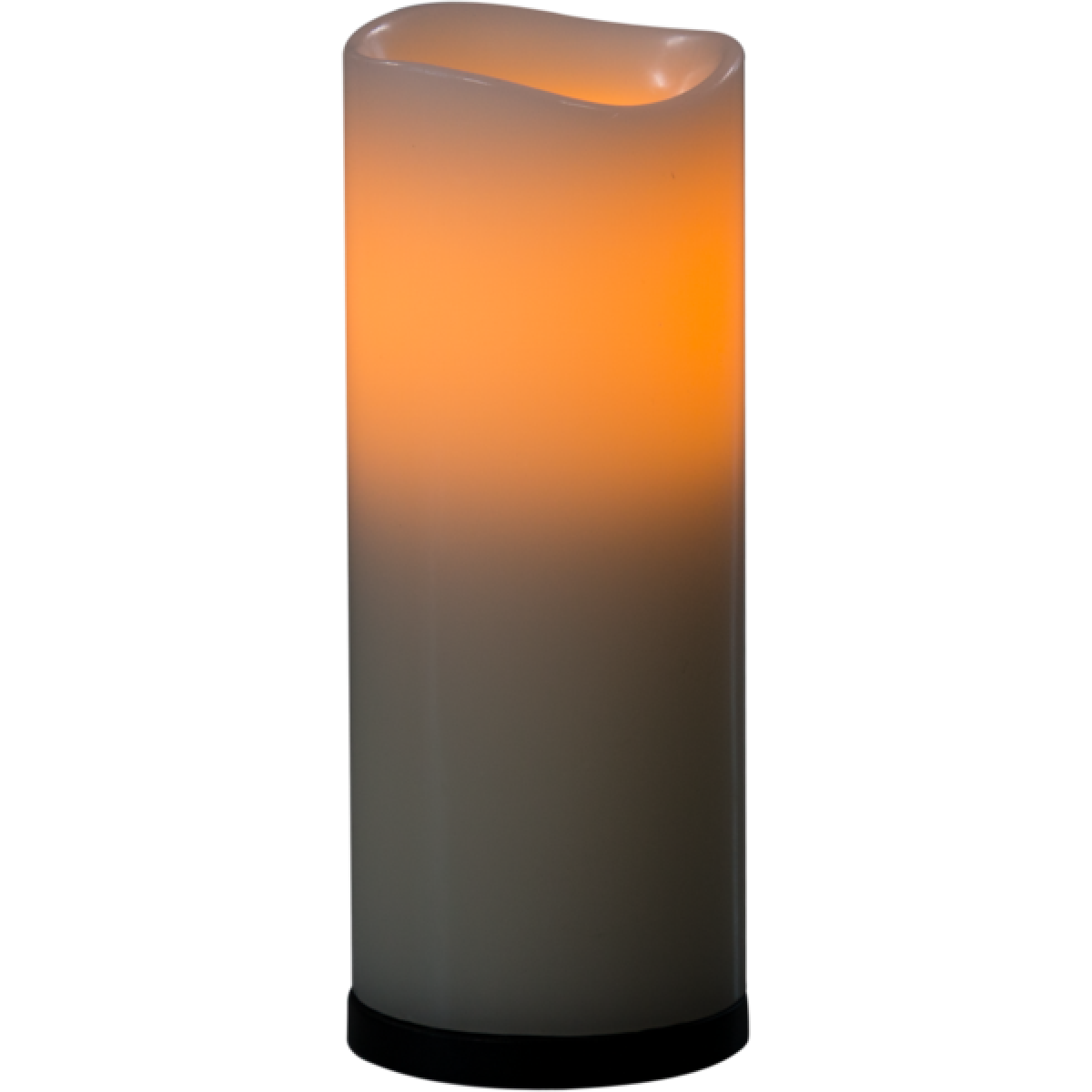

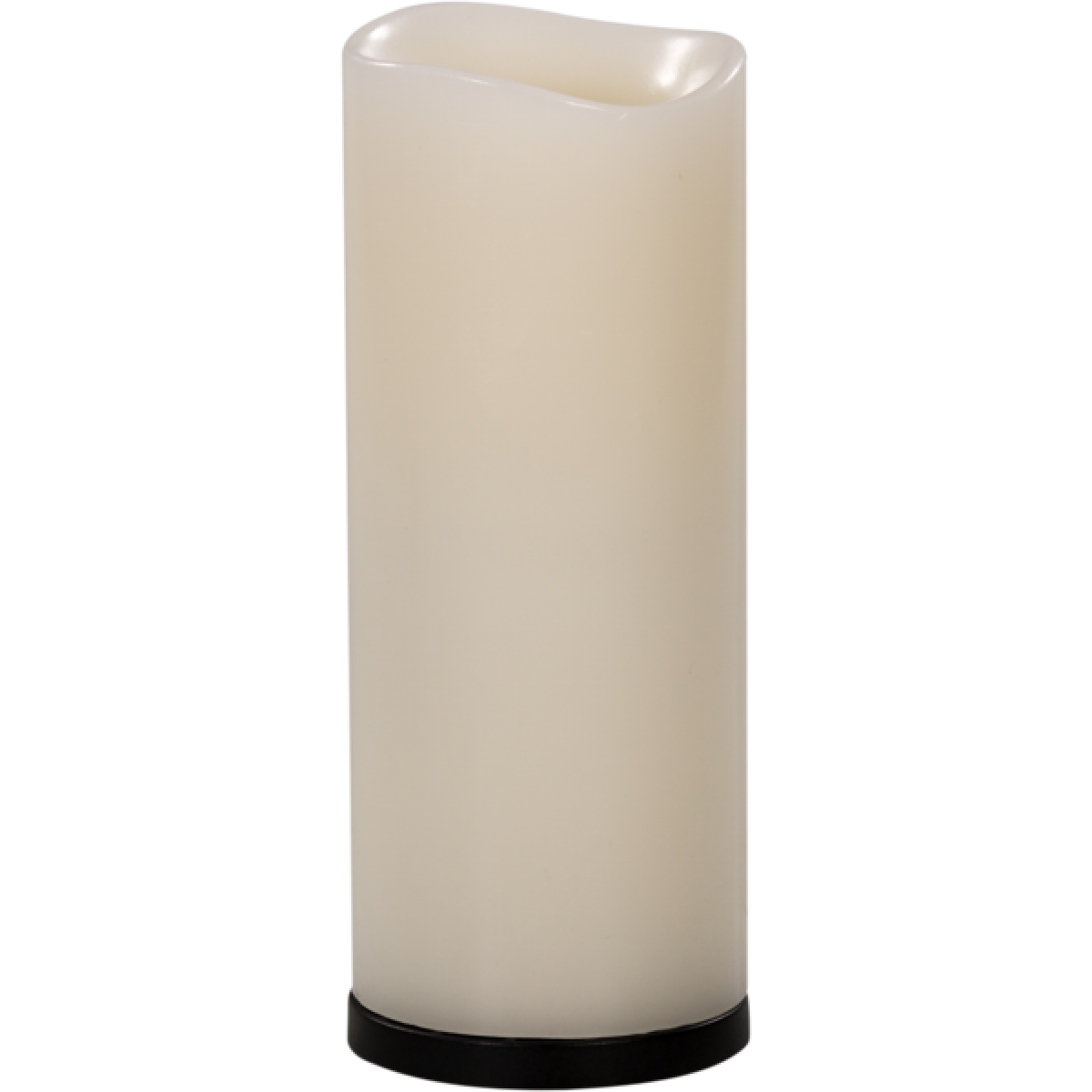

PHOTO GALLERY

Smart Torch
Smart Torch
Smart Torch
Smart Torch

Technical specifications

LIGHT SOURCE
  • Source: 8x0,25W RGB + Warm White
  • CCT: 2.800 K ~3.200
  • Source life expectancy: > 30.000 h
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • Macros: several pre-built pixel macros with adjustable speed
BODY
  • Body: paraffin wax
CONTROL
  • Protocols: W-DMX
  • DMX channels: 3 / 9 / 21channel
  • Wireless Control: included, wireless solution receiver

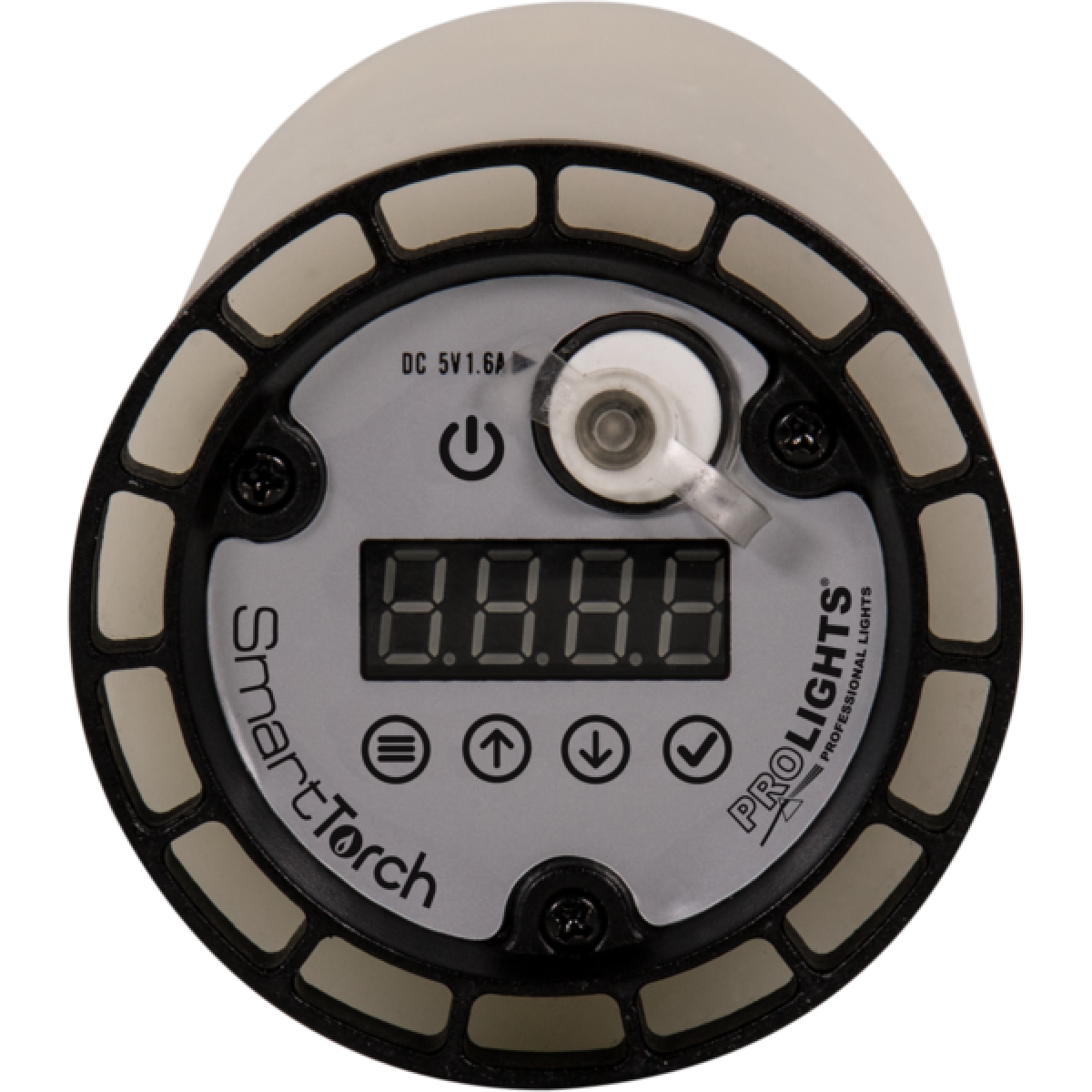

  • Display: LED display user interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
  • IR: infrared sensor controlled by remote
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: 0° ~ +45°
ELECTRICAL
  • Mains power supply: DC 5 V - 1,6 A
  • Max power consumption: 2,85W
BATTERY
  • Battery: 5,0 Ah - 3,7V lithium
  • Estimated battery life in colour change mode up to: 21h
  • Estimated battery life in single colour mode up to: R: 18 h - G: 18 h - B: 19 h - W: 18h
  • Estimated battery life in full-mode up to: 8h
  • Re-charge connection: power cable fast-charge in pelican case
  • Re-charge time: 5h/max
PHYSICAL
  • IP rating: 54
  • Data connection: W-DMX receiver
  • Dimensions (WxHxD): 76x191x76mm / 2.99''x7.52''x2.99''
  • Weight: 0,64kg / 1.41lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM

Versions

Code
SmartTorch
IRC
Recharger
Certifications
SMARTTORCH1
SMARTTORCH1 (DISCONTINUED)
1
1
1x1
CE, cTUVus, UKCA
SMARTTORCHPACK
SMARTTORCHPACK (DISCONTINUED)
6
1
1x6
CE, UKCA

Accessories & Related Products

C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
PRL-IRC
PRL-IRC
(optional)
RGBWA IR controller, 29 buttons, manual/static colours, auto programs, fade
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Smarttorch_A4_DATASHEET_(EN).pdf 186KB
Letter datasheet Smarttorch_A4_DATASHEET_(IT).pdf 182KB
Letter datasheet Smarttorchpack_A4_DATASHEET_(IT).pdf 182KB
Letter datasheet Smarttorchpack_A4_DATASHEET_(EN).pdf 186KB

User manual

File name File size Download
User manual Smarttorch1_USER_MANUAL_ITEN.pdf 978KB
User manual GENERAL_BATTERY_SAFETY_INFO.pdf 3MB
User manual GENERAL_BATTERY_SAFETY_INFO.pdf 3MB
User manual Smarttorch_GENERAL_SAFETY_INFO_SCEG.pdf 9MB
User manual Smarttorch1_Wireless_Protocol_Compatibilit_EN.pdf 4MB

DMX chart & personalities

File name File size Download
DMX chart Smarttorch1_DMX_CHARTS.pdf 47KB
VectorWorks VECTORWORKS_SYMBOLS.vwx 166KB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 444MB
SMARTTORCH Firmware rev. 1.0
manufacturer fixture library (Link) Link
prolights_smarttorch.d4Download
manufacturer fixture library (Link) Link
prolights_smarttorch_bas.hedDownload
prolights_smarttorch_ext.hedDownload
prolights_smarttorch_stnd.hedDownload
manufacturer fixture library (Link) Link
prolights@smarttorch@basic@ma_library_update_v14.2.xmlpDownload
prolights@smarttorch@extended@ma_library_update_v14.2.xmlpDownload
prolights@smarttorch@standard@ma_library_update_v14.2.xmlpDownload
smarttorch basic.fix2Download
smarttorch extended.fix2Download
smarttorch standard.fix2Download

Photometrics

File name File size Download
PDF Photometrics Smarttorch_PHOTOMETRICS.pdf 571KB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D SKP Smarttorch_3D_SKETCHUP.skp 860KB
2D Smarttorch1_2D.dwg 345KB
3D Smarttorch1_3D.dwg 3MB
Technical drawing Smarttorch_TECHNICAL_DRAWING.pdf 115KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX1UP5 {CodiceUpBox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0 STABLE 31/12/2016 Definitive stable version.
