SOLAR48Q
PROLIGHTS

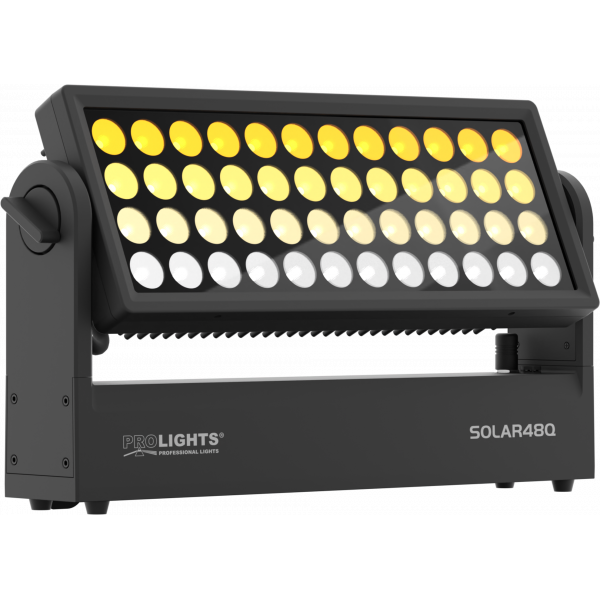

Solar 48Q

ORDER CODE: SOLAR48Q

48x10W high brightness indoor/outdoor compact wash light

Solar 48Q is a compact fan-free outdoor wash light featuring an outstanding brightness of 22'760 lumens. Equipped with 48x10 W RGBW full-colour LEDs all delivering superior colour mixing. Featuring a slimline styling, multiple interchangeable optics through magnets, asymmetrical filters which combined, make the Solar 48Q an incredibly flexible device for indoor and outdoor use. Whilst highly-powerful, the Solar 48Q is also completely silent.

Main features:

  • 48x10W RGBW / FC LED delivering 22'760 lumens
  • Compact form factor and fan-free
  • Wireless DMX on-board
See variants

PHOTO GALLERY

Solar 48Q
Solar 48Q
Solar 48Q
Solar 48Q

Technical specifications

LIGHT SOURCE
  • Source: 48x10W RGBW / FC LEDs
  • Luminous flux: 28'213lm @full
  • Lux: (25°) 4'638lx @5 m full
  • Lux: (45°) 986lx @5 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 25°
  • Additional optics: 10° / 15° / 45° / 40° filter / 60° filter/ 10x60° filter / 30x60° filter
  • Other: magnetic 40° filter included, barn door not included
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • FX generator: section effect with 4 horizontal individually select and control sections
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: magnetic filter frame with 40° filter
  • Tilt angle: 0 - 150° with manual regulation
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, W-DMX
  • DMX channels: 5 / 7 / 10 / 17 / 22channel
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -20° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 520W
  • Output (at 230V): 5 units on a single power line
  • Power factor: > 0,95
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: hanging bracket for floor positioning with "Quick-Lock" system
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Data connection: W-DMX receiver
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Dimensions (WxHxD): 563x314x93mm / 22.17''x12.36''x3.66''
  • Weight: 12,9kg / 28.44lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

OS25D13
OS25D13
(optional)
Quick-Lock omega bracket, M12 hole
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
OS25
OS25
(included)
Quick-Lock omega bracket, M10 hole
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black

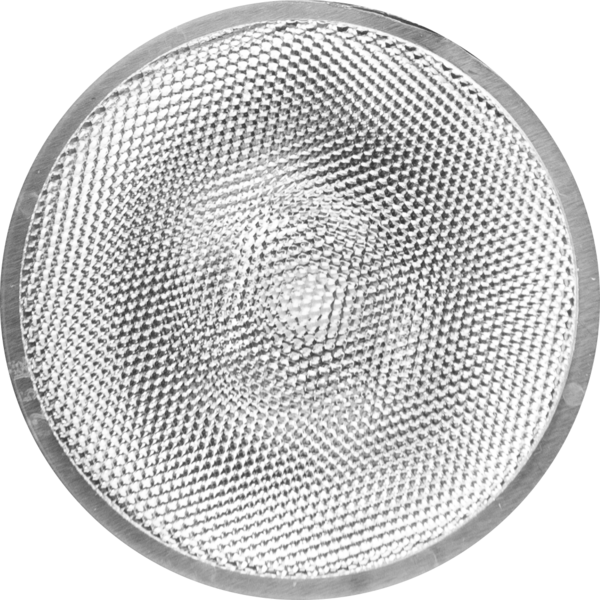

S27QLENS25
S27QLENS25
(included)
25° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S48QFILTER60
S48QFILTER60
(optional)
60° symmetric light diffusion filter for SOLAR48Q

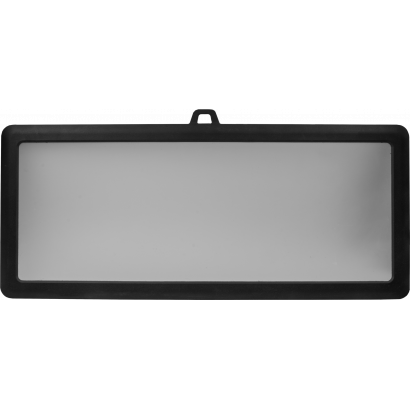

S48QFILTER40
S48QFILTER40
(included)
40° symmetric light diffusion filter for SOLAR48Q
S48QFILTER1060
S48QFILTER1060
(optional)
10x60° asymmetric light diffusion filter for SOLAR48Q

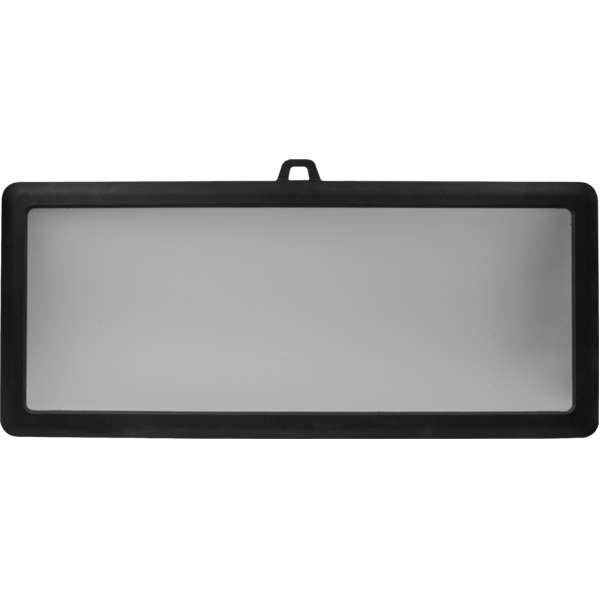

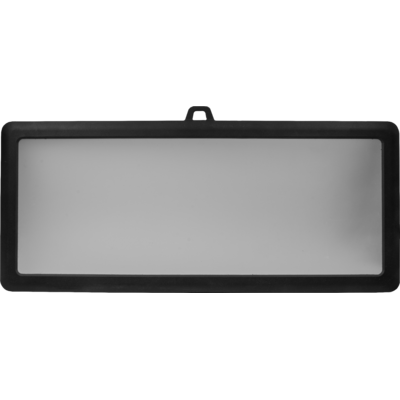

S48QFILTER3060
S48QFILTER3060
(optional)
30x60° asymmetric light diffusion filter for SOLAR48Q

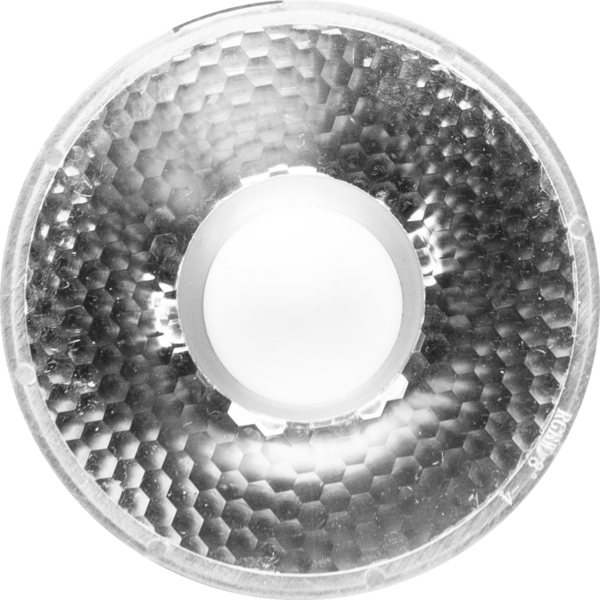

S27QLENS10
S27QLENS10
(optional)
10° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series

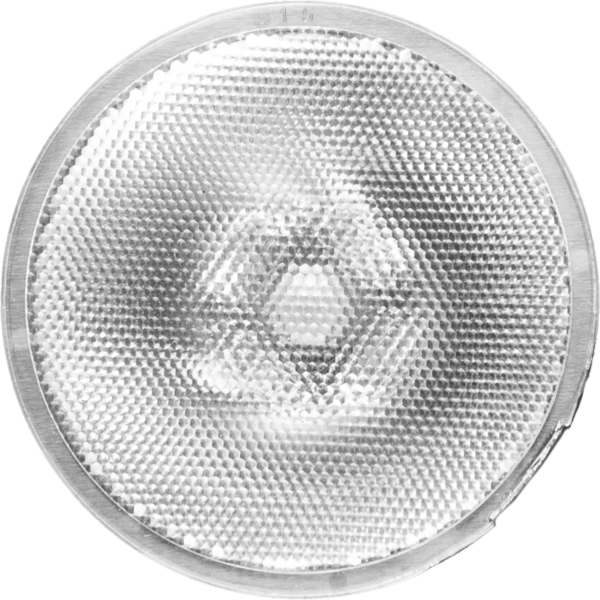

S27QLENS15
S27QLENS15
(optional)
15° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series

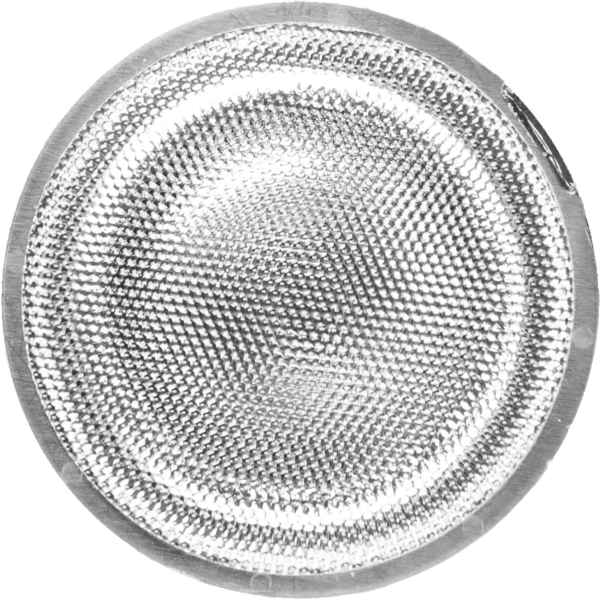

S27QLENS45
S27QLENS45
(optional)
45° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series

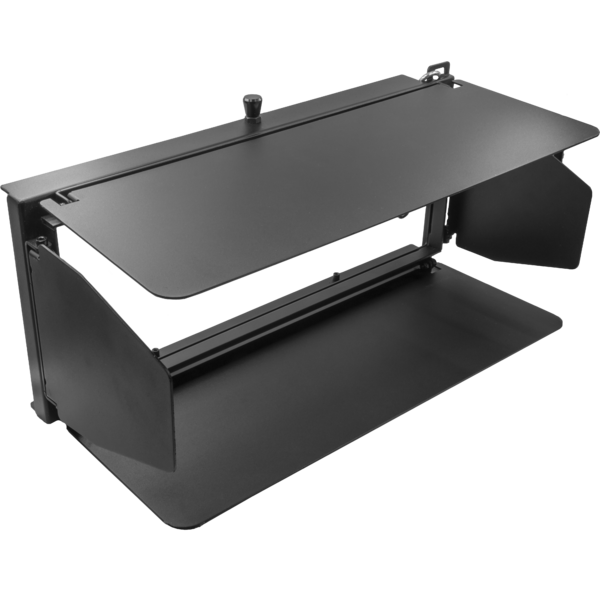

S48QBD
S48QBD
(optional)
Black barn door 4 directional flaps to adjust the light beam, SOLAR4Q,ARCPOD48Q

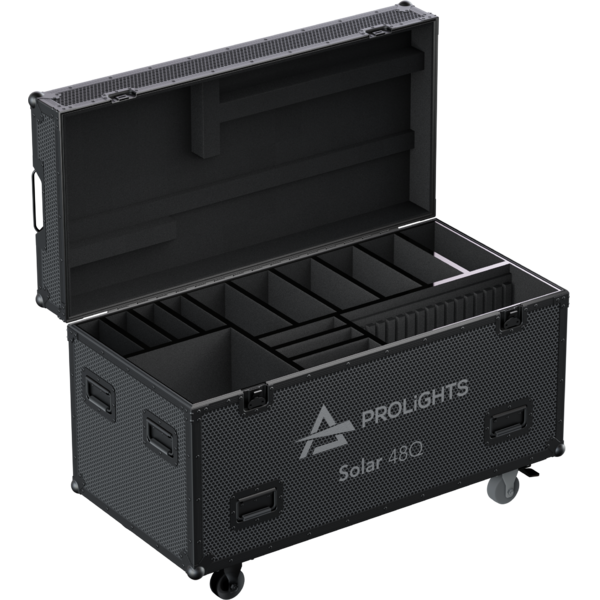

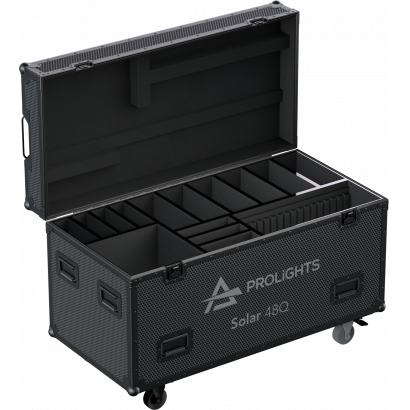

FCLS48Q
FCLS48Q
(optional)
Flightcase for 6 pcs of SOLAR48Q
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Solar48q_A4_DATASHEET_(EN).pdf 366KB
Letter datasheet Solar48q_A4_DATASHEET_(IT).pdf 358KB
Tender Specification Solar48q_TENDER_SPECIFICATION.pdf 3MB

User manual

File name File size Download
User manual Solar48q_USER_MANUAL_ITEN.pdf 4MB

DMX chart & personalities

File name File size Download
DMX chart Solar48q_DMX_CHARTS.pdf 54KB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
VectorWorks VECTORWORKS_SYMBOLS.vwx 383KB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 444MB
SOLAR48Q Firmware rev. 1.4
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_solar48q_5ch.hedDownload
prolights_solar48q_7ch.hedDownload
prolights_solar48q_10ch.hedDownload
prolights_solar48q_17ch.hedDownload
prolights_solar48q_22ch.hedDownload
manufacturer fixture library (Link) Link
prolights@solar48q@10ch.xmlDownload
SOLAR48Q Firmware rev. 1.1
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_solar48q_5ch.hedDownload
prolights_solar48q_7ch.hedDownload
prolights_solar48q_10ch.hedDownload
prolights_solar48q_17ch.hedDownload
prolights_solar48q_22ch.hedDownload
prolights@solar48q@10ch.xmlDownload

Photometrics

File name File size Download
IES prolights_solar48q_ies files.zip 51KB
LDT prolights_solar48q_ldt files.zip 36KB
PDF Photometrics Solar48q_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Solar48q_PHOTOMETRICS_REPORT.pdf 9MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D RFA Solar48q_3D_REVIT.rfa 1MB
3D SKP Solar48q_3D_SKETCHUP.skp 1MB
2D Solar48q_2D.dwg 2MB
3D Solar48q_3D.dwg 724KB
2D cad symbols Solar48q_2DSYMBOLS.dwg 313KB
Technical drawing Solar48q_TECHNICAL_DRAWING.pdf 499KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX1UP5 {CodiceUpBox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 25/08/2022 Fixed bugs:
  • Dimmer Curve menu not accessible via Display UI
1.3 STABLE 26/07/2021 New functions:
  • Added dimmer curves.
Improvements:
  • Improved dimming functionality.
  • Improved color management.
1.2 STABLE 29/12/2020
  • Improved RDM functionality.
1.1 STABLE 04/11/2019
  • Improved white presets on 10 CH DMX mode.
