STUDIOCOBPDY2
PROLIGHTS

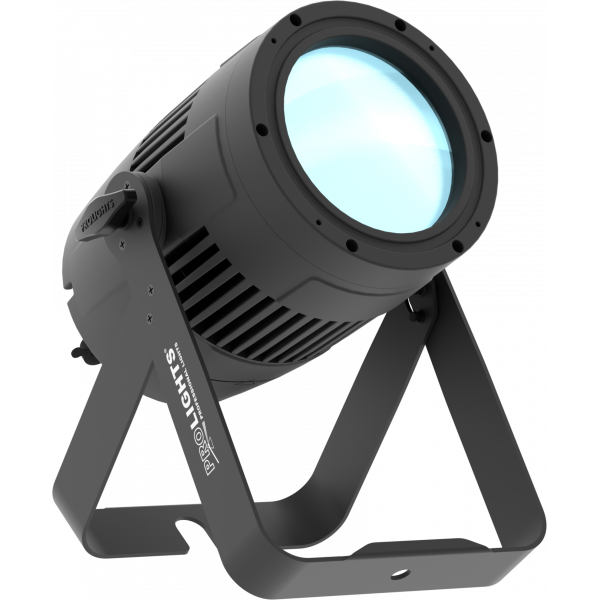

StudioCob PlusDY2

150W IP65 rated Daylight White COB LED PAR

StudioCob PlusDY2 is a powerful, incredibly versatile and IP65 rated LED PAR. Fusing the old and the new, it pairs a COB LED source with a traditional parabolic reflector to deliver a proper Par replacement with a homogenised output, single shadow and flexible lens options.

Main features:

  • IP65 rated connectors for easy use both indoor and outdoor
  • 150W 5.000 K COB LED source with HD dimming and high CRI
  • Flexible lens options of 19° - 37° - 53,8°
See variants

PHOTO GALLERY

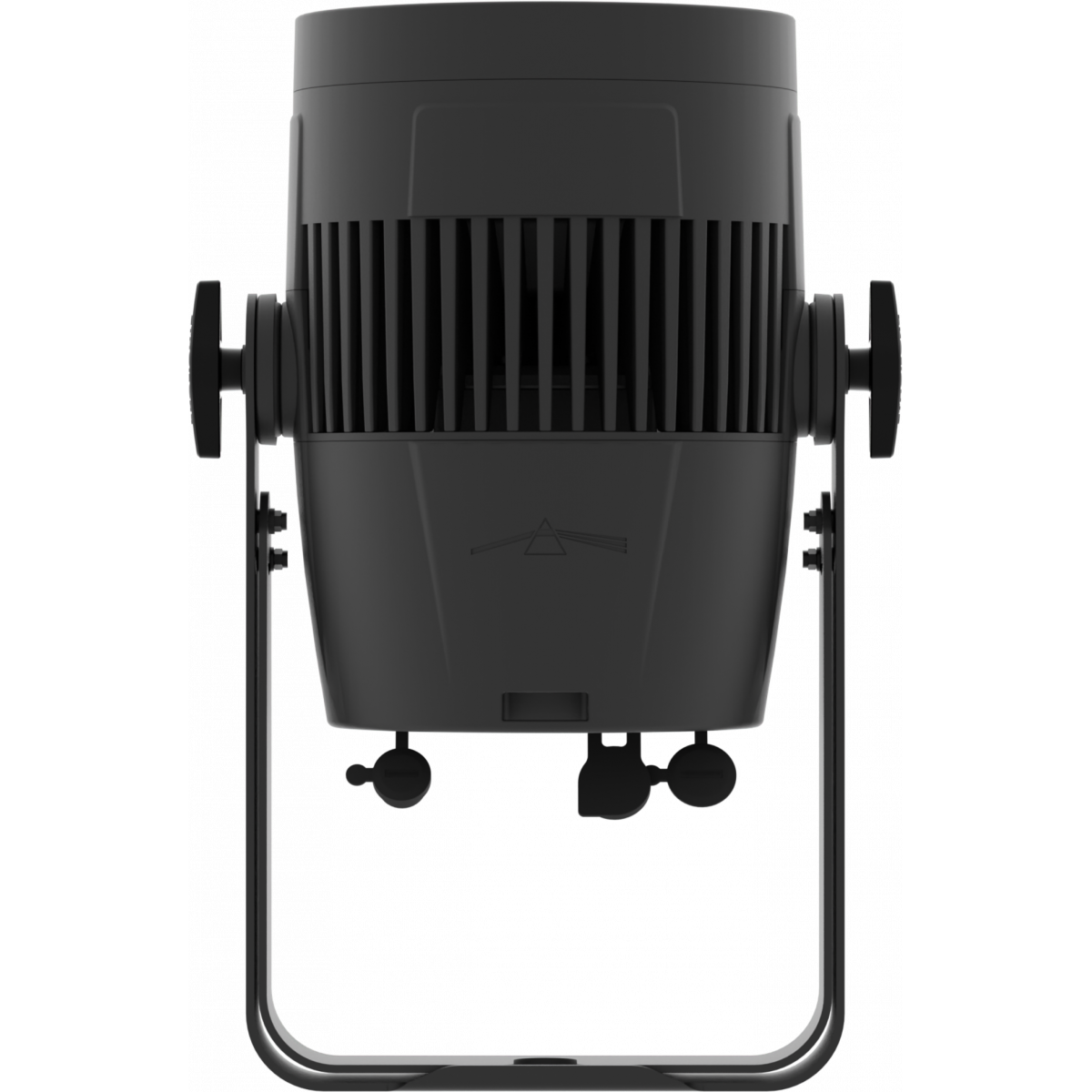

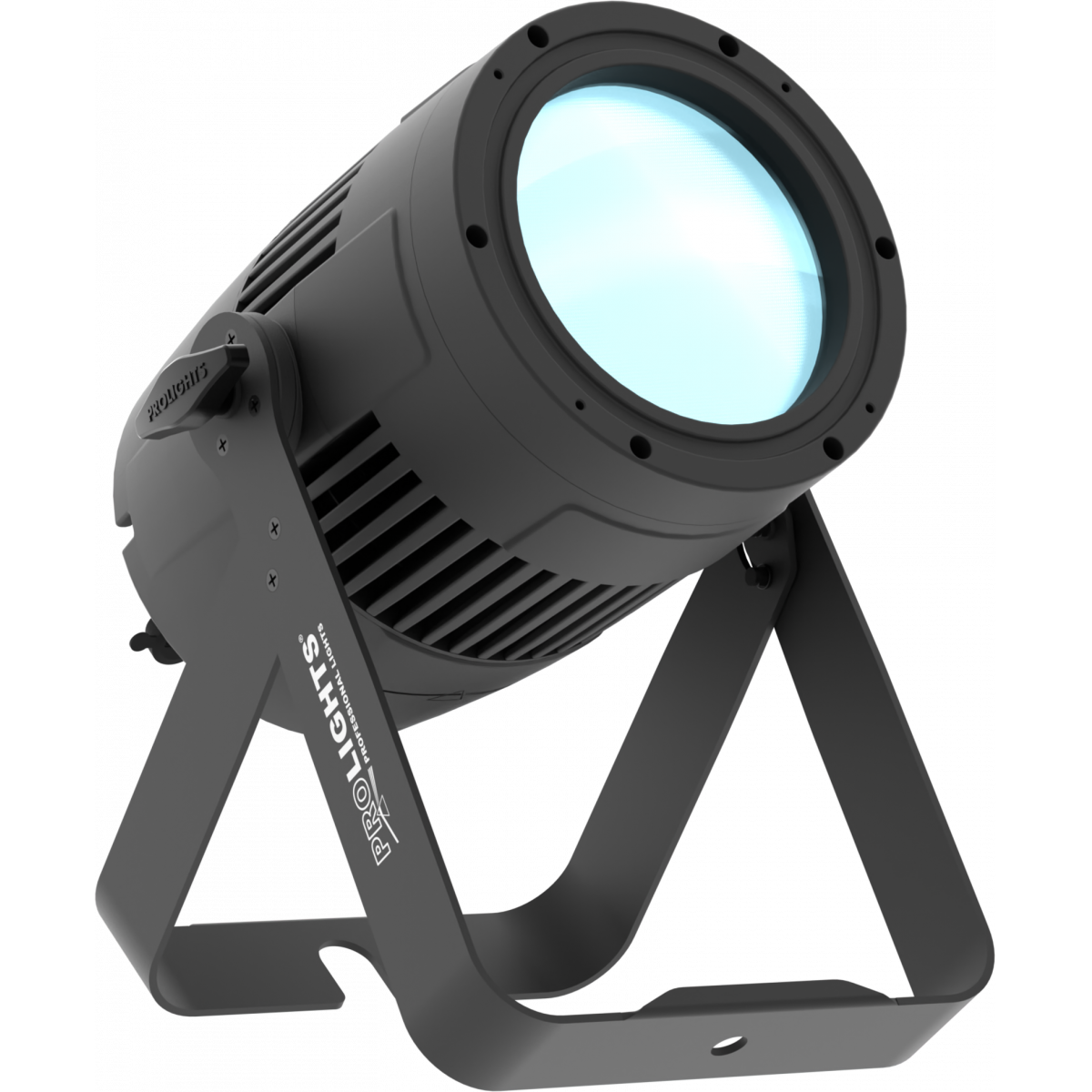

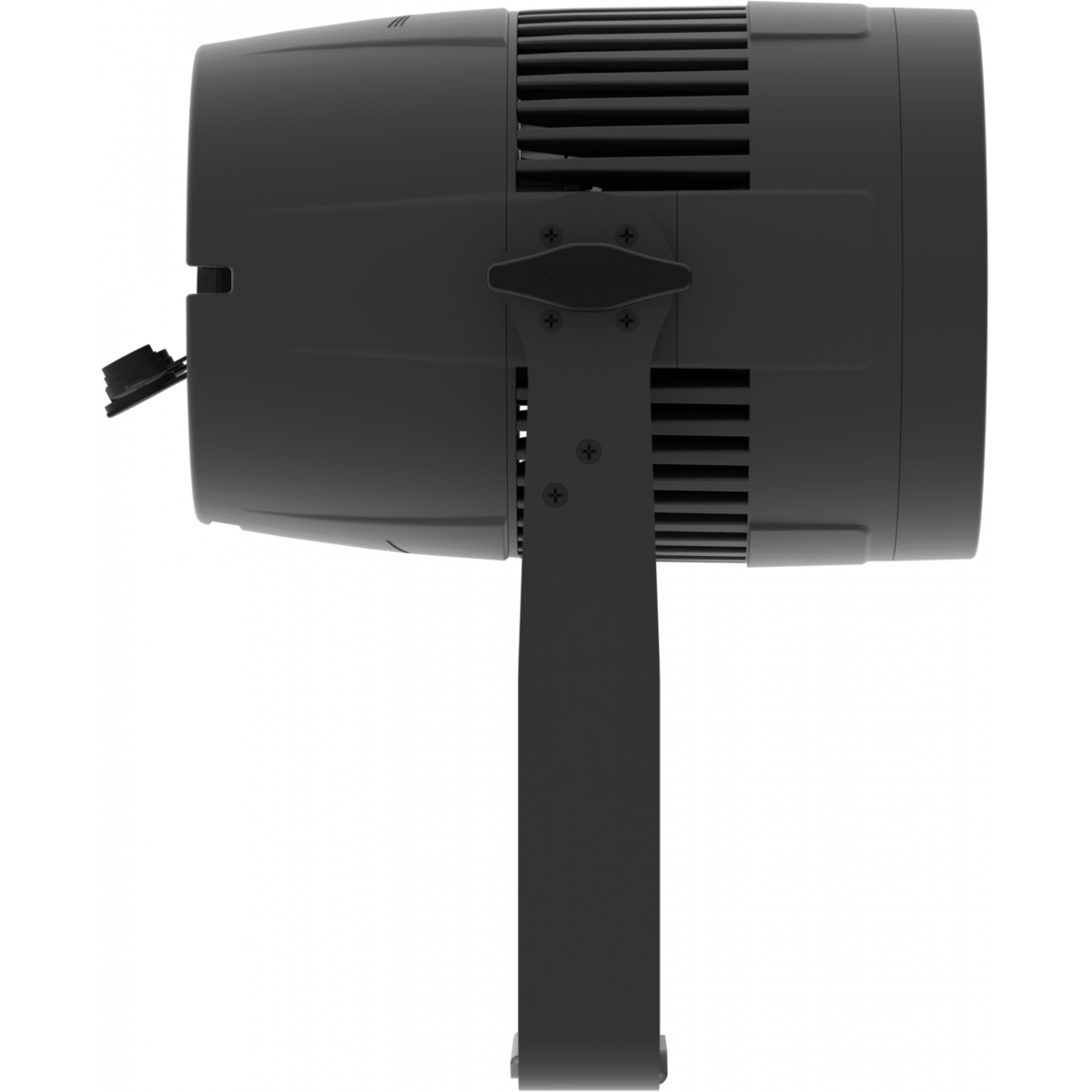

StudioCob PlusDY2
StudioCob PlusDY2
StudioCob PlusDY2
StudioCob PlusDY2

Technical specifications

LIGHT SOURCE
  • Source: 150W daylight white LED
  • CCT: 5.100
  • Luminous flux: (19°) 9'822 lm; (37°) 8'595lm
  • Lux: (19°) 2'337 lx; (37°) 600lx @5 m full
  • CRI: > 83
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: (on-board) 19°, (inc) 37°, (opt) 53,8°
  • Field angle: (on-board) 36,5°, (inc) 75,5°, (opt) 77,6°
  • Lens type: parabolic reflector in combination with HD fresnel lens
  • Additional optics: flood (without lens)
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 1 / 2 / 5channel
  • Display: LCD high resolution colour display
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -20° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 165W
  • Output (at 230V): 15 units on a single power line
  • Power factor: > 0.96
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: active, silent operation
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning

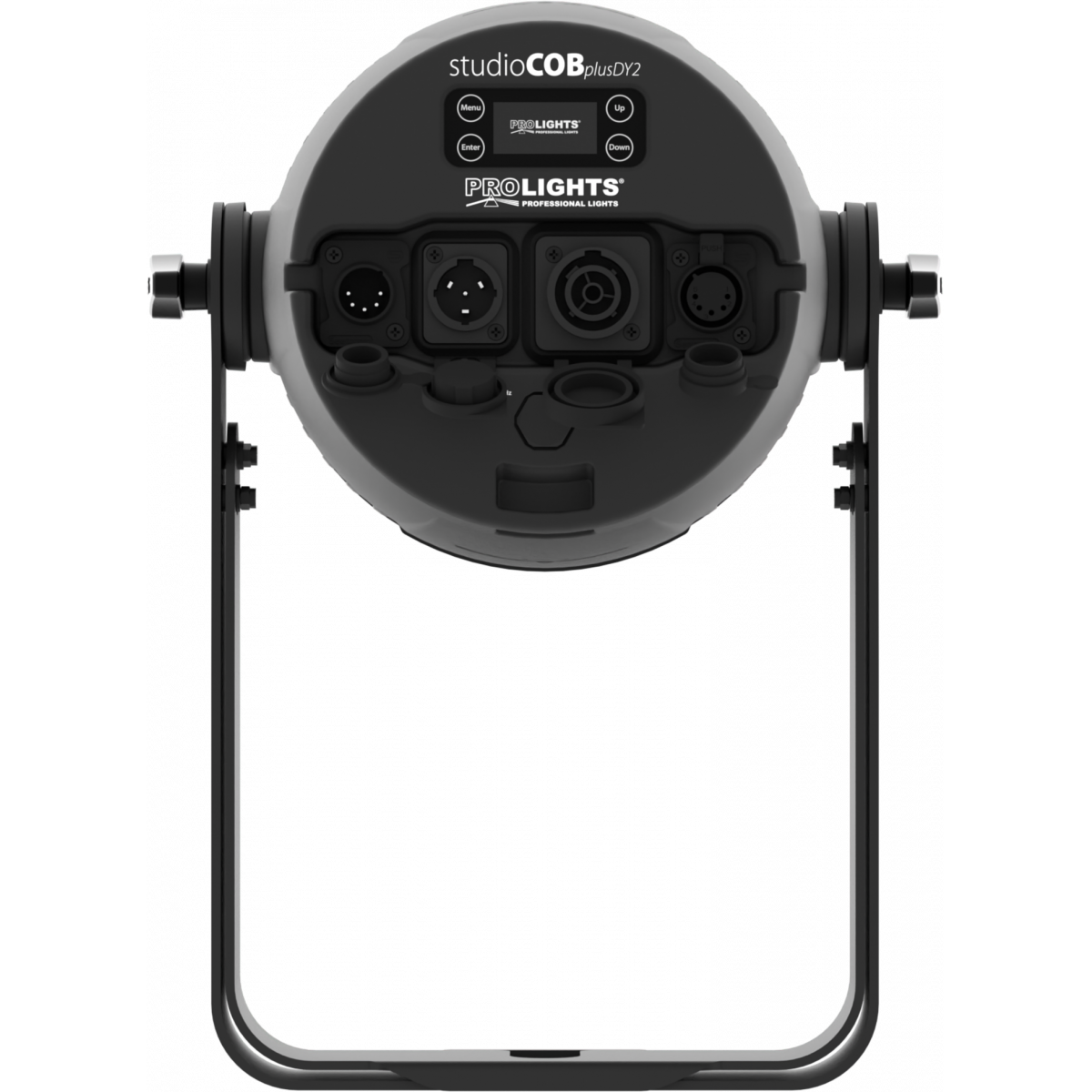

  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Dimensions (WxHxD): 258x354x257mm / 10.16''x13.94''x10.12''
  • Weight: 4,95kg / 10.91lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Housing
STUDIOCOBPDY2BK
STUDIOCOBPDY2BK
Black
STUDIOCOBPDY2WH
STUDIOCOBPDY2WH (DISCONTINUED)
White

Accessories & Related Products

C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
STUDIOCOBPLUSL18
STUDIOCOBPLUSL18
(included)
Optics for STUDIOCOBPLUS projectors series, 18°
STUDIOCOBPLUSL38
STUDIOCOBPLUSL38
(included)
Optics for STUDIOCOBLUS projectors series, 38°
STUDIOCOBTPG
STUDIOCOBTPG
(optional)
Filter frame for STUDIOCOB projectors

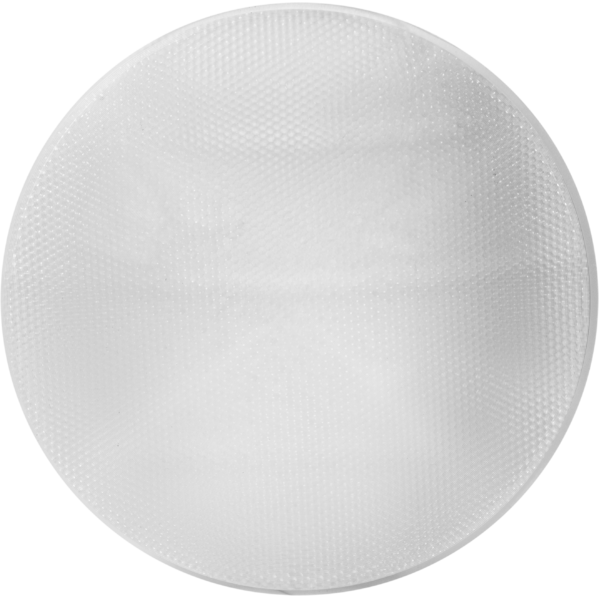

STUDIOCOBPLUSL60
STUDIOCOBPLUSL60
(optional)
Optics for STUDIOCOBLUS projectors series, 60°
STUDIOCOBBD
STUDIOCOBBD
(optional)
Barn door 4 directional flaps to adjust the light beam, f. frame included
FCLCOBPLUS
FCLCOBPLUS
(optional)
Flight case for 8 STUDIOCOBPLUS
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Studiocobpdy2_A4_DATASHEET_(EN).pdf 367KB
Letter datasheet Studiocobpdy2_A4_DATASHEET_(IT).pdf 366KB

User manual

File name File size Download
User manual Studiocobpdy2_USER_MANUAL.pdf 2MB

DMX chart & personalities

File name File size Download
DMX chart Studiocobpdy2_DMX_CHARTS.pdf 45KB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
VectorWorks VECTORWORKS_SYMBOLS.vwx 627KB
VectorWorks VECTORWORKS_SYMBOLS.vwx 543KB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 444MB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 444MB

Photometrics

File name File size Download
IES prolights_studiocobplusdy_ies files.zip 4KB
LDT prolights_studiocobplusdy_ldt files.zip 3KB
PDF Photometrics Studiocobpdy2_PHOTOMETRICS_REPORT.pdf 2MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D RFA Studiocobpdy2bk_3D_REVIT.rfa 1MB
2D Studiocobpdy2_2D.dwg 5MB
2D cad symbols Studiocobpdy2bk_2DSYMBOLS.dwg 25KB
3D STUDIOCOBPDY2_3D.zip 1MB
Technical drawing Studiocobpdy2_TECHNICAL_DRAWING.pdf 226KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX1UP5 {CodiceUpBox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.3 STABLE 24/09/2019 Improved RDM functionality. Rev. 1
