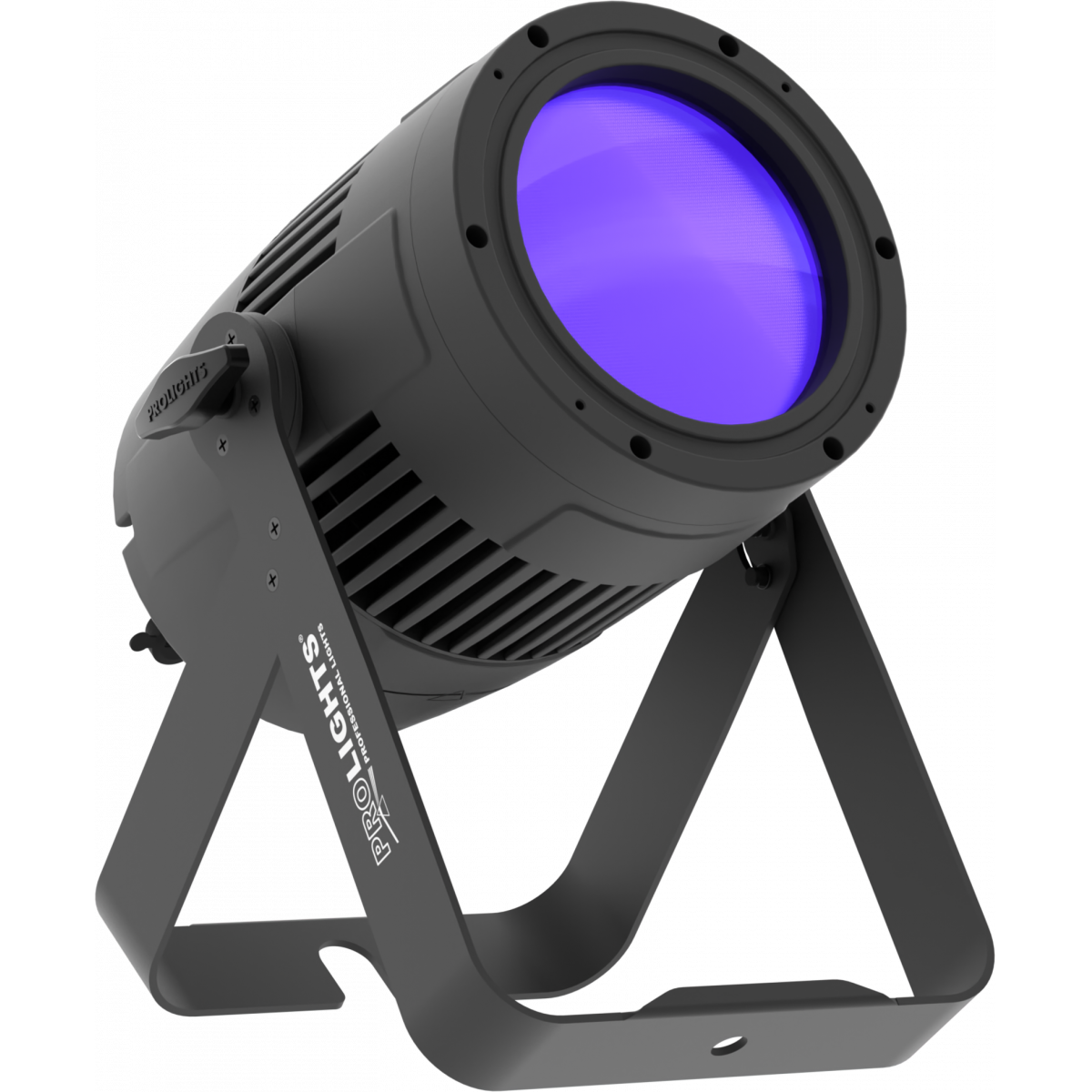

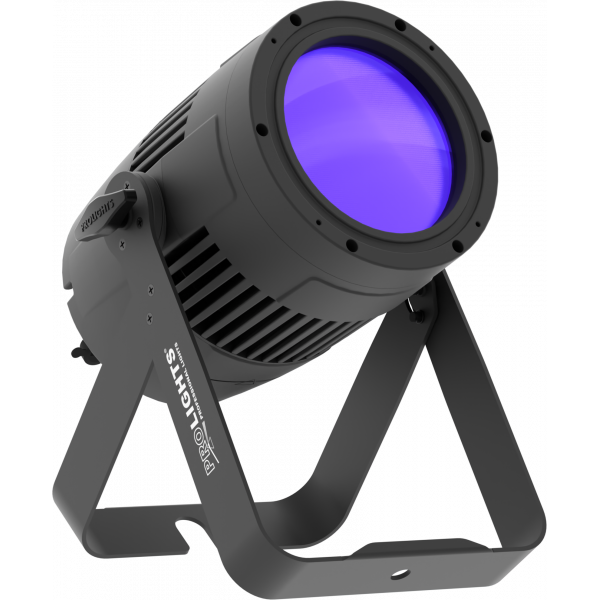

StudioCob PlusUV

ORDER CODE: STUDIOCOBPLUSUV

IP65 UV COB parled with interchangeable optical system

StudioCob PlusUV is a powerful, and incredibly versatile, IP65 rated LED par. Fusing the old and the new it pairs a COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement with a homogenized output, single shadow, and flexible lens options.

Main features:

  • IP65 rated connectors for easy use both indoor and outdoor
  • 100W real UV COB LED source with HD dimming and extensive, even colour palette
  • Flexible lens options of 18° - 38° - 60°

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 380nm 108W COB UV LED
  • Luminous flux: (18°) without filter: 137,21lm - (18°) with filter: 128,92 lm - (38°) without filter: 129,07 lm - (38°) with filter: 120,63
  • Lux: (18°) 8'963 lx - (38°) 2'018lx @5 m without filter
  • Lux: (18°) 7'481 lx - (38°) 1'830lx @5 m with filter
  • CRI: 55,4
  • R9: 5
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: (18°) 15,93° - (18°) with filter 16,49° - (38°) 35,6° - (38°) with filter 36,06°
  • Field angle: (18°) 28,2° - (18°)with filter 30,3° - (38°) 66,1° - (38°) with filter 69,1°
  • Lens diameter: 149.5mm / 5.89''
  • Lens type: UV PMMA lens
  • Additional optics: 18° lens on board and 38° lens in the package
  • Other: 60° lens is not availables for UV version
COLOUR SYSTEM
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Manual mode: manual adjustment of dimmer and strobe
BODY
  • Tilt angle: ° with 360° continuous rotation
  • Body: aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 1 / 2 / 5channel
  • RDM: RDM for remote monitoring and settings
  • Display: black OLED touch display
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -20° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Max power consumption: 150 W
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 132W
  • Max power consumption (at 120V): 133W
  • Output (at 230V): 13 units on a single power line
  • Output (at 120V): 7 units on a single power line
  • Power factor: 0,98 (120V) - 0,90 (230V)
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations

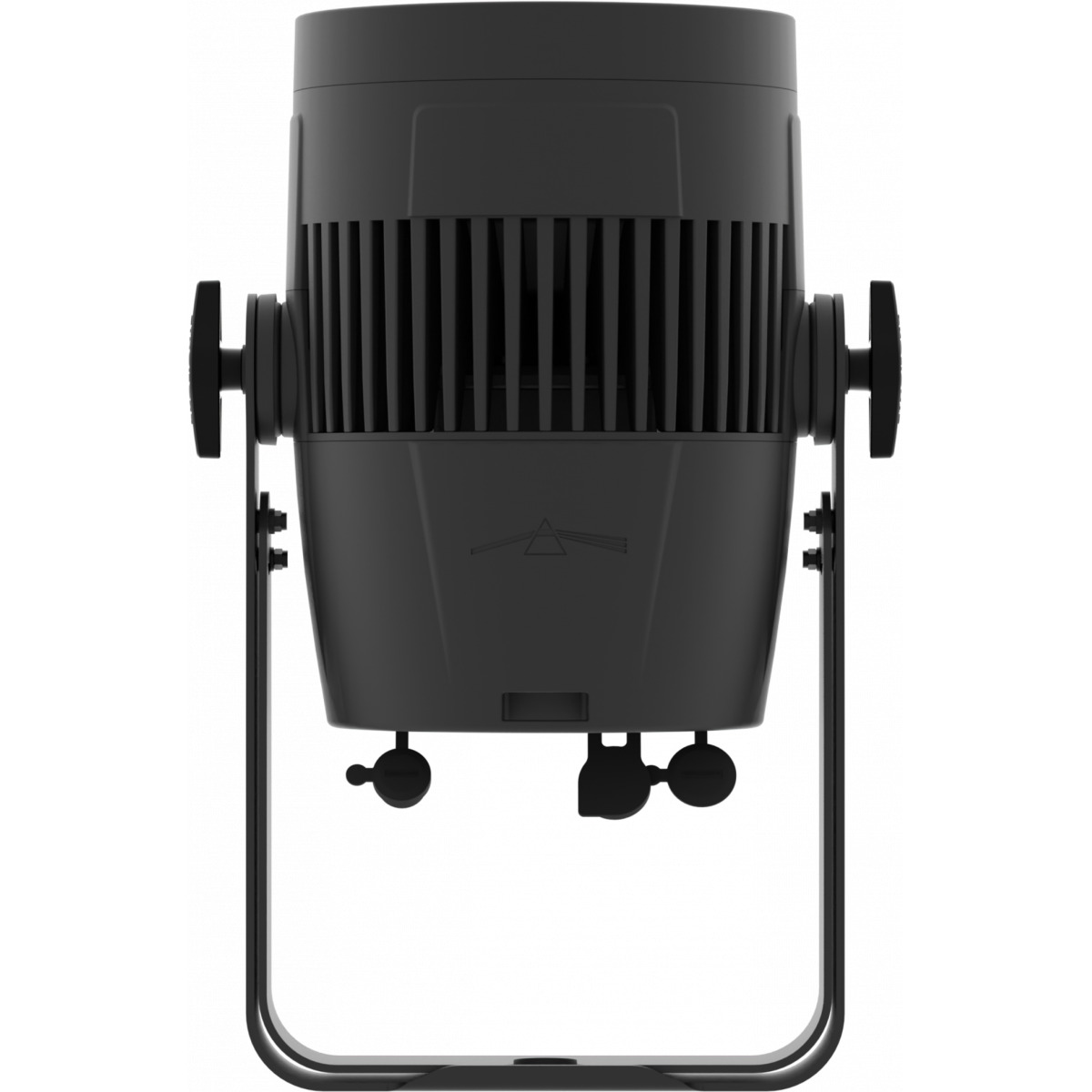

  • Cooling: low noise fan pressure and temperature balance through GORE membrane vents
  • Suspension and fixing: hanging bracket suitable for safe hanging and positioning

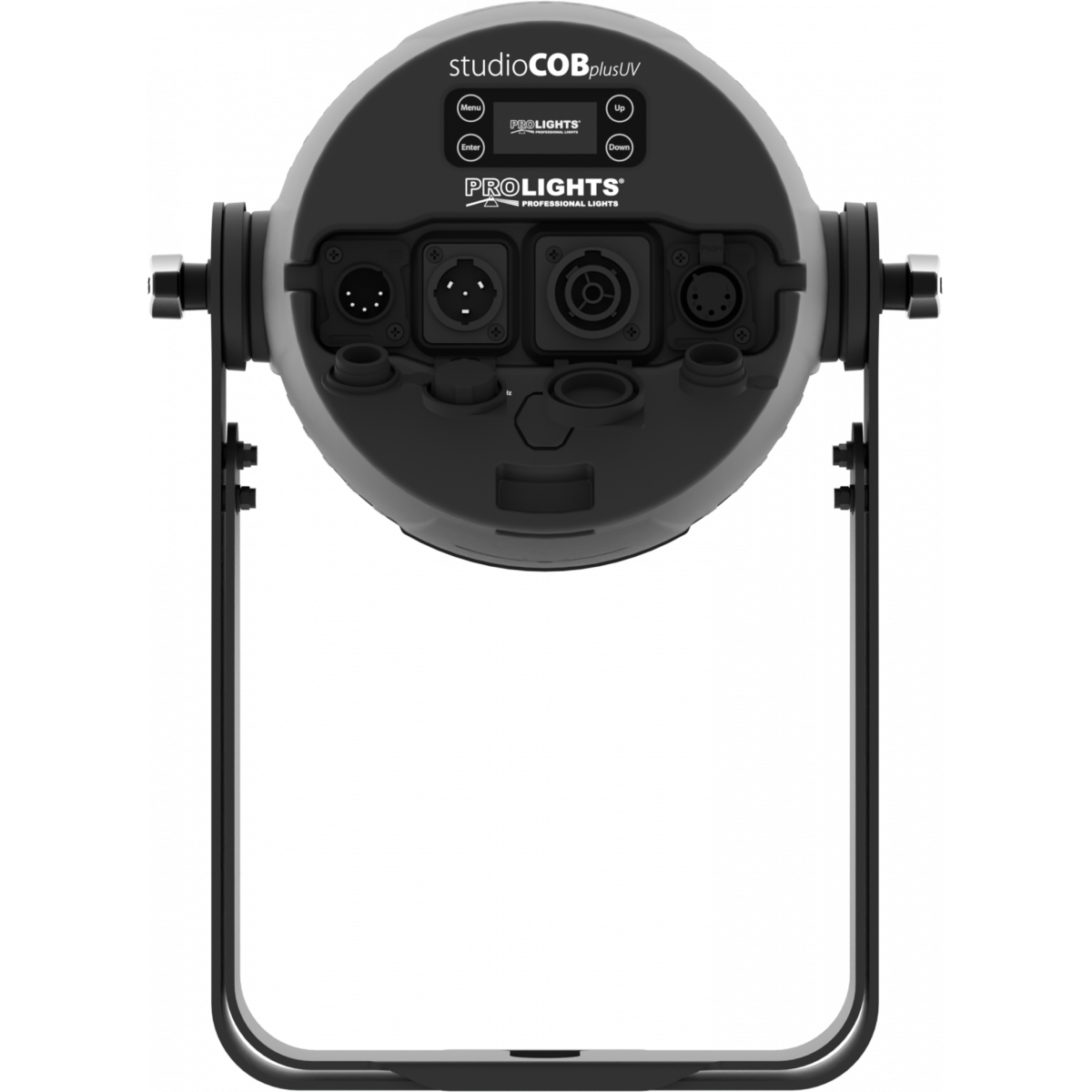

  • Signal connection: 5p IP IN/OUT
  • Power connection: IP IN/OUT power connector
  • Dimensions (WxHxD): 258.5x257x353.6mm / 10.18''x10.12''x13.92''
  • Weight: 5kg / 11.02lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
STUDIOCOBBD
STUDIOCOBBD
(optional)
Barn door 4 directional flaps to adjust the light beam, f. frame included
STUDIOCOBTPG
STUDIOCOBTPG
(optional)
Filter frame for STUDIOCOB projectors
FCLCOBPLUS
FCLCOBPLUS
(optional)
Flight case for 8 STUDIOCOBPLUS
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Studiocobplusuv_A4_DATASHEET_(EN).pdf 178KB

User manual

File name File size Download
User manual Studiocobplusuv_USER_MANUAL_ITEN.pdf 2MB

Photometrics

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.3 STABLE 19/01/2022 Improvements:
  • Changed KEY LOCK on OFF as default.
1.2 STABLE 17/12/2018 Improvements:
  • Changed BACKLIGHT to 10s as default.
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.3 STABLE 19/01/2022 Improvements:
  • Changed KEY LOCK on OFF as default.
1.2 STABLE 17/12/2018 Improvements:
  • Changed BACKLIGHT to 10s as default.
