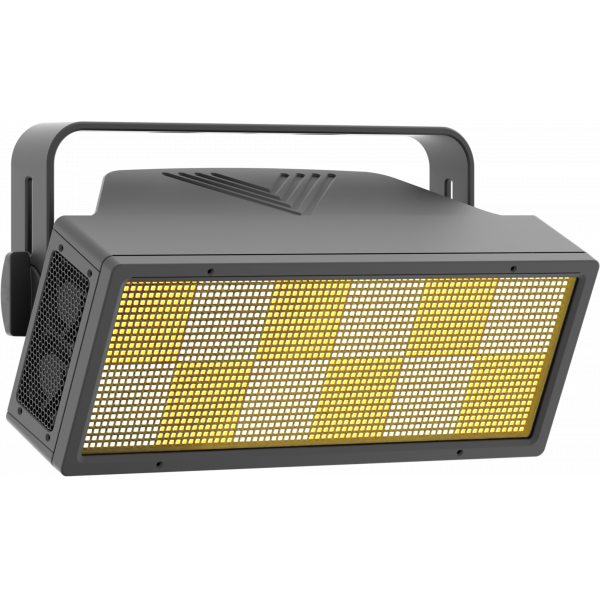

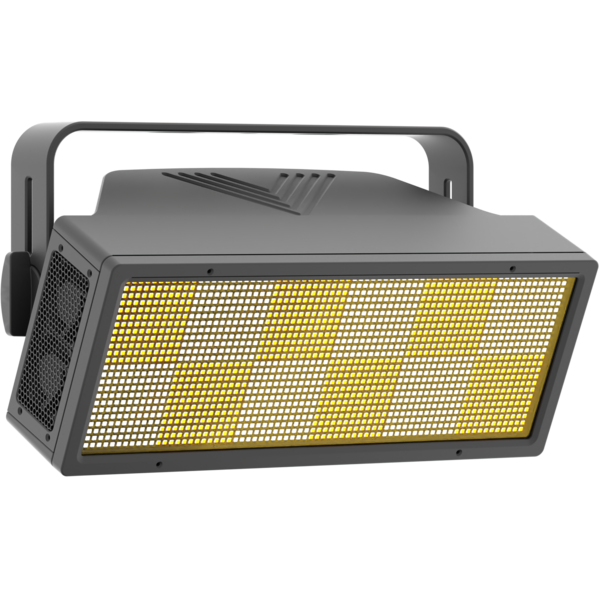

SunBlast 3000FC

ORDER CODE: SUNBLAST3000FC

IP65 RGBW graphic LED strobe and blinder

Sunblast 3000FC is an exceptionally powerful IP65 graphic strobe, blinder and flood. Available in white or full colour versions and designed to deliver simply staggering light levels, this versatile fixture can provide an unbelievable punch over a huge area.

Main features:

  • Staggering 180'000 lumen output with 120° beam angle
  • IP65 rating
  • Graphics effects from 48 individually controllable groups of RGBW LEDs
See variants

PHOTO GALLERY

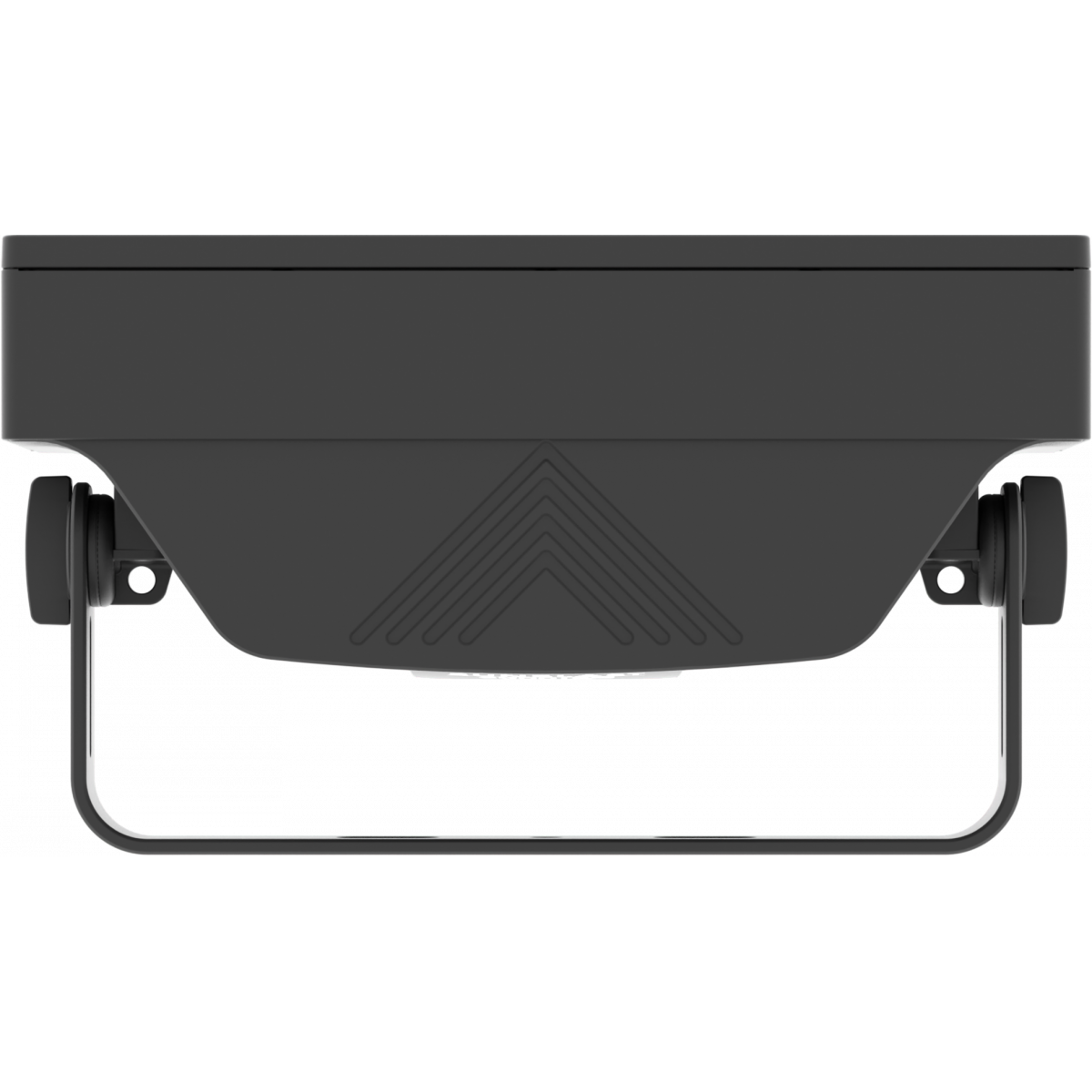

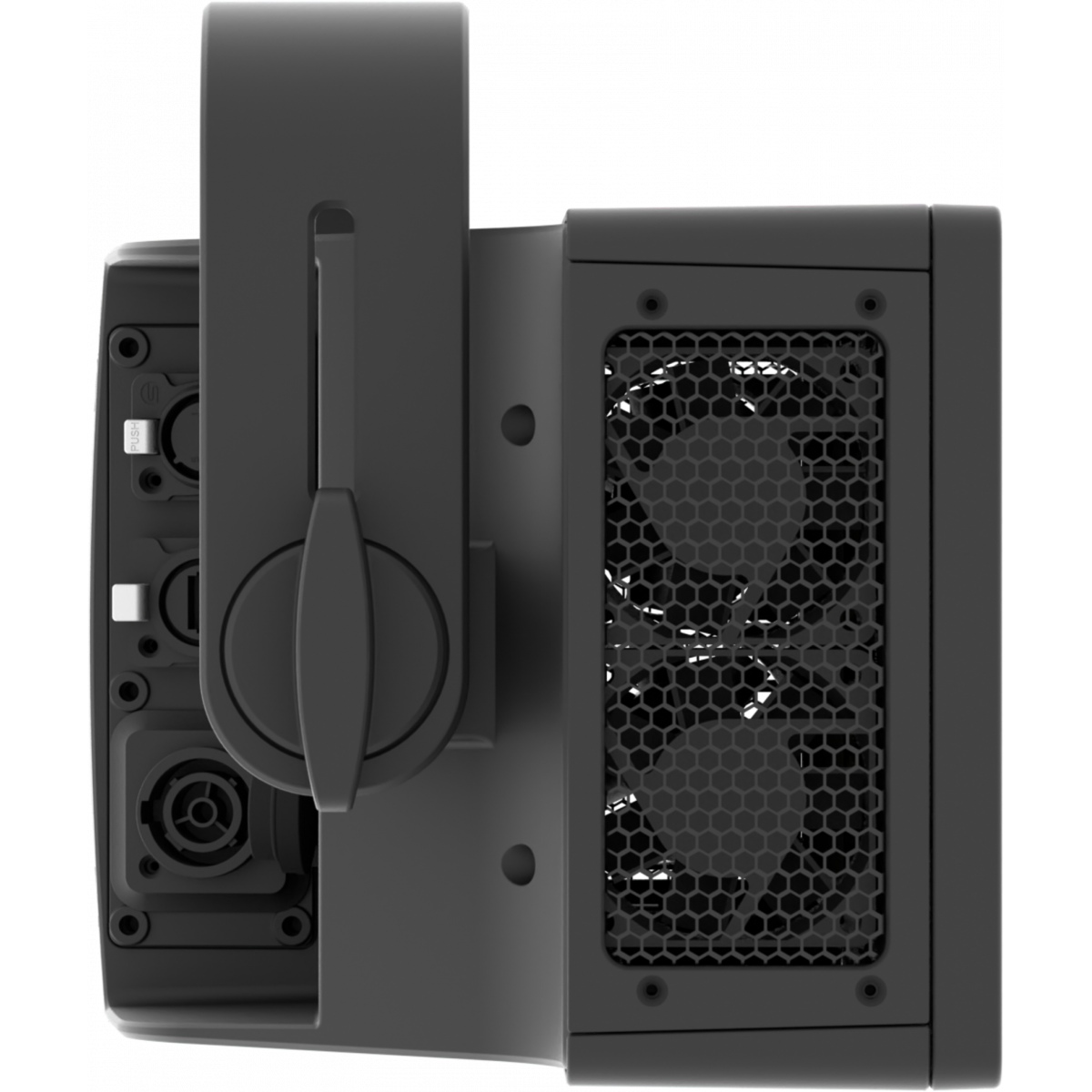

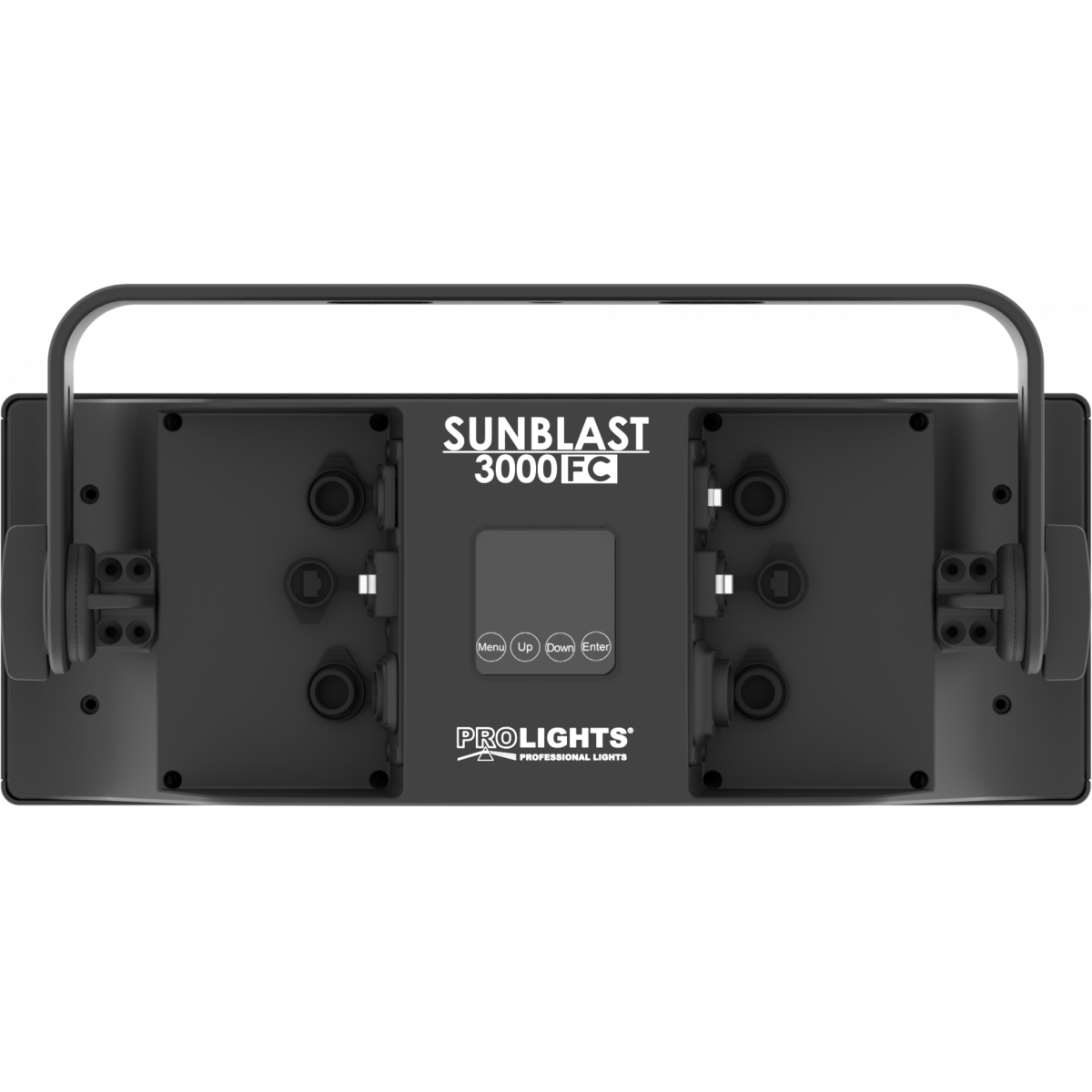

SunBlast 3000FC
SunBlast 3000FC
SunBlast 3000FC
SunBlast 3000FC

Technical specifications

LIGHT SOURCE
  • Source: 1.728x1W RGBW LEDs
  • CCT: full ON 6.500
  • Luminous flux: strobing: 180'000 lm - full static: 34'717
  • Lux: full static: 1'425lx @3 m full
  • Lux: strobing: 565lx @5 m full
  • Source life expectancy: > 30.000 h
OPTICS
  • Beam angle: 111°
  • Field angle: 153°
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
DYNAMIC EFFECTS
  • Rotating gobos: dynamic patterns with speed and rotation control
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, Art-Net, Kling-Net
  • Pixel control: 1 / 2 / 4 / 8 / 16 / 48 individually select and control sections
  • RDM: RDM for remote monitoring and settings
  • Display: black TFT touch display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: strobe : 1.500 W (peak) - static: 580W
  • Max power consumption (at 120V): strobe: 1.550 W (peak) - static 602W
  • Output (at 230V): 2 units on a single power line
  • Output (at 120V): 1 units on a single power line
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: active, silent operation
  • Suspension and fixing: hanging bracket for floor positioning with "Quick-Lock" system
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Data connection: Art-Net RJ45 IN/OUT
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Dimensions (WxHxD): 468x179x268mm / 18.43''x7.05''x10.55''
  • Weight: 14kg / 30.86lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
OS26D13
OS26D13
(Optional)

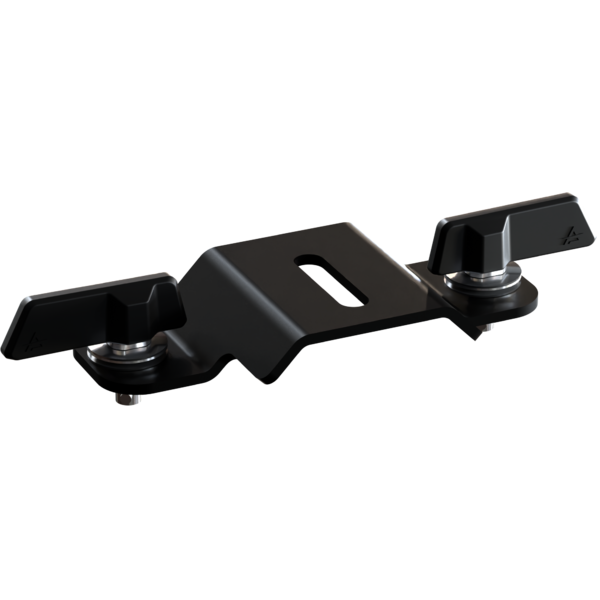

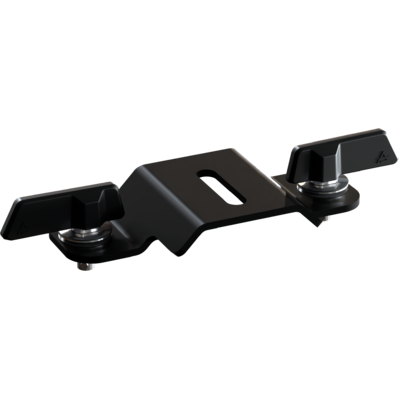

Quick-Lock omega bracket, M12 hole
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

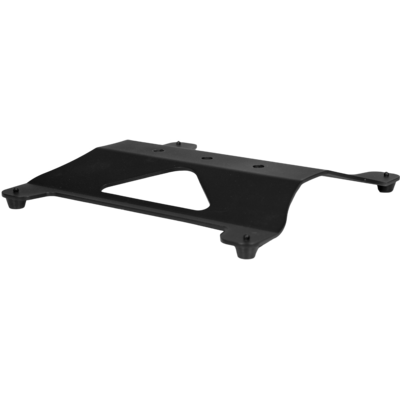

SUNBLASTFLR
SUNBLASTFLR
(Optional)

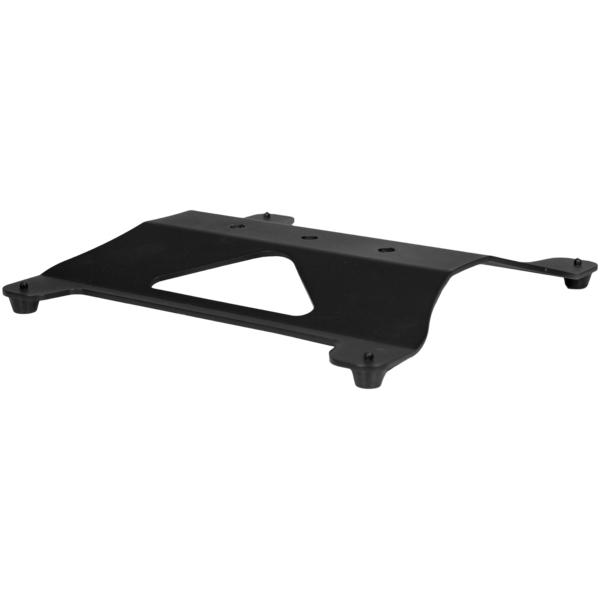

Hanging bracket for SUNBLAST floor positioning, quick-look
SUNBLASTBD
SUNBLASTBD
(Optional)

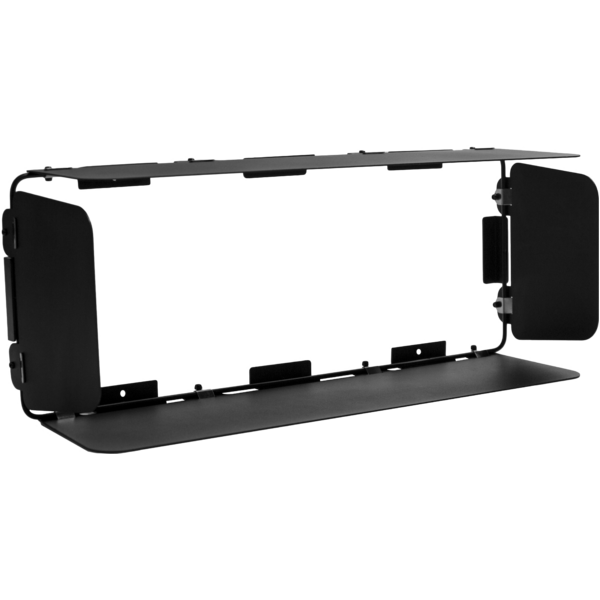

Barn door for SUNBLAST with 4 directional flaps to adjust the light beam
FCLSUNBLAST
FCLSUNBLAST
(Optional)

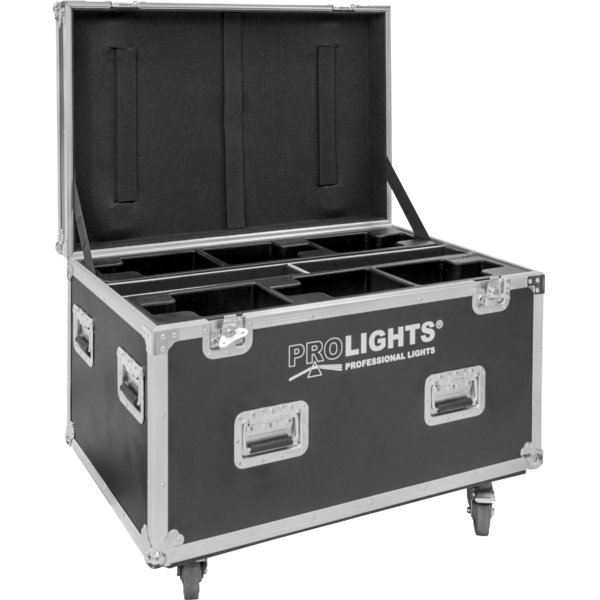

Flight case for 6x SUNBLAST, foam shells included
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetSunblast3000fc_LETTER_DATASHEET_(EN).pdf381KB
Letter datasheetSunblast3000fc_A4_DATASHEET_(IT).pdf378KB
Letter datasheetSunblast3000fc_A4_DATASHEET_(EN).pdf628KB

User manual

DMX chart & personalities

File name File size Download
DMX chartSunblast3000fc_DMX_CHARTS.pdf103KB
SUNBLAST3000FC Firmware rev. 2.6
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_sunblast3000fc_advanced+1.hedDownload
prolights_sunblast3000fc_advanced+2.hedDownload
prolights_sunblast3000fc_advanced+3.hedDownload
prolights_sunblast3000fc_advanced+4.hedDownload
prolights_sunblast3000fc_basicpixel.hedDownload
prolights_sunblast3000fc_basicstatic.hedDownload
prolights_sunblast3000fc_basicstrobe.hedDownload
prolights_sunblast3000fc_pixelspixels.hedDownload
prolights_sunblast3000fc_rgbwstrobe.hedDownload
manufacturer fixture library (Link) Link
prolights@sunblast_3000_fc@advance_1.xmlDownload
prolights@sunblast_3000_fc@advance_2.xmlDownload
prolights@sunblast_3000_fc@advance_3.xmlDownload
prolights@sunblast_3000_fc@advance_4.xmlDownload
prolights@sunblast_3000_fc@basic_pixel.xmlDownload
prolights@sunblast_3000_fc@basic_rgbw_strobe.xmlDownload
prolights@sunblast_3000_fc@basic_static.xmlDownload
prolights@sunblast_3000_fc@basic_strobe.xmlDownload
prolights@sunblast_3000_fc@basic16_pixel.xmlDownload
prolights@sunblast_3000_fc@basic16_rgbw_strobe.xmlDownload
prolights@sunblast_3000_fc@basic16_static.xmlDownload
prolights@sunblast_3000_fc@basic16_strobe.xmlDownload
prolights@sunblast_3000_fc@pixels_1px.xmlDownload
prolights@sunblast_3000_fc@pixels_2px.xmlDownload
prolights@sunblast_3000_fc@pixels_3px.xmlDownload
prolights@sunblast_3000_fc@pixels_12px.xmlDownload
prolights@sunblast_3000_fc@pixels_48px.xmlDownload
prolights@sunblast_3000_fc@expert_advance_2.xmlDownload
prolights@sunblast_3000_fc@expert_advance_4.xmlDownload
prolights@sunblast_3000_fc@expert_pixels.xmlDownload
manufacturer fixture library (Link) Link
sunblast3kfc_adv1_hv3_6_1.zipDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
sunblast 3000 fc advanced 1.fix2Download
sunblast 3000 fc advanced 2.fix2Download
sunblast 3000 fc advanced 3.fix2Download
sunblast 3000 fc basic pixel.fix2Download
sunblast 3000 fc basic rgbw strobe.fix2Download
sunblast 3000 fc basic static.fix2Download
sunblast 3000 fc basic strobe.fix2Download
sunblast 3000 fc pixels 1px.fix2Download
sunblast 3000 fc pixels 2px.fix2Download
sunblast 3000 fc pixels 3px.fix2Download
sunblast 3000 fc pixels 12px.fix2Download
sunblast 3000 fc pixels 48px.fix2Download
manufacturer fixture library (Link) Link
SUNBLAST3000FC Firmware rev. 2.1
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_sunblast3000fc_advanced+1.hedDownload
prolights_sunblast3000fc_advanced+2.hedDownload
prolights_sunblast3000fc_advanced+3.hedDownload
prolights_sunblast3000fc_advanced+4.hedDownload
prolights_sunblast3000fc_basicpixel.hedDownload
prolights_sunblast3000fc_basicstatic.hedDownload
prolights_sunblast3000fc_basicstrobe.hedDownload
prolights_sunblast3000fc_pixelspixels.hedDownload
prolights_sunblast3000fc_rgbwstrobe.hedDownload
manufacturer fixture library (Link) Link
prolights@sunblast_3000_fc@advance_1.xmlDownload
prolights@sunblast_3000_fc@advance_2.xmlDownload
prolights@sunblast_3000_fc@advance_3.xmlDownload
prolights@sunblast_3000_fc@advance_4.xmlDownload
prolights@sunblast_3000_fc@basic_pixel.xmlDownload
prolights@sunblast_3000_fc@basic_rgbw_strobe.xmlDownload
prolights@sunblast_3000_fc@basic_static.xmlDownload
prolights@sunblast_3000_fc@basic_strobe.xmlDownload
prolights@sunblast_3000_fc@basic16_pixel.xmlDownload
prolights@sunblast_3000_fc@basic16_rgbw_strobe.xmlDownload
prolights@sunblast_3000_fc@basic16_static.xmlDownload
prolights@sunblast_3000_fc@basic16_strobe.xmlDownload
prolights@sunblast_3000_fc@pixels_1px.xmlDownload
prolights@sunblast_3000_fc@pixels_2px.xmlDownload
prolights@sunblast_3000_fc@pixels_3px.xmlDownload
prolights@sunblast_3000_fc@pixels_12px.xmlDownload
prolights@sunblast_3000_fc@pixels_48px.xmlDownload
prolights@sunblast_3000_fc@expert_advance_2.xmlDownload
prolights@sunblast_3000_fc@expert_advance_4.xmlDownload
prolights@sunblast_3000_fc@expert_pixels.xmlDownload
manufacturer fixture library (Link) Link
sunblast3kfc_adv1_hv3_6_1.zipDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
sunblast 3000 fc advanced 1.fix2Download
sunblast 3000 fc advanced 2.fix2Download
sunblast 3000 fc advanced 3.fix2Download
sunblast 3000 fc basic pixel.fix2Download
sunblast 3000 fc basic rgbw strobe.fix2Download
sunblast 3000 fc basic static.fix2Download
sunblast 3000 fc basic strobe.fix2Download
sunblast 3000 fc pixels 1px.fix2Download
sunblast 3000 fc pixels 2px.fix2Download
sunblast 3000 fc pixels 3px.fix2Download
sunblast 3000 fc pixels 12px.fix2Download
sunblast 3000 fc pixels 48px.fix2Download
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPSunblast3000fc_3D.skp220KB
3DSunblast3000fc_CAD_3D.dwg636KB
2DSunblast3000fc_CAD_2D.dwg4MB
Technical drawingSunblast3000fc_TECHNICAL_DRAWING.pdf626KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksVECTORWORKS_SYMBOLS.vwx288KB

Tech docs

File name File size Download

Software

File name File size Download
SoftwareProfessional Uploader19MB

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.6 STABLE 15/11/2023 Improvement:
  • Improved Dimming at low DMX values.
 Rev. 1
Rev. 2
Rev. 3
Rev. 1.0
2.1 STABLE 22/02/2022 Improvements:
  • Added NAdvanced DMX Charts family.
  • Added Zero Time option to Dim RGBW LEDs together while using Pixels.
Note: Update must be performed updating firmware in the following order NET, CTR-LED,DISP 		 Rev. 1.0

Info Request

News

CPC Production Services relies on PROLIGHTS for professional lighting
March 14, 2025
CPC Production Services relies on PROLIGHTS for professional lighting
Ipswich, Queensland - With a legacy of excellence dating back to 1984, CPC Production Services is a leading live event and broadcast production company in Australia. It has recently chosen to invest in PROLIGHTS solutions, supplied by Show Technology
PROLIGHTS Lights Up the Stage at Vibe Budapest
March 12, 2025
PROLIGHTS Lights Up the Stage at Vibe Budapest
The newly opened Vibe Budapest , the latest gem of the Costes Group , has chosen PROLIGHTS solutions to create spectacular lighting effects and an engaging atmosphere. The lighting system design and installation were managed by LISYS-Project Kft ., which
PROLIGHTS presents ÆtherBox: the single-universe CRMX transceiver with IP65 rating and multi-protocol support
March 11, 2025
PROLIGHTS presents ÆtherBox: the single-universe CRMX transceiver with IP65 rating and multi-protocol support
PROLIGHTS is proud to announce the launch of ÆtherBox , a single-universe CRMX transceiver with an IP65 protection rating, designed to offer versatility and robustness in any environment, from indoor venues to outdoor stages. With a wide range of connectivity
PROLIGHTS Illuminates the 4th Global Ministerial Conference on Road Safety in Morocco
March 07, 2025
PROLIGHTS Illuminates the 4th Global Ministerial Conference on Road Safety in Morocco
The 4th Global Ministerial Conference on Road Safety , held in Morocco, was a landmark event in the global effort to improve road safety. The conference brought together ministers, experts, and stakeholders globally to discuss innovative strategies and
Baycourt Community & Arts Centre Upgrades Stage Lighting with PROLIGHTS Solutions
March 04, 2025
Baycourt Community & Arts Centre Upgrades Stage Lighting with PROLIGHTS Solutions
Baycourt Community & Arts Centre , situated in the heart of downtown Tauranga, is the Bay of Plenty's premier performing arts facility. Designed to serve both the local community and international touring productions, the venue provides cutting-edge spaces
The Valencia's Museu de les Ciències shines with PROLIGHTS
February 27, 2025
The Valencia's Museu de les Ciències shines with PROLIGHTS
In the stunning setting of the Museu de les Ciències de Valencia, an exhibition center that invites visitors to explore the evolution of life, science, and technology through interactive experiences and scientific animations, NOX AUDIOVISUALES chose
HaluPix Duo Wins rAVe [PUBS] Best of ISE 2025 Award!
February 26, 2025
HaluPix Duo Wins rAVe [PUBS] Best of ISE 2025 Award!
PROLIGHTS has been recognized at the rAVe [PUBS] Best of ISE 2025 awards , with HaluPix Duo winning the title of Best New Event Lighting Product in the Rental, Staging & Live Events category. This award highlights the product's innovation, performance,
PROLIGHTS Unveils the Smart BatPlus Neo: Redefining battery uplight, again!
February 13, 2025
PROLIGHTS Unveils the Smart BatPlus Neo: Redefining battery uplight, again!
PROLIGHTS is proud to announce the launch of the Smart BatPlusNeo , the latest innovation in battery uplighting product category . Building on the success of the legendary SmartBat Plus series, this next-generation fixture brings groundbreaking advancements
PROLIGHTS launches Jet Profile 300LT: Compact, Long-Throw Profile moving light
February 11, 2025
PROLIGHTS launches Jet Profile 300LT: Compact, Long-Throw Profile moving light
PROLIGHTS announces the release of the Jet Profile300LT , an all-new moving profile fixture that merges high-precision keylight with the power and reach of a long-throw fixture. Delivering superior aerial effects and long-distance projections, the Jet
PROLIGHTS Launches Astra Profile900: The New Flagship Moving Profile in the High-Power Class
February 07, 2025
PROLIGHTS Launches Astra Profile900: The New Flagship Moving Profile in the High-Power Class
PROLIGHTS announces the release of the Astra Profile900 , a moving head designed to address the needs of lighting professionals in live productions, studios, theatres, and events. Combining brightness, adaptability, and advanced motion technology, the
PROLIGHTS Launches Astra Hybrid260IP: All-Weather Phosphor Laser Hybrid Luminaire
February 05, 2025
PROLIGHTS Launches Astra Hybrid260IP: All-Weather Phosphor Laser Hybrid Luminaire
PROLIGHTS announces the release of the Astra Hybrid260IP , a next-generation hybrid moving head luminaire that delivers unmatched performance and versatility in both indoor and outdoor events. Equipped with a 260W White Phosphor Laser source, the Astra
PROLIGHTS Introduces HaluPix DUO: Blending Pixel Surfaces with Dynamic Beams
February 03, 2025
PROLIGHTS Introduces HaluPix DUO: Blending Pixel Surfaces with Dynamic Beams
PROLIGHTS is proud to announce the launch of the HaluPix Duo , a cutting-edge dual-layer LED matrix panel that introduces a new level of innovation in lighting design for stages and television. This 50x50 cm panel seamlessly combines powerful, long-throw
Subscribe to our Newsletter
Loading...
