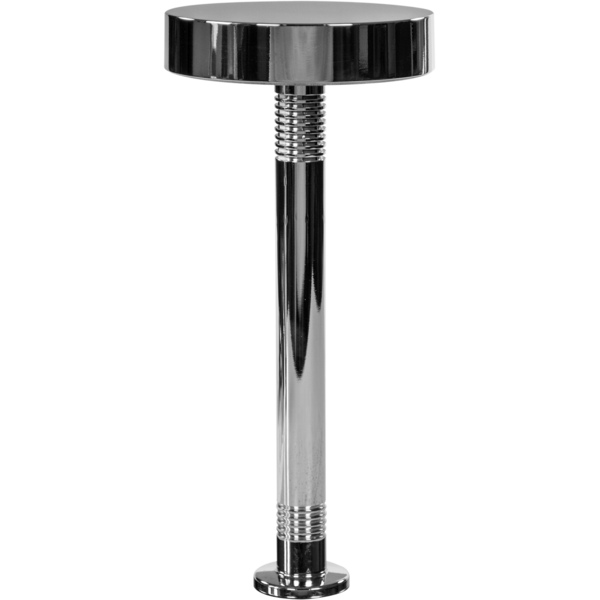

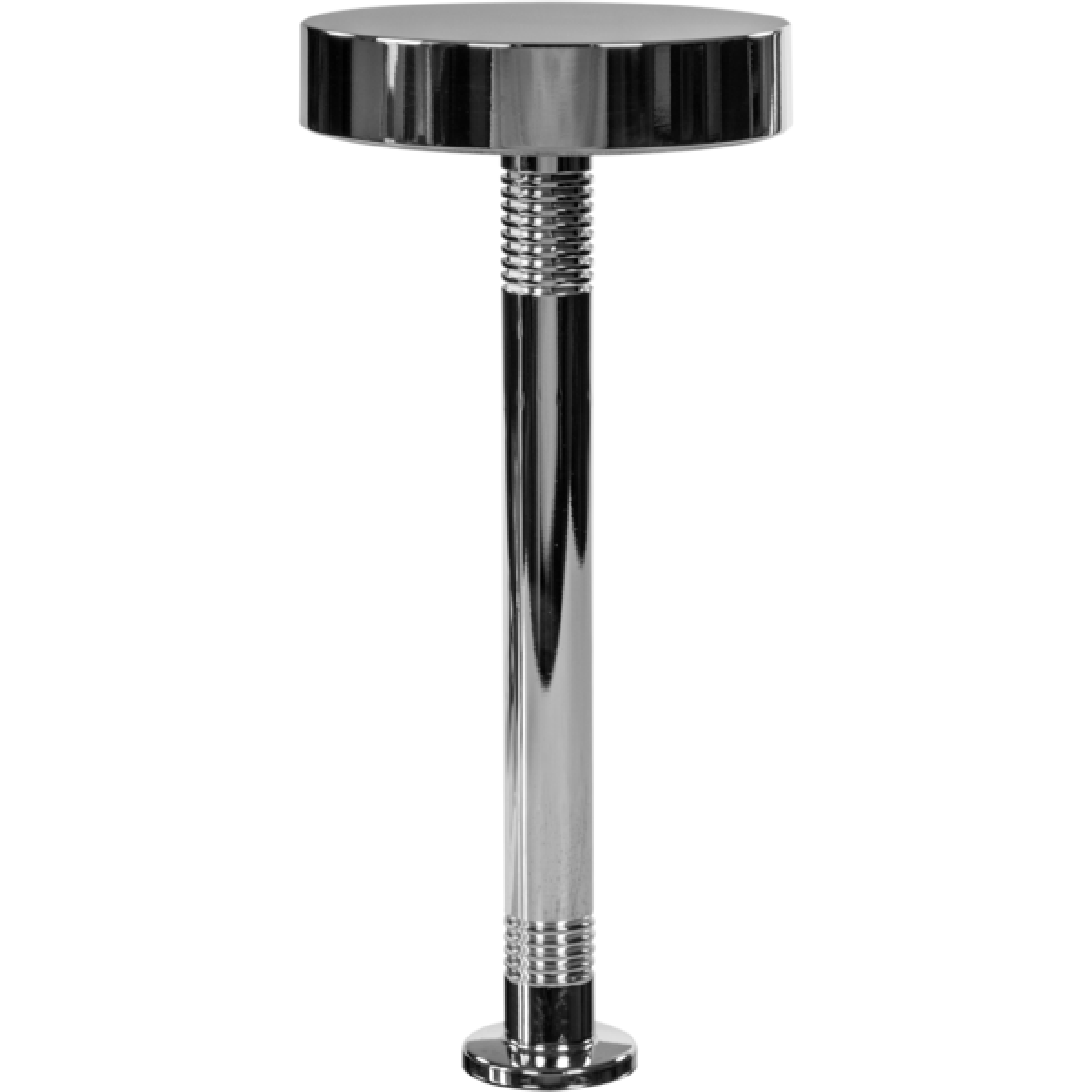

Tabled C

Revolutionary full colour event battery table lamp

Tabled C is an ingenious product which offers beautiful table lighting for events whilst keeping the atmosphere of the room. Based on a stunning aesthetic design, it is not only a stylish centerpiece but fast to deploy and easy to use. With local control and wireless DMX, it can either act as a standalone table light or be part of a spectacular event lighting package.

Main features:

  • Battery powered and wireless DMX control for fast deployment and accurate control
  • RGBW LED source with 360° coverage for standard catering round tables of 1,8 m

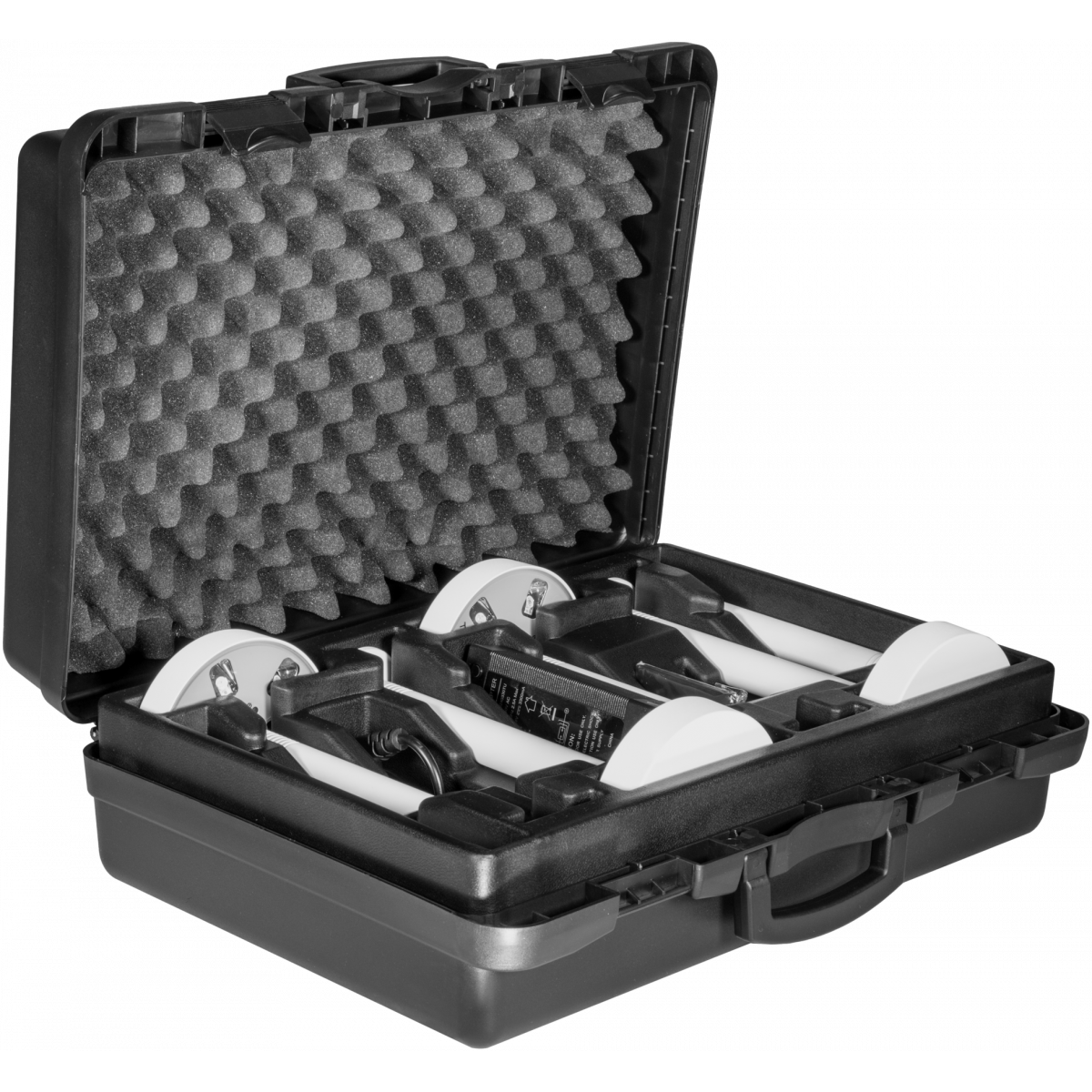

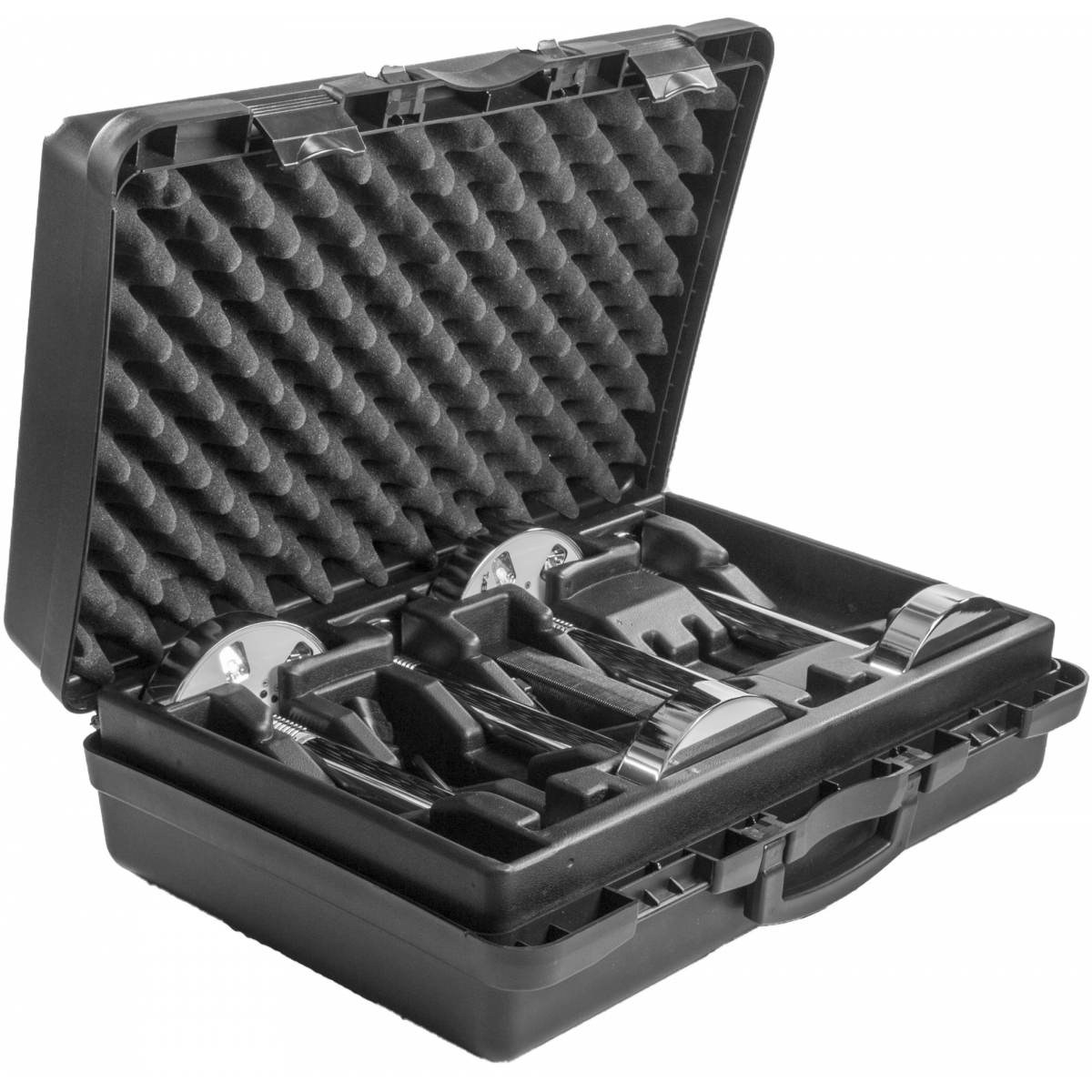

  • Available in a TABLEDPACK featuring 4 lights with accessories in an ABS case
See variants

PHOTO GALLERY

Tabled C
Tabled C
Tabled C
Tabled C
Tabled C

Technical specifications

LIGHT SOURCE

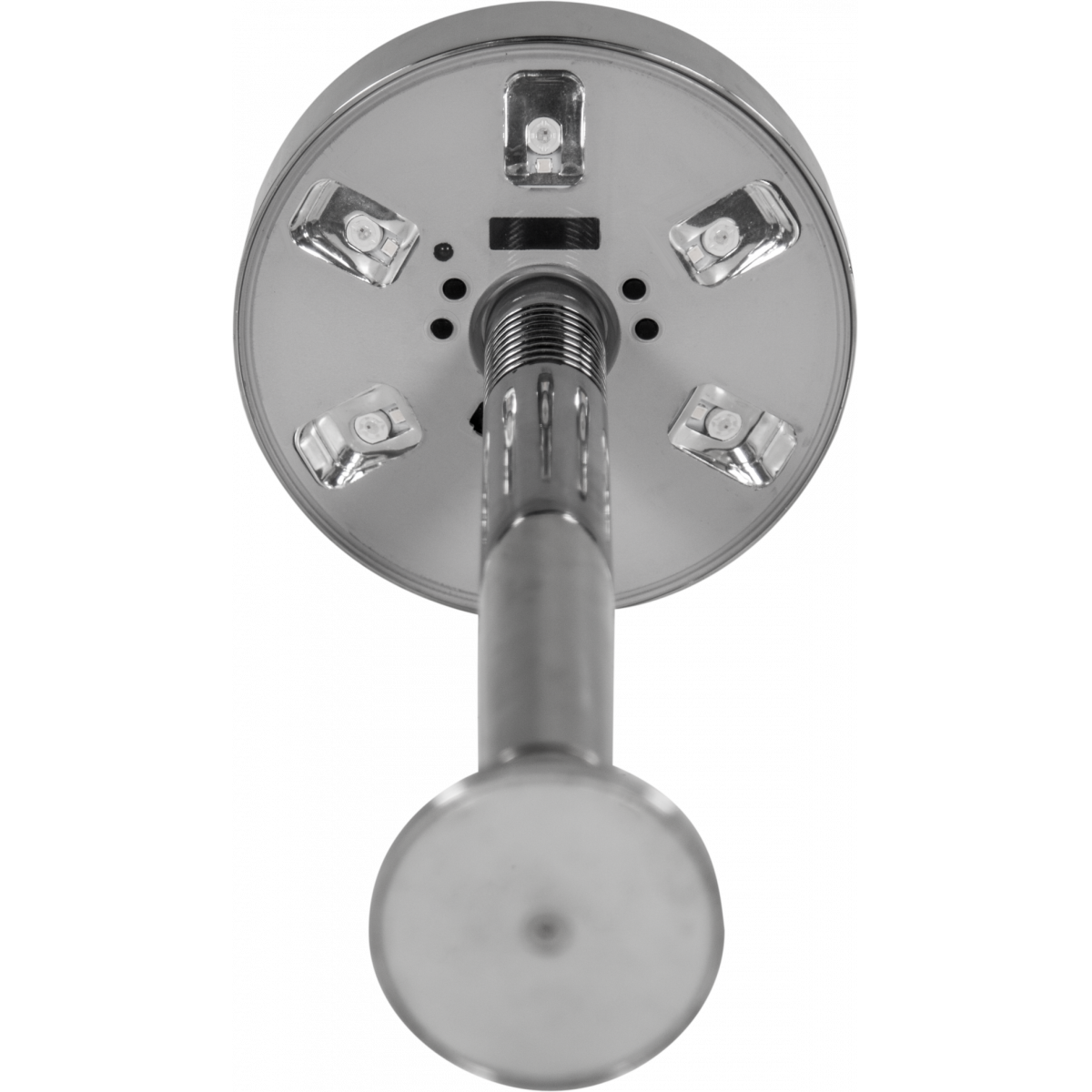

  • Source: 6x3 W + 6x1W RGB + Neutral White
  • CCT: NW 4.000
  • CRI: 80
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 360° designed to light up standard 160/180 cm ceremony tables
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
BODY
  • Hardware on-board: magnetic base
  • Body: sturdy die-cast aluminium body

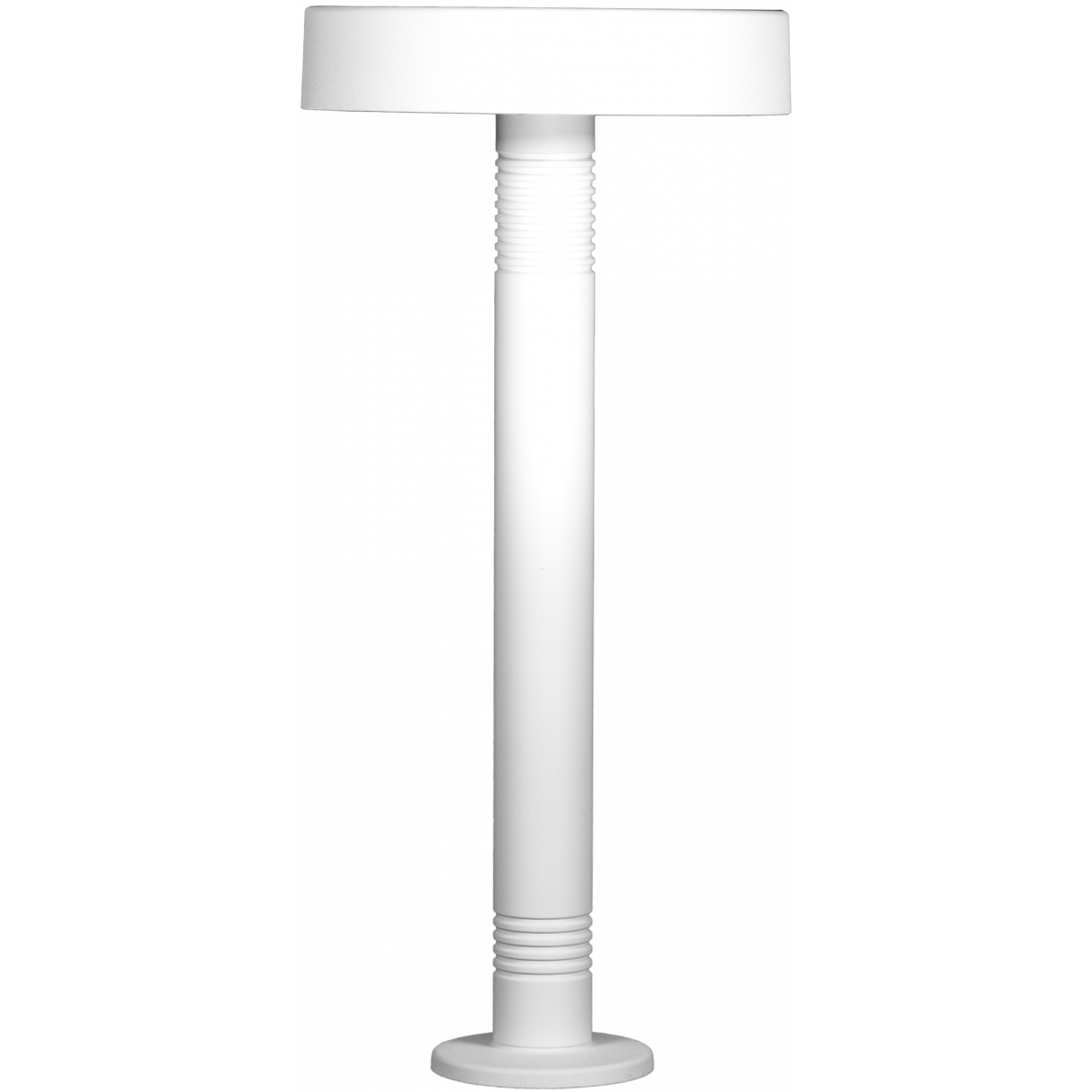

  • Body colour: mirror and white finishing
  • Other: 1 x TABLEDDSK22W and 1x1 recharger included inside single unit box
CONTROL
  • Protocols: W-DMX
  • DMX channels: 4 / 7 / 10 / 12channel
  • Wireless Control: included, wireless solution receiver
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOX1U (USB-DMX interface not included)
  • IR: infrared sensor controlled by remote (included in the pack, not included in single unit)
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: 0° ~ +45° Ta
ELECTRICAL
  • Mains power supply: DC 24 V - 1 A
  • Max power consumption: 8,8W
BATTERY
  • Battery: 2,20 Ah - 14,8V lithium
  • Estimated battery life in colour change mode up to: 14,5h
  • Estimated battery life in single colour mode up to: R: 19 h - G: 17,5 h - B: 17,5 h - W: 17,5h
  • Estimated battery life in full-mode up to: 9h
  • Re-charge connection: power cable fast-charge in pelican case
  • Re-charge time: 4h/max
  • Battery status: shown on display
PHYSICAL
  • IP rating: 30
  • Suspension and fixing: magnetic base to attach on every metal surface
  • Data connection: W-DMX receiver
  • Dimensions (WxHxD): 140x307x220mm / 5.51''x12.09''x8.66''
  • Weight: 1,18kg / 2.6lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM

Versions

Code
Tabled
Extensions
Bases
Recharger
IRC
Certifications
TABLED-C
TABLED-C
x1
No
x1 TABLEDDSK22W
1x1
No
CE, cTUVus, UKCA
TABLED-CPACK
TABLED-CPACK
x4
x2 TABLEDEXT-027
x4 TABLEDDSK22W
1x4
x1
CE, UKCA
TABLED-CPACKWH
TABLED-CPACKWH
x4
x2 TABLEDEXT-027WH
x4 TABLEDDSK22W
1x4
x1
CE, UKCA

Accessories & Related Products

<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
<b>ÆtherBox</b> LITE
ÆtherBox LITE
(Optional)
1 Universe CRMX Wireless Transceiver
LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
<b>IR</b> Controller
IR Controller
(Optional)
RGBWA IR controller, 29 buttons, manual/static colours, auto programs, fade
TABLEDDSK22W
TABLEDDSK22W
(Included)
White disk for TABLED, D 220 mm
TABLEDDSK22MT
TABLEDDSK22MT
(Optional)
Transparent disk with magnet for TABLED, D 220 mm

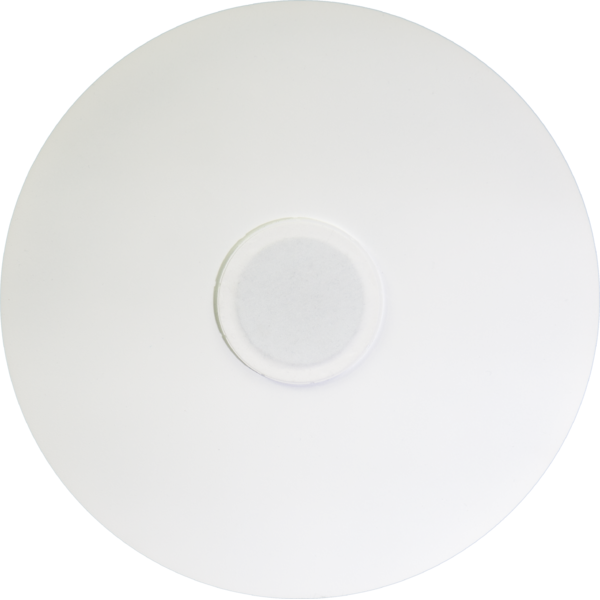

TABLEDDSK28MW
TABLEDDSK28MW
(Optional)
White disk with magnet for TABLED, D 280 mm

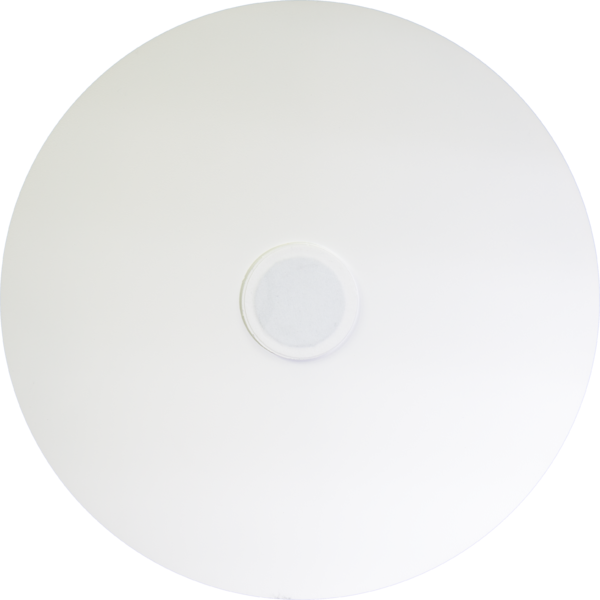

TABLEDDSK40MW
TABLEDDSK40MW
(Optional)
White disk with magnet for TABLED, D 400 mm

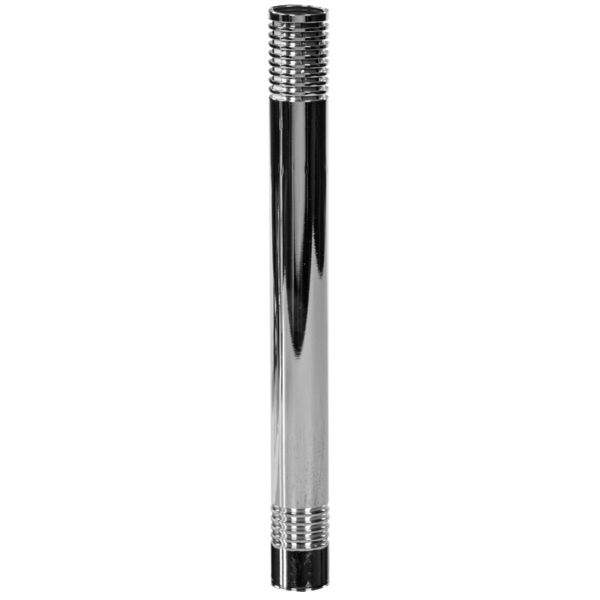

TABLEDEXT
TABLEDEXT
(Optional)

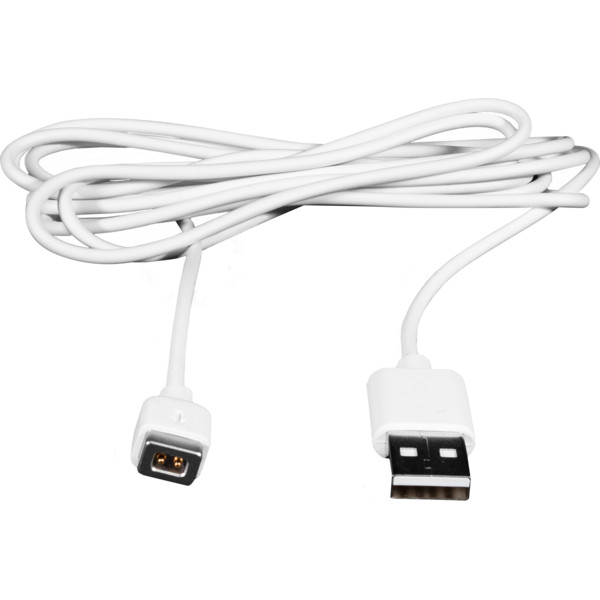

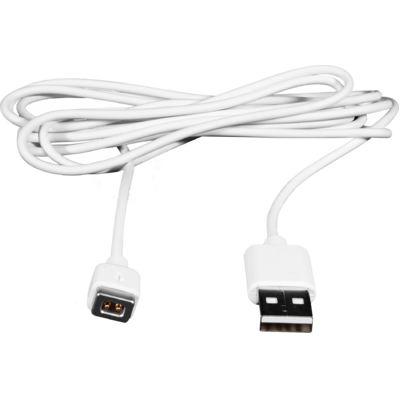

TABUPBOXI
TABUPBOXI
(Optional)
Interface used between UPBOX1U and TABLED for make firmware upgrade

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetTabledc_A4_DATASHEET_(IT).pdf256KB
Letter datasheetTabled-cpack_A4_DATASHEET_(IT).pdf256KB
Letter datasheetTabledc_A4_DATASHEET_(EN).pdf257KB
Letter datasheetTabled-cpack_A4_DATASHEET_(EN).pdf257KB

User manual

DMX chart & personalities

File name File size Download
DMX chartTabled-c_DMX_CHARTS.pdf46KB
TABLEDC Firmware rev. 1.2
manufacturer fixture library (Link) Link
prolights_tabled-c.d4Download
manufacturer fixture library (Link) Link
prolights_tabled_basic.hedDownload
prolights_tabled_ext.hedDownload
prolights_tabled_std.hedDownload
prolights@tabledc@10ch.xmlDownload
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D RFATabledc_3D.rvt394KB
3D SKPTabledc_3D.skp230KB
2DTabled-c_CAD_2D.dwg570KB
3DTabled-c_CAD_3D.dwg1MB
2D cad symbolsTabledc_CAD_2DSYMBOLS.dwg81KB
Technical drawingTABLEDC_TECHNICAL DRAWINGS.zip352KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksVECTORWORKS_SYMBOLS.vwx181KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware

-------------------------------------------------------------------------------
To perform firmware update with UPBOX the tool TABUPBOXI is also needed

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.2 STABLE 24/10/2019 Added new dmx mode ADV@12ch The new mode include: - crossfade channel trought 2 layers to achive linear crossfade form any RGB colors (mixed, presets or effects) to White channel. - CTO on Colors Rev. 1
