ECLDISPLAYDAT

EclDisplay DATWhite

5 YEARS WARRANTY

Source
25W White COB LED
Zoom range
(wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or fix 8°, 18°, 36°, 50°
IP rating
 IP20
Weight
1,4kg / 3.09lbs

Key Features

  • Data control through RDM, DMX, DALI Type 6 and local knob dimming
  • 25W high CRI White LED available in 2.700 K, 3.000 K, 4.000 K, 5.600 K versions, both black and white housing
  • Multiple lens options: profile (zoom and static) or wash optics

EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, commercials and any public venue where an advanced but classy fixture, with several control options, sources and optic versions available to precisely meet any application.
The EclDisplay DAT can be set and addressed through RDM, and includes a broad set of on-board input control options: DMX, DALI Type 6 or local knob dimming control.
The EclDisplay DAT includes a high-efficiency 25 W White, high CRI LED source, available in 2.700 K, 3.000 K, 4.000 K, 5.600 K variants, and it is completed with a wide selection of optional profile (zoom and static) or wash lenses, and other optical accessories like louvres and snoots, making it truly a multi-purpose fixture.

Read less
EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, commercials and any public venue where an advanced but classy fixture, with several control options, sources ...

Versions

Code CT Finishing Track adapter Optics
ECLDISPLAYDAT27KB
ECLDISPLAYDAT27KB
2700K Black Not included Not included
ECLDISPLAYDAT30KB
ECLDISPLAYDAT30KB
3000K Black Not included Not included
ECLDISPLAYDAT40KB
ECLDISPLAYDAT40KB
4000K Black Not included Not included
ECLDISPLAYDAT56KB
ECLDISPLAYDAT56KB
5600K Black Not included Not included
ECLDISPLAYDAT27KW
ECLDISPLAYDAT27KW
2700K White Not included Not included
ECLDISPLAYDAT30KW
ECLDISPLAYDAT30KW
3000K White Not included Not included
ECLDISPLAYDAT40KW
ECLDISPLAYDAT40KW
4000K White Not included Not included
ECLDISPLAYDAT56KW
ECLDISPLAYDAT56KW
5600K White Not included Not included

Product Video

Discover the EclDisplay DATWhite in action

Photo Gallery

ECLDISPLAYDAT27KB
ECLDISPLAYDAT27KB
ECLDISPLAYDAT27KB
ECLDISPLAYDAT27KB
ECLDISPLAYDAT27KB
ECLDISPLAYDAT27KB
ECLDISPLAYDAT27KB
ECLDISPLAYDAT27KB
ECLDISPLAYDAT27KB
ECLDISPLAYDAT27KB
ECLDISPLAYDAT27KB

Specifications

LIGHT SOURCE
  • Source: 25W White COB LED
  • CCT: see available versions
  • Luminous flux: 2700K: (profile - 18° HD) 1'631 lm - (profile - 36° HD) 1'625 lm - (profile - 50° HD) 1'541 lm - (profile - 10°-20°) 1'510 lm @20° - (profile - 20°-40°) 1'586 lm @40° - (wash 25°-50°) 1'638 lm @50° - (wash 15°-30°) 1'527 lm @30° @Full
  • Luminous flux: 3000K: (profile - 18° HD) 1'646 lm - (profile - 36° HD) 1'633 lm - (profile - 50° HD) 1'603 lm - (profile - 10°-20°) 1'623 lm @20° - (profile - 20°-40°) 1'676 lm @40° - (wash 25°-50°) 1'849 lm @50° - (wash 15°-30°) 1'730 lm @30° @full
  • Luminous flux: 4000K: (profile - 18° HD) 1'887 lm - (profile - 36° HD) 1'894 lm - (profile - 50° HD) 1'825 lm - (profile - 10°-20°) 1'616 lm @20° - (profile - 20°-40°) 1'810 lm @40° - (wash 25°-50°) 1'845 lm @50° - (wash 15°-30°) 1'724 lm @30° @full
  • Luminous flux: 5600K: (profile - 18° HD) 1'877 lm - (profile - 36° HD) 1'875 lm - (profile - 50° HD) 1'852 lm - (profile - 10°-20°) 1'773 lm @20° - (profile - 20°-40°) 1'869 lm @40° - (wash 25°-50°) 1'884 lm @50° - (wash 15°-30°) 1'764 lm @30° full
  • Lux: 2700K: (profile - 18° HD) 1'059 lx - (profile - 36° HD) 276 lx - (profile - 50° HD) 117 lx - (profile - 10°-20°) 2'771 lx @10°; 762 lx @20° - (profile - 20°-40°) 825 lx @20°; 221 lx @40° - (wash 25°-50°) 271 lx @25°; 96 lx @50° - (wash 15°-30°) 683 lx @15lx @5 m full
  • Lux: 3000K: (profile - 18° HD) 1'100 lx - (profile - 36° HD) 291 lx - (profile - 50° HD) 125 lx - (profile - 10°-20°) 3'084 lx @10°; 845 lx @20° - (profile - 20°-40°) 887 lx @20°; 241 lx @40° - (wash 25°-50°) 310 lx @25°; 108 lx @50° - (wash 15°-30°) 779 lx @1lx
  • Lux: 4000K: (profile - 18° HD) 1'172 lx - (profile - 36° HD) 306 lx - (profile - 50° HD) 131 lx - (profile - 10°-20°) 2'943 lx @10°; 797 lx @20° - (profile - 20°-40°) 923 lx @20°; 245 lx @40° - (wash 25°-50°) 295 lx @25°; 107 lx @50° - (wash 15°-30°) 756 lx @1lx
  • Lux: 5600K: (profile - 18° HD) 1'249 lx - (profile - 36° HD) 330 lx - (profile - 50° HD) 142 lx - (profile - 10°-20°) 3'381 lx @10°; 903 lx @20° - (profile - 20°-40°) 964 lx @20°; 256 lx @40° - (wash 25°-50°) 307 lx @25°; 108 lx @50° - (wash 15°-30°) 693 lx @1lx
  • CRI: 91 @2.700 K; 90 @3.000 K; 93 @4.000 K; 91 @5.600 K
  • TLCI: 83 @2.700 K; 82 @3.000 K; 92 @4.000 K; 94 @5.600 K
  • TM30 Rf: > 88 @2.700 K; > 87 @3.000 K; > 89 @4.000 K and 5.600 K
  • TM30 Rg: < 104 @2.700 K and 3.000 K; > 100 @4.000 K and 5.600 K
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom range: (wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or fix 8°, 18°, 36°, 50°
  • Other: 360° lens rotation - optional 360° rotating barndoors and gel frame holder
  • Other: (profile lens) shutter blades lockable
  • Other: (profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Static mode: selection of static dimmer
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: lockable tilt with screw
  • Body: aluminium die-casting
  • Body colour: RAL 9004 or RAL 9010
  • Other: cable not included - Cable diameter range: 6 - 10 mm
CONTROL
  • Protocols: Local Knob, DMX, DALI Type6, RDM
  • DMX channels: 1 / 2 / 3 / 4channel
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 33W
  • Output (at 230V): 40 units on a single power line
  • Power factor: > 0,94
PHYSICAL
  • Operating Temperature: -10° ~ +45°
  • IP rating: IP20
  • Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
  • Suspension and fixing: track / hanging / ceiling installation
  • Data connection: screw terminal blocks
  • Power connection: screw terminal blocks
  • Dimensions (WxHxD): 141X200x115.5mm / 5.55''x4.55''
  • Weight: 1,4kg / 3.09lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT
  • 1 x ECLDISPLAYDAT
  • User Manual

Accessories & Related Products

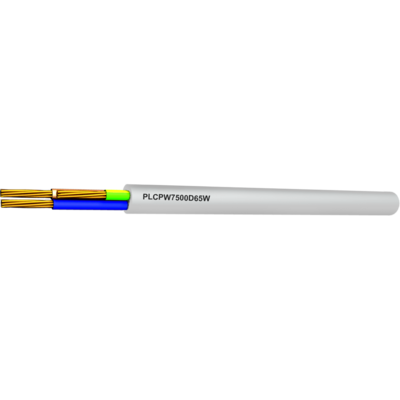

Optional PLCPW7500D65W

Power PVC cable H05VV-F 3G0,75, 1 meter lenght, white

Order Code: PLCPW7500D65W

Optional <b>EclDisplay</b> Filter

Light 1° frost filters for ECLDISPLAY and ECLMINI series, 87 mm diameter

Order Code: ECLDISPFILT01L

Optional <b>EclDisplay</b> Filter

Medium 3° frost filter for ECLDISPLAY and ECLMINI series, 87 mm diameter

Order Code: ECLDISPFILT03M

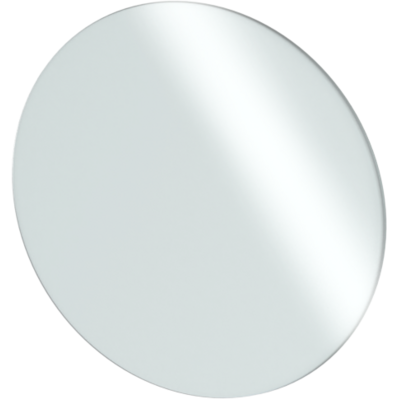

Optional <b>EclDisplay</b> Filter

Heavy 10° frost filter for ECLDISPLAY and ECLMINI series, 87 mm diameter

Order Code: ECLDISPFILT10H

Optional PLCPW7500D65B

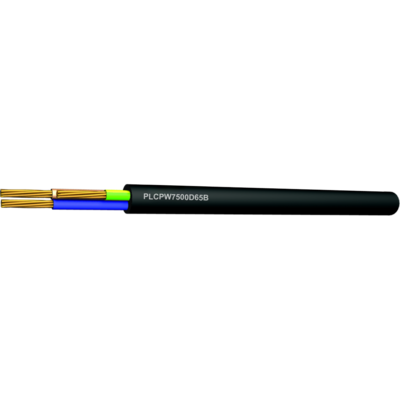

Power PVC cable H05VV-F 3G0,75, 1 meter lenght, black

Order Code: PLCPW7500D65B

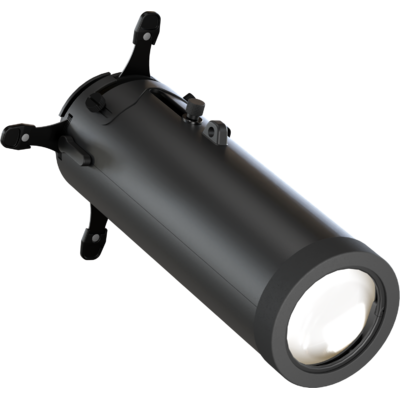

Optional ECLDISPPRL08B

Fix Profile 8° Lens, with 4 framing shutters, for EclDisplay, black

Order Code: ECLDISPPRL08B

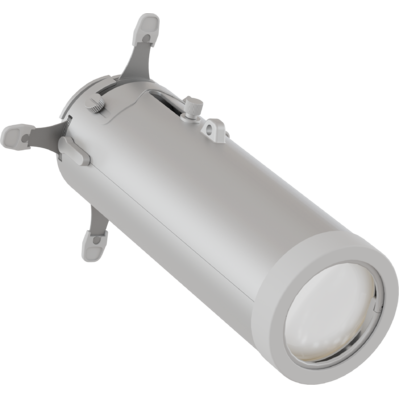

Optional ECLDISPPRL08W

Fix Profile 8° Lens, with 4 framing shutters, for EclDisplay, white

Order Code: ECLDISPPRL08W

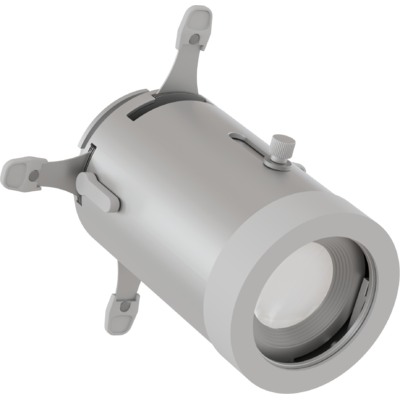

Optional ECLDISPPRHDL18B

18° High definition profile lenses for Ecl Display series, black

Order Code: ECLDISPPRHDL18B

Optional ECLDISPPRHDL18W

18° High definition profile lenses for Ecl Display series, white

Order Code: ECLDISPPRHDL18W

Optional ECLDISPPRHDL36B

36° High definition profile lenses for Ecl Display series, black

Order Code: ECLDISPPRHDL36B

Optional ECLDISPPRHDL36W

36° High definition profile lenses for Ecl Display series, white

Order Code: ECLDISPPRHDL36W

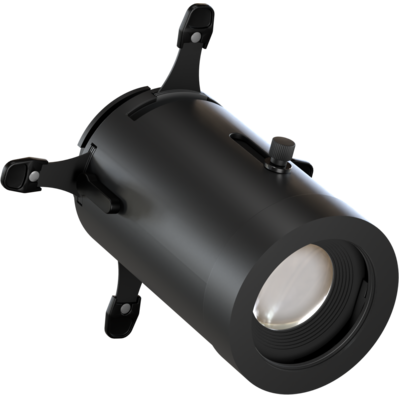

Optional ECLDISPPRHDL50B

50° High definition profile lenses for Ecl Display series, black

Order Code: ECLDISPPRHDL50B

Optional ECLDISPPRHDL50W

50° High definition profile lenses for Ecl Display series, white

Order Code: ECLDISPPRHDL50W

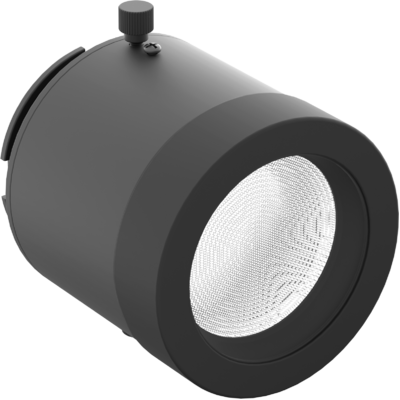

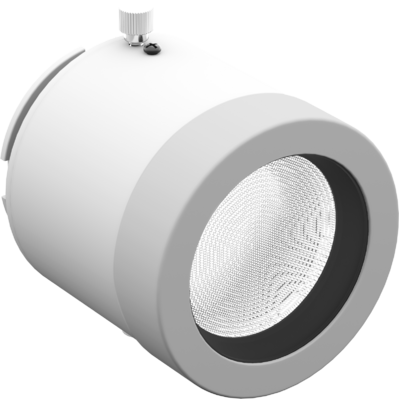

Optional <b>EclDisplay</b> WashLens 15°- 30°

Zoomable Wash Lens 15-30° for EclDisplay, black housing

Order Code: ECLDISPWASHL1530B

Optional <b>EclDisplay</b> WashLens 15°- 30°

Zoomable Wash Lens 15-30° for EclDisplay, white housing

Order Code: ECLDISPWASHL1530W

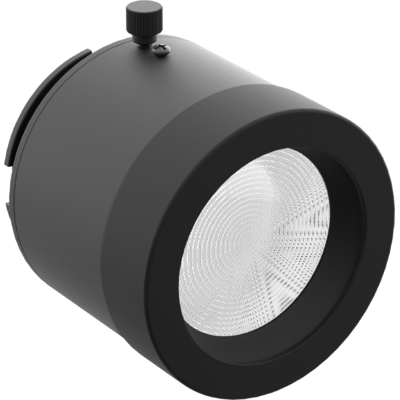

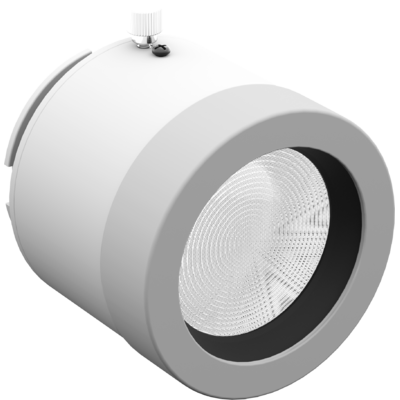

Optional <b>EclDisplay</b> WashLens 25°- 50°

Zoomable Wash Lens 25-50° for EclDisplay, black housing

Order Code: ECLDISPWASHL2550B

Optional <b>EclDisplay</b> WashLens 25°- 50°

Zoomable Wash Lens 25-50° for EclDisplay, white housing

Order Code: ECLDISPWASHL2550W

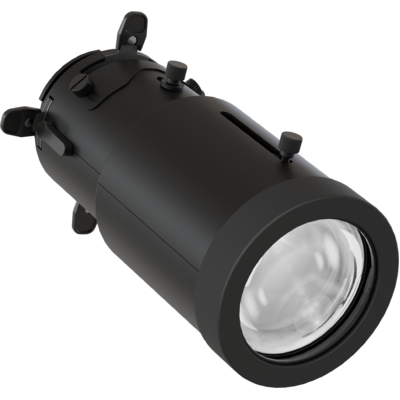

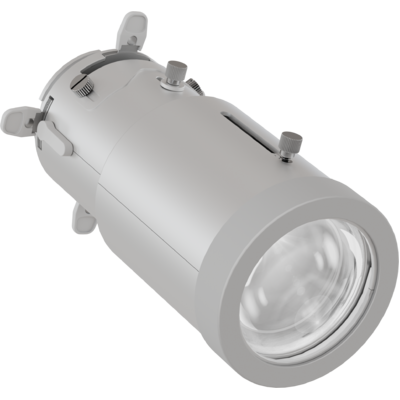

Optional ECLDISPPHDZL2040W

20° - 40° Zoomable High definition profile lenses for Ecl Display series, white

Order Code: ECLDISPPHDZL2040W

Optional ECLDISPPHDZL2040B

20° - 40° Zoomable High definition profile lenses for Ecl Display series, black

Order Code: ECLDISPPHDZL2040B

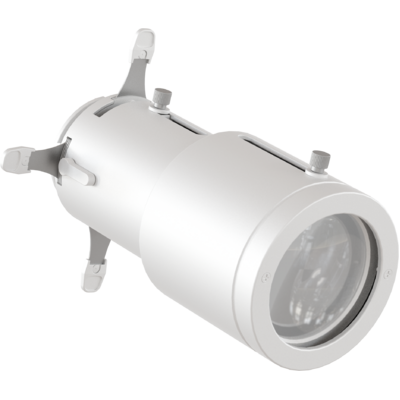

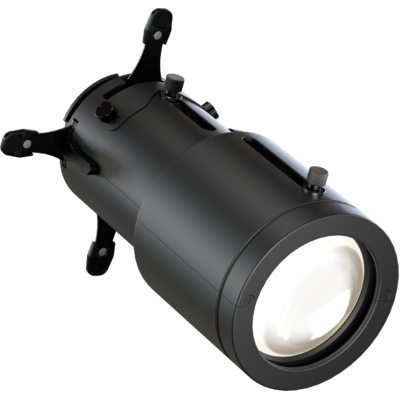

Optional ECLDISPPRZL1020B

Zoomable Profile Lens 10-20°, with 4 framing shutters, for EclDisplay, black

Order Code: ECLDISPPRZL1020B

Optional ECLDISPPRZL1020W

Zoomable Profile Lens 10-20°, with 4 framing shutters, for EclDisplay, white

Order Code: ECLDISPPRZL1020W

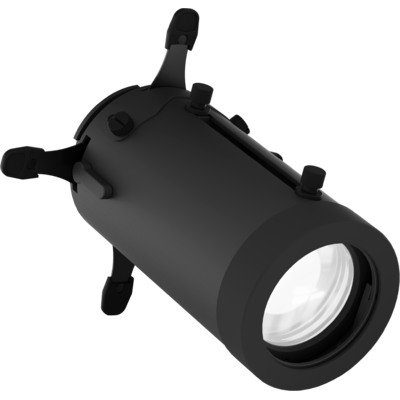

Optional <b>EclDisplay</b> ProfileLens

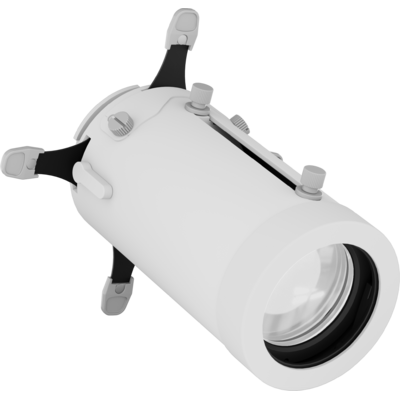

Zoomable Profile Lens 20-40°, with 4 framing shutters, for EclDisplay, black housing

Order Code: ECLDISPPRZL2040B

Optional <b>EclDisplay</b> ProfileLens

Zoomable Profile Lens 20-40°, with 4 framing shutters, for EclDisplay, white housing

Order Code: ECLDISPPRZL2040W

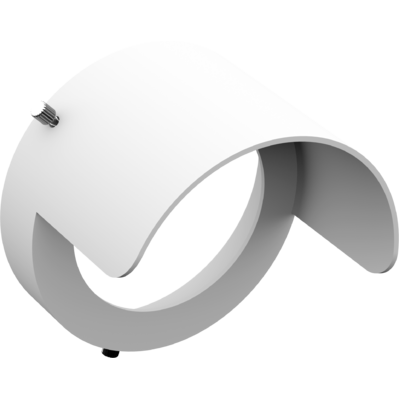

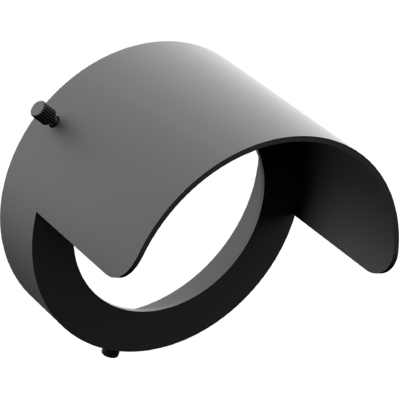

Optional <b>EclDisplay</b> Half Snoot

Half Snoot for EclDisplay, black housing

Order Code: ECLDISPHSNOOTB

Optional <b>EclDisplay</b> Half Snoot

Half Snoot for EclDisplay, white housing

Order Code: ECLDISPHSNOOTW

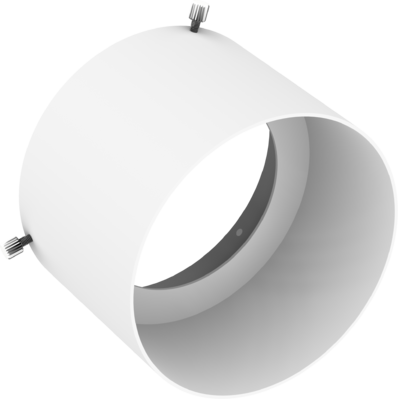

Optional <b>EclDisplay</b> Full Snoot

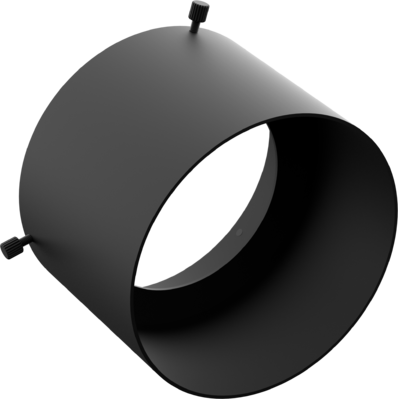

Full Snoot for EclDisplay, black housing

Order Code: ECLDISPFSNOOTB

Optional <b>EclDisplay</b> Full Snoot

Full Snoot for EclDisplay, white housing

Order Code: ECLDISPFSNOOTW

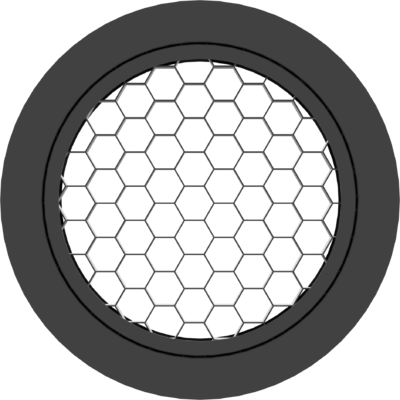

Optional <b>EclDisplay</b> Louvre

Anti-glare louvre for EclDisplay, black housing

Order Code: ECLDISPLOUVREB

Optional <b>EclDisplay</b> Louvre

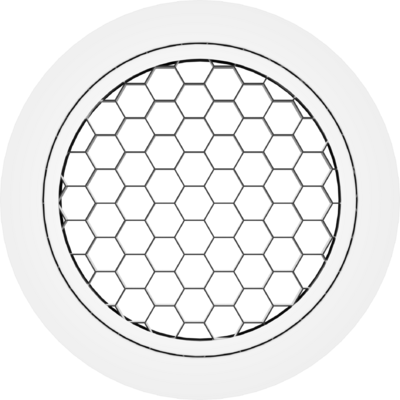

Anti-glare louvre for EclDisplay, white housing

Order Code: ECLDISPLOUVREW

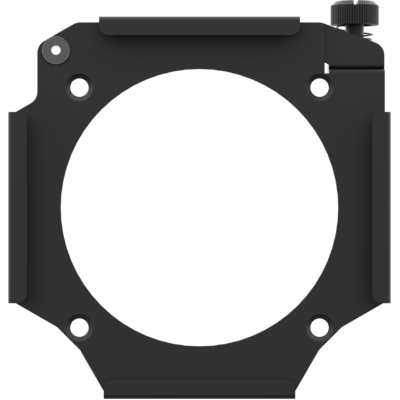

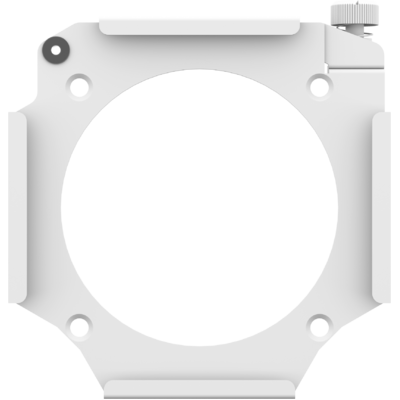

Optional ECLDISPHNFFB

Holder and filter frame (for Wash and Profile Lenses) for EclDisplay, black

Order Code: ECLDISPHNFFB

Optional ECLDISPHNFFW

Holder and filter frame (for Wash and Profile Lenses) for EclDisplay, white

Order Code: ECLDISPHNFFW

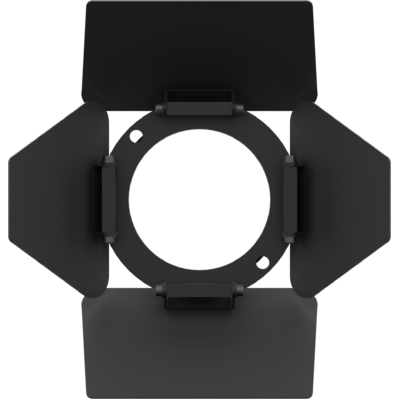

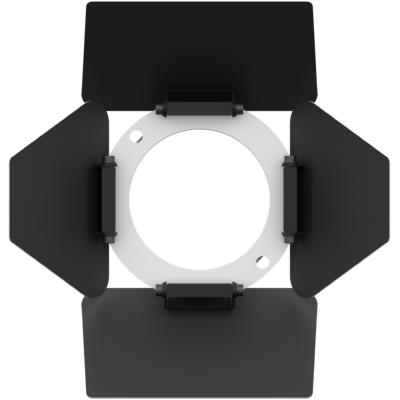

Optional <b>EclDisplay</b> Barndoor+Frame

Barndoor and filter frame (compatible with Wash Lenses) for EclDisplay, black

Order Code: ECLDISPBDNFFB

Optional <b>EclDisplay</b> Barndoor+Frame

Barndoor and filter frame (compatible with Wash Lenses) for EclDisplay, white

Order Code: ECLDISPBDNFFW

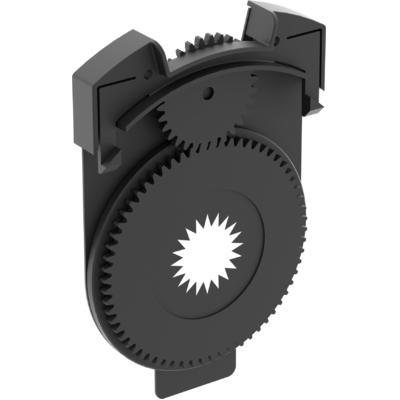

Optional <b>EclDisplay</b> Goboholder

Gobo holder for EclDisplay with manual index gear on board, black

Order Code: ECLDISPGOBOHINDB

Optional <b>EclDisplay</b> CeilingKit

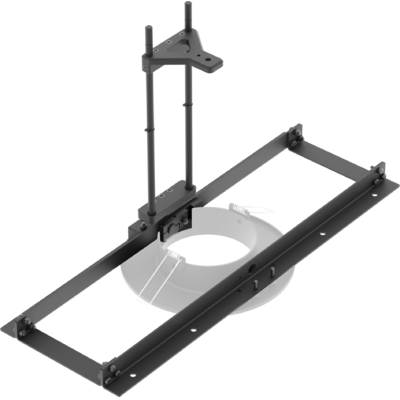

Ceiling adapter kit for EclDisplay (without flange)

Order Code: ECLDISPCEILKIT

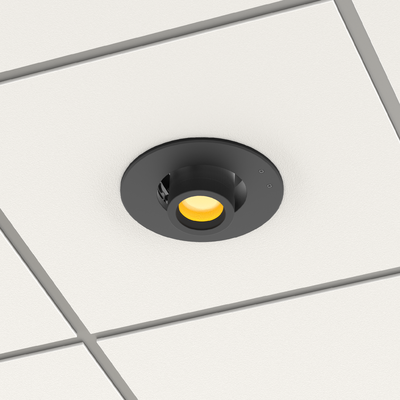

Optional <b>EclDisplay</b> CeilingAdapterFlange

Black flange to complete the EclDisplay ceiling adapter kit, black

Order Code: ECLDISPCEILFLGB

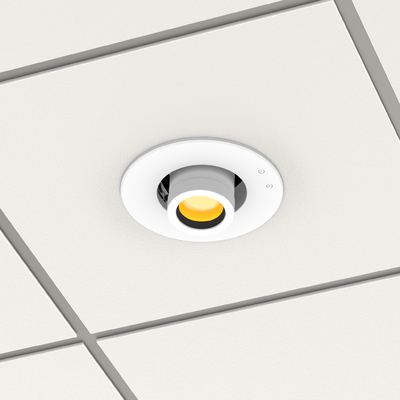

Optional <b>EclDisplay</b> CeilingAdapterFlange

White flange to complete the EclDisplay ceiling adapter kit, white

Order Code: ECLDISPCEILFLGW

Optional NAXTSC61002

Global Pulse XTSC Lighting Track, 3 circuit DALI, 1000 mm / 3,28 feet, black

Order Code: NAXTSC61002

Optional NAXTSC61003

Global Pulse XTSC Lighting Track, 3 circuit DALI, 1000 mm / 3,28 feet, white

Order Code: NAXTSC61003

Optional NAXTSC62002

Global Pulse XTSC Lighting Track, 3 circuit DALI, 2000 mm / 6,56 feet, black

Order Code: NAXTSC62002

Optional NAXTSC62003

Global Pulse XTSC Lighting Track, 3 circuit DALI, 2000 mm / 6,56 feet, white

Order Code: NAXTSC62003

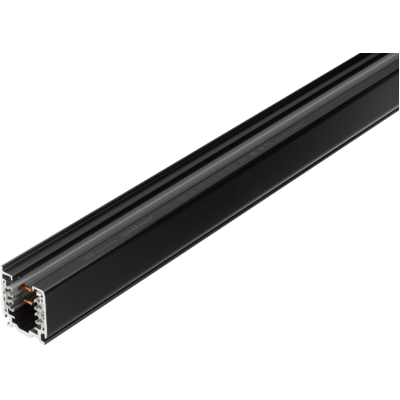

Optional NAXTSC63002

Global Pulse XTSC Lighting Track, 3 circuit DALI, 3000 mm / 9,84 feet, black

Order Code: NAXTSC63002

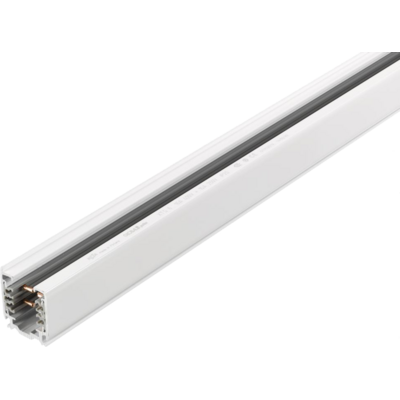

Optional NAXTSC63003

Global Pulse XTSC Lighting Track, 3 circuit DALI, 3000 mm / 9,84 feet, white

Order Code: NAXTSC63003

Optional NAXTSC64002

Global Pulse XTSC Lighting Track, 3 circuit DALI, 4000 mm / 13,12 feet, black

Order Code: NAXTSC64002

Optional NAXTSC64003

Global Pulse XTSC Lighting Track, 3 circuit DALI, 4000 mm / 13,12 feet, white

Order Code: NAXTSC64003

Optional NAXTSC6112

Global Pulse XTS Connector 3-CCT DALI end feed, earth right, black

Order Code: NAXTSC6112

Optional NAXTSC6113

Global Pulse XTS Connector 3-CCT DALI end feed, earth right, white

Order Code: NAXTSC6113

Optional NAXTSC6122

Global Pulse XTS Connector 3-CCT DALI end feed, earth left, black

Order Code: NAXTSC6122

Optional NAXTSC6123

Global Pulse XTS Connector 3-CCT DALI end feed, earth left, white

Order Code: NAXTSC6123

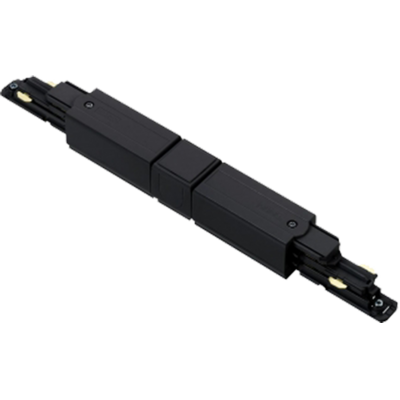

Optional NAXTSC6142

Global Pulse XTS Connector 3-CCT DALI middle feed, black

Order Code: NAXTSC6142

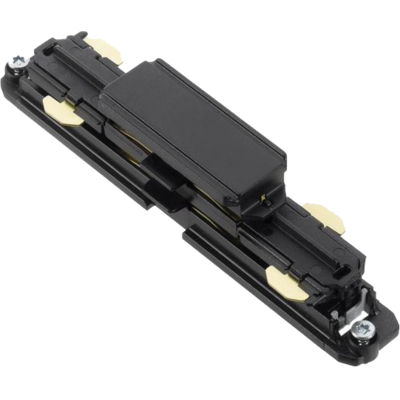

Optional NAXTSC6212

Global Pulse XTS Connector 3-CCT DALI straight connector, black

Order Code: NAXTSC6212

Optional NAXTSC6143

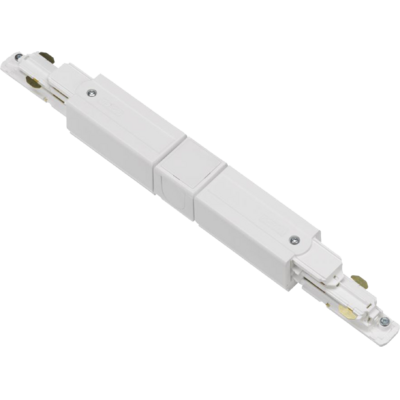

Global Pulse XTS Connector 3-CCT DALI middle feed, white

Order Code: NAXTSC6143

Optional NAXTSC6213

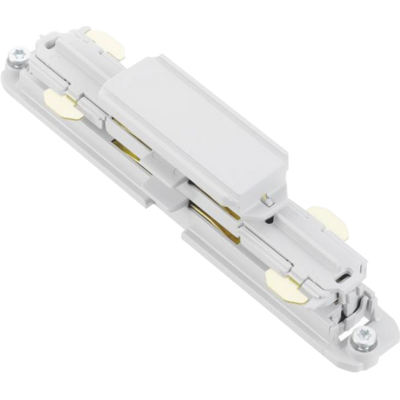

Global Pulse XTS Connector 3-CCT DALI straight connector, white

Order Code: NAXTSC6213

Optional NAXTSC6232

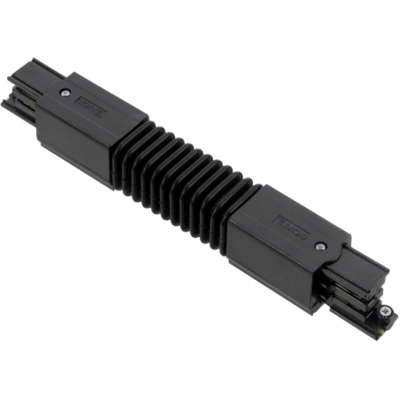

Global Pulse XTS Connector 3-CCT DALI flexible corner connector, black

Order Code: NAXTSC6232

Optional NAXTSC6233

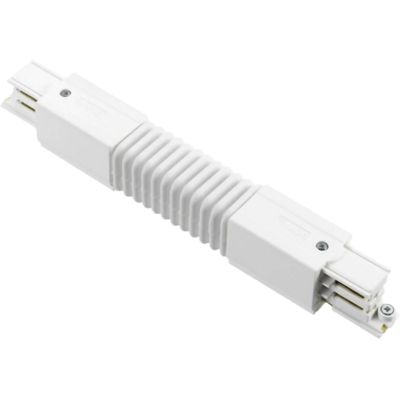

Global Pulse XTS Connector 3-CCT DALI flexible corner connector, white

Order Code: NAXTSC6233

Optional NAXTSNC6342

Global Pulse XTSN Connector 3-CCT DALI L connector, earth right, black

Order Code: NAXTSNC6342

Optional NAXTSNC6343

Global Pulse XTSN Connector 3-CCT DALI L connector, earth right, white

Order Code: NAXTSNC6343

Optional NAXTSNC6352

Global Pulse XTSN Connector 3-CCT DALI L connector, earth left, black

Order Code: NAXTSNC6352

Optional NAXTSNC6353

Global Pulse XTSN Connector 3-CCT DALI L connector, earth left, white

Order Code: NAXTSNC6353

Optional NAXTSNC6362

Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/right, black

Order Code: NAXTSNC6362

Optional NAXTSNC6363

Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/right, white

Order Code: NAXTSNC6363

Optional NAXTSNC6372

Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/left, black

Order Code: NAXTSNC6372

Optional NAXTSNC6373

Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/left, white

Order Code: NAXTSNC6373

Optional NAXTSNC6382

Global Pulse XTSN Connector 3-CCT DALI X connector, black

Order Code: NAXTSNC6382

Optional NAXTSNC6383

Global Pulse XTSN Connector 3-CCT DALI X connector, white

Order Code: NAXTSNC6383

Optional NAXTSNC6392

Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/left, black

Order Code: NAXTSNC6392

Optional NAXTSNC6393

Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/left, white

Order Code: NAXTSNC6393

Optional NAXTSNC6402

Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/right, black

Order Code: NAXTSNC6402

Optional NAXTSNC6403

Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/right, white

Order Code: NAXTSNC6403

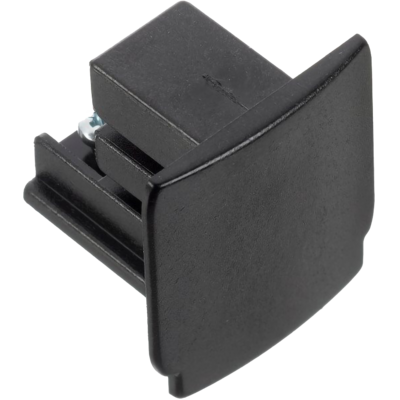

Optional NAXTS412

Global Pulse XTS Connector 3-CCT DALI END cap, black

Order Code: NAXTS412

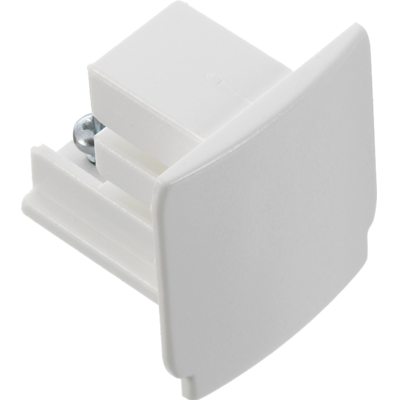

Optional NAXTS413

Global Pulse XTS Connector 3-CCT DALI END cap, white

Order Code: NAXTS413

Optional NAKKT3013184

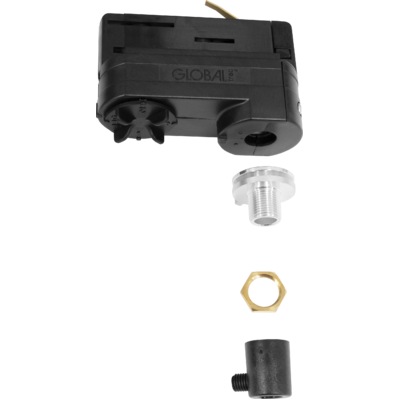

Kit for NAXTSA682 adapter, black

Order Code: NAKKT3013184

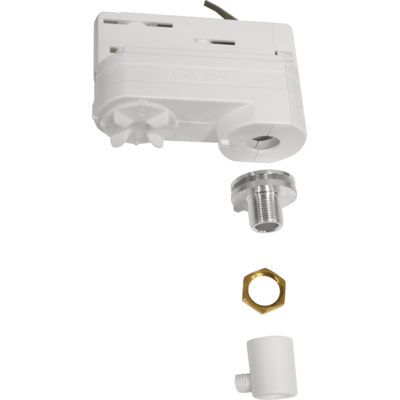

Optional NAKKT3013185

Kit for NAXTSA683 adapter, white

Order Code: NAKKT3013185

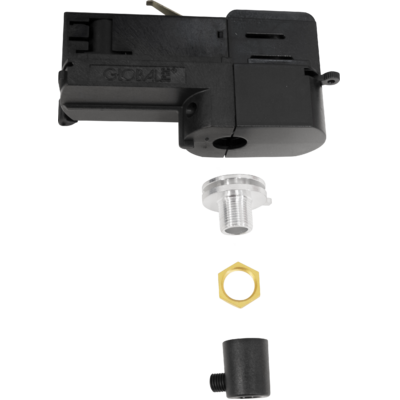

Optional NAKKT306007

Kit for Global Pulse DMX/DALI 3-Circuit Adapters NAGAC6002, black

Order Code: NAKKT306007

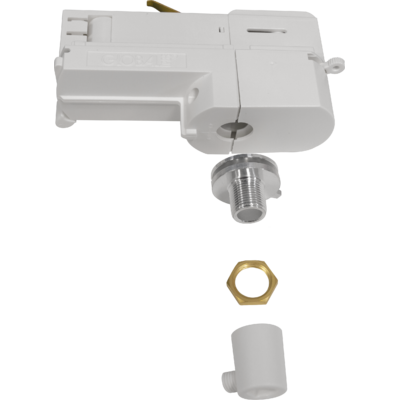

Optional NAKKT306008

Kit for Global Pulse DMX/DALI 3-Circuit Adapters NAGAC6003, white

Order Code: NAKKT306008

Optional NASPW12SK215M

Global Pulse Track clip wire suspension set 1.5m, 150N, black

Order Code: NASPW12SK215M

Optional NASPW12SK25M

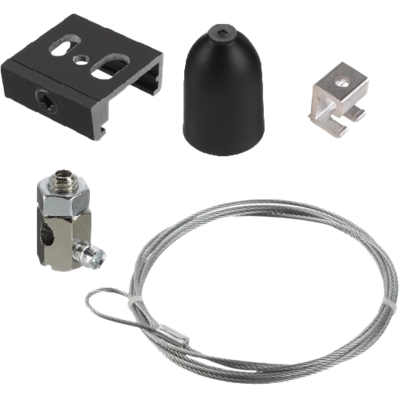

Global Pulse Track clip wire suspension set 5m, 150N, black

Order Code: NASPW12SK25M

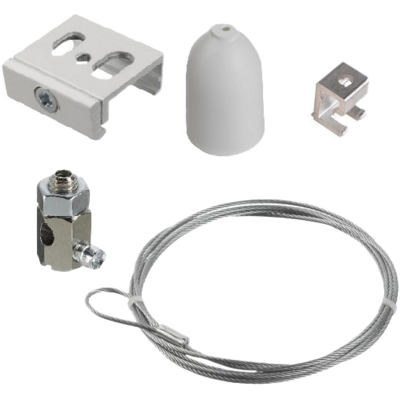

Optional NASPW12SK315M

Global Pulse Track clip wire suspension set 1.5m, 150N, white

Order Code: NASPW12SK315M

Optional NASPW12SK35M

Global Pulse Track clip wire suspension set 5m, 150N, white

Order Code: NASPW12SK35M

Optional NAXTSA55129

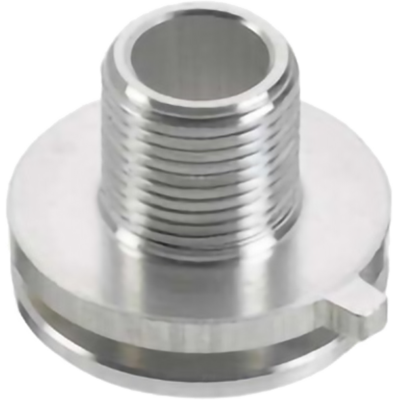

Global Pulse Rotating Nipples 3-Circuit Adapters, M13, H 12mm, D 9mm

Order Code: NAXTSA55129

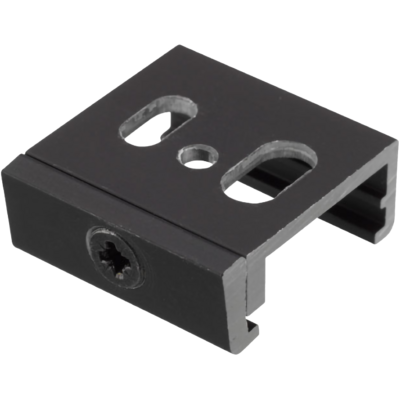

Optional NASKB122

Global Pulse Track Mounting Clamp for Rod and Wire, 200N, black

Order Code: NASKB122

Optional NASKB123

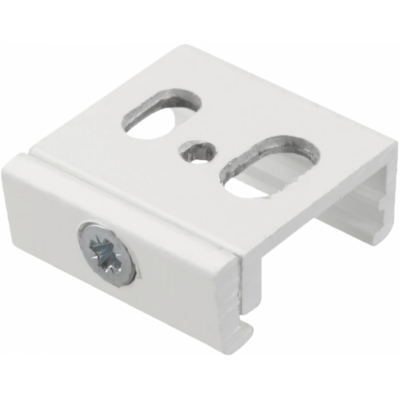

Global Pulse Track Mounting Clamp for Rod and Wire, 200N, white

Order Code: NASKB123

Optional PLCDX53D5

120 Ohm DMX cable, 2 twisted poles, external sheath with reduced diameter, 1 m

Order Code: PLCDX53D5

Optional PLCPD7501P14D

Power & DMX 120 Ohm, 1 meter length, not suitable for track adapter connection

Order Code: PLCPD7501P14D

Optional PLCPD7501P68D

Power & DMX 120 Ohm

Order Code: PLCPD7501P68D

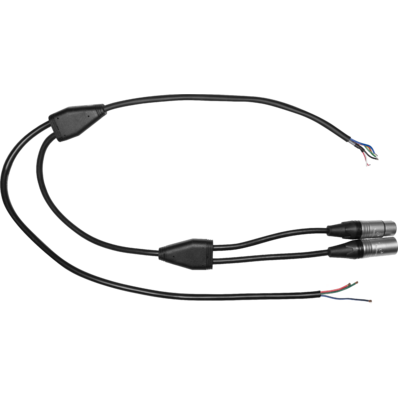

Optional PLCYA7501P14D

YY splitter cable Power 3x0.75 mm2 + 5p IN/OUT DMX 120 Ohm, bare end, 1 meter

Order Code: PLCYA7501P14D

Optional RSR0630B

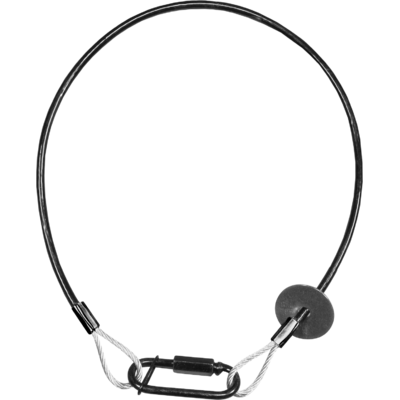

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

Order Code: RSR0630B

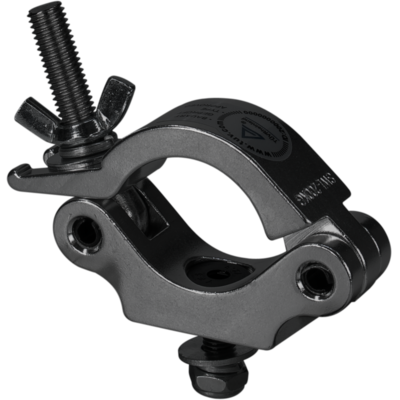

Optional C6002B

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

Order Code: C6002B

Optional EUT997592

EUTRAC multiAdapter with data bus option, black

Order Code: EUT997592

Optional EUT997596

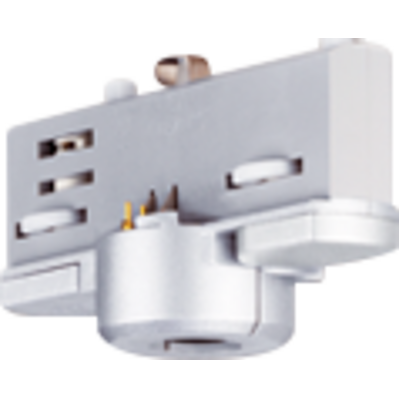

EUTRAC multiAdapter with data bus option, white

Order Code: EUT997596

Optional EUT990662

Mounting nut66 for EUT99759, black

Order Code: EUT990662

Optional EUT990666

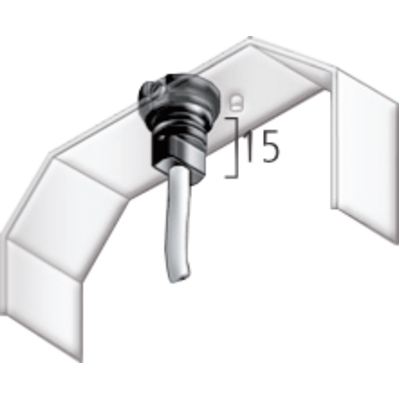

Mounting nut66 for EUT99759, white

Order Code: EUT990666

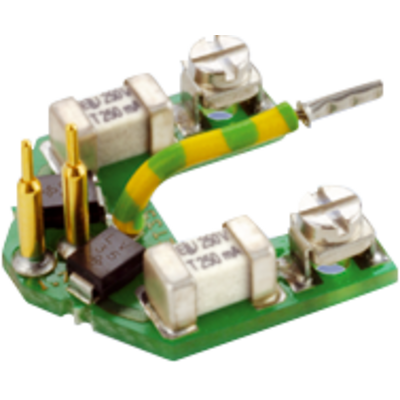

Optional EUT996980

Data bus tap EUT99759

Order Code: EUT996980

Optional UPBOXPRO

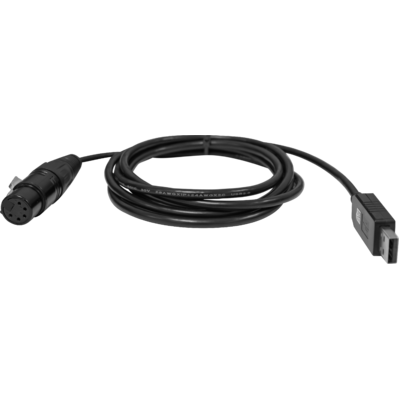

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

Order Code: UPBOXPRO

Downloads

Technical documentation and support files

Data sheet & specs Data sheet & specs

File name File size Download
Letter datasheetEcldisplaydat_A4_DATASHEET_(IT).pdf(06/05/2021)4MB
Letter datasheetEcldisplaydat_A4_DATASHEET_(EN).pdf(19/06/2024)3MB
Tender SpecificationEcldisplaydat_TENDER_SPECIFICATION.pdf(16/03/2023)4MB

User manual User manual

File name File size Download
User manualEcldisplaydat_USER_MANUAL_EN.pdf(11/07/2024)7MB
User manualGENERAL_SAFETY_INFORMATION.pdf(02/12/2022)12MB

DMX chart & personalities DMX chart & personalities

File name File size Download
DMX chartEcldisplaydat_DMX_CHARTS.pdf(03/05/2021)77KB

ECLDISPLAYDAT Firmware rev. 1.7

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

ECLDISPLAYDAT Firmware rev. 1.2

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics Photometrics

File name File size Download
IESprolights_ecldisplay(un-dat-cc)_profile1020_ies files.zip(26/09/2024)9KB
LDTprolights_ecldisplay(un-dat-cc)_profile1020_ldt files.zip(26/09/2024)8KB
IESprolights_ecldisplay(un-dat-cc)_profile18_ies files.zip(14/02/2024)5KB
LDTprolights_ecldisplay(un-dat-cc)_profile18_ldt files.zip(14/02/2024)4KB
IESprolights_ecldisplay(un-dat-cc)_profile2040_ies files.zip(08/04/2021)11KB
LDTprolights_ecldisplay(un-dat-cc)_profile2040_ldt files.zip(08/04/2021)8KB
IESprolights_ecldisplay(un-dat-cc)_profile36_ies files.zip(14/02/2024)5KB
LDTprolights_ecldisplay(un-dat-cc)_profile36_ldt files.zip(14/02/2024)4KB
IESprolights_ecldisplay(un-dat-cc)_profile50_ies files.zip(14/02/2024)5KB
LDTprolights_ecldisplay(un-dat-cc)_profile50_ldt files.zip(14/02/2024)4KB
IESprolights_ecldisplay(un-dat-cc)_profile8_ies files.zip(27/02/2025)5KB
LDTprolights_ecldisplay(un-dat-cc)_profile8_ldt files.zip(27/02/2025)4KB
IESprolights_ecldisplay(un-dat-cc)_wash 1530_ies files.zip(08/04/2021)11KB
LDTprolights_ecldisplay(un-dat-cc)_wash 1530_ldt files.zip(08/04/2021)9KB
IESprolights_ecldisplay(un-dat-cc)_wash2550_ies files.zip(07/04/2021)9KB
LDTprolights_ecldisplay(un-dat-cc)_wash2550_ldt files.zip(07/04/2021)7KB
PhotometricsEcldisplaydat_PROFILE10-20_PHOTOMETRIC_REPORT.pdf(03/01/2023)2MB
PhotometricsEcldisplaydat_WASH25-50_PHOTOMETRIC_REPORT.pdf(20/01/2021)3MB
PhotometricsEcldisplaydat_WASH15-30_PHOTOMETRIC_REPORT.pdf(20/01/2021)3MB
PhotometricsEcldisplaydat_PROFILE20-40_PHOTOMETRIC_REPORT.pdf(20/01/2021)3MB
PhotometricsEcldisplaydat_PROFILE_50_PHOTOMETRIC_REPORT.pdf(14/02/2024)4MB
PhotometricsEcldisplaydat_PROFILE_36_PHOTOMETRIC_REPORT.pdf(14/02/2024)4MB
PhotometricsEcldisplaydat_PROFILE_18_PHOTOMETRIC_REPORT.pdf(14/02/2024)4MB
PhotometricsEcldisplaydat_PROFILE_8_PHOTOMETRIC_REPORT.pdf(27/02/2025)538KB
DialuxDownload DIALux product catalogue-

CAD symbols & drawings CAD symbols & drawings

File name File size Download
3D sketchupECLDISPLAYDAT_3D_SKETCHUP.zip5MB
3D revitECLDISPLAYDAT_3D_REVIT.zip1MB
3DECLDISPLAYDAT_3D.zip2MB
2D cad symbolsECLDISPLAYDAT_2DSYMBOLS.zip820KB
2DECLDISPLAYDAT_2D.zip15MB
Technical drawingECLDISPLAYDAT_TECHNICAL DRAWINGS.zip890KB
VectorWorksECLDISPLAYDAT_SYMBOLS.zip9MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB

Software Software

File name File size Download
SoftwareProlights Dialux Plug-In(03/03/2025)192MB

Firmware


Firmware update instructions

1 Download the firmware (complete download is available on Customer Care - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Additional info:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all interfaces (UPBOXPRO, UPBOX1 and UPBOX2)
  • It's possible to update NET boards (with .EHEX files) following this guide with software Professional Uploader
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.7 STABLE 26/02/2025 Improvements:
  • Improved RDM compliance.
  • Improved DALI management: It is now possible to use the DALI-Cockpit software in addition to the Master Configurator software.
  • Changed LED Status as follows:
    • In absence of DMX signal = Green Led blinking
    • In presence of DMX signal = Green Led always on.
    • Reduce Status LED Power
  • Device reboots twice when powered on.
  • Set Identify RDM@Loud to default
  • It is possible to use Dali-Cockpit and Master Configurator software to work in Dali protocol.
 Rev. 1.0
Rev. Rev: 1.0

Info Request

News

Davide Manca chooses PROLIGHTS technologies for the new lighting design at the Leonardo3 Museum in Milan

Davide Manca chooses PROLIGHTS technologies for the new lighting design at the Leonardo3 Museum in Milan

NEWSLETTER

Subscribe to our Newsletter

Loading...
