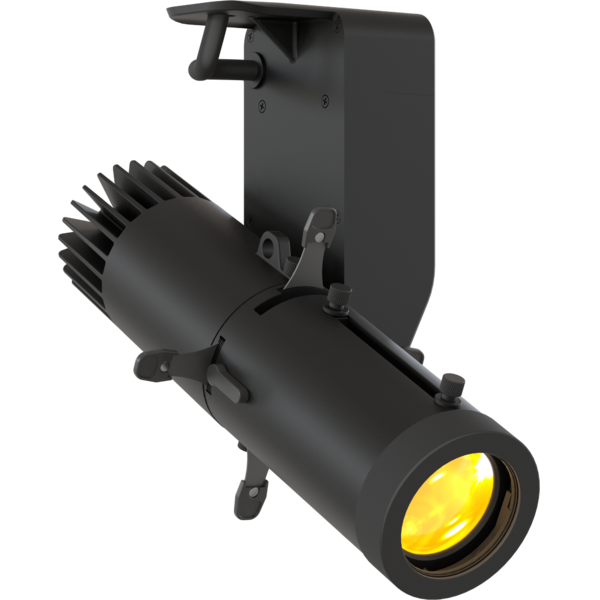

ECLDISPLAYXBFC

EclDisplay XBFC

NEW
5 YEARS WARRANTY

Source
40W RGB + Lime LEDs
Zoom range
(wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or 8°
IP rating
 IP20
Weight
1,4kg / 3.09lbs

Key Features

  • 40W RGB+Lime LED
  • Up to 600 lm @full
  • Data control through RDM, DMX, optional CRMX receiver and local knob dimming
  • Compatible with all EclDisplay lenses: profile (zoom and static) or wash optics

The EclDisplay XB series presents an innovative and versatile range of LED spotlights, designed for use in galleries, commercial spaces, and other public venues. These advanced fixtures are distinguished by their refined design and multiple control options, including both wired and wireless protocols. They are adaptable to a variety of applications, thanks to the availability of different sources and optics.

Each EclDisplay XB unit can be programmed and controlled via RDM, built-in input control protocols such as DMX and local knob dimming.

At the heart of the EclDisplay XB is a highly efficient 40 W RGB+Lime, LED source, capable of delivering both a Full Colour spectrum and also tunable White. The fixture's versatility is further enhanced by an extensive range of optional accessories, including profile (zoom and static) or wash lenses and additional optical elements like louvres and snoots. This makes the EclDisplay XB not just a lighting fixture, but a comprehensive lighting solution adaptable to a multitude of environments and needs.

Read less
The EclDisplay XB series presents an innovative and versatile range of LED spotlights, designed for use in galleries, commercial spaces, and other public venues. These advanced fixtures are distinguis...

Versions

Code Finishing Track adapter Optics
ECLDISPLAYXBFCB
ECLDISPLAYXBFCB NEW
Black Not included Not included
ECLDISPLAYXBFCW
ECLDISPLAYXBFCW NEW
White Not included Not included

Photo Gallery

ECLDISPLAYXBFCB
ECLDISPLAYXBFCB
ECLDISPLAYXBFCB
ECLDISPLAYXBFCB
ECLDISPLAYXBFCB
ECLDISPLAYXBFCB
ECLDISPLAYXBFCB
ECLDISPLAYXBFCB

Specifications

LIGHT SOURCE
  • Source: 40W RGB + Lime LEDs
  • Luminous flux: (profile 36 HD) 644 lm; (profile 2040 HD - min) 584 lm - (profile 2040 HD - max) 571 @Full
  • Lux: (profile 36 HD) 121 lx; (profile 2040 HD - min) 372 lx - (profile 2040 HD - max) 107lx @5 m full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom range: (wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or 8°
  • Other: 360° lens rotation - shutter blades lockable - optional 360° rotating barndoors and gel frame holder
  • Other: (profile lens) shutter blades lockable
  • Other: (profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm
COLOUR SYSTEM
  • Colour mixing: RGB + lime / full colour
  • CCT: CCT control through dedicated DMX channel
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer and color control
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
CONTROL
  • Supported Protocols: DMX512, RDM, CRMX (optional)
  • DMX channels: 5 / 6 / 15ch
  • RDM: for remote addressing and parameter configuration
  • Display: user interface through DATAMASTER external coder (not included)
  • Stand Alone: 1 push encoder
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Selectable PWM: 600 to 25000 Hz (selectable steps)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
  • Power connection: screw terminal blocks
  • Wireless Connection: optional LumenRadio TiMo RX RDM - CRMX and W-DMX compatible
  • Data connection: screw terminal blocks
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): 38W
  • Output (at 230V): 35 units on a single power line
  • Standby power: 3,1 W
  • Power factor: > 0,94
PHYSICAL
  • IP rating: IP20
  • Cooling: fan-free with natural convection
  • Housing: Die-cast aluminium
  • Finish: black (RAL 9004) or white (RAL 9010)
  • Operating temperature: Ta -10 to +45 °C (+14 to +113 °F)
  • Dimensions (WxHxD): 141X200x150mm / 5.55''x5.91''
  • Weight: 1,4kg / 3.09lbs
INSTALLATION
  • Suspension and fixing: track / hanging / ceiling installation
  • Hardware on-board: lockable tilt with screw
  • Other: cable not included - Cable diameter range: 6 - 10 mm
CERTIFICATIONS / REPORTS
  • Compliance: CE, RCM, FCC, cTUVus
