GALLERYWASHDATVW

Gallery WashDATVW

NEW

Source
60W Variable White LED
IP rating
 IP20
Weight
1kg / 2.2lbs

Key Features

  • 60W Variable White linear LED engine offers dynamic color mixing and precision tunable white lighting
  • Custom asymmetrical reflector ensures superbly uniform wall illumination, minimizing fixture count and installation complexity
  • Supports RDM, DMX, local knob dimming, and optional wireless protocols (CRMX) for flexible and intuitive operation
  • Integrated power supply with extensive mounting accessories and optical modifiers enables quick installation and precise customization for any venue

Gallery WashDAT is a compact and efficient LED wallwash luminaire, purpose-designed for precise, uniform illumination of walls, exhibits, and shelving in galleries, events, and venues.
Its advanced optical system combines a custom linear LED source with an asymmetrical reflector, significantly reducing the required number of fixtures by enabling greater spacing without compromising visual comfort or uniformity.
The Gallery WashDAT VW variant includes a 60W variable white LED source, providing adjustable color temperatures ranging smoothly from warm 2'700K to cool 5'600K. This model excels in applications requiring precise white-light control to enhance visual clarity and ambiance.
Control flexibility is assured through integrated RDM, DMX, and intuitive local dimming.
Optional wireless control modules (LumenRadio CRMX) can be specified to simplify installation and enhance operational convenience.
With its stylish cubic form factor, Gallery WashDAT integrates seamlessly into both contemporary interiors and historic venues. The integrated power supply and driver facilitate straightforward installation, further supported by an extensive range of accessories, including track adapters, adjustable yokes, ceiling mounting kits, and optical modifiers such as barn doors, holographic filters, and snoots.

Read less
Gallery WashDAT is a compact and efficient LED wallwash luminaire, purpose-designed for precise, uniform illumination of walls, exhibits, and shelving in galleries, events, and venues.Its advanced opt...

Versions

Code Finishing Track adapter
GALLERYWASHDATVWB
GALLERYWASHDATVWB NEW
Black Not included
GALLERYWASHDATVWW
GALLERYWASHDATVWW NEW
White Not included

Product Video

Discover the Gallery WashDATVW in action

Photo Gallery

GALLERYWASHDATVWB
GALLERYWASHDATVWB
GALLERYWASHDATVWB
GALLERYWASHDATVWB
GALLERYWASHDATVWB
GALLERYWASHDATVWB

Specifications

LIGHT SOURCE
  • Source: 60W Variable White LED
  • Luminous flux: 3'334lm @3.200 K; 3'809lm @5.600 K; 3'689lm @Full
  • Lux: 44lx @3.200 K; 49lx @5.600 K; 48lx @5 m full
  • CRI: 94,2 @3.200 K; 95,4 @5.600 K;
  • R9: 83 @3.200 K; 82 @5.600 K;
  • TLCI: 98 @3.200 K; 97 @ 5.600 K;
  • TM30 Rf: 94,4 @3.200 K; 91,9 @5.600 K;
  • TM30 Rg: 104,7 @3.200 K; 102,9 @5.600 K;
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: (VxH) 67°x117°
  • Additional optics: Smooth filter on-board - see available accessories
COLOUR SYSTEM
  • Colour mixing: tunable white
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2'700K - 5'600K
  • Colour wheel: built-in white presets
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Static mode: selection of static dimmer and color temperature
BODY
  • Body: aluminium die-casting
  • Body colour: RAL 9004 or RAL 9010
  • Other:
CONTROL
  • Protocols: Local Knob, DMX, RDM, CRMX (optional)
  • DMX channels: 1 / 2 / 4 / 10channel
  • Wireless Control: Optional LumenRadio TiMoRX
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 53W
  • Standby power: 1,3W
  • Power factor: > 0,95
PHYSICAL
  • IP rating: IP20
  • Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
  • Suspension and fixing: track / hanging / ceiling installation
  • Data connection: screw terminal blocks
  • Power connection: screw terminal blocks
  • Dimensions (WxHxD): 141x146x112mm / 5.55''x5.75''x4.41''
  • Weight: 1kg / 2.2lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT
  • 1 x GALLERYWASHDATVW
  • 1 meter cable with 3G0,75mmq power cable + 2x0,169 mmq DMX 120 Ohm (BARE END - already connected)
  • User Manual

Accessories & Related Products

Optional PLCPW7500D65B

Power PVC cable H05VV-F 3G0,75, 1 meter lenght, black

Order Code: PLCPW7500D65B

Optional PLCPW7500D65W

Power PVC cable H05VV-F 3G0,75, 1 meter lenght, white

Order Code: PLCPW7500D65W

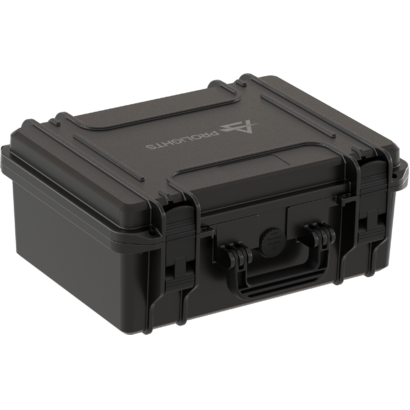

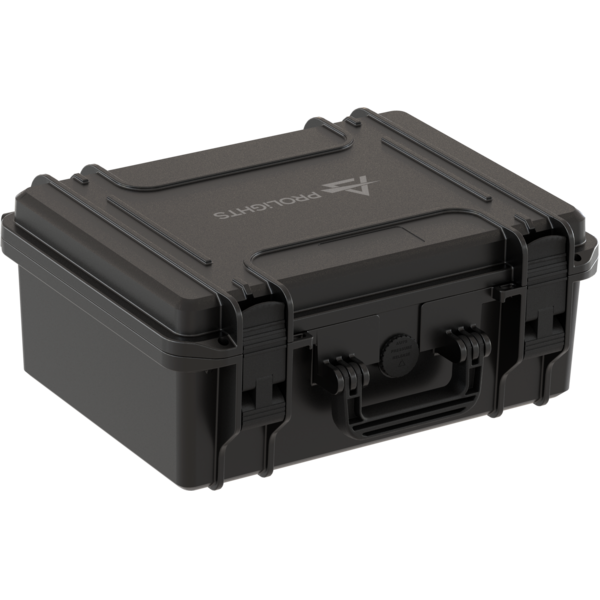

Optional PPBAG02

Waterproof and rugged Polypropylene case, 414x345x174 mm

Order Code: PPBAG02

Included GWASHDATFILT30

Smooth filter for GALLERYWASHDAT series

Order Code: GWASHDATFILT30

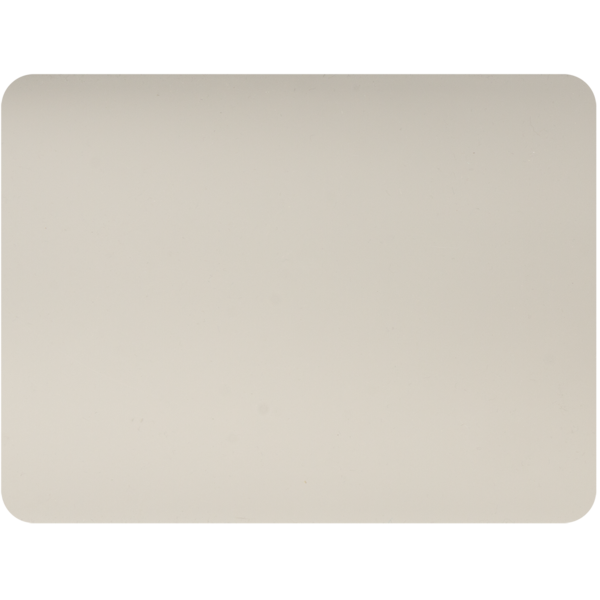

Optional GWASHDATFILT80

Wide filter for GALLERYWASHDAT series

Order Code: GWASHDATFILT80

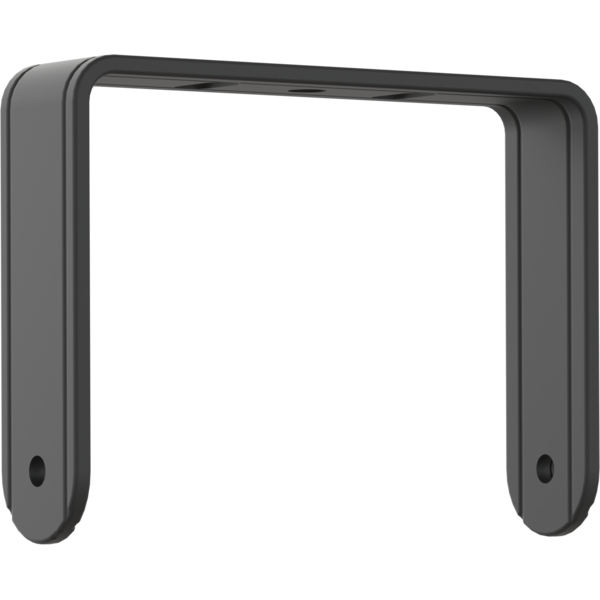

Optional GWASHDATWMBRKB

Wall mounting bracket for GALLERYWASHDAT series, black

Order Code: GWASHDATWMBRKB

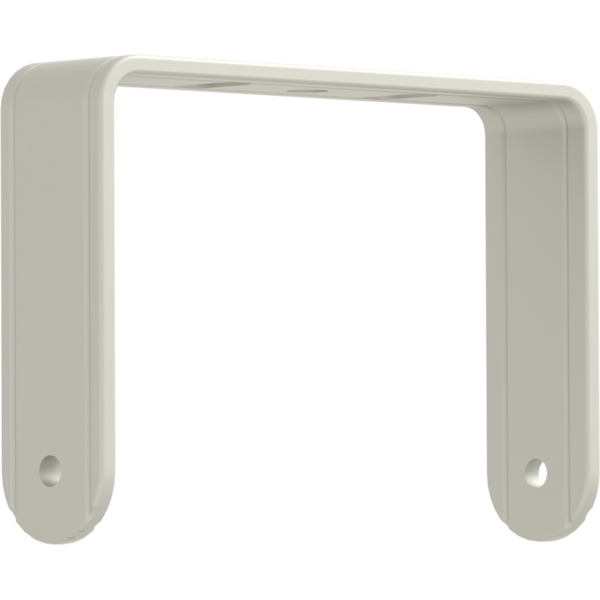

Optional GWASHDATWMBRKW

Wall mounting bracket for GALLERYWASHDAT series, white

Order Code: GWASHDATWMBRKW

Optional GWASHDATHSNOOTW

Half snoot for GALLERYWASHDAT series, bianco

Order Code: GWASHDATHSNOOTW

Optional GWASHDATHSNOOTB

Half snoot for GALLERYWASHDAT series, black

Order Code: GWASHDATHSNOOTB

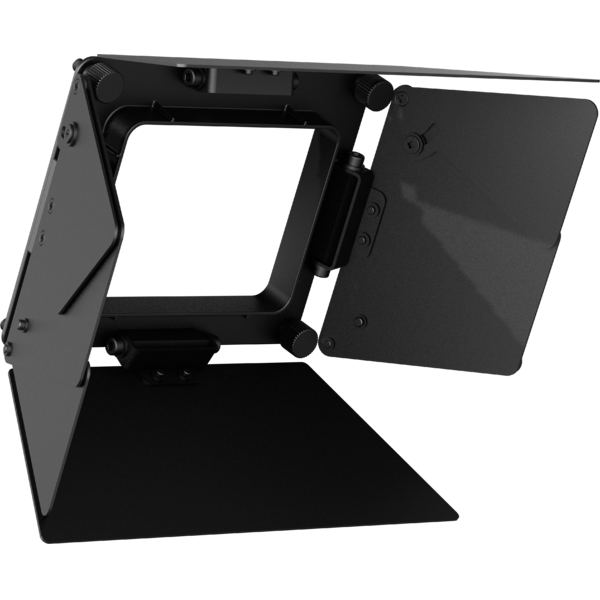

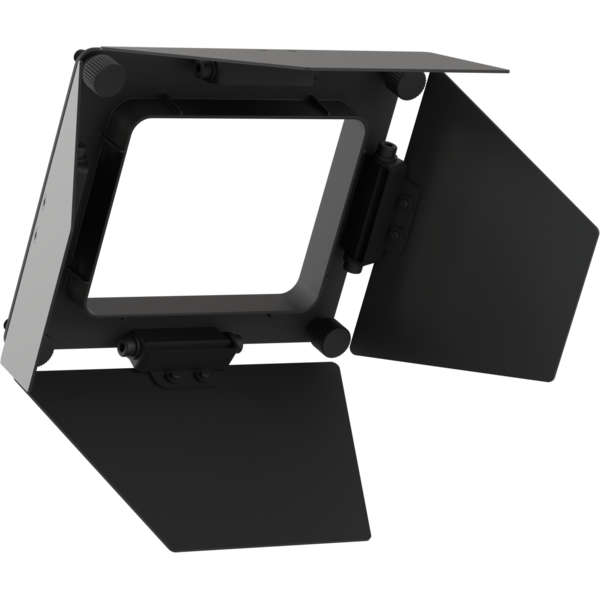

Optional GWASHDATBDB

Barn door with 4 directional flaps to adjust the light beam for GALLERYWASHDAT, black

Order Code: GWASHDATBDB

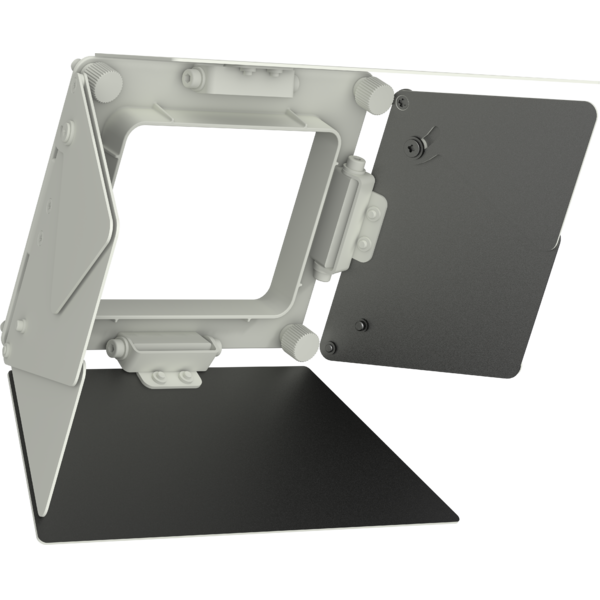

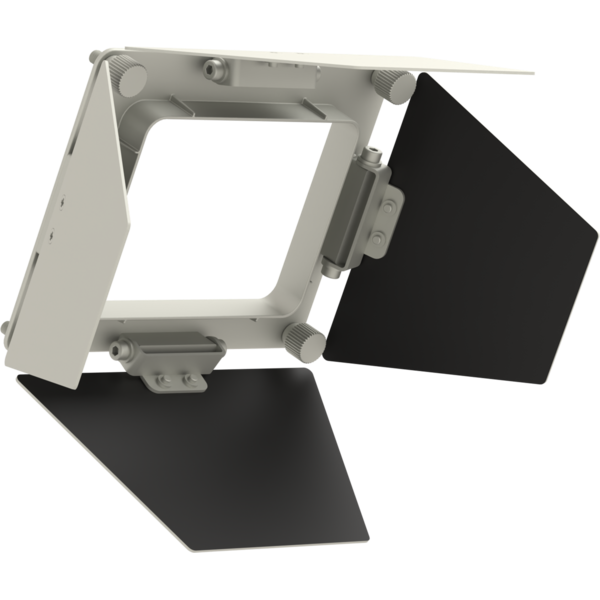

Optional GWASHDATBDW

Barn door with 4 directional flaps to adjust the light beam for GALLERYWASHDAT, white

Order Code: GWASHDATBDW

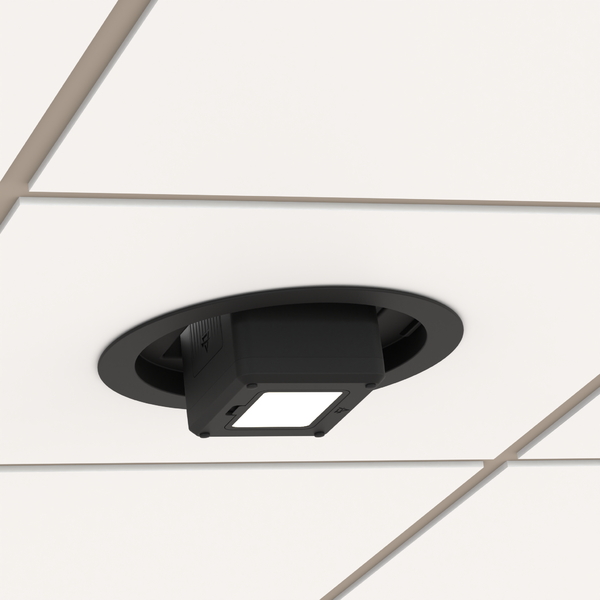

Optional GWASHDATCEILKITB

Ceiling-mounted kit (surface) for GALLERYWASHDAT series, black

Order Code: GWASHDATCEILKITB

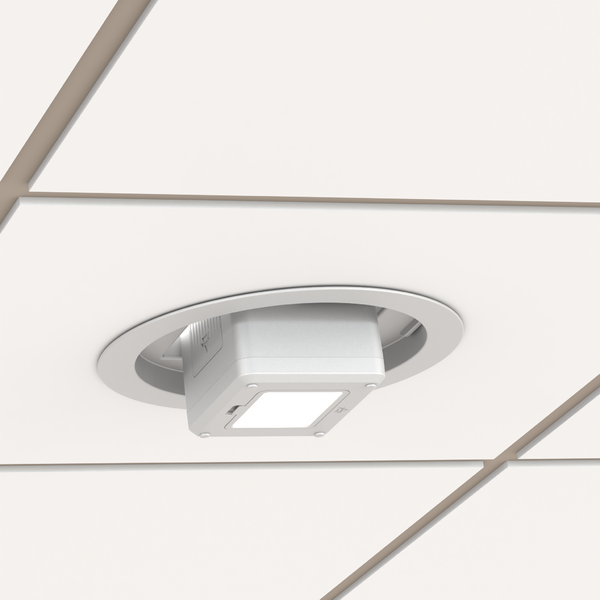

Optional GWASHDATCEILKITW

Ceiling-mounted kit (surface) for GALLERYWASHDAT series

Order Code: GWASHDATCEILKITW

Optional ECLPENDWALLBRKBK

Wall mounting bracket for ECLPENDANT series, black

Order Code: ECLPENDWALLBRKBK

Optional ECLPENDWALLBRKWH

Wall mounting bracket for ECLPENDANT series, white

Order Code: ECLPENDWALLBRKWH

Optional ECLPENDWALLBRKABK

Ring adapter for ECLPENDWALLBRK (not included), black

Order Code: ECLPENDWALLBRKABK

Optional ECLPENDWALLBRKAWH

Ring adapter for ECLPENDWALLBRK (not included), white

Order Code: ECLPENDWALLBRKAWH

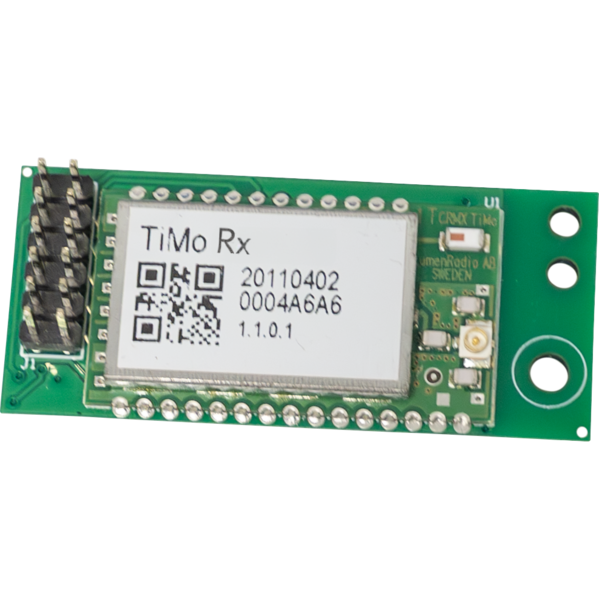

Optional GWASHDATWK

CRMX Timo Rx kit for GALLERYWASHDAT series

Order Code: GWASHDATWK

Optional PLCDX53D5

120 Ohm DMX cable, 2 twisted poles, external sheath with reduced diameter, 1 m

Order Code: PLCDX53D5

Optional PLCPD7501P68D

Power & DMX 120 Ohm

Order Code: PLCPD7501P68D

Optional PLCPD7501P14D

Power & DMX 120 Ohm, 1 meter length, not suitable for track adapter connection

Order Code: PLCPD7501P14D

Optional PLCYA7501P14D

YY splitter cable Power 3x0.75 mm2 + 5p IN/OUT DMX 120 Ohm, bare end, 1 meter

Order Code: PLCYA7501P14D

Optional C6002B

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

Order Code: C6002B

Optional RSR0630B

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

Order Code: RSR0630B

Optional NAXTSC61002

Global Pulse XTSC Lighting Track, 3 circuit DALI, 1000 mm / 3,28 feet, black

Order Code: NAXTSC61002

Optional NAXTSC61003

Global Pulse XTSC Lighting Track, 3 circuit DALI, 1000 mm / 3,28 feet, white

Order Code: NAXTSC61003

Optional NAXTSC62002

Global Pulse XTSC Lighting Track, 3 circuit DALI, 2000 mm / 6,56 feet, black

Order Code: NAXTSC62002

Optional NAXTSC63002

Global Pulse XTSC Lighting Track, 3 circuit DALI, 3000 mm / 9,84 feet, black

Order Code: NAXTSC63002

Optional NAXTSC62003

Global Pulse XTSC Lighting Track, 3 circuit DALI, 2000 mm / 6,56 feet, white

Order Code: NAXTSC62003

Optional NAXTSC63003

Global Pulse XTSC Lighting Track, 3 circuit DALI, 3000 mm / 9,84 feet, white

Order Code: NAXTSC63003

Optional NAXTSC64002

Global Pulse XTSC Lighting Track, 3 circuit DALI, 4000 mm / 13,12 feet, black

Order Code: NAXTSC64002

Optional NAXTSC64003

Global Pulse XTSC Lighting Track, 3 circuit DALI, 4000 mm / 13,12 feet, white

Order Code: NAXTSC64003

Optional NAXTSC6112

Global Pulse XTS Connector 3-CCT DALI end feed, earth right, black

Order Code: NAXTSC6112

Optional NAXTSC6113

Global Pulse XTS Connector 3-CCT DALI end feed, earth right, white

Order Code: NAXTSC6113

Optional NAXTSC6122

Global Pulse XTS Connector 3-CCT DALI end feed, earth left, black

Order Code: NAXTSC6122

Optional NAXTSC6123

Global Pulse XTS Connector 3-CCT DALI end feed, earth left, white

Order Code: NAXTSC6123

Optional NAXTSC6212

Global Pulse XTS Connector 3-CCT DALI straight connector, black

Order Code: NAXTSC6212

Optional NAXTSC6213

Global Pulse XTS Connector 3-CCT DALI straight connector, white

Order Code: NAXTSC6213

Optional NAXTSC6142

Global Pulse XTS Connector 3-CCT DALI middle feed, black

Order Code: NAXTSC6142

Optional NAXTSC6143

Global Pulse XTS Connector 3-CCT DALI middle feed, white

Order Code: NAXTSC6143

Optional NAXTSC6232

Global Pulse XTS Connector 3-CCT DALI flexible corner connector, black

Order Code: NAXTSC6232

Optional NAXTSC6233

Global Pulse XTS Connector 3-CCT DALI flexible corner connector, white

Order Code: NAXTSC6233

Optional NAXTSNC6342

Global Pulse XTSN Connector 3-CCT DALI L connector, earth right, black

Order Code: NAXTSNC6342

Optional NAXTSNC6343

Global Pulse XTSN Connector 3-CCT DALI L connector, earth right, white

Order Code: NAXTSNC6343

Optional NAXTSNC6352

Global Pulse XTSN Connector 3-CCT DALI L connector, earth left, black

Order Code: NAXTSNC6352

Optional NAXTSNC6353

Global Pulse XTSN Connector 3-CCT DALI L connector, earth left, white

Order Code: NAXTSNC6353

Optional NAXTSNC6362

Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/right, black

Order Code: NAXTSNC6362

Optional NAXTSNC6363

Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/right, white

Order Code: NAXTSNC6363

Optional NAXTSNC6402

Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/right, black

Order Code: NAXTSNC6402

Optional NAXTSNC6403

Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/right, white

Order Code: NAXTSNC6403

Optional NAXTSNC6372

Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/left, black

Order Code: NAXTSNC6372

Optional NAXTSNC6373

Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/left, white

Order Code: NAXTSNC6373

Optional NAXTSNC6392

Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/left, black

Order Code: NAXTSNC6392

Optional NAXTSNC6393

Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/left, white

Order Code: NAXTSNC6393

Optional NAXTSNC6382

Global Pulse XTSN Connector 3-CCT DALI X connector, black

Order Code: NAXTSNC6382

Optional NAXTSNC6383

Global Pulse XTSN Connector 3-CCT DALI X connector, white

Order Code: NAXTSNC6383

Optional NASKB122

Global Pulse Track Mounting Clamp for Rod and Wire, 200N, black

Order Code: NASKB122

Optional NASKB123

Global Pulse Track Mounting Clamp for Rod and Wire, 200N, white

Order Code: NASKB123

Optional NAXTS412

Global Pulse XTS Connector 3-CCT DALI END cap, black

Order Code: NAXTS412

Optional NAXTS413

Global Pulse XTS Connector 3-CCT DALI END cap, white

Order Code: NAXTS413

Optional NAKKT306007

Kit for Global Pulse DMX/DALI 3-Circuit Adapters NAGAC6002, black

Order Code: NAKKT306007

Optional NAKKT306008

Kit for Global Pulse DMX/DALI 3-Circuit Adapters NAGAC6003, white

Order Code: NAKKT306008

Optional NAKKT3013184

Kit for NAXTSA682 adapter, black

Order Code: NAKKT3013184

Optional NAKKT3013185

Kit for NAXTSA683 adapter, white

Order Code: NAKKT3013185

Optional EUT990662

Mounting nut66 for EUT99759, black

Order Code: EUT990662

Optional EUT990666

Mounting nut66 for EUT99759, white

Order Code: EUT990666

Optional EUT997592

EUTRAC multiAdapter with data bus option, black

Order Code: EUT997592

Optional EUT997596

EUTRAC multiAdapter with data bus option, white

Order Code: EUT997596

Optional EUT996980

Data bus tap EUT99759

Order Code: EUT996980

Optional NASPW12SK315M

Global Pulse Track clip wire suspension set 1.5m, 150N, white

Order Code: NASPW12SK315M

Optional NASPW12SK215M

Global Pulse Track clip wire suspension set 1.5m, 150N, black

Order Code: NASPW12SK215M

Optional NASPW12SK25M

Global Pulse Track clip wire suspension set 5m, 150N, black

Order Code: NASPW12SK25M

Optional NASPW12SK35M

Global Pulse Track clip wire suspension set 5m, 150N, white

Order Code: NASPW12SK35M

Optional UPBOXPRO

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

Order Code: UPBOXPRO

Downloads

Technical documentation and support files

Data sheet & specs Data sheet & specs

File name File size Download
Letter datasheetGallerywashdatvw_LETTER_DATASHEET_(EN).pdf(30/06/2025)448KB
Letter datasheetGallerywashdatvw_A4_DATASHEET_(EN).pdf(30/06/2025)478KB
Tender SpecificationGallerywashdatvw_TENDER_SPECIFICATION.pdf(20/06/2025)279KB

User manual User manual

File name File size Download
User manualGallerywashdatvw_USER_MANUAL_EN.pdf(31/10/2025)2MB
User manualGallerywashdatvw_General_Safety_Information.pdf(20/05/2025)3MB
User manualGallerywashdatvw_Guidelines_for_Installation_EN.pdf(27/06/2025)2MB

DMX chart & personalities DMX chart & personalities

File name File size Download
DMX chartGallerywashdatvw_DMX_CHARTS.pdf(14/05/2025)135KB

GALLERYWASHDATVW Firmware rev. 1.1.01.0

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics Photometrics

File name File size Download
IESprolights_gallerywashdatvw_ies_files.zip(19/06/2025)41KB
LDTprolights_gallerywashdatvw_ldt_files.zip(19/06/2025)38KB
PhotometricsGallerywashdatvw_PHOTOMETRICS_REPORT.pdf(20/06/2025)3MB
DialuxDownload DIALux product catalogue-

CAD symbols & drawings CAD symbols & drawings

File name File size Download
3D SKPGallerywashdatvw_3D.skp(13/03/2025)993KB
2DGALLERYWASHDATVW_2D.zip3MB
3DGallerywashdatvw_CAD_3D.dwg(13/03/2025)726KB
2D cad symbolsGALLERYWASHDATVW_2DSYMBOLS.zip50KB
Technical drawingGALLERYWASHDATVW_TECHNICAL DRAWINGS.zip357KB
VectorWorksGALLERYWASHDATVW_SYMBOLS.zip3MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB

Firmware


Firmware update instructions

1 Download the firmware (complete download is available on Customer Care - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Additional info:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all interfaces (UPBOXPRO, UPBOX1 and UPBOX2)
  • It's possible to update NET boards (with .EHEX files) following this guide with software Professional Uploader
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.01.0 STABLE 25/09/2025 New Function:
  • Added new shortcut: Press Encoder for 10s ----> Wireless@ON + RX Reset@ON + the source flashes 5 times to FULL
NOTE: If the device does not have the wireless module inside, the shortcut will not work and no flash will be shown from the light source.		 Rev. 1.0

Info Request

NEWSLETTER

Subscribe to our Newsletter

Loading...
