LumiPix 12UQPRO

ORDER CODE: LUMIPIX12UQPRO

12x8W RGBW/FC high-efficiency LED batten

LumiPix 12UQPRO is a 1 m long linear colour changer equipped with 12 high-efficiency RGBW/FC LED (8W each). The control system is customisable allowing section control and advanced possibilities in effect generation such as LED video or sound activated arrays.

Main features:

  • Pixel control: section control
  • Advanced on-board effects generation
  • USB port for USB WIFI transceiver (optional)
  • Flicker-free operations
See variants

PHOTO GALLERY

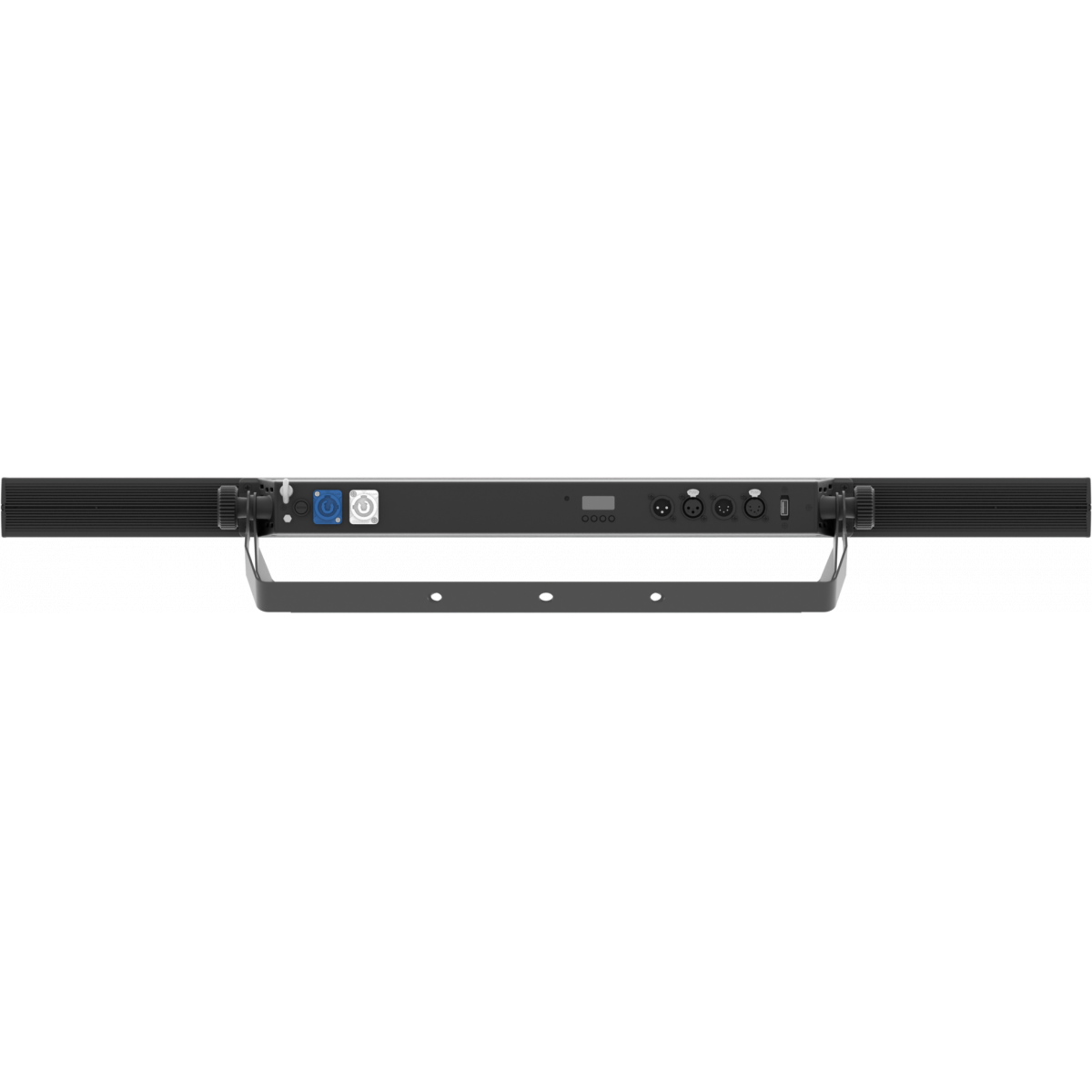

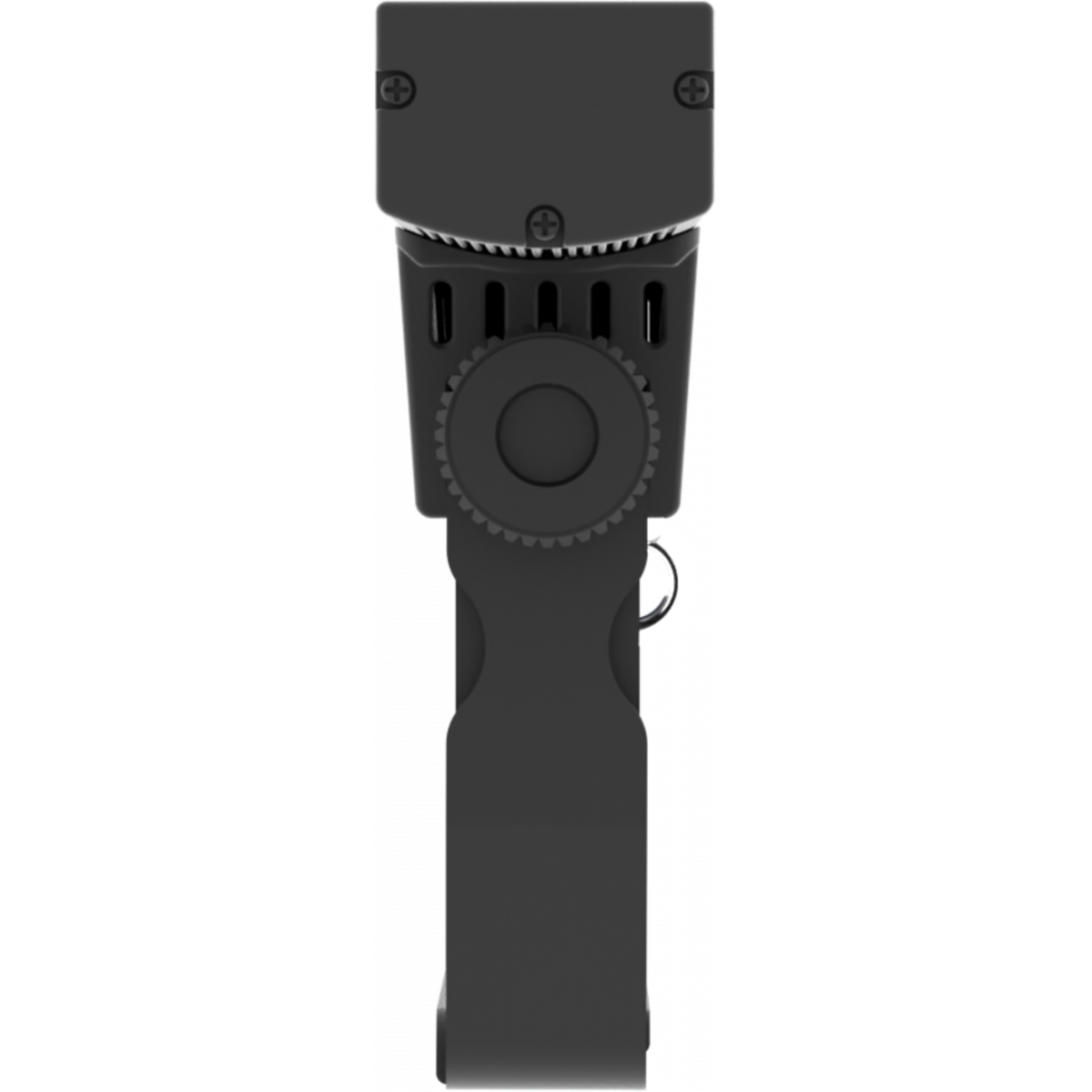

LumiPix 12UQPRO

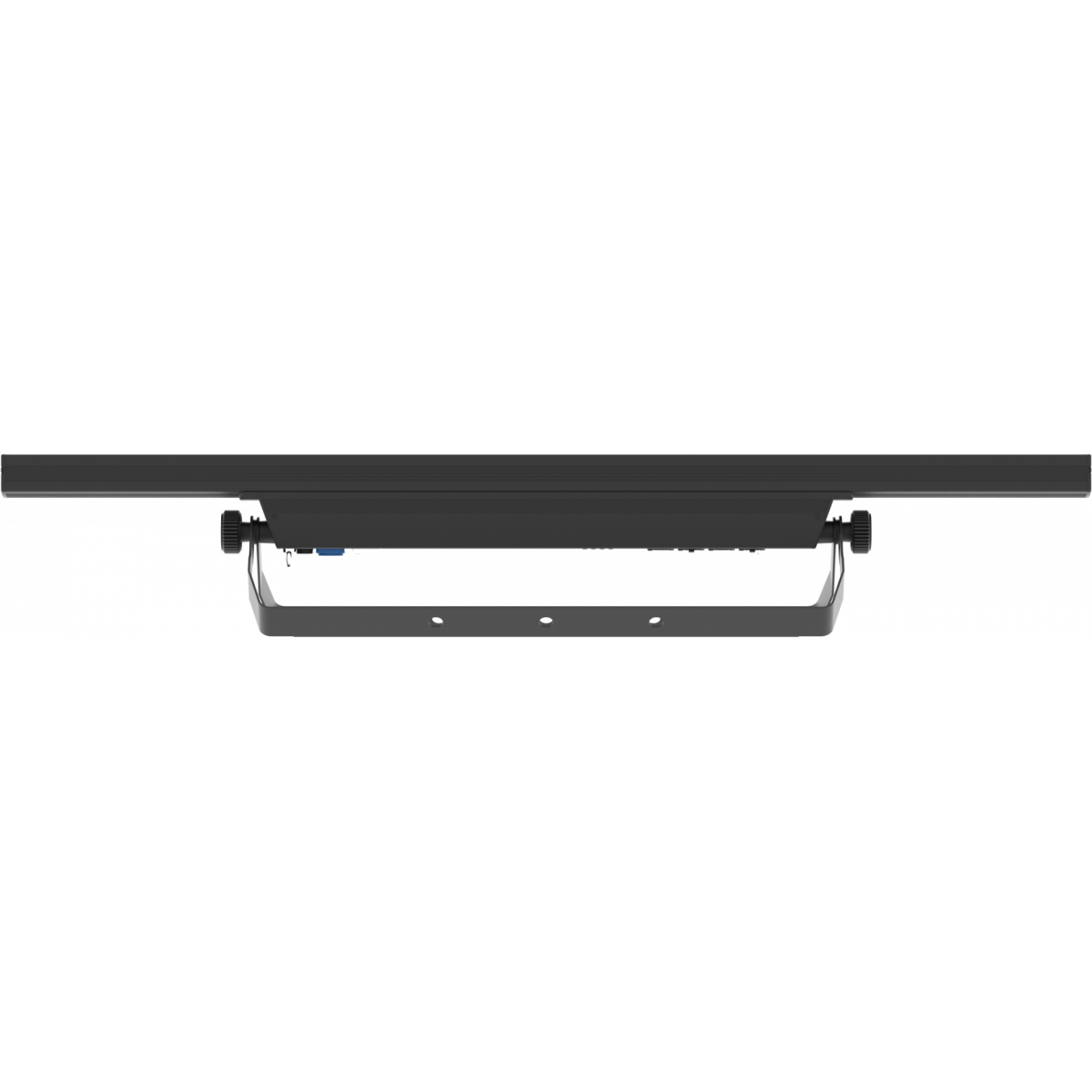

LumiPix 12UQPRO

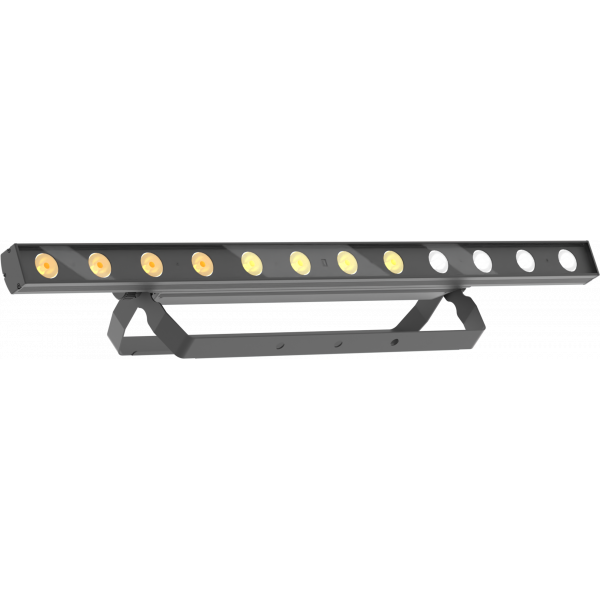

LumiPix 12UQPRO

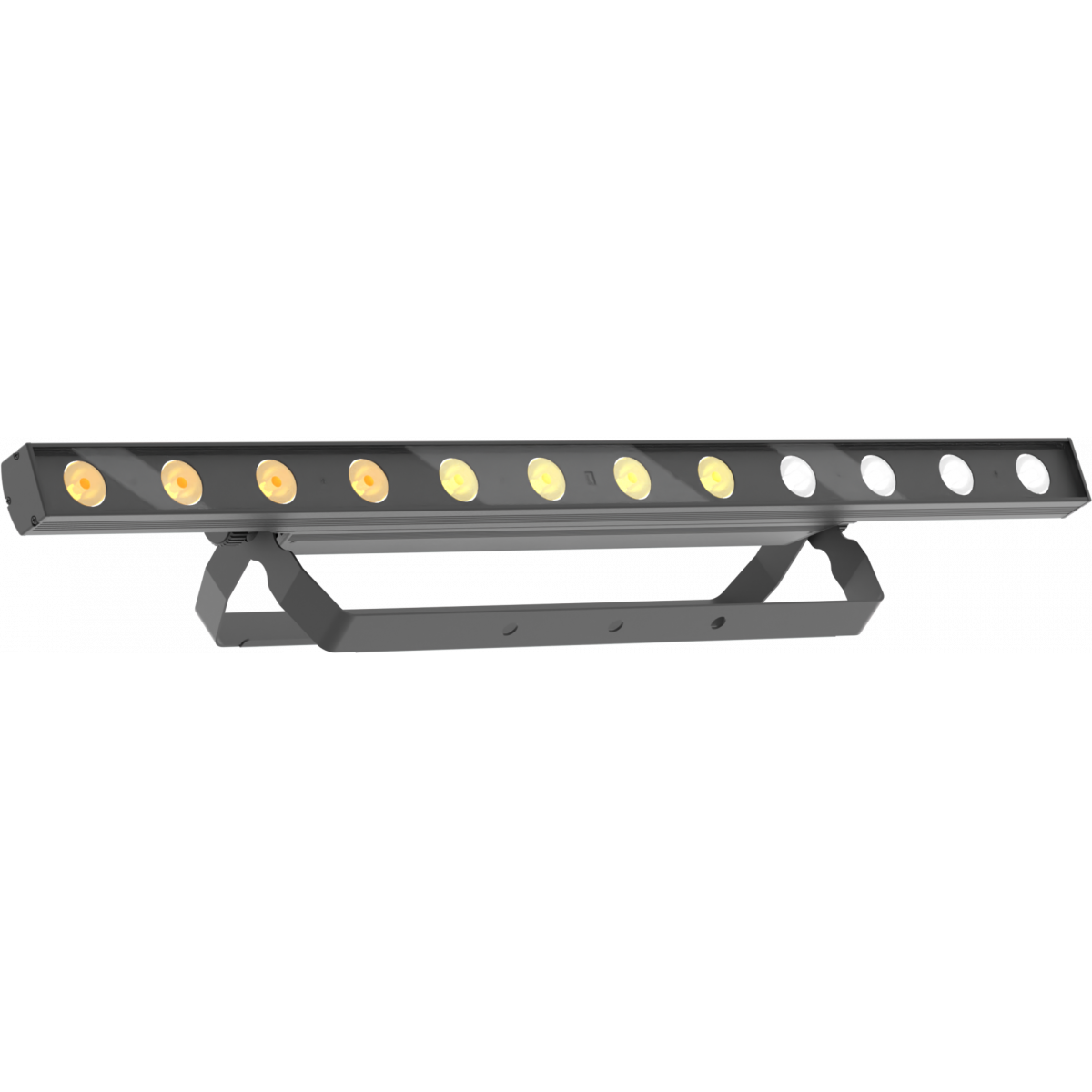

LumiPix 12UQPRO

Technical specifications

LIGHT SOURCE
  • Source: 12x8W RGBW LEDs
  • Luminous flux: 2'241
  • Lux: 1'813lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 19°
  • Field angle: 36°
  • Lens diameter: 38mm / 1.5''
  • Additional optics: 45° (optional)
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Sound mode: music activation through internal microphone and sensitivity control
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 4 / 7 / 9 / 12 / 17channel
  • Pixel control: 1 / 3 section control
  • Wireless Control: optional, proprietary protocol compatible with WIFIBOX, WDBOX
  • Display: LED display user interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • IR: infrared sensor controlled by remote
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Operating temperature: 0° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 73,6W
  • Max power consumption (at 120V): 71W
  • Output (at 230V): 19 units on a single power line
  • Output (at 120V): 7
PHYSICAL
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Data: USB port for USB WIFI transmitter (optional)
  • Signal connection: XLR 3p + 5p IN/OUT connectors
  • Power connection: Seetronic powerCON IN/OUT connectors
  • Dimensions (WxHxD): 1000x56x168mm / 39.37''x2.2''x6.61''
  • Weight: 3,3kg / 7.28lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
TOUR53413L03
TOUR53413L03
(Optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
<b>WIFI</b>-USB
WIFI-USB
(Optional)

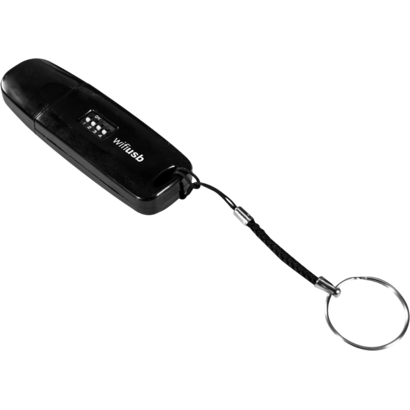

USB Wi-Fi transreceiver, compatible with WIFIBOX and WDBOX
<b>WIFI</b>-Box
WIFI-Box
(Optional)
DMX controller interface, Wi-Fi/DMX IN, Wi-Fi / DMX OUT
<b>WD</b>-Box
WD-Box
(Optional)
Wireless DMX Transceiver, IN/OUT 3-pin XLR, distance 200m, 2.4 GHz, 0.6 kg
LUMIPARIRCH
LUMIPARIRCH
(Optional)

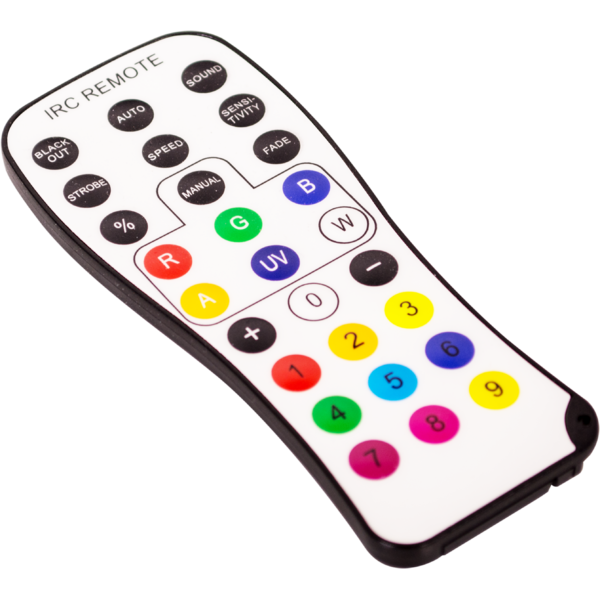

RGBWA IR remote controller, manual / auto modes, for LUMIPAR IR series
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

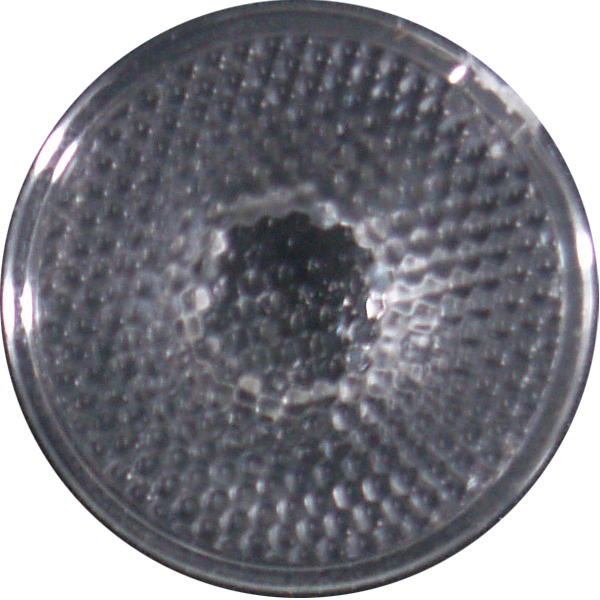

ARCLUMIL25D38
ARCLUMIL25D38
(Included)

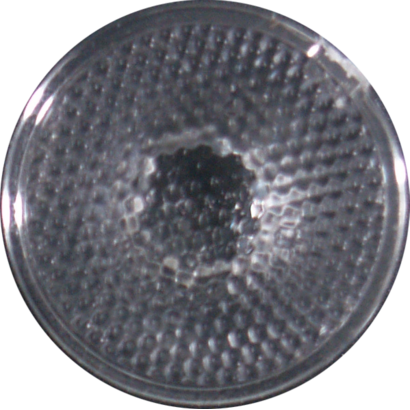

Optic lens 15°, D.38mm
ARCLUMIL45D38
ARCLUMIL45D38
(Optional)
Optic lens 45°, D.38mm

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetLumipix12uqpro_A4_DATASHEET_(IT).pdf138KB
Letter datasheetLumipix12uqpro_A4_DATASHEET(EN).pdf139KB

User manual

File name File size Download
User manualLumipix12uqpro_USER_MANUAL_ITEN.pdf1MB

DMX chart & personalities

File name File size Download
DMX chartLumipix12uqpro_DMX_CHARTS.pdf52KB

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
3D RFALumipix12uqpro_3D.rvt375KB
3D SKPLumipix12uqpro_3D.skp280KB
2DLumipix12uqpro_CAD_2D.dwg933KB
3DLumipix12uqpro_CAD_3D.dwg658KB
2D cad symbolsLumipix12uqpro_CAD_2DSYMBOLS.dwg19KB
Technical drawingLumipix12uqpro_TECHNICAL_DRAWING.pdf171KB
VectorWorksVECTORWORKS_SYMBOLS.vwx177KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.2 STABLE 04/11/2021 New functions:
  • Added LED FREQUENCY option (250 Hz, 500Hz, 1000 Hz, 2000 Hz, 4000 Hz).
