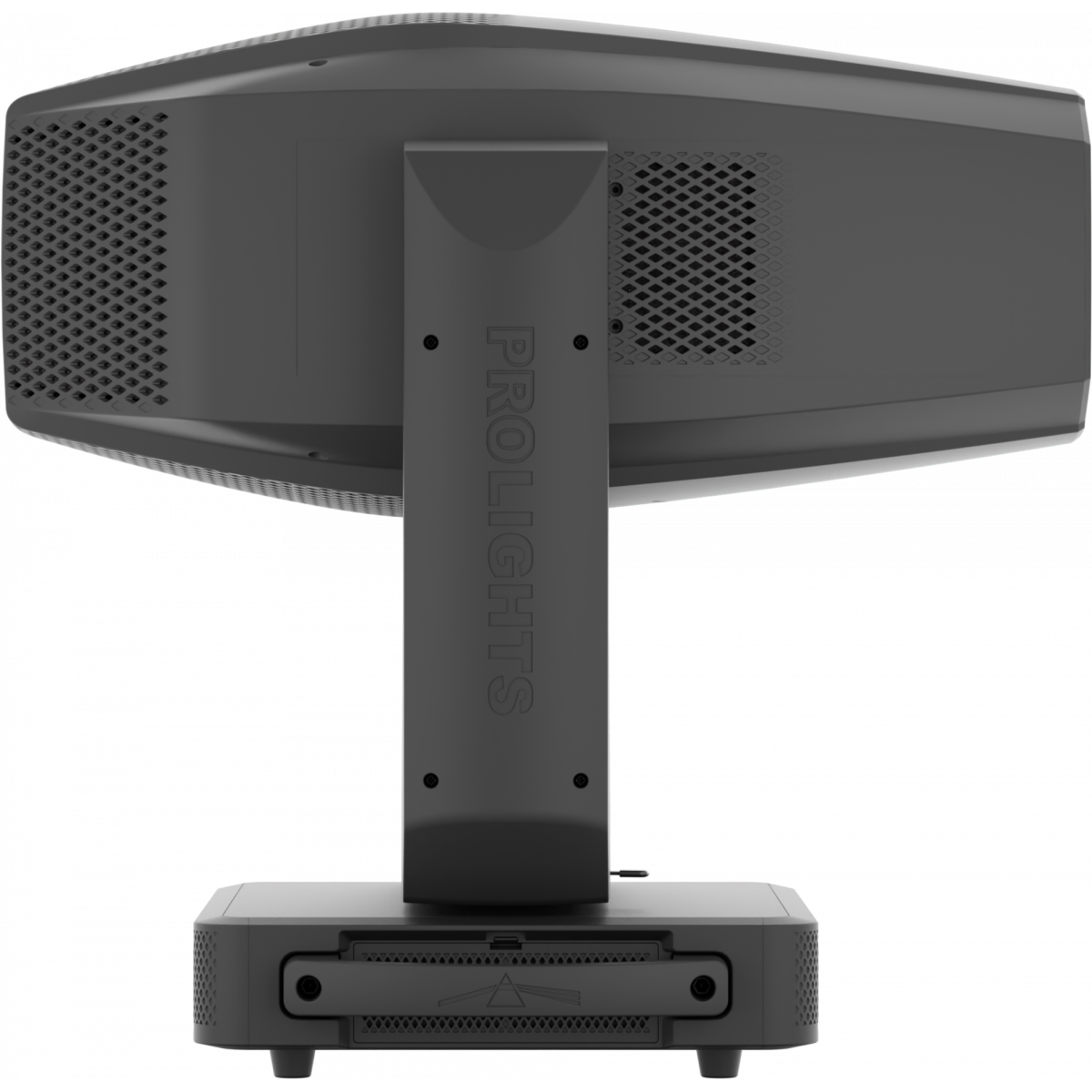

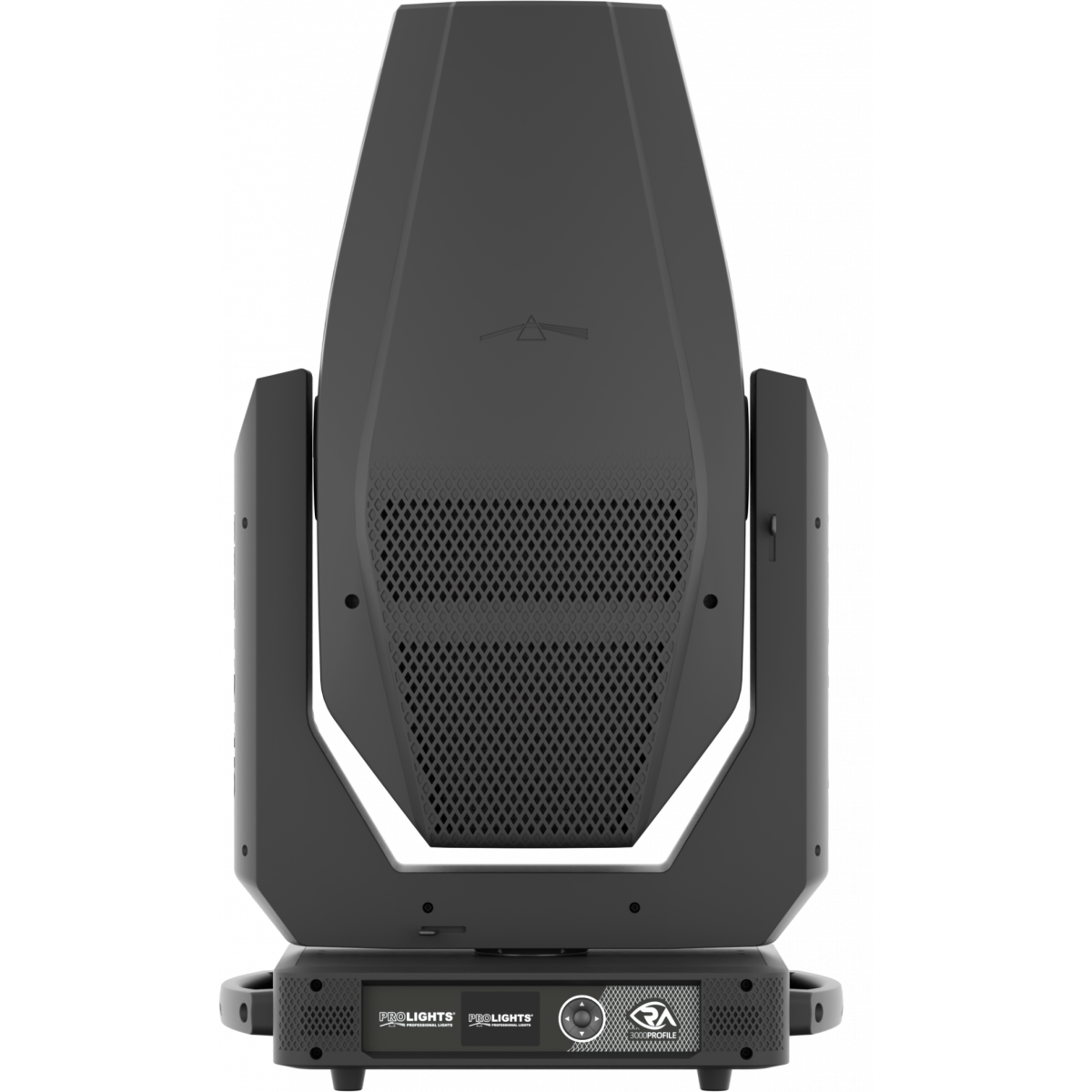

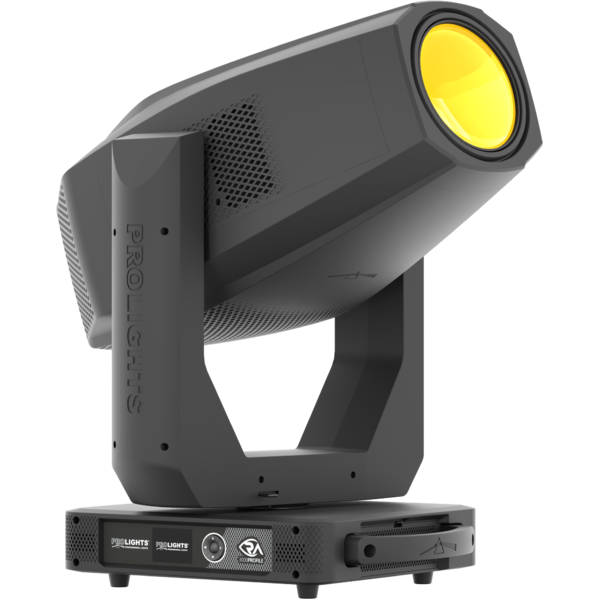

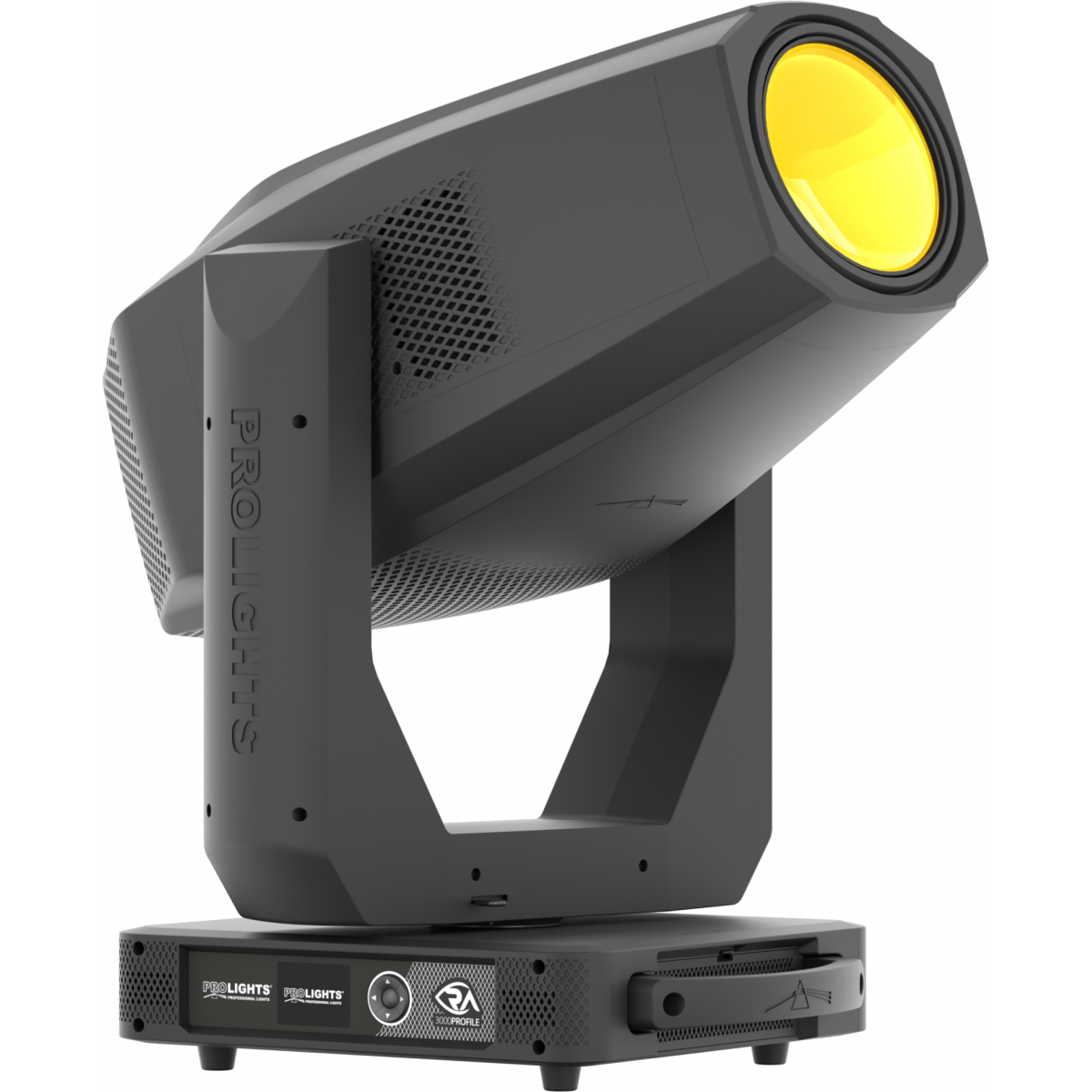

Ra 3000Profile

ORDER CODE: RA3000PROFILE

1.000W high-precision LED moving profile light

Ra 3000Profile combines solid-state technology in every single detail and it has been specifically engineered to be not only a high-quality bright light but also silent. Ra 3000Profile is able to provide a real 18'576 lumen output with unprecedented beam evenness. The 6.000 K LED engine has been custom designed to make the Ra 3000Profile hit a CRI of 90, TLCI of 92, high R9 and TM30 making all skin tones and colours come to life on stage or in front of a camera.The Ra 3000Profile's CMY system delivers beautiful pastels, stunning saturated colours, powerful primaries, one colour wheel provides split colours, and linear CTO allows the Ra 3000Profile to blend in with traditional sources. Packed with a full feature set, composed of a gobo wheel, animation wheel, iris, prism and dual linear frost. High-precision 4 blade shuttering system can be overlaid to provide endless combinations. The 19 element optics of the Ra 3000Profile are precision engineered for a perfect zoom, ideal edges and maximum efficiency. The Ra 3000Profile is silent, bright, flexible and precise.

Main features:

  • 1.000W LED engine with 6.000 K CT featuring high CRI, TLCI, R9 and TM30.
  • 18'576 lumen fixture output with flat-field projection and silent operation.
  • Equipped with both adjustable framing shutters and an animation wheel.

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 1.000W White LED
  • CCT: 6.000
  • Luminous flux: 18'576lm
  • Lux: (6°) 68'027 lx (50°) 1'543lx @5 m
  • CRI: > 93
  • R9: 70
  • Other: TLCI: 94; TM30-15RF: 89; TM30RG: 97
  • Source life expectancy: > 30.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom: 6° - 50° motorised linear zoom
  • Lens diameter: 180mm / 7.09''
COLOUR SYSTEM
  • Colour mixing: linear CMY
  • CCT: linear CTO correction 2.700 K ~ 6.000 K
  • Colour wheel: 6 colour filters
DYNAMIC EFFECTS
  • Shutter system: 4 single blades: + / - 35°, complete system: + / - 45°
  • Animation wheel: animation wheel with CW and CCW rotation
  • Rotating gobos: 6 rotating gobos + open, interchangeable, indexing
  • Gobo size: outer: 31,6 mm - image: 26 mm - thickness: 1,1 mm
  • FX generator: shutter macros with adjustable speed
  • Circular prism: 4f with bi-directional rotation, indexing
  • Frost: dual frost filter system, 1° soft-edge frost gobo, 5° frost wash, with linear 0 - 100% frost filter
  • Iris: 5 - 100% motorised iris
BODY
  • Pan angle: 540°
  • Tilt angle: 270°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: flame retardant PC
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
  • DMX channels: 38 / 39 / 40 / 41channel
  • Wireless Control: included, wireless solution receiver
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 1.350W
  • Max power consumption (at 120V): 1.370W
  • Power factor: (120 W) 1,0 - (230 W) 0,98
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: fast quick lock Omega bracket
  • Pan / tilt lock: for transportation and maintenance

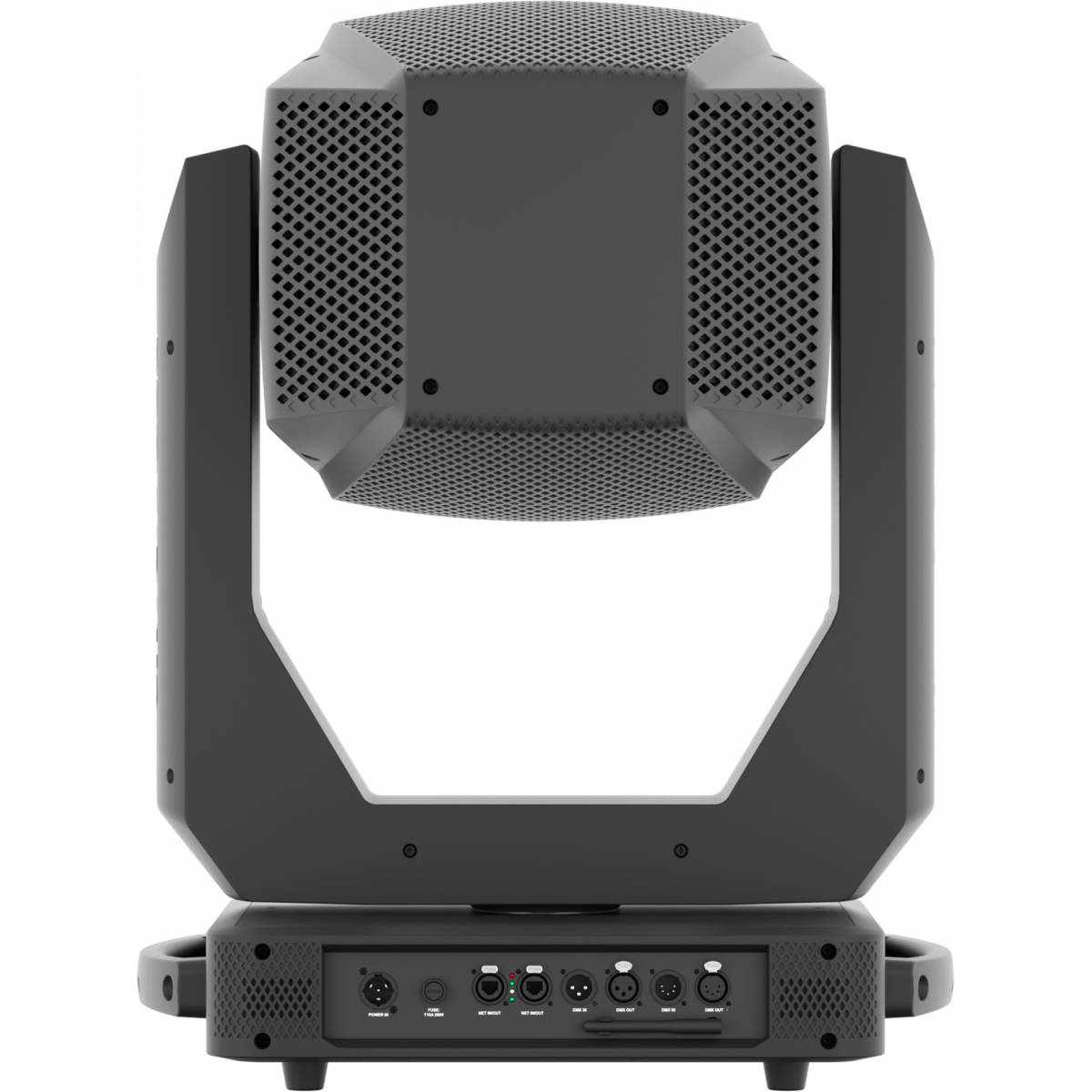

  • Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
  • Data connection: Art-Net RJ45 IN/OUT
  • Power connection: Neutrik powerCON TRUE1 IN connector
  • Dimensions (WxHxD): 535x913x403mm / 21.06''x35.94''x15.87''
  • Weight: 57kg / 125.66lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
OS24
OS24
(included)
Quick-lock omega bracket, M10 hole
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
RSR0670B
RSR0670B
(optional)

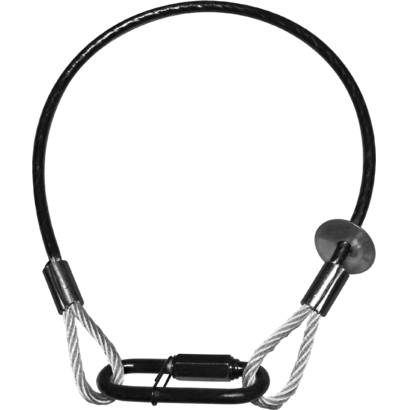

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6016B
C6016B
(optional)

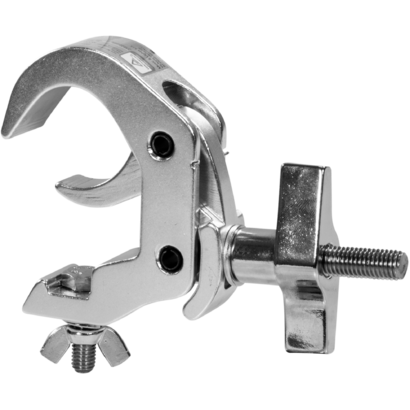

Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black
FCLRA3000
FCLRA3000
(optional)

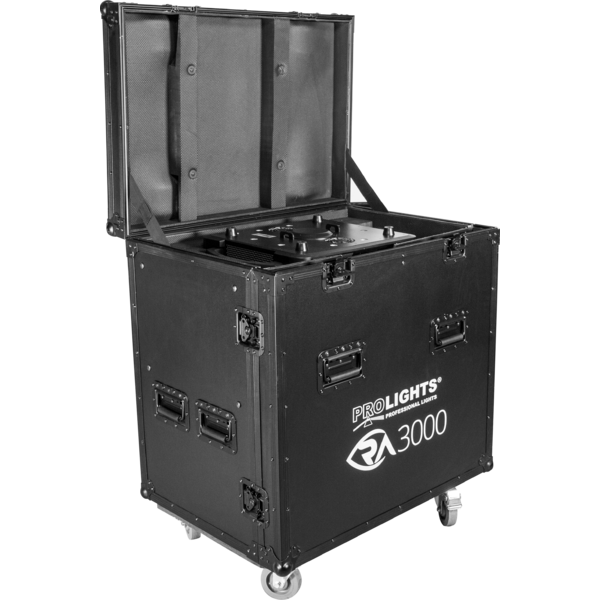

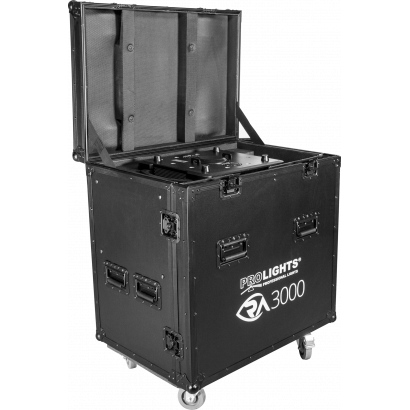

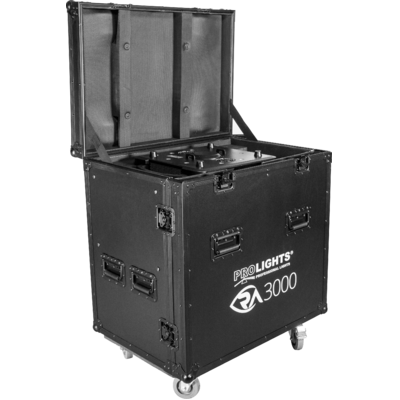

Flight case for 1 RA3000PROFILE
OS24D13
OS24D13
(optional)
Quick-lock omega bracket, M12 hole
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Ra3000profile_A4_DATASHEET_(EN).pdf 1MB
Letter datasheet Ra3000profile_A4_DATASHEET_(IT).pdf 1MB
Tender Specification Ra3000profile_TENDER_SPECIFICATION.pdf 5MB

User manual

File name File size Download
User manual Ra3000profile_USER_MANUAL.pdf 14MB
User manual Ra3000profile_Wireless_Protocol_Compatibilit_EN.pdf 4MB

DMX chart & personalities

File name File size Download
DMX chart Ra3000profile_DMX_CHARTS.pdf 56KB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
VectorWorks VECTORWORKS_SYMBOLS.vwx 446KB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 444MB
RA3000PROFILE Firmware rev. 2.6
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_ra3000profile_38ch.hedDownload
prolights_ra3000profile_39ch.hedDownload
prolights_ra3000profile_40ch.hedDownload
prolights_ra3000profile_41ch.hedDownload
ra3000profile_38ch.fdfDownload
ra3000profile_39ch.fdfDownload
ra3000profile_40ch.fdfDownload
ra3000profile_41ch.fdfDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@ra_3000_profile_38ch@std.xmlDownload
prolights@ra_3000_profile_39ch@ext39.xmlDownload
prolights@ra_3000_profile_40ch@std40ch.xmlDownload
ra3500 standard_bck.hog4showDownload
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
IES prolights_ra3000profile_ies files.zip 4KB
LDT prolights_ra3000profile_ldt files.zip 3KB
PDF Photometrics Ra3000profile_PHOTOMETRICS_REPORT.pdf 2MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D RFA Ra3000profile_3D_REVIT.rfa 680KB
3D SKP Ra3000profile_3D_SKETCHUP.skp 6MB
2D Ra3000profile_2D.dwg 95MB
3D Ra3000profile_3D.dwg 2MB
2D cad symbols Ra3000profile_2DSYMBOLS.dwg 80KB
Technical drawing Ra3000profile_TECHNICAL_DRAWING.pdf 7MB

Tech docs

File name File size Download
Color Document Ra3000profile_COLOR.pdf 109KB
Gobos Document Ra3000profile_GOBOS.pdf 930KB

Software

File name File size Download
Software Professional Uploader 0KB

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX1UP5 {CodiceUpBox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.6 STABLE 13/11/2020 Improved Firmware Functionality.
