PanoramaIP WBX

ORDER CODE: PANORAMAIPWBX

19x40W IP65 moving wash, beam and pixel ring effect light

PanoramaIP WBX is a stunning IP65 high-output, LED wash light with pixel ring designed to bring the workhorse LED wash light to outdoor events. Featuring 19 of Osrams new 40 W RGBW Ostar LEDs, it delivers a massive output with a huge colour range and an extensive toolkit of effects.

Main features:

  • IP65 for temporary outdoor application, not for fixed installation.
  • 19 LED RGBW / FC Osram 40W and outer RGB pixel ring.
  • Massive 4,5° to 36° linear zoom range from beam to wash.
  • Individual pixel control with on-board FX generator for both LEDs and pixel ring for fast and precise effects.
  • Heat-pipe cooling system for efficient cooling with virtually no noise.
See variants

PHOTO GALLERY

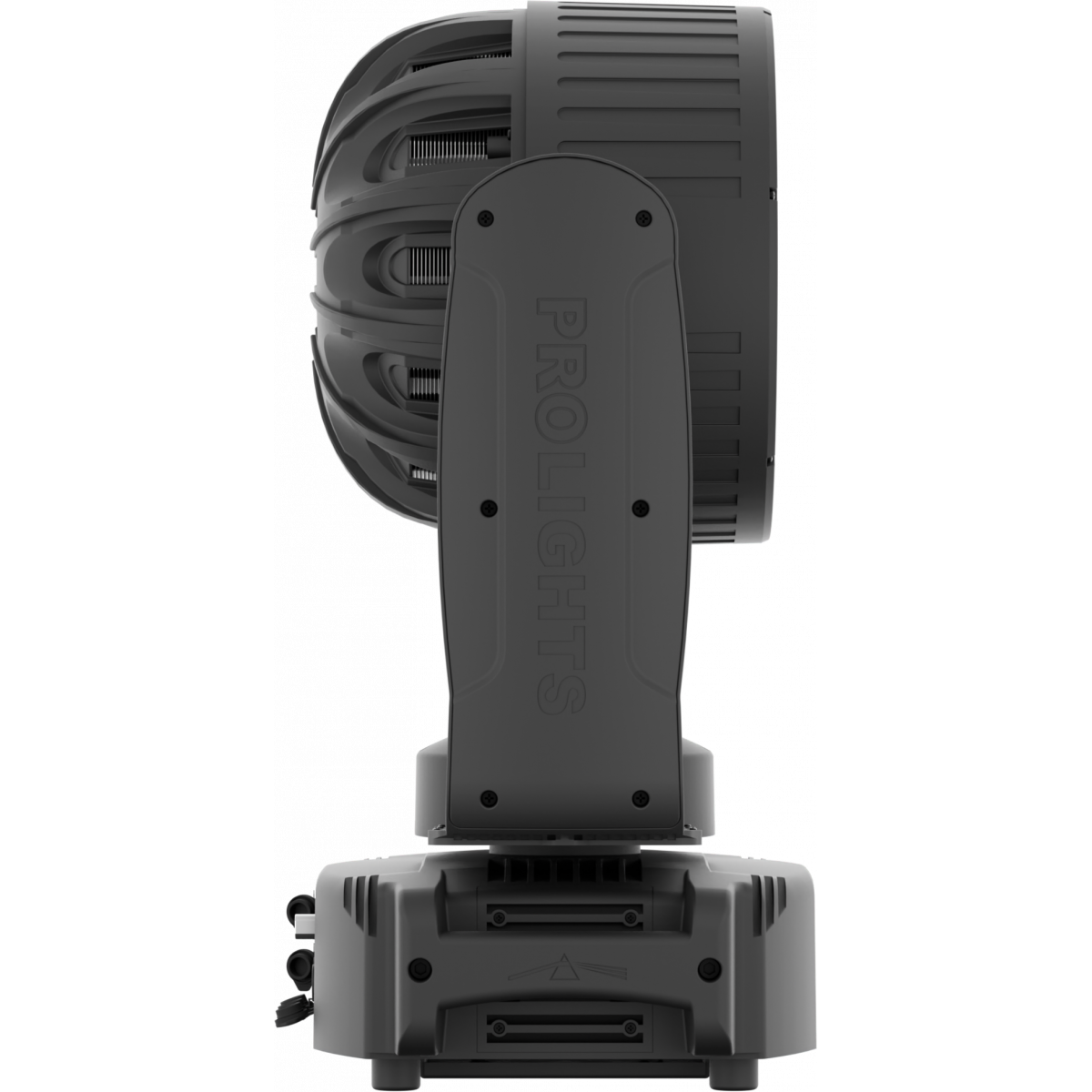

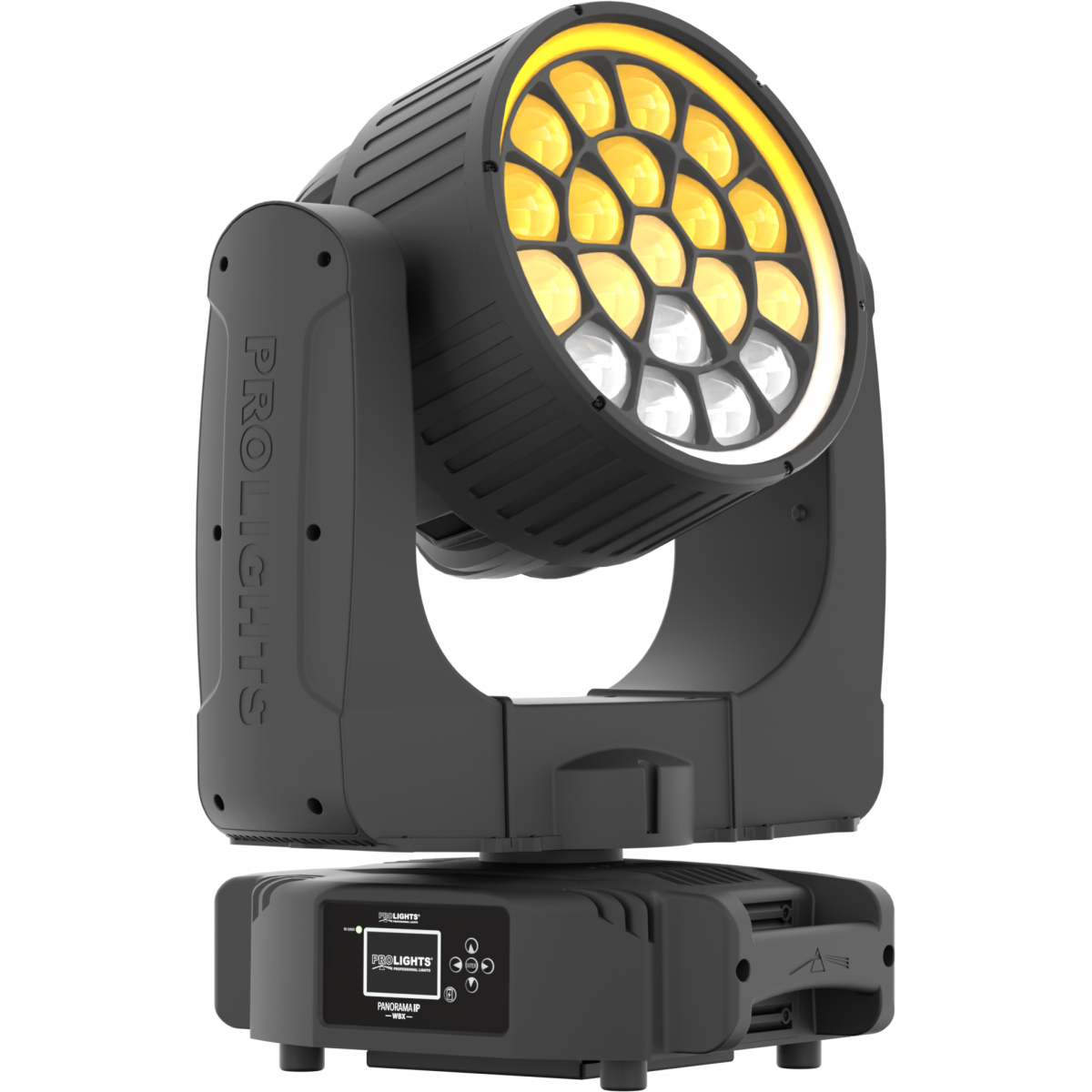

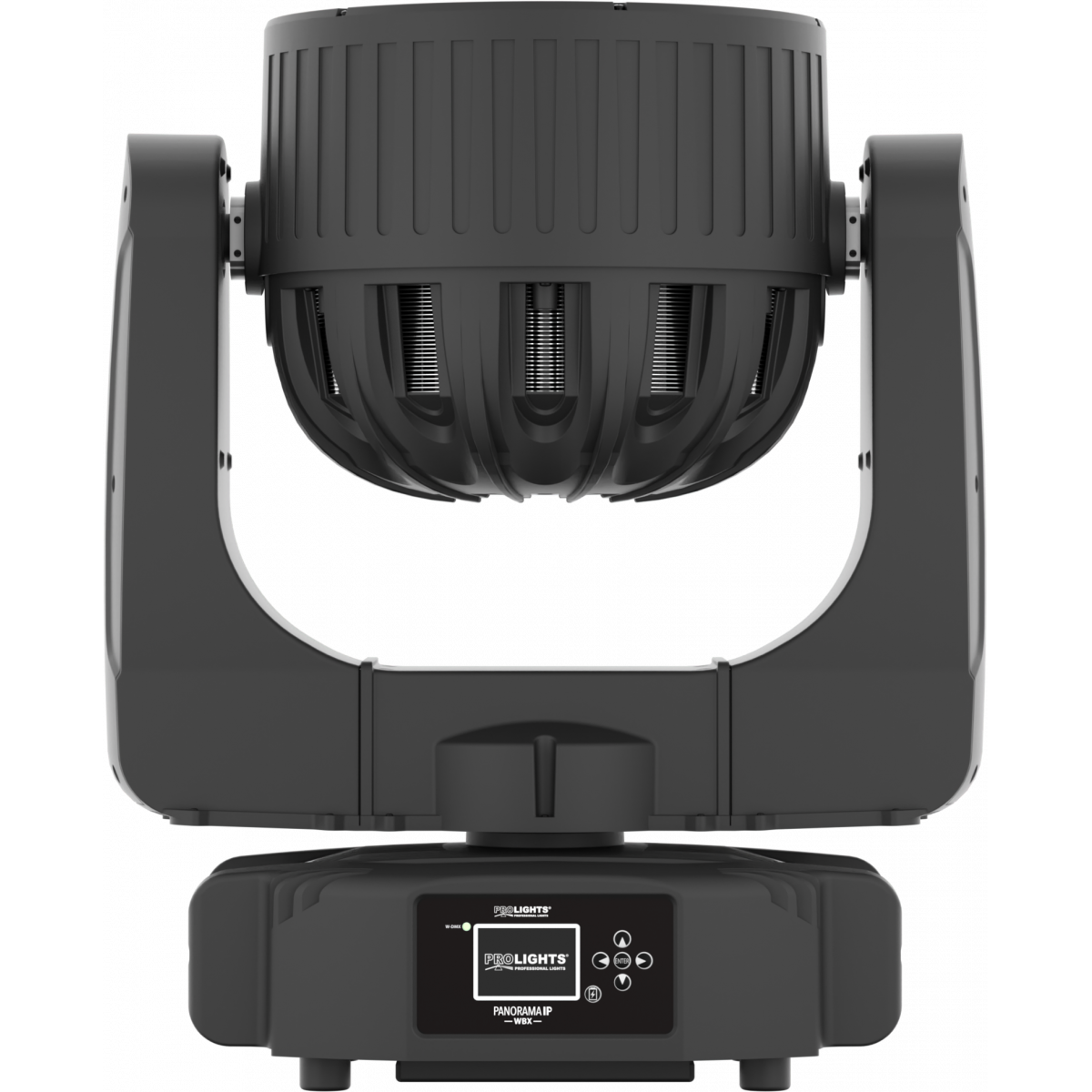

PanoramaIP WBX
PanoramaIP WBX
PanoramaIP WBX
PanoramaIP WBX

Technical specifications

LIGHT SOURCE
  • Source: 19x40W RGBW Osram Ostar LEDs
  • Luminous flux: (4,5°) 4'452 lm - (36°) 5'803 @Full
  • Lux: (4,5°) 33'893 lx - (36°) 1'764lx @5 m full
  • Other: outer RGB, pixel ring with frost film
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom range: 4,5° - 36° motorised linear zoom
  • Lens type: high-quality glass lens optics
  • Additional optics: diffuser on outer pixel ring
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.000 K - 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Special features: outer RGB, pixel ring with several built in FX macros
BODY
  • Pan range: 540° - 630°
  • Tilt range: 267°
  • Pan/Tilt resolution: bit 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: weatherproof IP65 construction
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, Art-Net, W-DMX
  • DMX channels: V1: 18 / 42 / 44 / 120 - V2: 18 / 42 / 44 / 120channel
  • Pixel control: pixel2pixel control
  • Wireless Control: included, wireless solution receiver
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included)
  • Hibernation: power safe mode when lost DMX
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -20° ~ +40° Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 650W
  • Standby power: 41W
  • Output (at 230V): 4 units on a single power line
  • Power factor: > 0,95
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: any position with quick-lock omega brackets

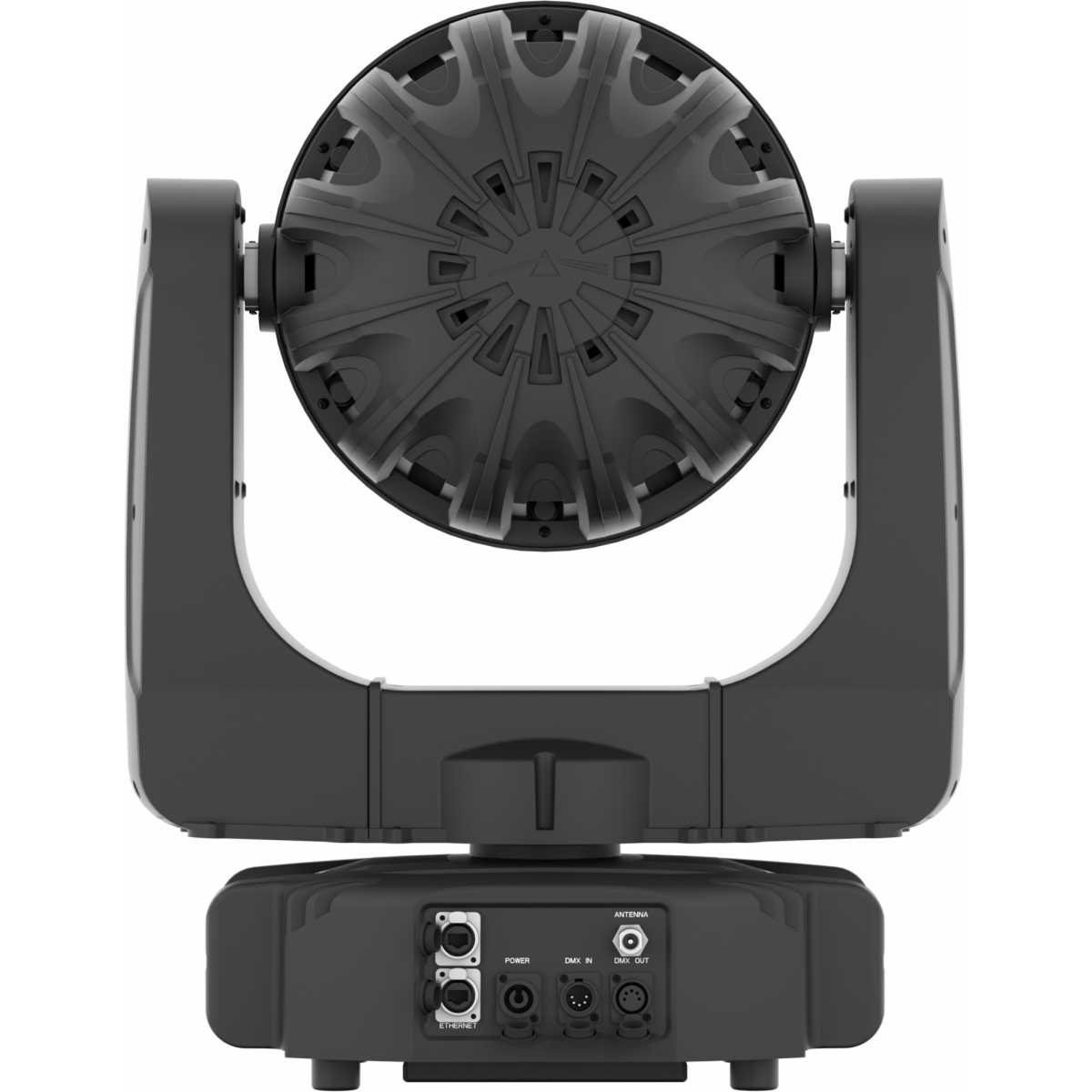

  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Data connection: Art-Net RJ45 IN/OUT
  • Power connection: Neutrik powerCON TRUE1 IN connector
  • Dimensions (WxHxD): 531x676x326mm / 20.91''x26.61''x12.83''
  • Weight: 35kg / 77.16lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth
RSR0670B
RSR0670B
(Optional)

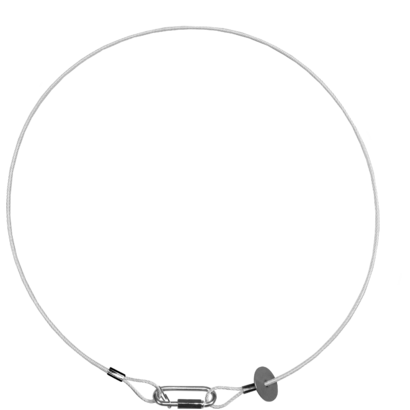

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6016B
C6016B
(Optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black&White& White

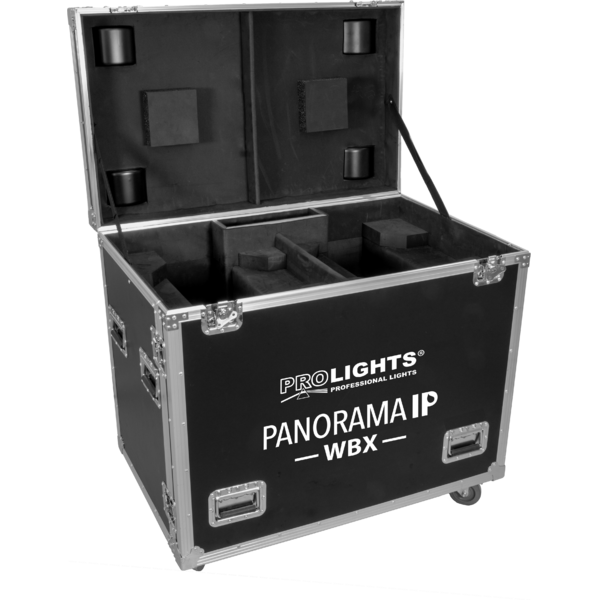

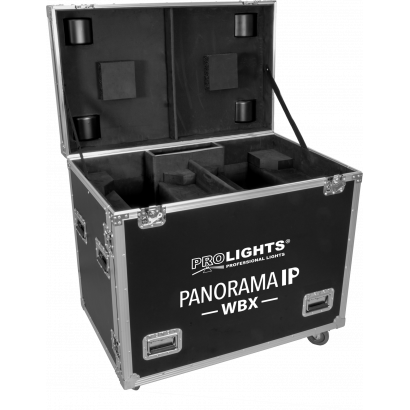

FCLPIPWBX
FCLPIPWBX
(Optional)

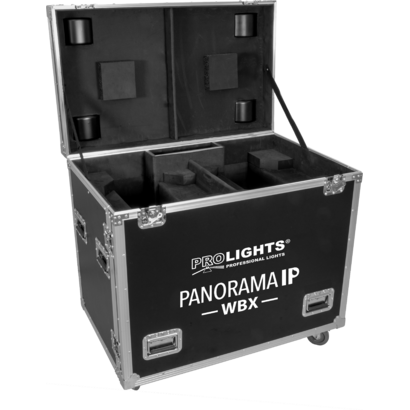

Flight case for 2pcs of PANORAMAIPWBX
OSIPD13
OSIPD13
(Included)
IP65 quick-lock omega bracket compatible with IP65 moving heads, M12 hole
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetPanoramaipwbx_A4_DATASHEET_(EN).pdf515KB
Letter datasheetPanoramaipwbx_A4_DATASHEET_(IT).pdf507KB

User manual

DMX chart & personalities

File name File size Download
DMX chartPanoramaipwbx_DMX_CHARTS.pdf182KB
PANORAMAIPWBX Firmware rev. 1.1.00
manufacturer fixture library (Link) Link
prolights_panoramaipwbx.d4Download
manufacturer fixture library (Link) Link
panoramaipwbx_18ch_v2wash.fdfDownload
panoramaipwbx_44ch_v2fx.fdfDownload
prolights@panorama_wbx_v2fx_fv1.0.04@.xmlDownload
prolights@panorama_wbx_v2rings@.xmlDownload
prolights@panorama_ip_wbx_v1fx_1004@.xmlDownload
prolights@panorama_ip_wbx_fx@.xmlDownload
prolights@panorama_wbx_fx_fv1.0.01@.xmlDownload
panorama ip wbx fx_bck.hog4showDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
panorama ip wbx v1 fx.fix2Download
panorama ip wbx v1 pixfx.fix2Download
panorama ip wbx v1 rings.fix2Download
panorama ip wbx v1 wash.fix2Download
panorama ip wbx v2 fx.fix2Download
panorama ip wbx v2 pixfx.fix2Download
panorama ip wbx v2 rings.fix2Download
panorama ip wbx v2 wash.fix2Download
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D RFAPanoramaipwbx_3D.rfa2MB
3D SKPPanoramaipwbx_3D.skp4MB
2DPanoramaipwbx_CAD_2D.dwg5MB
3DPanoramaipwbx_CAD_3D.dwg2MB
2D cad symbolsPanoramaipwbx_CAD_2DSYMBOLS.dwg71KB
Technical drawingPanoramaipwbx_TECHNICAL_DRAWING.pdf695KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksVECTORWORKS_SYMBOLS.vwx485KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.00 STABLE 22/06/2019 Improved patterns sync. Rev. 1
Rev. 2
Rev. 3
