SMARTBATPG2PACK
PROLIGHTS

Smart BatPlusG2Pack

ORDER CODE: SMARTBATPG2PACK

4x20W hybrid battery uplighter/spot, IP65, with RGB + Warm White LED source, wireless or wired

The Smart BatPlusG2 is a high-end version of the iconic Smart Bat uplighters designed with enhanced output and battery performance, IP65 with a stunning new look.
The clever mechanical design of the Smart BatPlusG2 allows turning the unit from an uplighter into a spot/flood light by combining filters, using the suspension yoke or floor bracket without compromising the aesthetics of the fixture.
The Smart BatPlus G2 introduces new features such as interchangeable batteries and easy covers with multiple colours, making it possible to change its look as desired.
The 4x20W RGB + Warm White LED emitters are Spektra™ calibrated and guarantee incredibly high-quality white CCT reproduction (CRI>93) and boosted output when operated directly through mains.
The Smart BatPlusG2 is very user-friendly - it can be used wirelessly with a built-in battery, CRMX/W-DMX and RDM control, or wired through the PSU and XLR connectors (bypassing the battery).

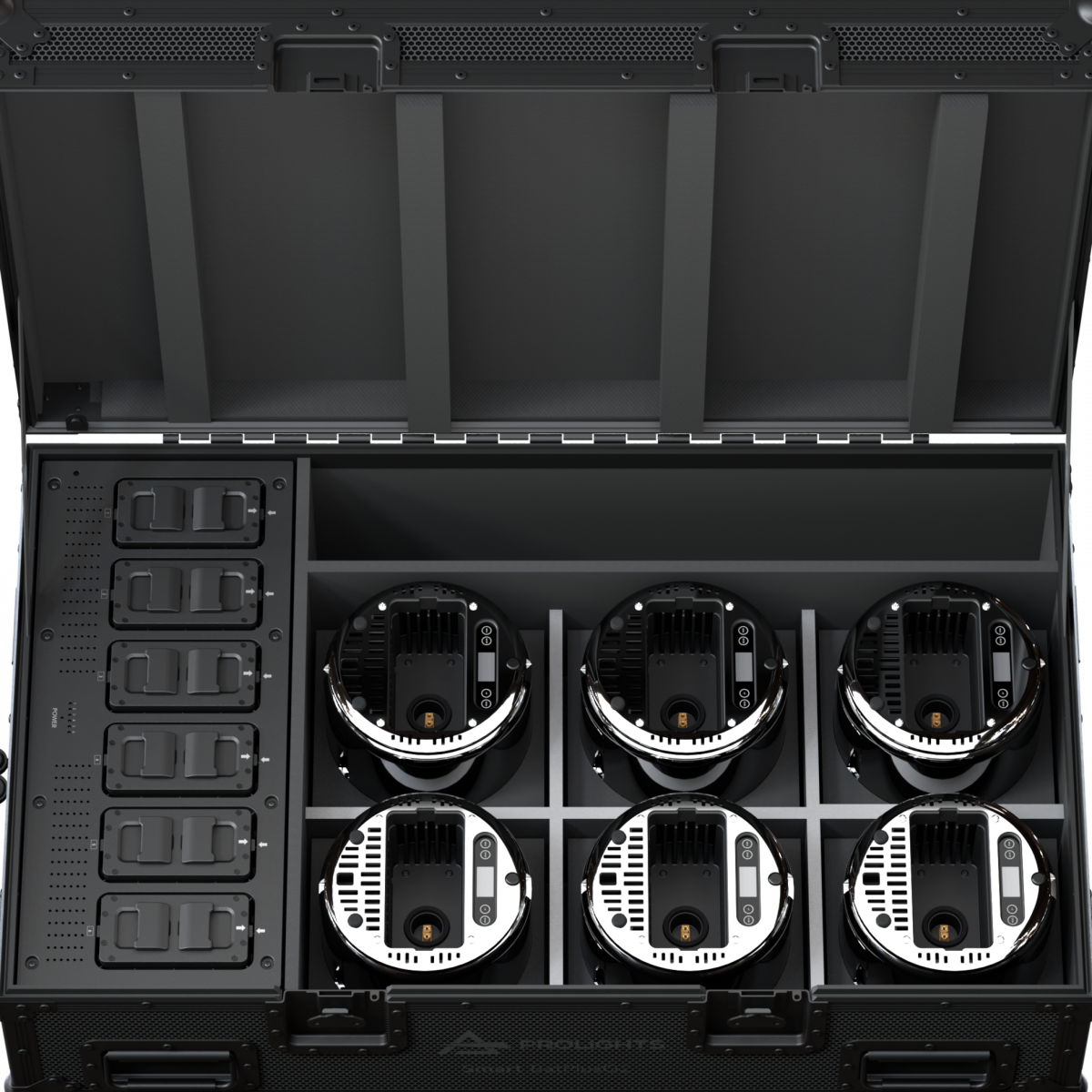

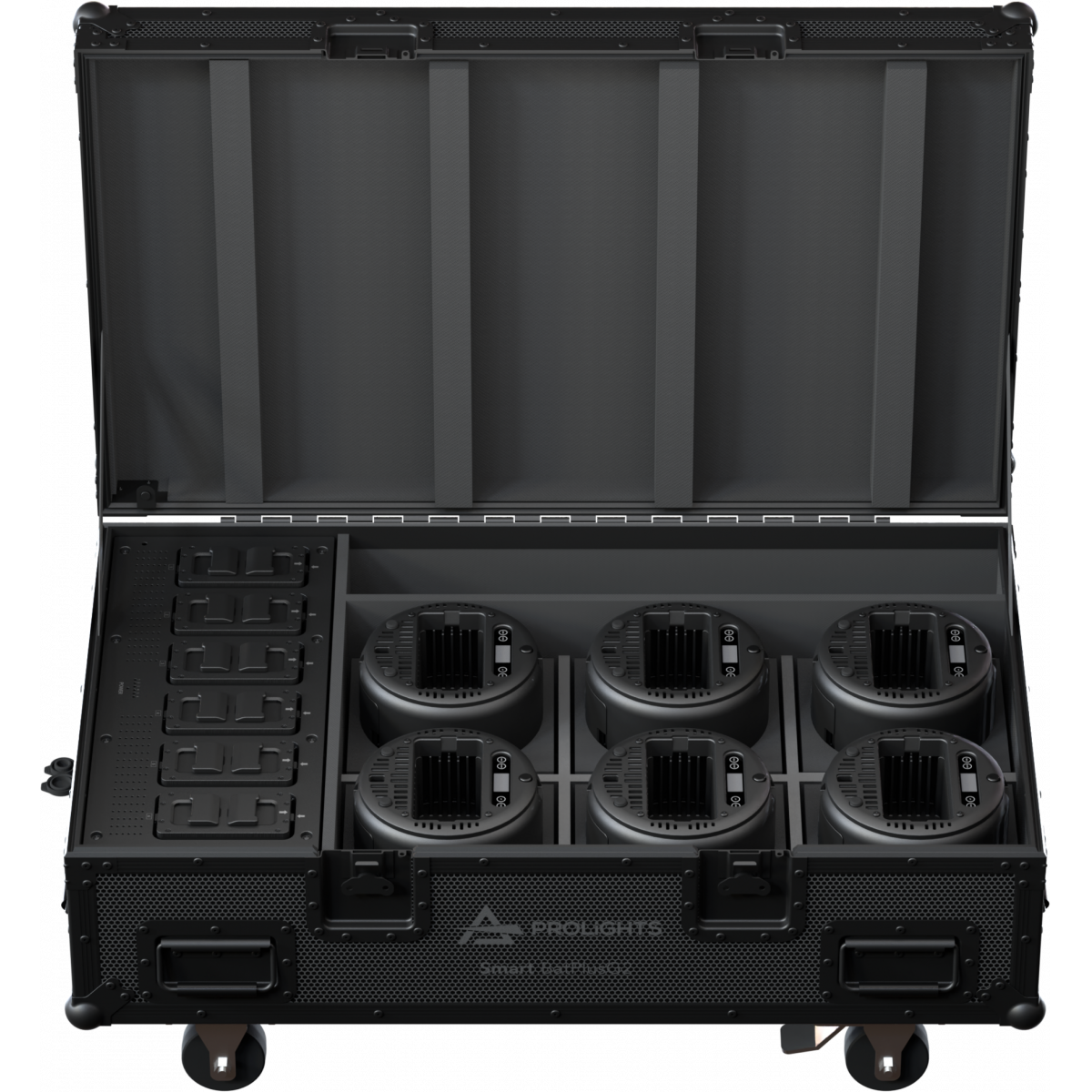

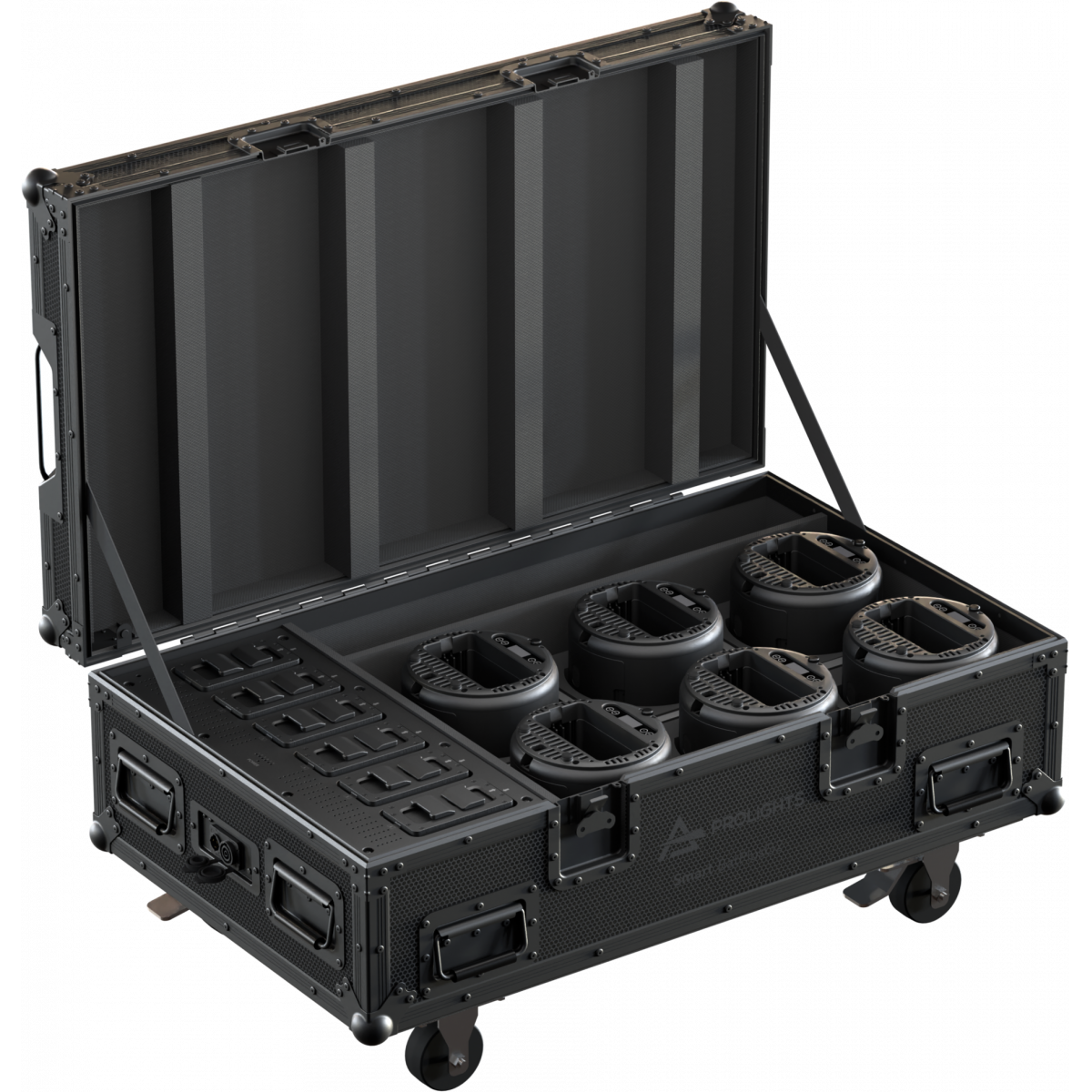

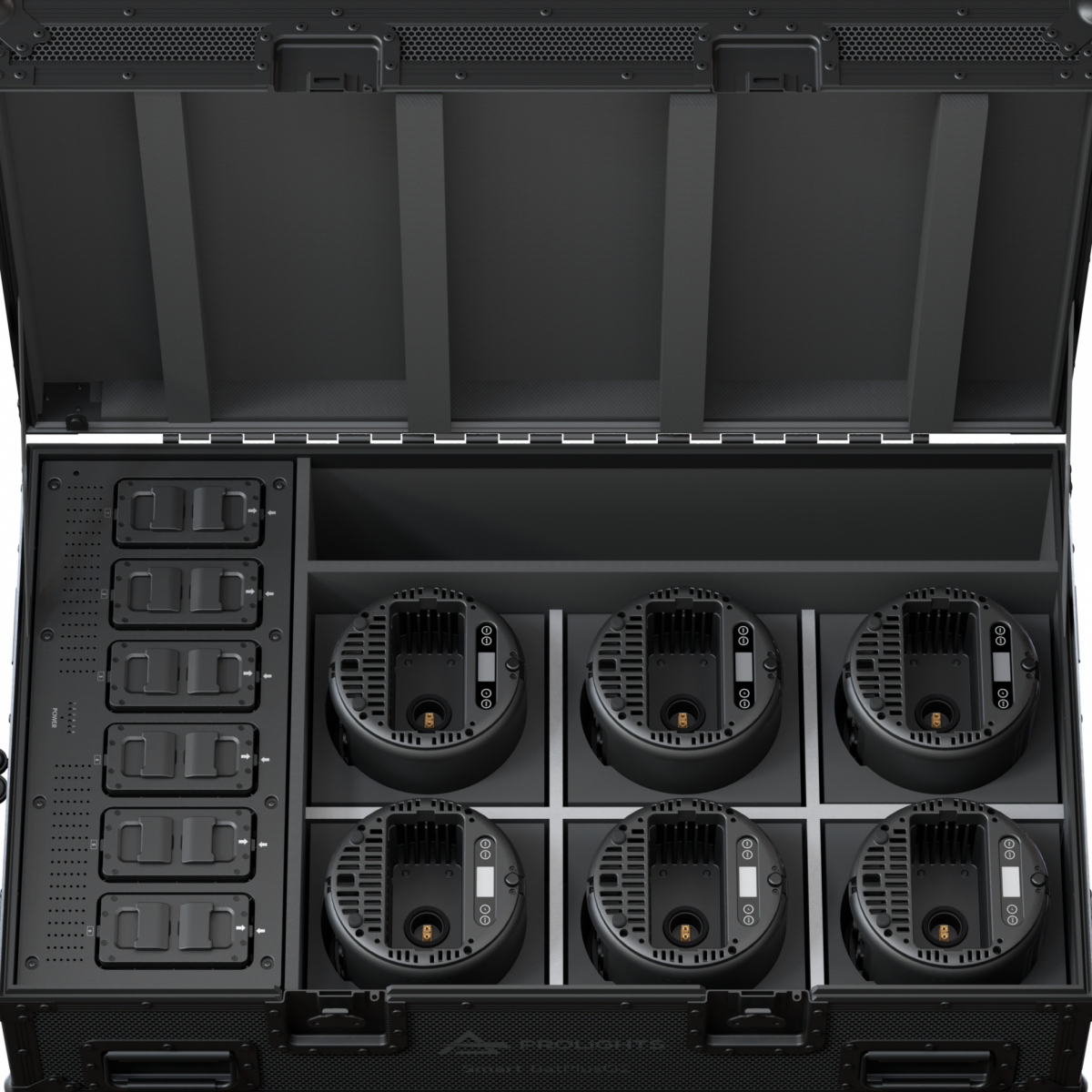

The pack includes:
- 6 x SMARTBATPLUSG2 (including 1 x filter frame, 1 x half top hat, 1 x SBPG2BAT, 1 x connector cover plate)

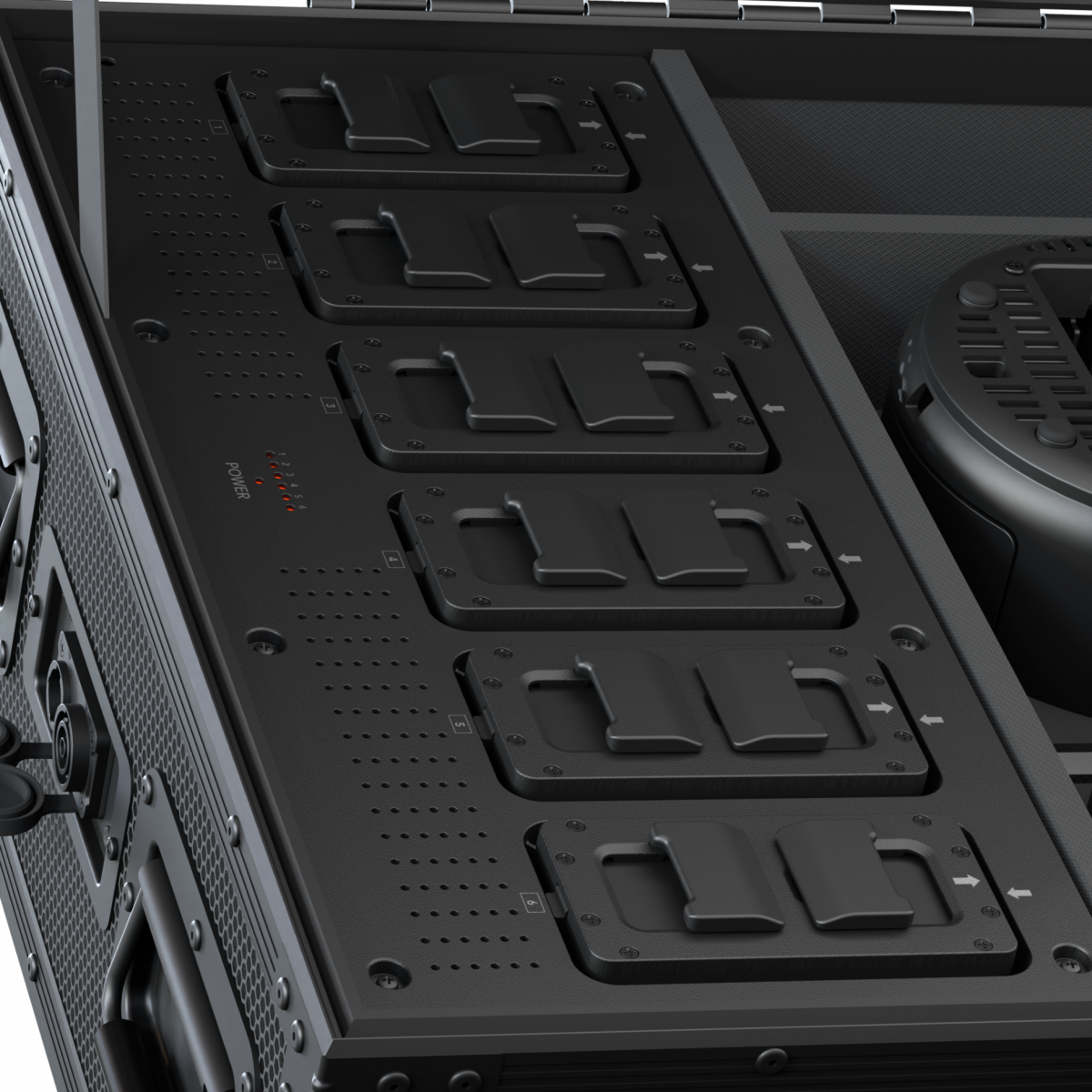

- 6 slot battery recharge
- power cable Neutrik powerCON TRUE1 IN - bare end
- user manual


SPEKTRA

Main features:

  • Multipurpose design: uplighter/spotlight, customizable colored covers
  • Wireless DMX (CRMX+W-DMX) / wired control, battery/PSU power
  • 4x20W RGB + Warm White calibrated LED source with high CRI (>93)
  • Interchangeable battery and magnetic holographic filters for multiple beam angles
See variants

PHOTO GALLERY

Smart BatPlusG2Pack
Smart BatPlusG2Pack
Smart BatPlusG2Pack
Smart BatPlusG2Pack
Smart BatPlusG2Pack
Smart BatPlusG2Pack
Smart BatPlusG2Pack
Smart BatPlusG2Pack
Smart BatPlusG2Pack
Smart BatPlusG2Pack
Smart BatPlusG2Pack

Technical specifications

LIGHT SOURCE
  • Source: 4x20W RGB + Warm White LED
  • Luminous flux: 3'102 @Full
  • Lux: 1'723lx @5 m without filter
  • CRI: 94 @3.200 K; 92 @5.600 K
  • R9: 96 @3.200 K; 96 @5.600 K
  • TLCI: 92 @5.600 K
  • TM30 Rf: 93 @3.200 K; 91 @5.600 K
  • TM30 Rg: 105 @3.200 K; 106 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 10°
  • Additional optics: filters to achieve 20°, 40°, 60°, 10°x60°
COLOUR SYSTEM
  • Colour mixing: RGBWW
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2'800K - 10'000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 9004
  • Other: Quick release foot to achieve 20° adjustable tilt
CONTROL
  • Protocols: CRMX+W-DMX, DMX512, RDM
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • IR: infrared sensor controlled by remote
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: 0° ~ +45° Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: (with mains) 80W
  • Power factor: >0,98
BATTERY
  • Battery: removible 21,6V lithium
  • Estimated battery life: Selectable 3h / 6h / 8h / 12h / 16h / 18h
  • Re-charge connection: Battery Pack fast-charge in Case
  • Re-charge time: 4h/max
  • Battery status: shown on display
  • Other: Battery recharge in AC and DC, operation in main power with possibility to disable battery recharge throught software and charging operation in flightcase through the quick charger connector
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
  • Power connection: IP65 Seetronic powerCON IN/OUT connectors
  • Dimensions (WxHxD): 257x278x209mm / 10.12''x10.94''x8.23''
  • Weight: 6kg / 13.23lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

Versions

Accessories & Related Products

<b>ÆtherBox</b> LITE
ÆtherBox LITE
(Optional)

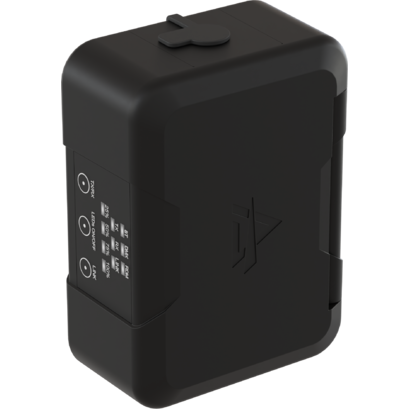

1 Universe CRMX Wireless Transceiver
<b>ÆtherBox</b>
ÆtherBox
(Optional)

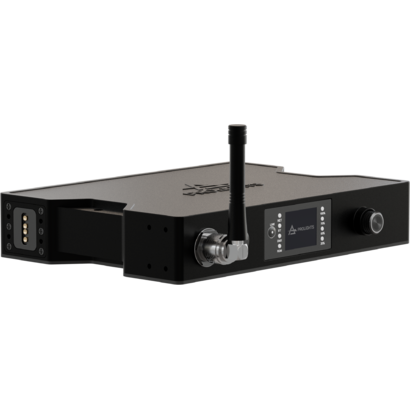

IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
SBPG2HSHANDLE
SBPG2HSHANDLE
(Optional)

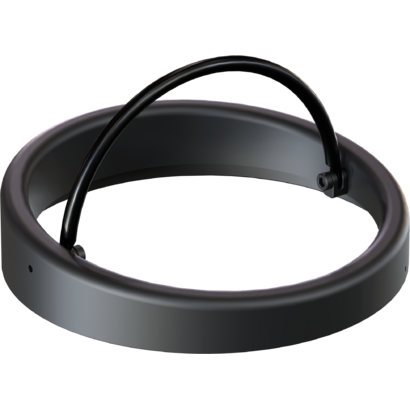

Half snoot with handle for SMARTBATPLUSG2
SBPG2BAT
SBPG2BAT
(Included)

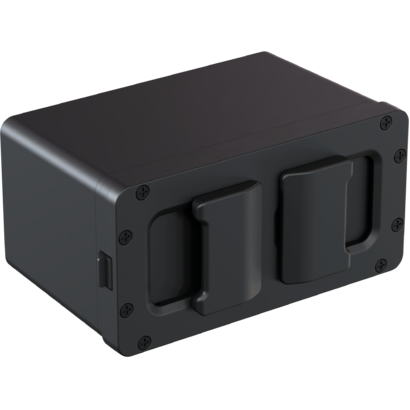

Single battery for SMARTBATPLUSG2
SBPG2FYBK
SBPG2FYBK
(Optional)

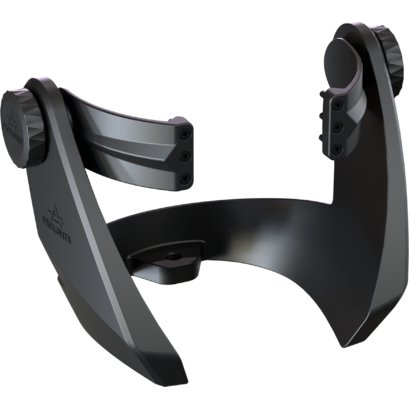

Floor bracket for SMARTBATPLUSG2, black
SBPG2FYWH
SBPG2FYWH
(Optional)

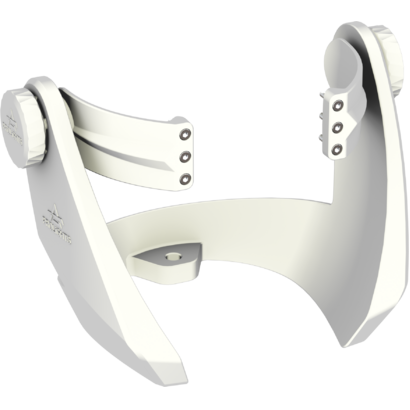

Floor bracket for SMARTBATPLUSG2, white
SBPG2FYCR
SBPG2FYCR
(Optional)

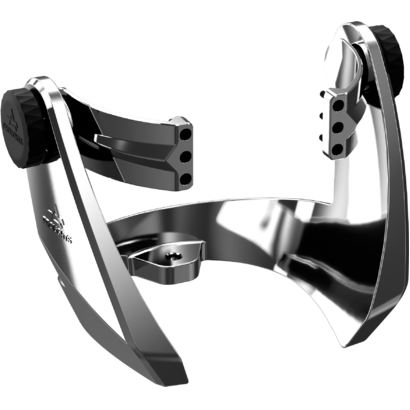

Floor bracket for SMARTBATPLUSG2, chrome
SBPG2FYGL
SBPG2FYGL
(Optional)

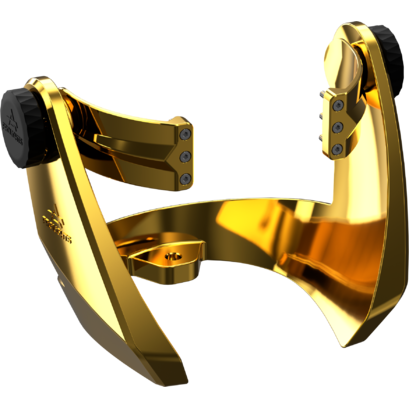

Floor bracket for SMARTBATPLUSG2, gold
SBPG2HYBK
SBPG2HYBK
(Optional)

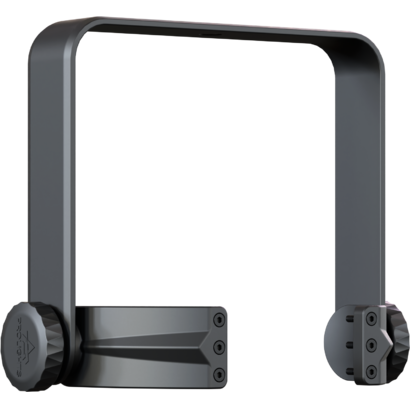

Hanging bracket for SMARTBATPLUSG2, black
SBPG2HYWH
SBPG2HYWH
(Optional)

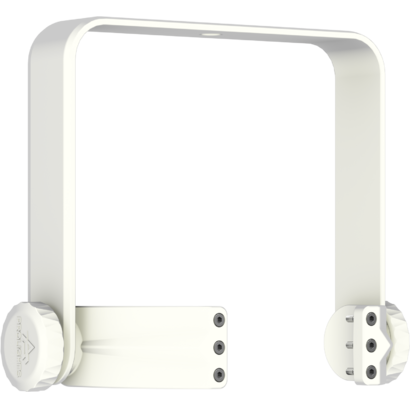

Hanging bracket for SMARTBATPLUSG2, white
SBPG2HYCR
SBPG2HYCR
(Optional)

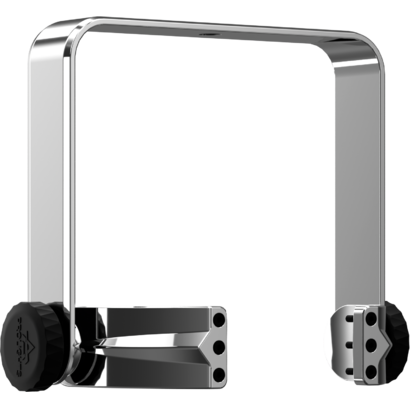

Hanging bracket for SMARTBATPLUSG2, chrome
SBPG2HYGL
SBPG2HYGL
(Optional)
Hanging bracket for SMARTBATPLUSG2, gold
SBPG2CKBK
SBPG2CKBK
(Optional)

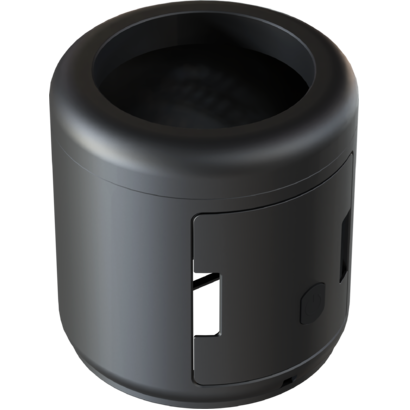

Cover kit for SMARTBATPLUSG2, black
SBPG2CKWH
SBPG2CKWH
(Optional)

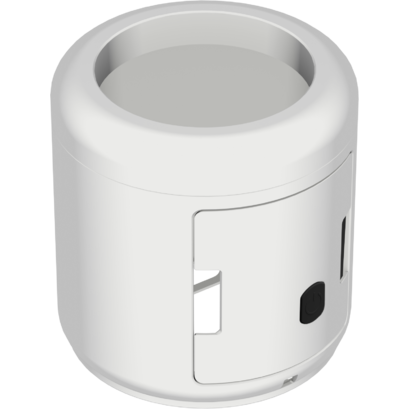

Cover kit for SMARTBATPLUSG2, white
SBPG2CKCR
SBPG2CKCR
(Optional)

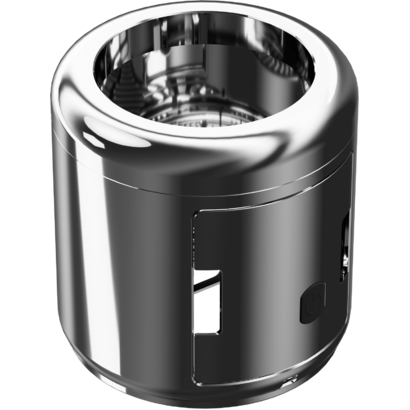

Cover kit for SMARTBATPLUSG2, chrome

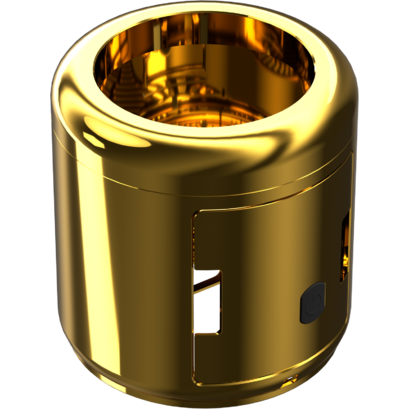

SBPG2CKGL
SBPG2CKGL
(Optional)
Cover kit for SMARTBATPLUSG2, gold
SBPG2FILTER20
SBPG2FILTER20
(Optional)

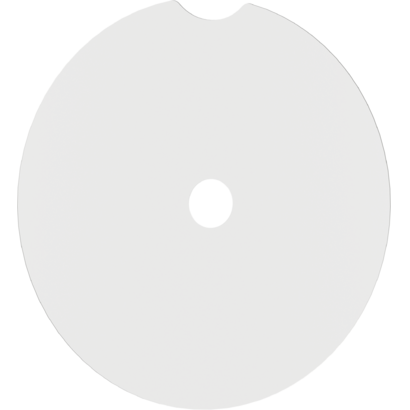

Simmetric 20° light diffusion filter for SMARTBATPLUSG2 projector
SBPG2FILTER40
SBPG2FILTER40
(Optional)
Simmetric 40° light diffusion filter for SMARTBATPLUSG2 projector
SBPG2FILTER60
SBPG2FILTER60
(Optional)
Simmetric 60° light diffusion filter for SMARTBATPLUSG2 projector
SBPG2FILTER1060
SBPG2FILTER1060
(Optional)
Asymmetric 10°x60° Light diffusion filter for SMARTBATPLUSG2 projector
FCLPLUSSBPG2
FCLPLUSSBPG2
(Optional)
Flight case for 6 SMARTBATPLUSG2 with brackets on-board,battery charger included
FCLSMARTBATPG2
FCLSMARTBATPG2
(Included)

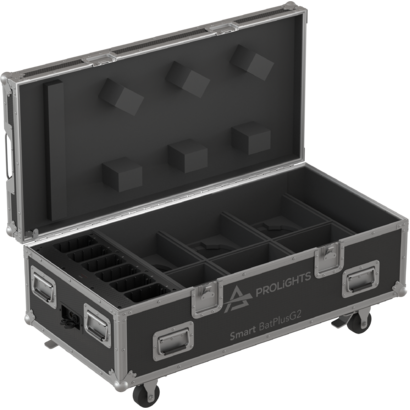

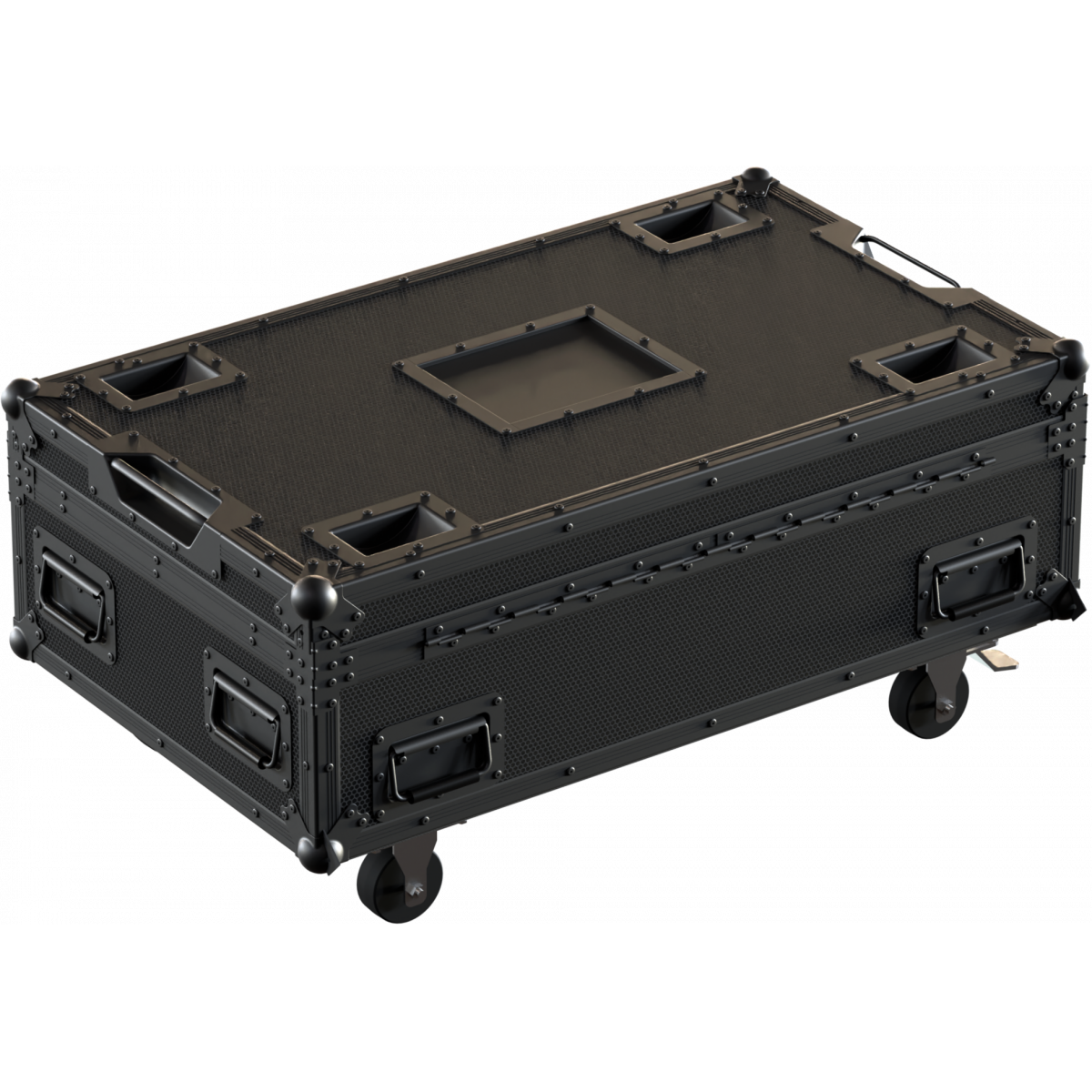

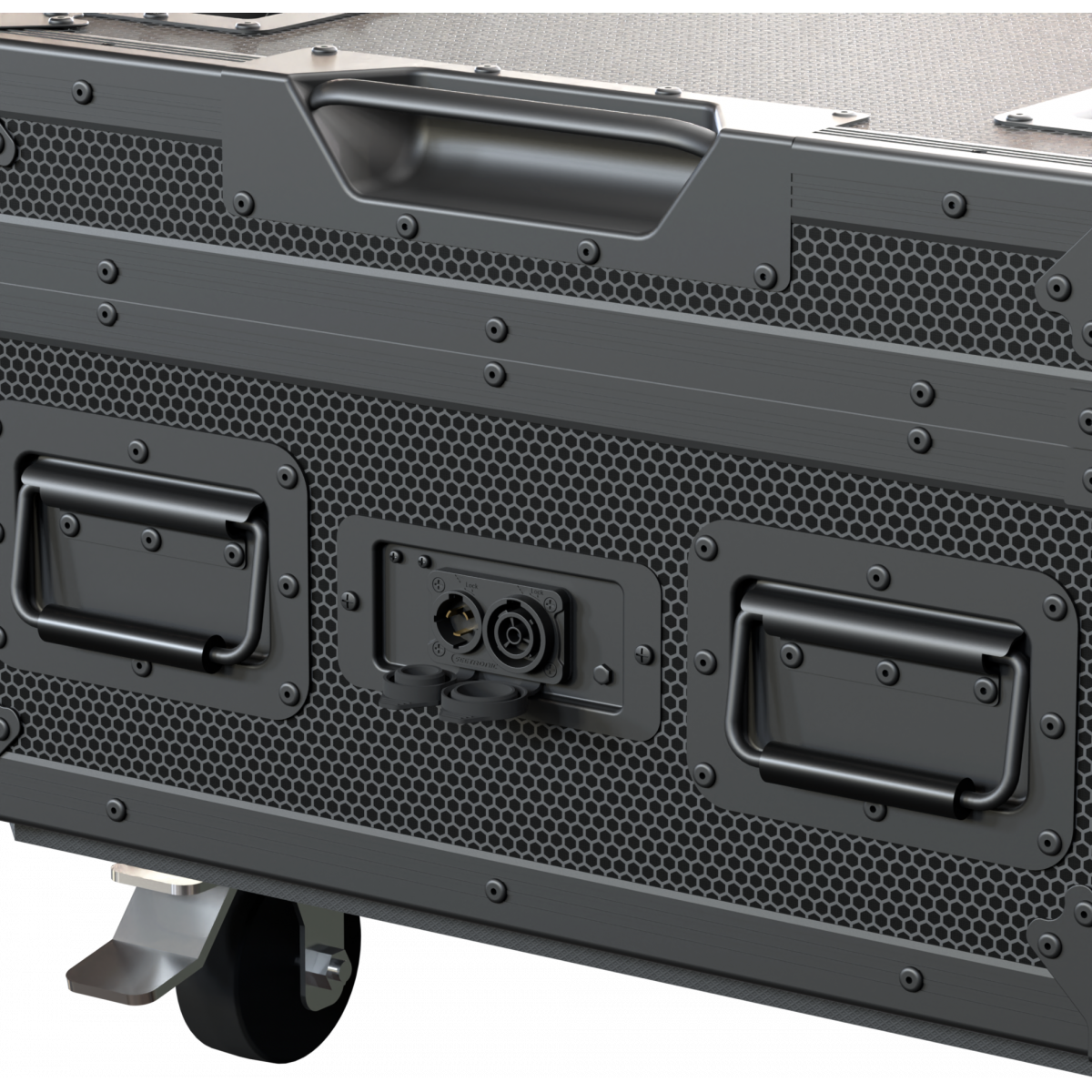

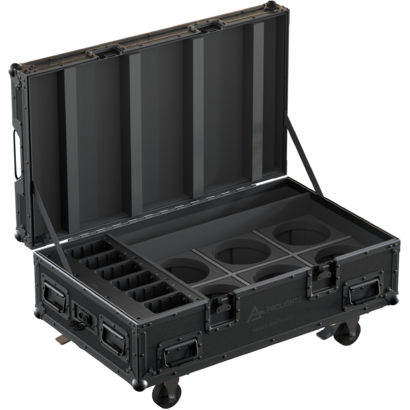

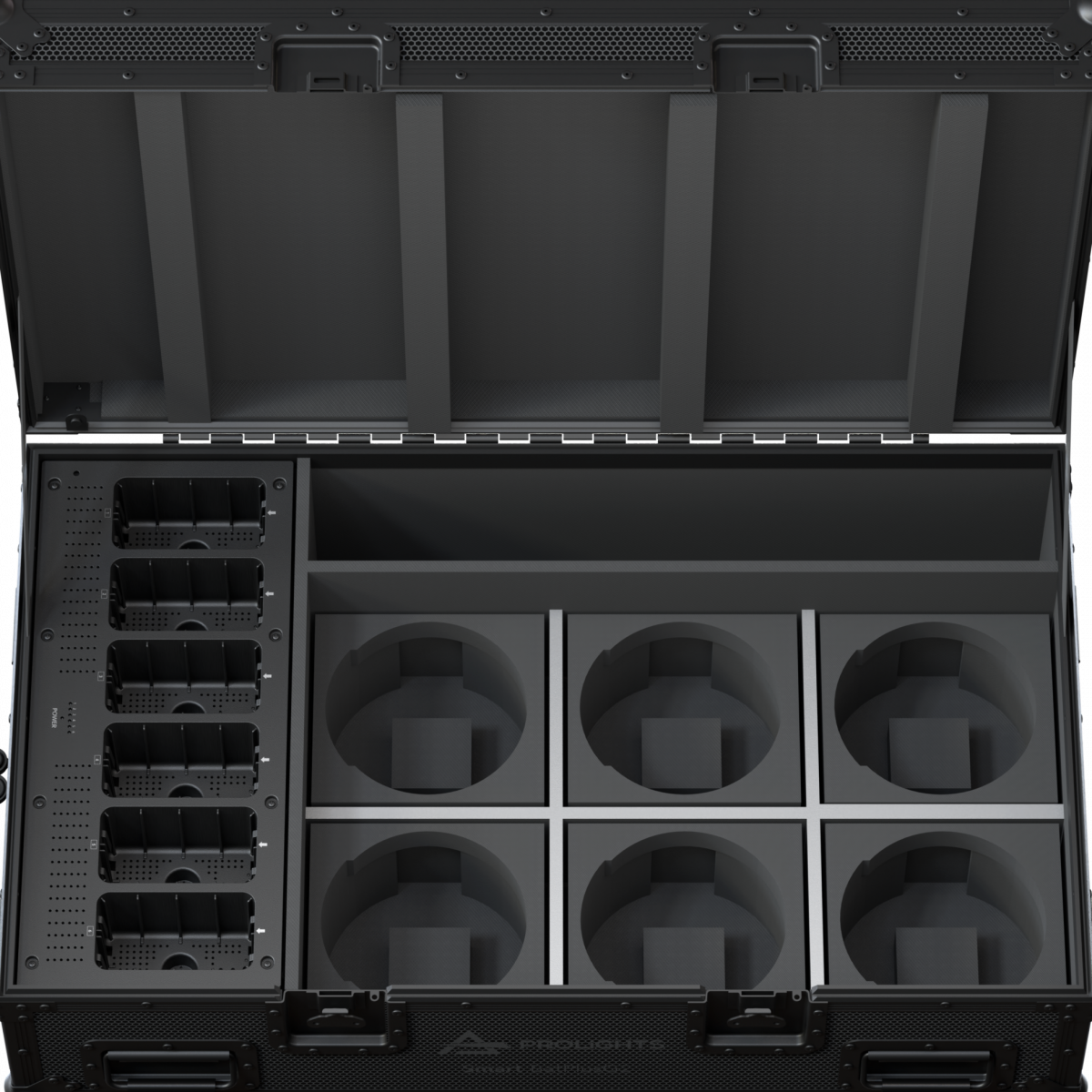

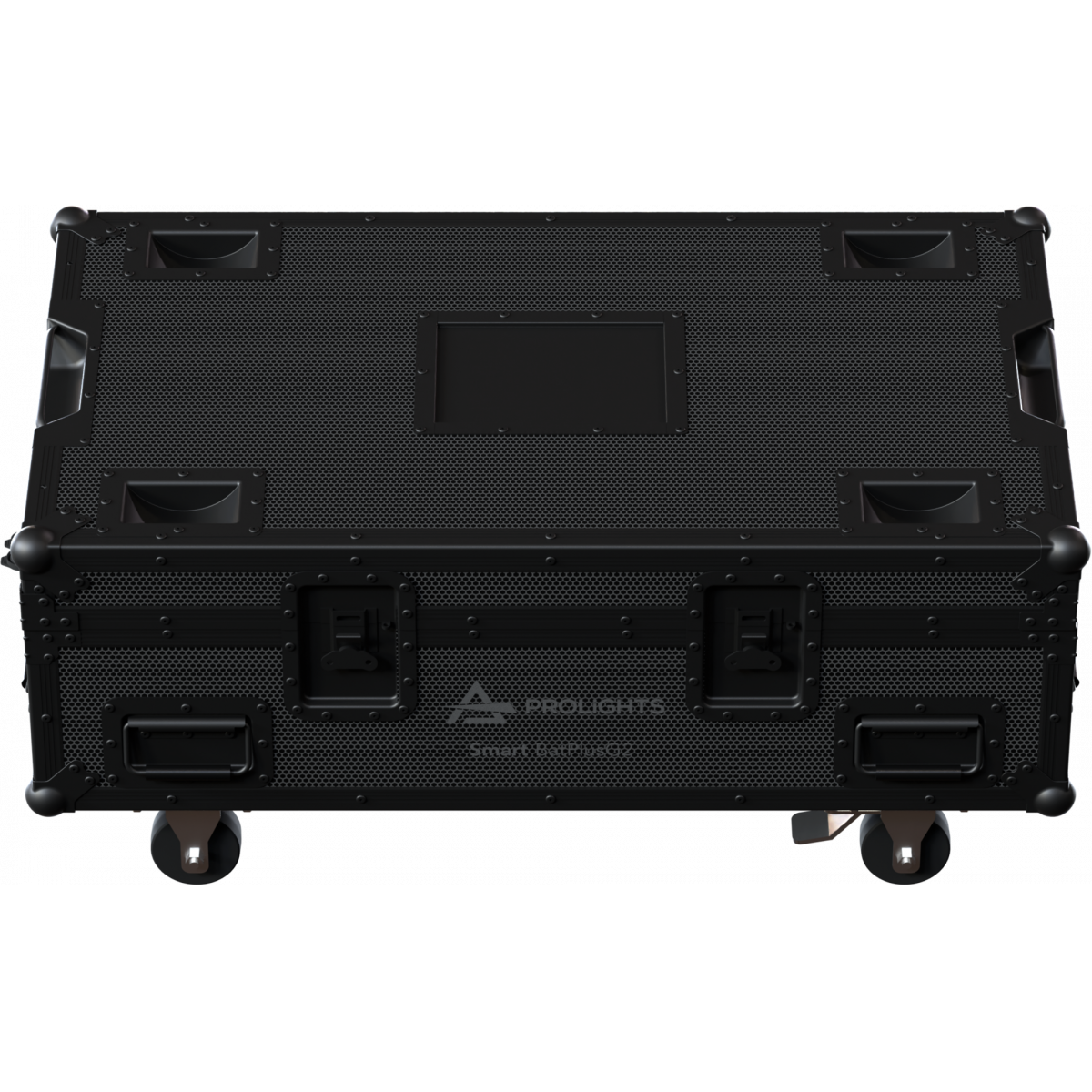

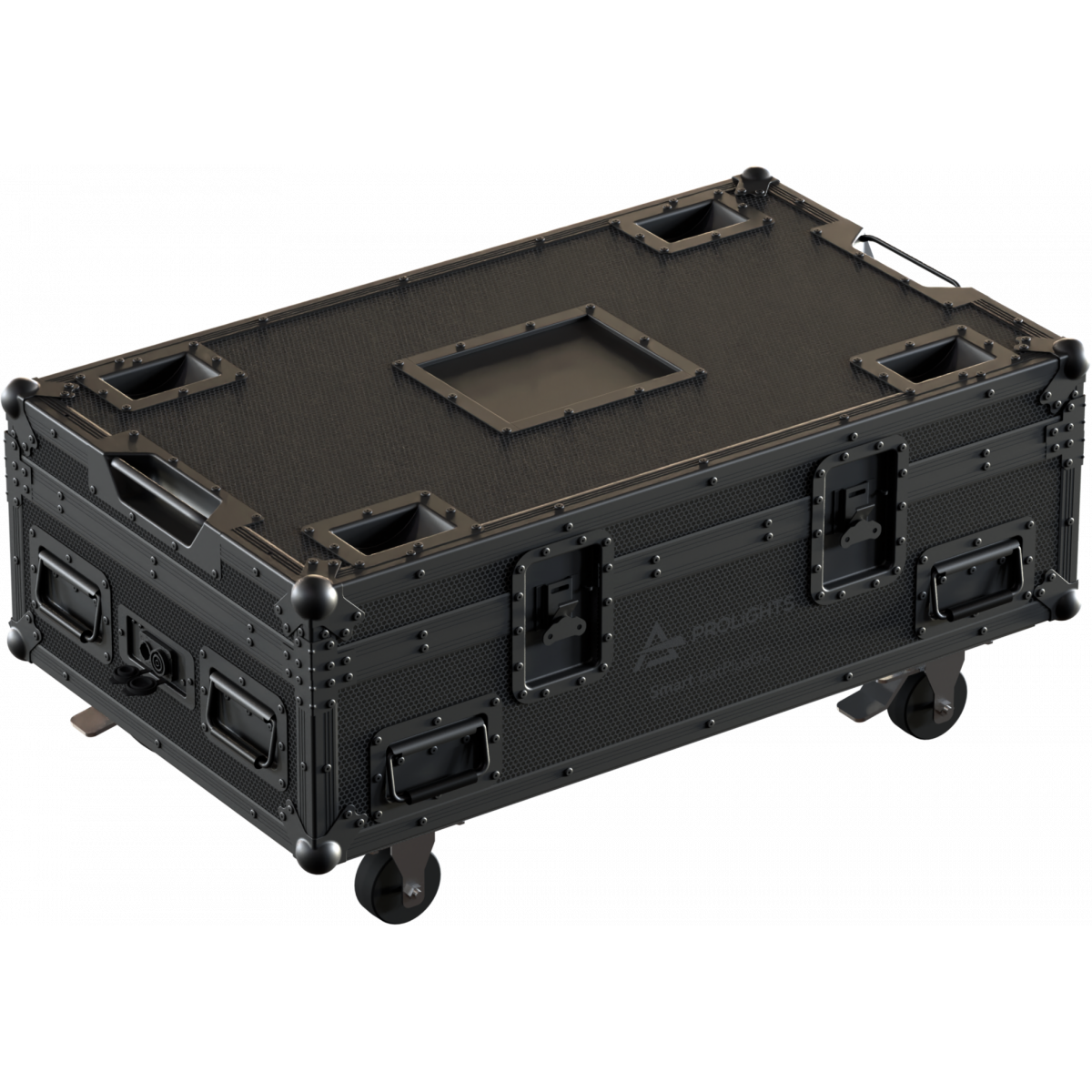

Flight case for 6 SMARTBATPLUSG2, battery charger included
SBPG2BCC
SBPG2BCC
(Optional)
Battery compartment closing cap for SMARTBATPLUSG2
SBPG2POWER
SBPG2POWER
(Optional)
Charger for 2 x SBPG2BAT battery for SMARTBATPLUSG2
<b>IR</b> Controller
IR Controller
(Optional)
RGBWA IR controller, 29 buttons, manual/static colours, auto programs, fade
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth
IPTESTBOX
IPTESTBOX
(Optional)

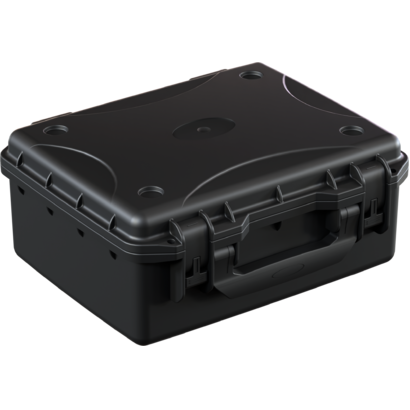

Portable vacuum and pressure tester for ProLights IP fixtures
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetSmartbatpg2pack_LETTER_DATASHEET_(EN).pdf556KB
Letter datasheetSmartbatpg2pack_A4_DATASHEET_(EN).pdf548KB

User manual

DMX chart & personalities

File name File size Download
DMX chartSmartbatpg2pack_DMX_CHARTS.pdf118KB

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware
