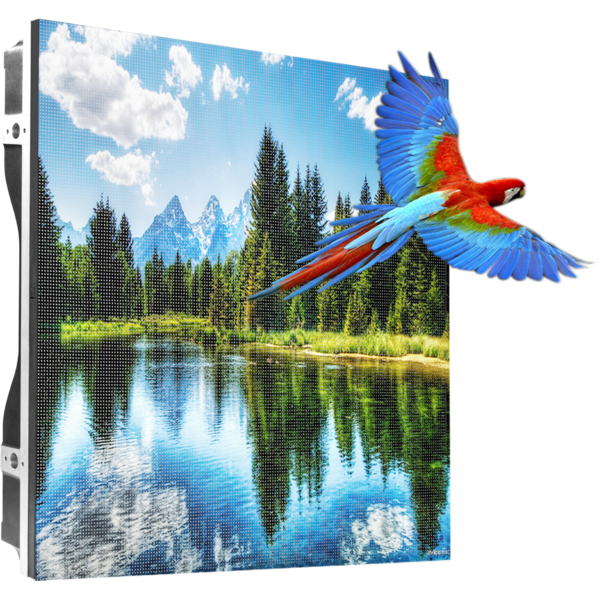

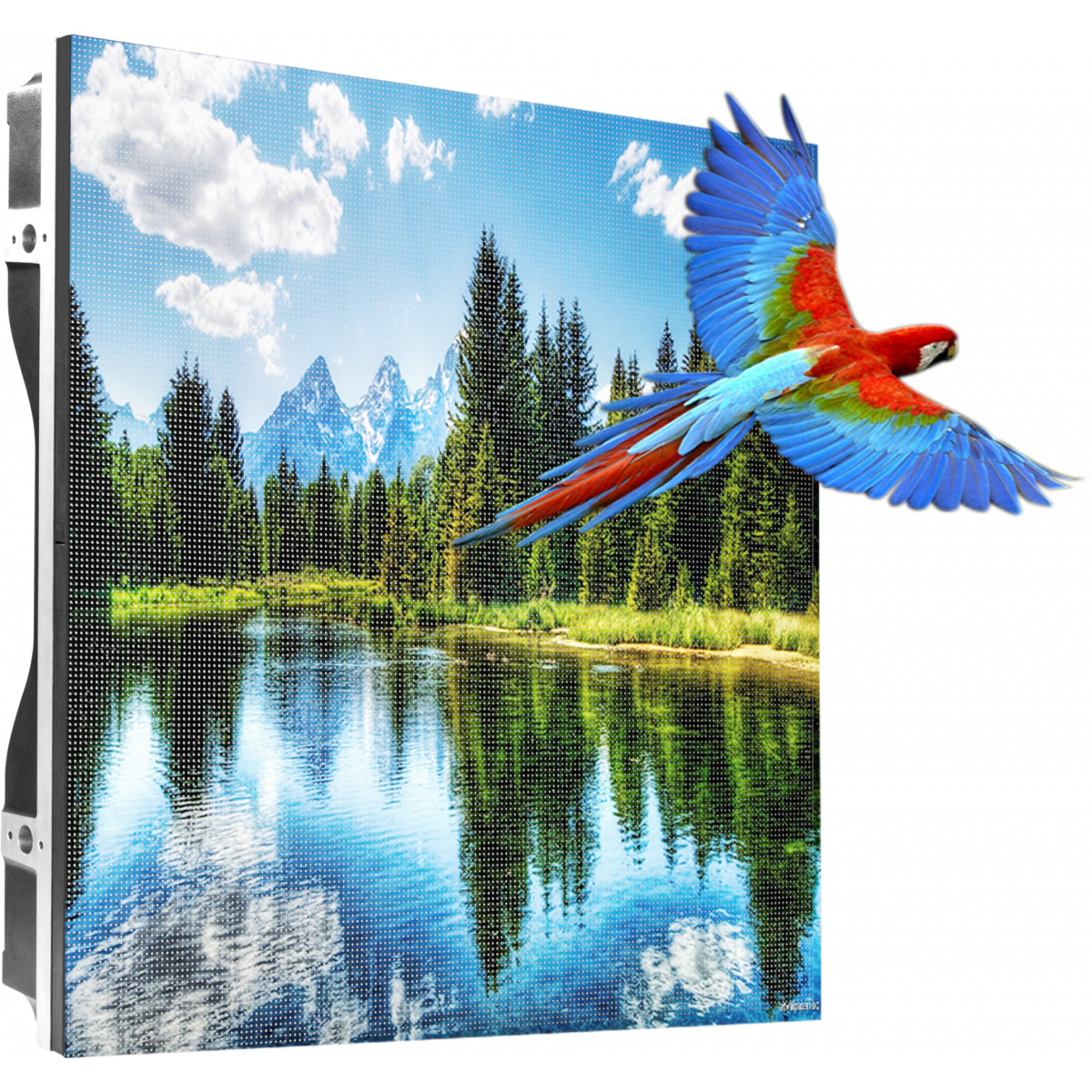

AlphaPix 2

ORDER CODE: APIX2

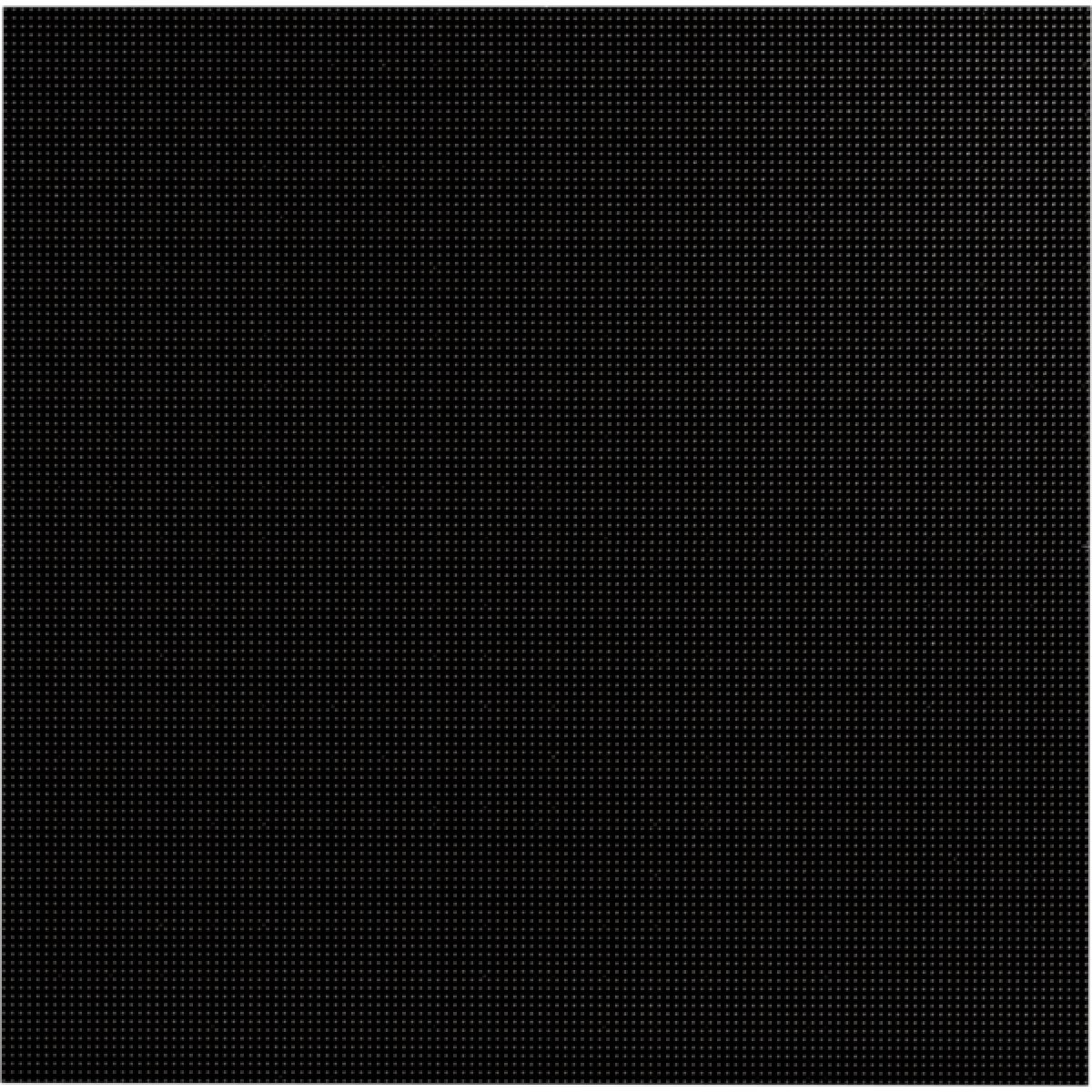

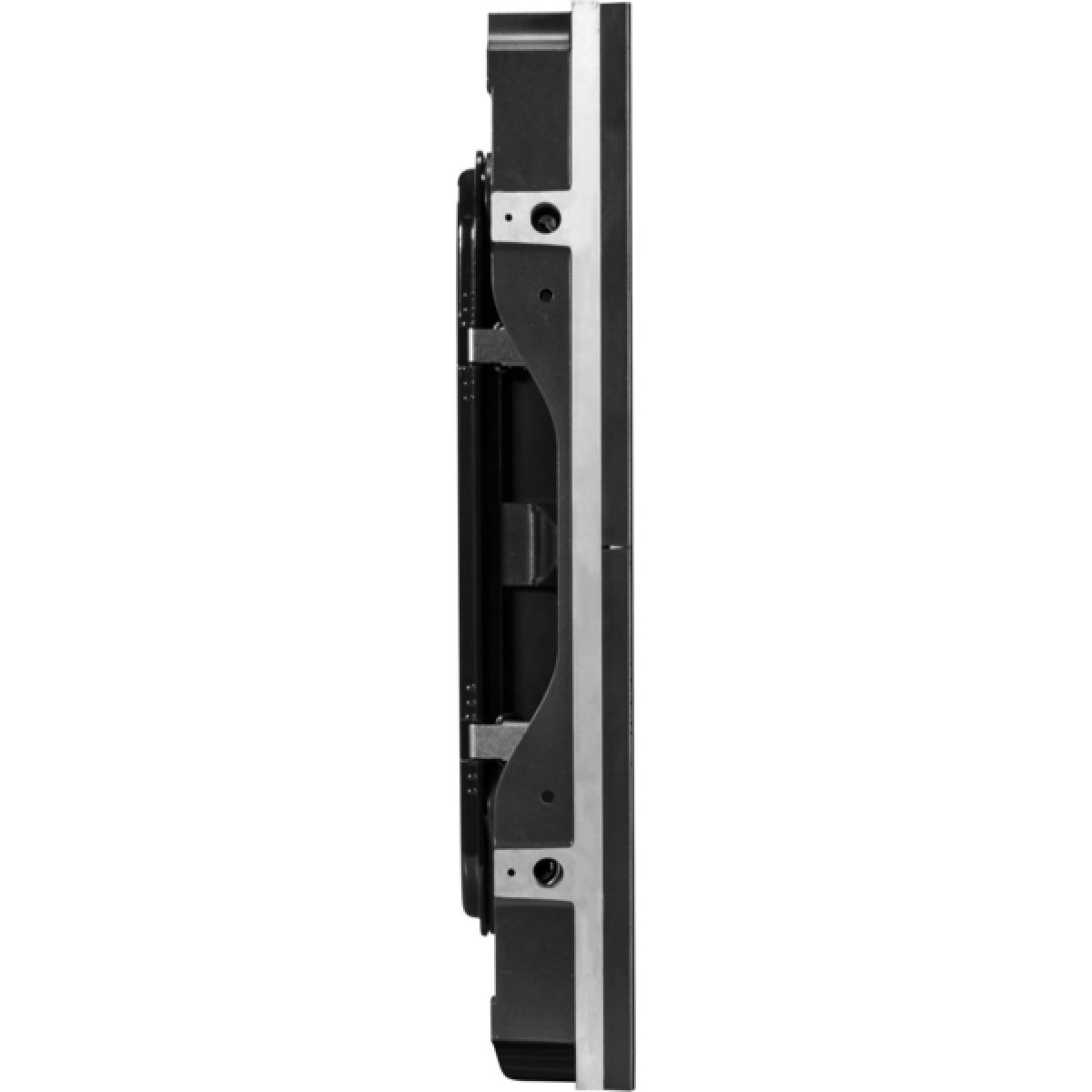

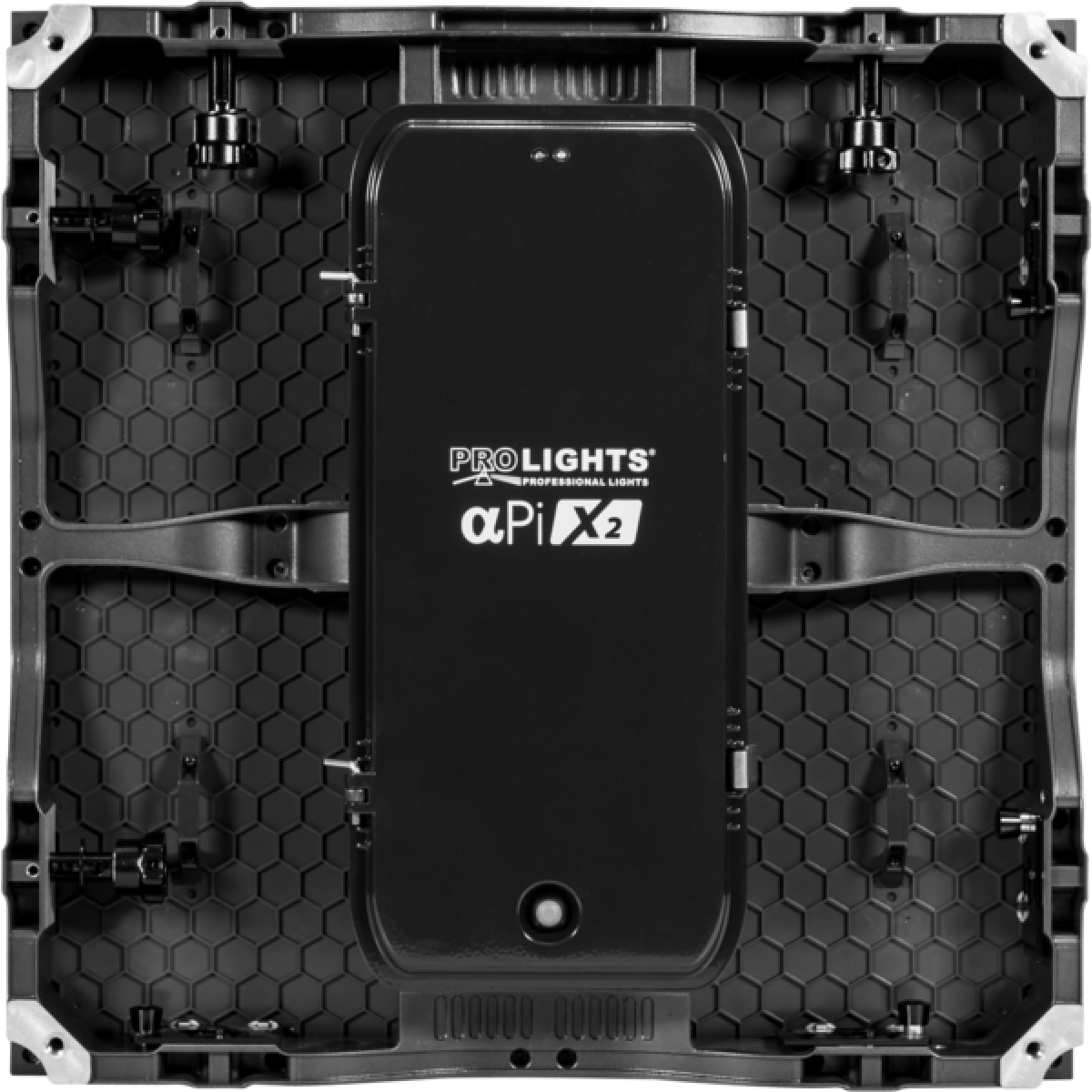

2,9 mm pixel pitch indoor rental LED screen

In this fast-paced market, the AlphaPix 2 family keep ahead of the game by consistently delivering top-quality images with the latest high-resolution indoor LED displays. The AlphaPix 2 family use black-faced SMD LED for high-contrast and superb colour consistency in a robust, lightweight die-cast aluminium housing. The frame and fast interlocking system create a seamless image with minimal setup time. To deliver the perfect image, the AlphaPix 2 series features a high refresh-rate, advanced greyscale properties and automatic image correction along with a viewing angle of up to 160°.

Main features:

  • Rental-friendly die-cast aluminium housing
  • Black-face LED for high-contrast and superb colour consistency
  • Magnetic front access LED display modules for fast and easy maintenance
  • Flicker-free on camera
  • High-performance video reproduction at every level of brightness
  • 160° viewing angle
  • CE and EMC certified by TUV

PHOTO GALLERY

Technical specifications

VIDEO
  • LED source: SMD 2020 high-power FC black face
  • Pixel pitch: 2.97mm / 0.12''
  • Panel resolution: 168x168pixels
  • Module resolution: 84x84pixels
  • Luminous flux: 1.000nit
  • Grayscale: 16 bit
  • Refresh rate ≥: 3.840Hz
  • Drive Mode: 1/16 scan, constan current
  • Vertical viewing angle: 160°
  • Horizontal viewing angle: 160°
  • LED density: 112.896LED/sqm
  • Dead Pixel Ratio: <0,002
  • LED avg life span: 100.000
ELECTRICAL
  • Power input/output: powerCON
  • Power supply: AC 110/230 V 50/60 Hz
  • Max power consumption (panel): 130W
  • Avg power consumption (panel): 45W
  • Max power consumption (sqm): 520W
  • Avg power consumption (sqm): 180W
  • Standby power consumption (pannello): 10,8W
  • Max rated current/panel:: AC 220 V / 0,6 A
  • Max power output: 8modules
  • Working temperature: -10 ~ +40°C
  • Working humidity: 10 - 90%
CONTROL
  • Control protocol: Novastar
  • Signal input: RJ45
  • Signal output: RJ45
MECHANICS
  • Module size (WxH): 250x250mm / 9.84''x9.84''
  • Panel size(WxHxD): 500x500x90mm / 19.69''x19.69''x3.54''
  • Vertical hanging system: built-in aliscaf clamp support
  • Cooling: natural cooling of the peculiar chassis and to absence of fans
  • Connection: seamless locking system
  • Body: die-cast aluminium housing
  • Color: black
  • IP rating: IP40
  • Panel weight: 8kg / 17.64lbs
  • Weight per square meter: 32kg / 70.55lbs
  • Hanging Panel Quantity ≤: 20
  • Compliant Standard: CE

Versions

Accessories & Related Products

AP2366CASE
AP2366CASE
(optional)

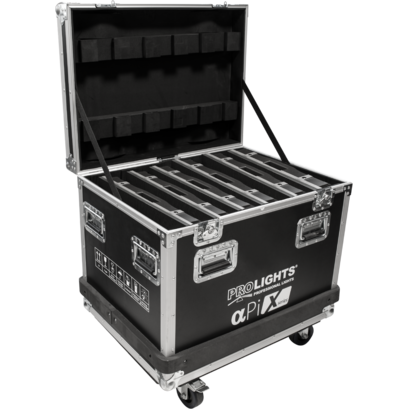

Flight case for 6pcs APIX series LED display, 600x755x795 mm
AP236H2B2
AP236H2B2
(optional)

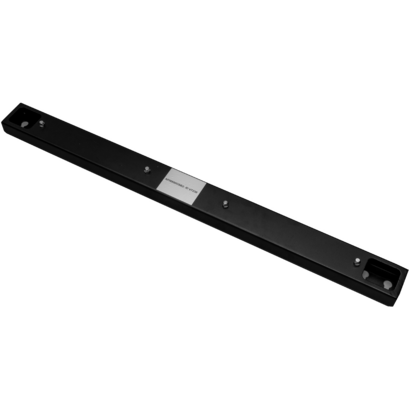

Fly bar for APIX2, APIX3, APIX6, APIX4T hanging systems, 2 columns
AP236XJ
AP236XJ
(optional)

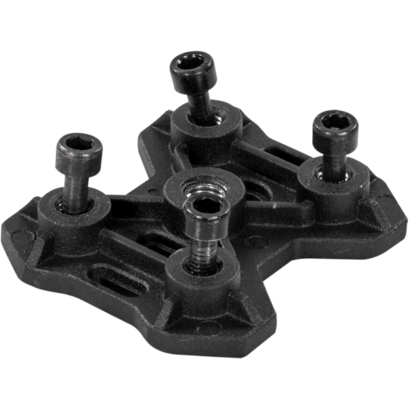

Metal joint used to connect 4 APIX2, 3, 6, 4T, modules, M10 hole for clamp
APOS
APOS
(optional)

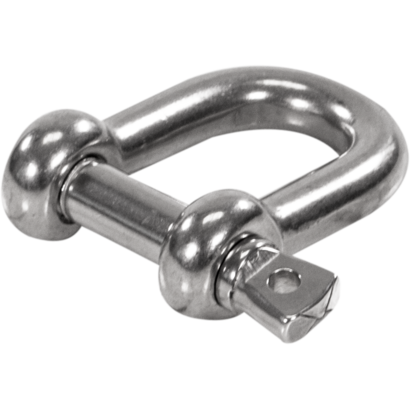

Shackle for APIX hanging systems, max load 200 kg
APRD
APRD
(optional)
Steel security cable for APIX hanging systems, L. 200 cm
AP236ACL01
AP236ACL01
(optional)

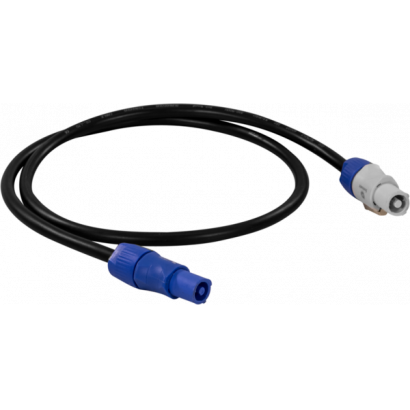

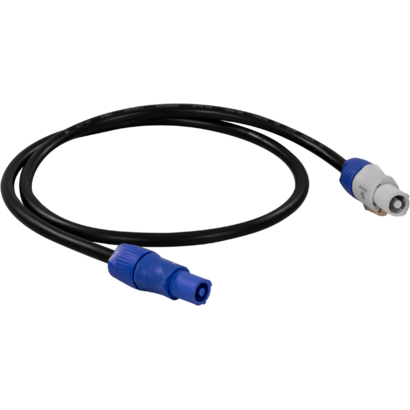

Power cable for APIX2, APIX3, APIX6, L.110 cm
AP236DCL01
AP236DCL01
(optional)

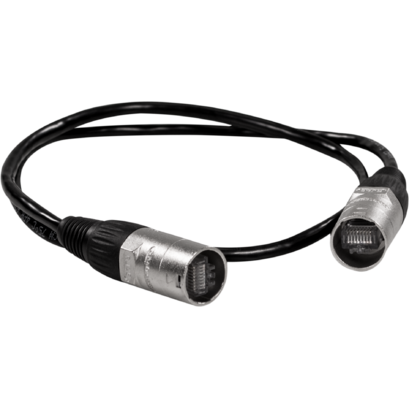

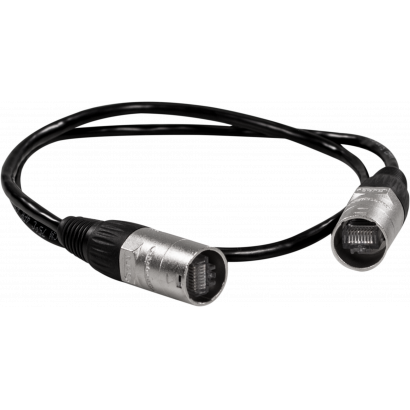

Data cable for APIX2, APIX3, APIX6, assembled with RJ45, L.110 cm
APIX600GSB1
APIX600GSB1
(optional)

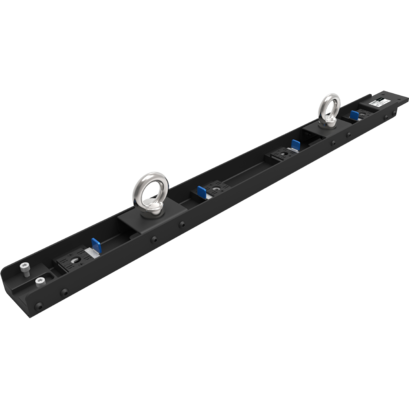

APIX ground stacking system, PRO version (up to 6 m), single base
APIX600GSB2
APIX600GSB2
(optional)

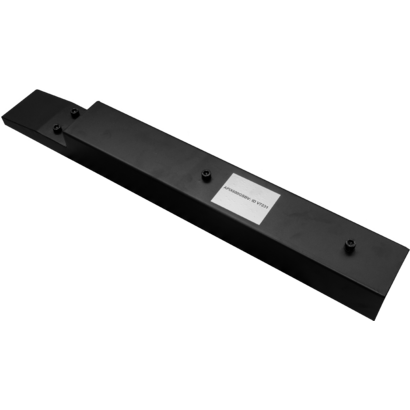

APIX ground stacking system, PRO version (up to 6 m), double base
APIX600GSBS
APIX600GSBS
(optional)

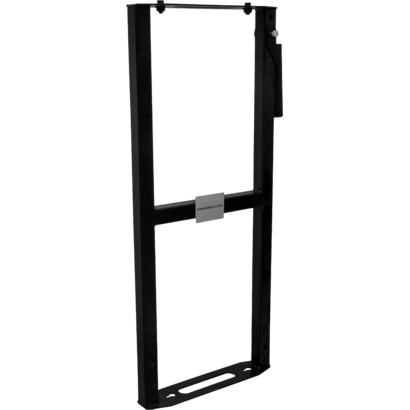

APIX ground stacking system, PRO version (up to 6 m), queer back support
APIX600GSBV
APIX600GSBV
(optional)
APIX ground stacking system, PRO version (up to 6 m), base unit vertical
