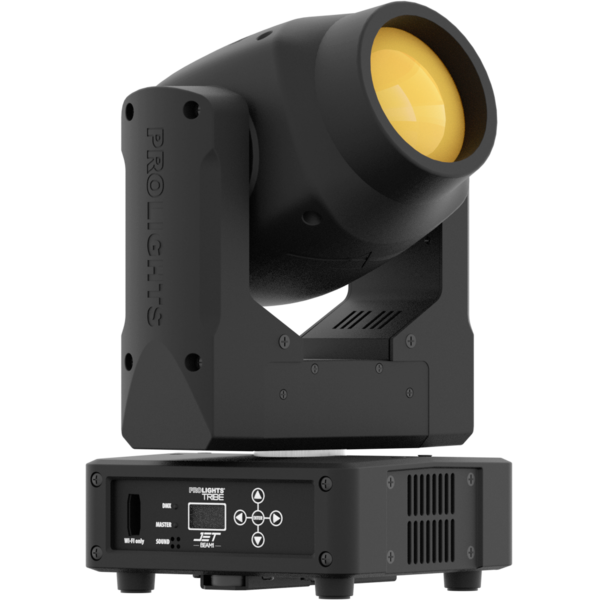

Jet Beam1

14W sharp and compact moving beam

Jet Beam1 is an extremely compact LED beam light designed to deliver the brightest beam from the smallest footprint possible. Ideal where space is an issue, the Jet Beam1 offers simply the best value for money in its segment with a light output far exceeding expectations. All offered in a compact size and at an affordable price.

Main features:

  • Ultra-efficient 14W white LED, with glass optics to deliver an outstanding light level and crisp beam
  • Compact size for use where space is an issue, including clubs, bars, and events
  • 14 colours and 8 facet prism for a vast range of effect options
See variants

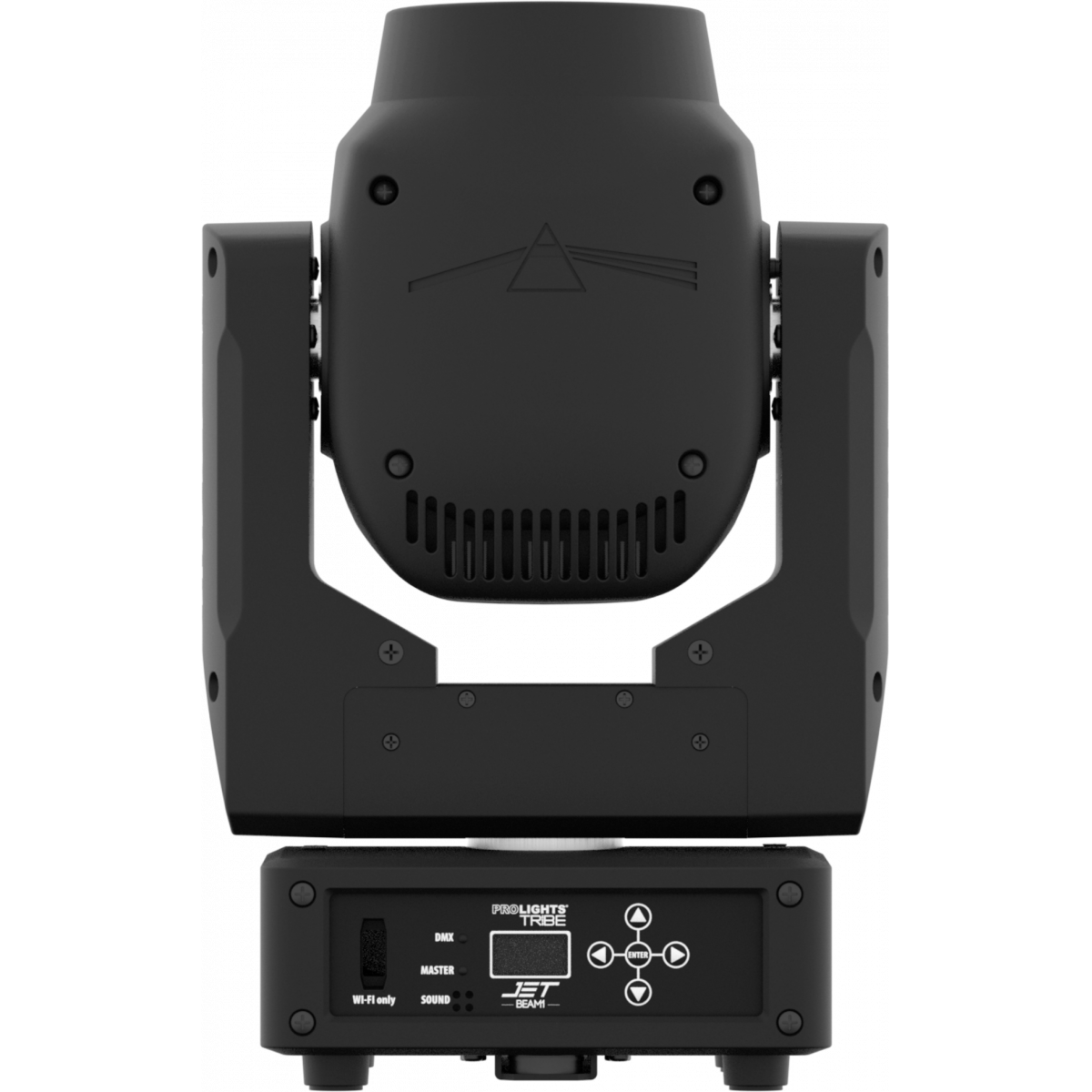

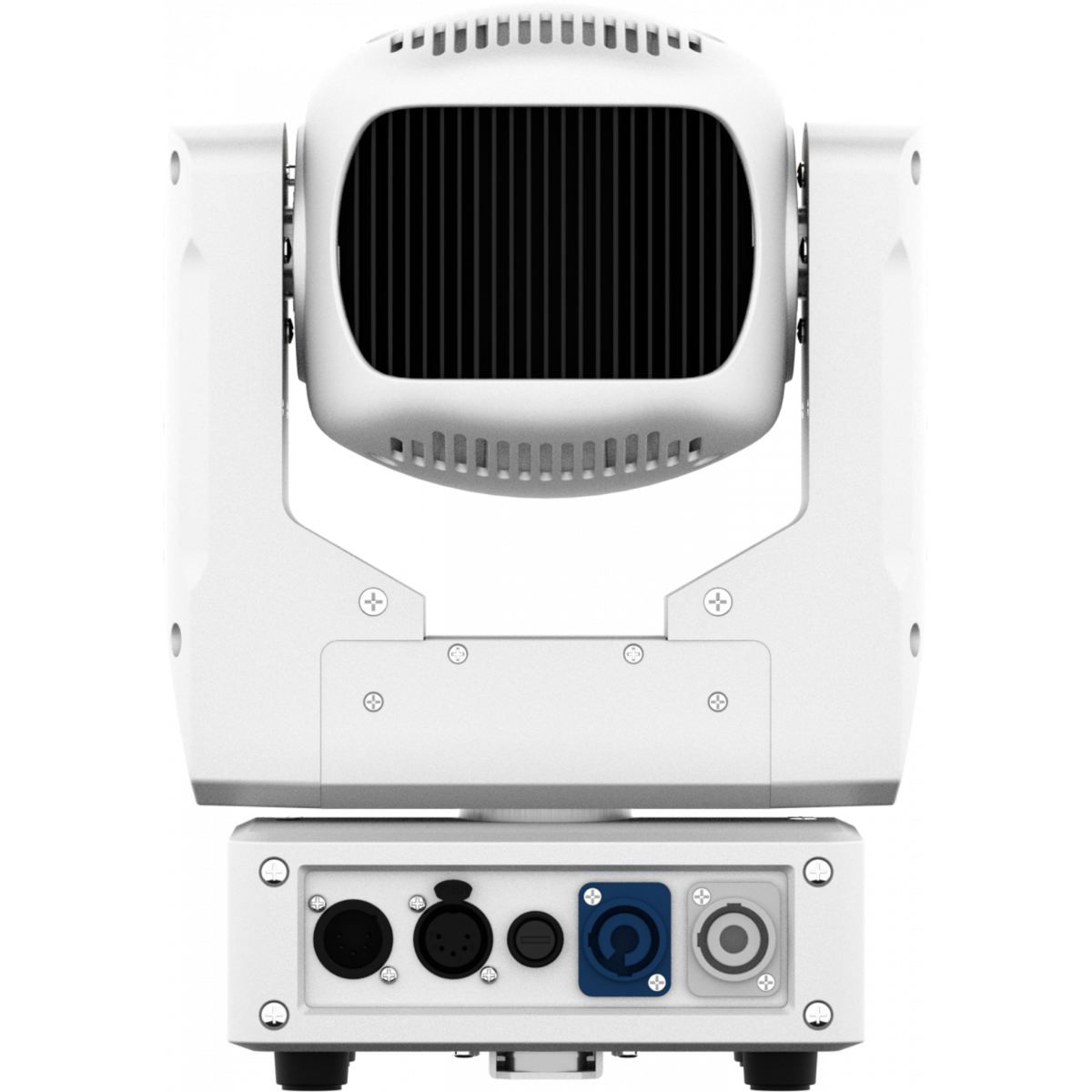

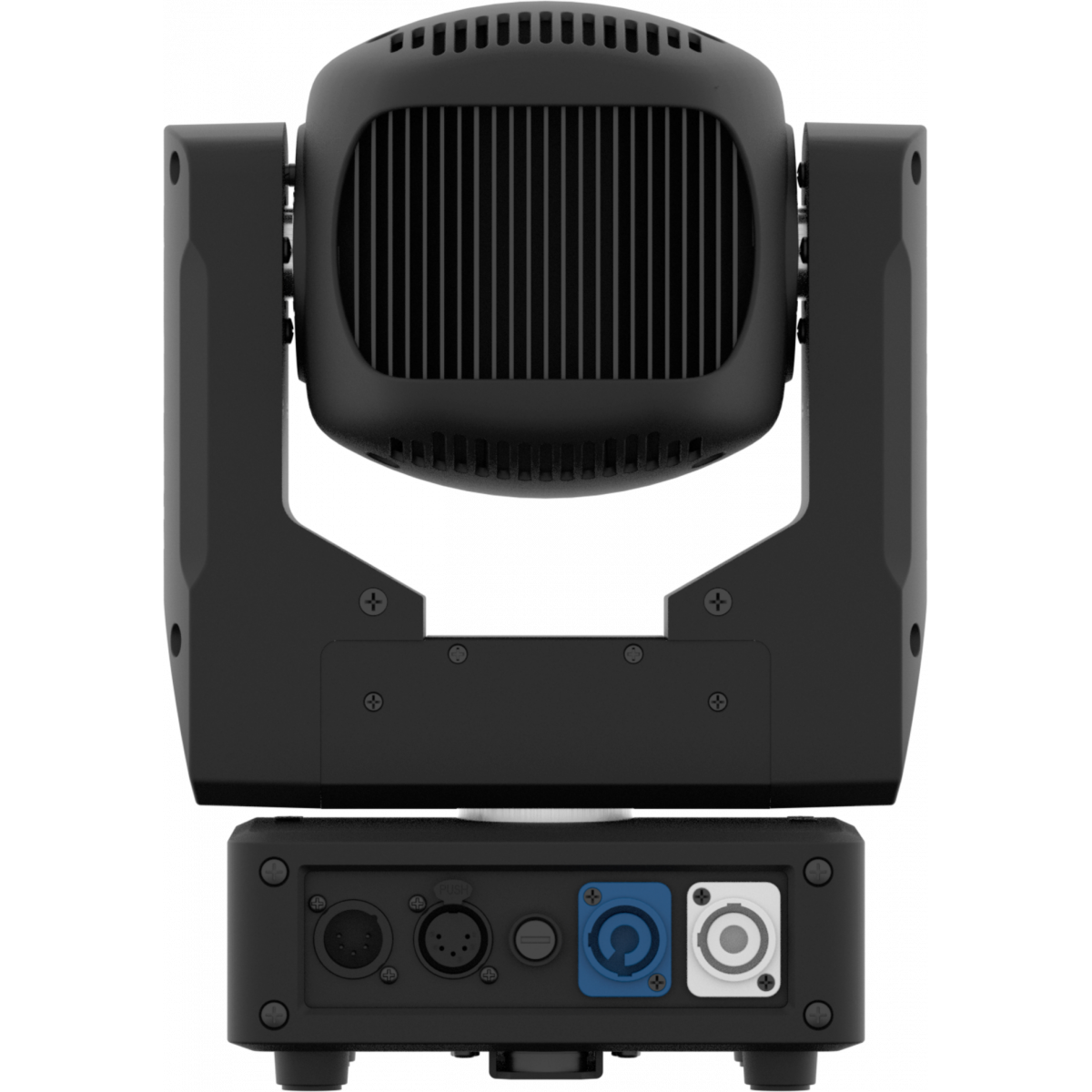

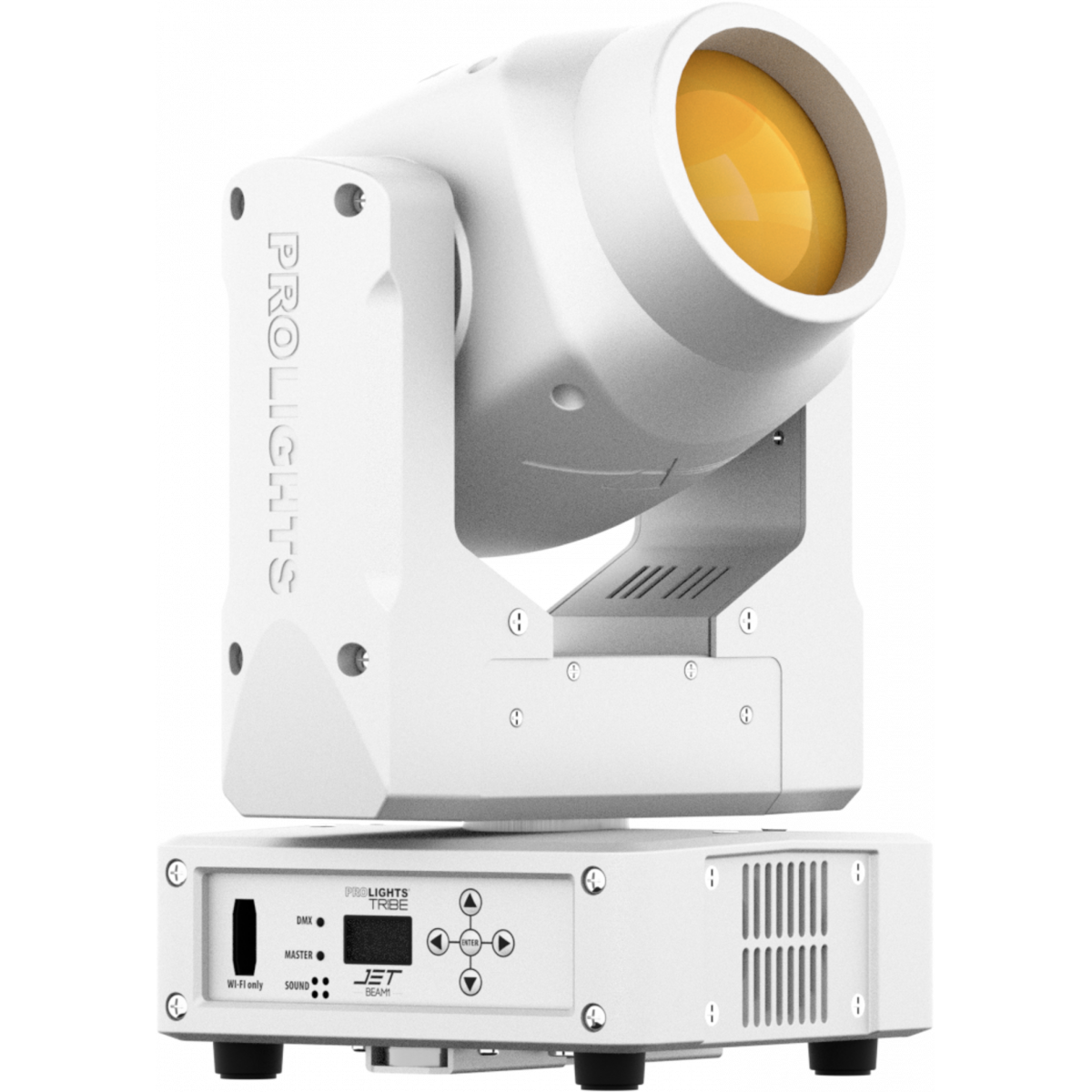

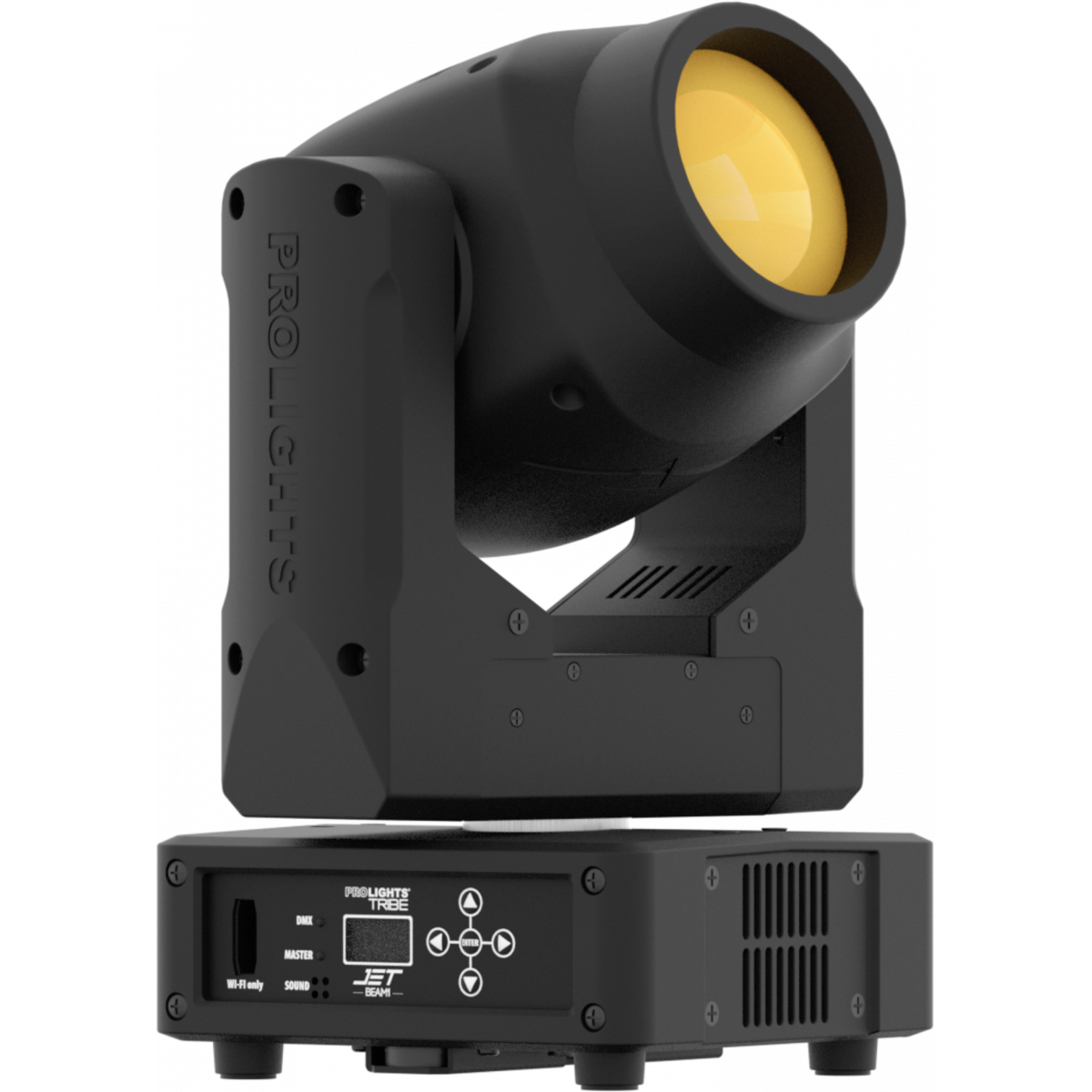

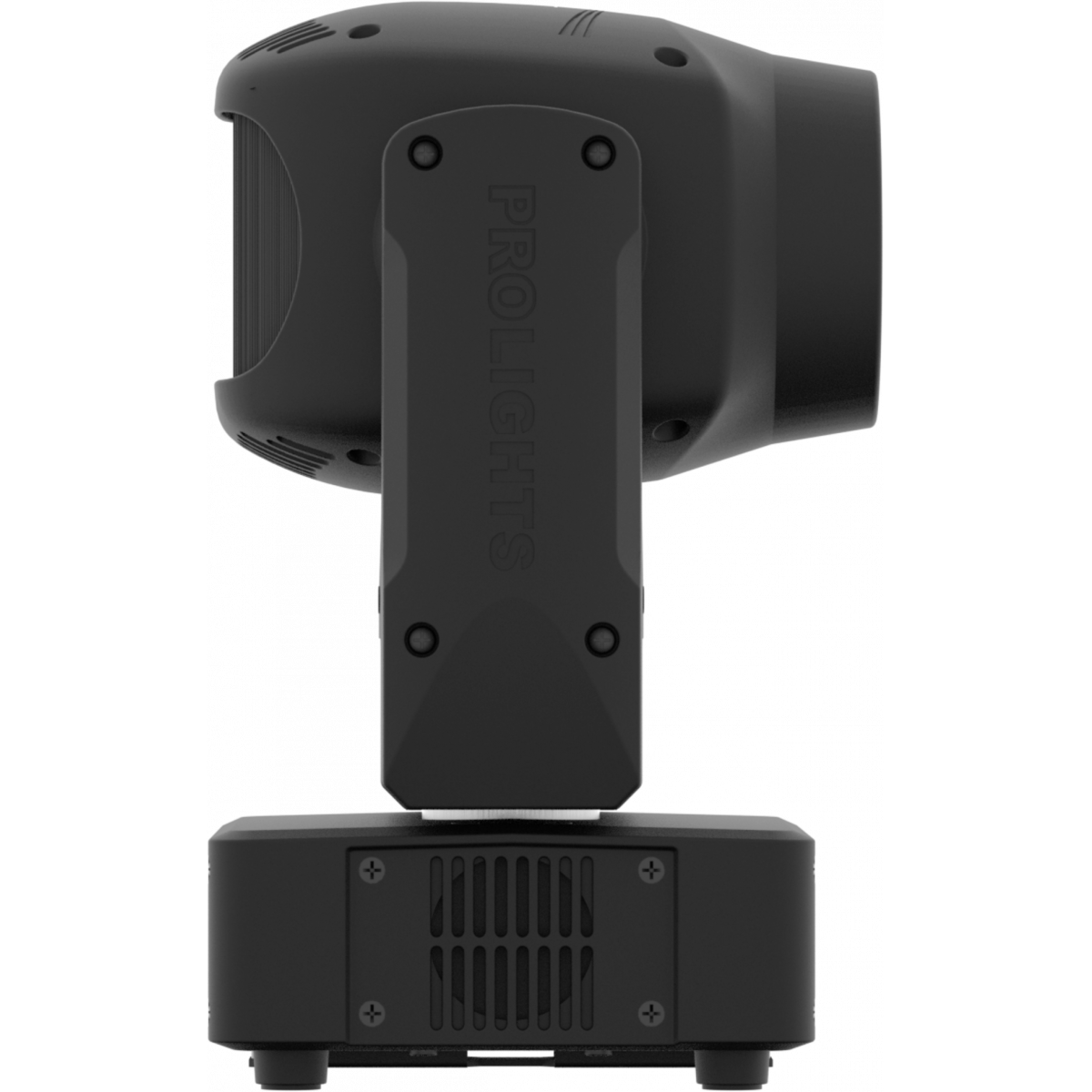

PHOTO GALLERY

Jet Beam1
Jet Beam1
Jet Beam1
Jet Beam1
Jet Beam1
Jet Beam1

Technical specifications

LIGHT SOURCE
  • Source: 14W high-power white LED
  • CCT: 6.200
  • Luminous flux: 577
  • Lux: 50'000lx @3 m
  • Lux: 4'600lx @10 m
  • CRI: 73
  • Source life expectancy: > 30.000 h
OPTICS
  • Beam angle: 2,5°
  • Field angle: °
  • Lens diameter: 85mm / 3.35''
  • Lens type: high-quality glass lens optics
COLOUR SYSTEM
  • Colour wheel: 14 colour filters
DYNAMIC EFFECTS
  • Circular prism: 8f with bi-directional rotation, indexing
  • Auto mode: built-in programs with execution speed adjustment
  • Sound mode: music activation through internal microphone and sensitivity control
BODY
  • Pan angle: 540°
  • Tilt angle: 270°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black, white finishing available
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 8 / 10channel
  • Wireless Control: optional, proprietary protocol compatible with WIFIBOX, WDBOX
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 0 ~ 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 31,9W
  • Max power consumption (at 120V): 32,3W
  • Output (at 230V): 52 units on a single power line
  • Output (at 120V): 27 units on a single power line
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: any position with quick-lock omega brackets
  • Data: USB port for USB WIFI transmitter (optional)
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 220x343x170mm / 8.66''x13.5''x6.69''
  • Weight: 5kg / 11.02lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Housing
JETBEAM1BK
JETBEAM1BK
Black
JETBEAM1WH
JETBEAM1WH
White

Accessories & Related Products

RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958025L03
958025L03
(optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
9513FCAL03
9513FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
FCLJET1
FCLJET1
(optional)
Flight case for 8 pcs JETBEAM1 / JETSPOT1
C6016B
C6016B
(optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black&White& White
9533FCAL03
9533FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
<b>WIFI</b>-USB
WIFI-USB
(optional)
USB Wi-Fi transreceiver, compatible with WIFIBOX and WDBOX
<b>WIFI</b>-Box
WIFI-Box
(optional)
DMX controller interface, Wi-Fi/DMX IN, Wi-Fi / DMX OUT
<b>WD</b>-Box
WD-Box
(optional)
Wireless DMX Transceiver, IN/OUT 3-pin XLR, distance 200m, 2.4 GHz, 0.6 kg
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Jetbeam1_A4_DATASHEET_(EN).pdf 162KB
Letter datasheet Jetbeam1_A4_DATASHEET_(IT).pdf 165KB
Letter datasheet Jetbeam1_LETTER_DATASHEET_(EN).pdf 161KB

User manual

File name File size Download
User manual Jetbeam1_USER_MANUAL_ITEN.pdf 2MB

DMX chart & personalities

File name File size Download
DMX chart Jetbeam1_DMX_CHARTS.pdf 56KB
JETBEAM1 Firmware rev. 1.5
manufacturer fixture library (Link) Link
prolights_jetbeam1.d4Download
manufacturer fixture library (Link) Link
jetbeam1_8ch.fdfDownload
jetbeam1_10ch.fdfDownload
prolights@jetbeam-1_bas-8@8ch.xmlDownload
prolights@jetbeam-1_bas-16@10ch.xmlDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
Photometrics Jetbeam1_PHOTOMETRICS.pdf 165KB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D SKP Jetbeam1_3D.skp 1MB
2D Jetbeam1_CAD_2D.dwg 2MB
Technical drawing Jetbeam1_TECHNICAL_DRAWING.pdf 231KB
VectorWorks JETBEAM1_SYMBOLS.zip 1MB
VectorWorks PROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx 317MB
VectorWorks PROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx 488MB

Tech docs

File name File size Download
Color Document Jetbeam1_COLOR.pdf 38KB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.5 STABLE 04/12/2018 10 second default display backlight
