JETPAR7ZIP
PROLIGHTS

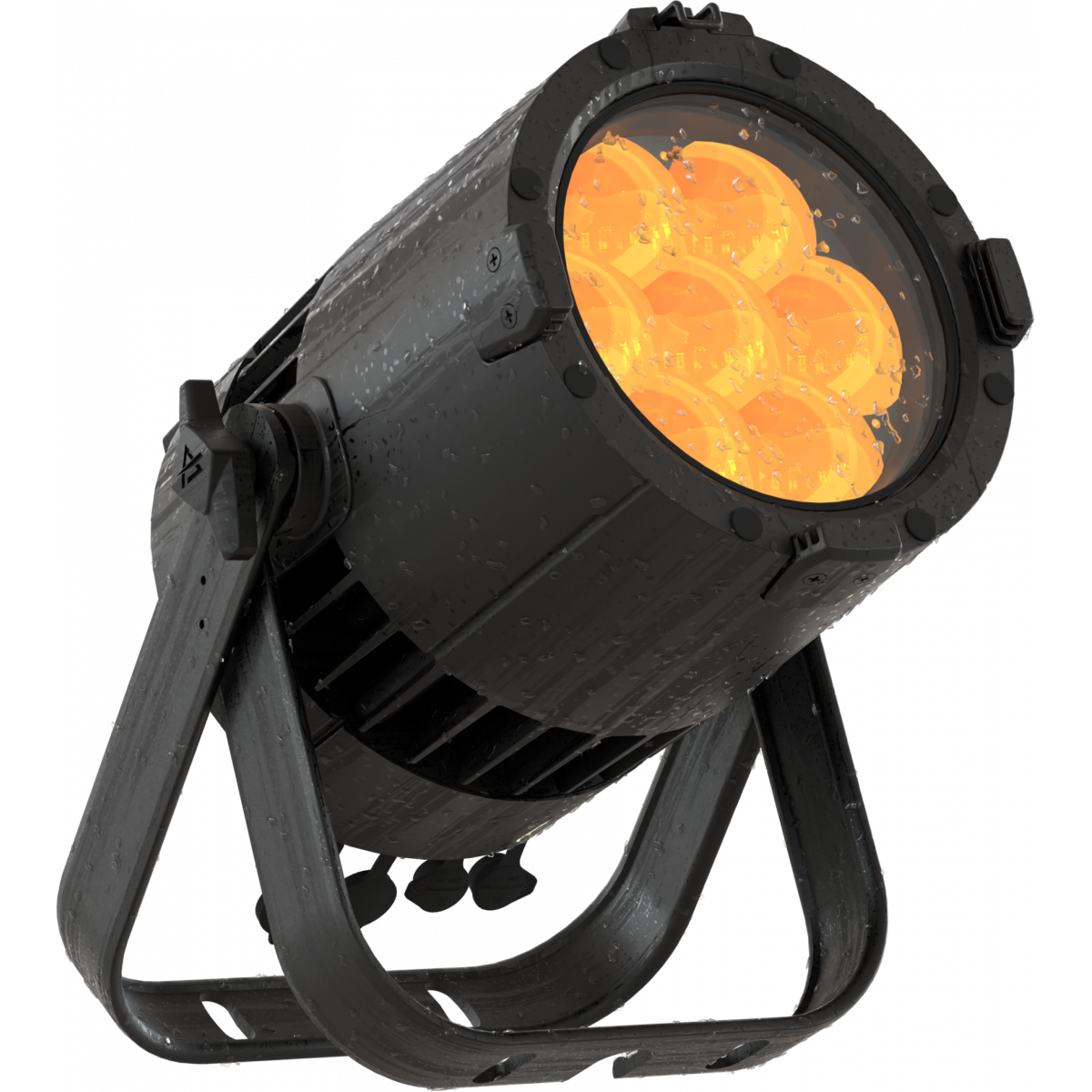

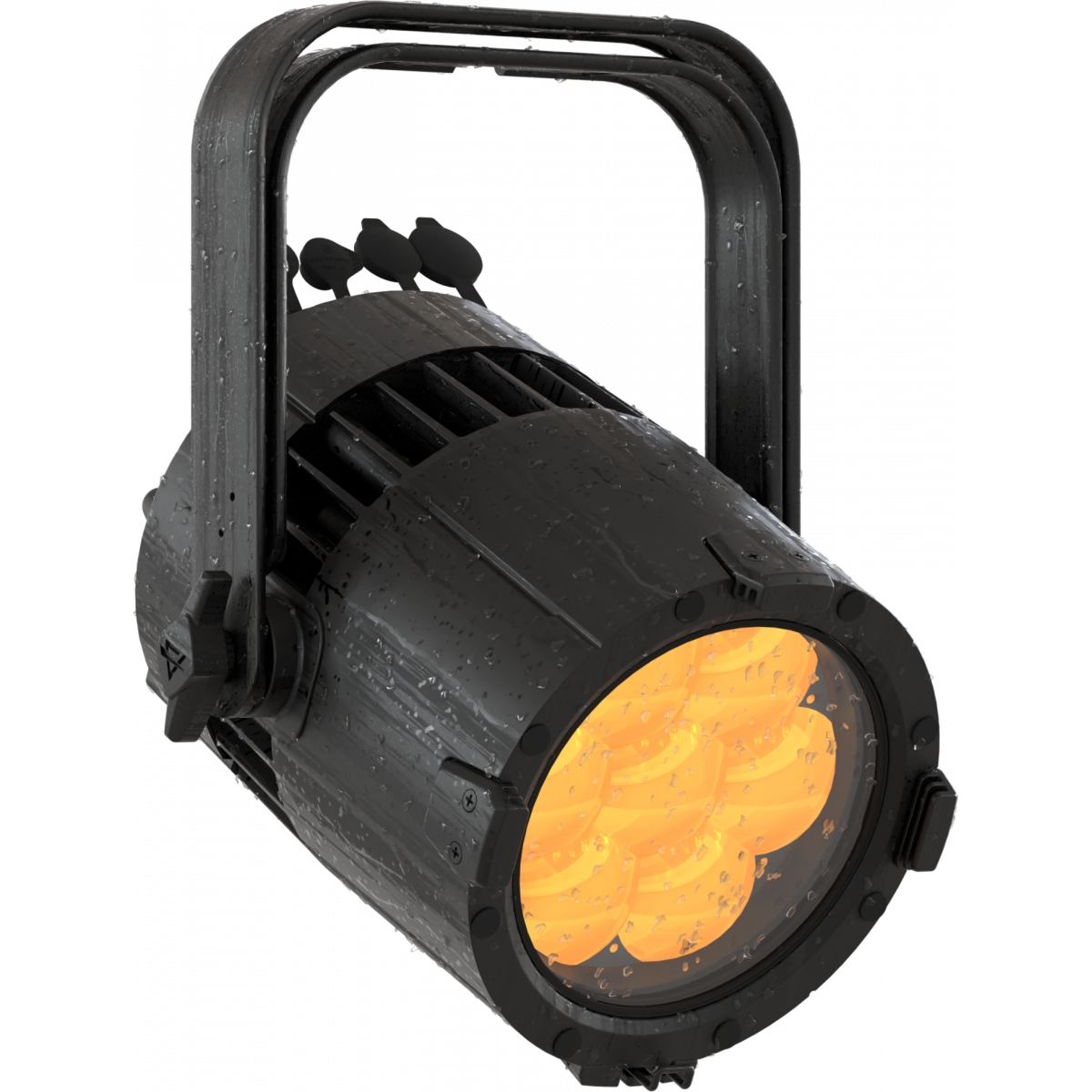

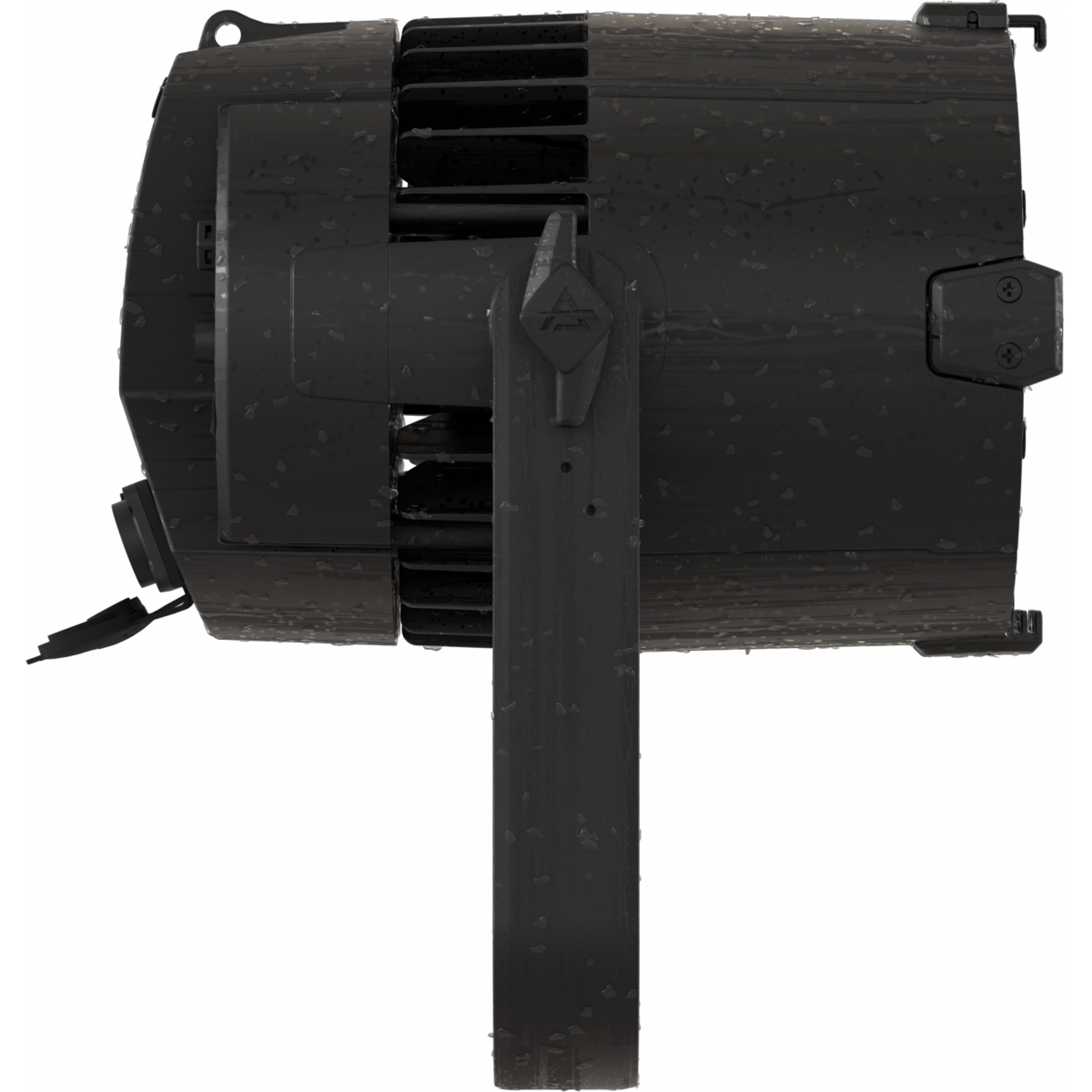

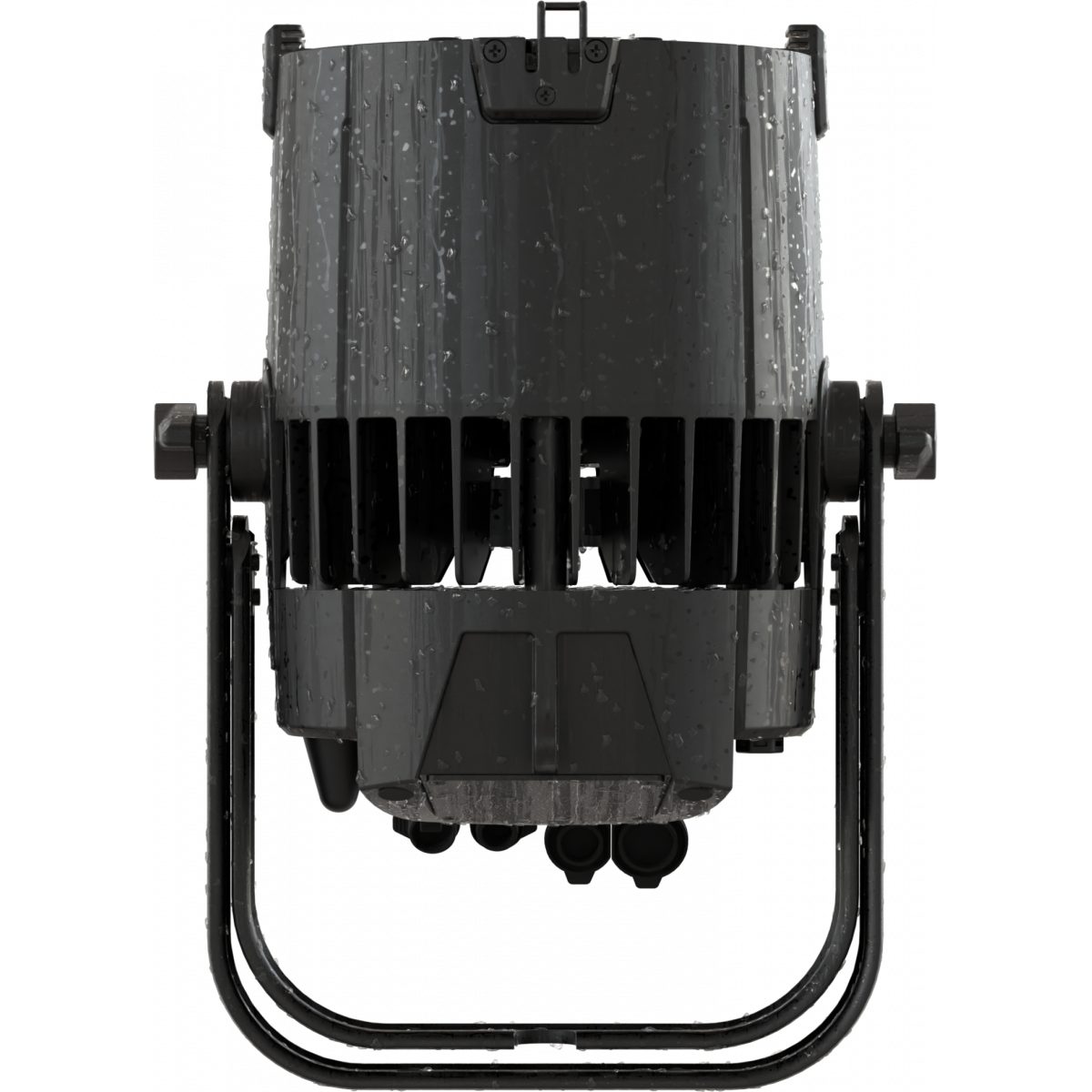

Jet PAR7ZIP

7x20W IP65 RGB+WW zoom LED PAR

Jet Par7ZIP is a flexible IP65 rated LED zoom PAR featuring a 7x20W RGB + WarmWhite LED source delivering phenomenal output and great flexibility for both indoor and outdoor application.
Its Spektra calibrated LED source delivers a high-quality white reproduction with high CRI and TLCI scores as well an extremely precise colour tuning.
Jet Par7ZIP is truly focusable through the motorized zoom system ranging from 4.5° to 53°, being a truly versatile workhorse for any application requiring an advanced control of the light and weatherproof.

SPEKTRA

Main features:

  • 7x20W Spektra calibrated RGB + Warm White LED delivering high CRI, TLCI, TM30 values
  • 4.5° to 53° motorized linear zoom
  • IP65 for exterior applications
See variants

PHOTO GALLERY

Jet PAR7ZIP
Jet PAR7ZIP
Jet PAR7ZIP
Jet PAR7ZIP
Jet PAR7ZIP

Technical specifications

LIGHT SOURCE
  • Source: 7x20W RGB + Warm White LED
  • Luminous flux: preliminary data: (4,5°) 1'229 lm - (53°) 2'108 @Full
  • Lux: preliminary data: (4,5°) 27'888 lx - (53°) 720lx @3 m full
  • CRI: preliminary data: 93,8 @ 3'200K; 92,5 @ 5'600K
  • R9: preliminary data: 93,4 @ 3'200K; 79 @ 5'600K
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom range: 4,5° - 53° motorised linear zoom
  • Lens type: honeycomb gapless plano-convex optics
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K ~ 10.000K
  • Colour wheel: gel filters included
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Body: weatherproof IP65 construction
  • Body colour: black
  • Other: Front mount holder for accessories as Barndoor, filterframe
CONTROL
  • Protocols: DMX512, RDM, CRMX + WDMX, 3 push encoder
  • DMX channels: 1 / 2 / 6 / 12 / 14 / 20channel
  • Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included)
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 50.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 127W
  • Standby power: 12W
  • Output (at 230V): 16 units on a single power line
  • Power factor: > 0,95
PHYSICAL
  • IP rating: 65 for temporary outdoor use (*)
  • Cooling: active, silent operation
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning

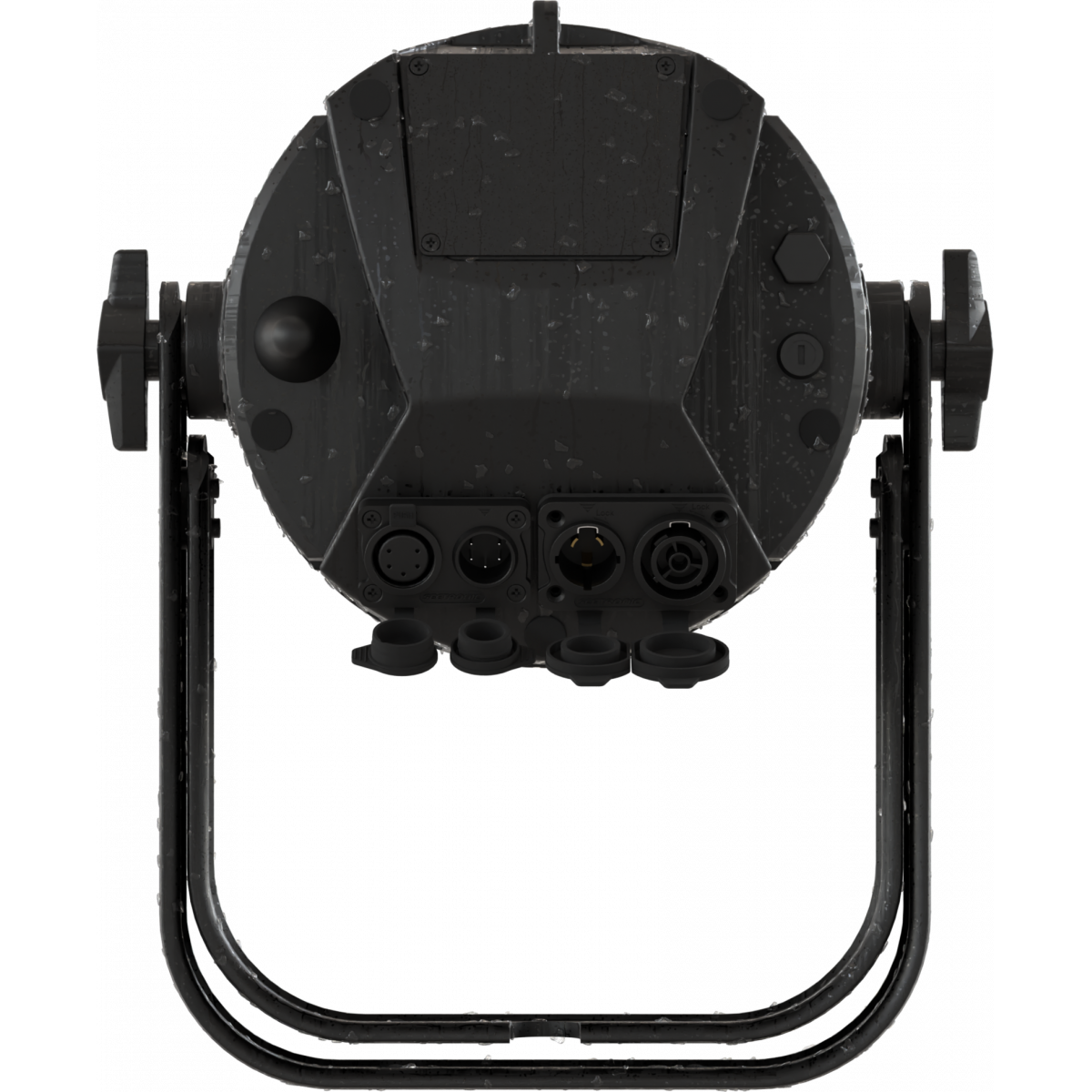

  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Dimensions (WxHxD): 291x347x300mm / 11.46''x13.66''x11.81''
  • Weight: 9,3kg / 20.5lbs
(*)
  • NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Finishing
JETPAR7ZIPBK
JETPAR7ZIPBK
Black

Accessories & Related Products

<b>ÆtherBox</b> LITE
ÆtherBox LITE
(Optional)
1 Universe CRMX Wireless Transceiver
<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
AJP7ZIPBAG1U
AJP7ZIPBAG1U
(Optional)

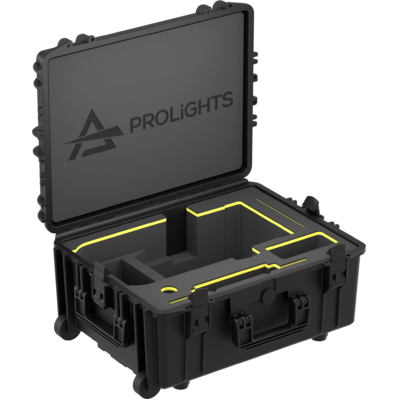

Empty ABS case for 1 pc of ASTRAPAR7ZIP or JETPAR7ZIP
FCLAJP7ZIP
FCLAJP7ZIP
(Optional)

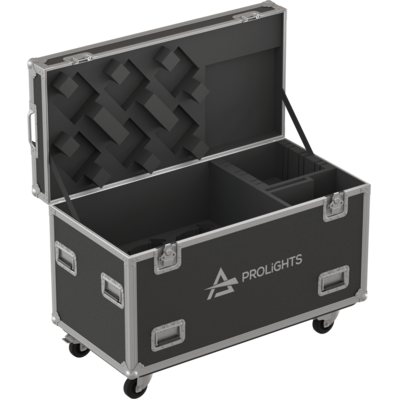

Flight case for 6 pcs ASTRAPAR7ZIP / JETPAR7ZIP
AJP7ZIPBDBK
AJP7ZIPBDBK
(Optional)

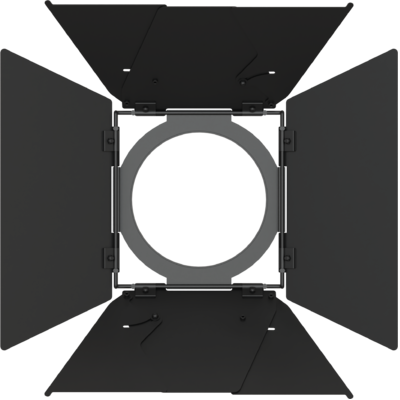

Barn door with 8 directional flaps to adjust the light beam, ASTRA / JET PAR7ZIP
AJP7ZIPFFBK
AJP7ZIPFFBK
(Optional)

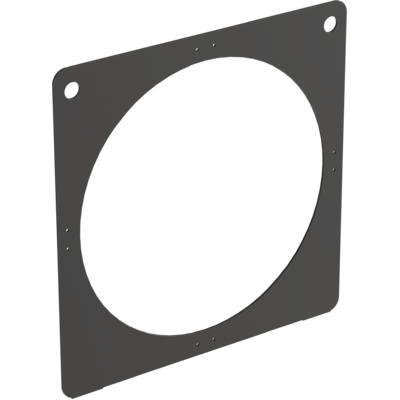

Filter frame for ASTRAPAR7ZIP e JETPAR7ZIP, black
JP7ZIPWKB
JP7ZIPWKB
(Optional)

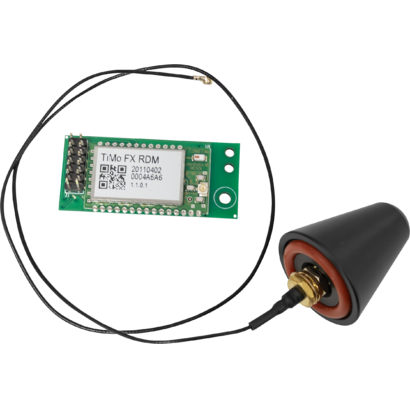

CRMX Timo Fx kit for JETPAR7ZIP, black finishing
IPTESTBOX
IPTESTBOX
(Optional)
Portable vacuum and pressure tester for ProLights IP fixtures
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
RSR0630A
RSR0630A
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, silver
LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetJetpar7zip_A4_DATASHEET_(EN).pdf741KB
Tender SpecificationJetpar7zip_TENDER_SPECIFICATION.pdf4MB

User manual

DMX chart & personalities

File name File size Download
DMX chartJetpar7zip_DMX_CHARTS.pdf117KB
DMX chartJetpar7zipbk_DMX_CHARTS.pdf117KB
JETPAR7ZIP Firmware rev. 1.0.10
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D sketchupJETPAR7ZIP_3D_SKETCHUP.zip1MB
2DJETPAR7ZIP_2D.zip11MB
3DJETPAR7ZIP_3D.zip1MB
2D cad symbolsJetpar7zipbk_CAD_2DSYMBOLS.dwg82KB
Technical drawingJETPAR7ZIP_TECHNICAL DRAWINGS.zip2MB
VectorWorksVECTORWORKS_SYMBOLS.vwx1MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB

Tech docs

File name File size Download
Noise ReportJetpar7zip_NOISE_REPORT.pdf610KB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0.10 STABLE 24/11/2023 First Stable Release. Rev. 1.0
