RAZOR440
PROLIGHTS
end of life

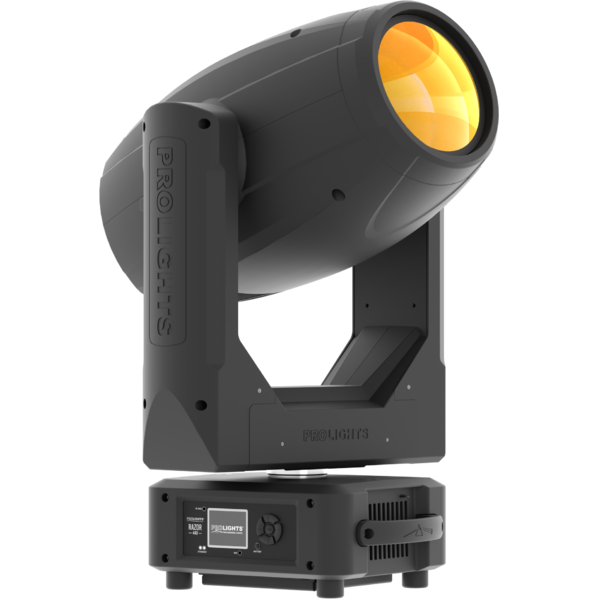

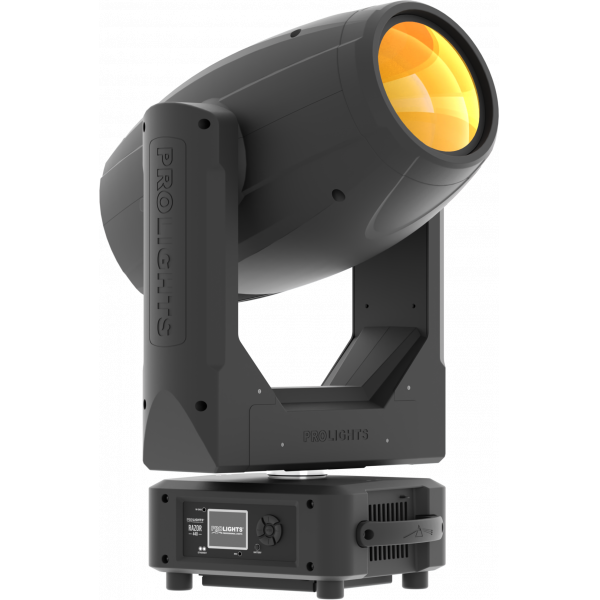

Razor 440

ORDER CODE: RAZOR440

440W hybrid moving luminaire with colour mixing

Razor 440 is a hybrid moving light delivering a full toolkit for designers in a single fixture. Harnessing the power of the 440W discharge source with a custom optical system, it provides a punchy beam, even wash and crisp spot - all from a single unit.

Main features:

  • Massive 2° to 50° linear zoom range with sharp image projection
  • Full CMY colour mixing system, plus 3 colour wheels including CTC filters
  • Extensive effects including animation wheel, rotating gobo wheel, static gobo wheel, dual prisms and linear frost
See variants

PHOTO GALLERY

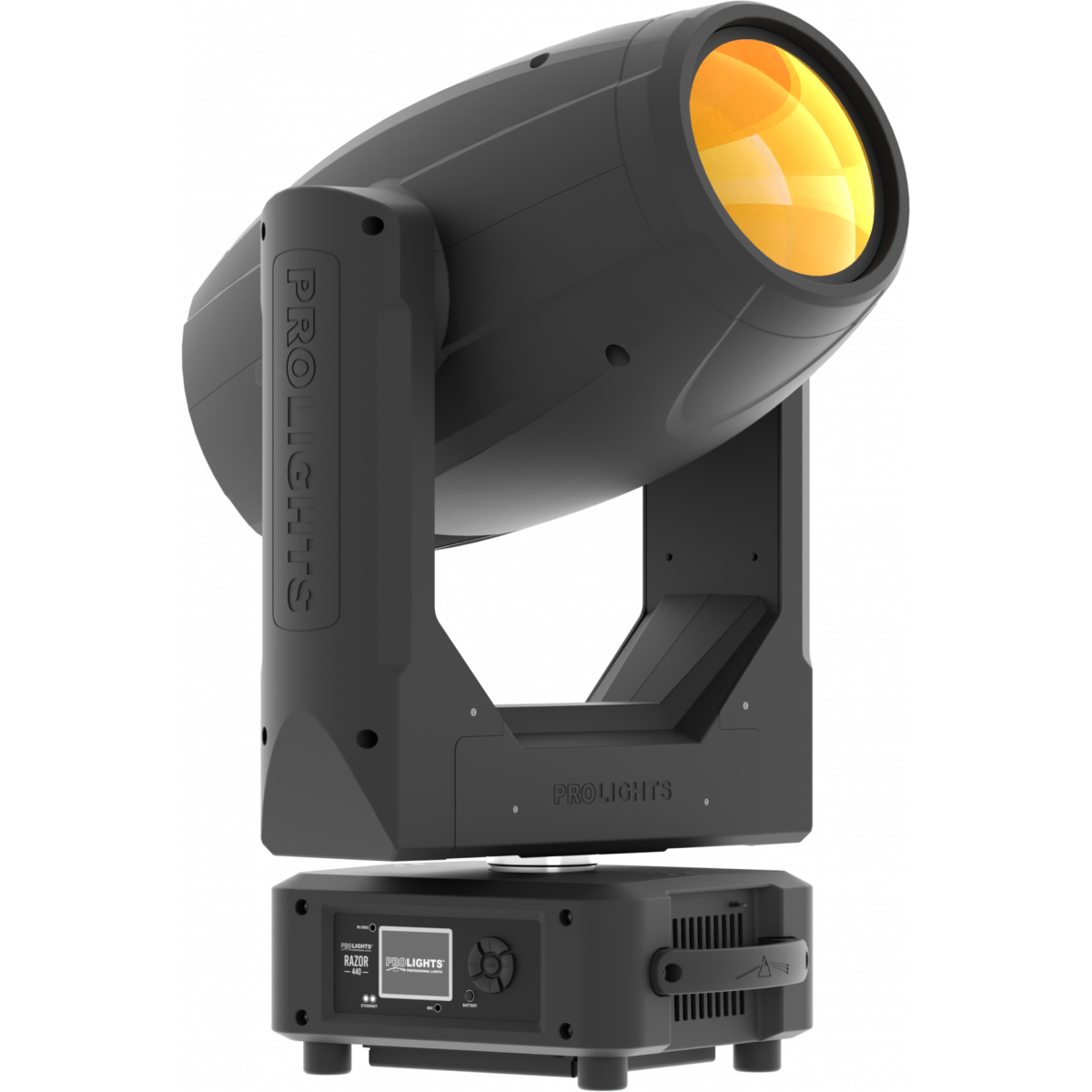

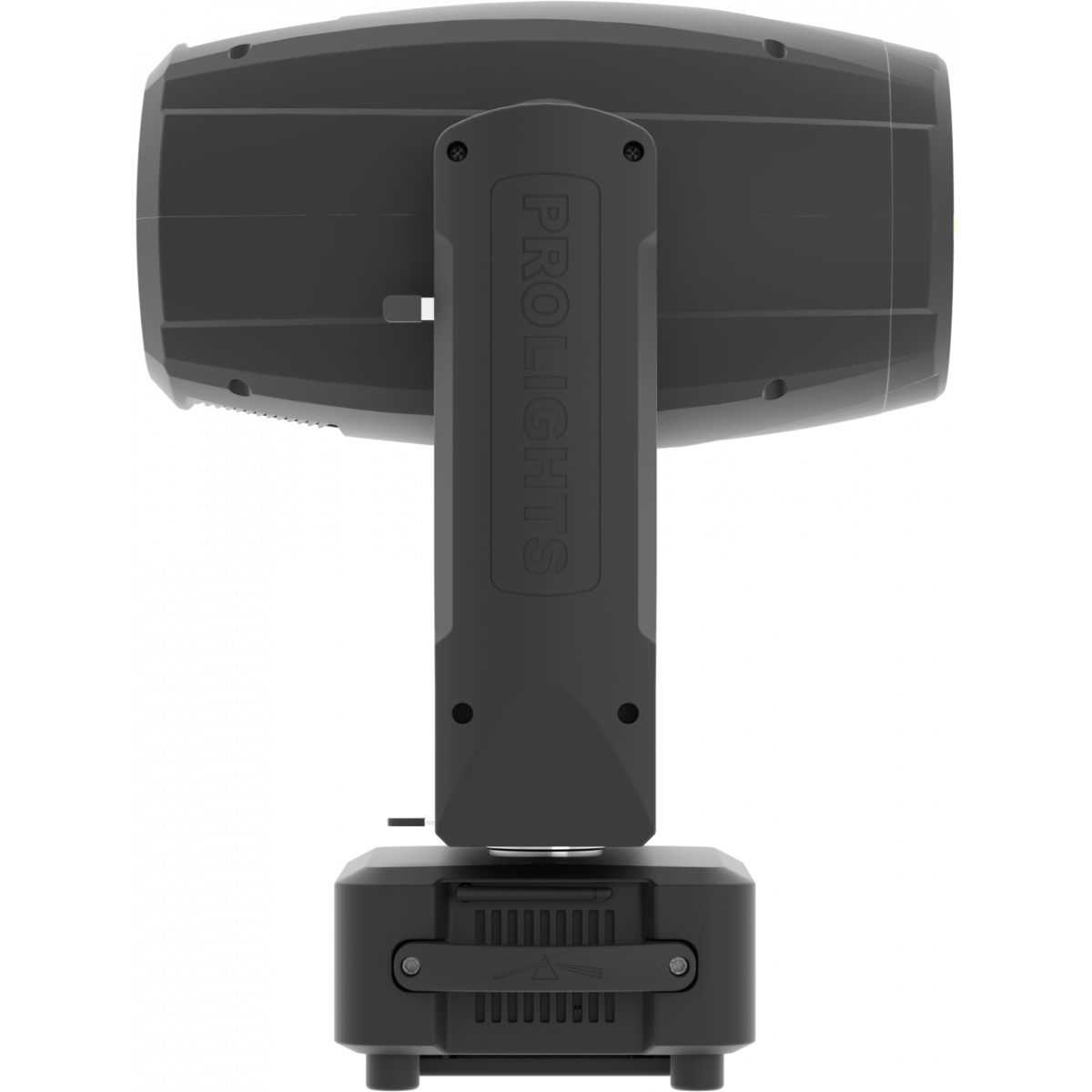

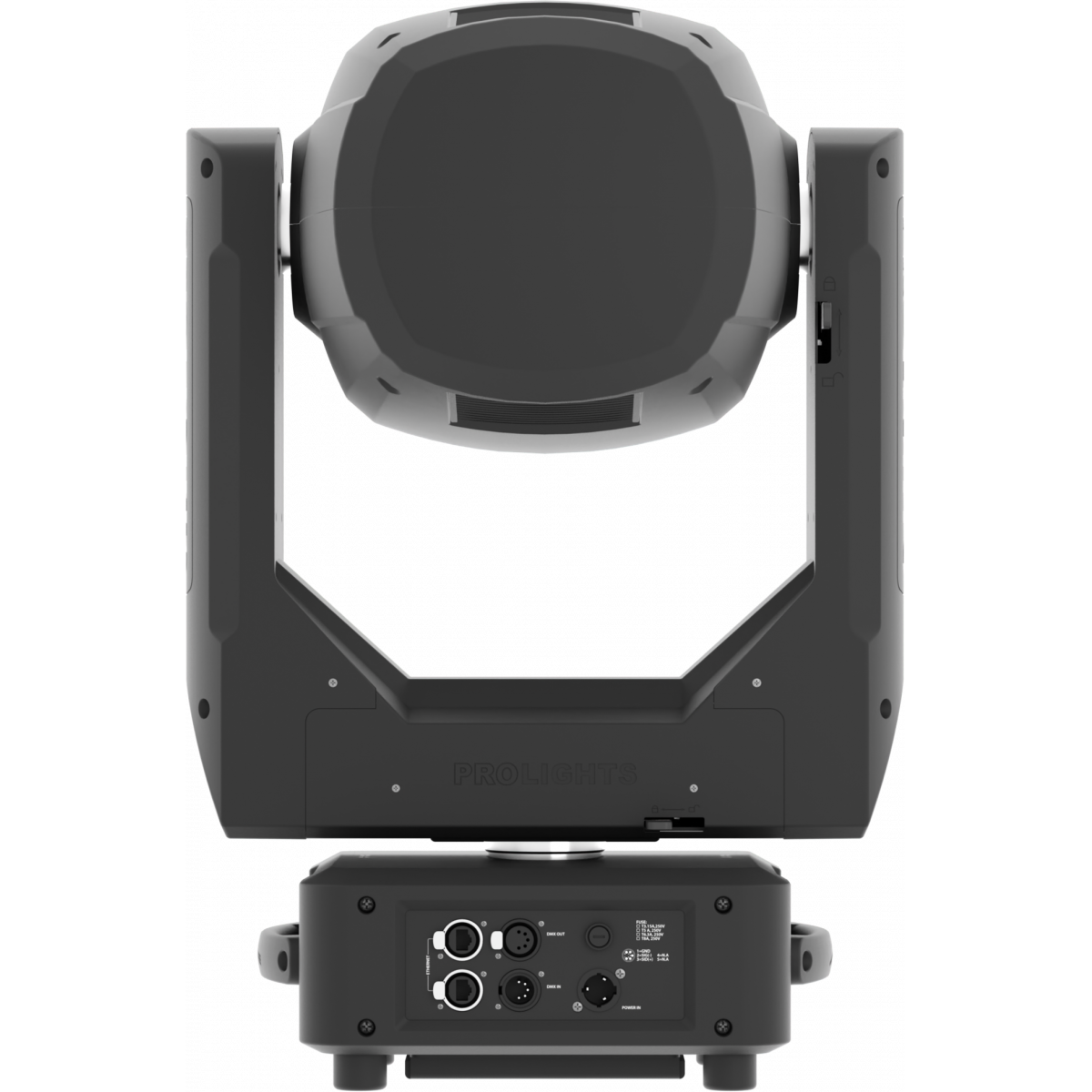

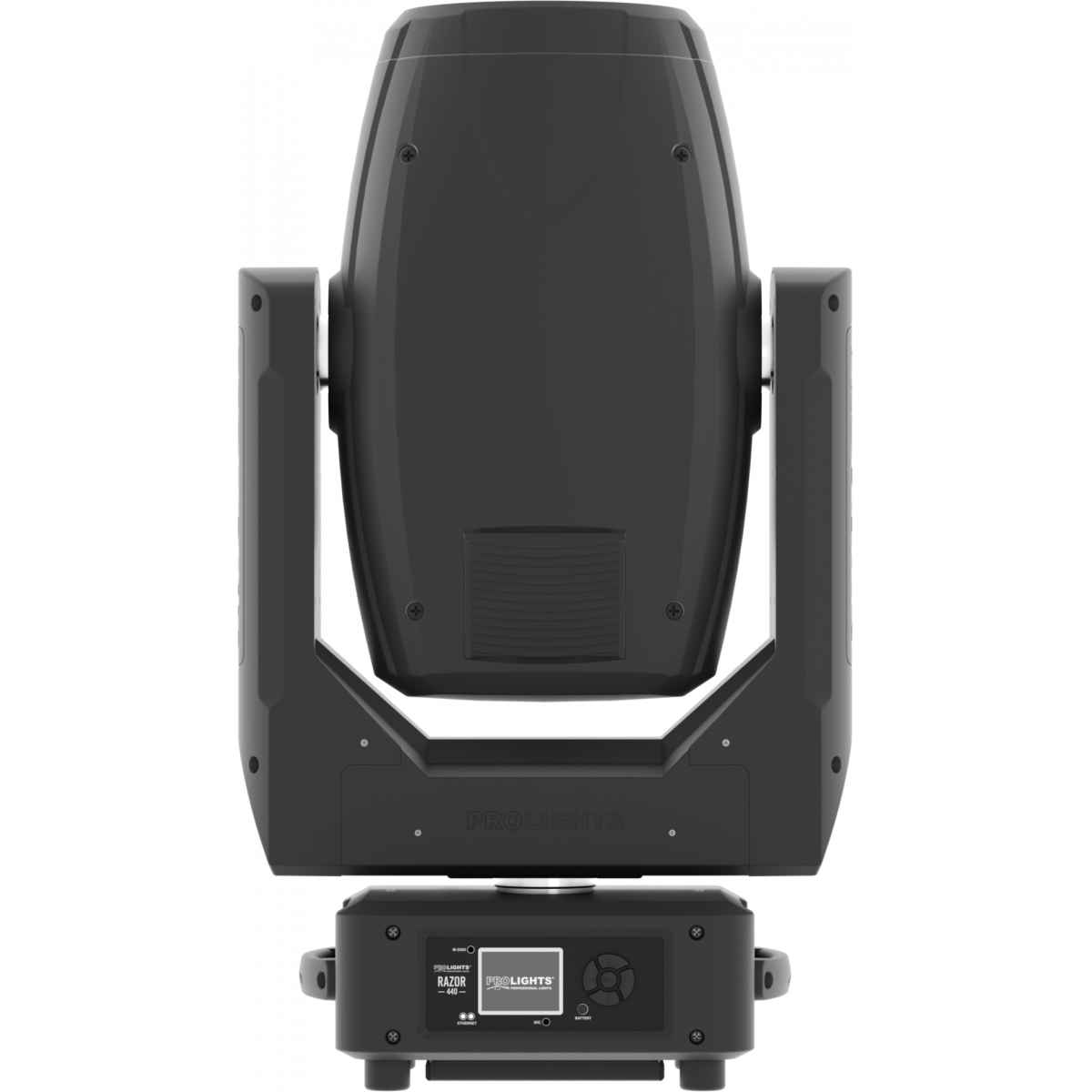

Razor 440
Razor 440
Razor 440
Razor 440

Technical specifications

LIGHT SOURCE
  • Source: 440W S Osram Sirius HRI
  • CCT: 7.000
  • Luminous flux: 15'700
  • Lux: (2°) 140'000lx @15 m
  • Lux: (50°) 3'000lx @10 m
  • Source life expectancy: 1.500 h
OPTICS
  • Zoom: 2° ~ 50° motorised linear zoom
  • Lens diameter: 153mm / 6.02''
  • Lens type: high-quality glass lens optics
  • Focus: motorised with auto-focus
COLOUR SYSTEM
  • Colour mixing: CMY colour system on 3 gradually fading colour wheels
  • CCT: on wheel 2.500 K and 3.200 K + CTB
  • Colour wheel: 13 dichroic filters on 3 independent colour wheels
DYNAMIC EFFECTS
  • Animation wheel: animation wheel with CW and CCW rotation
  • Rotating gobos: 6 rotating gobos + open, interchangeable, indexing
  • Gobo size: outer: 25,7 mm - image: 13 mm - thickness: 1,1 mm
  • Fixed gobos: 18 fixed gobos + open
  • Circular prism: 3f with bi-directional rotation, indexing
  • Linear prism: 6f with bi-directional rotation, indexing
  • Frost: linear 0 - 100% frost filter
BODY
  • Pan angle: 630° - 540°
  • Tilt angle: 267°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, Art-Net, W-DMX
  • DMX channels: 21 / 24 / 26channel
  • Wireless Control: included, wireless solution receiver
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included
  • Hibernation: power safe mode when lost DMX
ELECTRONICS
  • Dimmer: linear 0 ~ 100% mechanical dimmer
  • Strobe / shutter: 1 - 28 flash(s), mechanical
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 585W
  • Max power consumption (at 120V): 585W
  • Inrush current: ＜30A @115VAC /＜50A @230VAC
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Pan / tilt lock: for transportation and maintenance
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: Art-Net RJ45 IN/OUT
  • Power connection: Neutrik powerCON TRUE1 IN connector
  • Dimensions (WxHxD): 411x714x258mm / 16.18''x28.11''x10.16''
  • Weight: 27kg / 59.52lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

RSR1235B
RSR1235B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=120 cm, black
958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
C6016B
C6016B
(optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black&White& White
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
OS24D13
OS24D13
(included)
Quick-lock omega bracket, M12 hole
UPBOX2P5
UPBOX2P5
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Razor440_A4_DATASHEET_(EN).pdf 329KB

User manual

File name File size Download
User manual Razor440_USER_MANUAL_ITEN.pdf 3MB

DMX chart & personalities

File name File size Download
DMX chart Razor440_DMX_CHARTS.pdf 69KB
RAZOR440 Firmware rev. 1.4.00
manufacturer fixture library (Link) Link
prolights_razor440.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
razor440_21ch.fdfDownload
razor440_24ch.fdfDownload
razor440_26ch.fdfDownload
manufacturer fixture library (Link) Link
prolights@razor_440_ext@ext.xmlDownload
prolights@razor_440_stnd_24ch@standard_24ch.xmlDownload
manufacturer fixture library (Link) Link
razor440_hog3.zipDownload
razor_std.hog4showDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
razor 440 basic.fix2Download
razor 440 extended.fix2Download
razor 440 standard.fix2Download
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D RFA Razor440_3D.rfa 2MB
3D SKP Razor440_3D.skp 2MB
2D Razor440_CAD_2D.dwg 1MB
3D Razor440_CAD_3D.dwg 1MB
2D cad symbols Razor440_CAD_2DSYMBOLS.dwg 87KB
Technical drawing Razor440_TECHNICAL_DRAWING.pdf 327KB
VectorWorks PROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx 317MB
VectorWorks PROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx 488MB
VectorWorks VECTORWORKS_SYMBOLS.vwx 995KB

Tech docs

File name File size Download
Color Document Razor440_COLOR.pdf 52KB
Gobos Document Razor440_GOBOS.pdf 186KB
Gobos Document Razor440_GOBOS.pdf 48KB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX2P5 UPBOX2P5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
3.0.00 STABLE 22/08/2019 Firmware version for Hardware revision 3.
Firmware compatiblity can be checked considering the starting number of the firmware release already installed on the unit.
Unit with firmware version 1.x.xx can be updated only with 1.x.xx version and not with 2.x.xx		 Rev. 3
1.4.00 STABLE 22/08/2019 Firmware for Hardware Version 1
Firmware compatiblity can be checked considering the starting number of the firmware release already installed on the unit.
Unit with firmware version 1.x.xx can be updated only with 1.x.xx version and not with 2.x.xx

Improved Pan/Tilt management. Improved gobo indexing.
 Rev. 1
2.1.00 STABLE 09/08/2018 Firmware version for Hardware revision 2.
Firmware compatiblity can be checked considering the starting number of the firmware release already installed on the unit.
Unit with firmware version 1.x.xx can be updated only with 1.x.xx version and not with 2.x.xx		 Rev. 2
1.3.00 STABLE 11/11/2017 Improved lamp cooling system management.
