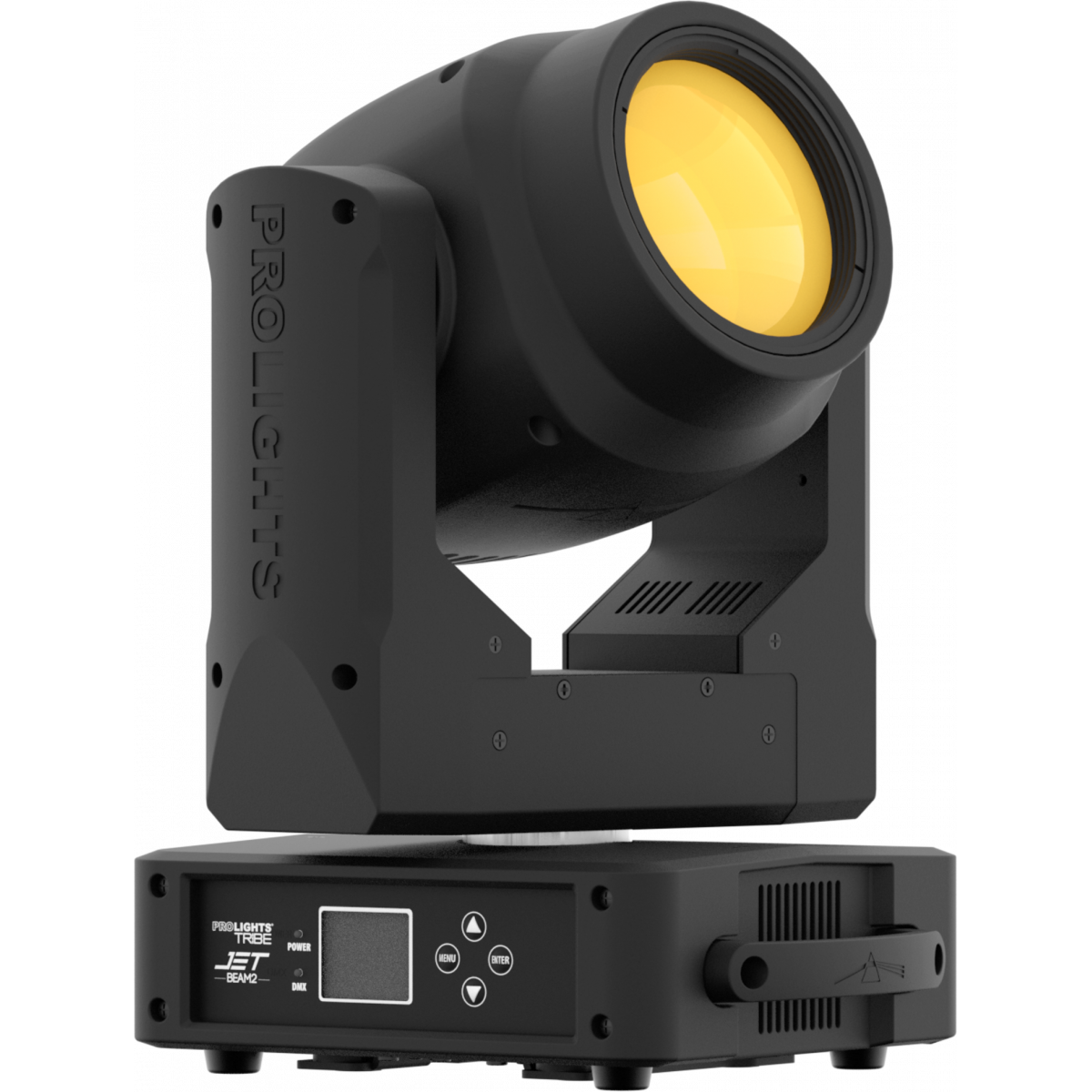

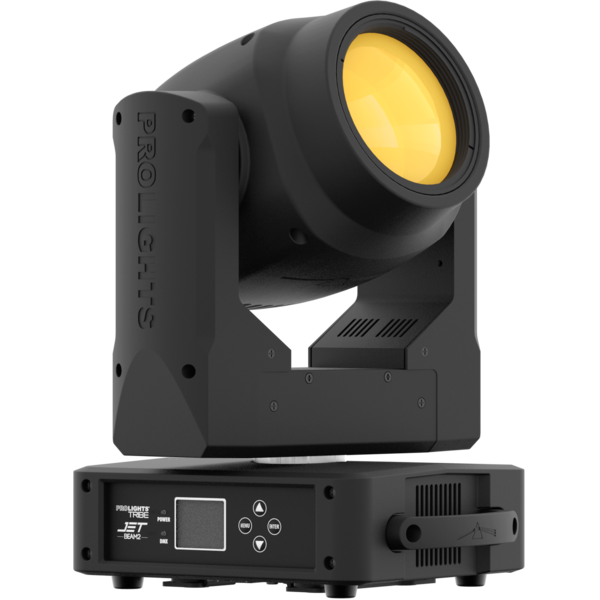

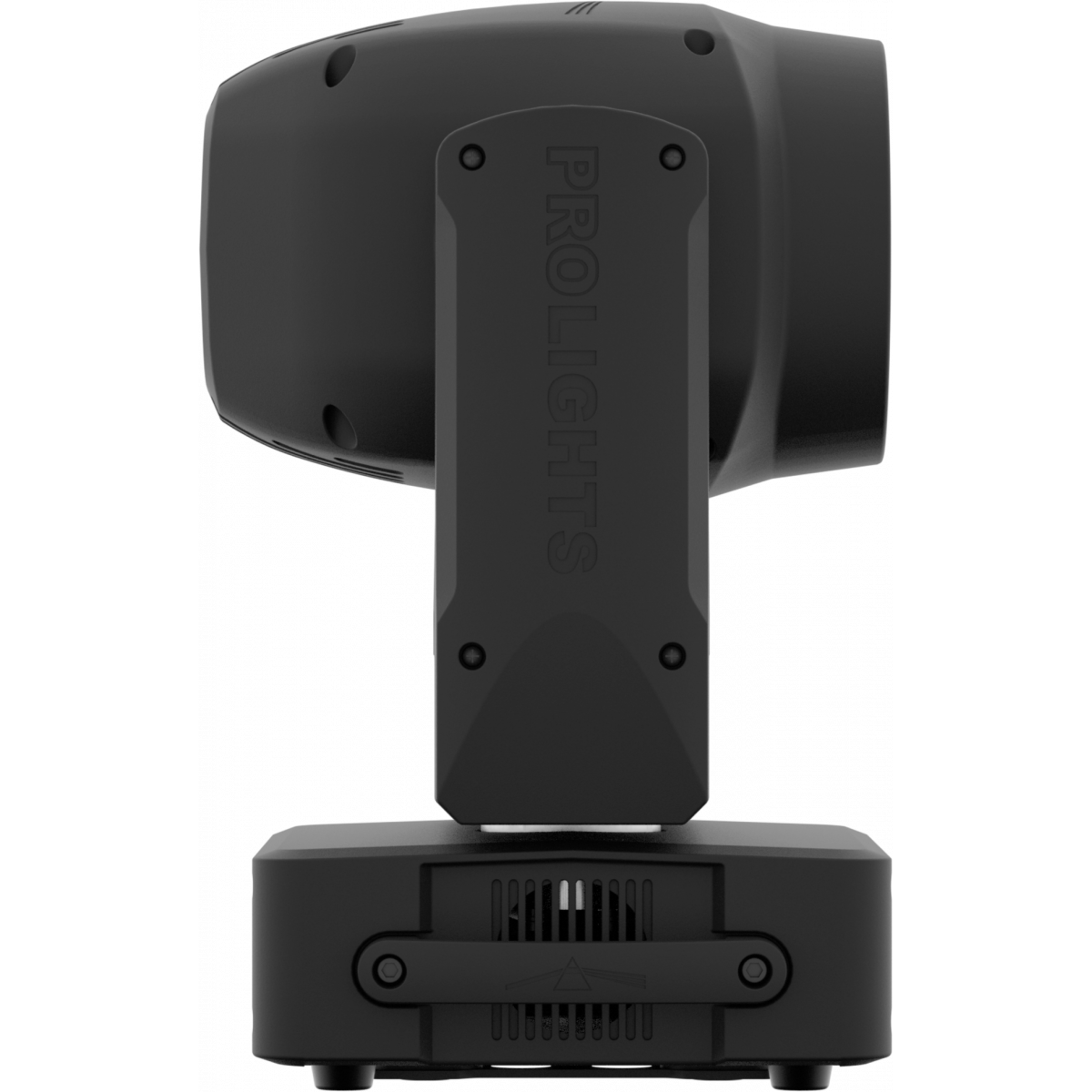

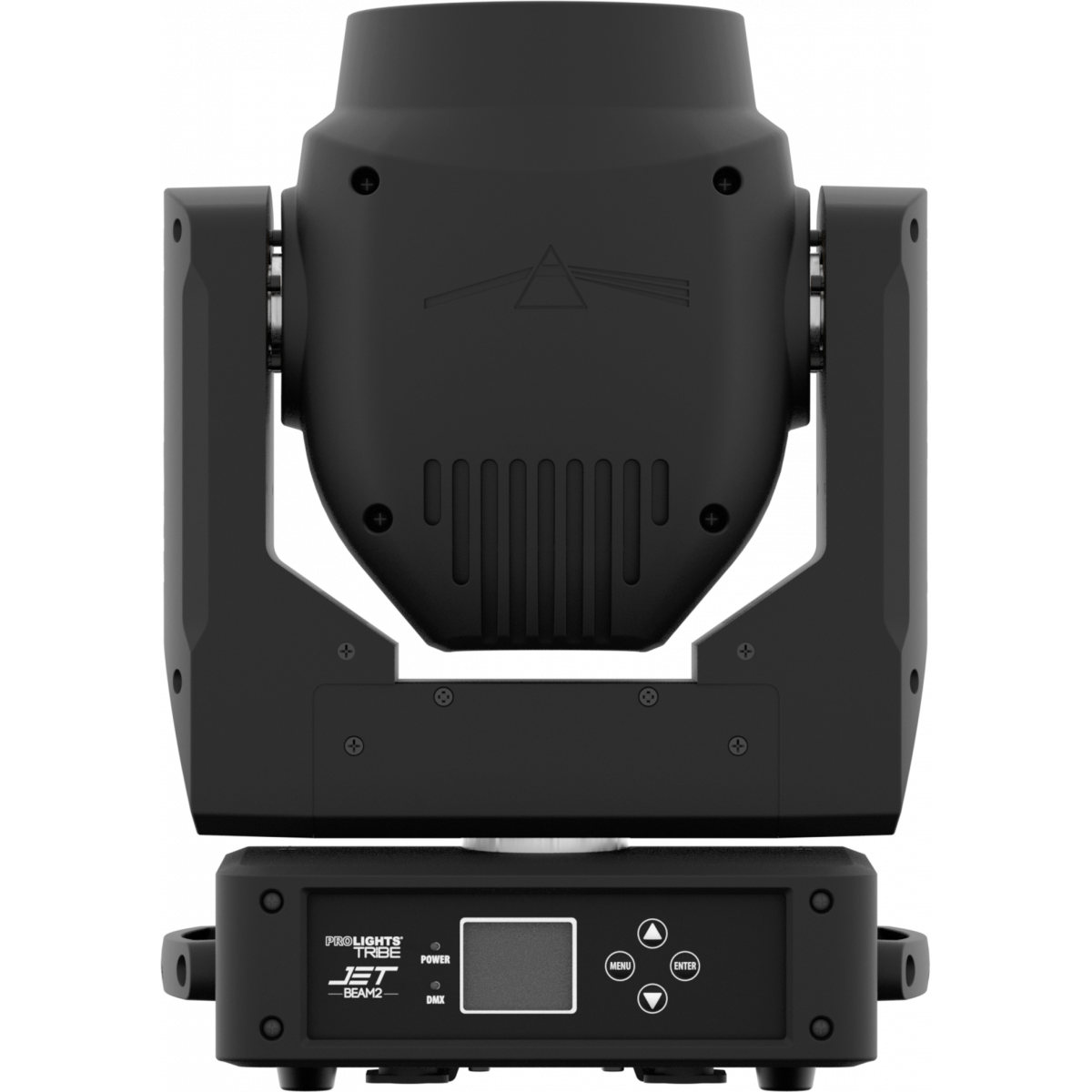

Jet Beam2

100W moving beam with white LED source

Jet Beam2 is a LED beam luminaire designed to be truly comparable to a discharge source. Ideal both for installation and rental, the Jet Beam2 focuses on maximising the light output from its LED source all the way throughout the glass optical system delivering a cutting-edge beam effect even on the brightest stage.

Main features:

  • Ultra-efficient 100W white LED with glass optics, delivering an incredibly bright and sharp 2° beam.
  • Professional grade product at an affordable price, with low cost of ownership.
  • 14 colours, 18 gobos and 8 facet prism for a huge range of effect options.
See variants

PHOTO GALLERY

Jet Beam2
Jet Beam2
Jet Beam2
Jet Beam2
Jet Beam2
Jet Beam2

Technical specifications

LIGHT SOURCE
  • Source: 100W high-power white LED
  • CCT: 6.300
  • Luminous flux: 1'756
  • Lux: 150'000lx @3 m
  • Lux: 18'000lx @10 m
  • CRI: 72
  • TLCI: 46,8
  • Source life expectancy: > 30.000 h
OPTICS
  • Beam angle: 2,5°
  • Lens diameter: 120mm / 4.72''
  • Lens type: high-quality glass lens optics
COLOUR SYSTEM
  • Colour wheel: 14 colour filters
DYNAMIC EFFECTS
  • Fixed gobos: 18 fixed gobos + open
  • Circular prism: 8f with bi-directional rotation, indexing
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Pan angle: 540°
  • Tilt angle: 270°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black, white finishing available
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 9 / 11channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 0 ~ 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 163W
  • Max power consumption (at 120V): 161W
  • Output (at 230V): 26 units on a single power line
  • Output (at 120V): 14 units on a single power line
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: any position with quick-lock omega brackets

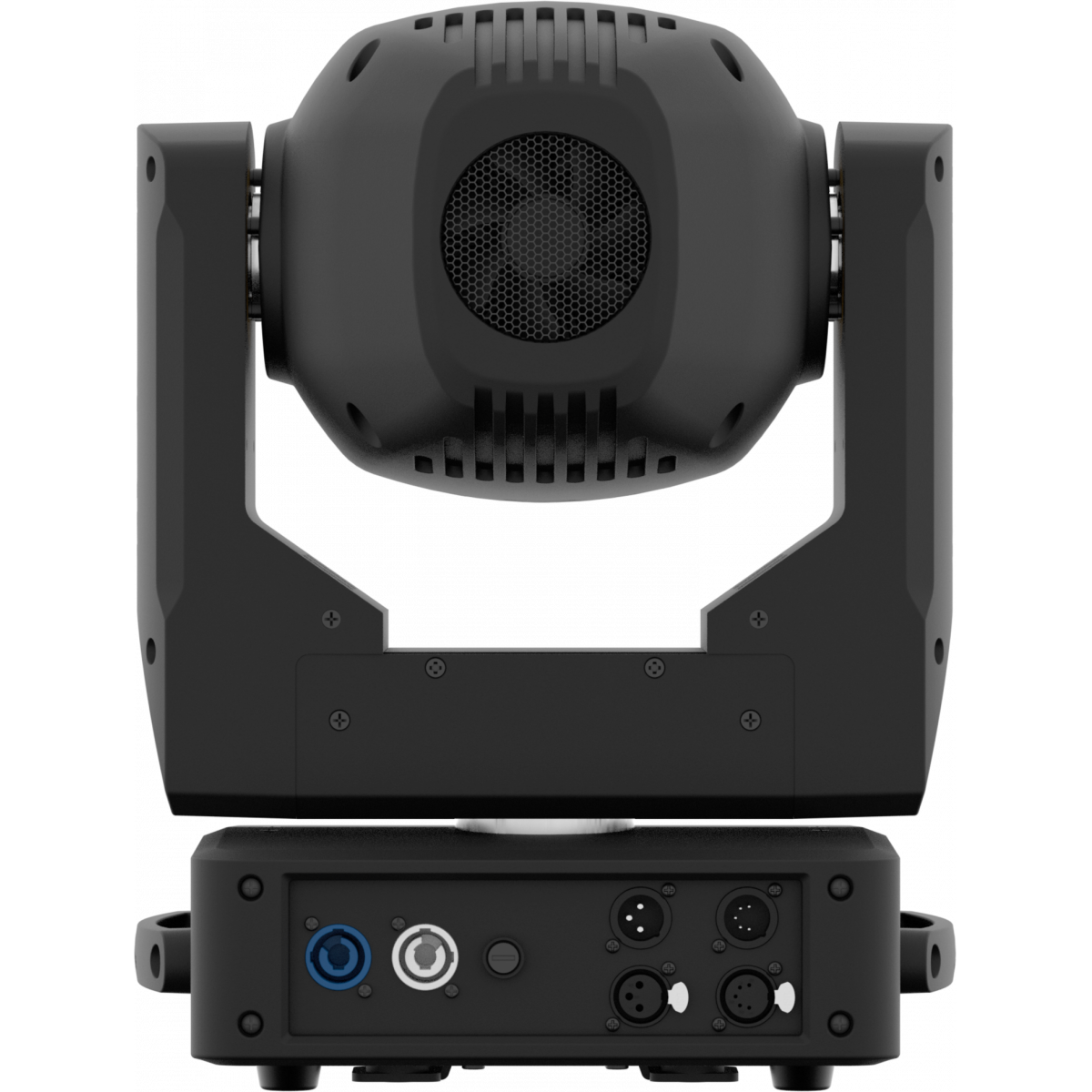

  • Signal connection: XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON IN/OUT connectors
  • Dimensions (WxHxD): 303x421x230mm / 11.93''x16.57''x9.06''
  • Weight: 13kg / 28.66lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Housing
JETBEAM2BK
JETBEAM2BK (END OF LIFE)
Black

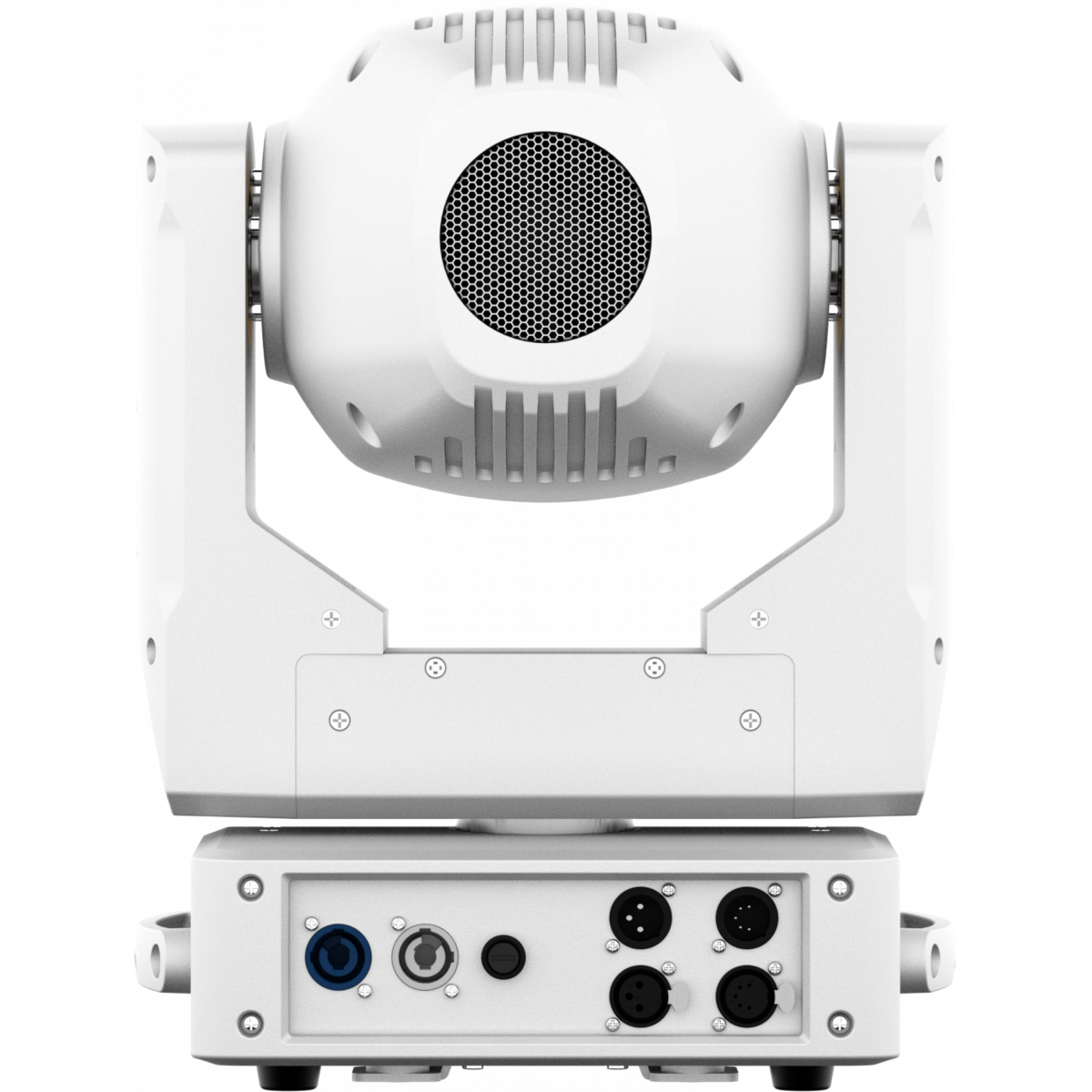

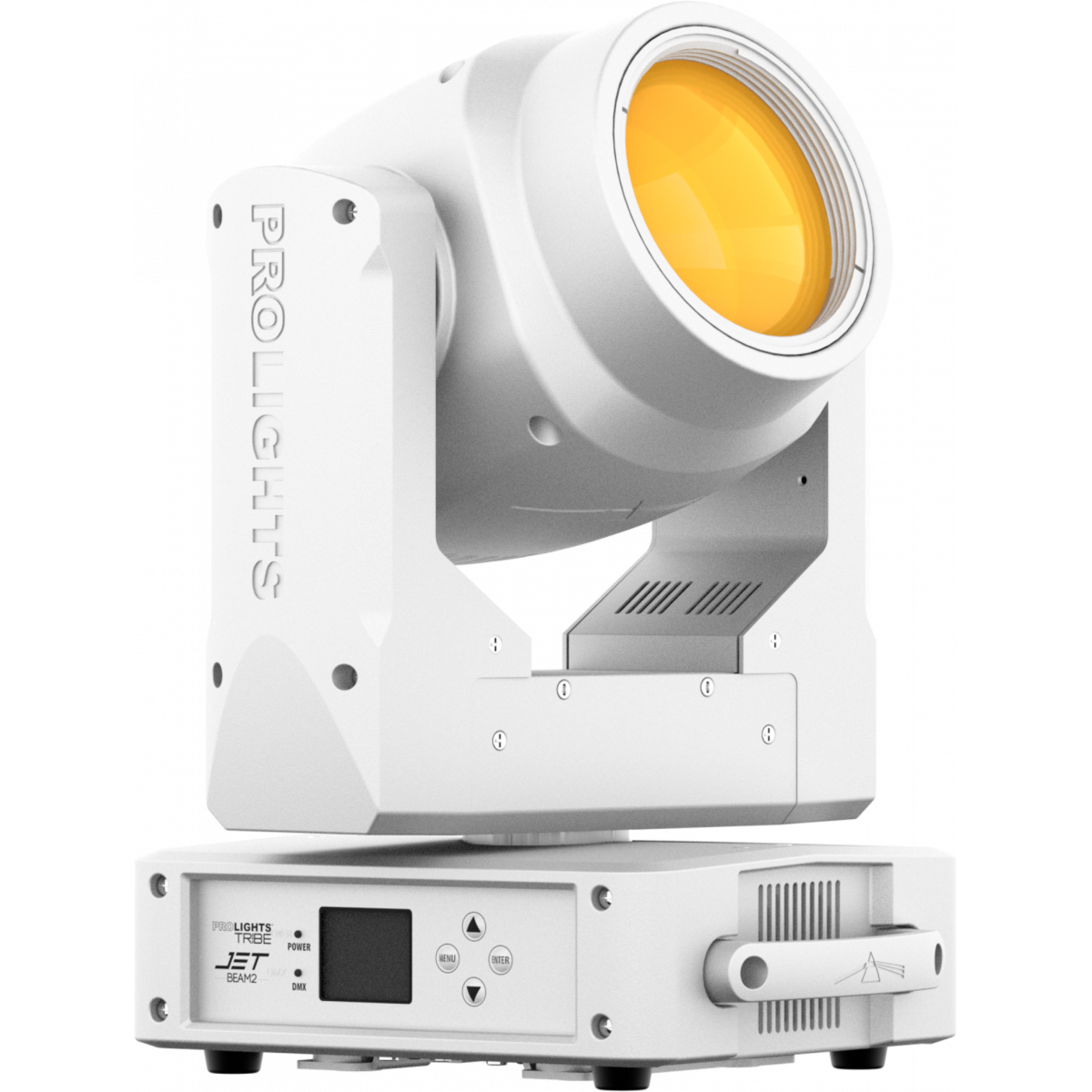

JETBEAM2WH
JETBEAM2WH
White

Accessories & Related Products

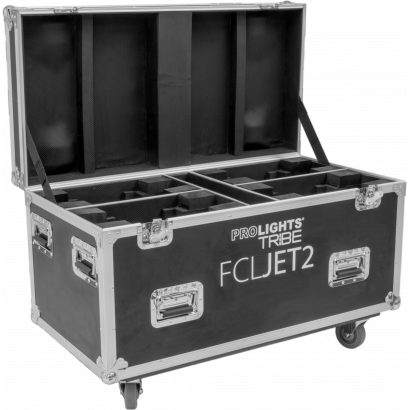

FCLJET2
FCLJET2
(optional)
Flight case per 4 pcs of JETBEAM2 / JETSPOT2
C6016B
C6016B
(optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black&White& White
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Jetbeam2_A4_DATASHEET_(EN).pdf 172KB
Letter datasheet Jetbeam2_A4_DATASHEET_(IT).pdf 188KB

User manual

File name File size Download
User manual Jetbeam2_USER_MANUAL_ITEN.pdf 6MB

DMX chart & personalities

File name File size Download
DMX chart Jetbeam2_DMX_CHARTS.pdf 59KB
JETBEAM2 Firmware rev. 1.3
manufacturer fixture library (Link) Link
prolights_jetbeam2.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
jetbeam2_9ch.fdfDownload
jetbeam2_11ch.fdfDownload
jetbeam2_9ch.sslDownload
jetbeam2_11ch.sslDownload
jetbeam2_9ch.ssl2Download
jetbeam2_11ch.ssl2Download
manufacturer fixture library (Link) Link
prolights@jetbeam-2_bas16@.xmlDownload
manufacturer fixture library (Link) Link
jetbeam2_11ch.hog4showDownload
jetbeam2_9ch.hog4showDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
jetbeam 2 basic 8.fix2Download
jetbeam 2 basic 16.fix2Download

Photometrics

File name File size Download
Photometrics Jetbeam2_PHOTOMETRICS.pdf 170KB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D SKP Jetbeam2_3D.skp 2MB
2D Jetbeam2_CAD_2D.dwg 4MB
3D Jetbeam2_CAD_3D.dwg 1MB
Technical drawing Jetbeam2_TECHNICAL_DRAWING.pdf 338KB
VectorWorks JETBEAM2_SYMBOLS.zip 996KB
VectorWorks PROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx 317MB
VectorWorks PROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx 488MB

Tech docs

File name File size Download
Color Document Jetbeam2_COLOR.pdf 32KB
Gobos Document Jetbeam2_GOBOS.pdf 37KB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.3 STABLE 25/11/2017 Added password on calibration function. The password is 050. Rev. 1
