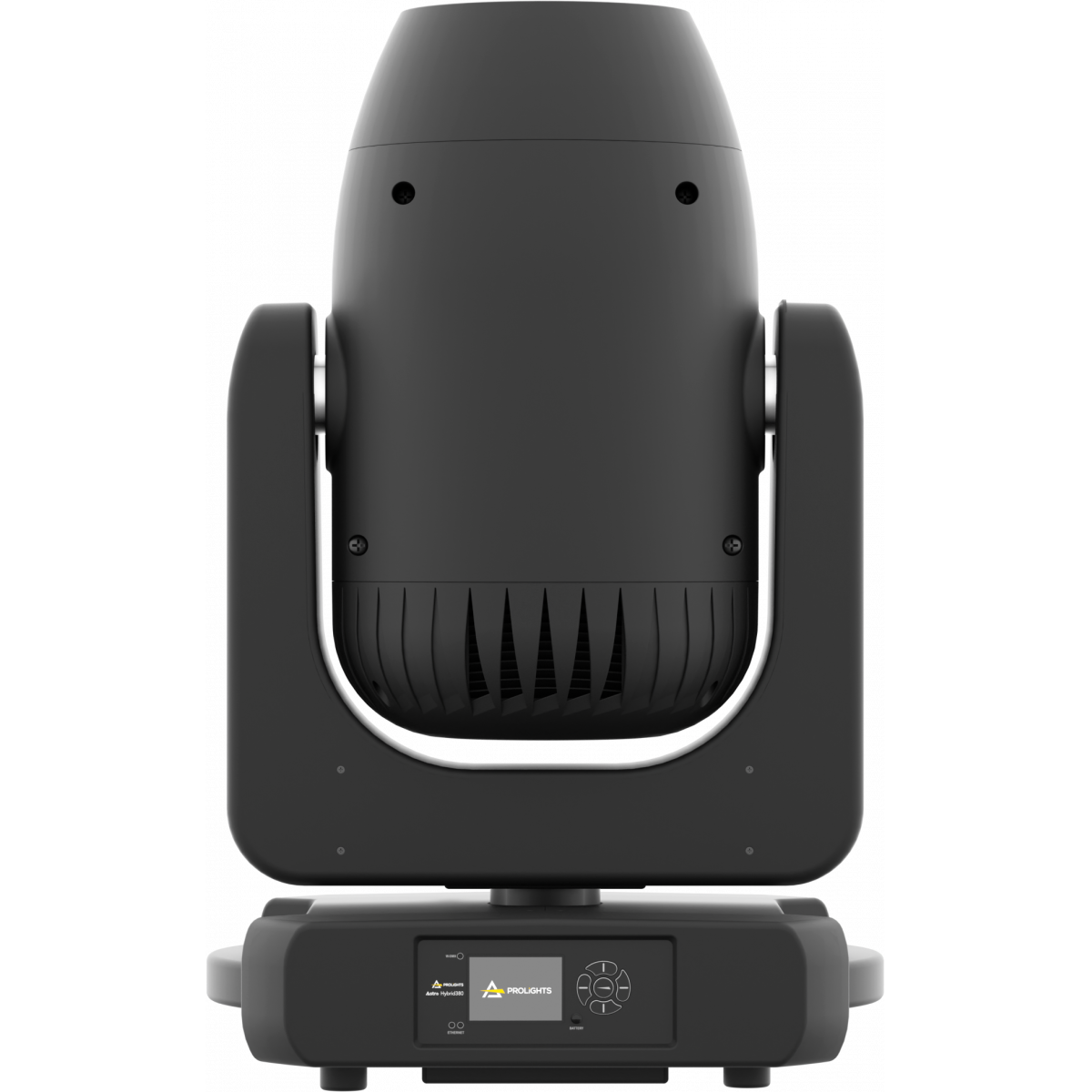

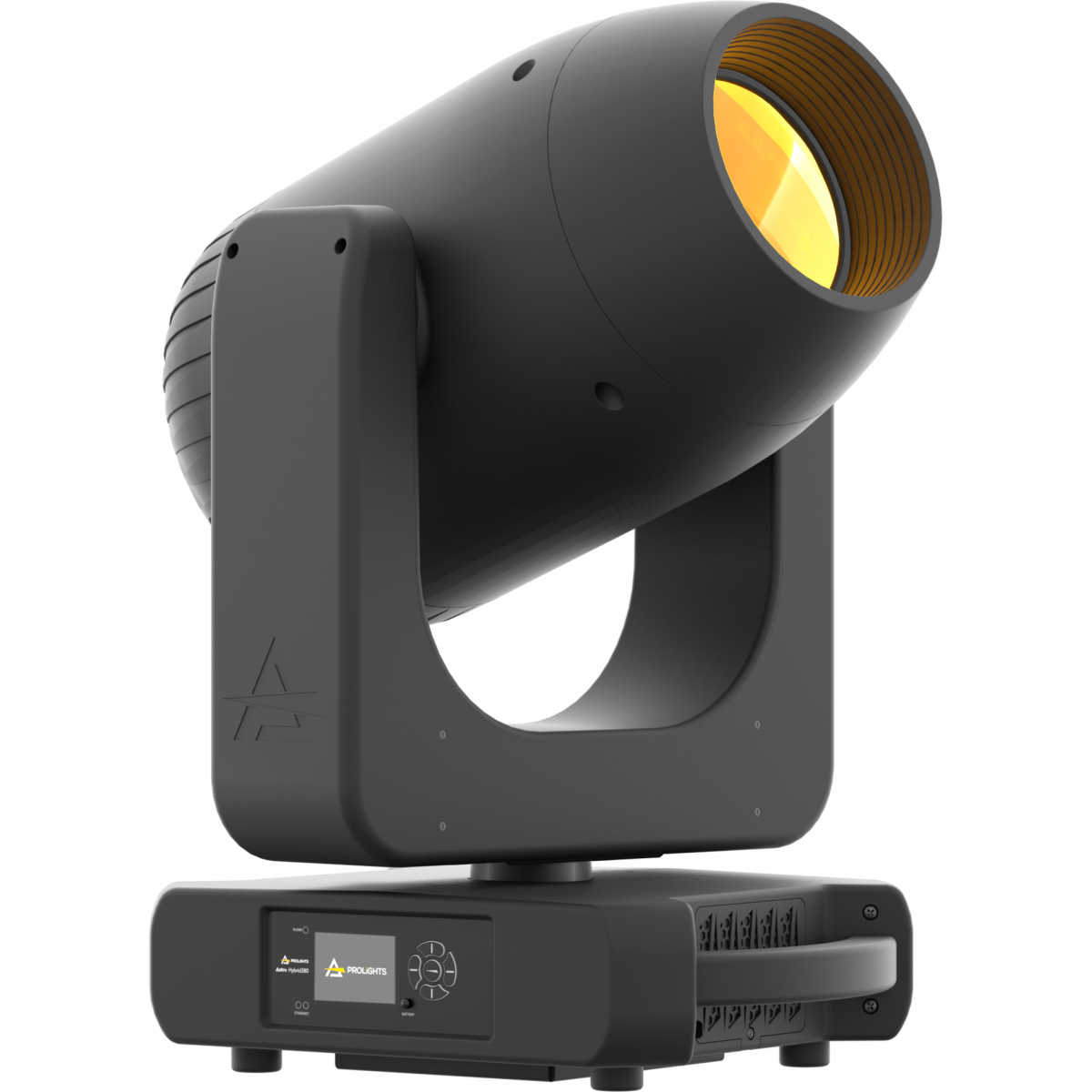

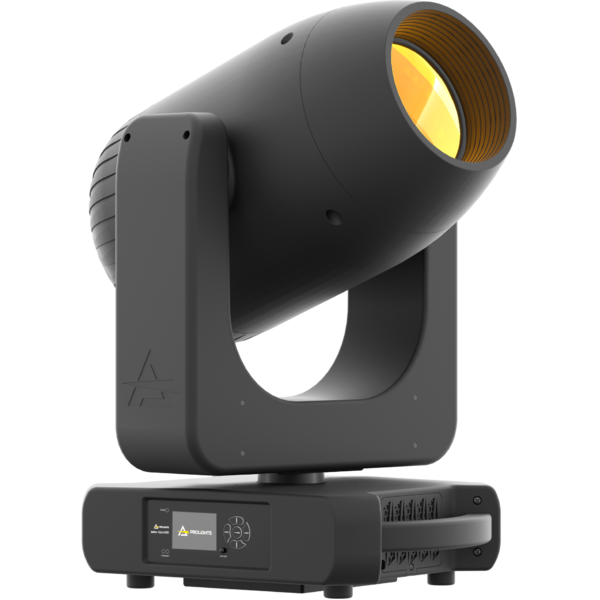

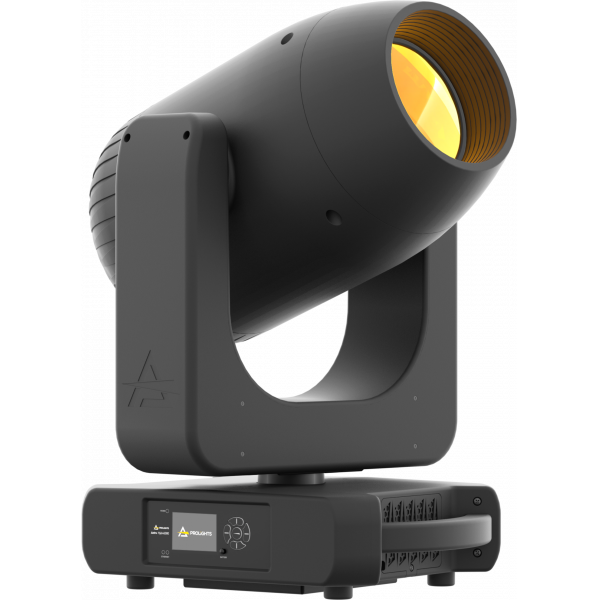

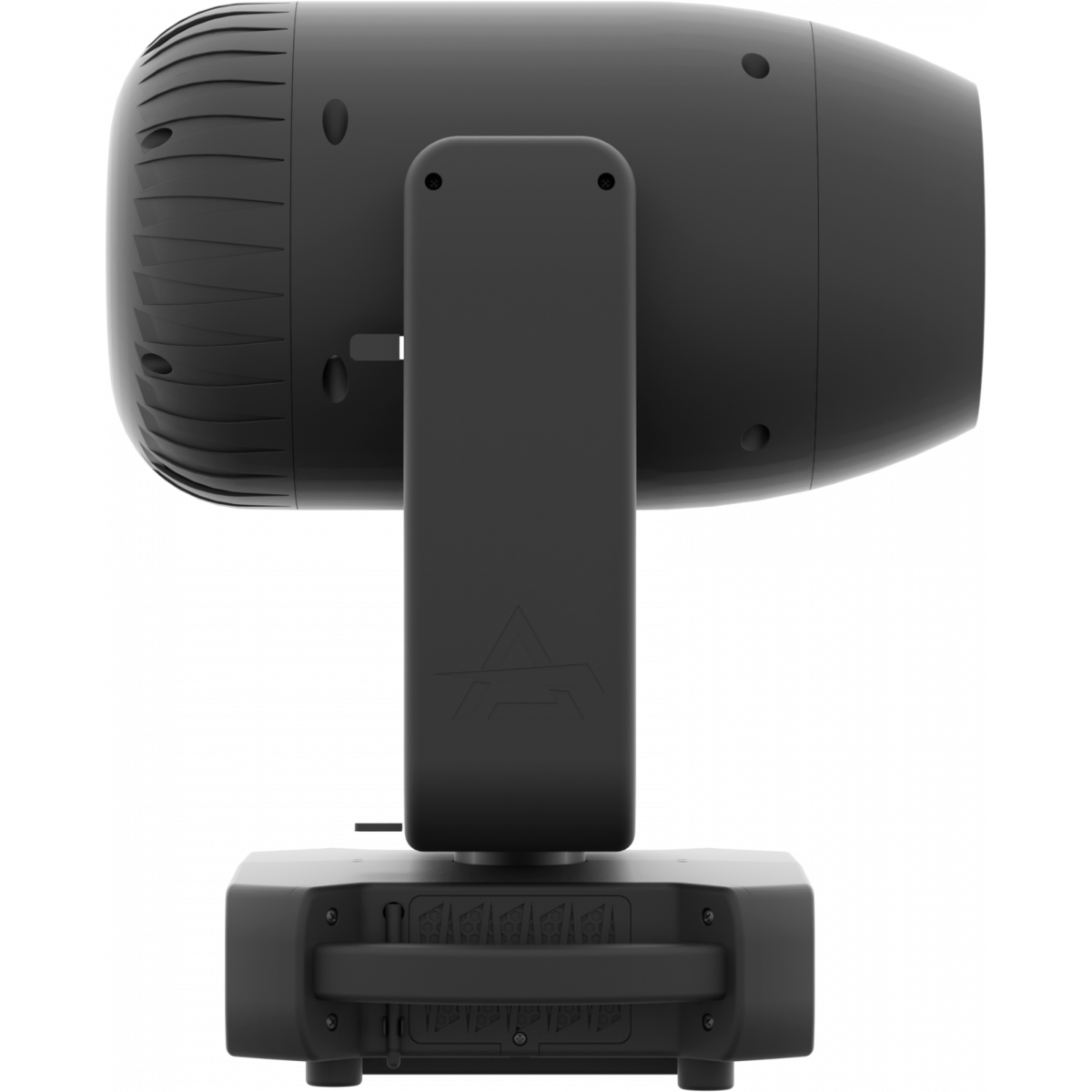

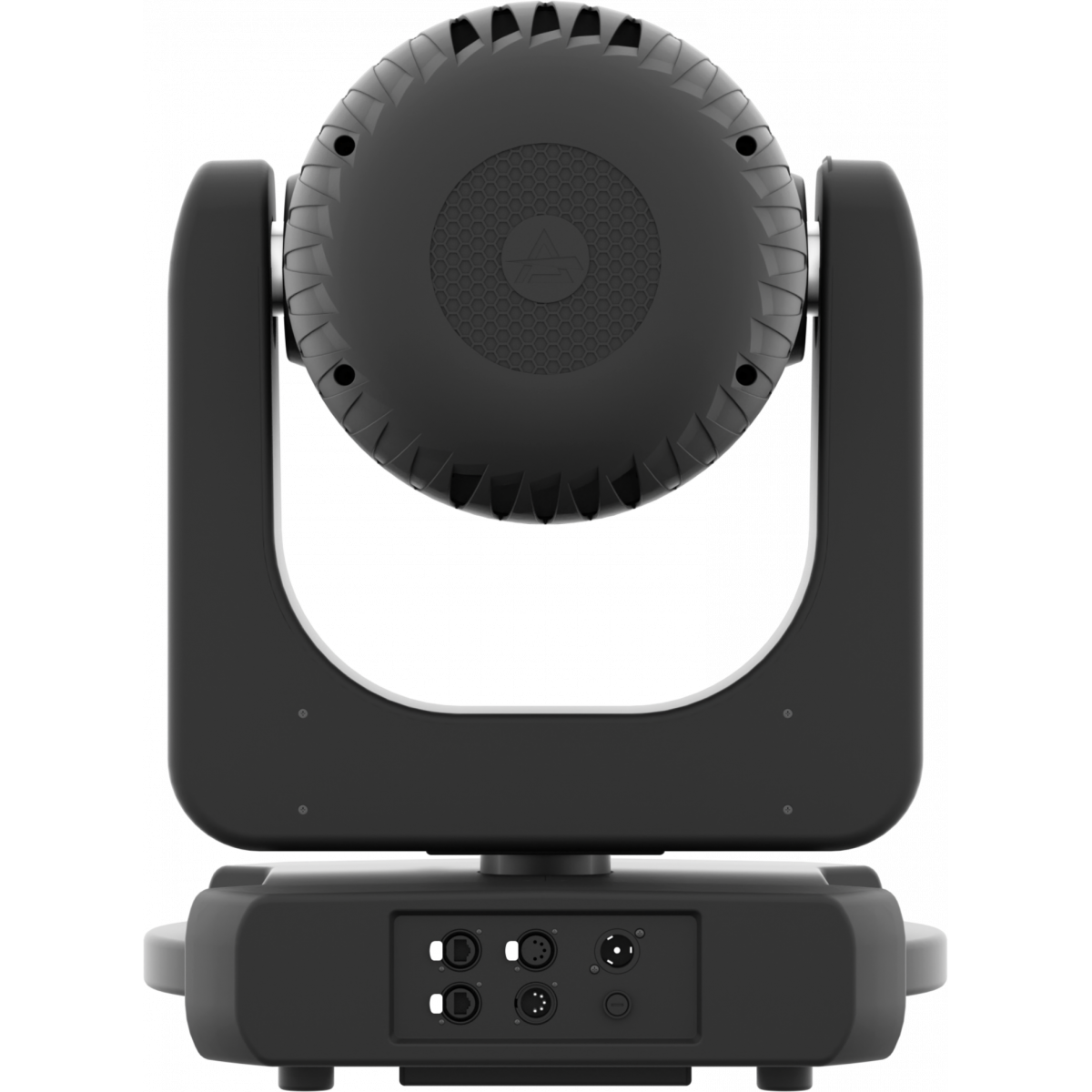

Astra Hybrid420 new

ORDER CODE: ASTRAHYB420

Hybrid moving beam-spot, with a 420W USHIO NSL421 lamp

The Astra Hybrid420 is a hybrid moving head that excels as a bright beam fixture and perfect spotlight, offering a tremendous lumen output and superior evenness compared with other lights in the same category.
The Astra Hybrid420 optical system moves linearly from 2.7° to 40°, and it's equipped with a brand new 420W USHIO NSL421 lamp, featuring an equivalent output of higher power consumption units, but in a smaller, lighter, and faster body.
The extensive feature set of the Astra Hybrid420 includes functions like aerial effects with a fat and parallel beam and crisp projection textures and pattern effects, with linear CMY, three colour-wheels, an animation wheel, two overlapping prisms, frost and two gobo wheels.

Main features:

  • Hybrid moving light equipped with a 420W USHIO NSL421 lamp
  • Linear zoom ranging from 2.7° to 40°
  • Linear CMY, animation wheel, 2 gobo wheels, 3 colour wheels, 2 overlapping prisms

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 420W USHIO NSL421
  • CCT: 7.000
  • Luminous flux: 35.815lm
  • Lux: (2.7°) 99.284 lx - (40°) 281lx @15 m
  • Source life expectancy: 6.000 h
OPTICS
  • Zoom: 2.7° - 40° motorised linear zoom
  • Lens diameter: 153mm / 6.02''
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: motorised
COLOUR SYSTEM
  • Colour mixing: CMY colour system on 3 gradually fading colour wheels
  • CCT: on wheel 2.500 K and 3.200 K + CTB
  • Colour wheel: 15 dichroic filters on 3 independent colour wheels
DYNAMIC EFFECTS
  • Animation wheel: animation wheel with CW and CCW rotation
  • Rotating gobos: 9 rotating gobos + open, interchangeable, indexing
  • Gobo size: outer: 15,9 mm - image: 12 mm - thickness: 1,1 mm
  • Fixed gobos: 18 fixed gobos + open
  • FX generator: 2 prisms overlap for spectacular aerial effects
  • Circular prism: 8 f and 4f with bi-directional rotation, indexing
  • Frost: linear 0 - 100% frost filter
BODY
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Pan angle: 540°
  • Tilt angle: 270°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: RAL 9004
CONTROL
  • Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
  • DMX channels: 30channel
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: via menu with internal memory or via USB - DMX interface (UPBOX2) not included
  • Other: 16bit control of dimmer
ELECTRONICS
  • Dimmer: linear 0 ~ 100% mechanical dimmer
  • Strobe / shutter: 1 - 28 flash(s), mechanical
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 590W
  • Output (at 230V): 4 units on a single power line
  • Power factor: > 0,96
PHYSICAL
  • IP rating: 20
  • Cooling: forced air with fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Pan / tilt lock: for transportation and maintenance
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: Neutrik Art-Net RJ45 IN/OUT
  • Power connection: Neutrik powerCON TRUE1 IN connector
  • Dimensions (WxHxD): 445x668x310mm / 17.52''x26.3''x12.2''
  • Weight: 26,2kg / 57.76lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

FCLASTRAH420IP
FCLASTRAH420IP
(optional)

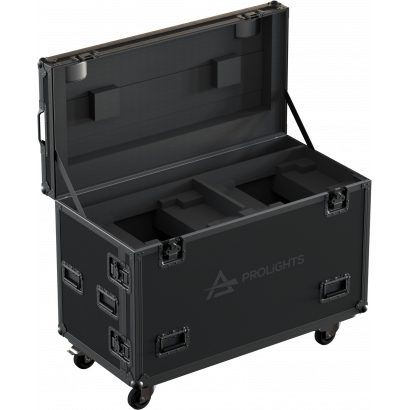

Flight case for 2 pcs of ASTRAHYB420 / ASTRAHYB420IP / ASTRAPROFILE600IP
OS24
OS24
(included)
Quick-lock omega bracket, M10 hole
OS24D13
OS24D13
(optional)
Quick-lock omega bracket, M12 hole
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
RSR0670B
RSR0670B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
UPBOX2P5
UPBOX2P5
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Astrahyb420_LETTER_DATASHEET_(EN).pdf 565KB
Letter datasheet Astrahyb420_A4_DATASHEET_(EN).pdf 483KB
Tender Specification Astrahyb420_TENDER_SPECIFICATION.pdf 4MB

User manual

File name File size Download
User manual Astrahyb420_USER_MANUAL_EN.pdf 8MB
General safety info GENERAL_SAFETY_INFORMATION.pdf 12MB
User manual Astrahyb420_USER_MANUAL_FR.pdf 7MB
User manual Astrahyb420_Wireless_Protocol_Compatibilit_EN.pdf 4MB

DMX chart & personalities

File name File size Download
DMX chart Astrahyb420_DMX_CHARTS.pdf 724KB
VectorWorks VECTORWORKS_SYMBOLS.vwx 490KB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 444MB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
ASTRAHYB420 Firmware rev. 1.0.22
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights - astrahyb420.fdfDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
PDF Photometrics Astrahyb420_PHOTOMETRICS_REPORT.pdf 2MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D SKP Astrahyb420_3D_SKETCHUP.skp 338KB
2D Astrahyb420_2D.dwg 7MB
3D Astrahyb420_3D.dwg 524KB
2D cad symbols Astrahyb420_2DSYMBOLS.dwg 75KB
Technical drawing Astrahyb420_TECHNICAL_DRAWING.pdf 365KB

Tech docs

File name File size Download
Color Document Astrahyb420_COLOR.pdf 486KB
Gobos Document Astrahyb420_GOBOS.pdf 705KB

Software

File name File size Download

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX2P5 {CodiceUpBox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0.22 STABLE 24/06/2022 Improvements:
  • Faster fan speed during reset procedure.
