Jet Spot2

150W moving spot with white LED source

Jet Spot2 is a LED spot luminaire designed to deliver a stunning light level for its size and price. Ideal both for installation and for rental, the Jet Spot2 focuses on maximising the light output from its LED source to deliver a crisp, even beam from a compact size.

Main features:

  • Ultra-efficient 150W 8.000 K white LED source
  • Fixed 20° beam angle
  • Extensive effects including one colour wheel, rotating gobo wheel, static gobo wheel, prism and focus
See variants

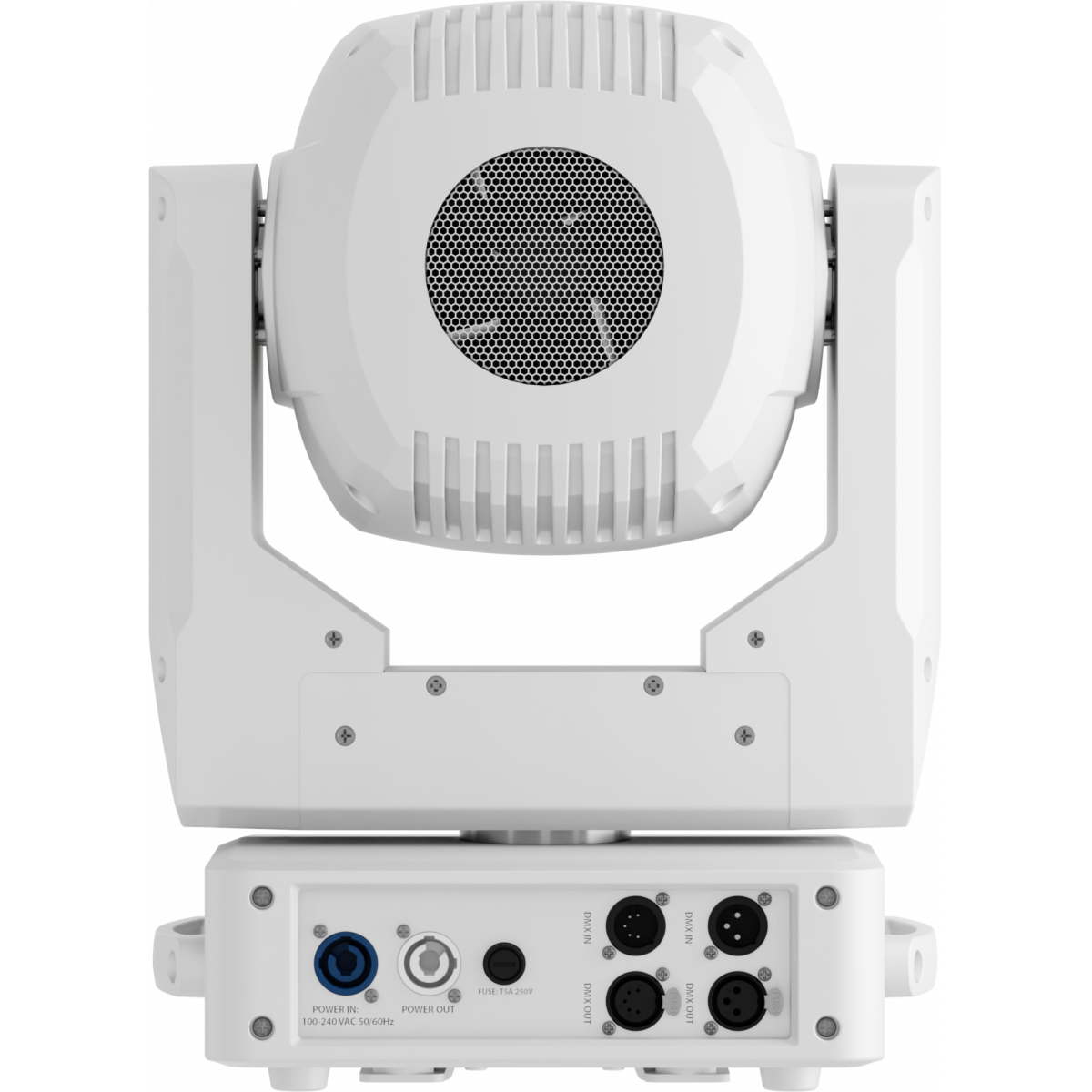

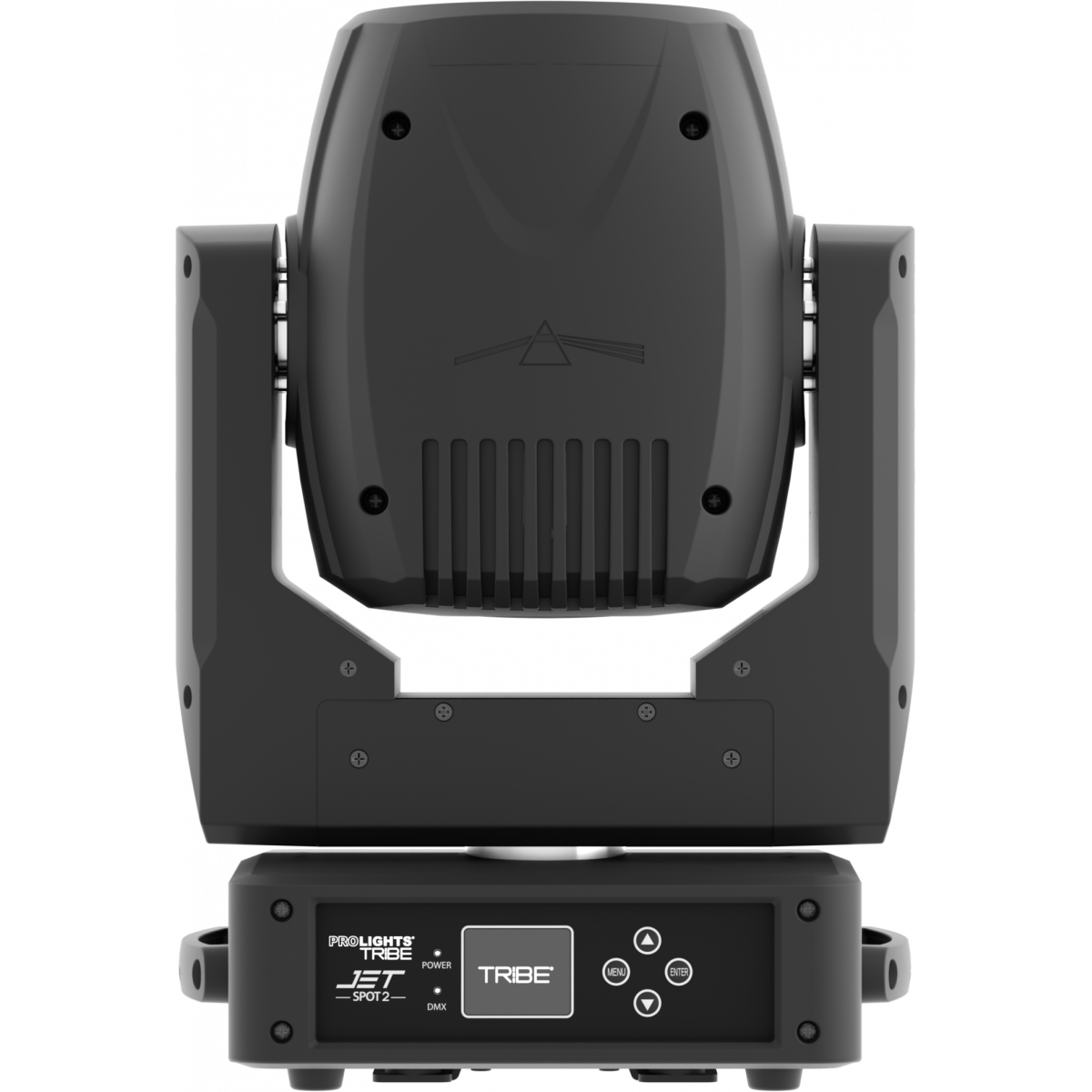

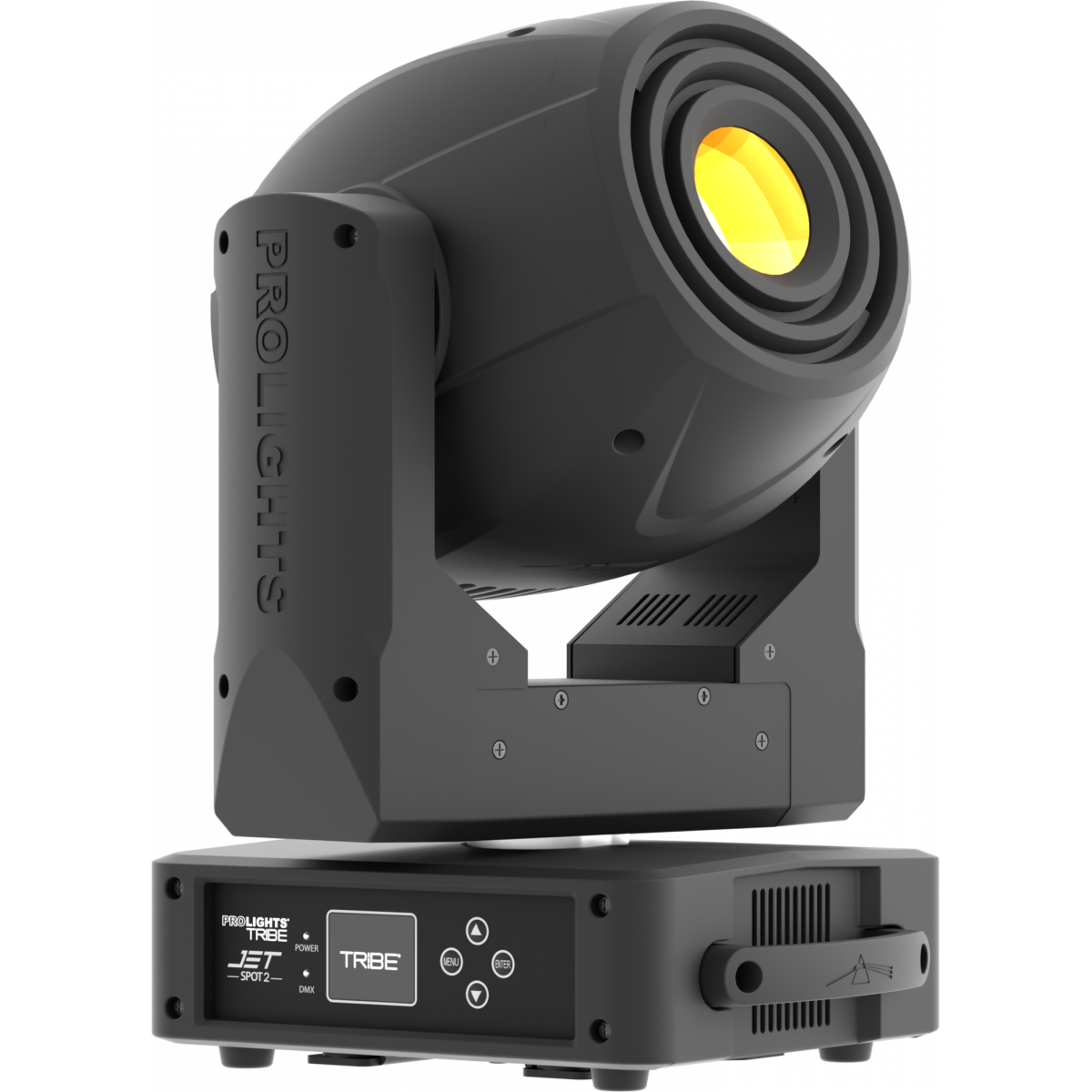

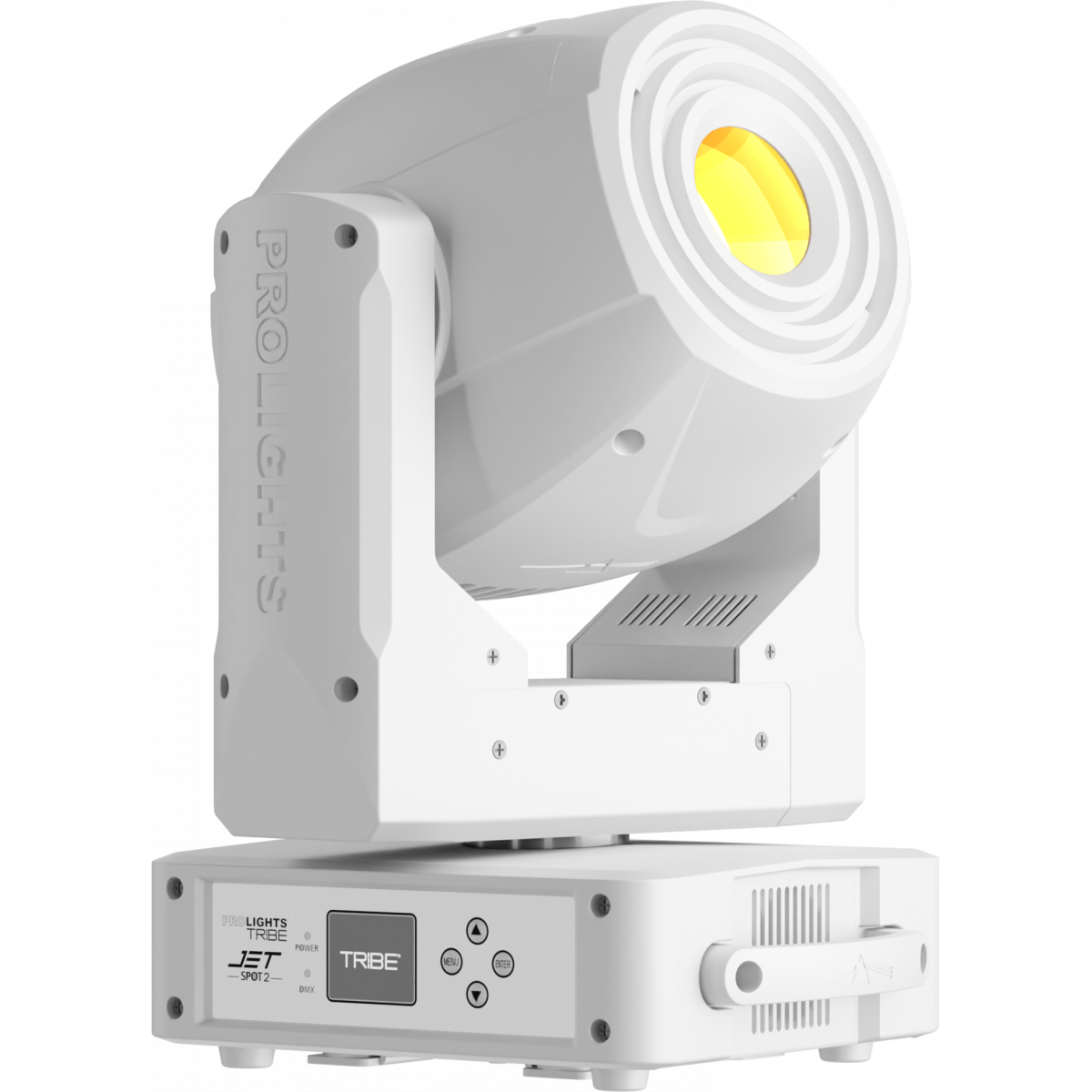

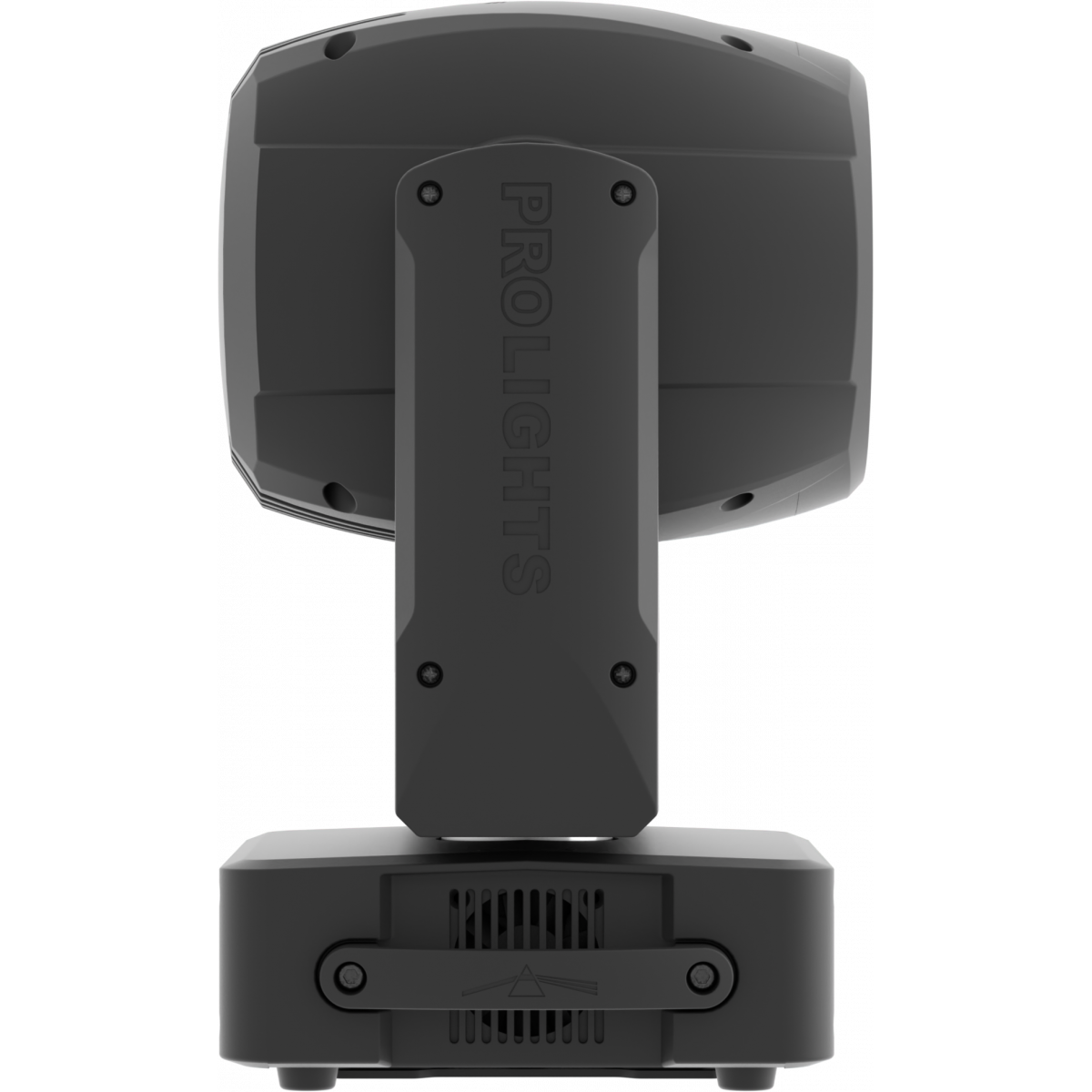

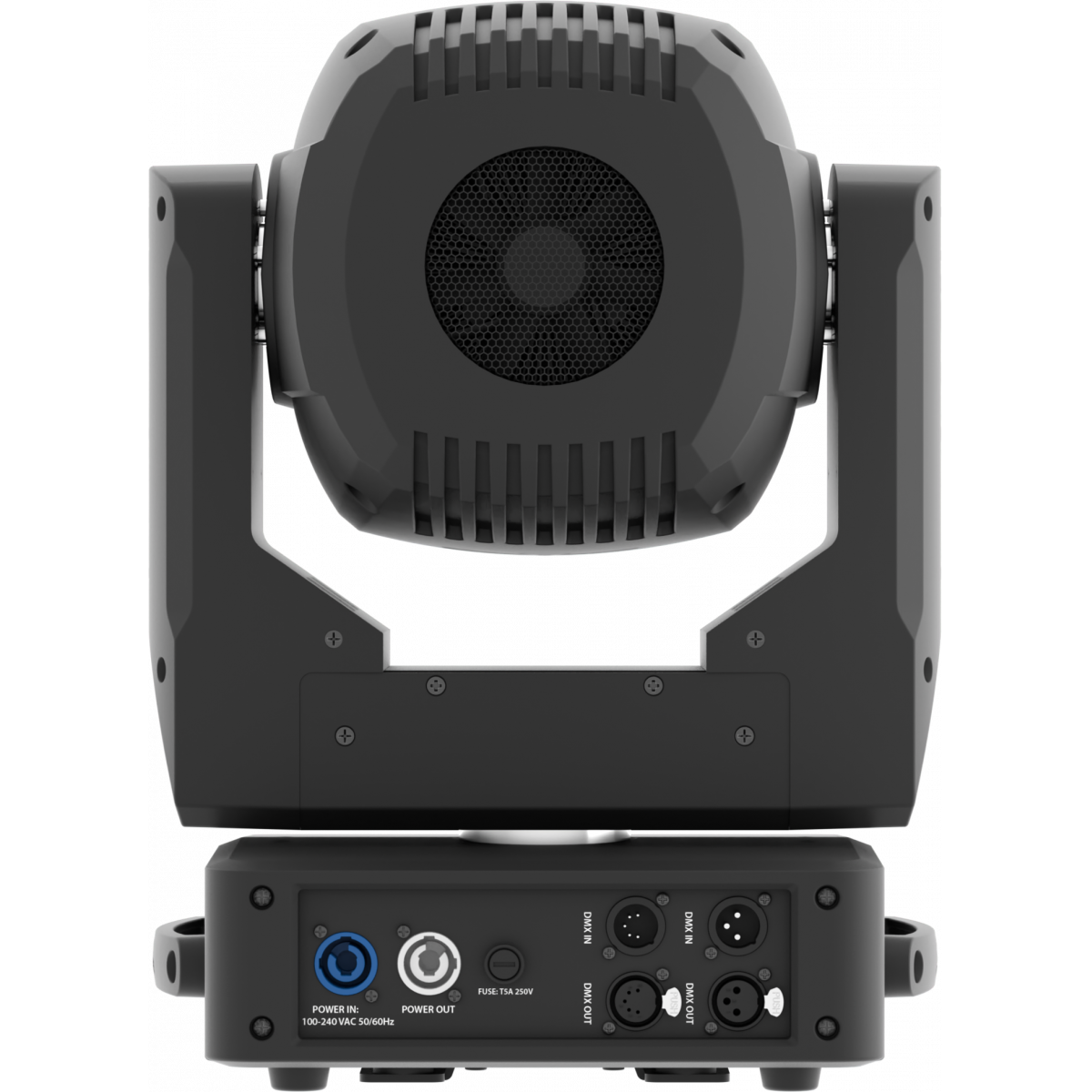

PHOTO GALLERY

Jet Spot2
Jet Spot2
Jet Spot2
Jet Spot2
Jet Spot2
Jet Spot2

Technical specifications

LIGHT SOURCE
  • Source: 150W high-power white LED
  • CCT: 8.000
  • Luminous flux: 7'400
  • Lux: 8'900lx @3 m
  • Lux: 810lx @10 m
  • CRI: 78
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 20°
  • Focus: motorised
COLOUR SYSTEM
  • Colour wheel: 8 colour filters
DYNAMIC EFFECTS
  • Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
  • Gobo size: outer: 24,2 mm - image: 20 mm - thickness: 0,3 mm
  • Fixed gobos: 8 fixed gobos + open
  • Circular prism: 3f with bi-directional rotation, indexing
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Pan angle: 540°
  • Tilt angle: 270°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black, white finishing available
  • Other: black RAL 9004, white RAL 9003
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 12 / 15channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 225W
  • Max power consumption (at 120V): 226W
  • Output (at 230V): 16 units on a single power line
  • Output (at 120V): 8 units on a single power line
PHYSICAL
  • IP rating: 20
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: XLR 3p + 5p IN/OUT connectors
  • Power connection: Seetronic powerCON IN/OUT connectors
  • Dimensions (WxHxD): 308x436x230mm / 12.13''x17.17''x9.06''
  • Weight: 13,7kg / 30.2lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Housing
JETSPOT2BK
JETSPOT2BK (DISCONTINUED)
Black
JETSPOT2WH
JETSPOT2WH
White

Accessories & Related Products

FCLJET2
FCLJET2
(optional)
Flight case per 4 pcs of JETBEAM2 / JETSPOT2
C6016B
C6016B
(optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black&White& White
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
TOUR53413L03
TOUR53413L03
(optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Jetspot2_A4_DATASHEET_(EN).pdf 166KB
Letter datasheet Jetspot2_A4_DATASHEET_(IT).pdf 164KB

User manual

File name File size Download
User manual Jetspot2_USER_MANUAL_ITEN.pdf 3MB

DMX chart & personalities

File name File size Download
DMX chart Jetspot2_DMX_CHARTS.pdf 47KB
JETSPOT2 Firmware rev. 1.4
manufacturer fixture library (Link) Link
prolights_jetspot2.d4Download
manufacturer fixture library (Link) Link
prolights_jetspot2_extended.hedDownload
prolights_jetspot2_standard.hedDownload
jetspot2_12ch.fdfDownload
jetspot2_14ch.fdfDownload
prolights@jetspot-2_ext@.xmlDownload
prolights jetspot2_extended rev 1_hog4.zipDownload
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
Photometrics Jetspot2_PHOTOMETRICS.pdf 198KB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D SKP Jetspot2_3D.skp 3MB
3D RFA Jetspot2_3D.rfa 2MB
2D Jetspot2_CAD_2D.dwg 2MB
3D Jetspot2_CAD_3D.dwg 994KB
Technical drawing Jetspot2_TECHNICAL_DRAWING.pdf 294KB
VectorWorks JETSPOT2_SYMBOLS.zip 942KB

Tech docs

File name File size Download
Color Document Jetspot2_COLOR.pdf 76KB
Gobos Document Jetspot2_GOBOS.pdf 351KB
Noise Report Jetspot2_NOISE_REPORT.pdf 325KB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 01/02/2018 V1.1 Added display and buttons reverse function on menù. V1.2 Added 16bit focus function. V1.3 Improved color wheel management. V1.3 Improved temperature management. V1.4 Improved gobo1 rotation management. V1.4 Added password on calibration function. The password is 050. (V1.5 CTR2) Improved noise from gobo wheel rotation.
