WSBBF1G5
WIRELESS SOLUTION
discontinued

WSBBF1G5

ORDER CODE: WSBBF1G5

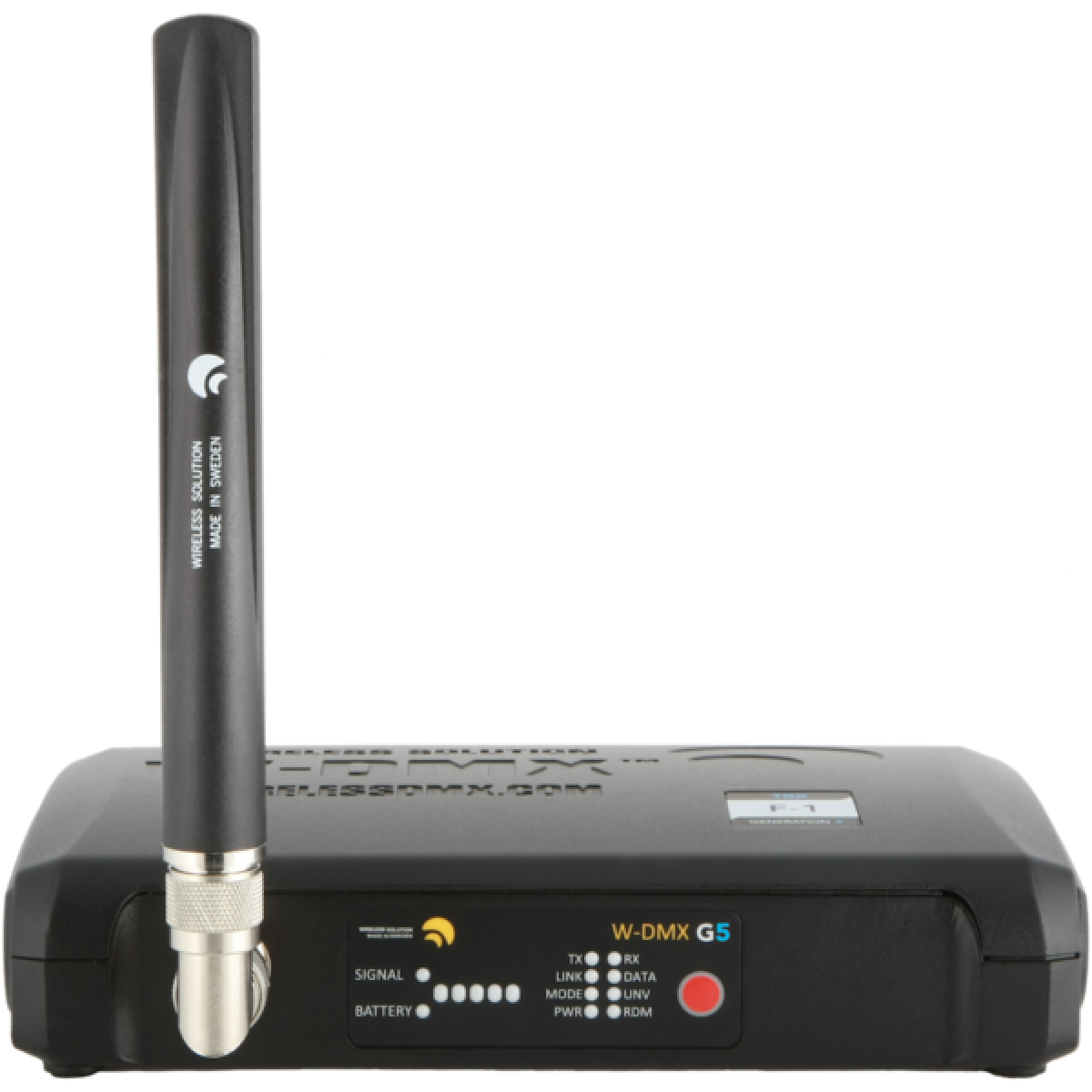

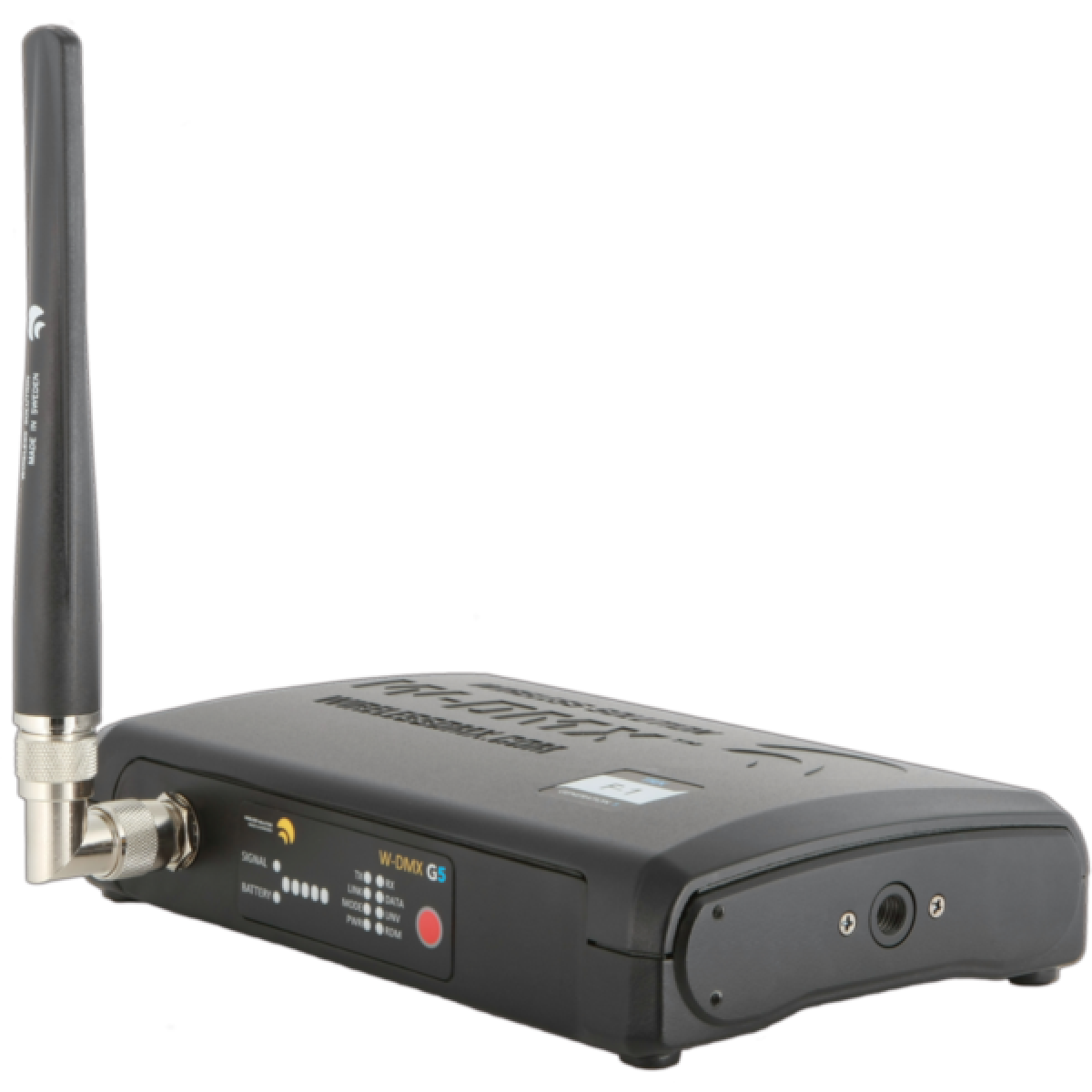

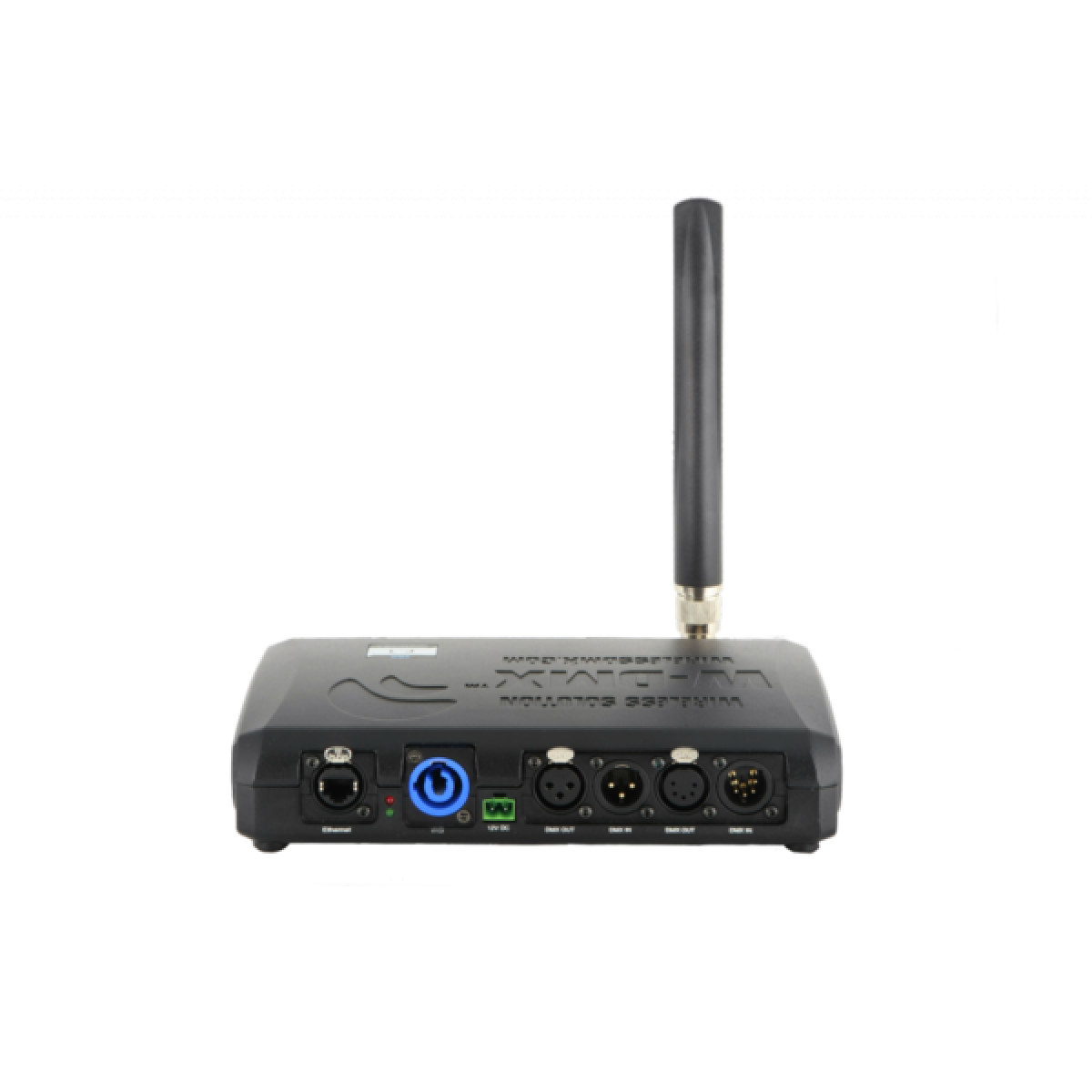

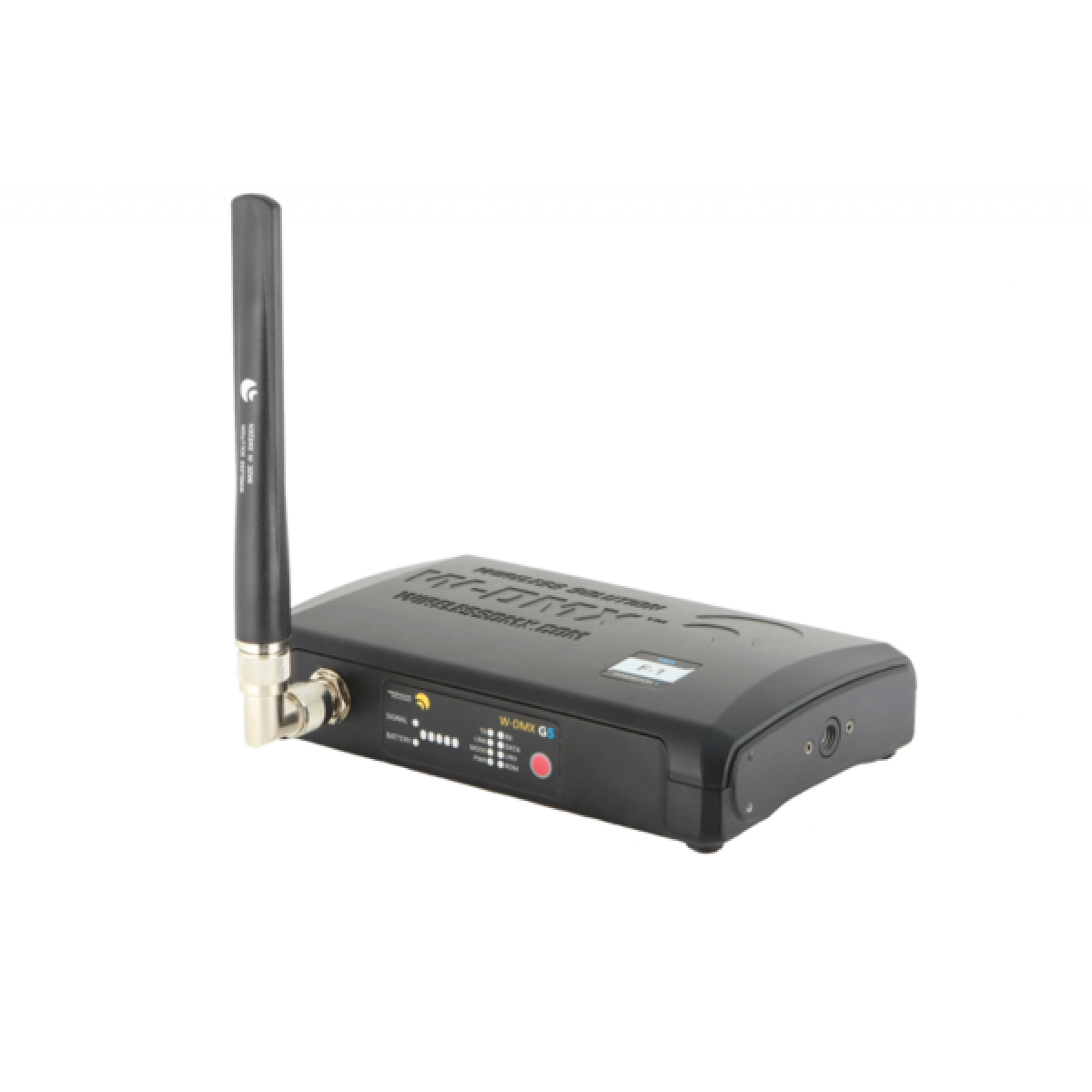

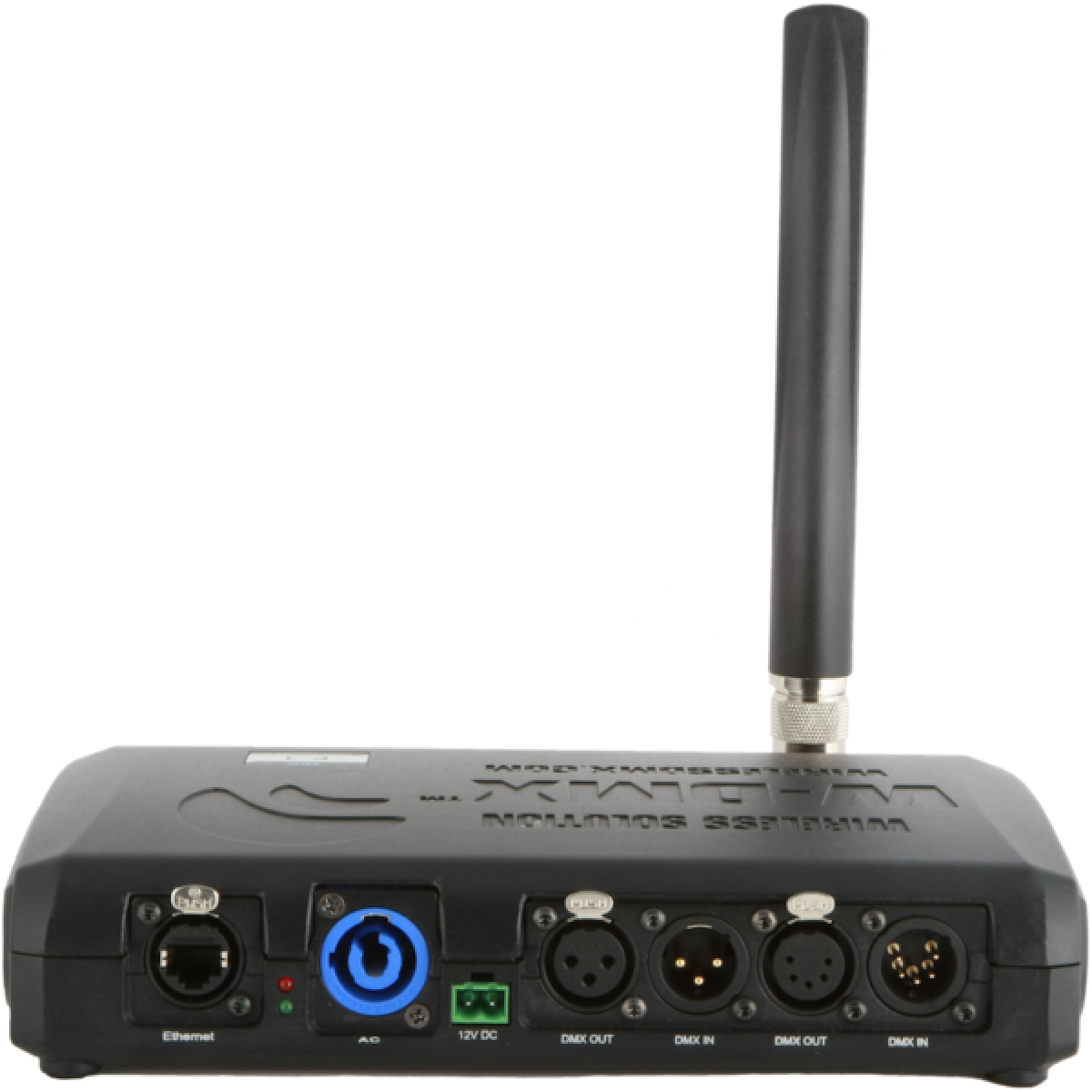

The W-DMX™ Black&White& WhiteBox F-1 G5 transceiver is the perfect single universe wireless DMX solution for theatre and concert touring. The unit supports both transmit and receive modes of DMX and RDM signals, and uses 2.4 GHz, 5.2 GHz and 5.8 GHz frequency bands, giving access to more channels, and alternatives to crowded wireless environments.
It also offers an optional Ethernet protocol support, be it Art-Net, sACN or ETC Net, on both incoming and outgoing streams.

* Triple band function with 5GHz may not be available in all countries, please contact your local dealer or Wireless Solution for more information.

Main features:

  • Single universe DMX/RDM transmitter & receiver
  • W-DMX™ G5 protocol – backward compatible with G3 and G4S
  • Double-Up mode in G5: two universes in one box
  • Tough die-cast metal casing with M10 connector for clamp or spigot
  • Invisi-wire high-fidelity technology – output matches input
  • Datasafe technology – wireless fidelity and error correction
  • Less than 5 ms latency
  • Complete DMX512 support
  • Full RDM support
  • One-button-to-go technology for ease of use
  • Adaptive frequency hopping radio
  • 2.4 GHz – license-free worldwide
  • 5.2 GHz – new, exclusive to W-DMX™ *
  • 5.8 GHz – provides access to ‘virgin’ spectrum *
  • Expandable with Ethernet lighting protocol support (with WSA40309G5 Op.)
  • 90v – 250v AC input or 12V DC input
  • Interchangeable antennas – easily expand your range

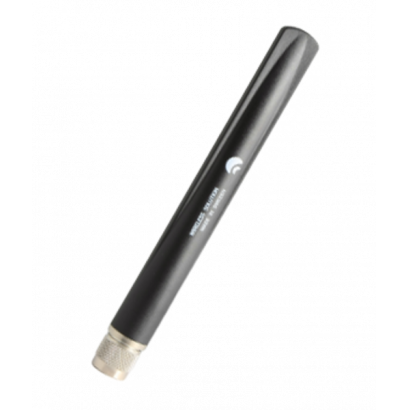

  • Ships standard with 3dBi indoor antenna
  • Compatible with all W-DMX™ OEM products

PHOTO GALLERY

Technical specifications

Versions

Accessories & Related Products

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
3.5.20 STABLE 01/07/2021
1 STABLE 06/11/2019 ADDED DOUBLE UP MODE
