SMARTTUBE32
TRIBEby TRIBE
end of life

SMARTTUBE32

ORDER CODE: SMARTTUBE32

SMARTTUBE32 is a portable set of 4 acrylic LEDs tubes truly adding the 3rd dimension in the creation of visual shows through its tubular shapes and capacity to project at 360°. Each tube is equipped with 2 lines of 16 RGB / FC LEDs, a lithium integrated battery pack and a built-in Wi-Fi module for cable-free operation. LED technology allows these lights to create striking effects with dynamic colour changes and powerful, synchronised operations. The internal battery lasts 6 hours on full output while the charging time is only 4 hours. The transmission of the DMX signal is via Wi-Fi, the transmission unit WIFIBOX is compatible with any DMX controller or through the SmartColors app availabe on both IOS and Android.

Main features:

  • 32 SMD5050 RGB / FC high-efficiency LEDs
  • Viewing angle: 360°
  • Long lasting battery life: 10 h in colour changing mode / 6 h in full
  • Wireless operated: through proprietary wireless DMX protocol or SmartColors App for IOS and Android devices
See variants

PHOTO GALLERY

SMARTTUBE32
SMARTTUBE32
SMARTTUBE32
SMARTTUBE32
SMARTTUBE32
SMARTTUBE32
SMARTTUBE32

Technical specifications

LIGHT SOURCE
  • Source: 32W SMD5050 RGB LED
  • Luminous flux: 128,4
  • Lux: 14,8lx @1 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 360°
COLOUR SYSTEM
  • Colour mixing: RGB / FC
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Sound mode: music activation through internal microphone and sensitivity control
BODY
  • Body: acrylic tube, black PCB
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 3 / 8 / 48 / 50channel
  • Pixel control: pixel2pixel control
  • Wireless Control: integrated, proprietary protocol compatible with WIFIBOX, WDBOX
  • Display: LED display user interface
  • IR: infrared sensor controlled by remote
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 28 Hz, electronic
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: DC 15V
  • Max power consumption: 4,1W
BATTERY
  • Battery: 11,1V lithium
  • Estimated battery life in colour change mode up to: 8h
  • Estimated battery life in single colour mode up to: R 9,5 h / G 9 h / B 9h
  • Estimated battery life in full-mode up to: 6h
  • Re-charge connection: power cable
  • Re-charge time: 4h/max
PHYSICAL
  • IP rating: 20
  • Power connection: IEC IN/OUT connectors
  • Dimensions (WxHxD): 160x1520x160mm / 6.3''x59.84''x6.3''
  • Weight: 1,3kg / 2.87lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA
BOX CONTENT

Versions

Accessories & Related Products

C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

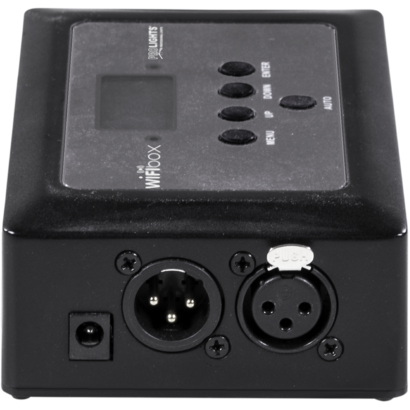

<b>WIFI</b>-Box
WIFI-Box
(Optional)
DMX controller interface, Wi-Fi/DMX IN, Wi-Fi / DMX OUT

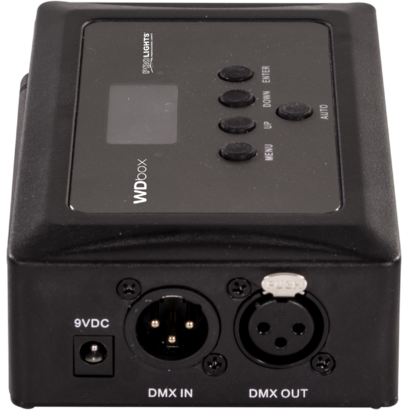

<b>WD</b>-Box
WD-Box
(Optional)
Wireless DMX Transceiver, IN/OUT 3-pin XLR, distance 200m, 2.4 GHz, 0.6 kg

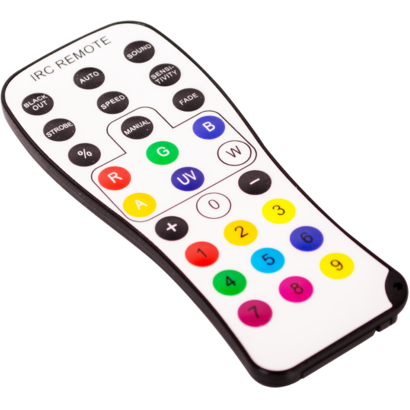

LUMIPARIRCH
LUMIPARIRCH
(Optional)
RGBWA IR remote controller, manual / auto modes, for LUMIPAR IR series

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualSmarttube32_USER_MANUAL_ITEN.pdf1MB

DMX chart & personalities

File name File size Download
SMARTTUBE32 Firmware rev. 1.1
manufacturer fixture library (Link) Link
prolights_smarttube32.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
smarttube32 (unit)_3ch.fdfDownload
smarttube32 (unit)_8ch.fdfDownload
smarttube32 (unit)_48ch.fdfDownload
smarttube32 (unit)_50ch.fdfDownload
manufacturer fixture library (Link) Link
prolights@smarttube_32@3_channel@ma_library_update_v13.5.xmlpDownload
prolights@smarttube_32@8_channel@ma_library_update_v13.5.xmlpDownload
prolights@smarttube_32@48_channel@ma_library_update_v13.5.xmlpDownload
prolights@smarttube_32@50_channel@ma_library_update_v13.5.xmlpDownload
manufacturer fixture library (Link) Link
smarttube 32 3 channel.fix2Download
smarttube 32 8 channel.fix2Download
smarttube 32 48 channel.fix2Download
smarttube 32 50 channel.fix2Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
3D RFASmarttube32_3D.rvt438KB
3D SKPSmarttube32_3D.skp253KB
2DSmarttube32_CAD_2D.dwg617KB
3DSmarttube32_CAD_3D.dwg640KB
2D cad symbolsSmarttube32_CAD_2DSYMBOLS.dwg96KB
Technical drawingSmarttube32_TECHNICAL_DRAWING.pdf84KB
VectorWorksVECTORWORKS_SYMBOLS.vwx292KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1 STABLE 18/03/2016 Improved Sound Mode function.
